Mec NANO HIPPO 50WH User manual

NANO HIPPO 50WH
Air Purifier
FIMACO SDN. BHD.

Contents
Important Safeguards
Introduction
First installation
Using method
Maintenance and cleaning
Replacing air filter
Trouble shooting
Contents
1
1
2
4
9
11
17
19
21

2
Important Safeguards
Danger
warning
Please read this user manual carefully before using the appliance and
save it for future reference.
Do not let water or any other liquid or flammable detergent enter the unit to
avoid electric shock and / or a fire hazard.
Do not clean the appliance with water or any other liquid or (flammable)
detergent to avoid electric shock and/ or a fire hazard.
Check if the voltage indicated on the rating label corresponds to the local
mains voltage before you connect the appliance.
If the mains cord is damaged, you must contact our company or a service
center authorized by us or similarly qualified persons to replace it in order
to avoid a hazard.
Do not use the appliance if the plug, the mains cord or the appliance itself
is damaged.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Do not block the air inlet and outlet, e.g. by placing items on the air outlet
or in front of the air inlet.
This appliance is not a substitute for the proper ventilation, regular vacuum
cleaning or use of an extractor hood or fan while cooking.
If the wall socket used to power the appliance has poor connections, the
plugof the appliance becomes hot. Make sure you plug the appliance into
a properly connected wall socket.
Always place and use the appliance on a dry, stable, level and horizontal
surface.
Leave at least 20cm free space behind and on both sides of the appliance
and leave at least 30cm free space above the appliance.

3
Do not place anything on top of the appliance and do not sit on the
appliance.
Do not place the appliance directly below an air conditioner to prevent
condensation from dripping onto the appliance.
Make sure all filters are properly installed before you switch on the
appliance.
Avoid knocking against the appliance (the air inlet and outlet in particular)
with hard objects.
Always lift or move the appliance by the handle at the back of the
appliance.
Do not insert your fingers or objects into the air outlet.
Do not use this appliance when you have used indoor smoke-type insect
repellents or in places with oily residues, burning incense or chemical
fumes.
Do not use the appliance near gas appliances, heating device or
fireplaces.
Always unplug the appliance after use and before you clean it.
Do not use this appliance in a room with major temperature changes as
this may cause condensation inside the appliance.
To prevent interference, place the appliance at least 2m away from
electrical appliances that use airborne radio waves such as TVs, radios
and radio-controlled clocks.
The appliance is only intended for household use under normal operating
conditions.
Do not use the appliance in wet surroundings or in surroundings with high
ambient temperatures, such as the bathroom, toilet or kitchen.
The appliance does not remove carbonmonoxide (CO) or radon (Rn). It
cannot be used as a safety device in case of accidents with combustion
processes and hazardous chemicals.

4
Introduction
Congratulations on your purchase and welcome to MEC !
With this new Clean Air System you breathe cleaner air. For the best results,
place the Clean Air System in a room where you spend most of your time, e.g.
the living room or bedroom.
Wherever there are people, plants or pets, there are airborne particles that can
affect your well-being, especially if you suffer from allergies. Because of these
particles, the air inside a room may be more polluted than the air in a large city.
Normally, particles are invisible and odorless. Nevertheless they can affect
your health. The Clean Air System reduces the amount of animal dander and
industrial pollutants in the air, and therefore improves the air quality. It also
filters out ultrafine particles larger than 20 nanometers, including bacteria and
some viruses. According to publications of the World Health Organization, the
avian and human influenza viruses and the legionella bacterium are larger
than 20 nanometers
-
Filtration in several stages
The air cleaner has a unique multi-stage filtration system that guarantees
the best air quality:
Stage 1: The pre-filter has been treated with antibacterial substances. It
catches big particles like human hair, pet hair etc.
Stage 2: The multi-filter which adopts organic antibacterial material filters out
small particles and pollen. Also with antibacterial and antifungal functions, it
can eliminate bacteria and fungi.
Stage 3: The high-performance composite HEPA filter with anti-bacterial
coating effectively removes fine dust and cigarette smoke, while the
antibacterial and anti-mould functions of organic antibacterial materials
eliminate germs and mould. According to the publications of the World Heath
Organization, the avian and human influenza viruses and legionella bacterium
are larger than 20 nanometers.
-
Stage 4: Activated carbon filter can effectively absorb formaldehyde, toluene,
volatile organic compounds (VOCs),Ammonia, Acetaldehyde and Acid and
other odors and harmful gases.
.

5
Stage 5: Plasma generator makes use of the ionized plasma to form the
plasma field, where can produces streamer discharge and partial ionization.
During the gas ionization, it will produce large amount of oxygen, OH, active
factor and radicals. Harmful substances in the gas will be decomposed and
oxidized during the ionization discharge and streamer procedure. The bonds
the disinfection and sterilization fundamentally and efficiently sterilize,
degusting，filter out smoke and odors
Model and Filter Functions
(P-F) : Pre-filter
(P) : Plasma
(H-P-H-F) : High Performance HEPA Filter
(M-F-F) : Multi-fuction Filter
(A-C-F): Activated Carbon Filter
Model
Filter Function
NANO HIPPO
50WH Yes Yes Yes Yes No Yes
P-F M-F-F H-P-H-F A-C-F P-Y-T-D-F P

6

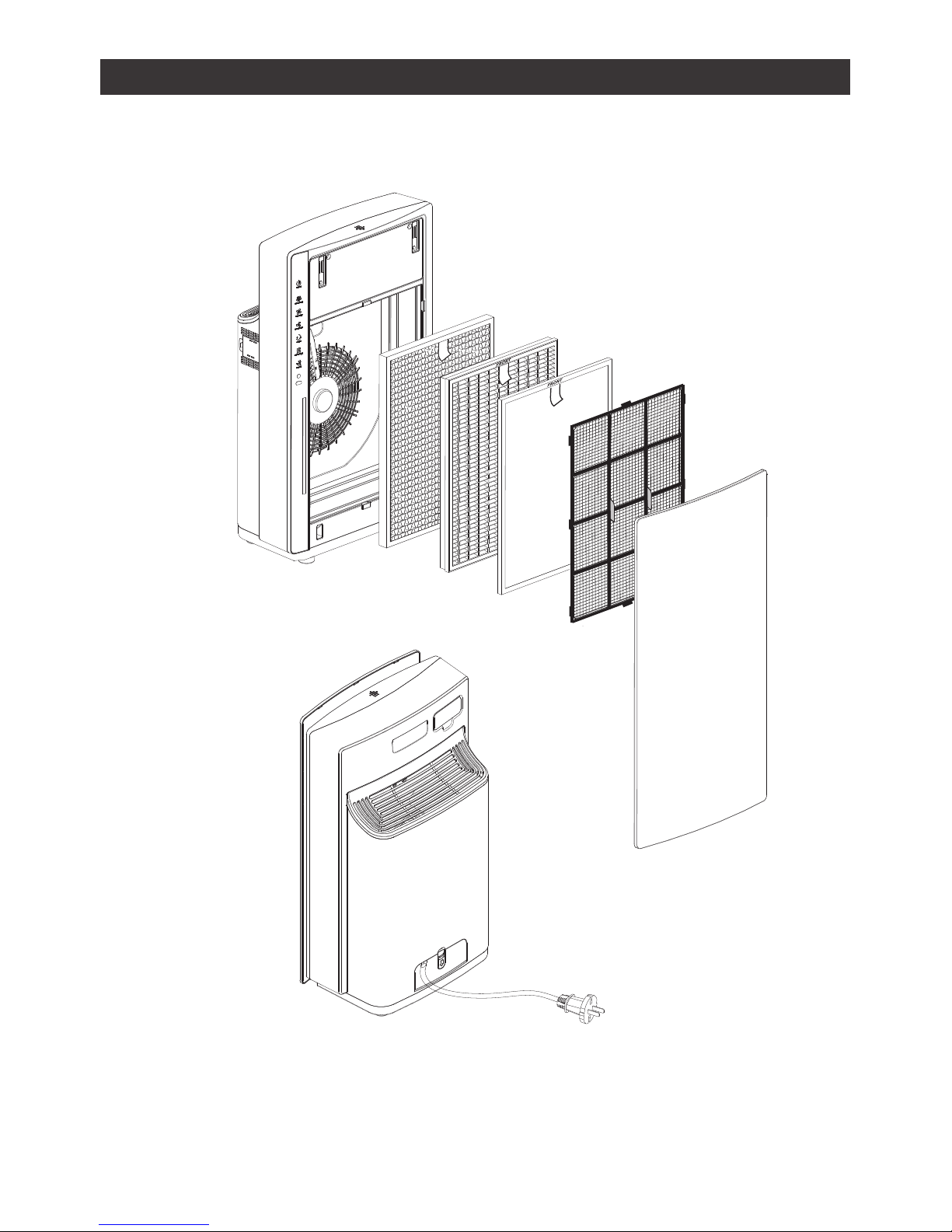

Introduction

7
Picture 2
Picture 1 (For NANO HIPPO 50WH)
(For NANO HIPPO 50WH)
1
2
3
4
5
6
7
8
9
11
12
13
14
17
18
19
16
15
10

8
General description
1. Control panel
2. Air quality sensor outlet
3. Air quality sensorpanel
4. Air quality sensor inlet
5. Remote control receiver
6. Air quality display
7. Four-side air inlet
8. Controller
9. Handle
10. Plasma generator
11. Air outlet
12. Cord storage facility
13. Mains cord
14. Panel on/off power on/off set
15. Activated carbon filter
16. High performance HEPA filter
17. Multi-functional filter
18. Pre-filter
19. Panel

9
General description
Placing the filters
The appliance comes with all filters fitted inside, but you have to remove the
packaging of the filters before you can use the appliance. Remove all filters,
unpack them and place them back into the appliance.
Note: Make sure you insert the filters in correct position.
Place your fingers on the top of the panel and gently pull the top part of the
front panel towards you. Then lift the hooks at the bottom of the panel out
of the bottom of the appliance.
Remove all packing material from the filters.
5Put filter 3 (HEPA filter) back into the appliance.
Note: Make sure that the side with the tag is pointing towards you.
6Put filter 2 (multifunctional filter) back into the appliance.
Note:Make sure that the side with the tag is pointing towards you.
4Put filter 4 (activated carbon filter) back into the appliance or put filter 4
(nanometer photocatalysis titanium dioxide filter) back into the appliance.
Note: Make sure that the side with the tag is pointing towards you.
7Put filter 1 (pre-filter) back into the appliance.
Note: Make sure that the one side with the two projections (“FRONT”
tag and handle) are pointed towards you.
Note: Make sure that all hooks are properly attached to the appliance.
Remove the pre-filter by putting your fingers in the two flanges and pull the
filter towards you.
To reattach the front panel, insert the bottom hooks into the bottom of the
appliance first, then push the panel against the body of the appliance.
8

10
Plastic
Hook
Plastic
Hook activated carbon filter catalysis
ilter
Picture 3 Picture 4
Picture 6 Picture 7 Picture 8
Picture 9 Picture 10 Picture 11
Picture 5
Plastic
Hook
Plastic
Hook
FRONT
FRONT

11
Press the arrowhead direction to open the power plug department.
Open the power plug compartment to get the power cord from it.
Loose the band to use it.
Keep the power cord in the compartment while long time disuse.
Take out the remote control by arrowhead direction.
Remove remote control’s packing and battery protection.
Insert the battery protection and put the remote control into compartment
while disusing.
POWER
AIR-QUALITY
LOW-SPEED
MID-SPEED
HIGH-SPEED
AUTO
RESET
Picture 12
Picture 13
Picture 14
Take out / put into the power plug
Take out / put into the power plug
2
3
4
2
1
3

12
Controlpanel operation method
H---LIGHT SENSOR
G---PLASMA
A---ON / OFF
B---HIGH-SPEED
D---LOW-SPEED
C---MID-SPEED
E---SILENT MODE
Put the plug in the wall socket, then you hear a beep,
the appliance is in ready mode, the power indicator
lights red, press “POWER” to start the appliance,
then the power indicator lights blue. When the
appliance is on, press the “POWER”, the appliance
is back to the ready mode again.
When the appliance is on, press this button to select
high-speed, the HIGH-SPEED light goes on.
When the appliance is on, press this button to select
mid-speed, the MID-SPEED light goes on.
When the appliance is on, press this button to select
low-speed, the LOW-SPEED light goes on.
When the appliance is on, press this button to select
silent mode, the SILENT light goes on.
When the appliance is on, press this button to make
the air quality indicator on or off.
F---AIR QUALITY
When the appliance is on, press this button to make
the plasma on or off.
A
B
C
D
E
F
G
H
When the appliance is on, select AUTO mode, the appliance will sense the
strength of the radial, so that the machine will select the night mode or day
mode automatically.

13
Remote control operation methods
Same as “A” in control panel
Same as “B” in control panel
Same as “C” in control panel
Same as “E” in control panel
Same as “F” in control panel
Same as “G” in control panel
I---POWER
K---HIGH-SPEED
J---MID-SPEED
Q---LOW-SPEED
L---SILENT MODE
P---AIR QUALITY
M---PLASMA
Same as “D” in control panel
POWER
When the air quality indicator flashes (you need to replace the filter in two
situations: the service life of the filter is over or filtering is not effective), press
the “RESET” for 2 seconds, the filter’s service time is resetting.
O---RESET
Press this button to enter AUTO mode, the high, mid, low fan speed indicator
will flash (about 1 second) in turn, you can see the details in “operating mode”
N---AUTO MODE
POWER
Q
P
O
K
L
M
N
J
I
REMOTE CONTROL

14
Operating mode
When the appliance is plugged in, you can hear a beep , the appliance is
operating normally. Memory store when power off, when the power is back, it
will continue to work.
When the appliance is on, it will enter into the normal operating mode by
default. Press fan speed (H, M, L，SILENT) to quit the auto mode, the
appliance is entering into the normal operating mode. You can find the
operating status as follows:
1.Normal operating mode：
A
Mid-speed default, you can press the fan speed button to adjust the fan
speed, the related lights will go on.
nottubsihtsserpotnottub”AMSALP“sserp,tluafedybnosiAMSALPehTB
to make the plasma on or off.
C
The air quality indicator is on by default, press “AIR QUALITY” button to
press this button to make the air quality indicator on or off.
2.AUTO MODE:
Enter the auto mode by the “AUTO” button in the remote control, the high, mid,
low fan speed indicator will flash (about 1second ) in turn, then the appliance is
entering into the auto mode successfully.
When entering into the auto mode, the machine will select the night mode or
day mode automatically: the day mode by default, when the light is beginning
to fade for 3 minutes, the appliance is entering into night model, instead, when
the light is beginning to brighten for 5 minutes, the appliance will back to the
day mode again.
In day mode, you can find the operating status as follows:
A. Plasms is on by default, press "PLASMA" button to turn the plasma on or off.
B. The air quality indicator is on by default,
press "AIR QUALITY" button to turn the air quality indicator on or off.

15
C
A
B
C
1
2
In night mode, you can find the operating status as follows:
According to the air quality, the motor will adjust the fan speed automatically:
when the air quality is bad, the appliance is high speed; fair, mid speed; good,
low speed.
The PLASMA is on by default, press “PLASMA” button to make the plasma
The air quality indicator is off by default, press “AIR QUALITY” button to
make the air quality indicator on or off.
According to the air quality, the motor will adjust the fan speed
automatically: when the air quality is bad, the appliance is mid speed; fair, the
low speed; good, the appliance will enter to silent mode automatically.
People with certain health problems (e.g. allergies or asthma) have a greater
need for healthy air. For this reason, the air cleaner allows you to adjust the
sensitivity of the air quality sensor. When it is set to a higher sensitivity level,
the appliance already starts cleaning the air at lower pollution levels to make
the air even cleaner.
There are four sensitivity levels:
Common
Standard
Sensitive
Extra sensitive
Adjusting the air quality sensor sensitivity
The pollution sensor is set to standard sensitivity. You can adjust the sensitivity
of the air quality sensor in the following way:
If the appliance is already plugged in, unplug the appliance and wait for a
few minutes.
Under the standby press AIR- QUALITY+HIGH-SPEED buttons. After the
buzzer sounds twice, the air quality sensor sensitivity has been set to extra
sensitive level. Confirm it after five times flashing of the corresponding
composite key indicator or confirm it immediately after pressing the power
button toturn on the product.
on or off.

16
Under the standby, press AIR-QUALITY+MID-SPEED buttons. After the
buzzer sounds twice, the air quality sensor sensitivity has been set to sensitive
level. Confirm it after five times flashing of the corresponding composite key
indicator or confirm it immediately after pressing the power button to turn on
the product.
Under the standby, press AIR-QUALITY+LOW-SPEED buttons. After the
buzzer sounds twice, the air quality sensor sensitivity has been set to standard
level. Confirm it after five times flashing of the corresponding composite key
indicator or confirm it immediately after pressing the power button to turn on
the product.
Under the standby, press AIR-QUALITY+SILENCE buttons. After the buzzer
sounds twice, the air quality sensor sensitivity has been set to common level.
Confirm it after five times flashing of the corresponding composite key
indicator or confirm it immediately after pressing the power button to turn on
the product.
Note: When you change the sensitivity level, the appliance
automatically starts operating at the set sensitivity level whenever you
switch on the appliance.
Sensitivity setting inquiry
S
e
n
s
i
t
i
v
i
t
y
s
e
t
t
i
n
g
i
n
q
u
i
r
y
ryr
Under the standby, press the air quality indicator button to check the sensor
sensitivity setting. Exit after the corresponding sensitivity indicate light flashes
five times or exit by pressing other buttons except for reset button.
Air quality indication
Color Air quality
Blue Very good
-- --
Green Fair
-- --
Red Bad
Attention: In order to display the air quality in a precise way, we
have divided the air quality(or purity degree) into 32 grades and each will
be displayed by corresponding colors. When the air quality is between
bad and fair(or fair and good), it will display the corresponding grade air
quality color. With the changing of air quality, the air quality indicator will
be changing accordingly. When the air quality changes suddenly, the air
quality indicator will display the change of present color to the target
color. Each color display time is about one second.

17
Maintenance
Cleaning
Maintenance regularly clean the inside and outside of the body to prevent the
dust from collecting on the inside and outside.
Wipe away dust with a soft dry cloth from the body of the appliance.
Clean the air inlet and the air outlet with a soft dry cloth.
Never immerse the appliance in water or any other liquid.
Never use aggressive or flammable cleaning agents such as bleach or
alcohol to clean any part of the appliance.
Only the pre-filter is washable. All other filters are NOT washable.
1
2
1
2
3
Clean the air quality sensor every 3 months for optimal functioning of the
appliance. Clean it more frequently if you use the appliance in a dusty
environment.
Always unplug the appliance before you clean it.
Remove the pre-filter according to the second method of initial use.
Wash the pre-filter under a running tap. If the pre-filter is very dirty, use a soft
brush to brush away the dust. You can also remove the dust by a vacuum
cleaner.
Air-dry the pre-filter.
4
Note: make sure the pre-filter is completely dry.
Put the pre-filter back into the appliance.
Note: Make sure all the hooks have been correctly attached to the
appliance.
Note: Before cleaning, make sure to unplug
the appliance.
Pre-filter
Picture 17

18
1
2
3
4
5
Air quality sensor
Clean the air quality sensor every 2 months for optimal functioning of the
appliance. Clean it more frequently if you use the appliance in a dusty
environment.
Note: When the humidity level in the room is every high, it is
possible that condensation develops on the air quality sensor. As a
result, the AIR QUALITY light on the control panel may indicate that the
air quality is bad even though the air quality is good. In this case, you
have to clean the air quality sensor.
Clean the air quality sensor inlet and the air quality sensor outlet with a soft
brush. (shown as picture 18)
Remove the air quality sensor cover. ( shown as picture 19)
Clean the air quality sensor, the dust inlet and the dust outlet with a
lightly moistened cotton swab.
(shown as picture 20)
Dry them with a dry cotton swab. (shown as picture 20)
Reattach the air quality sensor cover.
Picture18Picture 19 Picture 20
AIR OURLET
FILM
AIR INLET
