Congratulations on your purchase of this keyboard.
It is an easy-to-use keyboard with advanced functions especially in self-learning. The major customers
are the children or adults who are the beginners of learning keyboard, and they will be more interested
in keyboard performance. In study mode, the customers can learn the songs in 3 different ways; they
can also choose left or right hand to learn it. LCD display makes it easier and more direct for the
customers to learn to play songs. To make the practice more fun, it has the Grade feature to evaluate
their performance. Numbered musical notation display and Step Record are the other new
features offered to you in this keyboard.

Main Features
Song learning
There are 3 different ways to practise the songs.
Lesson 1
The keyboard only grades the time value of your
performance and ignores the wrong note.
Lesson 2
The keyboard only grades the note value. Once you
play the correct notes, the song will continue to next
note.
Lesson 3
The keyboard will grade your performance after you
finish playing the song.
Chord mode
Single finger chords and Fingers chords.
Song
50 songs in all, from 001 to 050. Each song has
its learning mode.
Style
100 at all, from 001 to 100.
Voice
146 at all, including 128 GM Voice, 12 Chinese
Voice and 6 Percussion Voice (1 Chinese
Percussion)
Operation
Use DIAL to select desired voice, style and song
Keyboard
61-key touch keyboard
2
Note:
Press and hold [+/YES] and [-/NO] together to turn
on the power meanwhile. The default setting will
be loaded into the keyboard. All the memory
and the record song will be lost.
Functions of hand choice
The customers can press the L or R
button to select to learn in left or right hand mode
or both . The LCD displays the fingering.
Memory featrue
It has 8 banks with 6 memories in each.
Style control
Sync, Start/Stop, Fill In A/Normal,Fill In B/
Variation, Intro/Ending.
Other features
Dual, Lower voice, Transpose, Touch, Sustain,
Metro, O.T.S., Demo, Chord dictionary and etc.
Mixer function
It includes the volume of Voice R1, Voice R2,
Voice L, Drum, Bass, OC1, OC2, Oc3.
Function feature
It includes Transpose, Tune, Octave, Beat,
Split point, Pedal select, Brilliance, Touch,
Reverb type, Reverb level, Chorus type,
Chorus level, MIDI in, MIDI out.
Record feature (2 Rec-Mode)
There are 2 record modes: RECORD and
STEP RECORD. Each record song has 6
tracks including 1 ACCOMP track and 5 melody
tracks.
Chord dictionary
Make it more convenience to the customers
to learn the chord, including Dict 1 mode
(dictionary mode) and Dict 2 mode(test mode).
Grade Function
This keyboard offers the GRADE function in all
3 learning modes. Customers will know well about
the learning progress.
Assistant Learning Function
This keyboard has the FFW, REW and PAUSE
function with guide beat in the song and make
it convenient to the customers.
LCD Indication
It indicates the note you play on the staff and
the keyboard.
Note:
Left hand mode cannot be used in chord song.
1.
2.
3.

Contents
3
General Guide
Power supply
-Use the AC adaptor
-Use batteries
The Connectors
-The headphones jack
-The damper jack
-The Aux.Out jack
-The volume jack
-The MIDI IN/OUT jacks
Voice Selecting
1.Voice number
2.Voice setting
Other Voice Functions
1.Dual voice
2.Lower voice
4.Sustain
5.Pitch bend wheel
6.Modulation
Style Control
1.Play the style (only drum)
2.
3.The accompaniment section
4.A
5.Fill IN A / Fill IN B
6.Stop playing a stayle
7.Accomp Volume
8.A.B.C.
9.Tempo
Function menu
1.Transpose
2.Tune
3.Octave
4.Beat
5.Slit point
6.Pedal assign
7.Touch
8.Brilliance
9.Reverb type
10.Reverb level
Play the style (all track)
ccompaniment operation
11.Chorus type
12.Chorus level
13.MIDI setting
Mixer menu
Metronome
Memory
1.Bank
2.Store and load
3.Data store memory
O.T.S.
Record
1.Record(real time)
2.Step record
3.Record play
4.Delete user song
5.User song lesson
Song
Demo
Lesson
Chord Dictionary
1.DICT.1
2.DICT.2
Modulation
Pedal
1.Foot switch
2.Volume pedal
MIDI
1.What is MIDI
2.MIDI connection
3.MIDI application
Specifications
MIDI Implementation chart
Appendix 1-Voice List
Appendix 2-style list
Appendix 3-Song list
Appendix 4-Demo list
Appendix 5-Chord list
4
5-6
5
5-6
6
6
6
6
6
6
7
7
7
7-8
7
8
8
8
8
9-14
9
9
10
10
11
12
12
13
14
15-21
15
15
16
16
16
16
17
17
17
17
17
18
18
31
33
19
19
20
20
20
20
21
22-27
22
23
26
26
27
28
29
29
30
30
30
31
31
31
32
32
32
32
34
35
36
36
37
38

General Guide
4
Front panel
1
2
3
4
5
6
7
8910 11 12 13 14
18
16
19 20 21 22
23
24
25
26 28 29
27
30
31
32 33 34 35 36
17
37
38 39
40
15 43
11
16
22
14
19
25
10
15
21
13
18
24
12
17
23
20
26
28
1
6
2
29
30
7
3
8
4
34
9
POWER SWITCH
RIGHT HAND LESSON
MASTER VOLUME
DIAL
TEMPO /
ACCOMP VOLUME /
MIXER
FUNCTION + /NEXT
FUNCTION - /BACK
35 METRONOME
START / STOP
SYNC START
FILL A
FILL B
INTRO/ENDING
A.B.C
MEMORY M1- M6
ONE TOUCH SETTING M1- M4
BANK
STORE
DELETE
STEP REC
RECORD
SEQUENCER
ACCOMP
MELODY 1-5
VOICE
STYLE
SONG
LESSON
LEFT HAND LESSON
4
9
1
6
2
7
3
8
5
10
27 CHORD DICTIONARY
41
42
LCD display
31
33
32
[+/YES] [-/NO]BUTTON
TOUCH
OCTAVE -
3434
13
14 15 16
17
18
19
20
21
22
23
24
25
1
3
6
7
5
1
2
A.B.C.
DUAL
EDIT
LOWER
8
10
9MELODY 2
MELODY 3
ACCOMP
MELODY 1
4
SYNC STOP
6
1
11
VOICE LR12 / STYLE / DEMO
SONG / LESSON123
MEASURE
BEAT
1
19
18
20
22
21
FILL A/ B
RECORD / STEP RECORD
1
15
14
17
TEMPO / VEL
MEMORY / TICK
16
NOTE
SYNC STOP
PLAY / STOP
OCTAVE +
36 DEMO
38
39
40
LOWER VOICE
DUAL
TRANSPOSE
41 MODULATION
42 PITCHBEND
37 SUSTAIN
SUSTAIN
MELODY 4
1
12 MELODY 5
1
13
11
12
23
25
24
5
43 O.T.S.
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
LEFT / RIGHT HAND MODE
TREBLE CLEF
BASS CLEF
KEYBOARD
CHORD

Power Supply
This electronic keyboard can be powered by
current from a standard household wall outlet
(using the specified AC adaptor) or by batteries.
Use the AC adaptor
Make sure that only the AC adaptor specified for
this electronic keyboard is used.
The adaptor shall be 12V DC output, and center
positive type.
Be sure to turn off the electronic keyboard before
you connect the adaptor into the AC wall outlet
and the cord into the unit.
Cautions£¡
Use only the specified AC adaptor. Use of
another type of adaptor creates a danger of
fire and electrical shock.
For safety sake, be sure to unplug the AC
adaptor from the wall outlet whenever leaving
the electronic keyboard unattended for a long
time.
Use batteries
OPEN
5
Always make sure to turn the keyboard off before
inserting new batteries or replacing old ones.
To insert the batteries
Open the battery compartment on the under
side of the keyboard.
Insert 8 "D" size batteries into the battery
compartment by following the polarity markings
on the cabinet.
When close the battery compartment, make sure
the battery compartment cover locks firmly.
Low battery indications
Any of the following symptoms indicate low
battery power. Replace the batteries as soon as
possible whenever any of the following occurs.
A dim and difficult-to-read LCD display
Abnormally low speaker/headphone volume.
Distortion of the sound output.
Sudden power failure when playing at high volume
Abnormal playing of the rhythms or demo songs.
Dimming of the display when playing at high volume.
1.
2.
3.
DC 12V
AUX. OUTVOLUMESUSTAINMIDI OUT
MIDI IN
MIDI THRU

Improper handling of the batteries can cause them to burst or leak, creating the danger of personal
injury or damage of the keyboard. Be sure to take the following important precautions when using
batteries:
Never use batteries of different types.
Never mix old batteries with new ones.
Always make sure to remove the batteries from the keyboard's battery compartment.
When the keyboard is not expected to be used for a long period of time, remove the batteries from
the keyboard.
Replace a complete set of eight new batteries as soon as possible after any sign of discharge.
The headphone jack
A pair of stereo headphones can be plugged into
the PHONES jack for private practice or late
night playing. The internal speaker system is auto-
matically turned off when the headphones is
plugged into the PHONES jack.
The PHONES jack is in the front .
6
Cautions£¡
The sustain jack
An optional foot switch can be plugged into the
SUSTAIN jack for sustain control. The foot switch
function is like the sustain pedal on a piano
Press for sustain, Release for normal sound.
The Aux. Out jack
The AUX. OUT jack delivers the output of the
keyboard for connection to an external amplifier.
Using an audio cord, plug into AUX. OUT jack
located on the rear panel. Then plug the other
end of the cord into LINE IN or AUX. IN of the
amplifier.
Stereo
System
DC 12V
AUX. OUTVOLUMESUSTAINMIDI OUT
MIDI IN
MIDI THRU
DC 12V
AUX. OUTVOLUMESUSTAINMIDI OUT
MIDI IN
MIDI THRU
Connections
The volume jack
An optional volume control can be plugged into
the VOLUME jack for adjusting the volume of
sound.
DC 12V
AUX. OUTVOLUMESUSTAINMIDI OUT
MIDI IN
MIDI THRU
The MIDI IN/OUT jacks
The MIDI IN connector receives MIDI data from
an external MIDI device.
The MIDI OUT connector transmits MIDI data
generated by the electronic keyboard to an
external MIDI device.
MIDI OUT
MIDI IN
MIDI THRU

7
Voice Selecting
The keyboard has 146 voices in all,
including 128 GM voice, 12 Chinese voice,
and 6 percussion voice.
The default VOICE R1 is No.001. LCD
displays : VOICE R1 and its name.
Press [+/YES]/[-/NO] button or use DIAL
to select the voice you want.
Voice number
Voice setting
Other voice functions
Dual voice
This keyboard has a dual voice function.
You can use it to get two voices to produce
a thicker sound. There are two status in
this function. They are VOICE R1 ,
VOICE R2 .
- /NO
+ / YES
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
- /NO
+ / YES
VOICE 2
1 To select the second sound ,press [DUAL]
button to enter DUAL VOICE mode. Its
default voice number 050 and voice
name Strings2 is displayed on the LCD.
2 To select your desired VOICE 2 ,press
[+/YES]/[-/NO] button, or DIAL.
3 To experience the dual voice effect, play
any note on the keyboard.
VOICE 1
1 To select the first sound, press [DUAL]
button again to enter VOICE R1
status. VOICE R1 appearing on LCD.
Its default voice number is 001 and
voice name GrandPno is displayed on
the LCD.
2 Then,select your desired VOICE R1 by
pressing [+/YES]/[-/NO] button, or [DIAL]
button.
3 In the VOICE R1 status, only one
voice can be functioned and heard.

Press [LOWER ] button to turn on the
LOWER VOICE. LCD lights the LOWER
VOICE flag and displays VOICE L and
its name. When you play in real time, you
can activate Split Mode simply by pressing
this button.
Press [+/YES]/[-/NO] button, or [DIAL] to
select the voice you want. The default
LOWER VOICE number is No. 50:
Strings2.
Press [LOWER ] button again to turn off
the LOWER VOICE. LCD darks its flag
1.
2.
3.
8
Lower voice
Sustain
Note:
1.
2.
Press [SUSTAIN] button to activate the
sustain effect. LCD lights the SUSTAIN
flag. Turn on the SUSTAIN effect to get a
voice with lingering effect when playing the
keyboard.
Press [SUSTAIN] button again to
eliminate the SUSTAIN effect. LCD darks
the sustain flag.
When you set the pedal as the sustain
pedal (see in function), its sustain effect
is stronger than the effect by pressing the
[SUSTAIN] button.
Press the [MODULATION] key and do not release when playing the keyboard.
It has the vibration effect. To cancel the vibration effect, release the
[MODULATION] key.
Pitch bend wheel
Modulation
The pitch bend wheel can be used to bend the note down (roll the wheel towards
you) or up (roll the wheel away from you), ranging between +/- 2 semitones.
When you release the wheel, the note will back to the normal level.
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
Other voice functions
You can split the keyboard to right and left
area to create two different voices.
In this function, you can assign a desired
voice in the left-hand area of keyboard.

Press the [STYLE] button.
1.
1.
2.
3.
9
Style Control
There are 100 styles , from 001 to 100.
The default style is 001.
Press [STYLE] button to enter the style
mode.
Select a style.
Select the desired style number with dial,
[+/YES]/[-/NO] or the direct style buttons.
Select the desired style number with dial,
[+/YES]/[-/NO] or the direct style buttons.
Press the[A.B.C.] button. The A.B.C icon
will appear next to "A.B.C" on the LCD.
This keyboard automatically plays bass
and chord parts in accordance with the
chords you finger. The relevant chord
name will be shown above "CHORD" on
the LCD.
2.
3.
4.
5.
- /NO
+ / YES
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
Press the [START/STOP] button to start/stop
playing the style (only drum).
Play the style(only drum)
Play the style (all tracks)
Sync start
Press the [SYNC/START] button. The Beat
display will flash at the current tempo when
the synchronized start mode has been
selected.
The keyboard will start to play the accom-
paniment by pressing "recognized" chord.
Play another chord.
Press the [START/STOP] button to stop
playing the style.
6.

1.
1.
2.
2.
3.
3.
4.
4.
The accompaniment section
Accompaniment operation
Accompaniment consists of Intro, normal, variation,
fill (a-a, a-b, b-a, b-b), ending. Using different sections
based on the structure of styles enables you to
enhance musical performance.
INTRO
Press the [INTRO/ENDING] button to insert an intro
section before you start to play . The main section
will be followed by the Intro section.
NORMAL and VARIATION
There are two main sections: normal and variation.
It has its own two or four-measure section.
FILL
While the accompaniment is playing, you can fill in
the rhythm/accompaniment by pressing the [FILL A]
button or the [FILL B] button. This will automatically
insert a fill section.
ENDING
When you press the [INTRO/ENDING] button, it
brings rhythm accompaniment and your performance
to the end.
Press the [STYLE] button.
Select a style.
Select the desired style number with dial,[+/YES],
[-/NO], or the direct style buttons.
Start accompaniment.
Start immediately: Press the [START/STOP] button
to start play the rhythm without bass and chord
accompaniment.
Sync Start: Press the [SYNC/START] button. The
beat display will flash at the current tempo. To start
the main section and accompaniment, play any key
on the keyboard. (When A.B.C is On, play a key or
chord in the auto accompaniment section of the
keyboard).
Play the INTRO section
This keyboard let you insert a short intro a rhythm
pattern to make intro more smoother and more
natural. Beats on LCD flash simultaneously in
current tempo when pressing [SYNC/START] button.
Press [INTRO/ENDING] button to insert INTRO.
LCD lightens the intro flag.
The INTRO plays automatically when the keyboard
at the same time.
Style Control
- /NO
+ / YES
10

Flashing
1.
2.
3.
4.
In NORMAL mode, press [FILL B] button
to insert 1 measure fill and LCD flashes
' B '. After one measure is over, VARIATION
style will be started.
11
5.
6.
Fill in A/Fill in B
In NORMAL mode, press [FILL A] button
to insert 1 measure fill and LCD flashes
A .After one measure is over, NORMAL
style will be returned.
In VARIATION mode, press [FILL B]
button to insert 1 measure fill and LCD
flashes B , After one measure is over,
VARIATION style will be returned.
In VARIATION mode, press [FILL A] button
to insert 1 measure fill and LCD flashes
' A ' . After one measure is over, NORMAL
style will be started.
Play the Main(A/B) section
Choose the disired style and press the
[START/STOP] button.
Stop playing the style
The accompaniment can be stopped at
any time by pressing the [START/STOP]
button.
Flashing
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
Style Control
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5

Style Control
Stop playing a style
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
TEMPO
TEMPO
ACC VOLUME
ACC VOLUME
ACC VOLUME
TEMPO
Accomp volume
12
Press [ACC VOLUME ] or [ACC
VOLUME ] button to adjust ACCOMP
volume. the LCD displays the ACCOMP
volume which range between 0 and 31.
(Default Accomp Value is 24.)
1.
2. Press [ACC VOLUME ] or [ACC
VOLUME ] button together to turn off
the ACCOMP volume.
3. Press [ACC VOLUME ] or [ACC
VOLUME ] button together again to turn
on the ACCOMP volume.
Stop immediately
The accompaniment can be stopped at any
time by pressing the [START/STOP] button.
Stop with ending
Press the [INTRO/ENDING] button if you
want to go to the ending section and then
stop. The ending section will begin from the
top of the next measure.
Stop by SYNC
SYNC STOP press the [SYNC/STOP]
button to stop playing style.

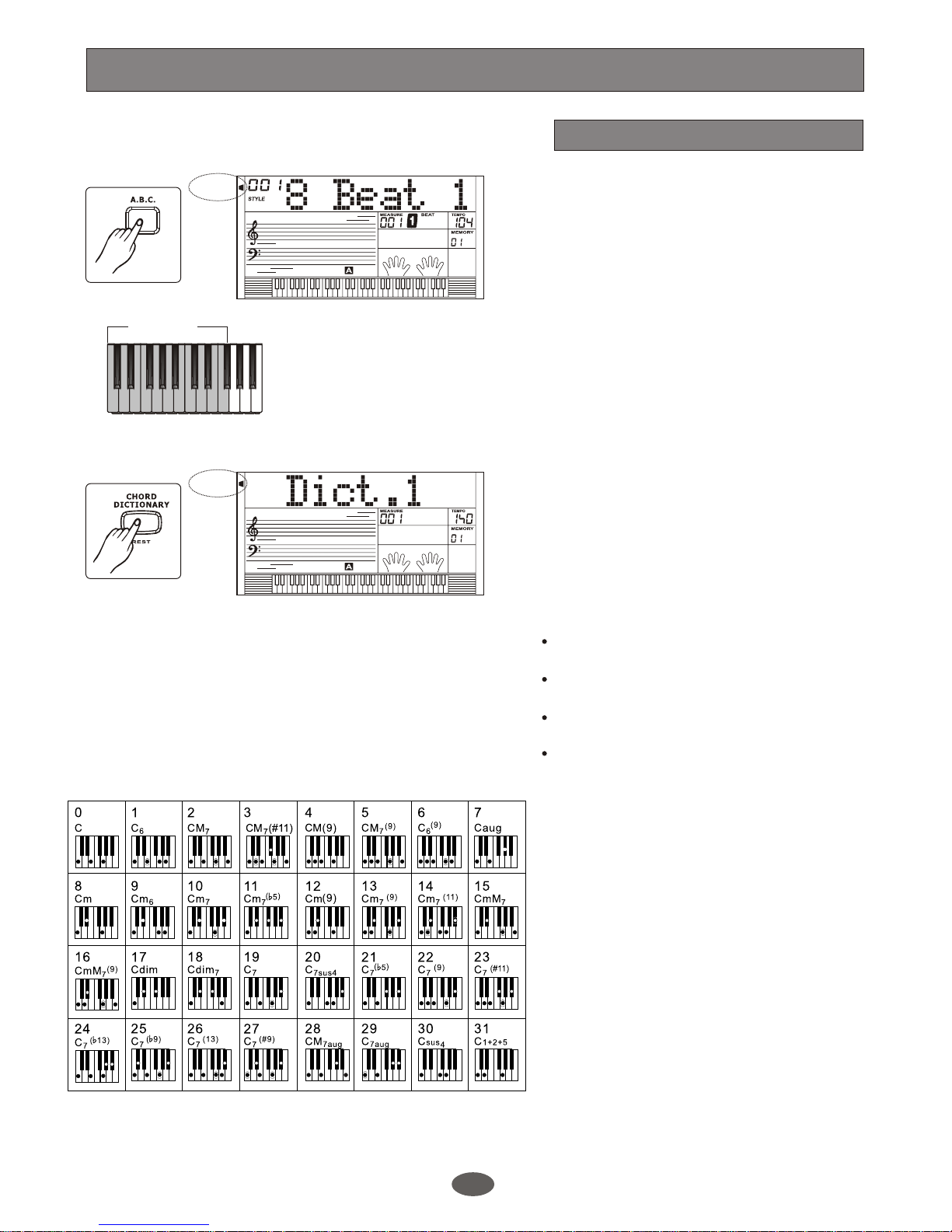

Auto Bass Chord
A.B.C.(auto bass chord)
Play the desired chord by following chord
chart, A total of 32 chords are provided.
1.
2.
The default mode is A.B.C OFF. Press
[A.B.C.] button to turn on the auto bass
chord, A.B.C flag on LCD is lightened.
The left area of keyboard are known as
the chord area. When playing the chord,
both the bass and the chord voice phonate.
You can change the chords of the accom-
paniment by playing keys in the auto
accompaniment section of the keyboard
using either "Single Finger"or "Fingered"
method. Fingered chord is recognized first.
34
34
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
Style Control
13
3.
4.
Single Finger Chord: Chords that can be
produced in single finger operation are
major, minor, seventh and minor seventh.
The illustration shows how to play the four
chord types.
To play a major chord, press the root note
of the chord.
To play a seventh chord, simultaneously
press the root key and a white key to its left.
To play a minor chord, simultaneously press
the root key and a black key to its left.
To play a minor-seventh chord,
simultaneously press the root key and both
a white and black key to its left.
The Fingers Chord: the Fingers Chord
detect mode lets you finger your own chords
on the AUTO ACCOMPANIMENT section
of the keyboard. The piano supplies
appropriately orchestrated rhythm, bass
and chord accompaniment to the selected
style. The Fingers Chord can recognize the
following chords chart:

1. Press the [TEMPO ] or [TEMPO ]
button to change the tempo, the DIAL can
also be used to change the tempo .
2. Press the [TEMPO ] and [TEMPO ]
simultaneously can set the tempo value
back to the default one.
Tempo
ACC VOLUME
TEMPO
ACC VOLUME
TEMPO
A.B.C.
DUAL
EDIT
LOWER
SYNC STOP
SUSTAIN
MELODY 2
MELODY 3
ACCOMP
MELODY 1
MELODY 4
MELODY 5
3. Selecting the style when it stops, the tempo
will change with the style automatically to
the default one. When style is playing, the
tempo will not change with the style you
select.
Style Control
14

Press or
[FUNCTION-/BACK] button to enter or
escape the menu of function. The default
option of the menu is TRANSPOSE .
Press [FUNCTION+/NEXT] or
[FUNCTION-/BACK] button, select your
desired option. Use [+/YES]/[-/NO] or
the DIAL to set the parameter.
The option and the parameters are as
follows:
[FUNCTION+/NEXT]
Option LCDDisplay Range Default
TRANSPOSE XXX Transpos -12 12 0
TUNE XXX Tune -50 50 0
OCTAVE XXX Octave -2(4Octave 0
BEAT XXX Beat 0,2 4
SPLIT POINT XXX Split Pt 61(C2... C7) 19(#F3)
PEDAL ASSIGN 00X Ped Sust Soft St/S Mem Sust
TOUCH XXX Touch 1-3,off 2
BRILLIANCE XXX Brillian 0-127 96
REVERB TYPE 00X Rev Type 0-74
REVERB LEVEL XXX Rev Lev 0-127 60
CHORUS TYPE 00X CHoType 0-70
CHORUS LEVEL XXX ChoLev 0127 0
MIDI RECEIVE XXX Receive 01 16 ALL
ALL
MIDI TRANSMIT XXX Transmit 01 16 01
If you do not press any button for 5
seconds after entering FUNCTION menu,
it will quit this menu automatically.
Note:
- /NO
+ / YES
Function Menu
Transpose
Tune
The LCD displays the transpose value.
Use [+/YES]/[-/NO] or DIAL to change the
transpose value. Its range is from 12 to
12 semitones.
Press [+/YES] and [-/NO] together will set
the TRANSPOSE value to its default one.
The LCD displays the tune value. Use
[+/YES]/[-/NO] or DIAL to change the tune
value. Its range is from 50 to 50 cents
only by the right area of keyboard.
Press [+/YES] and [-/NO] together will
set the TUNE value to its default one.
15
You can change the key of the entire
keyboard with TRANSPOSE function by
adjusting the pitch in semitone steps.

Ocatve
Beat
The LCD displays the octave value. Use
[+/YES]/[-/NO] or DIAL to change the
octave value. Its range is from 2 to 2
octaves only by the right area of keyboard.
Press [+/YES] and [-/NO] together will set
the OCTAVE value to its default one.
The LCD displays the beat value. Use
[+/YES]/[-/NO] or DIAL to set the time
signature for the song you play.
There are up to 9 types of time signature
for you to select, 0, 2~9, 9
Function Menu
The LCD displays the split point value.
Use [+/YES]/[-/NO] or DIAL to change the
split point. The keyboard can also be used
to change the split point.
The part below the split point is the part of
the CHORD area. To experience the effect ,
press [LOWER] button to enter lower voice,
You can hear one voice in the left-hand
area of keyboard and another voice in the
right-hand area.
Split point
The LCD displays the type of pedal. Use
[+/YES]/[-/NO] or DIAL to change the
pedal assign. The pedal can be set as
sustain pedal, soft pedal, start/stop pedal
or memory select pedal.
The default pedal type is the sustain pedal.
Pedal assign
16

This function allows you to change the tonality
of the sound. The LCD displays XXX
Brillian , Use [+/YES]/[-/NO] or DIAL to
change the Brilliance value range from 0 to 127.
The default value is 96. Be note that the
volume level will increase/decrease slightly
when changing the value.
Brilliance
Function Menu
This function allows you to adjust the dynamic
level when playing the keyboard. The LCD
displays the touch value. Use [+/YES]/[-/NO]
or DIAL to change the touch response level.
There are 4 levels touch response including a
off parameter.
If the touch is set as off , it means no touch
response to keyboard. To experience the effect,
play any note on the keyboard when you are
adjusting the levels.
Touch
You can experience the effect like an instrument
to be played in a room or a concert hall.
The LCD displays the reverb type. Use
[+/YES]/[-/NO] or DIAL to change the reverb
type.
There are 8 types can be selected (0~7). The
default type is 4.
The LCD displays the reverb level. Use [+/YES]
/[-/NO] or DIAL to change the reverb level.
The level ranges from 0 to 127. The default level
is 60.
This function allows you to make the sound
warmer and thicker.
The LCD displays the chorus type. Use [+/YES]
/[-/NO] or DIAL to change the chorus type.
There are 8 types can be selected (0~7). The
default type is 0.
Reverb type
Reverb level
Chorus type
1617

You can set the channel of MIDI IN by
RECEIVE. The default setting is all ,
channel 1~16 can also be selected. Use
[+/YES]/[-/NO] button or the DIAL to select
the channel.
You can set the channel of MIDI OUT by
TRANSMIT. The default setting is 001 ,
channel 2~16 can also be selected. Use
[+/YES]/[-/NO] button or the DIAL to
select the channel.
1.
2.
Reverb Type
MIDI setting
Function Menu
The LCD displays the chorus level. Use
[+/YES]/[-/NO] or DIAL to change the
chorus level.
The level ranges from 0 to 127. The
default level is 0
Chorus level
1618

Mixer Menu
Press [MIXER] button to enter the menu of
MIXER. The default option of the menu is
Oc1 Vol , When you enter this menu
next time, you will find the option is the
same as last time. Press [MIXER] button,
select the option you want to set. Use
[+/YES]/[-/NO] or the DIAL to set the
parameter.
Option LCD Display Range Default
26
26
26
28
20
12
26
Oc1 volume
Oc2 volume
Oc3 volume
Voice R1 volume
Voice R2 volume
Voice left volume
Drum volume
Bass volume
XXX Oc1 Vol
XXX Oc2 Vol
XXX Oc3 Vol
XXX Voice R1
XXX Voice R2
XXX Voice L
XXX Drum Vol
XXX Bass Vol
0-31
0-31
0-31
0-31
0-31
0-31
0-31
0-31 26
If you do not press any button for 5 seconds
after entering the MIXER menu, it will quit
this menu automatically.
Note:
To experience the effect, choose a style to
play and set your desired mixer parameter.
The option and the parameters are as the
follows:
Metronome
Metronome can be played in tempo with
the accompaniment whenever you turn on
the style.
Press [METRONOME] button to turn on
the metronome.
Press [METRONOME] button again to turn
off the metronome.
1.
2.
Note:
19
This function assists you to count the beat
easily when playing the keyboard.
