Medion P85019 User manual

N26968
11/2013
MEDION Australia Pty Ltd
St Leonards, NSW 2065
Australia
Hotline: [phone]
Opening hours: Mon - Fri 08:30AM to 06:00PM EST
Internet
www.medion.com.au
E-mail Support
[email protected]
WiFi Range Extender
MEDION®P85019 (MD 86977)
Instruction Manual
86977 EN ALDI AUS Cover RC1.indd 186977 EN ALDI AUS Cover RC1.indd 1 17.07.2013 10:01:2817.07.2013 10:01:28

3 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
WiFi Range Extender
P85019 (MD 86977)
Warranty Details
The product is guaranteed to be free from defects in
workmanship and parts for a period of 12 months from
the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion. The
benefits conferred by this warranty are in addition to all
rights and remedies in respect of the product that the
consumer has under the Competition and Consumer
Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the
goods fail to be of acceptable quality and
the failure does not amount to a major
failure.
86977 EN ALDI AUS Content Final 50045465_REV2.indd 386977 EN ALDI AUS Content Final 50045465_REV2.indd 3 12.07.2013 10:13:4512.07.2013 10:13:45

4 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
Table of Contents
1. Notes on how to use these instructions..........6
1.1. Symbols and key words used in these
instructions ........................................................ 6
2. Proper use .........................................................8
3. Safety instructions............................................8
3.1. Operational safety ........................................... 9
3.2. Data backup.....................................................11
3.3. Power supply...................................................11
3.4. Notes on conformity.....................................12
4. Before use........................................................13
4.1. Check package contents.............................13
4.2. System requirements ...................................13
5. Overview of the device...................................14
5.1. Overview of the LED displays....................15
6. Initial operation ..............................................19
6.1. Setting the operating mode ......................19
7. Operating mode..............................................19
7.1. Installation as range extender (repeater)...
19
7.2. Installation as a client...................................28
7.3. Installation as an AP (access point) .........35
86977 EN ALDI AUS Content Final 50045465_REV2.indd 486977 EN ALDI AUS Content Final 50045465_REV2.indd 4 12.07.2013 10:14:0512.07.2013 10:14:05

5 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
8. The Web Interface ...........................................44
8.1. Calling up the web interface .....................44
8.2. Manually setting up DHCP on a Windows
PC.........................................................................45
8.3. Home page.......................................................48
8.4. Quick setup......................................................51
8.5. WPS settings....................................................52
8.6. Advanced settings.........................................55
9. Medion Finder Tool.........................................58
10. Do you need more help? ................................60
11. Cleaning...........................................................61
12. Disposal ...........................................................62
13. Technical data .................................................63
14. Glossary...........................................................64
15. GNU General Public Licence...........................69
86977 EN ALDI AUS Content Final 50045465_REV2.indd 586977 EN ALDI AUS Content Final 50045465_REV2.indd 5 12.07.2013 10:14:0512.07.2013 10:14:05

6 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
1. Notes on how to use these
instructions
Read these operating instructions carefully
before using the device for the first time. Note
the warnings on the device and in the
operating instructions.
Always keep the operating instructions
close to hand. If you sell the device or give
it away, make sure you also hand over these
instructions and the guarantee card.
1.1. Symbols and key words used in
these instructions
DANGER!
Warning: immediate mortal
danger!
WARNING!
Warning: possible mortal danger
and/or serious irreversible injuries!
86977 EN ALDI AUS Content Final 50045465_REV2.indd 686977 EN ALDI AUS Content Final 50045465_REV2.indd 6 12.07.2013 10:14:0612.07.2013 10:14:06

7 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
CAUTION!
Please follow the guidelines to avoid
injuries and/or property damage!
ATTENTION!
Please follow the guidelines to avoid
property damage!
PLEASE NOTE!
Additional information on using the device
PLEASE NOTE!
Please follow the guidelines in the
operating instructions!
WARNING!
Warning: danger of electric shock!
• Bullet point/information on occurrences
during operation
Tasks to be performed
86977 EN ALDI AUS Content Final 50045465_REV2.indd 786977 EN ALDI AUS Content Final 50045465_REV2.indd 7 12.07.2013 10:14:0612.07.2013 10:14:06

8 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
2. Proper use
This device is designed to amplify the signal in a
wireless network. In addition, the device can be used as
an access point for devices that communicate wirelessly
or as a client for devices which do not have their own
wireless adaptor. Never use the device for any other
purpose. Only use the device indoors.
The device is intended for private use only and is not
suitable for commercial purposes.
3. Safety instructions
Please read through this section and all of the
documentation carefully and follow all of the
instructions given. The instructions will help
you to operate the device reliably and help
increase its service life.
Always keep these operating instructions near
at hand to the device, but store them safely
so that you can pass them on to a new owner
should you sell the device Should you have
any problems with the device, please only
contact our authorised service partner.
86977 EN ALDI AUS Content Final 50045465_REV2.indd 886977 EN ALDI AUS Content Final 50045465_REV2.indd 8 12.07.2013 10:14:0812.07.2013 10:14:08

9 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
3.1. Operational safety
• This device is not intended for use by
people (including children) with reduced
physical, sensory or mental abilities or
by those without experience and/or
knowledge, unless they are supervised
by a person responsible for their safety or
they have been instructed in its use by that
person. Children should be supervised to
ensure they do not play with this device.
• Please also follow the operating
instructions for any devices that you
connect to the WiFi Range Extender.
• Do not place liquid-filled containers,
such as vases, on or near the device. The
container may tip over and the liquid may
impair the electrical safety of the device.
• Keep the device away from moisture and
from water in droplet or spray form. Avoid
vibrations, dust, heat and direct sunlight
in order to prevent malfunctions. The
operating temperature is 5 °C to 35 °C.
86977 EN ALDI AUS Content Final 50045465_REV2.indd 986977 EN ALDI AUS Content Final 50045465_REV2.indd 9 12.07.2013 10:14:0812.07.2013 10:14:08

10 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
• Never open the casing. This invalidates
the warranty and may render the device
unusable.
• After transporting the device, wait until
it has reached room temperature before
switching it on. Major fluctuations in
temperature or humidity can lead to
condensation which could cause an
electrical short-circuit.
• The device is designed to be connected
to computers with power supply fuse
protection (limited power source according
to EN60950).
• Position the cable so that it cannot be
stepped on or tripped over.
• To avoid damaging the cable, do not place
any objects on it.
• To avoid static charges, you should not
operate the device in extremely dry
conditions.
• In circumstances where there are
electrostatic discharges, the device could
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1086977 EN ALDI AUS Content Final 50045465_REV2.indd 10 12.07.2013 10:14:0812.07.2013 10:14:08

11 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
malfunction. In this case, the device must
be reset to the factory settings.
3.2. Data backup
We do not accept any liability for claims for
compensation due to loss of data or any
damages that are incurred. Before every
update, back up your files on external media
(e.g. CD-R).
3.3. Power supply
• Even when the ON/OFF switch is set to OFF,
some of the components in the device may
still be live. To disconnect the power from
your device or to completely isolate the
device from voltage sources, unplug the
device completely from the mains.
• Only operate the WiFi Range Extender from
an easily accessible and earthed socket
with an AC 100-240 V~ 50/60 Hz power
supply.
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1186977 EN ALDI AUS Content Final 50045465_REV2.indd 11 12.07.2013 10:14:0812.07.2013 10:14:08

12 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
3.4. Notes on conformity
Your device fulfils the requirements for electromagnetic
compatibility and electrical safety.
Conformity information as per R&TTE
Medion AG hereby declares that these devices conform
to the fundamental requirements and the remaining
pertinent regulations of the 1999/5/EC Directive. Full
declarations of conformity are available at http://www.
medion.com/conformity.
2200 N26968
In France, please operate the device inside buildings
only!
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1286977 EN ALDI AUS Content Final 50045465_REV2.indd 12 12.07.2013 10:14:0812.07.2013 10:14:08

13 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
4. Before use
4.1. Check package contents
Please check your purchase to ensure all items are
included and contact us within 14 days of purchase if
any components are missing.
After unpacking, ensure that the following parts have
been supplied:
• WiFi Range Extender
• RJ-45 Network Cable
• Software CD
• Operating instructions and guarantee documents
DANGER!
Keeptheplasticpackagingoutofthereach
of children as it can cause suffocation!
4.2. System requirements
• LAN connection or wireless card that supports the
wireless standard 802.11b/g/n.
• Microsoft Windows®: Microsoft® Windows® 8,
Windows® 7 SP1, Windows® Vista SP2, Windows® XP
SP3
• CD-ROM drive
• 100 MB free space on the hard drive
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1386977 EN ALDI AUS Content Final 50045465_REV2.indd 13 12.07.2013 10:14:0912.07.2013 10:14:09

14 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support

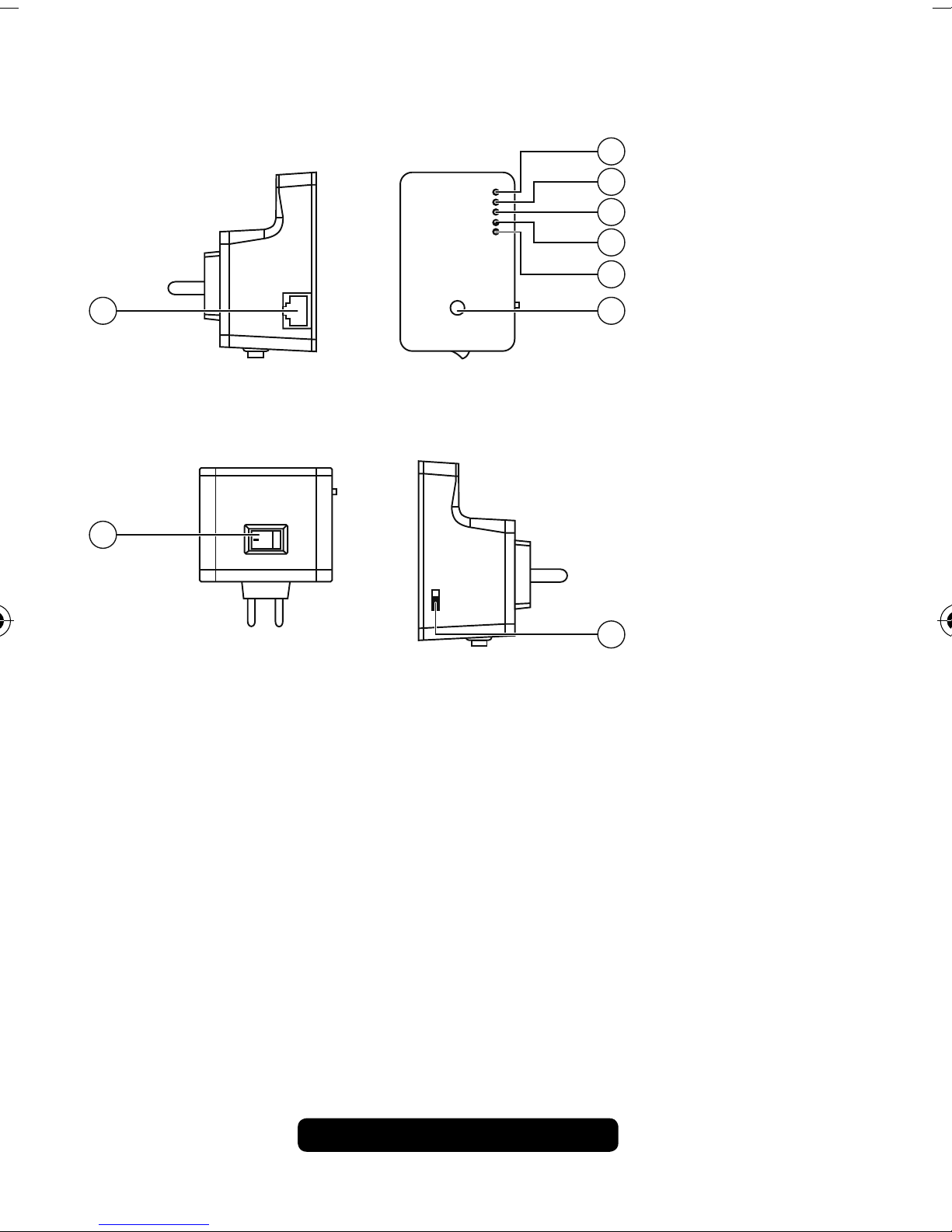

5. Overview of the device
Access Point
Repeater/Verstärker
Client
Signal
WLAN
Power
WPS
LAN
WPS
0
ON / OFF
1
9
2
3
4
5
6
7
8
1) LAN connection
2) Wireless signal strength LED
3) WLAN: Wireless LED
4) Power LED
5) WPS LED
6) LAN LED
7) WPS button/reset button
8) Mode selector (access point; repeater/amplifier;
client)
9) On/off switch
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1486977 EN ALDI AUS Content Final 50045465_REV2.indd 14 12.07.2013 10:14:1012.07.2013 10:14:10

15 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
5.1. Overview of the LED displays
LED Colour Status Description
Wireless
signal
strength
LED
Orange
On
constantly
Good reception
(signal strength 100
– 50%)
Flashes
Normal reception:
Flashes slowly (50 –
25%)
Poor reception:
Flashes quickly (<
25%)
Off
No reception or LED
Off mode has been
selected
Wireless Green
Flashes
Connection to a
wireless router or
AP (access point)
is active (data are
being transmitted)
Off
The wireless network
is switched off or the
LED Off mode has
been selected
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1586977 EN ALDI AUS Content Final 50045465_REV2.indd 15 12.07.2013 10:14:1012.07.2013 10:14:10

16 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
LED Colour Status Description
POWER Green
On
constantly
The repeater is
switched on. In LED
Off mode, all LEDs
are deactivated apart
from the POWER
LED.
Via the web
interface, the LED Off
mode can also be set
so the POWER LED is
also deactivated.
Flashes
slowly
The device can
now be reset to the
factory settings.
Off The repeater is
switched off
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1686977 EN ALDI AUS Content Final 50045465_REV2.indd 16 12.07.2013 10:14:1012.07.2013 10:14:10

17 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
LED Colour Status Description
WPS Green
On
constantly
Once a WPS
connection has been
successfully made,
the WPS LED lights
up for 5 minutes.
Flashes
slowly
A WPS connection is
being established or
the device is waiting
for the WPS signal
from another device.
The WPS LED flashes
for 2 minutes while
the connection is
being established
Flashes
quickly
Error during WPS
connection
Off
No WPS connection
active or the LED
Off mode has been
selected
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1786977 EN ALDI AUS Content Final 50045465_REV2.indd 17 12.07.2013 10:14:1012.07.2013 10:14:10

18 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
LED Colour Status Description
LAN Green
On
constantly
LAN connection has
been established
Flashes
LAN connection
is active (data are
being transmitted)
Off
No LAN connection
or the LED Off mode
has been selected
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1886977 EN ALDI AUS Content Final 50045465_REV2.indd 18 12.07.2013 10:14:1012.07.2013 10:14:10

19 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
6. Initial operation
6.1. Setting the operating mode
Use the mode switch on the WiFi Range Extender to
switch the device to the operating mode that you wish
to use. The usage possibilities are described in the
following chapter.
7. Operating mode
7.1. Installation as range extender
(repeater)
Use the repeater mode to use the WiFi Range Extender
to extend the range of your wireless network. This
will reduce the data transmission rate of the wireless
network by half as the repeater must also communicate
with the clients and the wireless access point.
PLEASE NOTE!
When using the device as a repeater for
the first time, place the repeater as close as
possible to the access point to which it is to be
connected. After successful installation, you
can reposition the repeater where the signal is
to be amplified.
86977 EN ALDI AUS Content Final 50045465_REV2.indd 1986977 EN ALDI AUS Content Final 50045465_REV2.indd 19 12.07.2013 10:14:1012.07.2013 10:14:10

20 of 78 Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
7.1.1. How to set up the WiFi Range
Extender for operation as a range
extender (repeater):
Set the mode selection switch to
REPEATER.
Connect the repeater to an
easily accessible mains socket.
Switch on the repeater by
pressing the POWER
button. The POWER LED
lights up.
AP
Repeater
Client
WPS
Signal
WLAN
Power
WPS
LAN
86977 EN ALDI AUS Content Final 50045465_REV2.indd 2086977 EN ALDI AUS Content Final 50045465_REV2.indd 20 12.07.2013 10:14:1012.07.2013 10:14:10

21 of 78
Telephone: [phone]
Internet: www.medion.com.au
After Sales Support
7.1.2. Installation as repeater via the
WPS button
The quickest, easiest and most secure way of
establishing a wireless connection between the
repeater and the wireless router is by using the WPS
button.
PLEASE NOTE!
This connection method presupposes that
both devices have a WPS button.
WPS
WPS
Signal
WLAN
Power
WPS
LAN
Press and hold the WPS button on the repeater for 3
seconds. The WPS LED starts to flash.
Now press the WPS button on the device that you
wish to connect to the repeater. This step must be
carried out within two minutes.
The connection is established and network
information is exchanged.
Once the connection has been established, the WPS
LED lights up for 5 minutes.
86977 EN ALDI AUS Content Final 50045465_REV2.indd 2186977 EN ALDI AUS Content Final 50045465_REV2.indd 21 12.07.2013 10:14:1112.07.2013 10:14:11
