47 cm (18.5") LED LCD TV
with inbuilt DVD Player and HD DVB-T Tuner
MEDION®LIFE®P13161 (MD 21097)
30013430_BDA_LCD-TV_AUS.indd 1 31.10.2011 10:15:37 Uhr

A
After Sales Support
Telephone: [phone]
Internet: www.medion.com.au
i
47 cm (18.5”) LED LCD TV with inbuilt
DVD Player and HD DVB-T Tuner (P13161) MD 21097
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period
of 24 months from the date of purchase. Defects that occur within this warranty period,
under normal use and care, will be repaired, replaced or refunded at our discretion. The
benefits conferred by this warranty are in addition to all rights and remedies in respect of
the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.

A
After Sales Support
Telephone: [phone]
Internet: www.medion.com.au
ii
47 cm (18.5”) LED LCD TV with inbuilt
DVD Player and HD DVB-T Tuner (P13161) MD 21097
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be
returned to the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such as
files stored on a computer hard drive, telephone numbers stored on a mobile telephone,
songs stored on a portable media player, games saved on a games console or files stored
on a USB memory stick) during the process of repair, some or all of your stored data may
be lost. We recommend you save this data elsewhere prior to sending the product for
repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where
they meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on 1300 884 987 or write to us at:
MEDION Australia Pty Ltd
St. Leonards, NSW 2065
Australia
MEDION Help Desk 1300 884 987
(Operating Hours : Mon-Fri 08 :30AM to 06 :00PM EST)
Email: [email protected]

A
1
1
Device Overview
LED LCD TV

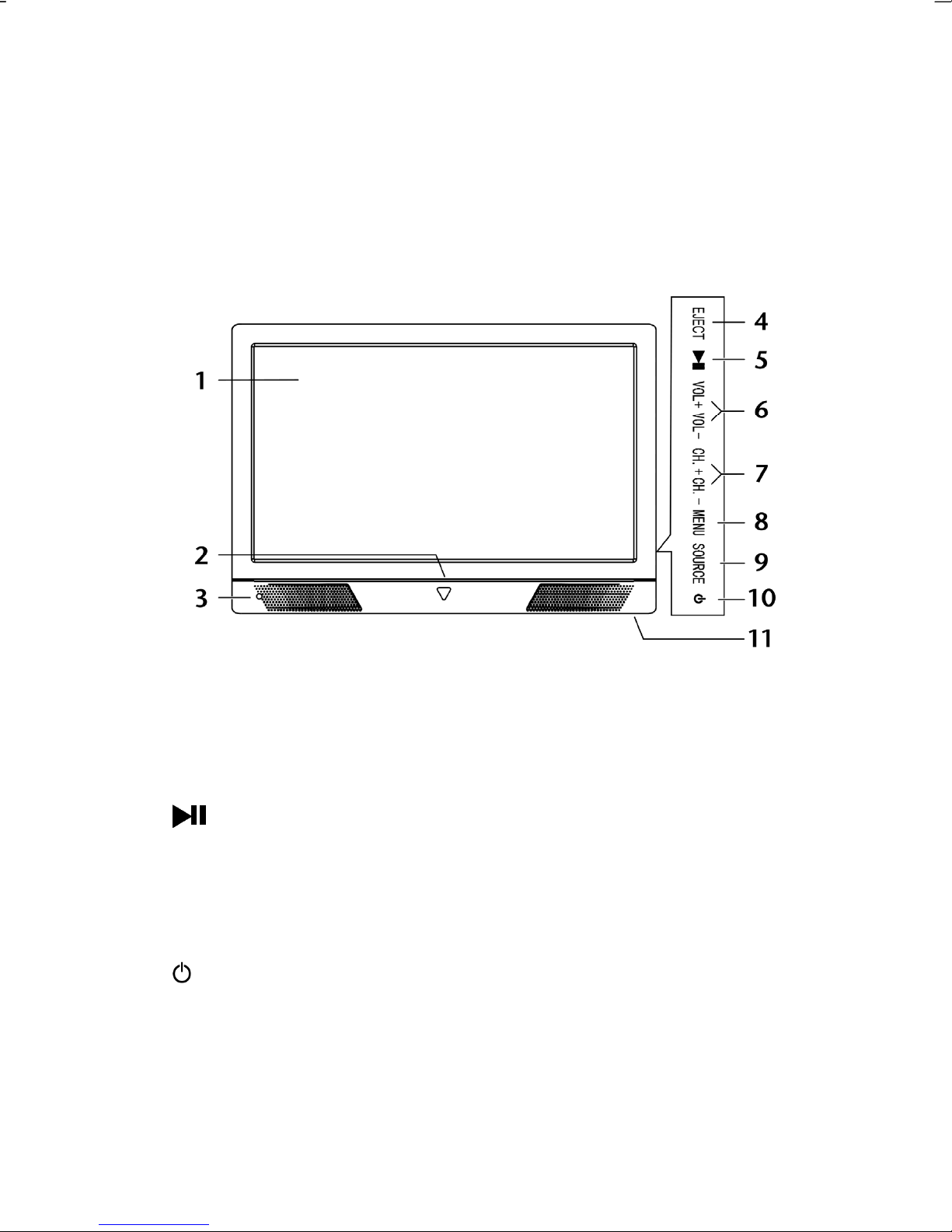

Front and Right-Hand Side View
1. LED LCD Display
2. LED LCD TV Mode indicator: orange when the device is in standby mode;
blue when the device is switched on.
3. Infrared sensor: reception field for the infrared TV signals.
4. EJECT Eject the disk
5. Disk: Start or pause replay
6. VOL + / VOL - Adjust the volume or navigate in the menu
7. CH + /CH - Channel up/down or navigate in the menu
8. MENU Call up on-screen menu to change settings on your device
9. SOURCE Change input source
10. Standby switch, switch on the device or switch to standby
mode
11. POWER Mains switch

A
2
2
Rear View / Connectivity
1. DVD-Player
2. ANT. Connection using an antenna (analogue or DVB-T)
3. AUDIO L R Audio inputs (red/white) for AV and Component IN
4. AV1 Video input 1 (yellow)
5. Component IN 3.5 mm jack component input for the connection
of devices with a component output
6. Connectivity for headphones with 3.5mm jack
7. VGA VGA connection: to connect a PC or Notebook
8. VGA AUDIO Audio input for PC or Notebook
9. SCART/AV2 SCART input
Video input 2 (via SCART to AV adapter)
10. HDMI 1-2 HDMI connection: to connect a device with HDMI out
11. USB USB interface for MP3 and JPG

A
3
3

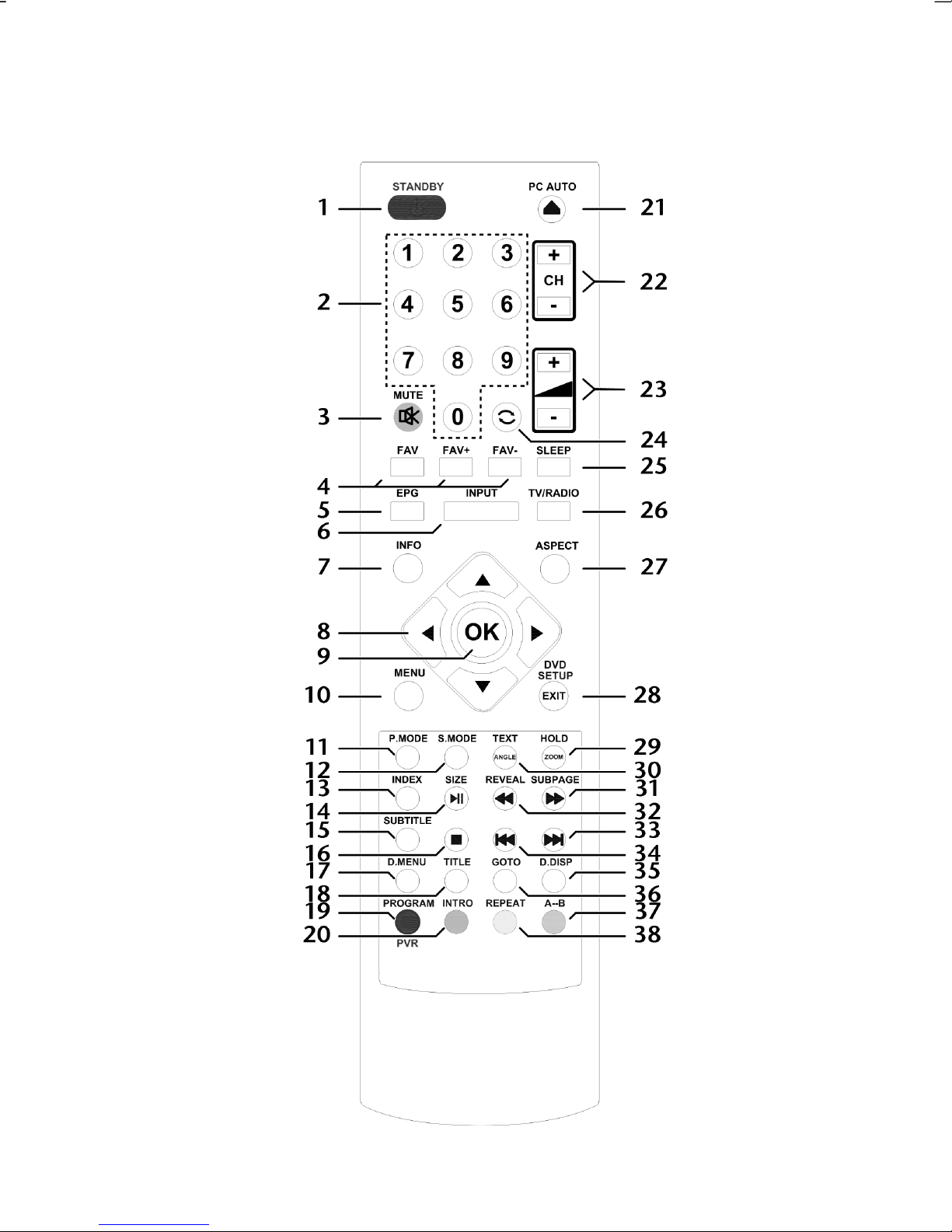

Remote Control

A
4
4
1 STANDBY, i.e. switch off the LED LCD TV temporarily
2 Numeric
buttons
TV: Channel selection
3 Mute
4
FAV
FAV-
FAV+
Open favourites list
Previous favourites station
Next favourites station
5
EPG
DVB-T: Digital TV guide for television and radio programs
(depends on transmitter)
6
INPUT
Select input signal of connected devices
7
INFO
Display information, such as current channel number and
picture format
8 Direction buttons 
9
OK
Confirm selection in specific menus. Also used as ENTER
10
MENU
Open and close menu
11
P.MODE
Choose picture mode
12
S.MODE
Choose sound mode
13
INDEX
Go to the root directory of USB media player
14
SIZE
DVD: Play button - Start playback / Pause button: Pause
playback
15
SUBTITLE
DVD: Subtitle function for DVD player
16 DVD: STOP button, end playback / recording
17
D.MENU
DVD: Open and close DVD menu
18
TITLE
DVD: Display main DVD menu
19
PROGRAM
Red button
PVR
DVD: Program playback list of DVD player
Call up the starting function, if a USB medium is connected.
20
INTRO
Green button
DVD: Introduction function
21
PC AUTO
DVD: Eject button
Automatic adjustment in VGA mode
22
CH+
/
-
Channel up/down navigating
23 Increase (+) or reduce (-) volume.
24 Set previous TV program
25
SLEEP
Sleep timer

A
5
5
26
TV/RADIO
DVB-T: Switch between TV and radio stations
27
ASPECT
Change picture format
28
EXIT
DVD SETUP
Exit menu
DVD: Open menu
29
HOLD
ZOOM
DVD: Zoom function for DVD player
30
TEXT
ANGLE
DVD: Select camera position (angle) in DVD playback
31
SUBPAGE
DVD: Fast forward
32
REVEAL
DVD: Fast rewind
33 DVD: Next title/next section
34 DVD: Previous title/previous section
35
D.DISP
DVD: Displays information on DVD currently inserted, e.g.
section, playback time elapsed, etc.
36
GOTO
DVD: Select a section on a DVD
37
A-B
Blue button
DVD: Setting the AB repeat
38
REPEAT
Yellow button
DVD: Setting the playback mode

A
6
6
