Medistore ProCair Digital 5000 User manual

quicksetupguide

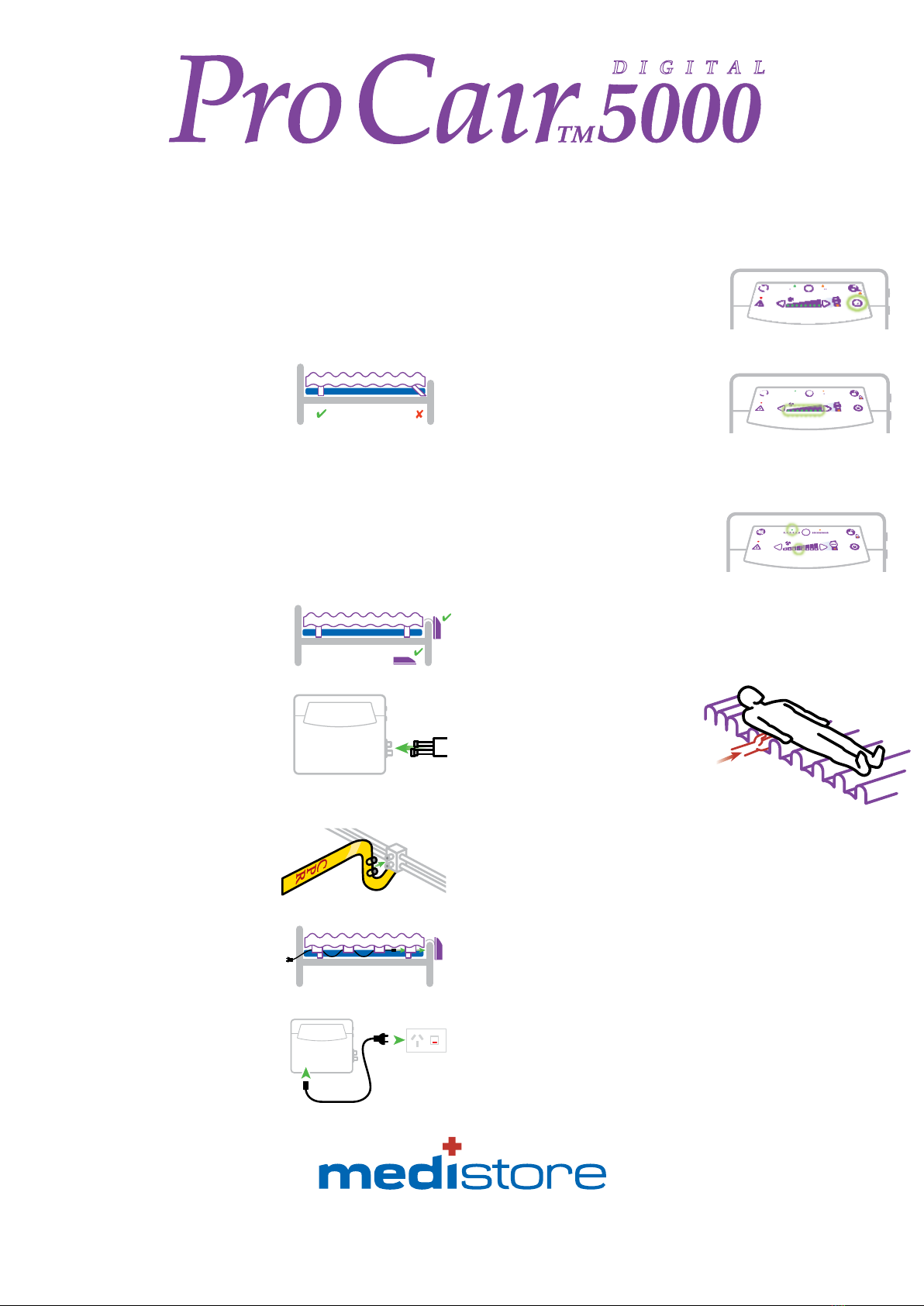

1 Remove existing mattress and replace with
ProCair Safety Underlay (printed top cover
upwards; air hoses towards bed base).
2 Place overlay on top of
Underlay (printed top cover
upwards; air hoses towards
bed base).
Slide elastic straps over mattress ends to secure.
Ensure straps fit firmly and are not twisted or pulled
towards corners.
If not using the ProCair Safety Underlay, place overlay
on top of your existing mattress and secure with elastic.
3 Hang the control unit using
the rear hanging hooks or
place on a stable surface (ie
floor beneath the bed).
4 Attach air hoses to the control
unit. Straighten any twists to
ensure uninterrupted air flow
between control unit and
overlay.
5 Ensure the CPR tag sealing
connector is fully inserted
into air hoses (tag is located
on side, near head end)
6 Feed the power cord through
retention loops on side of
overlay to keep cord off the
floor.
7 Insert the power cord into
control unit base, then plug
into power socket and switch
on mains power.
8 Press the Power button
for two (2) seconds to
switch on.
The Pressure Setting
indicators (Soft to Hard)
flash to indicate the system
is operational and inflating.
Allow up to 40 minutes
for complete inflation.
When inflation is complete,
the fourth indicator, together
with Alternating Mode
indicator will illuminate.
9 Once the overlay is inflated, bedding can be
replaced. Secure sheets loosely enough to ensure
they do not interfere with cell alternation.
10 Lie patient face up
and test pressure settings
by performing a
‘bottoming out’ test:
aunzip one side of the top cover
bslide your hand underneath the patient, feeling
for a deflated cell under the patient’s lower
spine – your hand should easily slide between
patient and base
cfor optimal pressure: patient should be
immersed 30-50% into fully inflated cells
dif patient is not appropriately immersed, decrease
pressure setting and repeat test every 10-12
minutes, until optimal pressure is reached
DIGITAL
1
2
3
less pressure, more support
freecall 1300 882 194
|
freefax 1300 882 197
|
www.medistore.com.au
May15

DIGITAL
controlunitoperation
Five different alarm signals are identified by five
different Pressure Setting illumination sequences:
VISUAL ALARM AUDIBLE ALARM FAU LT
Power or
Fuse issue
Initial
failure
Pressure
too low
Pressure
too high
Power
failure
Alternation mode
failure
Refer to Trouble Shooting Guide or User Manual for
further information on addressing faults
THERAPEUTIC DEVICE SHOULD ONLY BE USED IN ACCORDANCE WITH MANUFACTURERS INSTRUCTIONS & UNDER THE CONSENT, SUPERVISION & MANAGEMENT
OF A SUITABLY QUALIFIED HEALTH PROFESSIONAL.
1 Power Button
Press and hold for two (2) or more seconds to turn
on or off. Always turn off before unplugging unit
2 Mute
Alarm will continue to sound until fault is corrected.
Refer to trouble shooting guide to diagnose fault
3 Comfort Control
Increase or decrease based on patient weight.
Refer to comfort guide for correct settings
4 Mode Selection
Press to switch between static or alternating mode.
Automatically returns to alternating after 30
minutes on static setting
5 Max Inflate
Press for auto-set-up / rapid inflate to maximum
pressure
6 Lockout
Press and hold for five (5) seconds until beep is
heard to lock or unlock
7 Alarm Indicator
Red light flashes and alarm sounds, to alert when
control unit or mattress fails
127 3 4 5 6
Transport Function
Press Mode button (4) to select static mode. Wait at
least 5 minutes for system to reach maximum
pressure. When fully inflated, turn off Control Unit (1);
switch off mains supply and unplug cord.
Press the release button on each hose
connector to disconnect from the Control
Unit. Immediately connect air hoses to each
other by snapping the ends together.
The length of time air is retained depends
on weight / height of the individual patient.
less pressure, more support
freecall 1300 882 194
|
freefax 1300 882 197
|
www.medistore.com.au
Oct13 May15
