Medivators 2-8-335HAN Instruction Manual

2-8-335HAN/2-8-335CAS HOOKUP CONNECTION GUIDE
Using MEDIVATORS®ADVANTAGE®Automated Endoscope Reprocessors

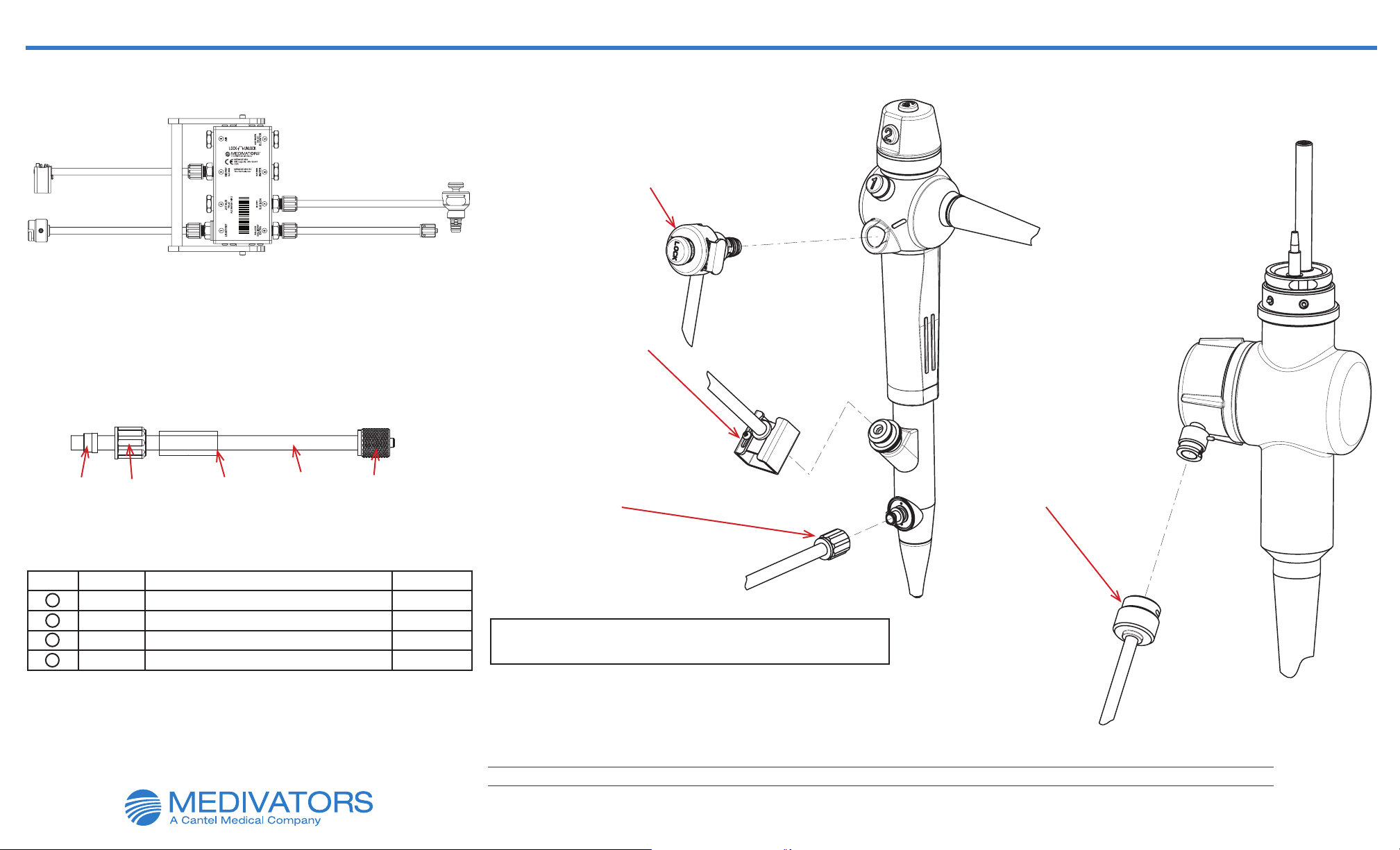

ADVANTAGE HOOKUP (Figure 1)
* Representative endoscope for illustrative purposes only. For exact
port locations, refer to endoscope manufacturer’s instruction guide.
If you have any questions regarding this hookup, in the U.S., please contact MEDIVATORS Technical
Support at 1-800-444-4729. Outside the U.S., please contact your local MEDIVATORS Distributor.
READ ALL INSTRUCTIONS PRIOR TO CONNECTION
Locate the endoscope port* and follow the instructions for attaching the
corresponding Endoscope Connector. All connectors must be attached.
DESIGNATED HOOKUP FOR THE FOLLOWING OLYMPUS®ENDOSCOPES*:
BF-UC160AL5 BF-UC160F-OL8 BF-U180F BF-UC180F-A BF-UC180F-Q BF-UC2 BF-UC260F-OL8 BF-UC40P-1 BF-UM40
* This list of corresponding endoscope models is subject to change without notice. For a full list, please go to:
www.medivators.com/hookuplookup
Port ID Port Name Connector Assembly Description Order Number
1LEAK TEST Leak Test Connector Assembly H28335-1
3BIOPSY Biopsy Connector Assembly H28335-3
7SUCTION Suction Connector Assembly H28335-7
8EXTRA Balloon Connector Assembly H28335-8
If a Connector Assembly needs replacement, locate the port number/name and use
the corresponding order number found in the Connector Assembly Identication Chart.
Connector Assemblies are specic to individual hookups. Check each Hookup Connection
Guide for relevant information.
Each ADVANTAGE Hookup is comprised of multiple ports and connector assemblies.
Each port is labeled with a Port ID number (circled). This same number also identies the
corresponding Connector Assembly. Each Connector Assembly is tted with a specic
endoscope connector. (see Fig. 2).
EXAMPLE CONNECTOR ASSEMBLY (Figure 2)
CONNECTOR ASSEMBLY IDENTIFICATION CHART
Ferrule Endoscope
Connector
example
Tubing
Connector
Coupling
Label
LOT: 625401 ID: 100X
P/N: 2-8-210CAS




Leak Test Connector
Align the slot on connector with
the pin on the waterproof cap.
Push on and turn clockwise to
engage.

Suction Connector
Align and insert the end of the connector into the suction
valve port. Firmly push the connector until it "clicks", then
push the "LOCK" button until there is another "click". To
remove, press the "RELEASE" latch. (Make sure the "LOCK"
button pops up.) Tilt the connector towards the v-notch of the
scope port while pulling the connector out.
Biopsy Connector
Align the biopsy connector disc
over the biopsy inlet and push
down to compress spring and
slide the frame forward to fully
engage.

Balloon Connector
Align stainless steel tting
with balloon port, push and
turn clockwise to connect.


©2014 Medivators Inc. All Rights Reserved. 50098-645/A
www.medivators.com
Manufactured in the USA by:
Medivators Inc.
14605 28th Avenue North
Minneapolis, MN 55447 USA
Toll Free: +1.800.444.4729
Medivators BV
Sourethweg 11
6422PC Heerlen
The Netherlands
Tel: [phone]
Cantel Medical Asia/Pacic Pte. Ltd.
1A International Business Park
#05-01 Singapore 609933
Tel: [phone]
Medivators Inc. Beijing Representative Ofce
Room 1801, Floor 18th, Tower A,
Beijing Marriott Hotel, Ofce Building
No. 7, Jianguomen South Avenue,
Dongcheng District, Beijing 100005 China
Tel: [phone]
HOOKUP CONNECTOR BLOCK LABEL
The Hookup Connector Block Label contains useful information for quick reference.
Handle Locking Instructions - insert block onto basin channel manifold and move handle
to the left to lock. Move to the right to unlock.
Lot Number - identies date of manufacture.
Hookup Part Number - identies hookup.
Hookup Barcode - barcode of part number.
Port Name - identier of port location in ADVANTAGE system. Error logs identify issues using
these names. Also identier of Connector Assembly replacements for older model hookups.
Port ID Number - identier for Connector Assembly replacements. Not found on older
model hookups.
Alternative Channel Connector Names - connector names vary depending on specic
endoscope channel conguration.
WARNINGS & CAUTIONS
This hookup is intended for connection only with the specic endoscope models
identied in the appropriate MEDIVATORS online hookup guide. Use of this hookup
with endoscopes other than those specied by the hookup application guide may
result in inadequate HLD.
Users operating MEDIVATORS AERs and hookups must be trained and competent in
the understanding of endoscope channel systems.
Prior to reprocessing, users must verify that the hookup used contains connections
for all appropriate channels that require a separate reprocessing connection
according to the hookup instructions
All connectors and adapters must remain rmly attached and unrestricted for the
entire disinfection cycle to ensure adequate HLD. Users must inspect the endoscope
and hookup combination to verify proper connection and ow.
Modications or repairs to hookups which do not correspond to the manufacturer’s
specications may result in inadequate HLD and/or damage to endoscopes.
Failure to properly clean and prepare endoscope for immersion prior to hookup
connection may result in inadequate HLD and/or damage to the endoscope.
Endoscopes must be inspected for damage and veried to be in proper working
order prior to hookup connection. Connection of hookups to damaged endoscopes
or endoscopes with obstructed/restricted channels could result in inadequate HLD.
Manual leak testing must be carried out in accordance with manufacturer’s
recommendations prior to reprocessing.
Install all necessary waterproof caps, plugs and cleaning adapters prior to
immersion.
Do NOT autoclave MEDIVATORS hookups.
MEDIVATORS makes no claim on high-level disinfection efcacy when these
reprocessing instructions are not followed, or when this hookup kit is applied to
endoscopes other than those specied in the online interactive hookup guide.
Avoid biological contamination. Always wear personal protective equipment when
handling endoscopes.
