1. Safety Precautions
2. Device Identication
3. System Overview
4. Getting Started
5. Basic Maintenance
1
3
7
8
15
TABLE OF CONTENT

1
1. Do not use the device if the power cable or plug is damaged.
2. Do not insert any sharp or pointed object through the ventilation holes of the device.
3. Do not let unauthorized personnel to play with the device.
4. Do not immerse the device in water, or allow water or any uids to enter through the ventilation holes.
5. When removing the power plug, always hold the plug and never pull the cable.
6. Do not remove the power plug when your hands are wet.
7. Remove the power plug from the wall socket before cleaning the device.
8. Do not modify, disassemble or repair this device without proper training unless stated in the manual.
9. Do not replace the electric plug or cut the power cable. Replacing the plug or cutting the power cable in any way will
immediately cause the Warranty to become void. Any subsequent fault in the operation of the device will not be covered by
the Warranty, and repair and servicing will be chargeable.
10. If the power cable is damaged, contact an authorized Medklinn Service Centre for repairs immediately.
11. Do not attempt to open the inner compartment of the device. The device requires minimal maintenance, and no servicing
or repairs are to be carried out by the User. Opening the device or tampering with it in any way will cause the Warranty to
become void. If you encounter any problems with the device, please contact the nearest authorized Medklinn Service
Centre.
12. Do not wipe the device with benzene or paint thinner.
FOR FURTHER ASSISTANCE, PLEASE CALL OUR CUSTOMER SERVICE.
SAFETY PRECAUTIONS
WARNINGS - To reduce the risk of electrical shock, re or injury:

2
NOTE – Radio, TV or sensitive equipment Interference:
If the device should cause interference to radio, television reception or any sensitive equipment, try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the device and radio/TV receiver/sensitive equipment.
- Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Cautions during operation:
1. Place the device at least 6 feet from radio, television or electronic equipment. This is to minimize the possibility of
interference with the equipment or the remote controller.
2. Do not cover the device in any way at all, particularly the ventilation holes. Doing so will cause excessive heat build-up and
may result in a re and irreparable damage to the device.
3. Avoid placing the device where curtains or other furnishings may cover the ventilation holes.
4. Avoid placing the device in an oily environment as it may cause the module to be coated with a thicker layer of
grease/debris. Hence, aecting its performance.
5. Ensure that there is free ow of air around the device.
6. Avoid locations where the device is exposed to condensation due to rapid and drastic temperature uctuations. The device
should only be used in temperatures between 10º-35ºC.

3
Device Identication
Adjustable Handle
Air Dryer Chamber
O2 Control
Medklinn O3 Hydro 5 (Left Side View)
Water Outlet
Power Inlet
ON/OFF
Button
Fan Filter
Functional parts
Air Dryer
Chamber
Fan Filter
ON/OFF Button
Water Outlet
O2 Control
Removes moisture from the air
supply before it goes into the
ozone module
Filters dust from entering the
fan and inner compartment
To switch the device ON/OFF
Ozone water ows out from
here
Controls the amount of oxygen
owing into the device’s ozone
module

6
4
Device Identication
Functional parts

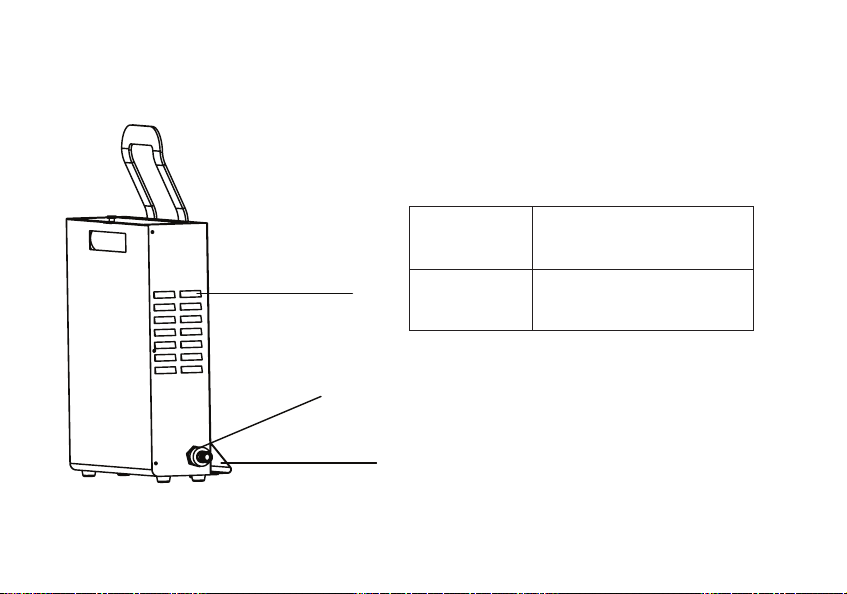

Water Inlet
Base Support
Water supply ows into here
Attach to give better stability
to the device
Air Ventilation Holes
Water Inlet
Base Support
Medklinn O3 Hydro 5 (Right Side View)

5

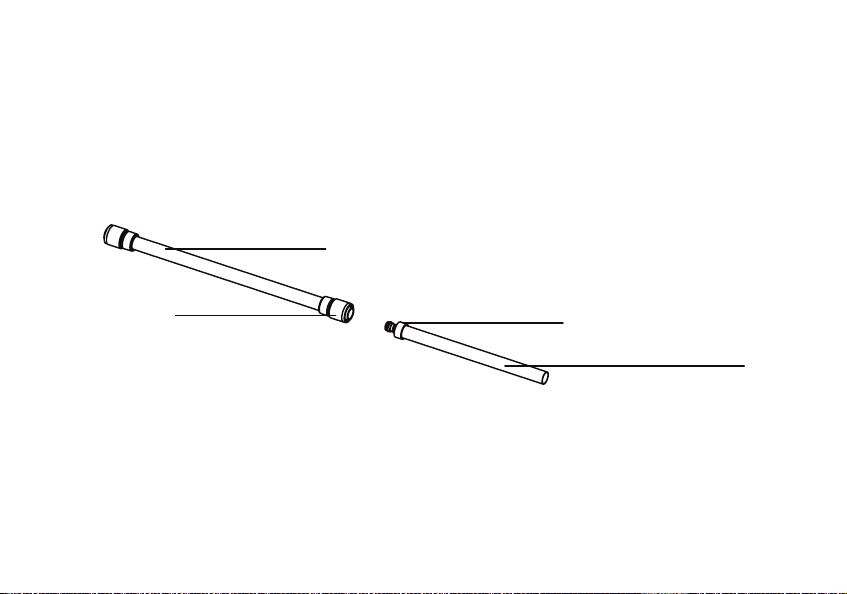

Medklinn O3 Hydro 5 Accessories (Hose 1)
Functional parts

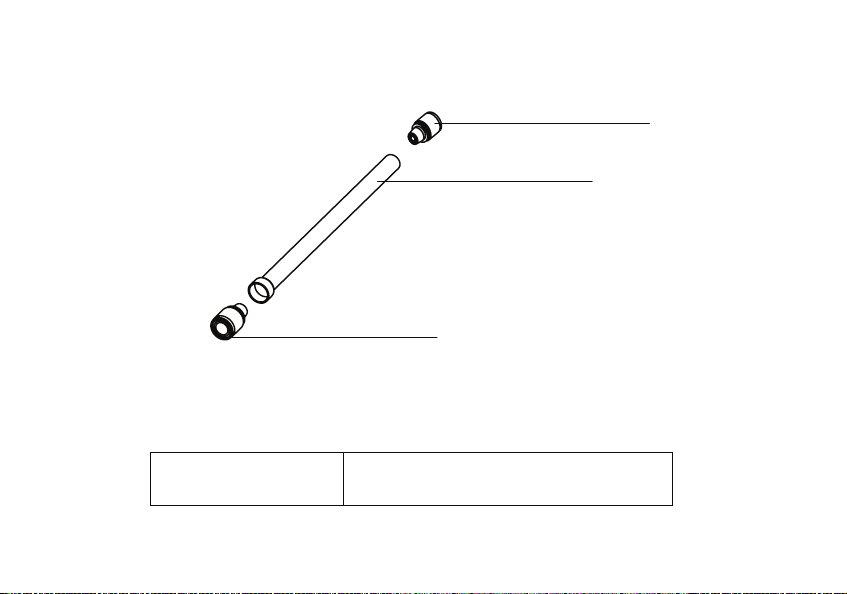

Hose Outlet
Hose
Quick Plug (Female)
Hose Outlet:
Focuses the spray pattern of the water
Quick Plug (Female):
Secures the hose to the water source and/or
device
Device Identication

8
6
Functional parts
Device Identication
Quick Plug (Female):
Secures the hose to the water source and/or
device
Medklinn O3 Hydro 5 Accessories (Hose 2)
Quick Plug (Female)
Hose
Quick Plug (Female)

7
System Overview
Medklinn O3 Hydro 5 converts supplied oxygen (O2) into ozone (O3) and infuses it into the water.
The ozone water
• Disinfects and deodorizes surfaces without hot water
• Eliminates bacteria, viruses and mould
• Removes and prevents biolm build-up
• Dissolves oil and grease
When the Medklinn O3 Hydro 5 operates, the air is drawn into the air dryer chamber, which dries the air. The dry air is supplied
to the ozone module which breaks it down to ozone (O3) with the use of electricity. It is then infused into the water through a
venturi injection to generate ozone water.

8
Getting Started: Connecting the hose
Using Quick Plug
1. Connect a Quick Plug (Male) to the water source pipe with male threaded end.
NOTE: Make sure that there is enough Teon tape when attaching the Quick Plug (Male) to the threaded end of the
pipe to avoid leakage at that point
Quick Plug (Female)
Hose 2
Quick Plug (Male)
¾” Pipe with male
threaded end (water source)

9
2. Pull the yellow cap of the Quick Plug (Female) while connecting to the
Quick Plug (Male). Release the cap to secure the connection. There
should be a “click” sound when the Quick Plugs are secured together.
Pull the hose gently to conrm that the connection is indeed secured.

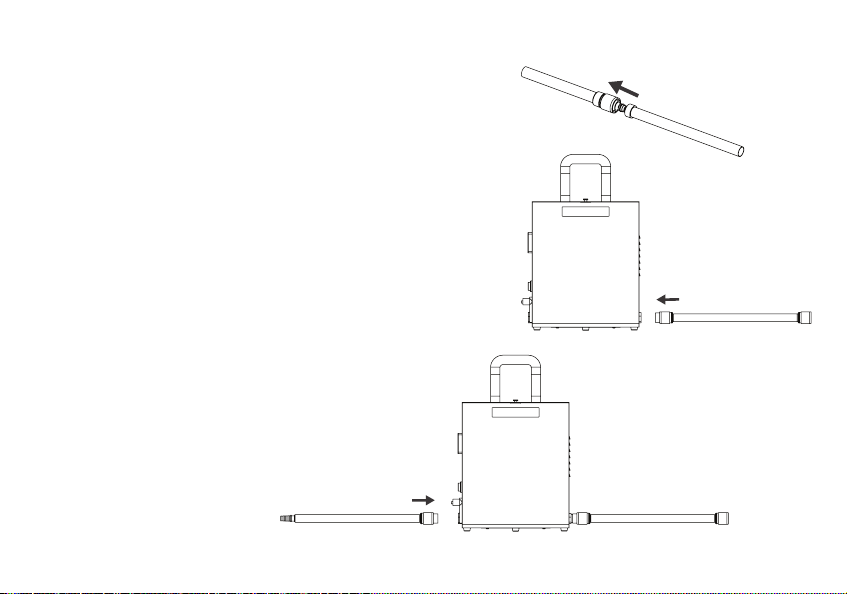

3. Connect the other Quick Plug (Female) of Hose 2 to the device’s Water Inlet.
4. Connect the Hose 1 Quick Plug (Female) to the device’s Water Outlet.

12
10
To a water tap
1. If you have a water tap, please remove one end of the Hose 2 Quick Plug (Female) by loosening the cap.
2. Pull out the Quick Plug.
Hose 2

13
11
3. Connect the hose to the water tap with a hose clip. Tighten the hose clip
with a screwdriver. Ensure it is tight so that water will not leak out when
the tap is turned on.
4. Connect the other Quick Plug (Female) of Hose 2 to the device’s Water
Inlet.
5. Connect the Hose 1 Quick Plug (Female) to the device’s Water Outlet.
Hose Clip

12
Getting Started: Controlling the ozone level into the water
The Medklinn O3 Hydro 5 ozone level is controlled by turning the knob of the O2 Control to increase or decrease the level
ozone generation. It is advisable to keep the ow rate between 1 - 1.5 lpm.
Getting Started: Turn on the device
1. Plug the power inlet to the AC power supply.
2. Connect both hoses provided to the device (Refer to "Getting Started: Connecting the hose", page 8).
3. Turn on the water supply.
4. Turn on the ON/OFF button.
5. Make sure that the ow rate of the O2 Control is between 1- 1.5 lpm.

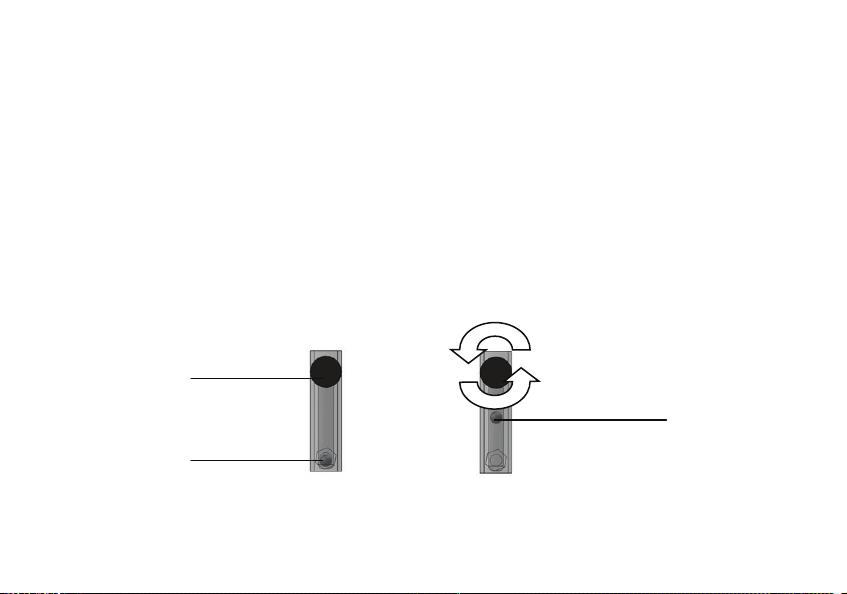

Before: O2 Control
when device is at rest
After: O2 Control when device
is in operation
Knob Turn
Ball Bearing
Ball Bearing is oating

13
Getting Started: Installation of Device
1. Mount a pair of wall plugs with M3 screws to the wall.
NOTE: Leave a distance of 1.5 cm screw length from the wall. Do not screw all the way in. The length allows the
device to be hooked on safely.
2. Hook the Medklinn O3 Hydro 5 mounting slots onto the screws.
Wall Plug
Wall
M3 Screws Mounting Slots
Option A: Wall mount

16
14
1. Remove the 4 pieces of M4 screws from the device (2 at the back, 2 at the bottom)
2. Align and secure the Base Support to the device using the same 4 screws.
Option B: Table top
M4 screws
Base Support

15
Basic Maintenance
Cleaning the Fan Filter
1. Turn o the AC power outlet. Make sure the light at the ON/OFF Button is not lit.

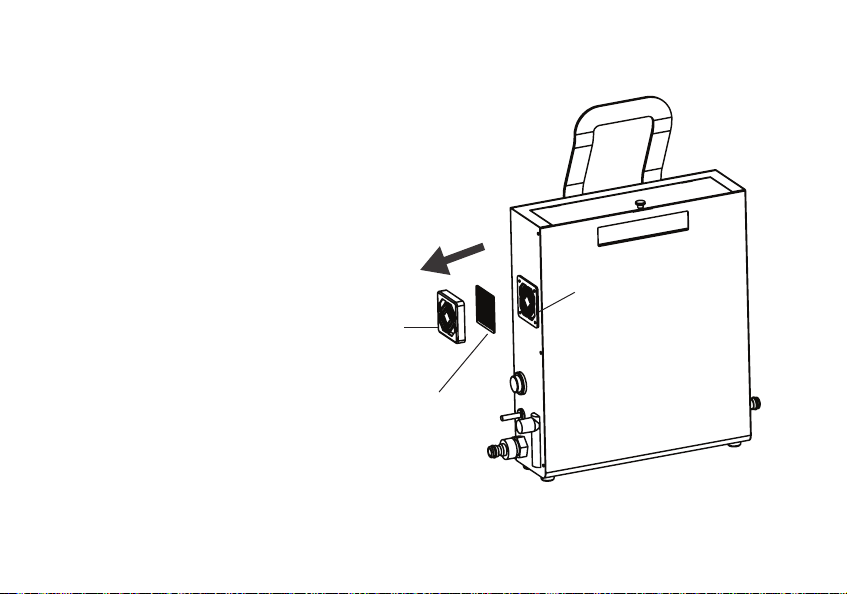

2. Remove the Fan Filter by pulling out the Filter Cover.

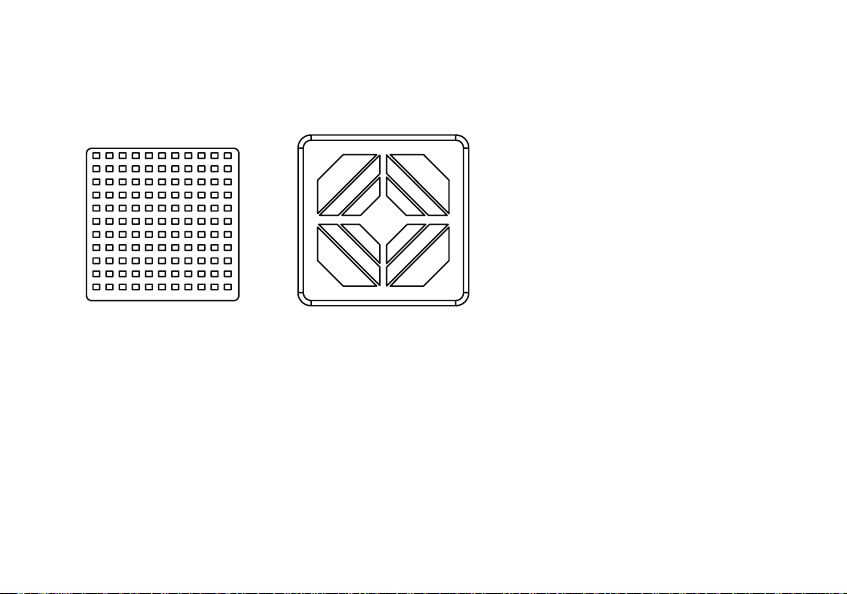

Filter mesh
Filter cover
Fan

16
4. Assemble the Fan Filter in proper order and reattach it to the Fan.
5. Clean the Fan Filter once a month or when it is clogged up with dirt/dust which may block the Fan from functioning.
(A clogged up lter will damage the fan)
Filter Mesh Filter Cover
3. Brush the Filter Mesh with a soft bristle brush. Rinse and dry the Filter Cover. Wipe the Fan gently with a dry cloth.

17
