Mega LED Lighting MJ-1220 User manual

LED BEAM SPOT MOVING HEAD LIGHT
MJ-1220
(3IN1)
User manual
======PROFESSIONAL LED LIGHTING ========
Thank you for choosing our LED moving head light. For the sake of your safety, Please read
and follow these instructions carefully and keep this manual in a safe place for future
reference.

2
Catalogue
Chapter Page
Safe Usage Of The Product -----------------------------------------------------------------------------------------3
Install The Equipment ------------------------------------------------------------------------------------------------4
Power Code Connection ---------------------------------------------------------------------------------------------4
DMX Connection ------------------------------------------------------------------------------------------------------5
DMX Terminator -------------------------------------------------------------------------------------------------------6
Function Set---------------------------------------------------------------------------------------------------------------6
Operation Menu ---------------------------------------------------------------------------------------------------------7
Control panel of LED display information-----------------------------------------------------------------------9
Maintenance --------------------------------------------------------------------------------------------------------------9
Keeping The Product Clean ------------------------------------------------------------------------------------------9
Trouble Shooting----------------------------------------------------------------------------------------------------------9
Equipment and Appendix---------------------------------------------------------------------------------------------10
Channel List---------------------------------------------------------------------------------------------------------------10
Technical Parameters---------------------------------------------------------------------------------------------------12
☆Important notice:
·In this instruction for use contains about the installment and the use aspect important information of the LED moving
head. When installing and using, you need to look this usage instruction strictly.
·Before open the LED moving head and if you want to do the repair work, please make sure the power source is at the
separation condition.
·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer
and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.
Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet
carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters
concerned. Our company retains when the product improvement changes the related specification the authority. This
instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot
the related consequence which causes regarding these information be responsible.

3
SAFE USAGE OF THE PRODUCT
When unpacking and before disposing of the carton, check there is no transportation damage before
using the product. Should there be any damage caused by transportation, consult your dealer and do
not use the apparatus.
The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain
and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other
liquids.
The product is not designed or intended to be mounted directly on to inflammable surfaces
The product is only intended for installation, operation and maintenance by professional person.
The product must be installed in a location with adequate ventilation, at least 50cm from adjacent
wall surfaces. Be sure that no ventilation slots are blocked.
Do not product the beam onto inflammable surfaces, minimum distance is m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all
relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull
out the plug by tugging the power-cord.
Keep the optical system clean. Do not touch the lens with bare hands.
The product should always be installed with a secondary safety fixing. On the projector base brink,
there is a hole for the safety cord provided. It should be attached as shown in “installing the
projector” section.
The lens shall be changed if they have become visibly damaged to such an extent that their
effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 40°C，when steady state is
achieved 50°C.
There is no user serviceable parts inside the projector, do not open the housing and never operate the
product with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
★Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work !

4

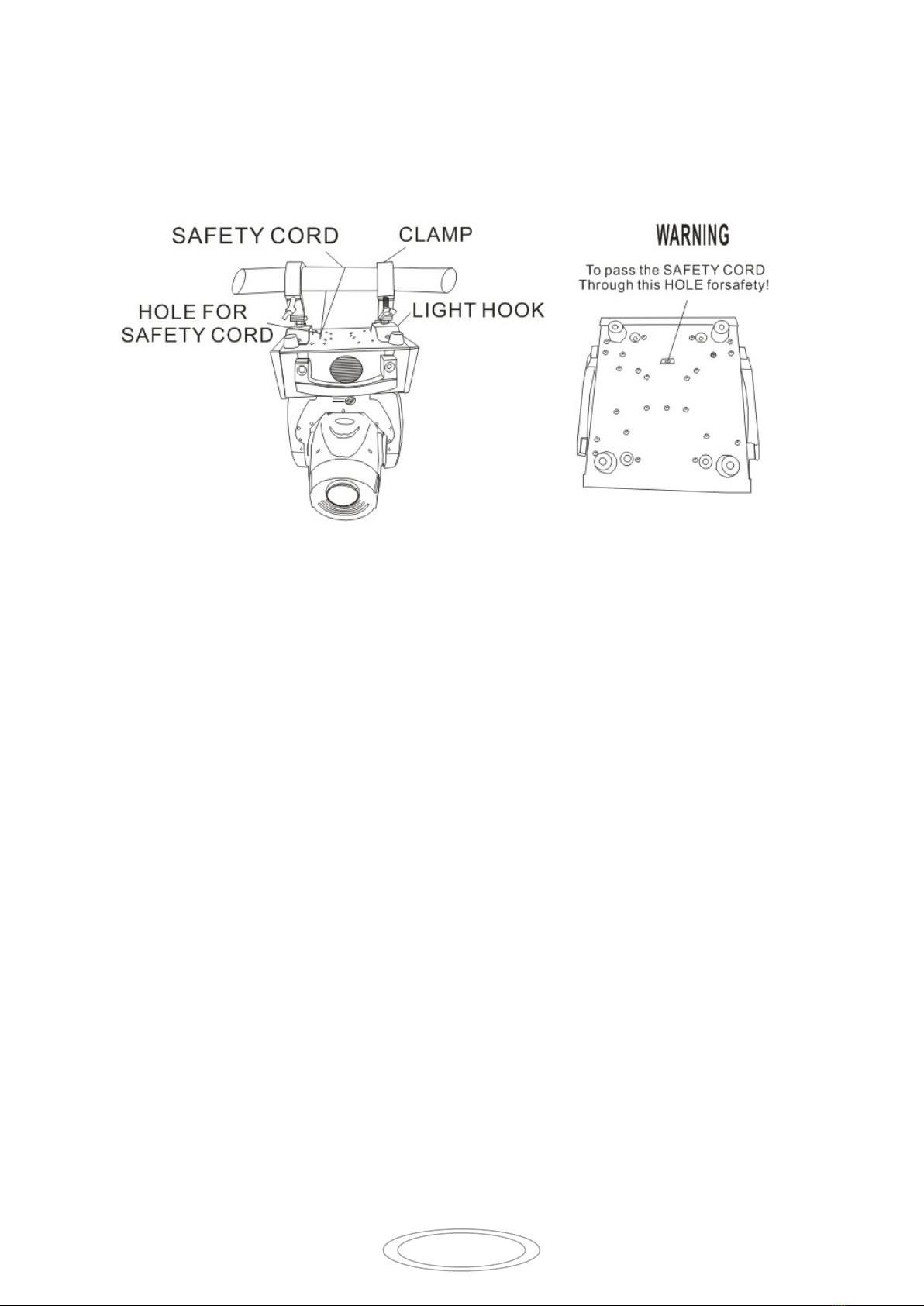

Install The Equipment:
Use 2pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook which in the
packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure
and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm
the light which you fixed is strong enough for hanging the light. Base on safety reason, please
according to the above picture using safety wire cross the light to make it strong enough again.
Warning!
1．Light Hook and clamp only use for hanging the light. Do not use clamp as a tool to move fixtures.
2．Base on safety reason, please use the safety cord which can afford the weight ten times of lamp
through Insurance hole for auxiliary hanging.
3．Don't use the handle of the moving head light to fixed or lift!
Power Code Connection:
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and
frequency marked on the panel of the projector. It is recommended that each projector be supplied
separately so that they may be individually switched on and off.
★It is essential that each projector is correctly earthed and the electrical installation conforms
to all relevant standards.

5
DMX Connection:
Connection between the controller and a projector and between one projector and another must be
made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to
and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and
sockets. The XLR's are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each
other. The body of the plug is not connected in any way. The XLED 590 accepts digital control
signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the
second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last
fixture’s output to a DMX terminator as shown in the figure below.

6
DMX Terminator:
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a
DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control
signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins
2 and 3, which is then plugged into the output socket on the last projector in the chain. The
connections are illustrated below.
Function Set:
1. Display Window Operation(Press the Button into the main menu as below)
2. Button Operation
UP
Esc RIGHT
DOWN
Address Set Check
Calib Test Note
OK

7
Use button switch can set the address code and function code easily.
Check or modify lighting function settings, Press the any button. LCD display panel will display main menus.
Function operation menu all have corresponding submenu . Each menu all represent the specific functions of
lamps, specific see below "operation menu" section.
Set or browse function setting of lamp, Press UP ,DOWN or RIGHT key.
Press OK key to save your changes or to enter submenu, Press UP or DOWN can change value(Plus
or reduce number).
Operation Menu:
Menu Structure chart
Main Menu Sub Menu
…… ……
DMX Address Set(001-512)
Address
System Set
Run Mode
Fixture ID
Manual Drive
CH1
CH2
CH3
CH18
DMX
Auto 1
0-255
0-255
0-255
0-255
Auto 2
Sound
0-255
Channel Mode
18CH
Invert Pan
OFF/ON
Invert Tilt
OFF/ON
Pan-Tilt Swap
OFF/ON
Motor Encoder
OFF/ON
No Signal
Keep/Clean
Screen saver
OFF/ON
Language
Chinese/ English
Load default
OK/Cancel

8
Sub Menu description
Sub menu include address, System Set, Manual Drive, Motor Calibration, System Test, System Info.
Press the main menu picture to do each setting.
1) Address setting, after you finished the setting, then you need to touch “ OK” button to keep the
address code and return to main menu.
2) System Set,
Run Mode:(Run mode have include DMX mode, Auto mode, Sound mode)
1. DMX mode: When the light in the DMX mode, then also can be slave mode. If the light
connect to the DMX control signal, then it is DMX mode. If you connect the light is Master
signal, then it is running slave mode.
2. Auto mode: auto mode also can be master mode.
3. Sound mode: When the light in sound mode, it can’t be work with voice.
Fixture ID: This is display DMX value
Channel Mode: The light channel
Invert Pan: Pan reverse set
Invert Tilt: Tilt reverse set
Pan-Tilt Swap: Pan and Tilt reverse set
Motor Encoder: Motor position correction function
No Signal: When turn on signal link, cut off control signal will be blackout.
Screen saver: Screen saver on or off
Language: menu language can choose Chinese or English
Load default: reset
3) Manual Drive : It is control by hand
CH1-CH18: adjust CH1 to CH18 function by hand
4) Motor Calibration: This is for factory set, need password
5) System Test: test mode is a special mode, only can be used when it is in test mode interface.
6) System Info
Moto Soft Ver: V01.01
Display Soft Ver.: V01.01
Password
Motor Calibration
Motor
MIC
System Test
System Info
Auto test
LED 200W BSM
Password
Moto Soft Ver.
Display Soft Ver.
System OK!
V01.01
V01.01

9
Control panel of LED display information:
Blue On DMX signal ok
Off No DMX signal
Red On Error
Maintenance:
To prolong the life of the projector, some maintenance work has to be done to ensure the LED
optical system in good condition. If the projector does not function, check the fuses on the power
socket of the projector, they should only be replaced by fuses of the same specification. Should
these be damaged, call a qualified technician before replacement. The projector has thermal
protection device that will switch off the projector in case of overheating. Should either of these
operate, check that the fans are not blocked, and if they are dirty, clean them before switching on the
projector again. Check that the fans are operational, if not, call a qualified technician.
☆Any maintenance work should only be carried out by qualified technicians.
Keeping The Product Clean:
To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans
should be cleaned every 15 days. LED lens should also be regularly cleaned to maintain an optimum
light output.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. Asoft cloth
and typical glass cleaning products should be used for cleaning. It is recommended to clean the
external optics at least once every 15 days.
☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
Trouble Shooting:
Problem
Answer
The LED moving head light doesn’t switch on.
Check the fuse the power socket
Although shines, but the LED moving head
lamp doesn’t accept the instruction of the
controller.
Check the digital start address and also
check the connection situation of the
communication control line
LED moving head lamp only can work
intermittently.
Inspect the power supply and voltage is
whether normal.
Do not receive the DMX512 signal.
Whether the signal lines do contact
well or broken.
The light beam appears gloomily.
Check that the heat dissipation system is
running normally or Inspect the optics
part is whether clean.
☆Other maintain work should by the specialist which has the experience to carry on.

10
Equipment and Appendix:
The packing list of this light as follows:
☆Led moving head light 1pcs
☆Power Cable 1pcs
☆XLR connector 1unit
☆Light Hook 2pcs
☆The Product of Instruction 1pcs
Channel List:(18CH)
Channel Function Value Function Description
CH1 Pan 0~255 Pan movement (0-540)
CH2 Pan Fine
0~255
Pan Fine 16bit
CH3 Tilt
0~255
Tilt movement (0-270)
CH4 Tilt Fine
0~255
Tilt Fine 16 bit
CH5 Speed
0~255
P/T speed from fast to slowly
CH6 Dimmer
0-255
Dimmer 0-100%
CH7 Strobe
0
～
3
Open
4
～
100
Frequency stroboscopic
101
～
150
Divide stroboscopic
151
～
200
sharp- stroboscopic
201
～
250
Random stroboscopic
251
～
255
Open
CH8 Color
0
～
199
Color choose
200
～
226
Rotate clockwise from fast to slow
227～228 Stop rotation
229
～
255
Rotate counterclockwise from slow to fast
CH9 Fix Gobo
0
～
4
Open
5
～
9
Gobo 1
10
～
14
Gobo 2
15
～
19
Gobo 3
20
～
24
Gobo 4
25
～
29
Gobo 5
30～34 Gobo 6
35～39 Gobo 7
40～44 Gobo 8
45～49 Gobo 9
50
～
54
Gobo 10
55
～
64
Gobo 1 shake from fast to slowly
65
～
74
Gobo 2 shake from fast to slowly

11
75～84 Gobo 3 shake from fast to slowly
85
～
94
Gobo 4 shake from fast to slowly
95～104 Gobo 5 shake from fast to slowly
105
～
114
Gobo 6 shake from fast to slowly
115～124 Gobo 7 shake from fast to slowly
125
～
134
Gobo 8 shake from fast to slowly
135～144 Gobo 9 shake from fast to slowly
145
～
154
Gobo 10 shake from fast to slowly
155～204 Gobo rotate clockwise from fast to slow
205
Stop
206～255 Gobo rotate
counterclockwise from fast to slow
CH10 Rotate Gobo
0
～
9
Open
10～19 Rote Gobo 1
20
～
29
Rote Gobo 2
30～39 Rote Gobo 3
40
～
49
Rote Gobo 4
50～59 Rote Gobo 5
60
～
69
Rote Gobo 6
70～79 Rote Gobo 7
80
～
89
Open Gobo shake from fast to slowly
90～99 Rote Gobo 1 shake from fast to slowly
100
～
109
Rote Gobo 2 shake from fast to slowly
110～119 Rote Gobo 3 shake from fast to slowly
120
～
129
Rote Gobo 4 shake from fast to slowly
130～139 Rote Gobo 5 shake from fast to slowly
140
～
149
Rote Gobo 6 shake from fast to slowly
150～159 Rote Gobo 7 shake from fast to slowly
160
～
206
Gobo rotate clockwise from fast to slow
207～208 Stop
209
～
255
Gobo rotate counterclockwise from fast toslow
CH11 Gobo Rotate
0～127 Gobo 360 degrees rotation
128
～
190
Gobo rotate clockwise from fast to slow
191～192 Stop
193
～
255
Gobo rotate counterclockwise from slow to fast
CH12 Prism 0～127 Prism OFF
128
～
255
Prism ON
CH13 Prism Rotate
0～127 Prism rotation 90 degrees
128～190 Prism rotate clockwise from fast to slow
191
～
192
Stop
193
～
255
Gobo rotate counterclockwise from slow to fast

12
CH14 Frost 0～127 Frost OFF
128
～
255
Frost ON
CH15 Focus 0～255 0-100% Linear focus
CH16 Zoom
0
～
255
0-100% Linear zoom
CH17 Macro
0～50 No function
51
～
100
Function auto test
101～150 Auto1
151
～
200
Auto 2
201～255 Sound control
CH18 Reset
0
～
250
No function
251-255 Reset（Hold for 5 seconds）
Technical Parameters:
Voltage: AC100V-240V; 50/60Hz
Power Consumption: 260W (220V)
LED Bulbs: 200W*1pcs White LUMEN LED
Color temperature : 6500K
LED Current: 7.5A
LED Lifetime: 50000Hours
Color: 9 color + open color wheel
Gobo: 10 Fixed Gobo + open Gobo wheel
7 Rotation Gobo + open Gobo wheel
Prism : 1pcs rotation 4-face prism, Bilateral rotation.
Frost : 1Pcs frost mirror
Dimmer : 0-100% linear adjustment
Strobe: 1-25/second high speed strobe, but single color Mixes the color strobe
Focus :Electric focus from near to far
ZOOM: Linear ZOOM function
Zoom angle : 6°-10° beam model; 10°–40° spot model
Head Movement: Pan 540°, Tilt 270°, with auto position correction and electronic replacement
function.
Control mode: DMX 512, Stand –alone mode, Self-test mode, Sound, Master/slave
DMX Channel: 18CH
Control Panel: LCD display panel with 5 buttons, the menu can be set English and Chinese menu
IP Grade: IP20
Work Environment Temperature: -20°C~40°C
Net weight:16KG
Gross Weight:18kg
Package Size: 49 x 37x 63cm
