MegaLite ATRIA User manual

M415E...
75
90
140
±135°
50
Ø6
(2x)
-45° +225°
2x

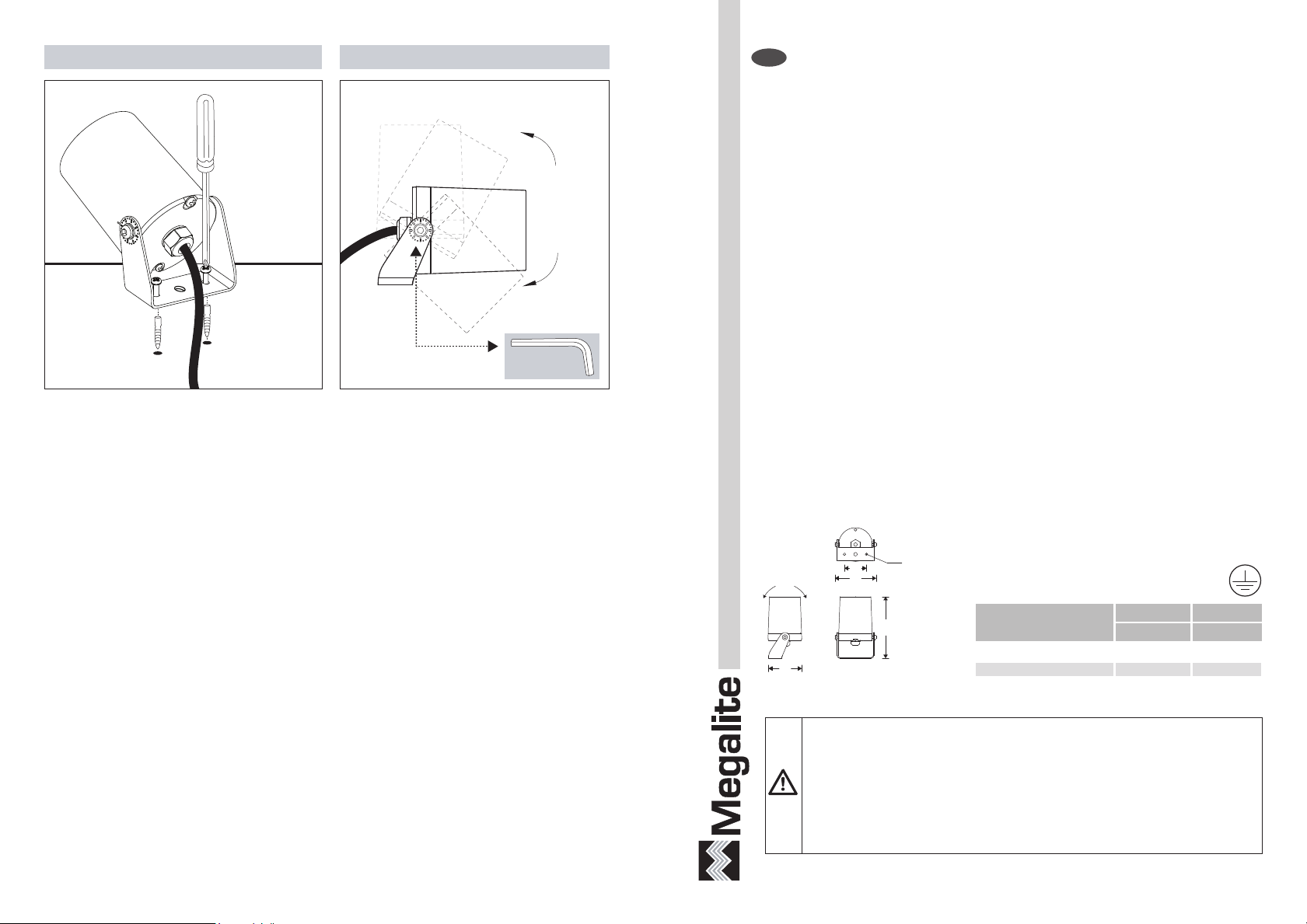

Angle adjustment
Surface mounting
Cat. Code
M415E...LED2830-W
M415E...LED1AMB-W
500
450
-200
-200
Max Temp. Min Temp.
(C.)(C.)
EN
7002024701
W-CM011/01Doc. No. Tracking Code: CKD1627CM-94-452No. Minutes: 05/09/2015Execution Date:
[email protected]www.megalite.com
Instruction for Installation and Utilization of ATRIA Spot Facade Light
1- For proper utilization of this product and safety, it is mandatory to closely
comply with the directions and notes in this instruction and guide.
2- Earth connection as provided is mandatory.
3- Do not directly touch or impact LED module.
4- Do not stare at LED light source.
5- The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualified person. Always switch
off the power prior to installa-tion, maintenance or repair activities.

Connecting with direct connector
Connecting with T connector
GCTBTIP-BL
1 2 3 4
Connecting with Self vulcanising tape
GCTBSIP-BL
1
2
3
Close!
Close!
3
2
1
L
N
L
N
12 mm
Ø 4-6 mm
7 mm
Red
12 mm
Ø 6-8 mm Ø 7-11 mm
7 mm
Orange Gray
L
N
L
N
12 mm
Ø 4-6 mm
7 mm
Red
12 mm
Ø 6-8 mm Ø 7-11 mm
7 mm
Orange Gray
