Megasat DVBT-620 User manual

Model: DVBT-620
Diversity DVB-T2
Car TV Receiver
User Manual
www.vgg-ltd.com

1
Please Read all of these instructions regarding your unit and retain them for future reference.
Keep this manual handy as a reference for operating procedures and safety information.
Do not insert irrelevant objects of any kind into this device through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric
shock.
Do not place this unit near liquids as electrical shock could result. Damages resulting
from splashing liquids on the device may cause smoke and overheat.
On safety
Do not attempt to install or serve your device on your own. Installation or serving by
people without proper training and experience in electronic equipment and automotive
accessories may be dangerous and could expose you to the risk of electric shock or other
hazards.
If the receiver does not work properly, please disconnect the power plug for safety.
Contact your local dealer immediately for further technical support.
If any solid object or liquid fall into the cabinet, disconnect the unit and have it checked
by a qualified person before operating it any further.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK –
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNE;
The lighting flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk at electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance

2
Table of Contents
I. Introduction .................................................................................... 3
I.1 DVBT-620 Product Overview........................................................................................3
I.2 Unit Description ...........................................................................................................4
I.3 Remote control operations ..........................................................................................7
I.4 Antenna Installation .....................................................................................................8
II. Quick Guide for First-time User ........................................................ 10
III. Operating DVBT-620 ....................................................................... 12
III.1 TV Mode .....................................................................................................................12
III.1.1 Channel List ........................................................................................................12
III.1.2 Channel Management........................................................................................13
III.1.3 Auto Search ........................................................................................................14
III.1.4 Audio Selection...................................................................................................15
III.1.5 Channel Information ..........................................................................................15
III.1.6 Aspect Ratio........................................................................................................16
III.1.7 Subtitle ...............................................................................................................16
III.1.8 AFS Setting..........................................................................................................17
III.1.9 Display Setting ....................................................................................................18
III.2 System Settings...........................................................................................................19
III.2.1 Country/Language..............................................................................................19
III.2.2 Display Setting ....................................................................................................19
III.2.3 Monitor Port Setting...........................................................................................20
III.2.4 HDMI Setting ......................................................................................................20
III.2.5 Antenna Power Output (+5V).............................................................................21
III.2.6 Version / Upgrade...............................................................................................22
III.2.7 Reset Default ......................................................................................................22
IV. Trouble Shooting Q&A ..................................................................... 23
V. Specification .................................................................................. 25

3
I.Introduction
I.1 DVBT-620 Product Overview
DVBT-620 is designed to access terrestrial DVB-T2 TV broadcasting services
recently emerging in many regions. As a whole, the DVBT-620 accepts signal
inputs from DVB-T2 antennas, performs all required TV signal processing, and
then generate analog/digital AV contents for display in monitors. With its
state-of-the-art TV signal reception and Audio/Video processing techniques,
DVBT-620 promises to deliver users an easy access of local HD DVB-T2 TV
programs.
Features Summary
TV
Best-in-class sensitivity for mobile HD DVB-T2 reception
Excellent mobility support
Record TV/Radio programs on USB storage device
+5V Phantom power output for active antenna
Robust Quality and Stylish GUI
Stylish and user-friendly GUI
Robust quality in both hardware and software

4
I.2 Unit Description
Front Side
(1) USB port: for software upgrade
(2) Power/IR Port*: it is connected to either 12 V or 24 V in-car
power supply and port for connecting the infrared receiver
extension dongle.
(3) Power: “Power” LED indicates if the 12V or 24V power supply
has been successfully applied to the device.
(4) Operating: the “Operating” LED indicates if the system is
working.
(3) Power
(4) Operating
(1) USB
(2) Power/IR
port

5
Back Side
(5) Antenna: Antenna input connector. Note that +5V DC output
for powering active antenna is also provided via this port.
(6) HDMI: The TV audio and video output (digital) via a HDMI port
*Please see next chapter for further information
Note: Connect antennas to the unit BEFORE turning on engine.
Please connect the antennas first and then turn on the unit. If users turn on the
main unit and then connect the antennas later, the connected antenna will NOT
be detected nor activated for receiving DVB-T signal as it should.
Warning: Make sure the power supply jack is correctly connected.
If this unit intends to use +12/24V power supply provided by vehicle via ACC route, please make
sure the red wire is correctly connected with the ACC ignition for proper system operations.
(5)Antenna
(6)HDMI

6
Power I/O Port
1
B output
2
R output
3
G output
4
VIDEO_GND
5
AUDIO_GND
6
CVBS Videoutput
7
AUDIO L output
8
Audio R output
9
UART Rx input
10
UART Tx input
11
IR data intput
12
LED_EN
13
IR power output
14
PWR_GND
15
+12V input
16
ACC input

7
I.3 Remote control operations
No
Button name
Function
1
POWER
Select the power-on or stand-by
2
RED BUTTON
Subtitle key in normal operation mode or
the hot key
3
GREEN
BUTTON
Hot key to enter teletext pages in teletext
mode
4
YELLOW
BUTTON
Select page up in the EPG mode or the hot
key
5
BLUE
BUTTON
Select page down in the EPG mode or the
hot key
6
SRC
None
7
AUDIO
Select second language and stereo audio
8
FF
Fast Forward
9
HOME
Go to the home screen
10
CH▲
Select the channel up or move the cursor
up
11
VOL
Select the volume up or move the cursor
right
12
CH▼
Select the channel down or move the
cursor down
13
EXIT
Exit the current setup
14
ENTER
To enter the selected item
15
FR
Fast Rewind
16
Play/pause
Select play/pause
17
MENU
Enter the setup menu
18
VOL
Select the volume down or move the cursor
left
19
OK
Select the highlighted item
20
TV LIST
TV Program List
21
REC●
-Start to record the TV/Radio program or
exit the recording
- Subtitle key in the normal operation mode
If the battery power in the remote controller becomes low, please follow the steps below to
replace a new battery:
1. Slightly push the battery case from the down to the up and pull out the battery case
from the remote control.
2. Replace the original battery with the new one.
3. Insert back the battery and the case into the remote control.
-Remote Control Battery Installation
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[14]
[13]
[15]
[16]
[17]
[18]
[19]
[20]
[21]

8
I.4 Antenna Installation
In-car digital TV reception varies from vehicle to vehicle and the installer may
need to try several mounting positions to determine the best one which provides
strong and stable signal reception in your vehicle.
Important Notes on Antenna Installation: for a better reception, please
place the rod antenna horizontally, and keep the rod antenna away from
metals.

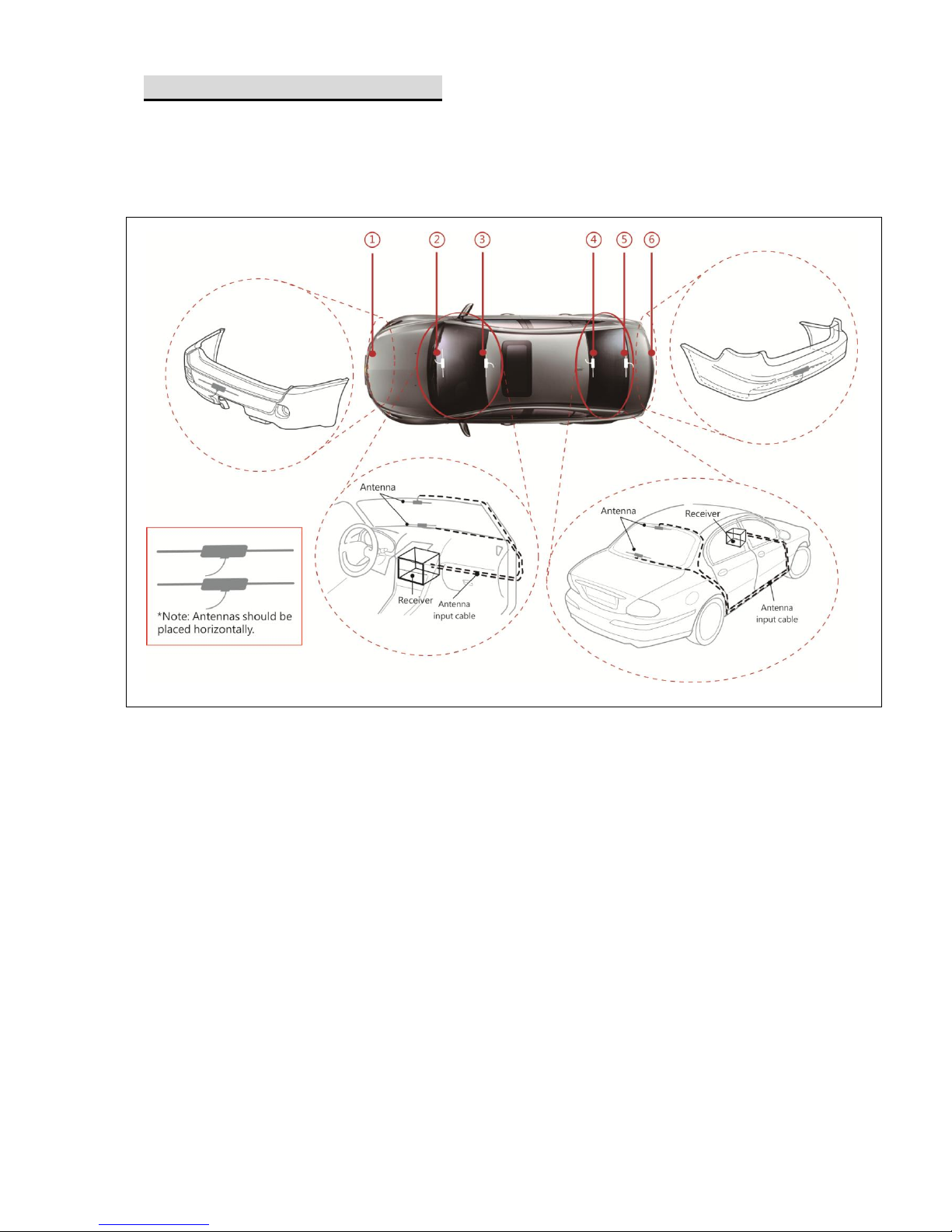

Antenna Position
To extend the reception area, we recommend that one antenna is mounted at
the front and one at the rear of the vehicle. Please refer to the diagram below for
some recommended locations.
Front Location Rear Location
(1) Behind the Front Bumper, provided that it is not metal
(2) Top of Front Windscreen, at least 5cm away from metal body (in car)
(3) Top of Rear Windscreen, at least 5cm away from metal body (in car)
(4) Bottom of Rear Windscreen, at least 5cm away from metal body (in car)
(5) Behind the Rear Bumper, provided that it is not metal
*Noted: The DTV signal of position (2) ~ (4) is generally better than position
(1) and (5). However, because the windshields of many cars are usually
equipped with film coating (containing metal), the actual signal reception will
be seriously degraded, depending on the extent of metal embedded within.
1
2
3
5
4

9
Antenna Cable Rounting
Once a suitable position is found, carefully route the antenna cables to the
receiver unit and then connect to the Antenna Inputs on the DTV receiver.
