Megasat Royal Line 19 User manual
User manual
Royal Line Serie
ContentContent
02 ENGLISH
1. Safety instructions......................................................................................................................03
2. Delivery ................................................................................................................................................03
3. Stand assembly..............................................................................................................................04
4. Designations
4.1 Front and side view............................................................................................................06
4.2 Connections............................................................................................................................07
4.3 Remote control.....................................................................................................................08
5. First installation....................................................................................................... 09
6. Basic functions
6.1 Select input source............................................................................................................. 10
6.2 Navigation in the main menu...................................................................................... 10
7. The Main Menu
7.1 Channel Search.....................................................................................................................11
7.1.1 Channel Search (Satellit)..................................................................................11
7.1.2 Channel Search (Cable and Terrestrial)...................................................16
7.2 Picture.........................................................................................................................................17
7.3 Sound..........................................................................................................................................18
7.4 Clock............................................................................................................................................19
7.5 Configuration.........................................................................................................................20
7.6 Protection.................................................................................................................................21
8. DVD operation
8.1 Key functions in DVD mode..........................................................................................22
8.2 DVD settings menu............................................................................................................23
9. Multimedia operation (USB)
9.1 Photos.........................................................................................................................................25
9.2 Music...........................................................................................................................................26
9.3 Movies ........................................................................................................................................27
10. EPG Menu (Programm Guide)........................................................................................28
11. CI+ slot for pay TV expansion.........................................................................................29
12. Troubleshooting........................................................................................................................ 30
13. Specications...............................................................................................................................31
03ENGLISH
1. Safety instructions
2. Delivery
Please check whether the following items are included in the package.
If any items are missing or damaged, please contact your dealer.
1. TV
2. Stand incl. screw
3. Remote Control
4. Batteries
5. AV adapter
6. YUV adapter
7. 230/12V Power supply
8. 12V vehicle power cable
9. User manual
Please read the manual thoroughly before operating the equipment. In case of incorrect
or improper handling, the warranty becomes void.
Power supply: Before start please check the correct operation voltage of the
power point. The operating voltage of this device is
AC 100~240 V, 50/60Hz.
Overload: Do not overload a wall outlet, extension cord or adapter, neither
use damaged power cord or touch it with wet hand as this may
result in electric shock.
Liquid: The device shall not be exposed to dripping or splashing water,
and that no objects filled with liquids, such as base, shall be
placed on the apparatus.
Ventilation: Keep the slots on top of the device uncover to allow sufficient
airflow to the unit. Do not expose the device to direct light or
do not place it near a heater or in humid conditions.
Risk of suocation: Do not let children play with films or other packaging
components, there is a risk of suffocation.
Cleaning: Plug out the device from the wall outlet before cleaning. Clean
the device by a soft cloth or mild solution of washing-up liquid
(no solvents).
Location: Put the device indoor in order to avoid lightening, raining or
sunlight.
Uncover: Do not remove the cover, to reduce the risk of electric shock.
Contact qualified and licensed service personnel to repair the
receiver, or contact your dealer.
3. Stand assembly
04 ENGLISH
Insert the stand as shown on
the TV.
Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent
any damage to the TV.
Television Stand
4x Screws
rear
front (longer)
Note:
Before installing the stand, please check that you have all of the parts and that there
is no visible damage. If a part is missing or appears damaged, please contact custo-
mer service.
Note:
1. Before you put on the stand, please make
sure the direction is correct as shown below.
2. When you are putting on the stand, please
make sure the neck of the TV set is in the
correct position and attached tightly.
1. For the assembly you need the following parts
2. How to mount the stand
05ENGLISH
3. Stand assembly
3. WARNING
Use a suitable screwdriver and attach the base with the screws provided. Make sure that the
screws are properly tightened.
It can not be tilted to the front or back
as shown below. Doing so may damage
the stand.
It can not be tilted to the left or right as
shown below. Doing so may damage
the stand.
The functions of the buttons on the housing side:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu, press again to exit the menu.
CH +/-: Press to scan through channels.
VOL +/-: Press to adjust the volume.
PLAY: Play/Pause the programm.
EJECT: Eject the disc.
POWER: Turn on/offthe TV set.
Infrared sensor
Receiver for the remote
control signals.
Front view Side view
LED light
Press the power button
to switch on or offthe TV.
RED = Standby / Green = Power on
Power switch
Main switch for
power supply
06 ENGLISH
4.1 Fronr and side view
4. Designations
Note:
Press INPUT repeatedly to select the desired source. After a short wait, the TV swit-
ches to the desired signal source.
07ENGLISH
4. Designations
4.2 Connections
Bottom view
Side view
POWER 12V DC Mains connection for 12/230 volt power supply
or 12V board voltage.
VGA Video input for VGA from PC
PC IN Audio input for sound from PC
SCART Scart port
ANT IN 2 / DVB-S2 Input for Satellite antenne (13/18V max. 500mA)
ANT1 IN Port for DVB-T antenna or Cable TV
COAX Digital Audio output (coaxial)
HDMI HDMI input
USB USB 2.0 port for media playback or to
record / timeshift function (optional)
Headphones Output for Headphones with 3,5mm jack
Common Interface Slot for CI/CI+ module
Mini YPbPr Component input with adapter cable
Mini AV AV input (FBAS/Audio) with adapter cable
4. Designations
08 ENGLISH
POWER Turn the TV on / off(Standby)
MUTE Muting the sound
PICTURE Switch to picture presets
ASPECT Switch aspect ratio
SLEEP Setting Automatic-shutdown
SOUND Switch to Sound preferences
FAV Show favorites
NUMMERIC BUTTONS Enter numbers
RETURN Returns to the last channel position
INFO Show informations
INPUT Select source
MENU Opens the main menu
EXIT Exit the respective menu
ARROW KEYS for navigation in the main menu and DVD menu,
for program changes and volume control
OK To confirm a selection / program list
VOL +/- Volume control
CH +/- Change channels
EPG Electronic Program Guide
TV/RADIO Switch between TV and radio stations
CH.LIST Opens the channel list
TV/TXT Show and close Teletext
EJECT Ejects the DVD (only in DVD mode only)
REC Starts recording (optional)
REC.LIST Displays the recording list (optional)
SUBTITLE / D.PRO Show / hide subtitles (if available)
D.PRO edit the play list in DVD mode
CANCEL / D.REP Switch between Teletext / TV
D.REP repeat mode in DVD mode
REVAL / D.GOTO Displays hidden information in Teletext
D.GOTO playing your favorite titel / chapters
NICAM/A2 / D.SLOW Switch to Nicam/A2
D.SLOW plays DVDs in slow motion
INDEX Gets the index page in the DVD menu
HOLD Holds the bottom change in teletext
SIZE / D.ZOOM Zoom in on the top and bottom of the teletext
D.ZOOM selects an image in the DVD mode
SUBPAGE / D.TITLE Subpages in teletext Call up / Cancel
D.TITLE shows the DVD title in DVD menu
I
tt / uu
I
Previous Chapter / Next Chapter
tt / uu Forward / Rewind backward
u
II
Start / Pause
nStop
D.SET: DVD System settings
D.MENU: Show DVD menu
D.SUB: Show DVD-subtitles
D.LAN: Switch languages / audio tracks in DVD mode

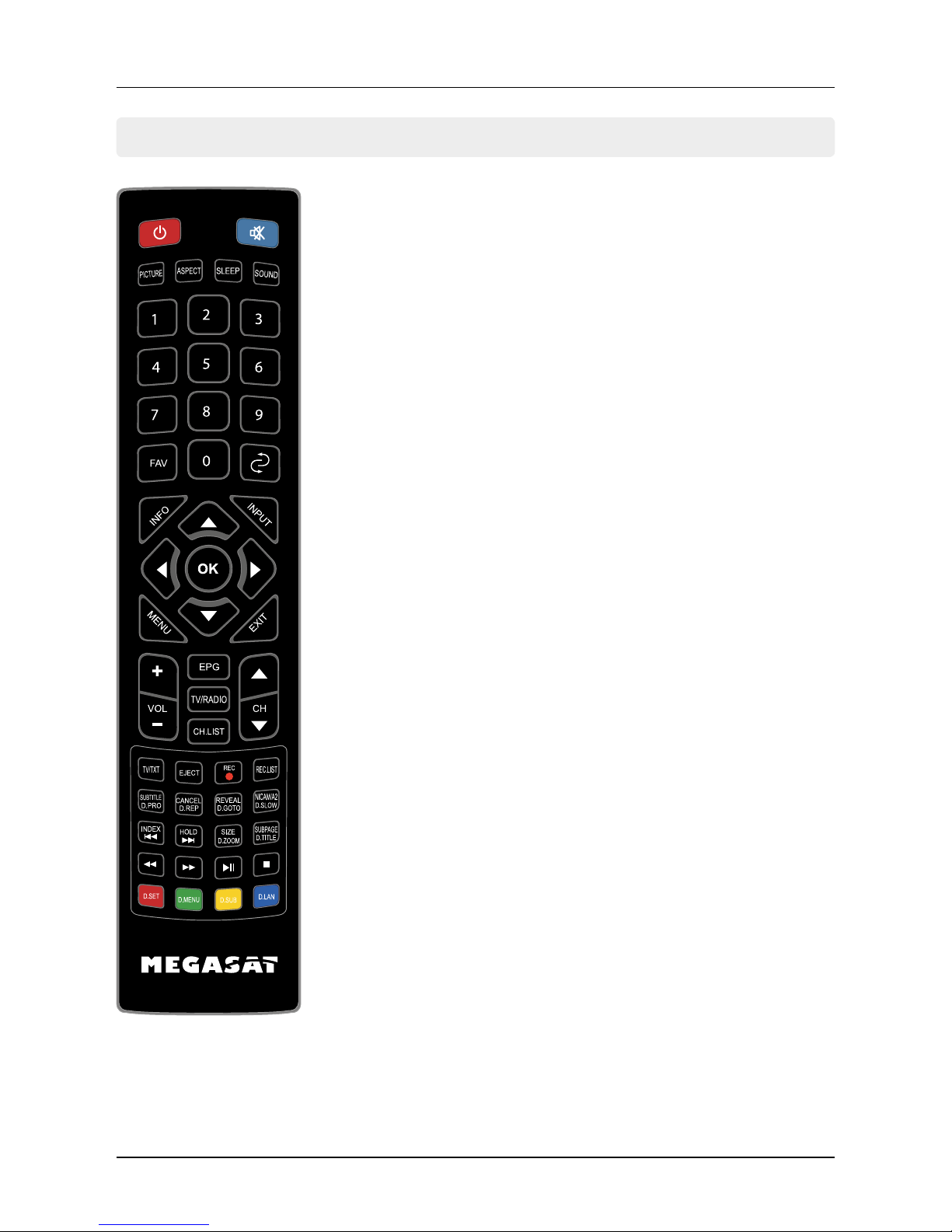

4.3 Remote control
1. Connect the TV to the power supply and turn on the power switch at the bottom of
the housing. The TV is now in standby mode (LED is RED).
2. Then press the Power button on the
remote control (LED is GREEN).
3. After the TV is started, the First Instal-
lation menu appears. You can now
make the following settings:
• OSD language: Select a language for the OSD. To modify, use the tukeys.
• Country: Select the country. To modify, use the tukeys.
• Home-state: Select the display attribute of the TV:
Home-mode = dynamic and high-contrast colors
Store Mode = neutral colors
• OK button: Starts„Auto Tuning“ for Terrestrial, Cable or Satellite television.
09ENGLISH
5. First installation
Tuning Setup
Defaults for signal search
Reception mode: Use the tukeys to select the reception mode
ATV (analogue) and/or DTV (digital)
Digital Typ: Choose between Satellite, DVB-C or DVB-T
Have you made all the settings, start the channel search with OK.
Scan Typ: Full
Sorting by LNC: On
Sorting by LNC: OnSatellit: Astra 19.2° Ost
Search mode: Standard
Channels type: Alle Kanäle
Service type: Alles
DVB-S (Satellit) DVB-C (Cable) DVB-T (Terrestrial)
(LNC is an automatic channel
sorting) (LNC is an automatic channel
sorting)
10 ENGLISH
6. Basic Functions
Press the INPUT button on the remote control to select the input
source. Use the p /qbuttons or the buttons on the TV to select
a source. Press OK to confirm, or wait a few seconds.
Press the MENU button to enter the main
menu. It consists of further submenus:
• Tuning
• Image
• Sound
• Clock
• Conguration
• Protection
Navigate with the arrow keys to scroll through the menu. Press the OK button to enter
the submenu. Press MENU to go one step back, or press EXIT button to exit completely.
6.1 Select input source
6.2 Navigation in Main Menu
Note:
Before you select the source, make sure that the source is rea-
dy, otherwise no signal is transmitted.
7. The Main Menu
11ENGLISH
In the menu Channel Search you can search for new channels, edit channels or set con-
figurations at your reception mode.
Press OK to start the search. Newly found channels
are automatically saved as the last in the channel list.
7.1 Channel search
7.1.1 Channel search (Satellite)
Note:
The submenu of Channel Search differ depending on what kind of a reception
mode you have set during the first installation (satellite, cable or terrestrial).
Automatic Channel Search
Country Select the desired country
Satellite Select the desired Satellites for
receiving
Search mode Choose between standard,
Blind search or network search
Channel type Choose between all channels
or FTA (free to air only, that are not
encrypted)
Service type Choose between All,
DTV (TV programs) or
Radio (only radio)
12 ENGLISH
7. The Main Menu
Edit channels
Delete (RED button)
Use the arrow keys to choose a channel,
then press to RED button to delete it.
Move (YELLOW button)
Use the arrow keys to choose a channel,
then press the YELLOW button to high-
light it. Now move the program to the
desired channel position. Press the YEL-
LOW button again to deselect it.
Skip (BLUE button)
Use the arrow keys to choose a channel,
then press the BLUE button to highlight
it. When you„scroll“ the channel list, this
program will be skipped in the future.
Favorites (FAV button)
Use the arrow keys to choose a channel,
then press the FAV button to highlight it
as a favorite (identified by a heart sym-
bol). If you press from now on in normal
TV mode the FAV button on the remote
control, only the programs you see that
you have marked as favorite.
7. The Main Menu
13ENGLISH
Signal informations
In this menu you can see various informa-
tion about the respective transponder or
channel. Signal quality and level can be
read here.
CI Informations
This menu provides informa-
tion about the inserted CI
module, or about the smart
card (if available).
14 ENGLISH
7. The Main Menu
SAT antenna conguration
This menu allows you to make basic changes to your satellite system, edit transponders
and satellites, add and perform a satellite scan. Use the tukeys to navigate between the
respective columns.
Satellite
Delete (RED button) Deletes the selected satellite. Confirm the irrevocable
deletion by clicking OK.
Edit (GREEN button) Change the name, the latitude and longitude and the
band of the selected satellite. Then press OK to confirm.
New (YELLOW button) Add a new satellite. Enter the name, the latitude and
longitude and the band for the new satellite. Confirm
with OK.
Search (BLUE button) Start the search with the selected satellite. Select the
search mode, the transmitter and the service type.
Confirm with OK.
7. The Main Menu
15ENGLISH
Transponder
Delete (RED button) Deletes the selected transponder. Confirm the
irrevocable deletion by clicking OK.
Edit (GREEN button) To change the frequency, the symbol rate and the
polarity of the selected transponder. Confirm with OK.
New (YELLOW button) Add a new transponder. Enter the frequency, symbol
rate and polarity of the new transponder.
Confirm with OK.
Search (BLUE button) Start the search with the selected transponder. Select
the search mode, the transmitter and the service type.
Confirm with OK.
Antenna setting
LNB type Change the LNB type
LNB power Change the LNB power supply.
22 KHz Set the 22 KHz on or off.
Toneburst Select between No, Burst A and Burst B
DiSEqC 1.0 Select between No, LNB 1 to LNB 4
DiSEqC 1.1 Select between No, LNB 1 to LNB 16
Motor Select between No, DiSEqC 1.2 or 1.3 (USALS)
Note:
Usually you have to make no changes in the antenna settings. It is recommended
that only experienced users change settings.
16 ENGLISH
7. The Main Menu
7.1.2 Channel Search (Cable and Terrestrial)
Antenna
Select your reception mode. Cable or terrestrial TV.
Automatic Channel Search
Country Select the desired country
Recept. mode ATV (analogue) and/or DTV (digital)
Sorting by LNC LNC is an automatic channel
sorting
Then press OK to start the search.
Manual analogue search
With cable TV, you can manually search for channels
here.
Manual DVB-T search
In DVB-T TV, you can manually search for channels
here.
Edit channels
See„Editing programs“ on page 12.
Signal informations
See„Signal Information“ on page 13.
CI informations
See„CI information“ on page 13.
5V activ antenna
When you take a passive DVB-T antenna (no external power supply), you must turn on
the 5 volt supply. The antenna is now supplied from the TV with voltage. When you take
an active DVB-T antenna (with integrated power supply), power down the 5 volt supply.
7. The Main Menu
17ENGLISH
In this menu you can set up basic settings for the TV picture. Use default settings or set
your own values.
7.2 Picture
Picture settings You can select a preset Picture
settings
Contrast Adjust the contrast value
Brightness Adjust the Brightness value
Color Adjust the Color value
Color tone Adjust the Color tone value
Sharpness Adjust the Sharpness value
Color temp. Adjust the Color temperature value
Noise reduction Adjust the Noise reduction value
Dyn. contrast Adjust the Dynamic contast value
Note:
The settings such as contrast, brightness, etc. can be edited only if you are in the
picture mode„Personal“.
18 ENGLISH
7. The Main Menu
In this menu you can set up basic settings for the TV sound. Use default settings or set
your own values.
7.3 Sound
Sound prole Select a preset sound profile
Treble Adjust the treble
Bass Adjust the base
Balance Adjust the balance between
right and left channel
Auto. volume Set to ON to automatically adjust
the volume during a quiet channels
Surround sound If you use a surround system, you
can activate it here.
SPDIF mode Activate the digital audio output
Note:
The settings such as Treble, Bass, etc. can be edited only if you are in the picture
mode„Personal“.
7. The Main Menu
19ENGLISH
In this menu you can set the time of the TV as well as various other automatic functions.
7.4 Clock
Time zone Select the time zone which you
are located
Otime Set the time when the TV should
switch offautomatically. The
adjustment can be done once,
daily or on certain weekdays
On time Set the time when the TV should
switch on automatically. The
adjustment can be done once,
daily or on certain weekdays.
Furthermore, you can choose
which program and how loud
the TV should switch on.
Sleep timer Adjust the minutes when the TV to turn offautomatically. Choose
between 10, 20, 30, 60, 90, 120, 180 or 240 minutes. This function
can be used on the remote control using the SLEEP button..
Auto standby Adjust the hours after the TV should switch offautomatic table
when no operation on the unit or on the remote control is carried
out. Select between OFF, 3, 4 or 5 hours.
OSD timer Adjust in seconds how long you want to displayed the on-screen
menu. Select between OFF, 5, 10, 15, 20, 25 or 30 seconds.
20 ENGLISH
7. The Main Menu
In the menu configuration, you can set up basic settings of the TV.
7.5 Conguration
OSD language Select the language of the
screen menus
Teletext Select the character set of
teletext (West, East, ...)
Audio language Select the preferred audio
language of TV channels
Subtitle lang. Select the preferred subtitle
language of the TV channels
Picture format Adjust the image format
First instalation Start the first installation
of the TV (see page 9)
Energy mode Switch between Home State and
Store Mode
Factory setting Sets the TV back in the factory
setting. All data you have made
will be lost.
Software update If there is a new firmware for the TV, you can this update here. You
can find the latest firmware always on our homepage
www.megasat.tv
1. Copy the firmware to the root directory of a formatted USB drive
(without subfolders).
2. Plug the USB drive into the USB slot of the TV.
3. Now press the OK button on Software Update (USB). You will be
asked whether you really want to update. Select„Yes“ or„No“ to
cancel.
4. Once the firmware has been updated, the TV restarts and starts
the initial installation.
Other manuals for Royal Line 19
1
This manual suits for next models
2
Table of contents
Other Megasat TV manuals
