1. Foreword
Congratulations, you are now using the most modern and convenient means to check your aircraft
tire pressures! This manual will help you make the most of the W TPS.
WTPS stands for W ireless Tire Pressure Sensor.
This manual is intended for actual users of the WTPS system, oncethe system is installed on aircraft.
Maintenance staff looking for installation and removal instructions on aircraft should refer to the WTPS
installation and removal manual.
Using theWTPS requires a smartphone (or tablet, or any other compatible device –collectively called
smartphone in this document) running the appropriate mobile application from your aircraft
manufacturer (calledApp in this document). The tire pressure toolin thisApp isonlyavailable for Apple
iOS devices at the moment. To enquire about availability of a tire pressure tool compatible with
Android TM mobile devices, please liaise with your aircraft manufacturer.
Once the App is installed, enter the WTPS menu by tapping on the Tire Pressure icon:
This manual is purely about the WTPS and its interaction with the application. Issues with the
smartphone or the App itself are not dealt with in this document. For any issues with the smartphone
or the App, liaise with your smartphone manufacturer or Textron Aviation respectively.
Screenshots in this document come from Textron Aviation Service App version 5.9. Details may vary in
subsequent versions.
2. WTPS facts
The WTPS uses Bluetooth®Low Energy v4.2. Your smartphone must be compatible (v4.2 or higher) and
the Bluetooth®must be enabled.
The W TPS is intended for use on ground only, on a parked aircraft. It is not intended for use in flight or
on a moving aircraft.
The WTPS operates between -20°C and +70°C(-4°F and +158°F). Outside this range, the WTPS does
not transmit over Bluetooth®in order to preserve its battery. However the WTPS can withstand without
damage temperature between -55°C and +140°C (-67°F and +284°F).
Tire servicing must be accomplished accordingto the aircraft and/or tire manufacturer procedures.
An important message is displayed on the App at first use. The WTPS can only be used if this message
is read, understood and agreed. Failure to read, understand and comply with this message may lead
to unsafe aircraft operation.
The WTPS is designed for a two-year service life. It is powered by a non-rechargeable battery.

M eggitt SA, Rt e de M oncor 4, Cas e post ale, 1701 Fribourg, Sw it zerland
4
Tel: + 41 26 407 1111
w w w.meggitt.com
3. Applicability
This document applies to the following part number(s):
-423-420-099-021
-423-420-099-022

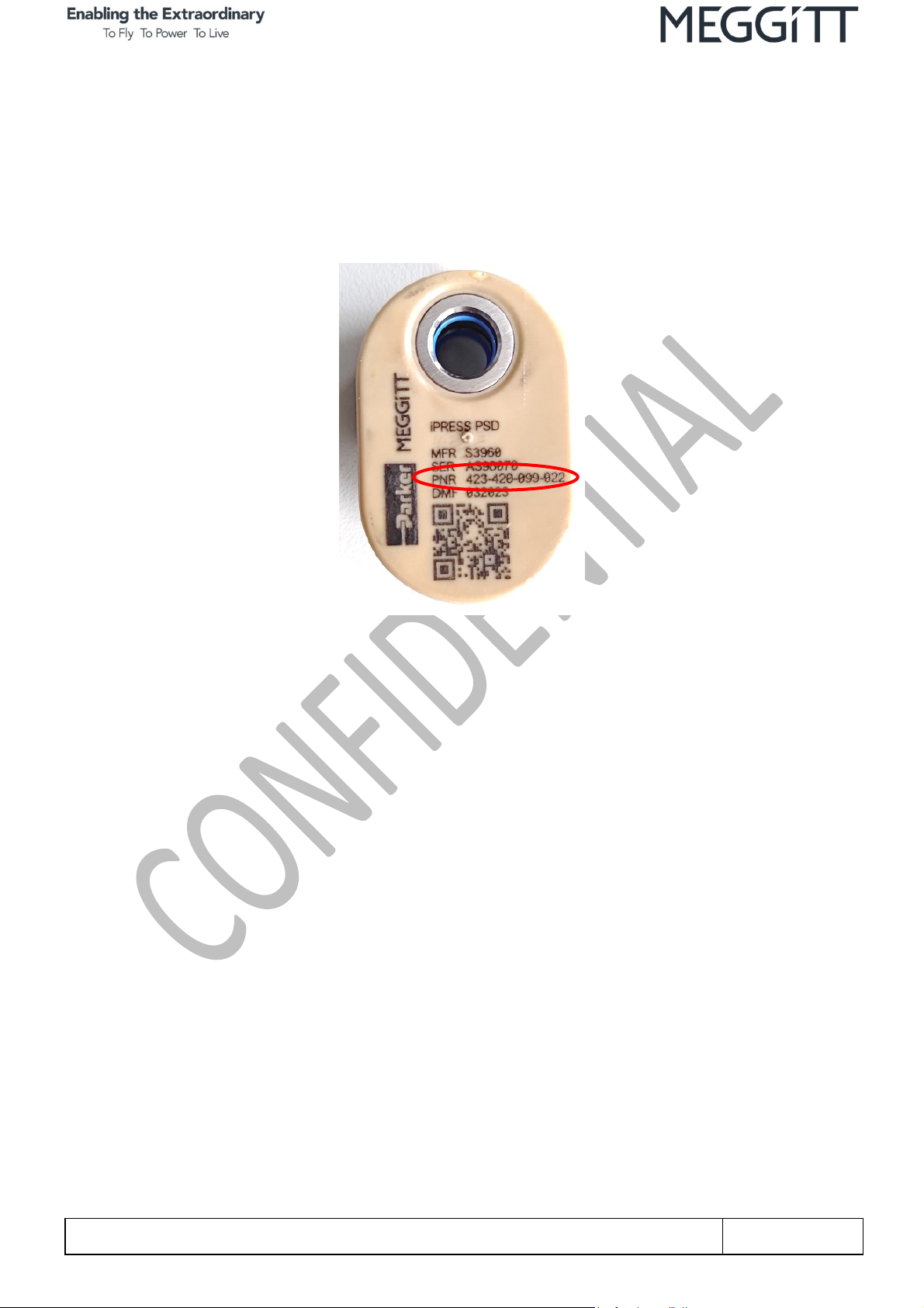

The sensor part number can be found on the sensor itself, or via the App in the Device information.
Figure 1

M eggitt SA, Rt e de M oncor 4, Cas e post ale, 1701 Fribourg, Sw it zerland
5
Tel: + 41 26 407 1111
w w w.meggitt.com
4. Usage
The W TPS can only be used once the WPTS has been installed on aircraft and the sensors have been
configured.
1. Activate the Bluetooth® interface on the smartphone
Note: Some smartphones require activating the localization feature for the Bluetooth® to work
properly.
2. Make sure the sensors are within Bluetooth® range
Note: The communication range depends on the smartphone, on the environment and on the
potential presence of obstacle (e.g. the fairing covering the sensor on the wheel).

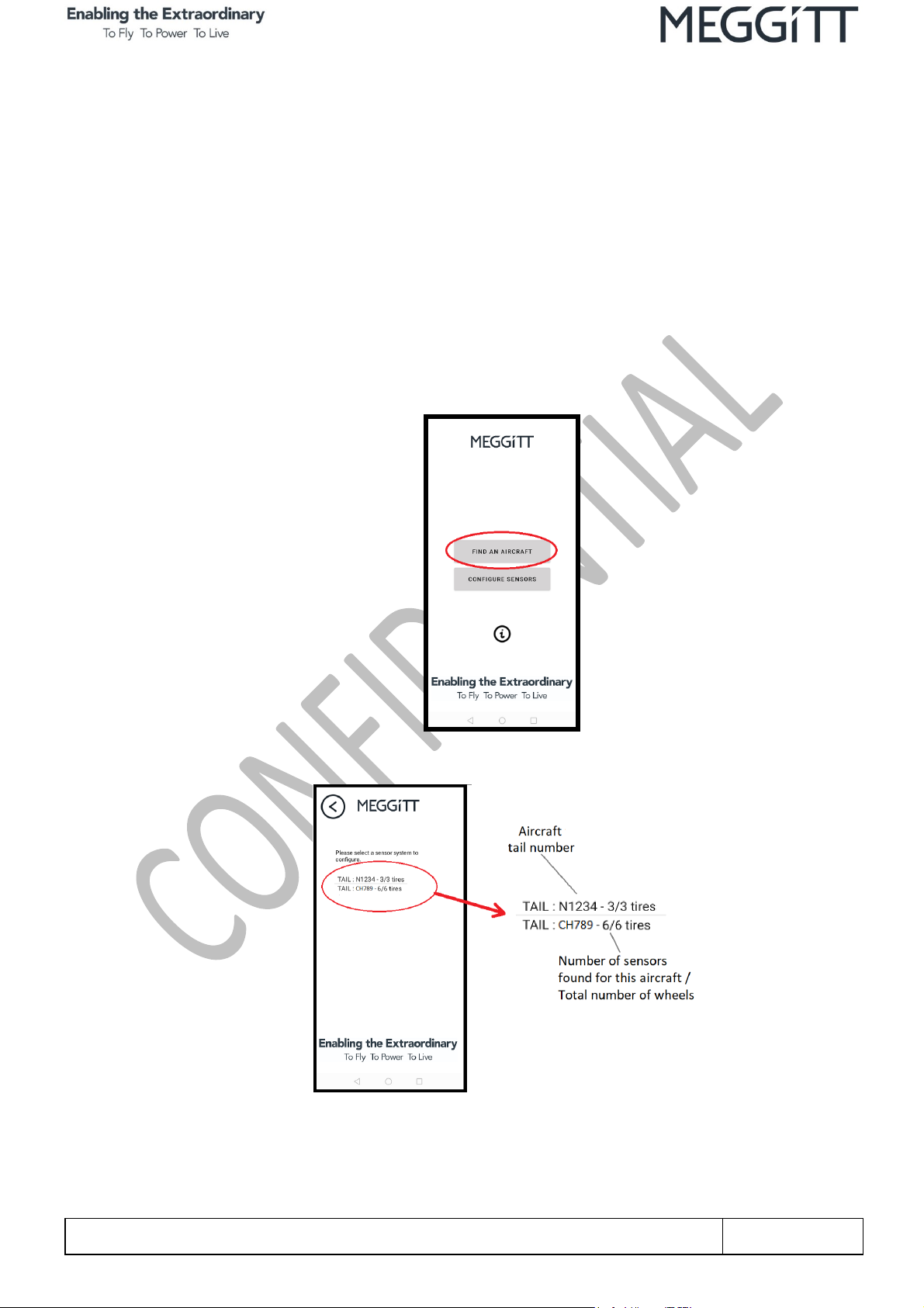

3. On the Smartphone app, go to the Find an aircraft menu
4. Select an aircraft from its tail number

M eggitt SA, Rt e de M oncor 4, Cas e post ale, 1701 Fribourg, Sw it zerland
6
Tel: + 41 26 407 1111
w w w.meggitt.com
5. Type in the local altitude in feet (or let the app automatically find it, if the required
authorizations are granted).
6. The pressure measured by all sensors of the selected aircraft are displayed in PSI

M eggitt SA, Rt e de M oncor 4, Cas e post ale, 1701 Fribourg, Sw it zerland
7
Tel: + 41 26 407 1111
w w w.meggitt.com
7. Tap on a wheel and then on Device info to see additional data (e.g. sensor
temperature, part numbers, etc)
Note: The smartphone app provided is a beta version, for test and development purposes only. It
is not fully representative of the final app provided to the end users, especially in terms of
data integrity, fool proofing and user-friendliness. Some errors that do not prevent from
evaluating the product may be found.

M eggitt SA, Rt e de M oncor 4, Cas e post ale, 1701 Fribourg, Sw it zerland
8
Tel: + 41 26 407 1111
w w w.meggitt.com
5. Sensor disposal
The WTPS sensor contains a battery and electronic circuitry. At the end of its service life, the WTPS
sensor should berecycled. Battery-powered devicesmustbe recycled or disposedof separatelyfrom
conventional waste. Dispose of batteries according to your local regulations.
Figure 2
6. Contact
For any question, comment or feedback on the WTPS, please visit https://mymeggittsupport.com or
email to [e-mail].

M eggitt SA, Rt e de M oncor 4, Cas e post ale, 1701 Fribourg, Sw it zerland
9
Tel: + 41 26 407 1111
w w w.meggitt.com
7. Regulatory information
This section contains information related to regulatory approvals for radio equipment.
Canada
IC: 29973-423420
HVIN: 423-420-099-022
A French version of this manual can be provided to Canadian customers on request.
This device complies withIndustryCanada license-exempt RSS standard(s).Operationis subjectto the
following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) L’appareil ne doit pas produire de brouillage, et
(2) L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
European Union & Switzerland
Frequency band: 2400 MHz to 2483.5 Mhz
Maximum power transmitted in this frequency band: -20.10 dBm
USA
FCC ID: 2A83B423420
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications notexpresslyapprovedbythe manufacturer could void the user’s authority
to operate the equipment.
General
Operating voltage: 3.0 V maximum
Operating current: 10 mA maximum
Operating power: 30 mW maximum
Suitable for indoor and outdoor use.
Withstands altitude up to 55.000 ft / 16.764 m.
Suitable for use in pollution degree IV (outdoor use).
