Meinberg IMS-LANTIME M500 User manual

MANUAL
IMS - LANTIME M500
Modular Railmount NTP Server
28th May 2021
Meinberg Funkuhren GmbH & Co. KG

Front view (Frontansicht) IMS - LANTIME M500
ENGLISH
1. Status LEDs: Ref. Time, Time Service, Network, Alarm
2. LC Display, 4 x 16 characters
3. Function buttons: 4-way navigation button;
F1, F2, OK, ESC
3. Funktionstasten: 4-Wege Navigationstasten;
F1, F2, OK, ESC
DEUTSCH
1. Status LEDs: Ref. Time, Time Service, Network, Alarm
2. LC Display, 4 x 16 Zeichen
1
2
3

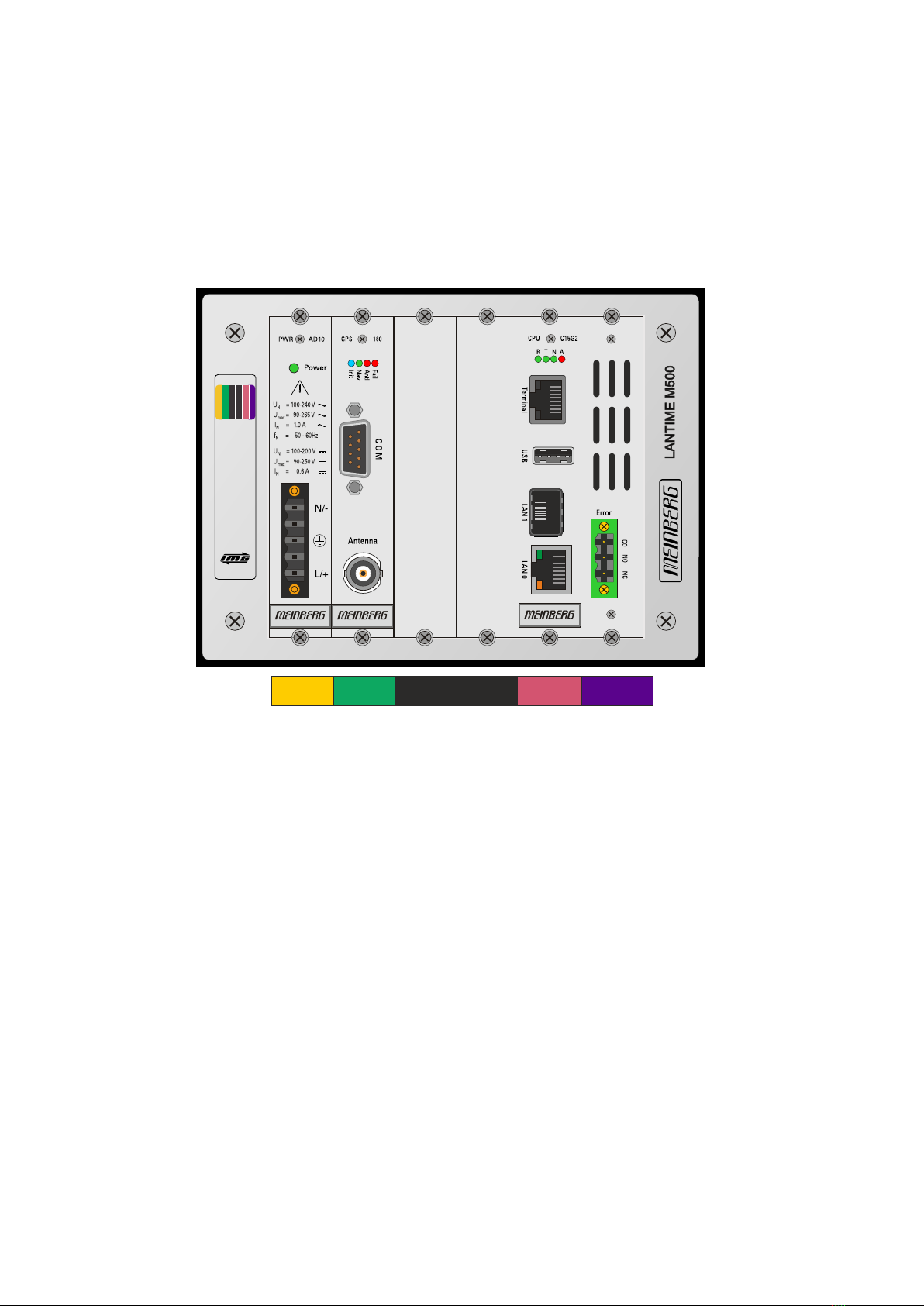

Bottom view (Ansicht Unterseite) IMS - LANTIME M500
DEUTSCH
CPU LAN-CPU
RJ45 - 10/100/1000 Base-T
SFP - 1000Base-T
CLK GPS Satellitenempfängermodul
PWR Netzteil (100-240 V AC / 100-200 V DC)
CES Chassis Erweiterungs-Slot
RJ45 Terminal und USB
ENGLISH
Rj45 - 10/100/1000 Base-T
CLK GPS satellite receiver module
PWR Power Supply (100-240 V AC / 100-200 V DC)
RJ45 Terminal and USB
SFP - 1000Base-T
CPU LAN-CPU
CES Chassis Expansion Slot
PWR CLK CPU
IO1 IO2 CES
1 - PWR
2 - CLK
3 - MRI
4 - ESI
5 - CPU
6 - CES
43215 6

Table of Contents
1 Imprint 1
2 The System IMS-M500 2
2.1 IMS-Systems ................................................ 2
2.2 TargetAudience................................................ 2
2.3 ReturnofEquipment............................................. 2
3 IMS-M500 System Description 3
3.1 Device Design, Functions and Area of Application . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.2 IMSSystemVariants ............................................ 4
3.3 HardwareSpecifications........................................... 5
3.3.1 ChassisVariants........................................... 5
3.3.2 EnvironmentalRequirements.................................... 6
4 Important Safety Information 7
4.1 Important Safety Instructions and Protective Measures . . . . . . . . . . . . . . . . . . . . . . . . . 7

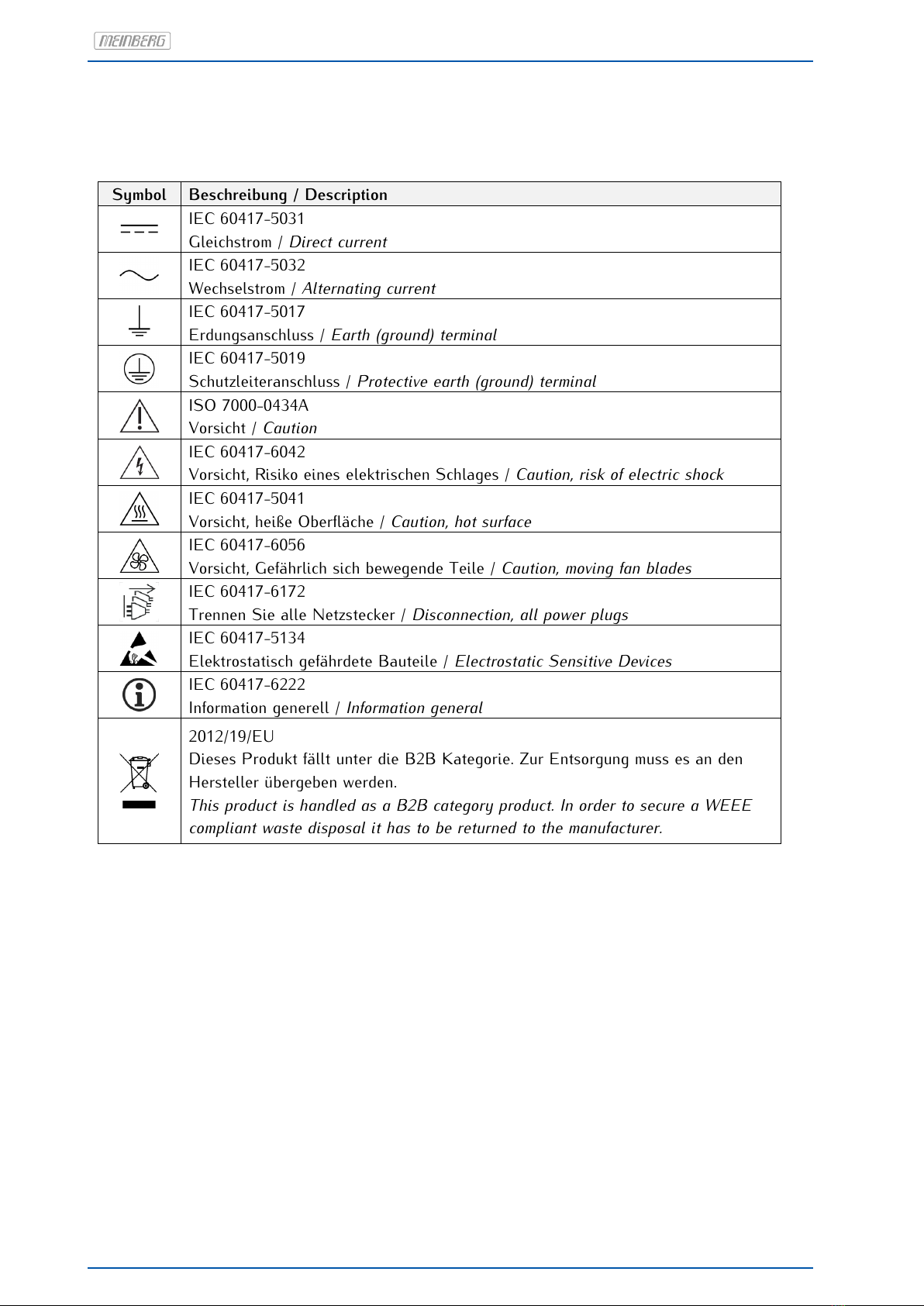

4.2 UsedSymbols................................................. 8
4.3 SecurityduringInstallation......................................... 10
4.4 Protective Conductor- / Ground-Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.5 SafetyduringOperation........................................... 13
4.6 SafetyduringMaintenance......................................... 14
4.7 HandlingBatteries.............................................. 14
4.8 CleaningandCare .............................................. 15
4.9 PreventionofESDDamage......................................... 15
4.10 Return of Electrical and Electronic Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Before you start 17
5.1 TextandSyntaxConventions........................................ 17
5.2 AbbreviationList ............................................... 18
5.3 RequiredTools ................................................ 20
5.4 PreparingInstallation ............................................ 21
5.5 UnboxingtheDevice............................................. 22
5.6 DisposalofPackagingMaterials...................................... 24
6 System Installation 25
6.1 AntennaConnection ............................................. 26
6.1.1 MountingtheAntenna ....................................... 27
6.2 ConnectingtheSystem ........................................... 42
6.3 InitialNetworkConfiguration........................................ 43
7 System Operation - Configuration and Monitoring 45
8 Maintenance, Servicing and Repairing 46
8.1 FirmwareUpdates .............................................. 46
9 Troubleshooting and Alarming 47
9.1 SystemErrorMessages........................................... 48
10 Support information 49
10.1BasicCustomerSupport........................................... 50
10.2SupportTicketSystem............................................ 50
10.3 How to download a Diagnostic File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
10.3.1 DownloadviaWebGUI....................................... 51
10.3.2 DownloadviaUSBStick...................................... 51
0

10.4Self-HelpOnlineTools ........................................... 52
10.5 NTP and IEEE 1588-PTP online tutorials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10.6 The Meinberg Academy introduction and offerings . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
10.7MeinbergNewsletter............................................. 53
11 Technical Appendix 54
11.1 Technical Specifications LANTIME / IMS-M500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
11.2 Available Modules and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
11.3TERMINAL(Console) ............................................ 57
11.4USBConnector................................................ 57
11.5 Replacement or Installation of a Hot-pluggable IMS Module . . . . . . . . . . . . . . . . . . . . . 58
11.5.1 Important Hints for hot-pluggable IMS Modules . . . . . . . . . . . . . . . . . . . . . . . . 59
11.6IMSModuleOptions............................................. 60
11.6.1 IMSM500SlotAssignment .................................... 60
11.6.2 Power Supply 100-240 V AC / 100-200 V DC . . . . . . . . . . . . . . . . . . . . . . . . . . 61
11.6.3 PowerSupply20-60VDC..................................... 62
11.6.4 PowerSupply10-36VDC..................................... 63
11.6.5 GPSClock .............................................. 64
11.6.6 GNSSClock ............................................. 66
11.6.7 GNS-UCClock ........................................... 68
11.6.8 GNMClock.............................................. 70
11.6.9 PZFClock .............................................. 72
11.6.10 TCR Clock - Time Code Reader and Generator . . . . . . . . . . . . . . . . . . . . . . . . . 74
11.6.11LAN-CPU............................................... 78
11.6.12 MRI - Standard Reference Input Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
11.6.13 ESI - Telecom Synchronisation References . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
11.6.14 VSI - Video Synchronization Input Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
11.6.15 LNE-GbE: Network Expansion with Gigabit Support and SFP Option . . . . . . . . . . . 93
11.6.16 HPS-100: PTP / SyncE / Hardware NTP Interface . . . . . . . . . . . . . . . . . . . . . . 98
11.6.17 TSU V3: IEEE-1588 Time Stamp Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
11.6.18 PIO180 - PPS or 10 MHz I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
11.6.19 CPE and BPE Output Modules (Frontend - Backend, Eurocard) . . . . . . . . . . . . . . 106
11.6.20LIU-LineInterfaceUnit...................................... 126
11.6.21 LNO - Sine Wave Outputs with low Phase Noise . . . . . . . . . . . . . . . . . . . . . . . 134
11.6.22 FDM - Frequency Deviation Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
11.6.23 REL1000 - Error Relay Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
11.6.24 SCG-U: Studio Clock Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
11.6.25 SCG-B: Studio Clock Generator Balanced . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
11.6.26 VSG181 - Video Sync Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
11.6.27 CES - Chassis Expansion Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
12 RoHS and WEEE 154
13 Declaration of Conformity 155
Date: 28th May 2021 IMS - LANTIME M500

1 Imprint
1 Imprint
Meinberg Funkuhren GmbH & Co. KG
Lange Wand 9, 31812 Bad Pyrmont / Germany
Phone: + 49 (0) 52 81 / 93 09 - 0
Fax: + 49 (0) 52 81 / 93 09 - 230
Internet: https://www.meinbergglobal.com
Mail: [email protected]
Date: 2021-05-27
Manual
Version: 1.19
IMS - LANTIME M500 Date: 28th May 2021 1

2 The System IMS-M500
2.1 IMS - Systems
The brand IMS describes a product family of Meinberg radio clocks for synchronization of
time and frequency signals in networks and of directly connected systems such as signal distributors.
Meinberg’s IMS Series (Intelligent Modular Synchronization) offers built-in redundancy for synchronization
sources and power supplies in combination with highly modular slot based chassis, which support hot-swapping
and field-expansion capabilities.
The design of our IMS enclosures allows to use up to four power supplies (both AC and DC variants can
be mixed and matched), two time code receivers in combination with a signal switch module, a CPU board and
up to ten I/O slots.
2.2 Target Audience
This manual is intended for professionals responsible for the installation, commissioning, maintenance, trou-
bleshooting or operation of any of the equipment within the specified product range.
The structure and spelling of this manual assumes that the installation and commissioning technicians have
knowledge of the use of electronical devices and network components.
2.3 Return of Equipment
All parts and components of your Meinberg system may only be repaired by Meinberg. In the event of a
malfunction, the customer must contact our support service and never attempt to repair the device himself.
To request a device repair service, call Meinberg Technical Support to check shipping options and obtain
the Return Material Authorization (RMA) number for shipping.
You can also request the RMA number from our website:
https://www.meinbergglobal.com/english/support/rma.htm.
The device must be packed in its original packaging or suitable packaging to protect it from shock and moisture.
Send your device to the manufacturer’s address, including sender identification and RMA number.
What must be included with the shipment?
Please return the device complete with accessories such as antenna or cable if possible. This may be important
for troubleshooting.
2 Date: 28th May 2021 IMS - LANTIME M500

3 IMS-M500 System Description
3 IMS-M500 System Description
3.1 Device Design, Functions and Area of Application
The IMS-LANTIME-System is a set of equipment composed of a reference module, a single-board computer
module (LAN-CPU) with integrated network card, and a power supply unit, all installed in a modular chassis
and ready to operate. The input/output signals of the IMS systems are provided on the connection side via I/O
modules.
The implemented NTPD distributes the reference time from the reference module cyclic in the network. Infor-
mation on the NTPD is monitored on the LC-Display (if available) or can be queried via the network.
The installation of an IMS LANTIME is very easy for the system/network administrator. The network ad-
dress, the netmask and the default gateway have to be configured from the front panel of LANTIME. The
network address or the equivalent name of LANTIME has to be shown to all NTP clients in the TCP/IP network.
As well as NTP the Linux system also supports a number of further network protocols: HTTP(S), FTP, SSH
and Telnet. Because of this remote configuration or status requests can come from any WEB browser. This
access via the network can be deactivated. Changes in the receiver status, errors or other important events are
logged either on the local Linux system or on an external SYSLOG-Server. In addition messages can be sent to
a data center via SNMP traps or automatically generated e-mails where they can be recorded. Furthermore all
alarm messages can be displayed by the large display VP100/20/NET that is accessed via network connection.
In order to avoid a service interruption several LANTIME NTP servers can be installed in the same network to
obtain redundancy.
IMS - LANTIME M500 Date: 28th May 2021 3

3.2 IMS System Variants
The IMS system variants differ primarily in their housing form.
19 inch rack mount chassis
The base chassis contains a power supply, a receiver and the LANTIME CPU. This provides further slots
for additional input and output modules.
M1000(S): four slots for expansion cards
three slots for expansion cards in redundant receiver configuration
M2000S: six slots for expansion cards
M3000(S): ten slots for expansion cards
M4000: ten slots for expansion cardsn
Redundant power supply and receiver solutions can be implemented for the following IMS series models:
M1000(S): up to two power supplies and two receivers
M2000S: up to three power supplies and two receivers
M3000(S): up to four power supplies and two receivers
M4000: up to four power supplies and two receivers
Railmount Chassis
The base chassis contains a power supply, a receiver and the LANTIME CPU.
M500: two slots for expansion cards
one configurable expansion slot (CES) with two optional output signals
4 Date: 28th May 2021 IMS - LANTIME M500

3 IMS-M500 System Description
3.3 Hardware Specifications
3.3.1 Chassis Variants
The IMS systems are offered in several housing variants. The hardware configuration is modular and the number
of input and output options depends on the respective housing variant.
IMS system Type Dimension* IO Slots Power Supplies Receivers
(WxHxD)
————————————————————————————————————————————————
M500 DIN railmount 118 x 193 (227) x 160 2 1 1
M1000 19 inch rackmount 483 x 44 x 290 (314) 4 (3)** 1 -2 1 - 2
1HE / 84TE
M1000(S) 19 inch rackmount 483 x 44 x 266 (300) 4 (3)** 1 -2 1 - 2
1HE / 84TE
M2000S 19 inch rackmount 483 x 76 x 248 (264) 6 1 - 3 1 - 2
2HE / 84TE
M3000 19 inch rackmount 483 x 133 x 280 (307) 10 1 - 4 1 - 2
3HE / 84TE
M3000(S) 19 inch rackmount 483 x 133 x 234 (268) 10 1 - 4 1 - 2
3HE / 84TE
M4000 19 inch rackmountu 483 x 133 x 274 10 1 - 4 1 - 2
4HE / 84TE
The IMS systems M500, M1000, M3000 and M4000 have a 4 x 20 character LC display and a control panel
with 8 function keys for direct on-site configuration. The M1000S, M2000S and M3000S models are delivered
without a display. These systems, like the M4000, are optimized for ETSI rack installations due to their small
housing depth.
The available configurations can be optimally adapted for specific application areas and industries.
———————-
*The sizes in parentheses take into account the connections and module handles.
** With a redundant receiver configuration, only 3 IO slots are available in an M1000 system.
IMS - LANTIME M500 Date: 28th May 2021 5

3.3.2 Environmental Requirements
Protection Rating: IP20
Ambient Temperature: 0 ... 50 ◦C
Storage Temperature: -20 ... 70 ◦C
Humidity: max. 85% (non-condensing) @ 30 ◦C

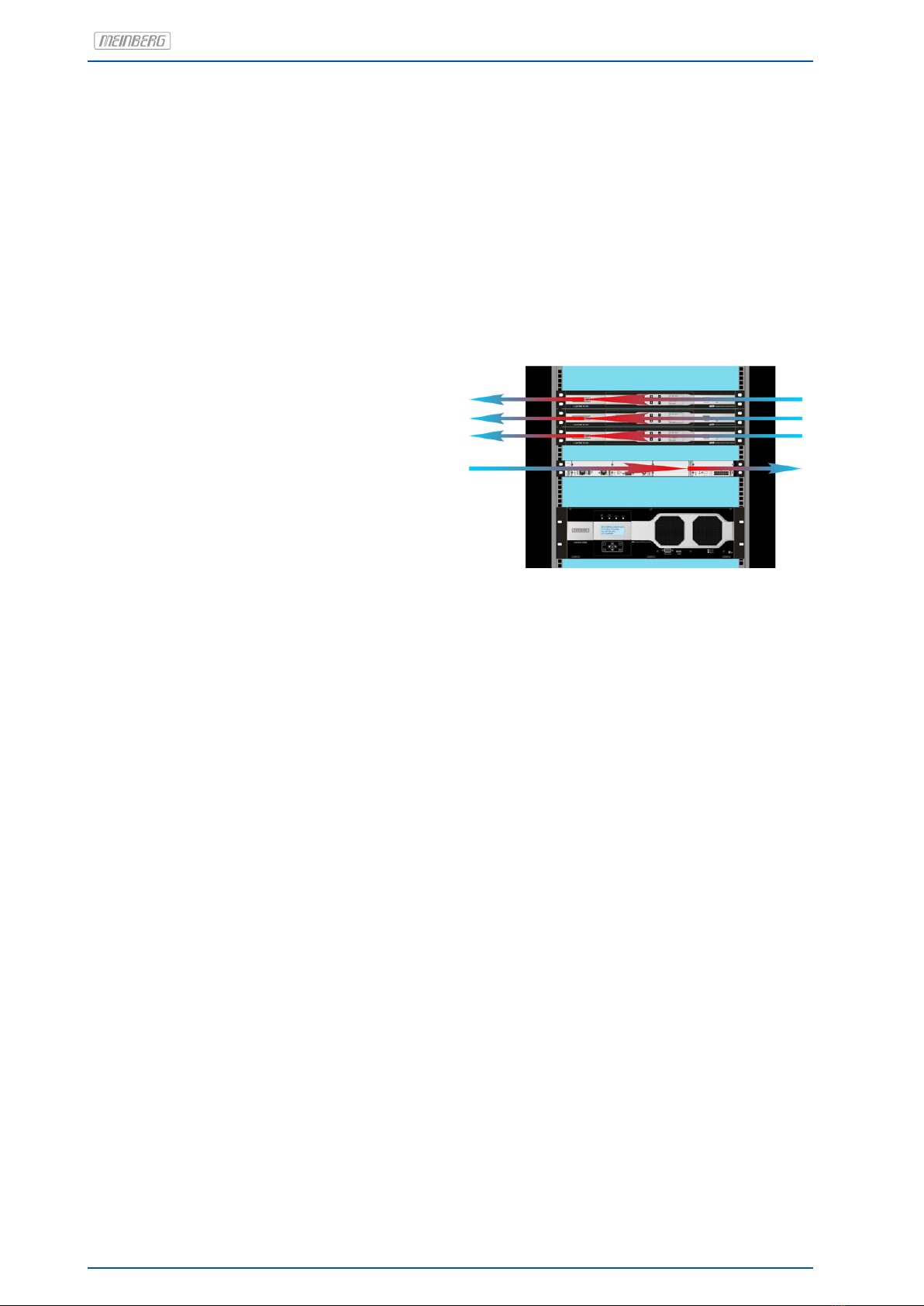

Please Note:
To prevent overheating damage during operation, some
IMS systems are equipped with an active cooling mod-
ule (ACM). The generated air flow is led through the
system as shown in the figure on the right (see also
chapter "ACM - Active Cooling Module" or "RCU - Rack
Cooling Module").
Active cooling with ACM modules.
Active cooling modules are available for the M4000,
M3000 and M1000(S) IMS systems. For the M4000
and M3000, the use of an ACM is optional. M1000
and M2000 systems are always equipped with an ACM.
Passive cooling.
Due to the small installation depth, it is not possible to
integrate an ACM module in an M3000S system. For
this reason, we have developed a 1U passive cooling
enclosure that can be installed under the IMS system
in the server rack. The RCU module (Rack Cooling
Unit) provides an optimal airflow for the dissipation of
the warm air.
6 Date: 28th May 2021 IMS - LANTIME M500

4 Important Safety Information
4 Important Safety Information
4.1 Important Safety Instructions and Protective Measures
The following safety instructions must be respected in all operating and installation phases of the device. Non-
observance of safety instructions, or rather special warnings and operating instructions in product manuals,
violates safety standards, manufacturer instructions and proper usage of the device. Meinberg Funkuhren shall
not be responsible for any damage arising due to non-observance of these regulations.
Depending on your device or the installed options
some information is not valid for your device.
The device satisfies the requirements of the following EU regulations: EMC-Directive,
Low Voltage Directive, RoHS Directive and - if applicable - the Radio Equipment Directive.
If a procedure is marked with the following signal words, you may only continue, if you have understood and
fulfilled all requirements. In this documentation dangers and indications are classified and illustrated as follows:
DANGER!
The signal word indicates an imminently hazardous situation with a high risk level . This notice
draws attention to an operating procedure or similar proceedings, of which a non-observance may
result in serious personal injury or death .
WARNING!
The signal word indicates a hazard with a medium risk gradient . This notice draws attention to an
operating procedure, a procedure or the like which, if not followed, can lead to serious injuries ,
possibly resulting in death .
CAUTION!
The signal word indicates a hazard with a low risk gradient . This notice draws attention to an
operating procedure, a procedure or the like which, if not followed, can lead to minor injuries .
ATTENTION!
This notice draws attention to an operating procedure, a procedure or the like which, if not followed,
can cause damage to the product or loss of important data .
IMS - LANTIME M500 Date: 28th May 2021 7

4.2 Used Symbols
The following symbols and pictograms are used in this manual. To illustrate the source of danger, pictograms
are used, which can occur in all hazard classes.
Symbol
Beschreibung / Description
IEC 60417-5031
Gleichstrom / Direct current
IEC 60417-5032
Wechselstrom / Alternating current
IEC 60417-5017
Erdungsanschluss / Earth (ground) terminal
IEC 60417-5019
Schutzleiteranschluss / Protective earth (ground) terminal
ISO 7000-0434A
Vorsicht / Caution
IEC 60417-6042
Vorsicht, Risiko eines elektrischen Schlages / Caution, risk of electric shock
IEC 60417-5041
Vorsicht, heiße Oberfläche / Caution, hot surface
IEC 60417-6056
Vorsicht, Gefährlich sich bewegende Teile / Caution, moving fan blades
IEC 60417-6172
Trennen Sie alle Netzstecker / Disconnection, all power plugs
IEC 60417-5134
Elektrostatisch gefährdete Bauteile / Electrostatic Sensitive Devices
IEC 60417-6222
Information generell / Information general
2012/19/EU
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den
Hersteller übergeben werden.
This product is handled as a B2B category product. In order to secure a WEEE
compliant waste disposal it has to be returned to the manufacturer.
8 Date: 28th May 2021 IMS - LANTIME M500

4 Important Safety Information
The product manuals are stored on a USB stick, which is delivered with the system. The manuals can also
be downloaded from the Meinberg website https://www.meinbergglobal.com. Enter the respective system name
into the search box at the top of the page.
This manual contains important safety instructions for the installation and operation of the
device. Please read this manual completely before using the unit.
This device may only be used for the purpose described in this manual. In particular, the given
limits of the device must be observed. The safety of the installation in which the unit is
integrated is the responsibility of the installer!
Non-observance of these instructions can lead to a reduction in the safety of this device!
Please keep this manual in a safe place.
This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with
the applicable national standards and safety rules. Installation, commissioning and operation of this device may
only be carried out by qualified personnel.
IMS - LANTIME M500 Date: 28th May 2021 9

4.3 Security during Installation
WARNING!
Preparing for Commissioning
This built-in unit, has been designed and examined according to the requirements of the standard
IEC 62368-1 "Audio/video, information and communication technology equipment - Part 1:
Safety requirements".
When the built-in unit is used in a terminal (e.g., housing cabinet), additional requirements
according to Standard IEC 62368-1 must be observed and complied with. In particular, the general
requirements and the safety of electrical equipment (such as IEC, VDE, DIN, ANSI) as well as the
applicable national standards are to be observed.
The device has been developed for use in the industrial sector as well as in residential areas and
can only be used in such environments. For environments with higher levels of soiling, additional
measures, e.g. Installation in an air-conditioned control cabinet required.
Transport, Unpacking, Installation
If the unit is brought into the operating room from a cold environment, condensation may occur,
wait until the unit is temperature-controlled and absolutely dry before operating it.
When unpacking, setting up, and before operating the equipment, be sure to read the information on
the hardware installation and the specifications of the equipment. These include, for example,
dimensions, electrical characteristics, and necessary ambient and climatic conditions, etc.
The fire protection must be ensured in the installed state.
For mounting, the housing must not be damaged. No holes may be drilled in the housing.
For safety reasons, the device with the highest mass should be installed in the lowest position of
the rack. Other devices must be placed from the bottom to the top.
The device must be protected against mechanical stress such as vibration or shock.
10 Date: 28th May 2021 IMS - LANTIME M500

4 Important Safety Information
Connecting Data Cables
During a thunderstorm, data transmission lines must not be connected or disconnected (risk of
lightning).
When wiring the devices, the cables must be connected or disconnected in the order of the
arrangement described in the user documentation accompanying the device. Always attach all cables
to the plug during connection and removal. Never pull the cable itself. Pulling the cable can cause
the cables to disconnect from the plug.
Install the cables in way that they do not constitute a hazard (danger of tripping) and are not
damaged, i.e. kinked.
Connecting Power Supply
This equipment is operated at a hazardous voltage. Non-observance of the safety instructions in this
manual may result in serious personal injury or property damage.
Before connecting to the power supply, a grounding cable must be connected to the earth connection
of the device.
Before operation, check that all cables and lines work properly and are undamaged. Pay particular
attention to the facts that the cables do not have kinks or that they are not too short around corners,
and no objects are placed on the cables. Also make sure that all connections are secure.
Faulty shielding or cabling will endanger your health (electrical shock) and may destroy other
equipment.
Ensure that all necessary safety precautions have been taken. Make all connections to a unit before
turning on the power. Observe the safety instructions on the device (see safety symbols).
The metal housing of the device is grounded. It must be ensured that enough air and creepage
distances to neighboring voltage-carrying parts are provided during assembly in the control cabinet
and no short circuits are caused.
In the case of malfunctions or servicing (e.g. in the event of a damaged housing or power cable or
when fluids or foreign objects enter), the current flow can be interrupted. Questions about the
house installation, need to be clarified with your house administration.
The power supply should be connected with a short, low-inductance line.
IMS - LANTIME M500 Date: 28th May 2021 11

AC Power Supply DC Power Supply
•
The device is a device of protection
class 1 and may only be connected to a
grounded outlet (TN system).
•
For safe operation, the device must be
protected by an installation fuse of max.
16 A and equipped with a residual current
circuit breaker in accordance with the
applicable national standards.
•The unit must always be disconnected from
the mains and not from the appliance.
•
Devices with mains plugs are equipped
with a safety-
tested mains cable of the
country of use and may only be connected
to a grounded shockproof socket, otherwise
electric shock may occur.
•
Make sure that the mains socket on the
appliance or the mains socket of the house
installation is freely accessible to the user
so that the mains cable can be pulled out
of the socket in case of emergency.
•
Outside the assembly group the device must be
disconnectable from the power supply in
accordance with the provisions of IEC 62368-1
(e.g. by the primary line protection).
•
Installation and disassembly of the power supply
plug is only permitted if the assembly group is
switched off (e.g. by the primary line protection).
•The supply lines must be adequately secured and
dimensioned.
Connection Cross Section:
1 mm2– 2.5 mm2
17 AWG – 13 AWG
•The device must be supplied with a suitable
disconnector (switch). The separation device must
be easily accessible, placed near the device and
marked as a separation device for the unit.
12 Date: 28th May 2021 IMS - LANTIME M500

4 Important Safety Information
4.4 Protective Conductor- / Ground-Terminal
ATTENTION!
In order to ensure safe operation and to meet the requirements of IEC 62368-1, the device
must be correctly connected to the protective earth conductor via the protective earth
connection terminal.
If an external earth connection is provided on the housing, it must be connected to the
equipotential bonding rail (grounding rail). The mounting parts (without cable) are not included
in the scope of delivery.
Note:
Please use a grounding cable ≥1.5 mm2
Always pay attention to a correct crimp connection!
4.5 Safety during Operation
WARNING!
Avoiding Short-Circuits
Make sure not to get any objects or liquids inside the unit. Electric shock or short circuit
could result.
Ventilation Slots
Make sure that the ventilation slots are not covered or dusty, as there is a danger of overheating
during operation. Disturbances during operation can result.
Normal Operation
The normal operation and the observance of the EMC limits (electromagnetic compatibility) are only
ensured if the housing cover is properly installed and when the doors are closed (cooling, fire protection,
shielding against electrical, magnetic and electromagnetic fields).
Switch off in fault / service case
By switching off, the devices are not disconnected from the power supply. In the event of a fault or
service case, the devices must be immediately disconnected from all power supplies.
Follow the steps below:
- Switch off the device
- Disconnect all power plugs
- Inform the service
- Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational
even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation
according to the documentation of the corresponding user documentation.
IMS - LANTIME M500 Date: 28th May 2021 13

4.6 Safety during Maintenance
WARNING!
When you are expanding the device, use only device parts that are approved for the system.
Non-observance may result in injury to the EMC or safety standards and cause malfunction
of the device.
If device parts, which are released for the system, are extended or removed there may be a
risk of injury in the area of the hands, due to the pull-out forces (approx. 60 N).
The service informs you which device parts may be installed.
The device must not be opened, repairs to the device may only be carried out by the
manufacturer or by authorized personnel. Improper repairs can result in considerable
danger to the user (electric shock, fire hazard).
Unauthorized opening of the device or of individual parts of the device can also lead to
considerable risks for the user and result in a loss of warranty as well as an exclusion
of liability.
- Danger due to moving parts - keep away from moving parts.
- Device parts can become very hot during operation. Do not touch these surfaces!
If necessary, switch off the unit before installing or removing any equipment,
and allow it to cool down.
4.7 Handling Batteries
CAUTION!
The lithium battery on the receiver modules has a service life of at least 10 years.
If an exchange is necessary, the following notes must be observed:
The device is equipped with a lithium battery. The battery must not be short-circuited
or recharged. Replacement of the lithium battery may only be carried out by the manufacturer
or authorized personnel.
Risk of explosion if the battery is not replaced correctly. Replace only with the same or
equivalent type recommended by the manufacturer.
When disposing used batteries, observe the local regulations for the disposal of
hazardous waste.
14 Date: 28th May 2021 IMS - LANTIME M500
