Thank you for choosing the Melissa & Doug I-Ii-Rise Dollhouse! It's a terrific way to help nurture a child's
creativity
and imagination, and to inspire story-telling and independent play for years to come.
NOW IT'S TIME TO PUT IT TOGETHER!
Don't worry, assembling your new dollhouse is simple, and we're here to help. It may go a little faster with a
partner to lend a hand, but we've made it so one person can assemble the dollhouse. l-lere are a few tips
before you begin:
• Read
through all the instructions first.
•
Clear a flat, covered space (carpeted is best) to lay out all the materials so everything is close at hand.
• You
will need a Phillips head screwdriver (not included) to assemble the dollhouse. We've included
everything
else you will need. All parts are labeled with a sticker (A-P).
•
The instructions include lots of helpful pictures-we show you, step-by-step, exactly how to align pieces
and parts for speedy and accurate assembly. Note that hardware needed for each step is shown in the
upper right corner of the page, each piece being added in a given step is highlighted in gray, and the
"assembled view" (what it looks like when the step is completed) is included in the lower right corner of
every page.
•
In the instructions, the name of a part is followed by a letter in parentheses. This letter corresponds to
the sticker on the part, as well as the picture of the part shown on page 2.
• l-lelpful hints are highlighted with a large exclamation point.
IMPORTANT: l-lelpful hints
are found here.
• Do
not over tighten screws and bolts during assembly. Screws and bolts should be fully tightened once
the entire assembly is complete.
• If you have any questions, we're here for you! Give our customer care team a call at 1-800-284-3948!
& WARNINGS!
Retain these instructions for future reference.
Warning: Prevent Tip Overs!
• Do
not allow children to pull, climb, sit, or stand on any part of the dollhouse ..
• The dollhouse must be placed on a hard, flat, and level surface.
• I=or more information on how to prevent furniture tip overs in your home visit Anchorlt.gov.
•
The dollhouse must be assembled as instructed.
MAINTENANCE:
l;:nsure the dollhouse continues to function properly and safely by regularly checking the hardware and
tightening when necessary.
Melissa & Doug
Customer Service: 1-800-284-3948

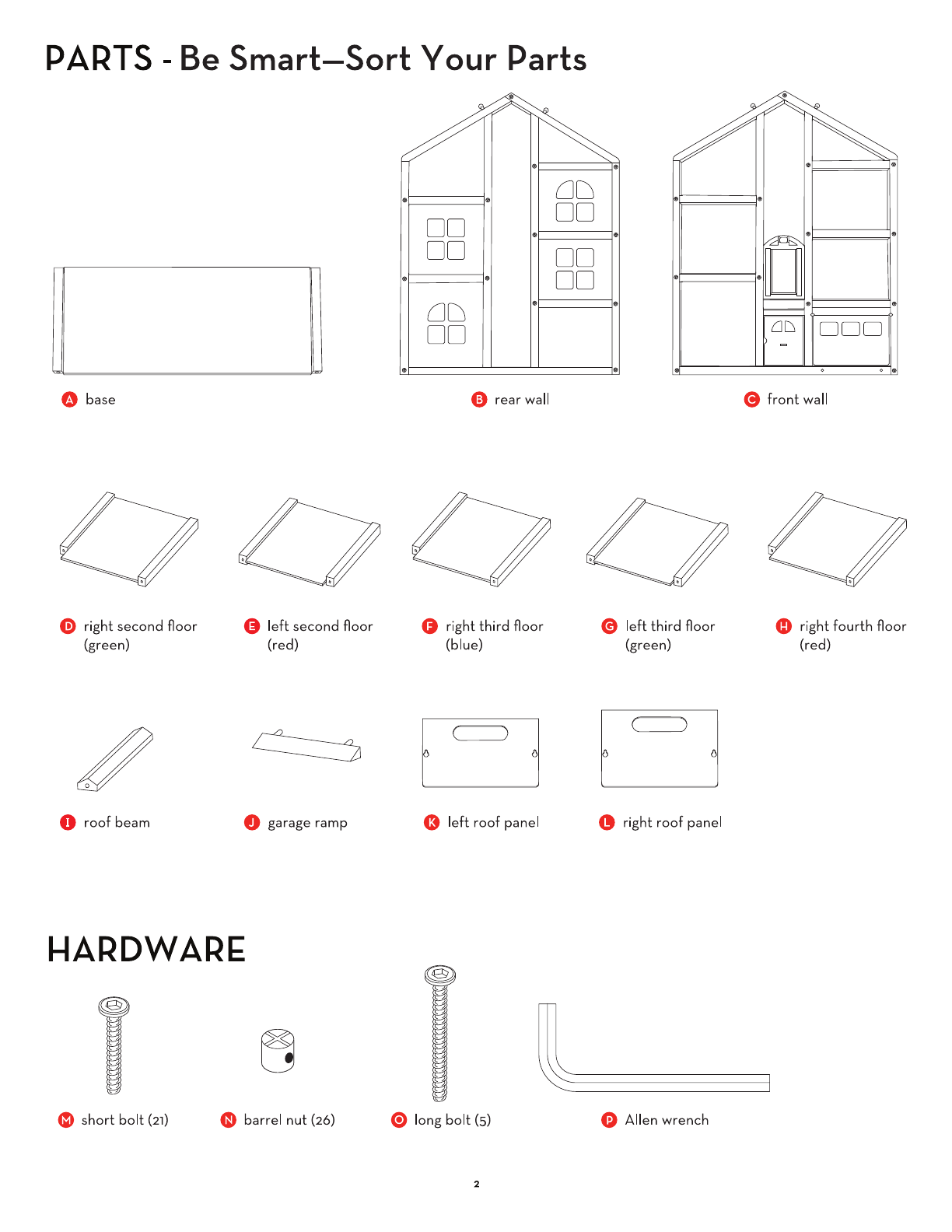

PARTS - Be Smart-Sort Your Parts
0 base
• 0
□□
0
□□
0 0
CJD
0
□□
•
CJD
□□
•
□□
□□
•
•
0 rear wall
0
0
•
0
i'.JD
□□□
0 •
(9 front wall
G) right second floor
(green)
8 left second floor
(red)
G right third floor
(blue)
(9 left third floor
(green)
0 right fourth floor
(red)
0 roof beam f) garage ramp 0 left roof panel
(~_~)
G right roof panel
I-IARDWARE
0 short bolt (21)
0 barrel
nut (26) 6)
long
bolt (5) G Allen wrench
2

ACCESSORIES
couch chairs (3) small table large table pillow
large bed small bed cabinet refrigerator kitchen
countertop
bathroom sink toilet tub 3 play figures
Melissa & Doug Customer Service: 1- 800-284 - 3948
3

l-lelpful I-lints and Tips
• Note: Some packages of hardware may have extra pieces.
• You
will need either a Phillips head or a standard screw driver
(not included)
to assemble the dollhouse.
• Loosely tighten
all bolts until the final step.
IMPORTANT: Press a
barrel
nut into the hole
in the part, making sure
the"+" pattern is facing
up.
IMPORTANT: Using a screw
driver, turn the barrel nut
until the"+" is straight and
the threaded hole is facing
outward to accept the bolt.
4

STEP 1 - Every Journey
Begins with the First Step
Using 2 short bolts
(part M) and 2 barrel
nuts
(part N), attach
the base (part A) to
the rear wall (part B).
x
- ✓
2 x2
IMPORTANT:
Loosely tighten all
bolts until the final
step.
------a,
4D
IMPORT ANT: Be
sure the art work on
the base is facing the
correct direction. The
rock pattern should
be on the right.
Assembled View
STEP 2 -The Front Wall I-las It All
Using 2 short bolts (part M) and 2 barrel
nuts
(part N), attach the front wall (part
C) to the base.
- ✓
x2 x2
~ -,..,.,--,,.-----
4D
---i11J
--- 4D
------i11J
Assembled View
Melissa & Doug Customer Service: 1-800-284- 3948
5

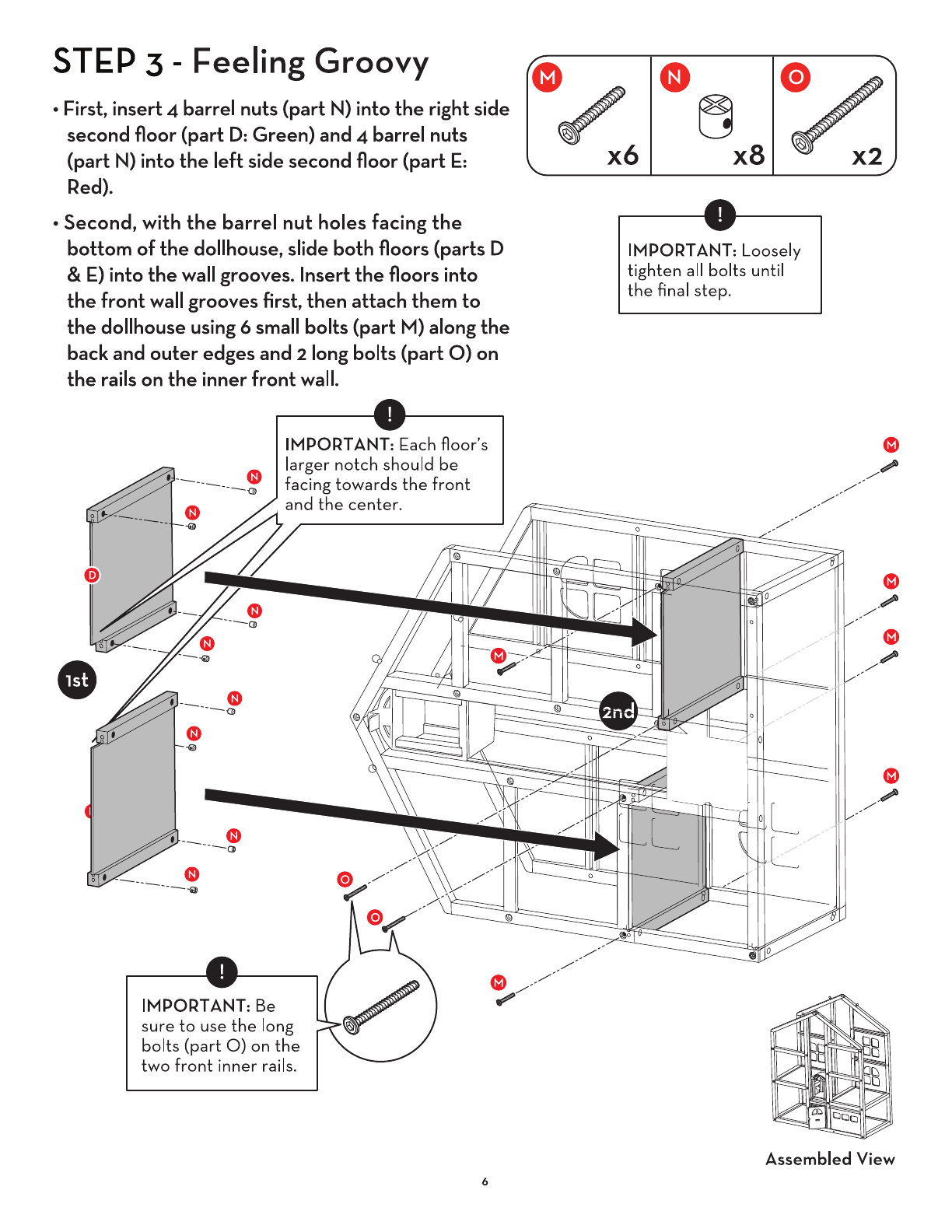

STEP 3 - l=eeling Groovy
• ~irst, insert 4 barrel nuts (part N) into the right side
second floor (part D: Green) and 4 barrel nuts
(part N) into
the left side second floor (part E::
Red).
• Second, with
the barrel nut holes facing the
bottom of the dollhouse, slide both floors (parts D
& E:) into the wall grooves. Insert the floors into
the front wall grooves first, then attach them to
the dollhouse using 6 small bolts (part M) along the
back and outer edges and 2 long bolts (part 0) on
the rails on the inner front wall.
- ✓ · ~ ~ '
, ___ x_6____.__ ___ x_8____.__ ___ x_2_/
IMPORT ANT: Loosely
tighten all bolts until
the final step.
IMPORTANT: Each floor's
larger notch should be
facing towards the front
and the center.
IMPORTANT:
Be
sure to use the long
bolts (part
0) on the
two front inner rails.
Assembled View
6

•
STEP 4 -Whee ... l=loor Three!
• l=irst, insert 4 barrel nuts (part N) into the right
side third floor (part I=: Blue) and 4 barrel nuts
(part N) into the left side second floor (part G:
Green).
• Second, with the barrel nut holes facing the
bottom of the dollhouse, slide both floors (parts
I= & G) into the wall grooves. Insert the floors
into
the front wall grooves first, then attach
them to the dollhouse using 6 small bolts (part
M) along the back and outer edges and 2 long
bolts
(part 0) on the rails on the inner front wall.
✓
x6 x8
IMPORTANT: Loosely
tighten
all bolts until
the final step.
IMPORT ANT: Each
floor's larger notch
should be facing towards
the
front and the center
IMPORT ANT:
Be sure to
use the long bolts (part 0)
on the two front inner rails.
Assembled View
Melissa & Doug Customer Service: 1-800-284-3948
7

STEP s - Top This
• First, insert 4 barrel nuts (part N) into the right
side fourth floor (part H: Red).
•
Second, with the barrel nut holes facing the
bottom of the dollhouse, slide floor into the wall
grooves. Insert
the floors into the front wall
grooves first, then attach them to the dollhouse
using 3 small bolts
(part M) along the back and
outer edge and l long bolt (part 0) on the rail on
the inner front wall.
•
✓
X3 X4
IMPORT ANT: Loosely
tighten all bolts until
the final step.
--- 0
---o
--- 0
---en
--- 0
• --- ..
IMPORT ANT: ~ach
floor's larger notch
should be facing
towards the
front
and the center.
IMPORTANT:
Be sure to
use the long bolt (part 0)
on the front inner rails.
Assembled
View
8

Beam
tvf
e
Up
STtp 6 -
• Using
2
short
bolts
(part
/11)
and
2
barrel
nuts
(part
N),
attach
the
roof
beam
(part
I)
to
the
front and
rear
walls.
• Second, attach
the
garage ramp
(part J) by
inserting it into
the
2
holes
along
base
of
the
doll house.
X2
IMPORTANT:
Loosely tighten
all
bolts until the
final
step.
Assembled
View
Melissa
&
Doug Customer Service,
l-800-2a4.394a
9

STE:P
7 -

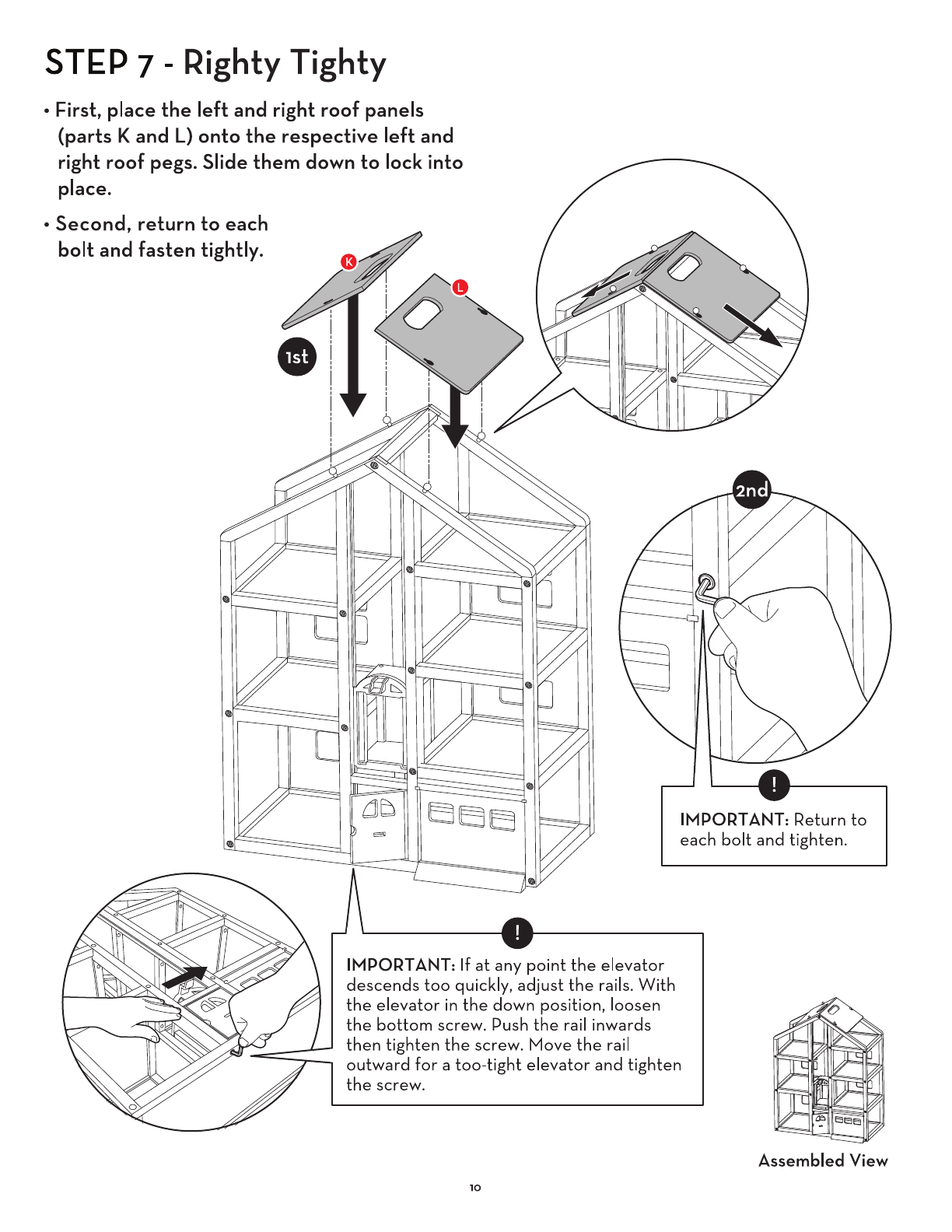

Righty
Tighty
•
J:irst,
place the
left
and right roof panels
(parts
Kand
L)
onto the respective
left
and
right roof pegs. Slide them down to lock into
place.
• Second, return to each
bolt and fasten tightly.
IMPORT ANT:
Return
to
each
bolt
and tighten.
IMPORTANT:
If
at any
point
the elevator
descends
too
quickly, adjust
the
rails.
With
the elevator
in
the
down position, loosen
the
bottom
screw. Push
the
rail inwards
then tighten
the
screw. Move
the
rail
outward
for
a
too-tight
elevator and tighten
the screw.
Assembled View
10

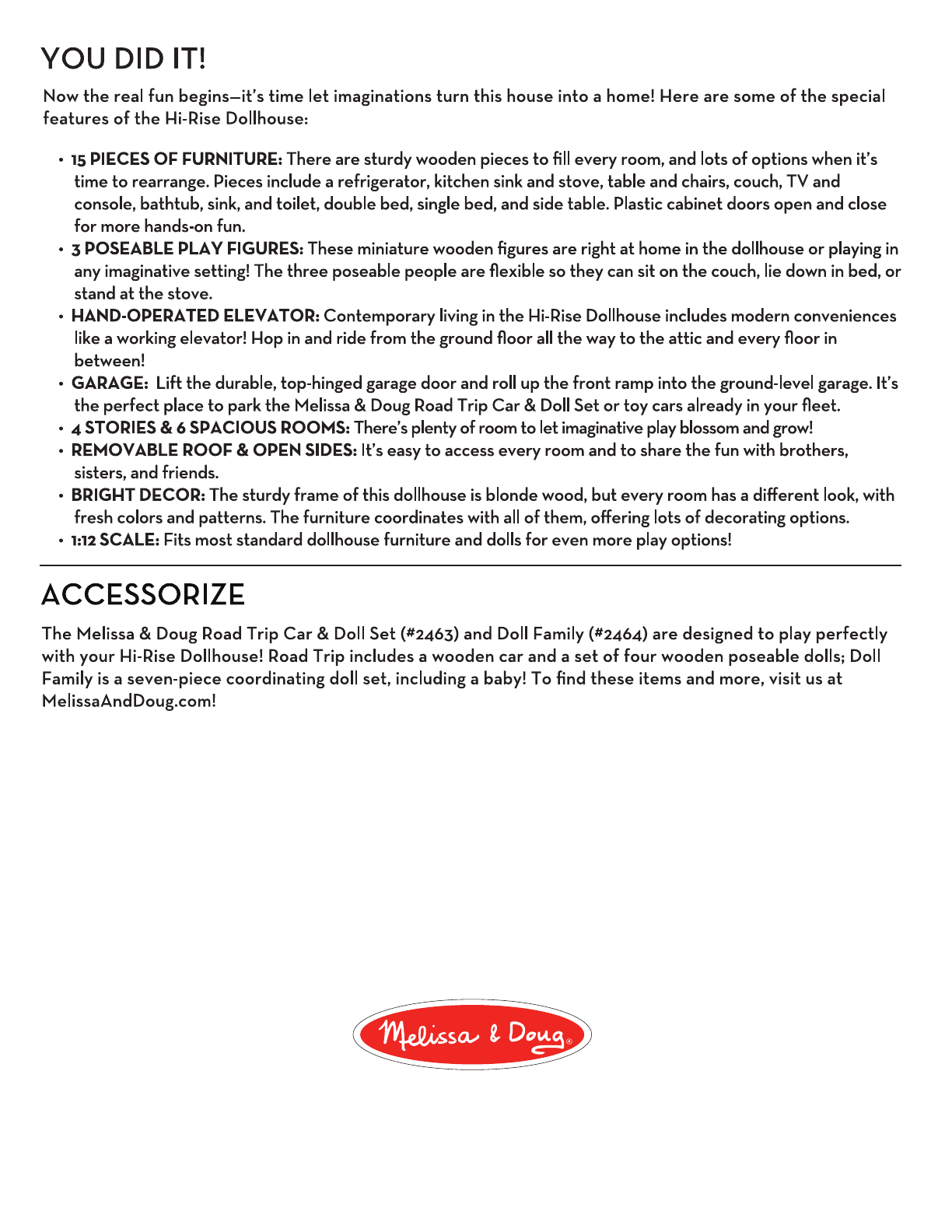

YOU DID IT!
Now the real fun begins-it's time let imaginations turn this house into a home! l-lere are some of the special
features of the I-Ii-Rise Dollhouse:
• 15 PIECES OF FURNITURE: There are sturdy wooden pieces to fill every room, and lots of options when it's
time
to rearrange. Pieces include a refrigerator, kitchen sink and stove, table and chairs, couch, TV and
console, bathtub, sink, and toilet, double bed, single bed, and side table. Plastic cabinet doors
open and close
for more hands-on fun.
• 3
POSEABLE PLA V FIGURES: These miniature wooden figures are right at home in the dollhouse or playing in
any imaginative setting! The three poseable people are flexible so they can sit on the couch, lie down in bed, or
stand at the stove.
•
MAND-OPERA TED ELEV A TOR: Contemporary living in the I-Ii-Rise Dollhouse includes modern conveniences
like a working elevator!
I-lop in and ride from the ground floor all the way to the attic and every floor in
between!
•
GARAGE: Lift the durable, top-hinged garage door and roll up the front ramp into the ground-level garage. It's
the perfect place to park the Melissa & Doug Road Trip Car & Doll Set or toy cars already in your fleet.
• 4 STORIES & 6 SPACIOUS ROOMS: There's plenty of room to let imaginative play blossom and grow!
• REMOVABLE ROOF & OPEN SIDES: It's easy to access every room and to share the fun with brothers,
sisters, and friends.
•
BRIGMT DECOR: The sturdy frame of this dollhouse is blonde wood, but every room has a different look, with
fresh colors and patterns. The furniture coordinates with
all of them, offering lots of decorating options.
• 1:12 SCALE: !=its most standard dollhouse furniture and dolls for even more play options!
ACCESSORIZE
The Melissa & Doug Road Trip Car & Doll Set (#2463) and Doll !=amily (#2464) are designed to play perfectly
with your I-Ii-Rise Dollhouse! Road Trip includes a wooden car and a set of four wooden poseable dolls; Doll
!=amily is a seven-piece coordinating doll set, including a baby! To find these items and more, visit us at
MelissaAnd Doug.com!
