Memorex MLT3221 - 32" LCD TV User manual

c
d
Packaging material
Packaging material
Stand
Unit
Table
Unit
Table
Stand
Screw x 6
Screw x 6
MLT3221
6
Warranty Card

Connecting an Audio Receiver and
TV Cable
HDMI 2 INHDMI 1 IN
AUDIO
L R L R L R
L R
L
R
L R
L R
AUDIO
VGAIN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIOOUT
STEREO DIGITAL
OPTICAL
COAXIAL
Air/Cable
HDTV/TV
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr AUDIO
VHF/UHF IN
HDMI 2 INHDMI 1 IN
AUDIO
L R L R L R
L R
L
R
L R
L R
AUDIO
VGPC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO DIGITAL
OPTICAL
COAXIAL
Air/Cable
HDTV/TV
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr AUDIO
VHF/UHF IN
Audio Receiver Audio Am
p
lifier
AB
AUDIO Cable
Connecting to Audio Receiver:
Use an audio cable to connect the audio receiver’s audio
LINE IN jacks to LCD TV’s AUDIO OUT jacks.
Connecting to Digital 5.1 Sound System:
METHOD A:
Use a optical cable to connect the audio amplifier’s
OPTICAL IN jacks to LCD TV’s OPTICAL OUT jacks.
METHOD B:
Use a coaxial cable to connect the audio amplifier’s
COAXIAL IN jacks to LCD TV’s COAXIAL OUT jacks.
Connect all AC power sources, before turning on the
power switch of the LCD TV or other connected equipment.
Press the button on the remote to turn on the LCD TV.

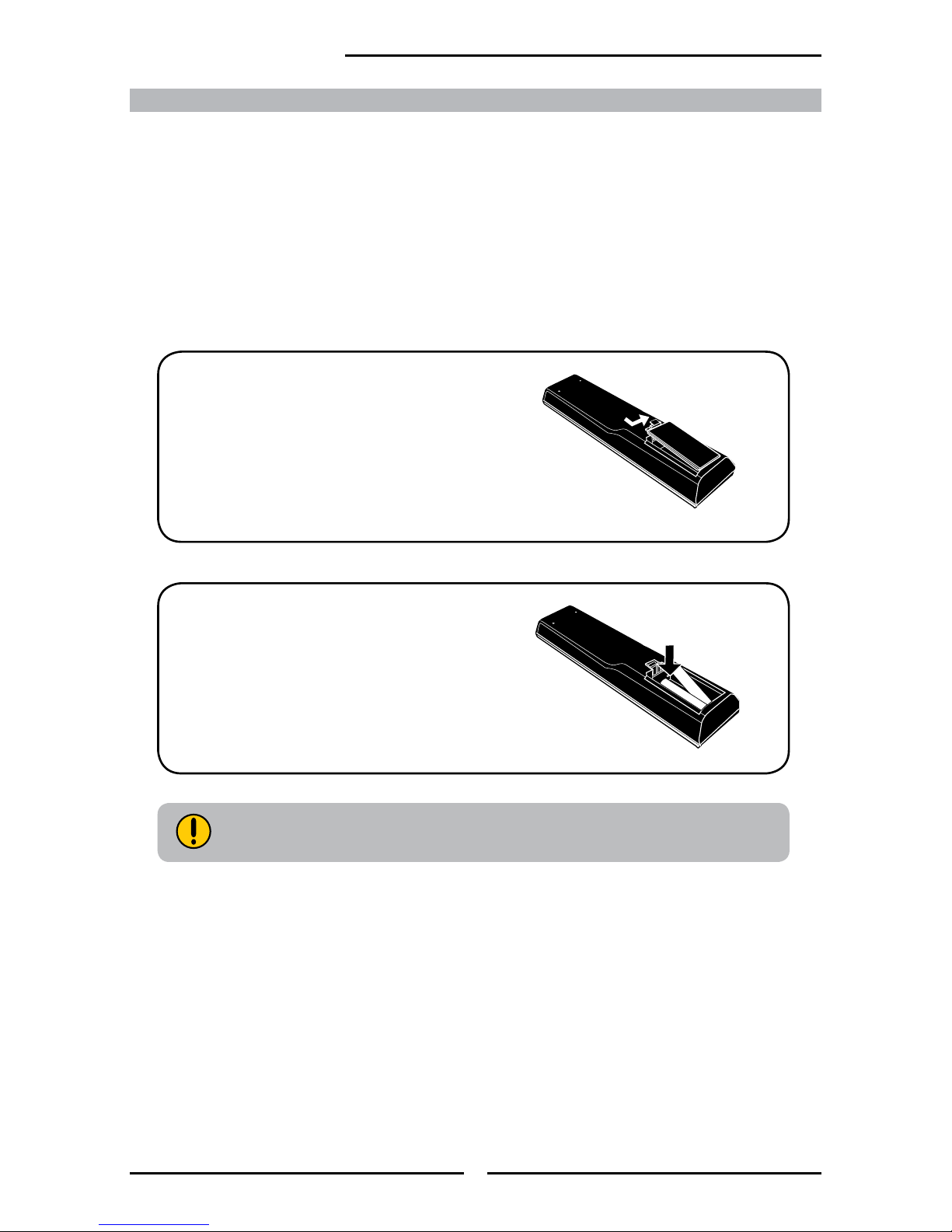

Step1 Slide to open the battery compartment
cover of the remote control.
Step2 Install two "AAA" batteries (not
included), paying attention to the
polarity diagram in the battery
compartment.
Replace the battery compartment
cover.
TV(CABLE/AIR)
VIDEO 1(SIDE)
VIDEO 2(REAR)
VIDEO 3(S-VIDEO)
VIDEO 4(YPbPr1)
VIDEO 5(YPbPr2)
VIDEO 6(HDMI1)
VIDEO 7(HDMI2)
COMPUTER(VGA)
INPUT
TV(CABLE/AIR), VIDEO 1(SIDE),
VIDEO 2(REAR), VIDEO 3(S-VIDEO), VIDEO 4(YPbPr1),
VIDEO 5(YPbPr2), VIDEO 6(HDMI1), VIDEO 7(HDMI2),
COMPUTER(VGA) and press OK button.
PC/VGAIN
ATSC/NTSC
While in TV (CABLE/AIR) mode, press the MENU button
to display the Main menu, and use the buttons
to select the TV menu.
Use the buttons to select Tuner Mode (AIR/CABLE)
and press OK button.
3. Use the buttons to select Channel Scan and press
OK button. It will automatically cycle through all the
channels and store active channels into memory.
16 feet

Model MLT3221
www.memorexelectronics.com
Please read these instructions completely,
before operating this product.
FO LD

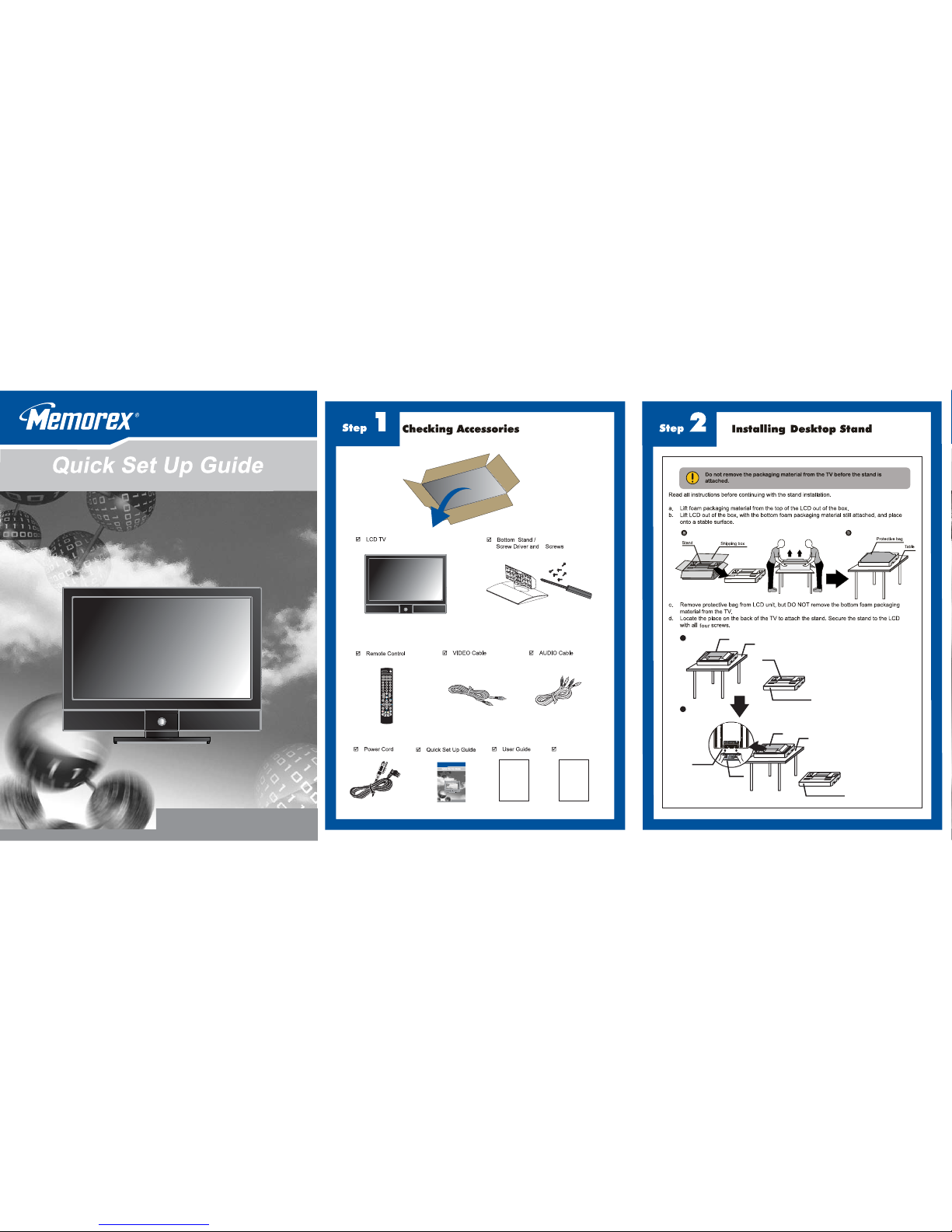

User Guide
Widescreen LCD HDTV
with full function remote control
Printed in China
Distributed by Imation Enterprises Corp. Weston, Florida
Memorex, the Memorex logo, and "Is it live or is it Memorex?"
are trademarks of the affiliates of Memorex Products, Inc.

This TV incorporates High-Denition Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double -D symbol are trademarks of Dolby Laboratories.
This product contains electrical or electronic materials. The presence
of these materials may, if not disposed of properly, have potential
adverse effects on the environment and human health. Presence
of this label on the product means it should not be disposed of as
unsorted waste and must be collected separately. As a consumer, you
are responsible for ensuring that this product is disposed of prop-
erly.
WEEE

ENGLISHENGLISH
1
CONTENTS
Warnings and Precautions

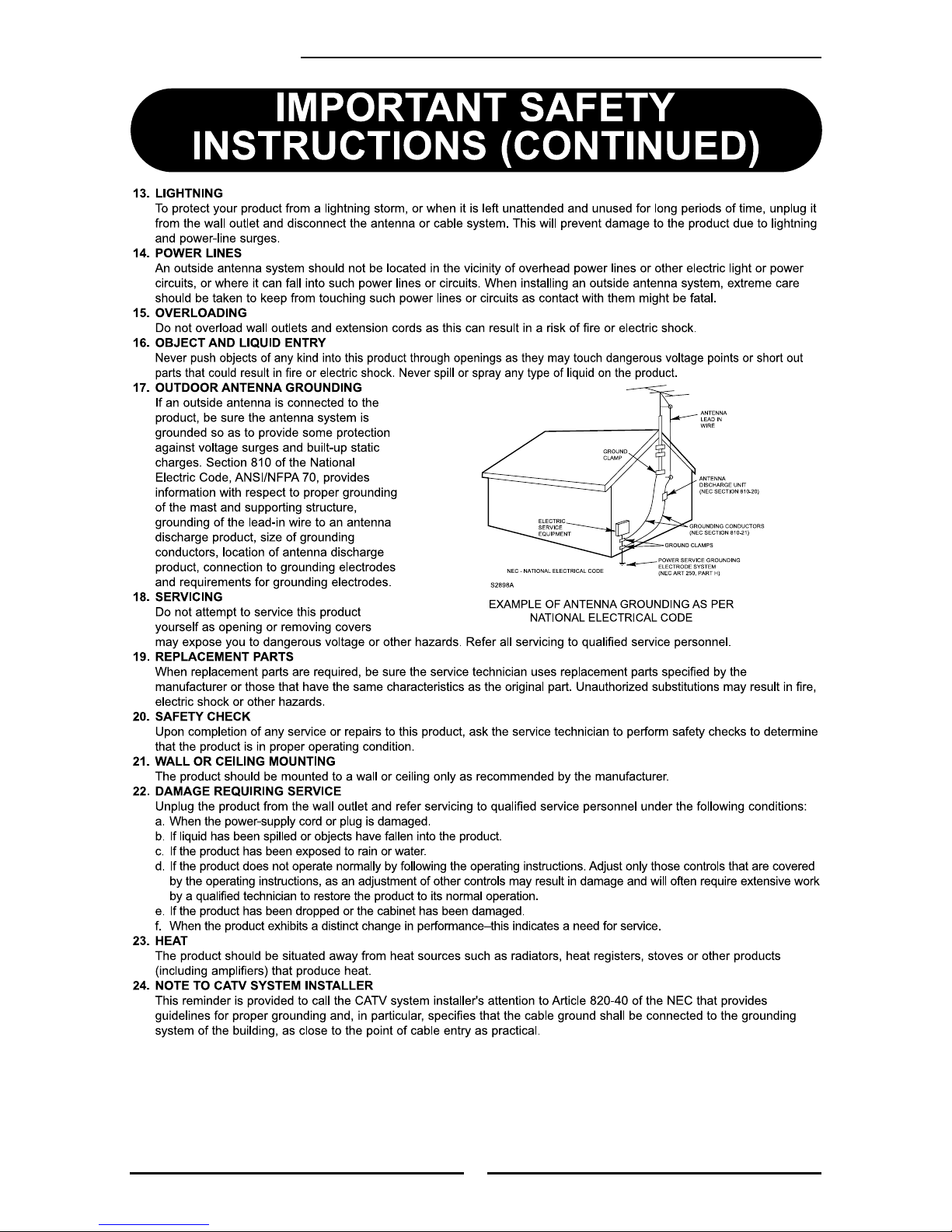

Important Safety Instructions ....................................................................................... 2
Chapter 1 Introducing the LCD TV
Key Features ............................................................................................................... 5
Package Contents ....................................................................................................... 6
Setting Your LCD TV .................................................................................................... 7

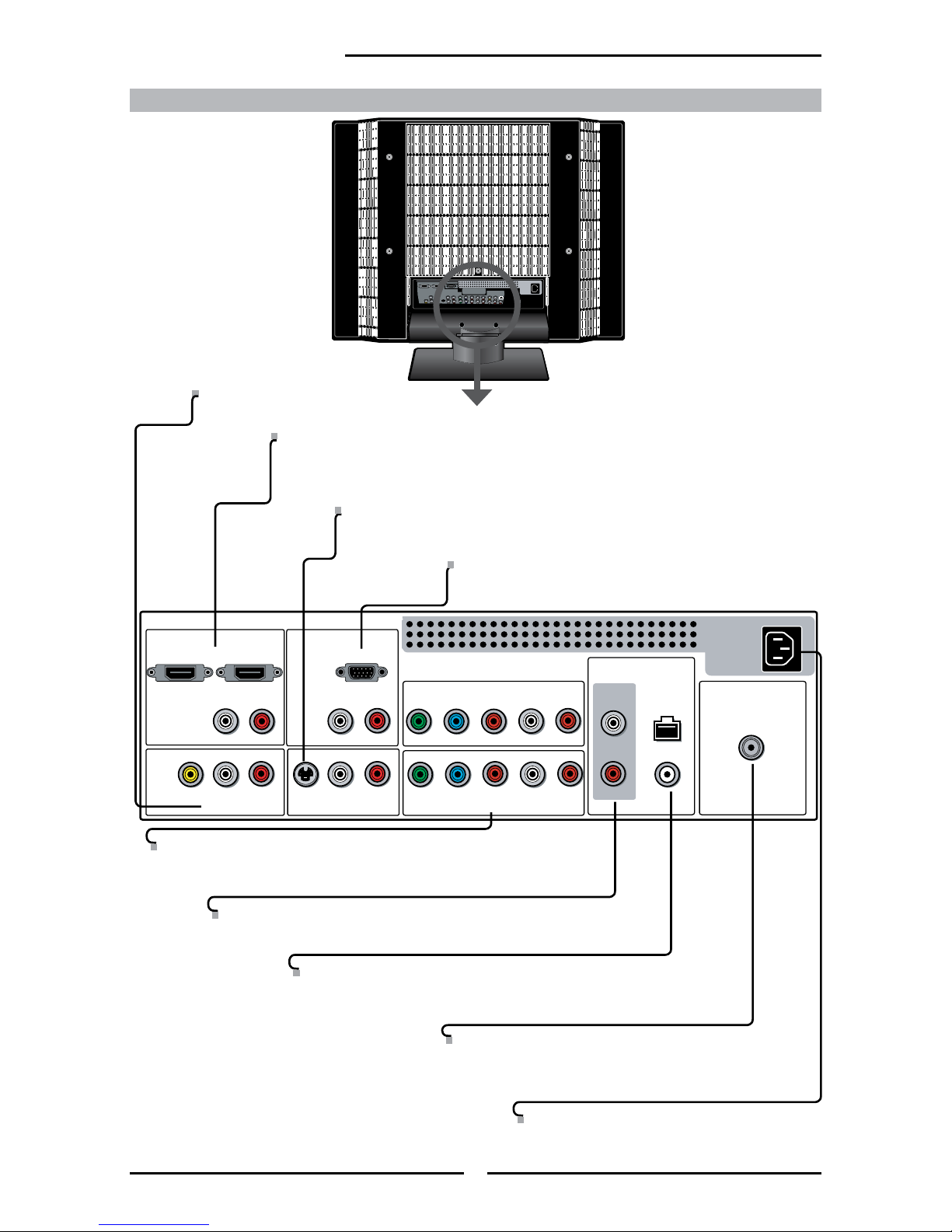

Your LCD TV ................................................................................................................ 9

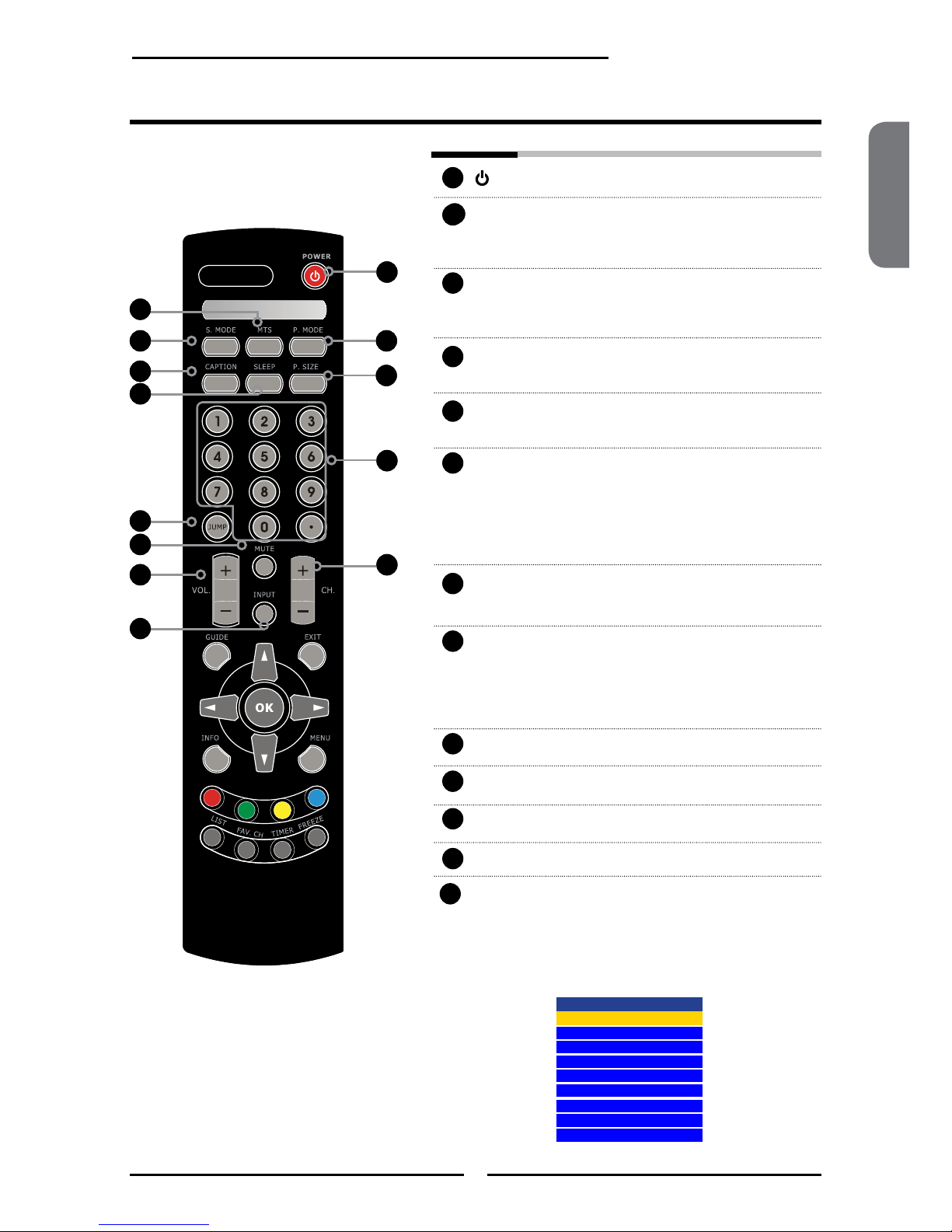

Your Remote Control ..................................................................................................11
Chapter 2 Installing the LCD TV

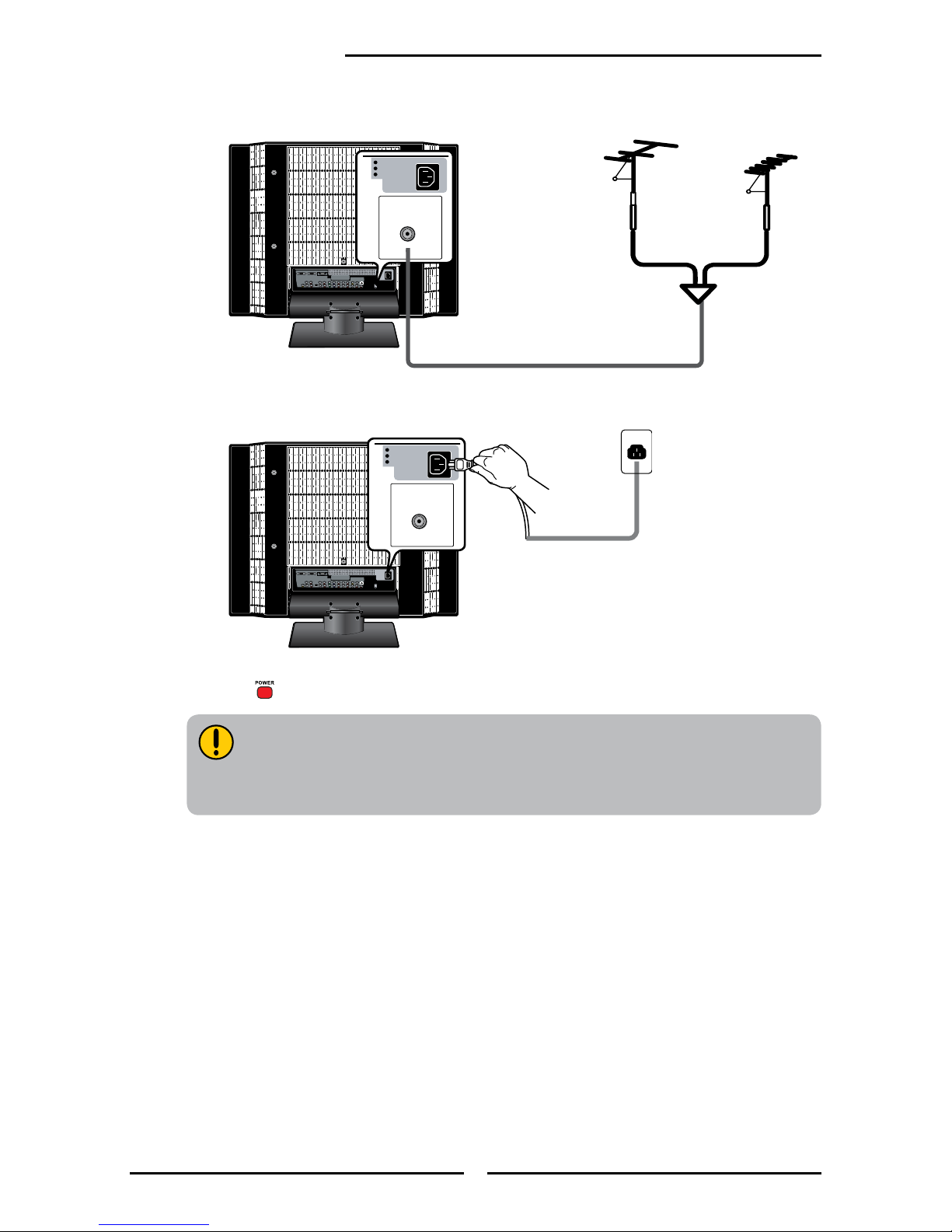

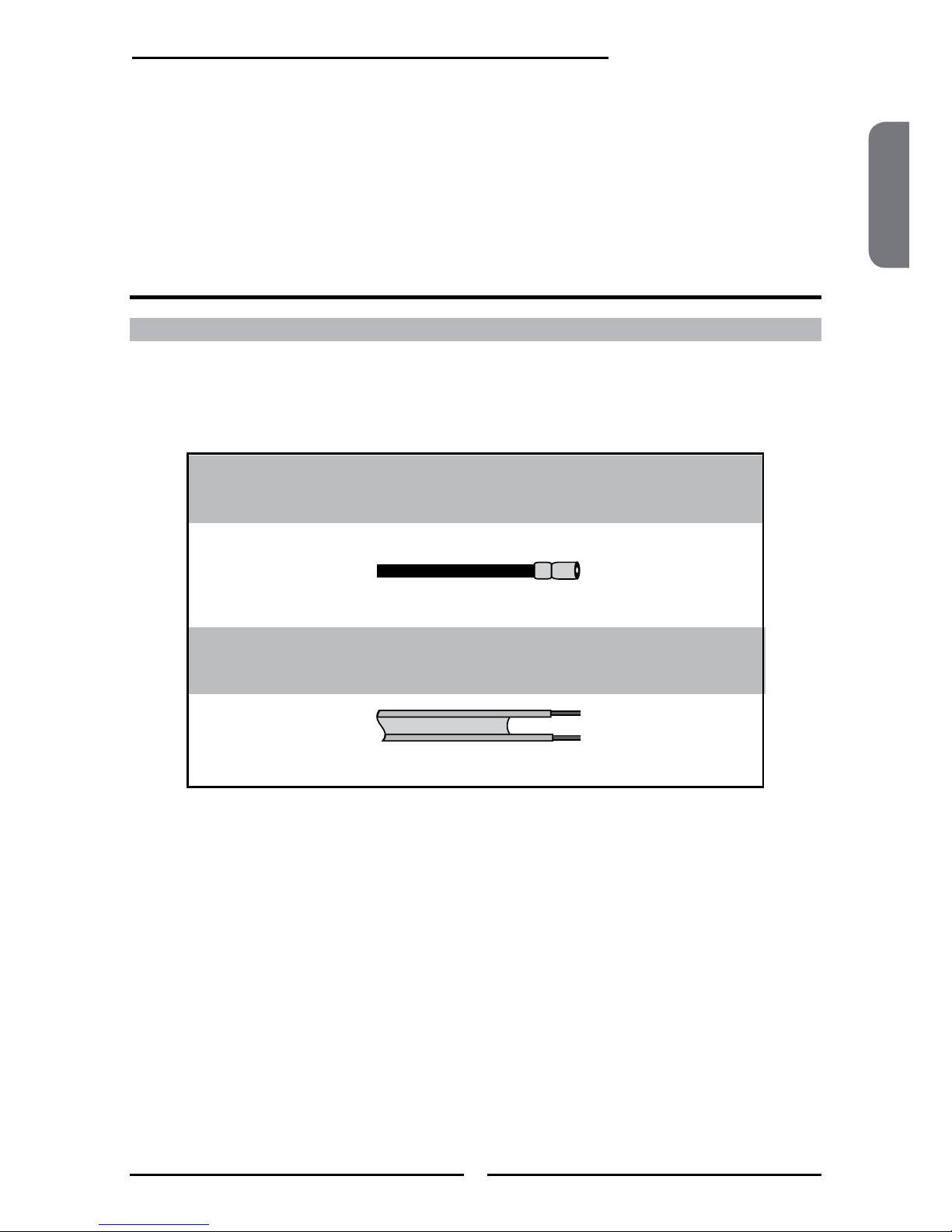

Connecting a TV Cable or an Antenna ...................................................................... 13
Connecting a VCR ..................................................................................................... 18
Connecting a Video Camera or Game Console ........................................................ 19
Connecting a DVD Player .......................................................................................... 20
Connecting a Digital TV Cable Box or Digital Satellite Receiver ............................... 22
Connecting an AV Equipment with HDMI Connector ................................................. 23
Connecting an AV Equipment with DVI Connector .................................................... 24
Connecting a PC........................................................................................................ 25
Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System........................ 26
Chapter 3 Using the Features
Wide Screen Viewing ......................................................................................27
Operating the Menu........................................................................................28
Customizing the VIDEO Settings ......................................................................30
Customizing the AUDIO Settings ......................................................................32
Customizing the TV Settings ............................................................................34
Customizing the SETUP Settings......................................................................36
Using the Program Block Settings.....................................................................40
Using the Program Guide ................................................................................45
Troubleshooting .................................................................................................... 46
Specication ........................................................................................................... 47

2
Warnings and Precautions

ENGLISHENGLISH
3
Warnings and Precautions

4
Warnings and Precautions

ENGLISH
5
Chapter 1 Introducing the LCD TV
Various Audio/Video terminals for external equipment connection
▪ 2 sets of composite A/V input terminals
▪ 1 set of S-VIDEO terminals
▪ 2 sets of component Video input terminals
▪ 1 VGA/ Audio input terminals
▪ 2 HDMI/Audio input terminals
▪ 1 set of Audio(L/R) output terminals
▪ 2 SPDIF output terminals (Optical x 1 /Coaxial x 1)
▪ 1 Headphone terminal
The built-in TV tuner to receive HD ATSC
▪ This function allows the reception of HD broadcasting without the addition of a set top
box.
High Definition Multimedia Interface (HDMI)
▪ High Denition Multimedia Interface (HDMI) is a small, user-friendly interconnect that
can carry up to 5 Gbps of combined video and audio in a single cable. This system
eliminates the cost, complexity and confusion of multiple cables used to connect
current A/V systems.
HDTV Component Video Inputs
▪ Offers the best video quality for DVD(720p,HD1080i) and digital set-top-box
(720p,HD1080i) connections.
3D Digital Noise Reduction
▪ This function can digitally reduce image noise to provide better picture quality.
Film-Mode Detection (3:2 Reverse Pull Down)
▪ This function can automatically detect content derived from lm and adjust the
interlacer’s frame matching to provide a more natural-looking, clearer image of the
moving picture.
Chapter 1
Introducing the LCD TV
Key Features

6
Chapter 1 Introducing the LCD TV
 User’s Manual  Quick Start Guide
 AUDIO Cable  Warranty Card
Make sure all of the above contents are included in the package. If you are missing
any items, please contact the customer service department.
These items are all you need to set up and operate the LCD TV in its basic conguration.

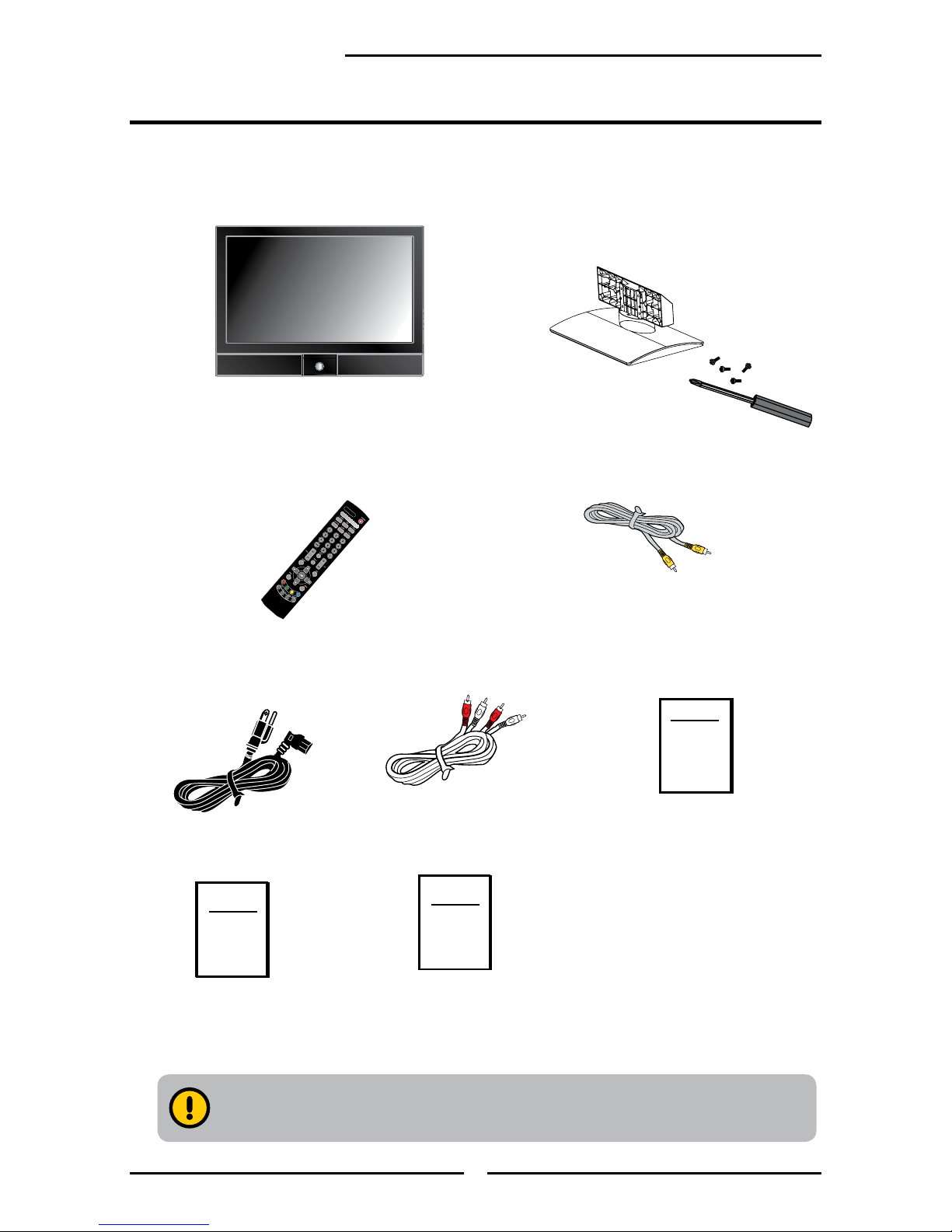

Package Contents
 LCD TV
Make sure all of the following contents are included.
 VIDEO Cable
 Remote Control
(845-042-GF1XABH)
 Power Cord
(601-181-3200-LIH)
 Bottom Stand(151-700-BF327WV3H)
/Screw Driver and 4 Screws
USER MANUAL
Quick Start Guide
Warranty Card
