Memorex MLT4221P User manual

002-L00-BF4213MEMOH

This TV incorporates High-Denition Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
This Class B Digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations.
Get apparell nubérique de la class B respecte toutes les exigences du
Réglemnte sur le matérlelbrouilleur du canada.
This product contains electrical or electronic materials. The presence
of these materials may, if not disposed of properly, have potential
adverse effects on the environment and human health. Presence
of this label on the product means it should not be disposed of as
unsorted waste and must be collected separately. As a consumer, you
are responsible for ensuring that this product is disposed of prop-
erly.
WEEE

ENGLISHENGLISH
1
CONTENTS
Warnings and Precautions
Important Safety Instructions ....................................................................................... 2
Chapter 1 Introducing the LCD TV
Key Features ............................................................................................................... 5
Package Contents ....................................................................................................... 6
Setting Your LCD TV .................................................................................................... 7
Your LCD TV .............................................................................................................. 10
Your Remote Control ................................................................................................. 12
Chapter 2 Installing the LCD TV
Connecting a TV Cable or an Antenna ...................................................................... 14
Connecting a VCR ..................................................................................................... 19
Connecting a Video Camera or Game Console ........................................................ 20
Connecting a DVD Player .......................................................................................... 21
Connecting a Digital TV Cable Box or Digital Satellite Receiver ............................... 23
Connecting an AV Equipment with HDMI Connector ................................................. 24
Connecting an AV Equipment with DVI Connector .................................................... 25
Connecting a PC........................................................................................................ 26
Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System........................ 27
Chapter 3 Using the Features
Wide Screen Viewing ......................................................................................28
Using the Program Guide ................................................................................29
Operating the Menu........................................................................................30
Customizing the VIDEO Settings ......................................................................32
Customizing the AUDIO Settings ......................................................................34
Customizing the TV Settings ............................................................................36
Customizing the SETUP Settings......................................................................38
Troubleshooting .................................................................................................... 46
Specications ........................................................................................................ 47
Display Mode .......................................................................................................... 48

2
Chapter 1 Introducing the LCD TV

ENGLISH
3
Chapter 1 Introducing the LCD TV

4
Chapter 1 Introducing the LCD TV

ENGLISH
5
Chapter 1 Introducing the LCD TV

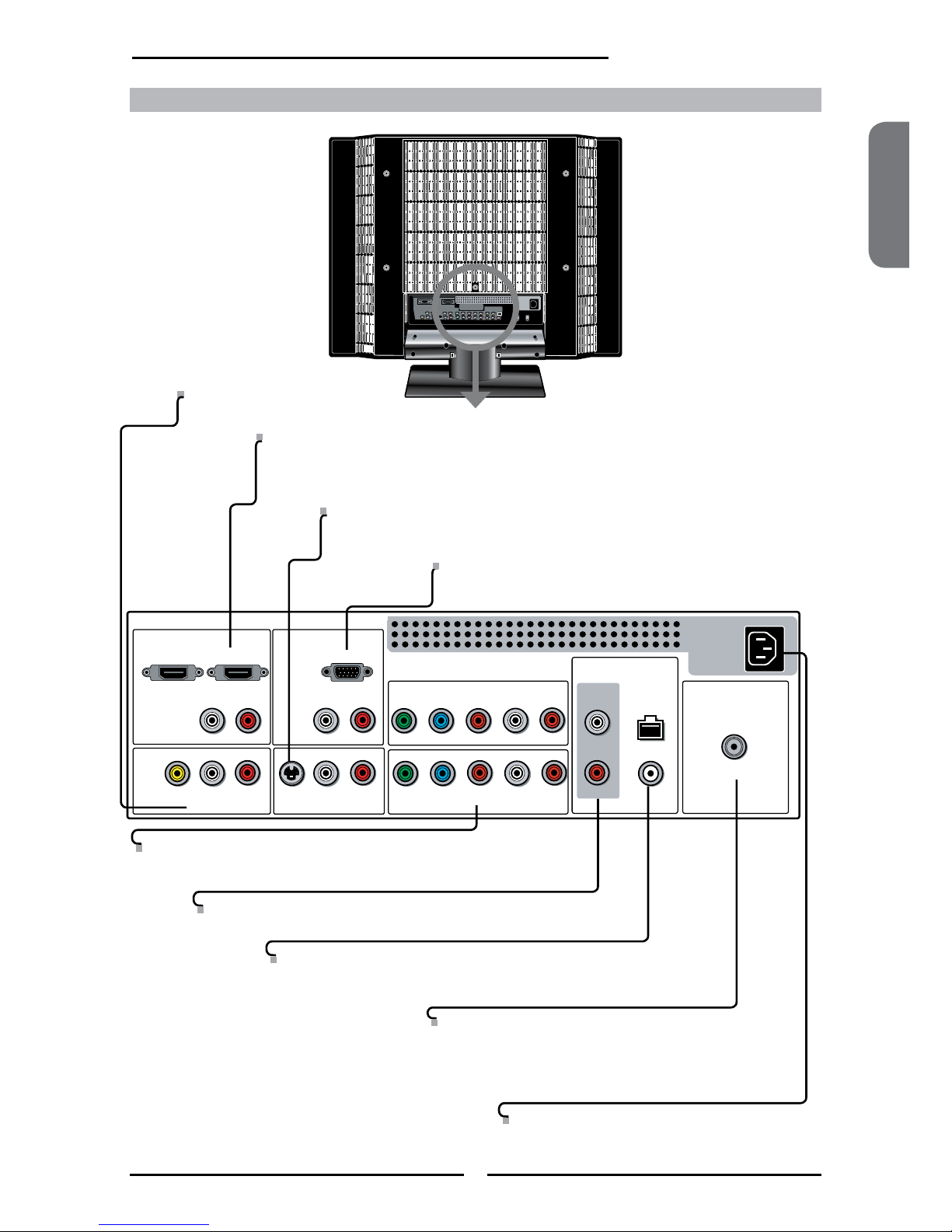

Various Audio/Video terminals for external equipment connection
▪ 2 sets of composite A/V input terminals
▪ 1 set of S-VIDEO terminals
▪ 2 sets of component Video input terminals
▪ 1 VGA/ Audio input terminals
▪ 2 HDMI/Audio input terminals
▪ 1 set of Audio(L/R) output terminals
▪ 2 SPDIF output terminals (Optical x 1 /Coaxial x 1)
▪ 1 Headphone terminal
The built-in TV tuner to receive HD ATSC
▪ This function allows the reception of HD broadcasting without the addition of a set top
box.
High Definition Multimedia Interface (HDMI)
▪ High Denition Multimedia Interface (HDMI) is a small, user-friendly interconnect that
can carry up to 5 Gbps of combined video and audio in a single cable. This system
eliminates the cost, complexity and confusion of multiple cables used to connect
current A/V systems.
HDTV Component Video Inputs
▪ Offers the best video quality for DVD(HD1080p,1080i, 720p) and digital set-top-box
(HD1080p,1080i, 720p) connections.
3D Digital Noise Reduction
▪ This function can digitally reduce image noise to provide better picture quality.
Film-Mode Detection (3:2 Reverse Pull Down)
▪ This function can automatically detect content derived from lm and adjust the
interlacer’s frame matching to provide a more natural-looking, clearer image of the
moving picture.
Chapter 1
Introducing the LCD TV
Key Features

*Consumer Replaceable Part
(See page 49 to order.)
6
Chapter 1 Introducing the LCD TV
S.MODE MTS P.MODE
VOL. CH.
MUTE
INPUT
TIXEEDIUG
UNEMOFNI
LIST
FAV.CH
TIMER
FREEZE
P.SIZESLEEPCAPTION
Make sure all of the above contents are included in the package. If you are missing
any items, please contact the Polaroid customer service department.
 LCD TV
Make sure all of the following contents are included.
These items are all you need to set up and operate the LCD TV in its basic conguration.
Package Contents
 Remote Control
845-042-GF1XAB-MEH
 VIDEO Cable
621-181-2000H
 AUDIO Cable
621-181-60002H
 Power Cord
600-181-3200-LIH
 Warranty Card  User’s Manual
 Quick Set Up Guide
 Bottom Stand 154-700-BF32H /
Screw Driver and Screws 6
101-025-5013H

ENGLISH
7
Chapter 1 Introducing the LCD TV
Setting Up Your LCD TV

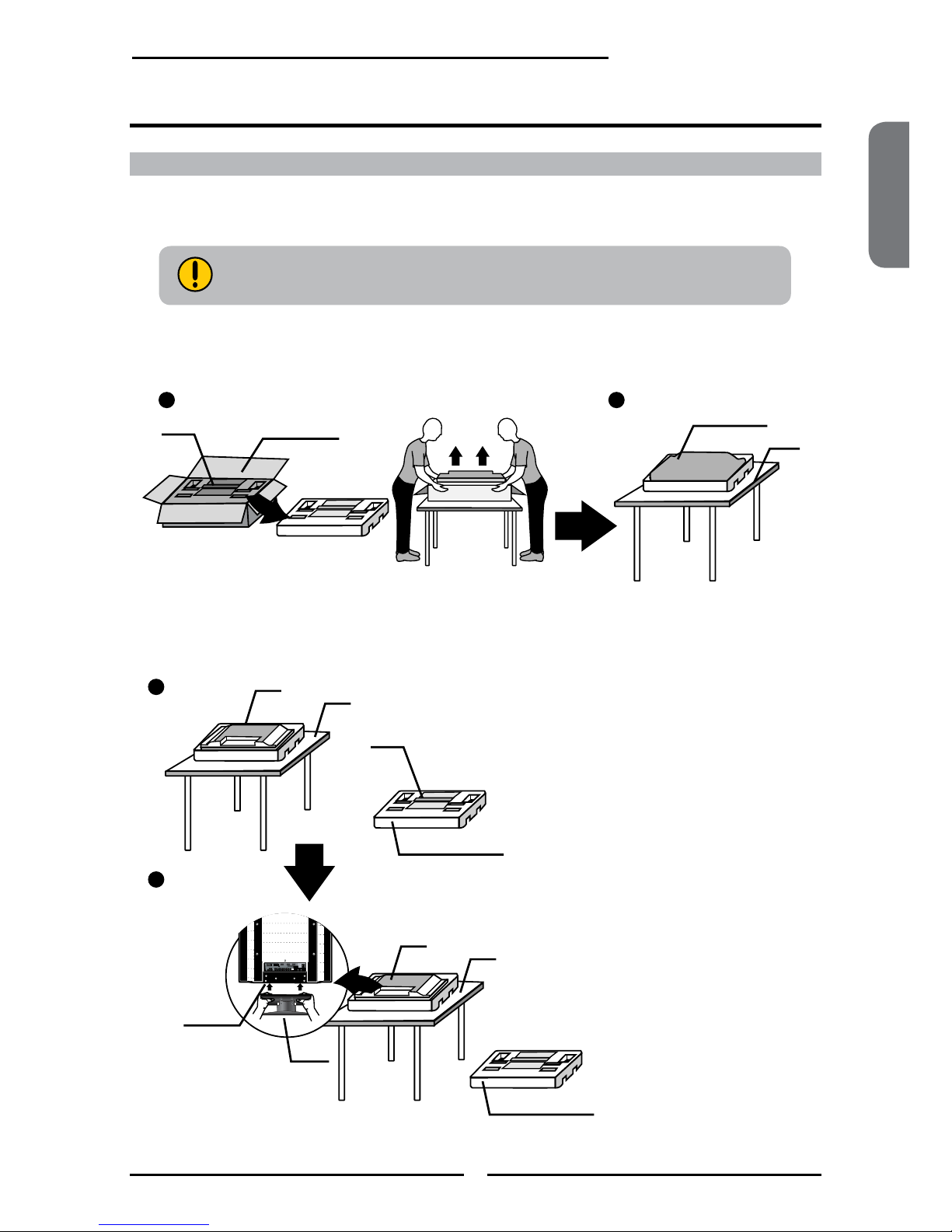

How to install the TV Stand
Attach the Stand the TV with the bottom foam packaging material still
attached.
Read all instructions before continuing with the stand installation.
a b
Stand Shipping box
Protective bag
Table
c. Remove protective bag from LCD unit, but DO NOT remove the bottom foam packaging
material from the TV.
d. Locate the place on the back of the TV to attach the stand. Secure the stand to the LCD
with all screws.
c
d
Packaging material
Packaging material
Stand
Unit
Table
Unit
Table
Stand
Screws
a. Lift foam packaging material from the top of the LCD out of the box.
b. Lift LCD out of the box, with the bottom foam packaging material still attached, and place
onto a stable surface.

8
Chapter 1 Introducing the LCD TV

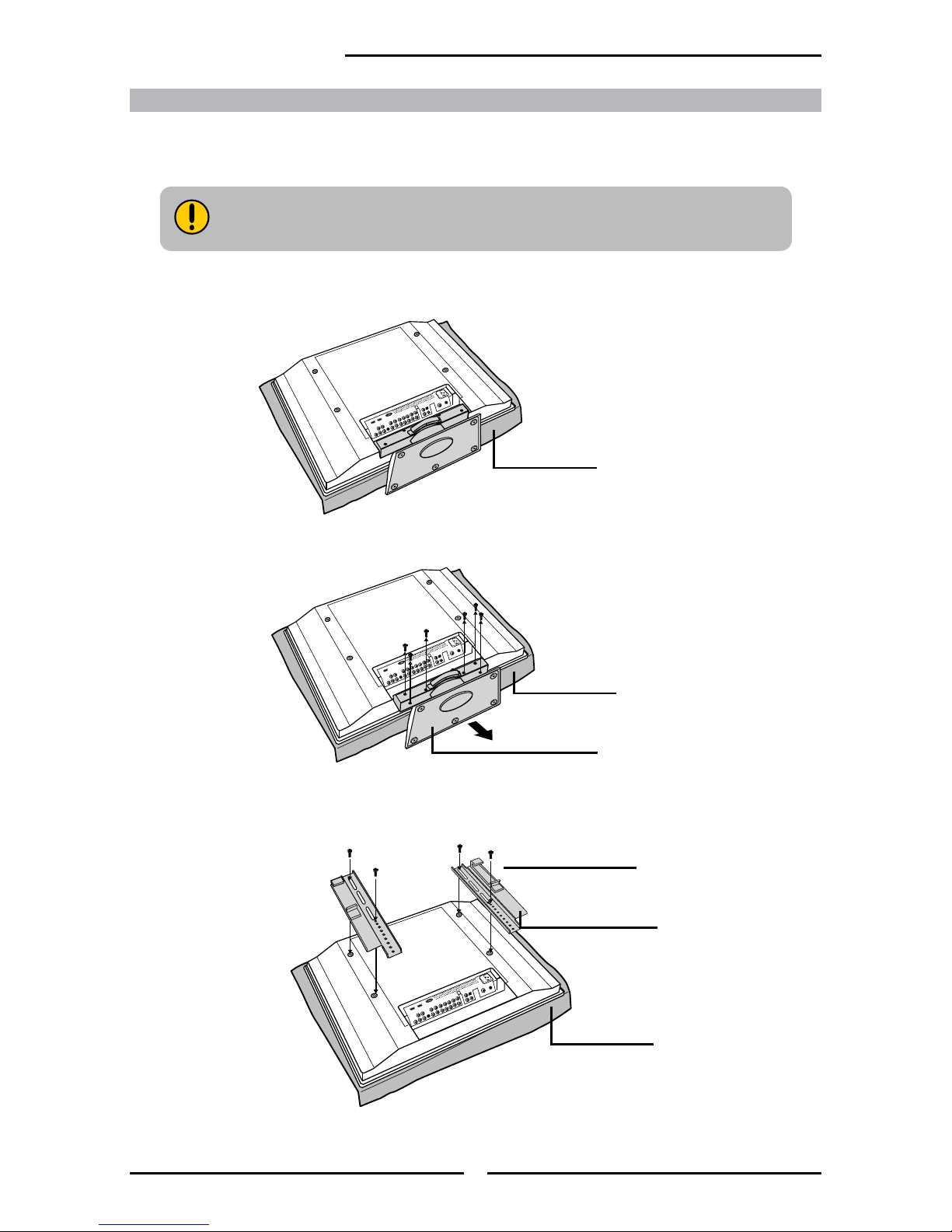

If you prefer to mount your new TV on a wall instead of attaching it to the stand, please reference
the instructions included in the wall mounting kit (sold separately).
 Remove the screws of the table stand and detach the table stand from the TV.
Soft cloth
 Align the holes on the wall mounting hook units with the corresponding holes on the rear
of the TV and fasten four screws.
Soft cloth
Table stand
How to remove the TV Stand
Soft cloth
Wall mounting hook
unit (supplied with the
wall mount kit)
 To prevent damaging the surface of the LCD TV, place the TV on a soft cloth.
Verify your TV’s model and be sure to use the wall mounting kit specied
for your TV model only. Contract your technician for assistance when
installing the wall mounting kit.
4 screws (supplied
with the wall mount
kit)
