MEN GM3 User manual

GM3 – Quad Gigabit
Ethernet Rear I/O Card
20GM03-00 E1 – 2014-03-27
User Manual
Configuration example

GM3 – Quad Gigabit Ethernet Rear I/O Card
MEN Mikro Elektronik GmbH 2
20GM03-00 E1 – 2014-03-27
GM3 – Quad Gigabit Ethernet Rear I/O Card
The GM3 is a mezzanine card which is plugged onto CompactPCI® Serial CPU
boards to implement four Ethernet interfaces on the backplane.
The CompactPCI® Serial standard defines up to eight Ethernet interfaces, which
can be connected in a star or in full mesh architecture via the backplane. The GM3
is used to implement four Gigabit Ethernet interfaces, which are led to the
backplane via CompactPCI® Serial connector P6. All four interfaces are controlled
by one Ethernet controller, which supports the IEEE 802.3x standard.
In addition, the GM3 also provides an mSATA SSD slot to provide mass storage to
the host.
The board is screened for operation in the extended temperature range of -40 to
+85°C.

Diagram
MEN Mikro Elektronik GmbH 3
20GM03-00 E1 – 2014-03-27
Diagram
Isolation
QuadGigabitEthernet
Controller
CompactPCI® SerialConnectorP6
ETH4
ETH3
ETH1
ETH2
ETH4
ETH3
ETH1
ETH2
PCIex1
mSATAslot
SATA
EEPROM
SideboardConnectorP1
SMB
BR
BOnboard connector
RRearI/O connector

Technical Data
MEN Mikro Elektronik GmbH 4
20GM03-00 E1 – 2014-03-27
Technical Data
Ethernet Interfaces
• Four 10/100/1000Base-T interfaces
• IEEE802.3x support
- Full-duplex flow control
- 100 Mbit/s data transfer rate for each interface when used simultaneously
• TCP/IP checksum offload
• Wake-on-LAN support
mSATA slot
• Solid state drive socket
CompactPCI® Serial
• Compliance with CompactPCI® Serial PICMG CPCI-S.0 Specification
• Ethernet interfaces via CompactPCI® Serial connector P6
Electrical Specifications
• Supply voltage/power consumption:
- +3.3 V (-10%/+10%) from CPU board, 5.83 W max.
- ±0.79 W standby max.
Mechanical Specifications
• Dimensions: 81 mm x 95 mm (without P6 connector)
• Weight: 40 g
Environmental Specifications
• Temperature range (operation):
- -40..+85°C (screened)
- Airflow: min. 1.5 m/s
• Temperature range (storage): -40..+85°C
• Relative humidity (operation): max. 95% non-condensing
• Relative humidity (storage): max. 95% non-condensing
• Altitude: -300 m to +3,000 m
• Shock: 50 m/s², 30 ms
• Vibration (Function): 1 m/s², 5 Hz – 150 Hz
• Vibration (Lifetime): 7.9 m/s², 5 Hz – 150 Hz
• Conformal coating on request
MTBF
• 3 269 078 h @ 40°C according to IEC/TR 62380 (RDF 2000)

Technical Data
MEN Mikro Elektronik GmbH 5
20GM03-00 E1 – 2014-03-27
Safety
• PCB manufactured with a flammability rating of 94V-0 by UL recognized
manufacturers
EMC
• Conforming to EN 55022 (radio disturbance)
Software Support
•Windows®
•Linux
• For more information on supported operating system versions and drivers see
online data sheet.

Product Safety
MEN Mikro Elektronik GmbH 6
20GM03-00 E1 – 2014-03-27
Product Safety
Electrostatic Discharge (ESD)
Computer boards and components contain electrostatic sensitive devices.
Electrostatic discharge (ESD) can damage components. To protect the board and
other components against damage from static electricity, you should follow some
precautions whenever you work on your computer.
• Power down and unplug your computer system when working on the inside.
• Hold components by the edges and try not to touch the IC chips, leads, or
circuitry.
• Use a grounded wrist strap before handling computer components.
• Place components on a grounded antistatic pad or on the bag that came with the
component whenever the components are separated from the system.
• Store the board only in its original ESD-protected packaging. Retain the original
packaging in case you need to return the board to MEN for repair.
!

About this Document
MEN Mikro Elektronik GmbH 7
20GM03-00 E1 – 2014-03-27
About this Document
This user manual is intended only for system developers and integrators, it is not
intended for end users.
It describes the hardware functions of the board, connection of peripheral devices
and integration into a system. It also provides additional information for special
applications and configurations of the board.
The manual does not include detailed information on individual components (data
sheets etc.). A list of literature is given in the appendix.
History
Conventions
This sign marks important notes or warnings concerning the use of voltages which
can lead to serious damage to your health and also cause damage or destruction of
the component.
This sign marks important notes or warnings concerning proper functionality of the
product described in this document. You should read them in any case.
Folder, file and function names are printed in italics.
Bold type is used for emphasis.
A monospaced font type is used for hexadecimal numbers, listings, C function
descriptions or wherever appropriate. Hexadecimal numbers are preceded by "0x".
Comments embedded into coding examples are shown in green color.
Hyperlinks are printed in blue color.
The globe will show you where hyperlinks lead directly to the Internet, so you can
look for the latest information online.
Signal names followed by "#" or preceded by a slash ("/") indicate that this signal is
either active low or that it becomes active at a falling edge.
Signal directions in signal mnemonics tables generally refer to the corresponding
board or component, "in" meaning "to the board or component", "out" meaning
"coming from it".
Vertical lines on the outer margin signal technical changes to the previous issue of
the document.
Issue Comments Date
E1 First issue 2014-03-27
!
italics
bold
monospace
comment
hyperlink
IRQ#
/IRQ
in/out

About this Document
MEN Mikro Elektronik GmbH 8
20GM03-00 E1 – 2014-03-27
Legal Information
Changes
MEN Mikro Elektronik GmbH ("MEN") reserves the right to make changes without further notice to any products
herein.
Warranty, Guarantee, Liability
MEN makes no warranty, representation or guarantee of any kind regarding the suitability of its products for any
particular purpose, nor does MEN assume any liability arising out of the application or use of any product or
circuit, and specifically disclaims any and all liability, including, without limitation, consequential or incidental
damages. TO THE EXTENT APPLICABLE, SPECIFICALLY EXCLUDED ARE ANY IMPLIED
WARRANTIES ARISING BY OPERATION OF LAW, CUSTOM OR USAGE, INCLUDING WITHOUT
LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE OR USE. In no event shall MEN be liable for more than the contract price for the
products in question. If buyer does not notify MEN in writing within the foregoing warranty period, MEN shall
have no liability or obligation to buyer hereunder.
The publication is provided on the terms and understanding that:
1. MEN is not responsible for the results of any actions taken on the basis of information in the publication, nor
for any error in or omission from the publication; and
2. MEN is not engaged in rendering technical or other advice or services.
MEN expressly disclaims all and any liability and responsibility to any person, whether a reader of the publication
or not, in respect of anything, and of the consequences of anything, done or omitted to be done by any such person
in reliance, whether wholly or partially, on the whole or any part of the contents of the publication.
Conditions for Use, Field of Application
The correct function of MEN products in mission-critical and life-critical applications is limited to the
environmental specification given for each product in the technical user manual. The correct function of MEN
products under extended environmental conditions is limited to the individual requirement specification and
subsequent validation documents for each product for the applicable use case and has to be agreed upon in writing
by MEN and the customer. Should the customer purchase or use MEN products for any unintended or
unauthorized application, the customer shall indemnify and hold MEN and its officers, employees, subsidiaries,
affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim or personal injury or death associated with such unintended or
unauthorized use, even if such claim alleges that MEN was negligent regarding the design or manufacture of the
part. In no case is MEN liable for the correct function of the technical installation where MEN products are a part
of.
Trademarks
All products or services mentioned in this publication are identified by the trademarks, service marks, or product
names as designated by the companies which market those products. The trademarks and registered trademarks
are held by the companies producing them. Inquiries concerning such trademarks should be made directly to those
companies.
Conformity
MEN products are no ready-made products for end users. They are tested according to the standards given in the
Technical Data and thus enable you to achieve certification of the product according to the standards applicable in
your field of application.

About this Document
MEN Mikro Elektronik GmbH 9
20GM03-00 E1 – 2014-03-27
RoHS
Since July 1, 2006 all MEN standard products comply with RoHS legislation.
Since January 2005 the SMD and manual soldering processes at MEN have already been completely lead-free.
Between June 2004 and June 30, 2006 MEN’s selected component suppliers have changed delivery to RoHS-
compliant parts. During this period any change and status was traceable through the MEN ERP system and the
boards gradually became RoHS-compliant.
WEEE Application
The WEEE directive does not apply to fixed industrial plants and tools. The compliance is the responsibility of the
company which puts the product on the market, as defined in the directive; components and sub-assemblies are
not subject to product compliance.
In other words: Since MEN does not deliver ready-made products to end users, the WEEE directive is not
applicable for MEN. Users are nevertheless recommended to properly recycle all electronic boards which have
passed their life cycle.
Nevertheless, MEN is registered as a manufacturer in Germany. The registration number can be provided on
request.
Copyright © 2014 MEN Mikro Elektronik GmbH. All rights reserved.
Germany
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone [phone]
Fax [phone]
E-mail [email protected]
www.men.de
France
MEN Mikro Elektronik SAS
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone [phone]
Fax [phone]
E-mail [e-mail]
www.men-france.fr
USA
MEN Micro Inc.
860 Penllyn Blue Bell Pike
Blue Bell, PA 19422
Phone [phone]
Fax [phone]
E-mail [email protected]
www.menmicro.com

Contents
MEN Mikro Elektronik GmbH 10
20GM03-00 E1 – 2014-03-27
Contents
1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1 Map of the Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Integrating the Board into a System . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3 Thermal Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.1 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.2 Board-to-Board Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3 Ethernet Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.3.1 CompactPCI Serial Interface. . . . . . . . . . . . . . . . . . . . . . . . . 15
2.4 mSATA Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.4.1 Installing an mSATA disk . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.1 Literature and Web Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.2 Finding out the Product’s Article Number, Revision and
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Tables
Table 1. Pin assignment of CompactPCI Serial P6 connector . . . . . . . . . . . . . . 16
Figures
Figure 1. Map of the board – top view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 2. Position of board-to-board connector. . . . . . . . . . . . . . . . . . . . . . . . . . 13

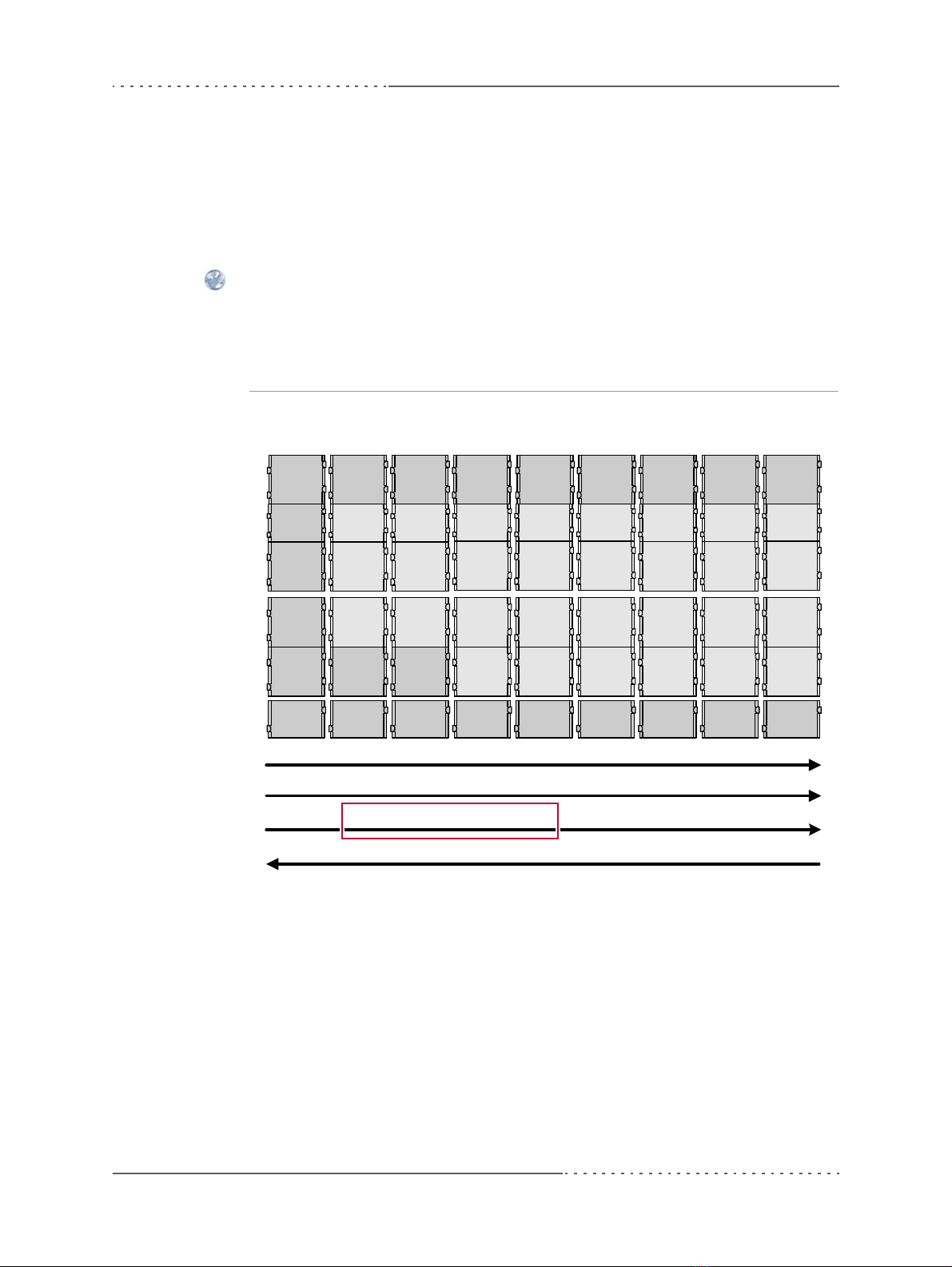

Figure 3. CompactPCI Serial backplane with filling order . . . . . . . . . . . . . . . . . 15
Figure 4. Position of mSATA slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 5. Labels giving the product’s article number, revision and
serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Getting Started
MEN Mikro Elektronik GmbH 11
20GM03-00 E1 – 2014-03-27
1 Getting Started
This chapter gives an overview of the board and some hints for first installation in a
system.
1.1 Map of the Board
Figure 1. Map of the board – top view
1.2 Integrating the Board into a System
You can use the following check list when installing the board in a system for the
first time and with minimum configuration.
Power-down the system and remove the CPU board.
Install the GM3 in the corresponding slot on the CPU board as described in the
CPU board’s user manual.
Insert the CPU board into the system again.
Power-up the system.
If there is a system crash or other abnormal behavior at start-up, check if the
GM3 is plugged in properly.
BoardtoBoard
Connector QuadGigabit
Ethernet
controller
mSATA
SSDslot
CompactPCI
SerialConnector P6

Getting Started
MEN Mikro Elektronik GmbH 12
20GM03-00 E1 – 2014-03-27
1.3 Thermal Considerations
The Ethernet controller of the GM3 has to be connected to the heat sink of the CPU
board. Please ensure that the installation instructions in the user manual of the CPU
board are followed carefully.
Please note that if you do not follow the instructions, warranty on functionality and
reliability of the GM3 may cease. If you have any questions or problems regarding
thermal behavior, please contact MEN.
!

Functional Description
MEN Mikro Elektronik GmbH 13
20GM03-00 E1 – 2014-03-27
2 Functional Description
2.1 Power Supply
The GM3 is supplied with a primary voltage of +3.3V (±10%) via the board-to-
board connector from the CPU board.
2.2 Board-to-Board Connector
The GM3 is connected to the CPU board via a 40-pin board-to-board connector
which leads one PCI Express x1 link and two USB ports for controlling the Ethernet
controller and the mSATA SSD to the GM3.
Figure 2. Position of board-to-board connector
BoardtoBoard
Connector QuadGigabit
Ethernet
controller
CompactPCI
SerialConnector P6

Functional Description
MEN Mikro Elektronik GmbH 14
20GM03-00 E1 – 2014-03-27
2.3 Ethernet Interfaces
The four Ethernet interfaces of the GM3 are led to the CompactPCI Serial connector
P6. See Chapter 2.3.1 CompactPCI Serial Interface on page 15.
The Ethernet controller is connected to the CPU board via a PCI Express x1 link
over the board-to-board connector. It is compliant to the IEEE 802.3, 802.3u, and
802.3ab standards. The four Ethernet interfaces reach a performance of about 100
Mbit/s read and/or write when used simultaneously.
The GM3 supports Wake-on-LAN functionality.
The unique MAC address is set at the factory and should not be changed. Any
attempt to change this address may create node or bus contention and thereby render
the board inoperable. The naming of the interfaces may differ depending on the
operating system. The MAC addresses on GM3 are:
ETH 1: 0x 00 C0 3A A4 Bx xx - 0x 00 C0 3A A4 BF FF
ETH 2: 0x 00 C0 3A A4 Cx xx - 0x 00 C0 3A A4 CF FF
ETH 3: 0x 00 C0 3A A4 Dx xx - 0x 00 C0 3A A4 DF FF
ETH 4: 0x 00 C0 3A A4 Ex xx - 0x 00 C0 3A A4 EF FF
where "00 C0 3A" is the MEN vendor code, A4 is the MEN product code. The last
four digits depend on the interface and the serial number of the product. The serial
number is added to the offset, for example for LAN1:
Serial number 0042: 0x xx xx = 0xB000 + 0x002A = 0x B0 2A.(See Chapter 3.2
Finding out the Product’s Article Number, Revision and Serial Number on page 18.)
!

Functional Description
MEN Mikro Elektronik GmbH 15
20GM03-00 E1 – 2014-03-27
2.3.1 CompactPCI Serial Interface
A CompactPCI Serial connector P6 is used to realize the rear I/O Ethernet
connection of the GM3. The connector is directly assembled on the GM3 to achieve
more flexibility as the usage of Ethernet does not depend on the system board itself.
Different mezzanine boards can offer a different number of Ethernet connections,
thereby obtaining maximum scalability.
Please contact MEN sales staff for more information on possible mezzanine board
configurations.
The four Ethernet interfaces of the GM3 are led to the first four peripheral slots of a
standard CompactPCI Serial backplane.
Figure 3. CompactPCI Serial backplane with filling order
System
Slot 1
Fat Pipe
Perip.
Slot 2 Perip.
Slot 4 Perip. Slot 5 Perip. Slot 6 Perip. Slot 7 Perip. Slot 8 Perip. Slot 9
PCI Express 12345678
USB 12345678
SATA 8 7 6 5 4 3 2 1
Ethernet 12345678
Fat Pipe
Perip.
Slot 3

Functional Description
MEN Mikro Elektronik GmbH 16
20GM03-00 E1 – 2014-03-27
Pin assignment of the P6 Connector
P6 connector type:
96-pin Airmax VS 4 pair, right angle header, 8 rows, 4 walls
Ta b l e 1. Pin assignment of CompactPCI Serial P6 connector
8_ETH_
D-
8_ETH_
D+ GND 8_ETH_
C-
8_ETH_
C+ GND 8_ETH_ B-
8_ETH_
B+ GND 8_ETH_ A-
8_ETH_
A+ GND 8
GND 7_ETH_
D-
7_ETH_
D+ GND 7_ETH_ C-
7_ETH_
C+ GND 7_ETH_ B-
7_ETH_
B+ GND 7_ETH_ A-
7_ETH_
A+ 7
6_ETH_
D-
6_ETH_
D+ GND 6_ETH_
C-
6_ETH_
C+ GND 6_ETH_ B-
6_ETH_
B+ GND 6_ETH_ A-
6_ETH_
A+ GND 6
GND 5_ETH_
D-
5_ETH_
D+ GND 5_ETH_ C-
5_ETH_
C+ GND 5_ETH_ B-
5_ETH_
B+ GND 5_ETH_ A-
5_ETH_
A+ 5
4_ETH_
D-
4_ETH_
D+ GND 4_ETH_ C-
4_ETH_
C+ GND 4_ETH_ B-
4_ETH_
B+ GND 4_ETH_ A-
4_ETH_
A+ GND 4
GND 3_ETH_
D-
3_ETH_
D+ GND 3_ETH_ C-
3_ETH_
C+ GND 3_ETH_ B-
3_ETH_
B+ GND 3_ETH_ A-
3_ETH_
A+ 3
2_ETH_
D-
2_ETH_
D+ GND 2_ETH_ C-
2_ETH_
C+ GND
2_ETH_
B- 2_ETH_
B+ GND 2_ETH_ A-
2_ETH_
A+ GND 2
GND 1_ETH_
D-
1_ETH_
D+ GND 1_ETH_ C-
1_ETH_
C+ GND 1_ETH_ B-
1_ETH_
B+ GND 1_ETH_ A-
1_ETH_
A+ 1
L K J I H G F E D C B A
1
A

Functional Description
MEN Mikro Elektronik GmbH 17
20GM03-00 E1 – 2014-03-27
2.4 mSATA Slot
In addition to the four Gigabit Ethernet links, the GM3 also provides an onboard
mSATA J3 connector for connecting a solid state drive. This allows the possibility
of providing mass storage to the host CPU.
The GM3 is shipped without an mSATA disk installed.
Please see MEN’s website for ordering options.
Figure 4. Position of mSATA slot
2.4.1 Installing an mSATA disk
To install an mSATA disk, please follow the instructions below:
Power down your system and remove the host CPU from the system, and then
the GM3 from the CPU.
Put the GM3 on a flat surface.
Insert the mSATA disk carefully at a 30° angle.
Make sure that all the contacts are aligned properly and the card is firmly connected
with the card connector, secure using the supplied screws.
g
Ethernet
controller
mSATA
SSDslot

Appendix
MEN Mikro Elektronik GmbH 18
20GM03-00 E1 – 2014-03-27
3 Appendix
3.1 Literature and Web Resources
• GM3 data sheet with up-to-date information and documentation:
www.men.de/products/08GM03-.html
3.2 Finding out the Product’s Article Number, Revision and
Serial Number
MEN user documentation may describe several different models and/or design
revisions of the GM3. You can find information on the article number, the design
revision and the serial number on two labels attached to the board.
•Article number: Gives the product’s family and model. This is also MEN’s
ordering number. To be complete it must have 9 characters.
•Revision number: Gives the design revision of the product.
•Serial number: Unique identification assigned during production.
If you need support, you should communicate these numbers to MEN.
Figure 5. Labels giving the product’s article number, revision and serial number
Revisionnumber Serialnumber
Completearticlenumber
00.00.00
08GM03-00
