Merach Q1S User manual

POWEREDBY
USER MANUAL
QuestionsorConcerns?
IMPORTANT!
Pleasereadalldetailsbeforeuse,andkeepthisusermanualforfuturereference.
PLEASECONTACTUSBEFORETHERETURN:Mon-Fri,9:00am-5:00pmPST/PDT
[email protected]
MERACHQ1SMAGNETICROWINGMACHINE

WHO
WE ARE
Our customers aren’t just important; their health, fitness, and pure enjoyment for live
is at the core of everything we do at MERACH. From innovative fitness research and
cutting-edge product development, to our exceptional purchasing & after-sales service,
we are our customers’ life-long partner in crafting a better fitness future.
Through quality fat-burning & muscle-building fitness equipment such as our quality
rowing machines and exercise bikes, plus our innovative MERACH APP, and digital
courses, we give the opportunity and support to all to pursue their health and fitness
goals and discover a new way of healthy living.
Welcome to MERACH

Contents
Thisdevicecontainsaradiotransmittermodulewithtypeapprovalcode
FCCID：2A6QWMR-BLE001IC：29678-MRBLE001HVIN:MRBLE001
Pleasereadtheentiremanualcarefully
beforeinstallingandusingthebike,and
saveforfurtheruse.
SafetyInstructions....................................................................01
Specification.............................................................................03
PackingList...............................................................................04
InstallationProcedure...............................................................05
AdjustmentInstructions............................................................11
InstructionsfortheMonitor......................................................13
InstructionsforReplacingtheBattery.......................................15
MERACHAPPSetup...................................................................16
KINOMAPAPPSetup..................................................................17
Warm-up....................................................................................18
InstructionsforUsingtheRower..............................................19
Troubleshooting........................................................................20
WarrantyInformation...............................................................21

01
Please keep this manual in a safe place for future reference.
It is very important to read the entire manual thoroughly before installing and using the
machine. Safe and effective training can only be achieved if the machine is properly
assembled, properly maintained and used. Make sure all users are familiar with all warnings
and precautions of this machine.
Please consult your physician to determine if you have any medical or physical conditions
that could put your health and safety at risk or prevent you from using the equipment properly.
Your physician's advice is essential if you are taking medication that affects your heart rate,
blood pressure, or cholesterol level.
Please always pay attention to your body signals, improper use of the machine may affect
your health. If you experience any symptoms (including headache, chest pain, irregular
heartbeat, shortness of breath, dizziness, or any discomfort), stop exercising immediately
and consult your physician, get the permission before training again.
Always keep children and pets away from the machine. The machine is for adult use only.
Please use this machine on stable and horizontal ground level, and put a protective layer on
the floor or carpet to prevent a floor from damaging. Make sure the distance between the
machine and each obstacle is at least 1.6 ft (0.5m).
Please check all screws and nuts are properly tightened before using the machine.
The safe use of the machine can only be guaranteed if the regular maintenance and repairs
of undertaken, and worn out and broken parts are changed.
Please follow the instructions in this manual to use this machine. Please stop using and
operating immediately when you find any defective parts or hear any abnormal sound.
Make sure all issues are resolved before using it again.
Please wear sports clothes, sports shoes, or other proper clothes. Loose-fitting clothing is
not recommended, as loose clothing may get caught in the machine, hindering operation
and possibly causing an injury.
This machine is only for home use. The Maximum user weight is 350lbs.
Safety Instructions

Safety Instructions
This machine is not for professional medical treatment.
This product is only for family use.
The overall performance of the machine and all moving parts must be checked
regularly to ensure the safety of the machine.
If the moving parts are damaged, please do not use the machine until the parts
are repaired.
Keep the children away from the machine. The equipment is not for children to use
or play with. They can injure themselves accidentally.
Before starting any training, please consult your physician,
especially for those who are over 35 years old or with
pre-existing health conditions. Please read all
instructions before using the machine.
02
Care & Maintenance
Do not store the machine in a place exposed to direct sunlight, wind and rain,
or with high humidity. If needed, please pack the machine to keep children away
from touching or playing with it.
Please check if there’s rust or cracks after long-term storage.
Please understand that for the consumable parts, the wear and tear may also occur
even with proper maintenance.
For long-term use of this machine, please wipe the dust regularly. Do not water it
directly, or wipe with gasoline, abrasive powder, etc. Otherwise, it might cause
cracks on the parts or main body, electric shock or fire. Please use Dilute neutral
detergent for maintenance.

03
Specification

Hexagonheadbolts
04
Packing List

05
Installation Procedure

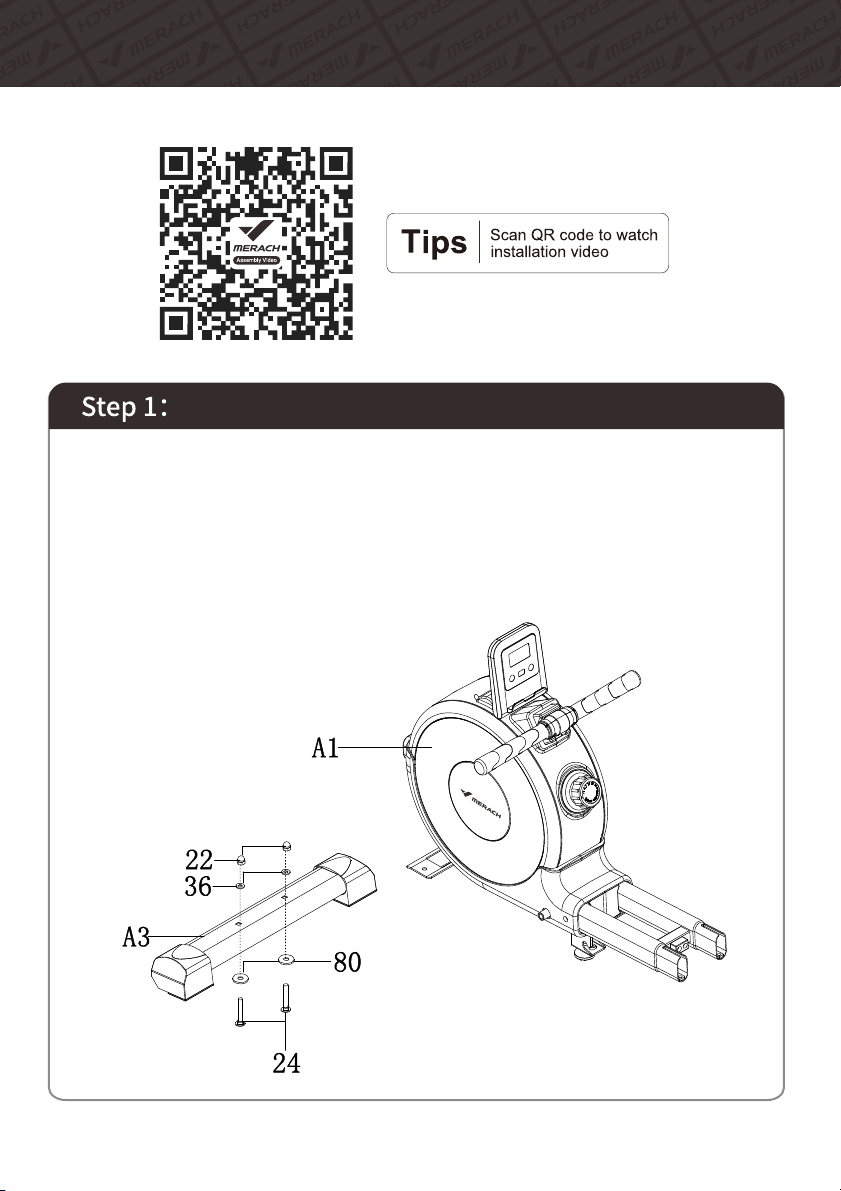

Use a multi-function wrench (T1), mushroom head square neck bolts
(24), flat washer(36), flat washer(80) and hexagon domed cap nut (22)
to install the front leg assembly (A3)on the main frame assembly (A1)

06

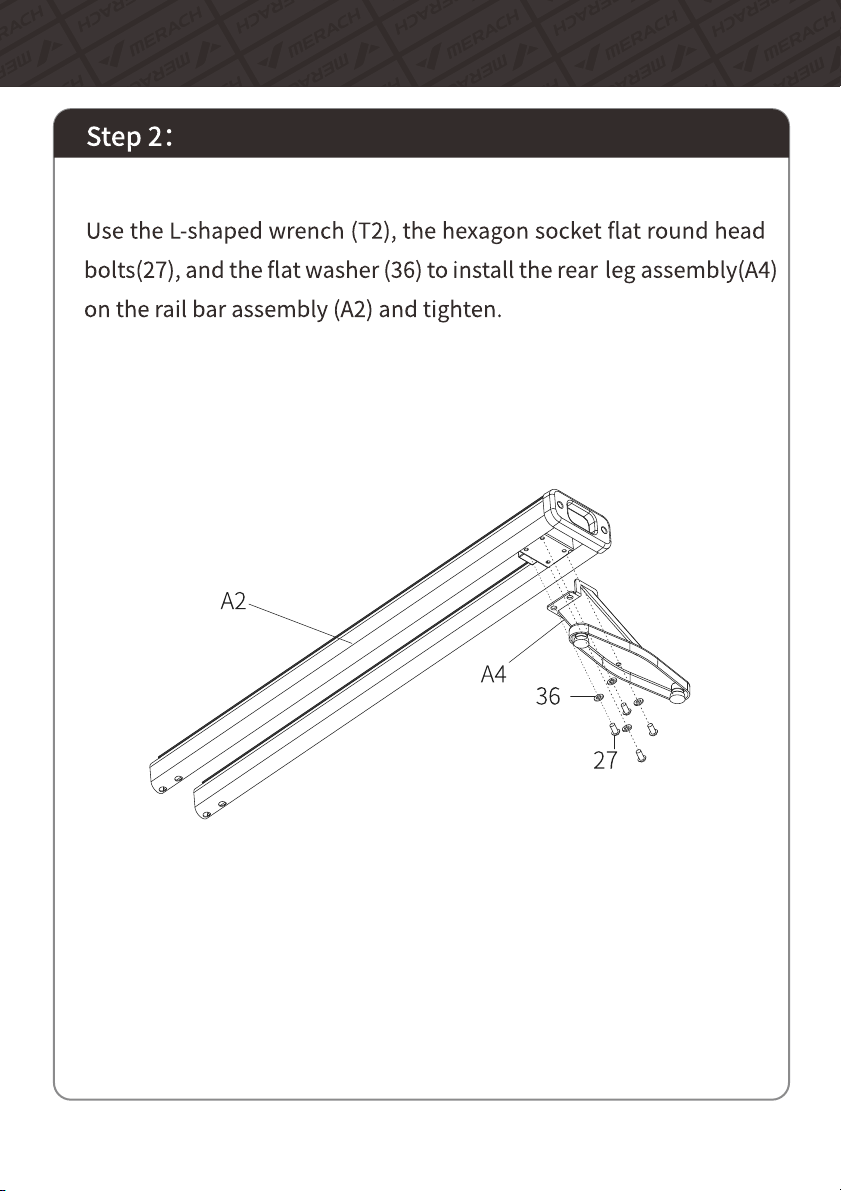

Installation Procedure

07
Installation Procedure

08
Installation Procedure

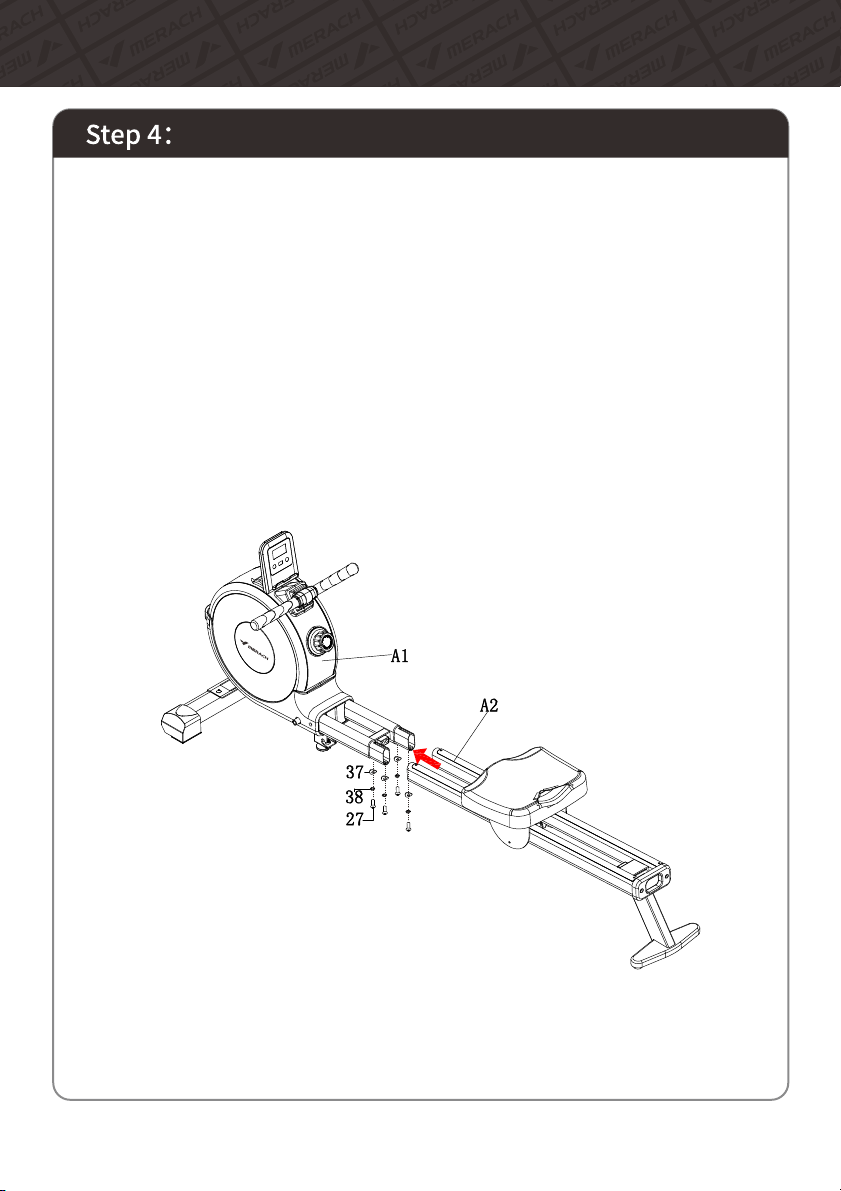

4.1 Put the rail bar assembly (A2)into the main frame assembly (A1) to
ensure it is in place.
4.2 Use the L-shaped wrench (T2), hexagon socket flat head bolt (27),
spring washer(38), and arc spacer (37) to install the rail bar assembly
(A2) on the main frame assembly (A1) and tighten it.

Hexagonheadbolts
09

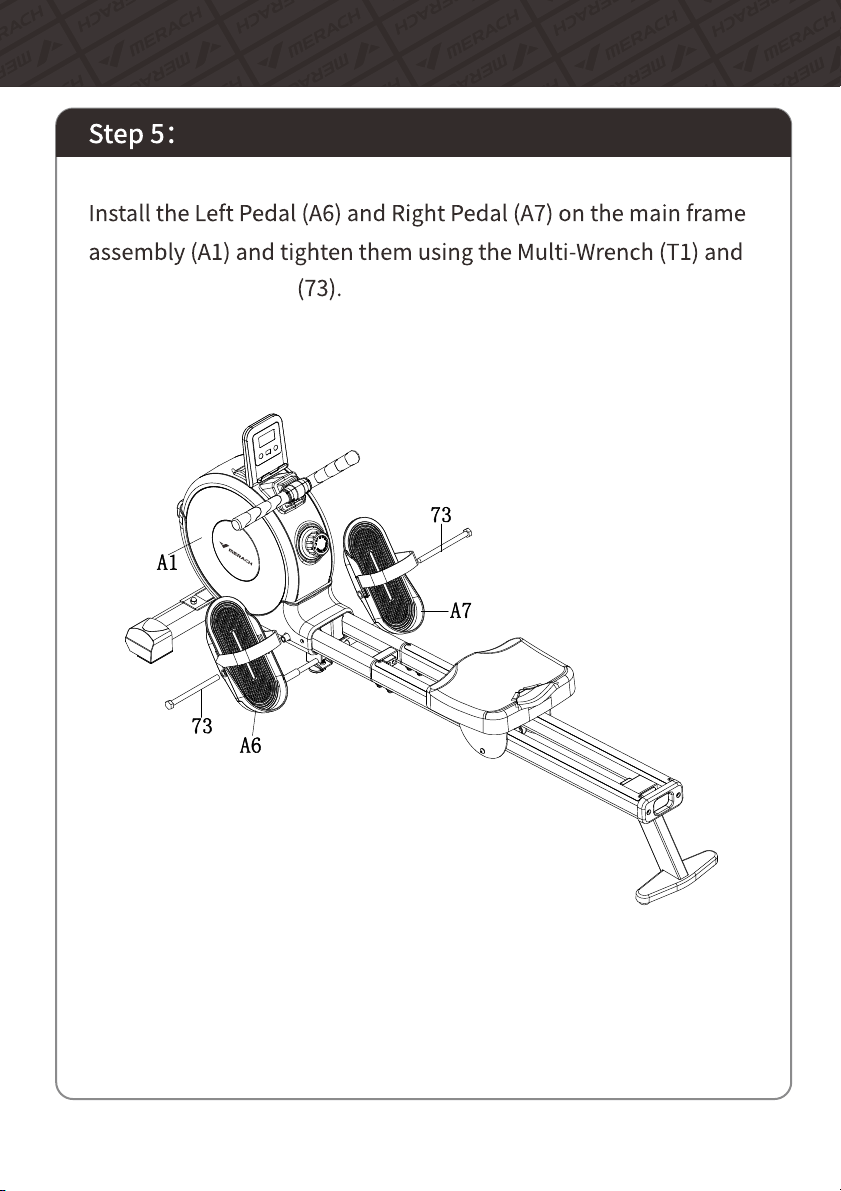

Installation Procedure

10
Installation Procedure

11
Adjustment Instructions
Sixteen-segmentfine-tuningresistanceadjustment:
Users can adjust the damping for exercise according to their
own needs. This product provides 16-speed adjustment(1-16)
Rear-foottubegroupfootpadadjustment:
Users can adjust the adjustable foot pads on the rear leg set
according to their own needs so that the machine is stable
and does not shake.
Adjustablefootrestadjustment:
Lay the machine platform flat on the ground, and adjust the adjustable foot
pads(76) to 5-10mm from the ground.

12
Adjustment Instructions

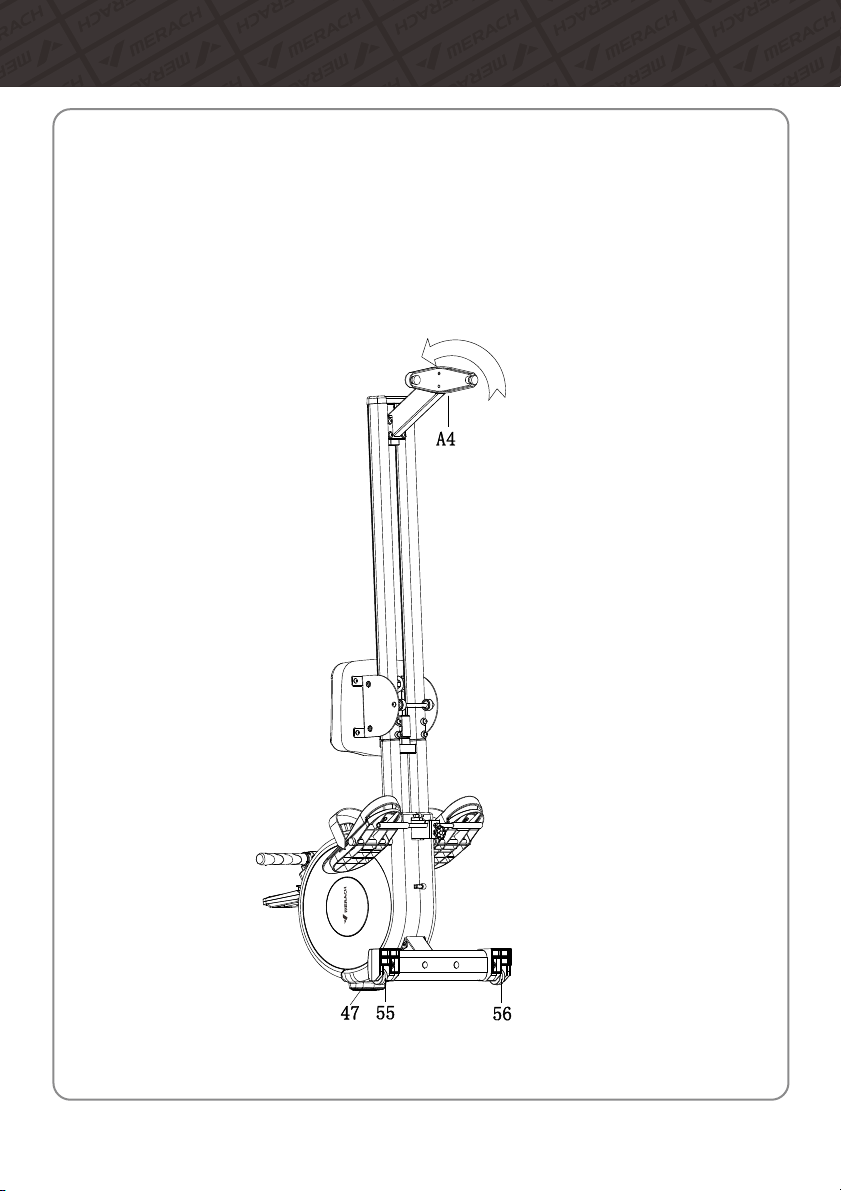

Storagemethod:
Hold the rear leg assembly (A4)with both hands, lift the machine in the direction of the
arrow, and make the left front corner guard (55), right corner guard (56), and front foot
pad (47) touch the ground at the same time.

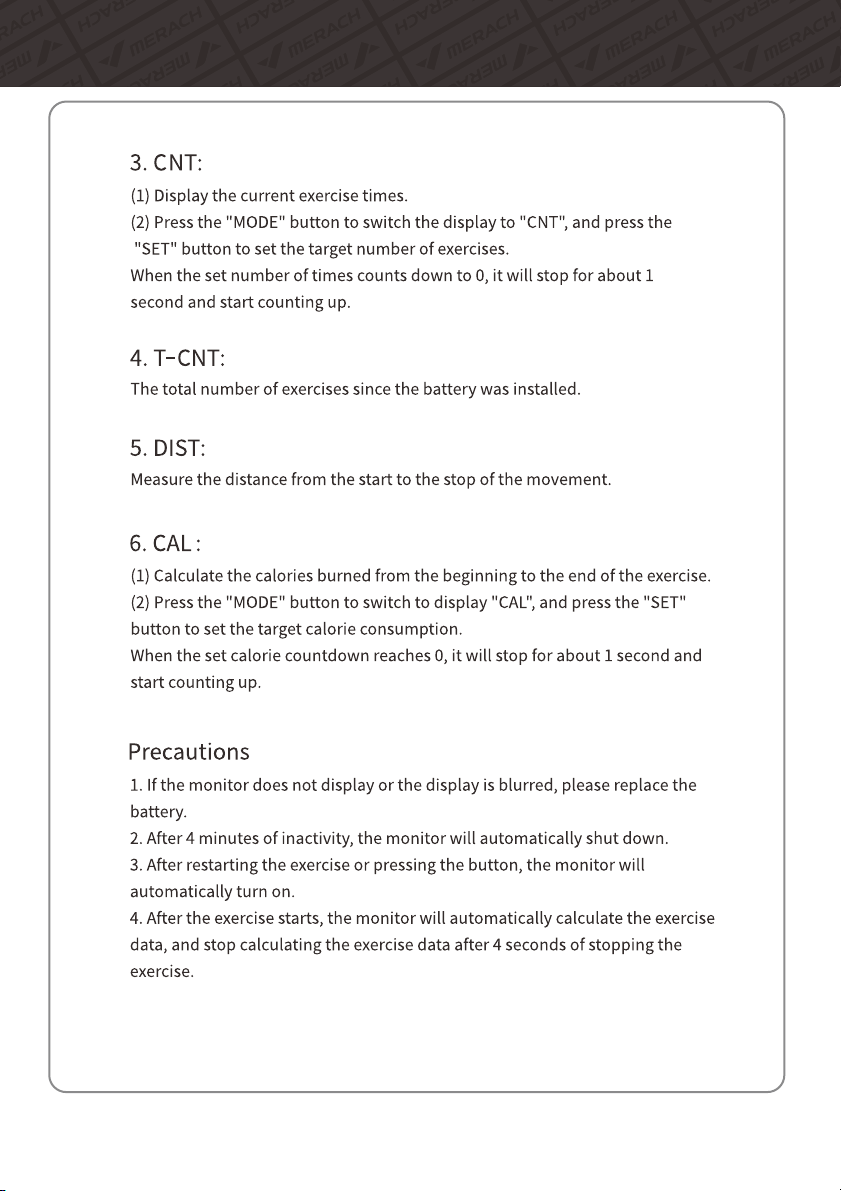

TIME、CNT、T-CNT、DISTandCAL.
13
Instructions for the Monitor
Button Function
MODE- Short press to select; long press to reset time/times/calories
SET- Set time/count/calorie in non-scanning mode
RESET- Press to reset the set time/times and calories.

14
Instructions for the Monitor

15

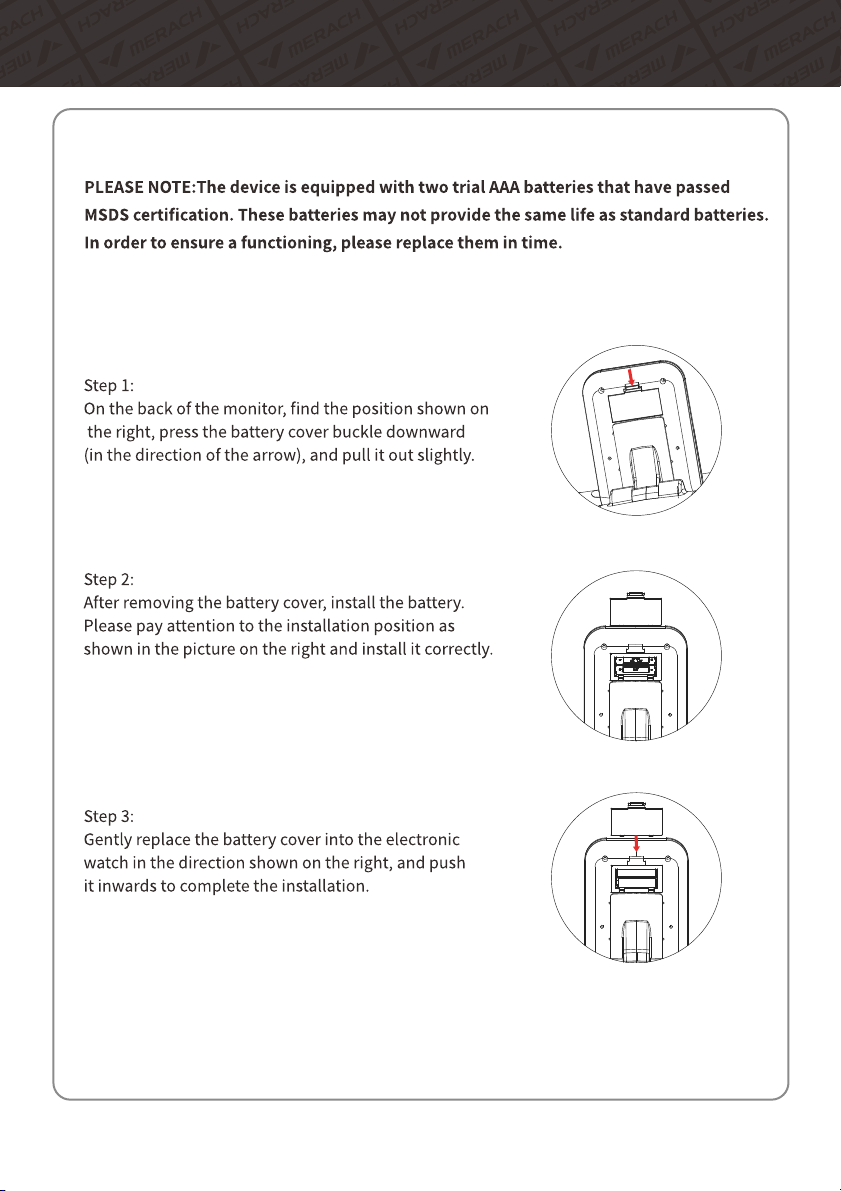

Instructions for Replacing the Battery

MERACH APP Setup
Download and use of MERACH
1.TodownloadtheMERACHapp,scantheQRcodeorsearch"MERACH"intheApple
AppStore®orGooglePlayStore.
Ourcustomercangeta180-dayMERACHmembership.Pleasecontactusthrough
[e-mail]afterreceivingtheproducttogetanexclusiveredemption
code.PleaseincludeyourorderIDandMERACHappUsername.
*
2.OpentheMERACHapp.LogInorSignUp.
3.Pleasenote:IfyourphoneisApple-iPhone,pleaserefertothepath:Profile>Settings>
Languageafterlogintoswitchthedesiredlanguage.
4.Followthein-appinstructionstosetupyourdevice.
MERACH APP Download APP Connection Guide
16
Note:
1.UsingtheMERACHappallowsyoutogetfreeworkoutcoursesandaccessadditional
functionsandfeatures.
2.CoachingcoursesareonlyavailableinEnglish.
USINGYOURROWINGMACHINE

17
KINOMAP APP Setup
Merach
