Merax MF285671 User manual

TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671
PAGE 1 OF 8
Weight Limit
350 Lbs
Weight Limit
250 Lbs

SAFETY WARNINGS AND GENERAL NOTES：
1. Follow the information on the warnings on the bunk bed end
structure and on the carton. Do not remove the warning label from the
bed.
2. Always use the recommended size mattress on mattress support, or
both, to help prevent the likelihood of entrapment or falls.
3. Do not allow children under 6 years of age to use the upper bunk.
4. Periodically check and ensure the guardrail, ladder and other
components are in their proper position, free from damage, and all
connectors are tight.
5. Do not allow horseplay on or under beds.
6. Always prohibit jumping on the bed.
7. Prohibit more than one person on upper bunk.
8. Always use the ladder for entering and leaving the upper bunk.
9. Do not use substitute parts.Contact the manufacturer or dealer for
replacement parts.
10. Use of a night-tight may provide added safely precaution for a
child using the upper bunk.
11. Always use guardrails on both long sides of the upper bunk.
12. If the bunk bed will be placed next to a wall, the guardrail that runs
the full length of the bed should be placed against the wall to prevent
entrapment between the bed and the wall.
The use of water or sleep flotation mattresses is prohibited.
13. STRANGULATION HAZARD-Never attach or hang items to any
part of the bunk bed that are not
designed for use with the bed.
14. Keep these instructions for future reference.
15. We recommend assembling your bunk bed on the shipping carton
to protect your floor or carpet.
16. Be certain all staples are out of the box before beginning assembly
on the shipping carton.
17. USE ONLY MATTRESSES WHICH ARE AS THE TABLE
BELOW ON UPPER AND ON LOWER BUNKS.
Down bed
Bed type Length Width Thickness
Twin Standard 74” – 75” 38 ½’’ 8’’ max
Up bed (bunk bed and tribed included)
Bed type Length Width Thickness
Twin Standard 74” – 75” 38 ½’’ 6’’ max
18. SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM)
BELOW THE UPPER EDGE OF GUARDRAILS.
19. Replacement Parts:
Replacement Parts, including additional guardrails, may be obtained
from any of our (GIGACLOUD TECHNOLOGY(USA) INC.) dealers
PAGE 2 OF 8
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671

PART LIST MF285671
1 Post
1PC 1PC
11 Vertical ladder bar
2PCS
4PCS
1PC
2 Post 4 End guard rail
12 Horizotal ladder bar
9 Slats
8 Side rail
HARDWARE LIST MF285671
A Bolts
E End cap
4*59
1PC
F End cap
K Allenkey
1/4"*15
20PCS
1/4"*35
8PCS
1/4"*45
24PCS
30*30
8PCS
1/4"*40
4PCS
B Bolts C Bolts D Bolts
25*25
2PCS
G End cap
20*20
4PCS
H End cap
1/4*40
2 SET
I
Connect wall
40*20
2PCS
Hollow
7 Guard rail
1PC
3 Post
5 End guard rail
2PCS
2PCS
10 Slats
Screw hole
38PCS
2PCS
14 Post
13 Slide guard
6 Guard rail
1PC
2PCS
PAGE 3 OF 8
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671
3PCS 2PCS

DETAIL VIEW
E 4PCS
NOTE:In this step, DO NOT tighten any bolt until you connect all part together
K 1PC
4*59
E 4PCS
30*30
D 4PCS
1/4*15
STEP 1 : Following below illustration Assembly Frame # 1.Using hardware #A, #D ,#E connect #1, #2 with
#4, #5 to complete Frame #1.
E
D
4
5
1
2
A 4PCS
1/4*45
A*4
D*4
E*4
PAGE 4 OF 8
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671
3
2
1
2
4
5
4
5
6
7
8
8
10
*19 9
*2
9
*2
10
*19
11
12
12
12
11
13
14 14

NOTE:In this step, DO NOT tighten any bolt until you connect all part together
NOTE:In this step, DO NOT tighten any bolt until you connect all part together
K 1PC
4*59
D 4PCS
1/4*15
STEP 3 : Following below illustration Assembly Frame #3. Using hardware #D connect #6, #7 with #9,
#10 to complete Frame #3.
D
4
5
3
2
STEP 2 : Following below illustration Assembly Frame # 2.Using hardware #A, #D ,#E connect #2, #3 with
#4, #5 to complete Frame #2.
E 4PCS
K 1PC
4*59
E 4PCS
30*30
D 4PCS
1/4*15
A 4PCS
1/4*45
7
6
10
*19
9
*2
A*4
D*4
E*4
PAGE 5 OF 8
E
D
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671

K 1PC
4*59
D 4PCS
1/4*15
8
8
NOTE:In this step, DO NOT tighten any bolt until you connect all part together
NOTE:In this step, DO NOT tighten any bolt until you connect all part together
C
D
K 1PC
4*59
C 6PCS
1/4*35
1/4*15
10
*19 9
*2
11
12

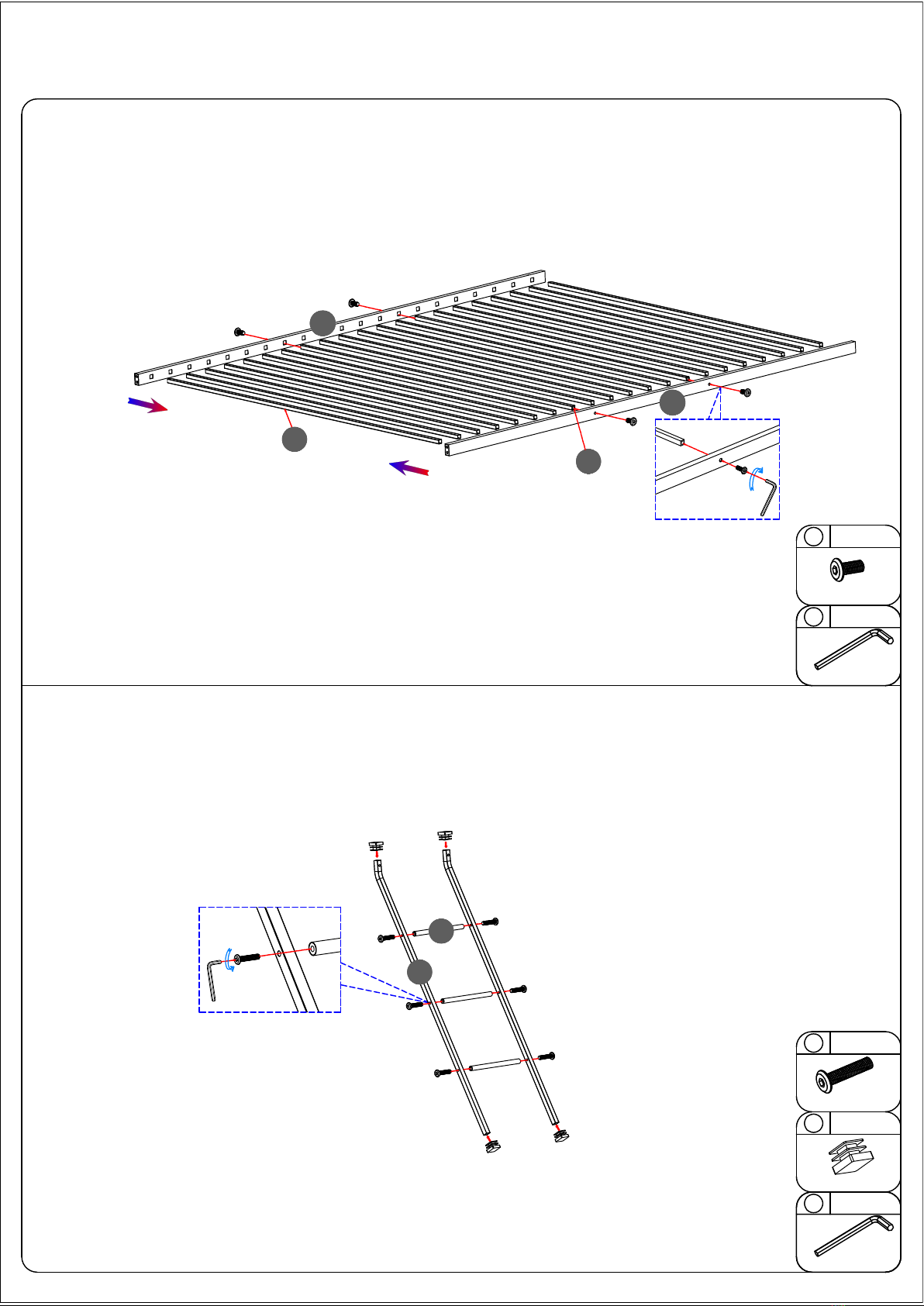

STEP 4 : Following below illustration Assembly Frame #4. Using hardware #D connect #8 with #9, #10 to
complete Frame #4.
STEP 5 : Following below illustration Assembly Frame #5. Using hardware #C, #H connect #11 with #12
to complete Frame #5.
H 4PCS
20*20
C*6
H*4
PAGE 6 OF 8
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671

NOTE:In this step, DO NOT tighten any bolt until you connect all part together
NOTE:In this step, DO NOT tighten any bolt until you connect all part together
K 1PC
4*59
STEP 6 : Following below illustration Assembly Frame #6. Using hardware #B, #F, #G connect #13 with
#14 to complete Frame #6.
STEP 7 : Following below illustration Assembly Frame #7. Using hardware #A, #D connect Frame #1,
Frame #2 with Frame #3, Frame #4 to complete Frame #7.
K 1PC
4*59
D 2PCS
1/4*15
A
D
B 4PCS
1/4*40
A 16PCS
1/4*45
F 2PCS
40*20
G 2PCS
25*25
Frame #1
Frame #2
Frame #4
Frame #3
A*16
D
D
PAGE 7 OF 8
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671
F*2
G*2
B*4
13
14

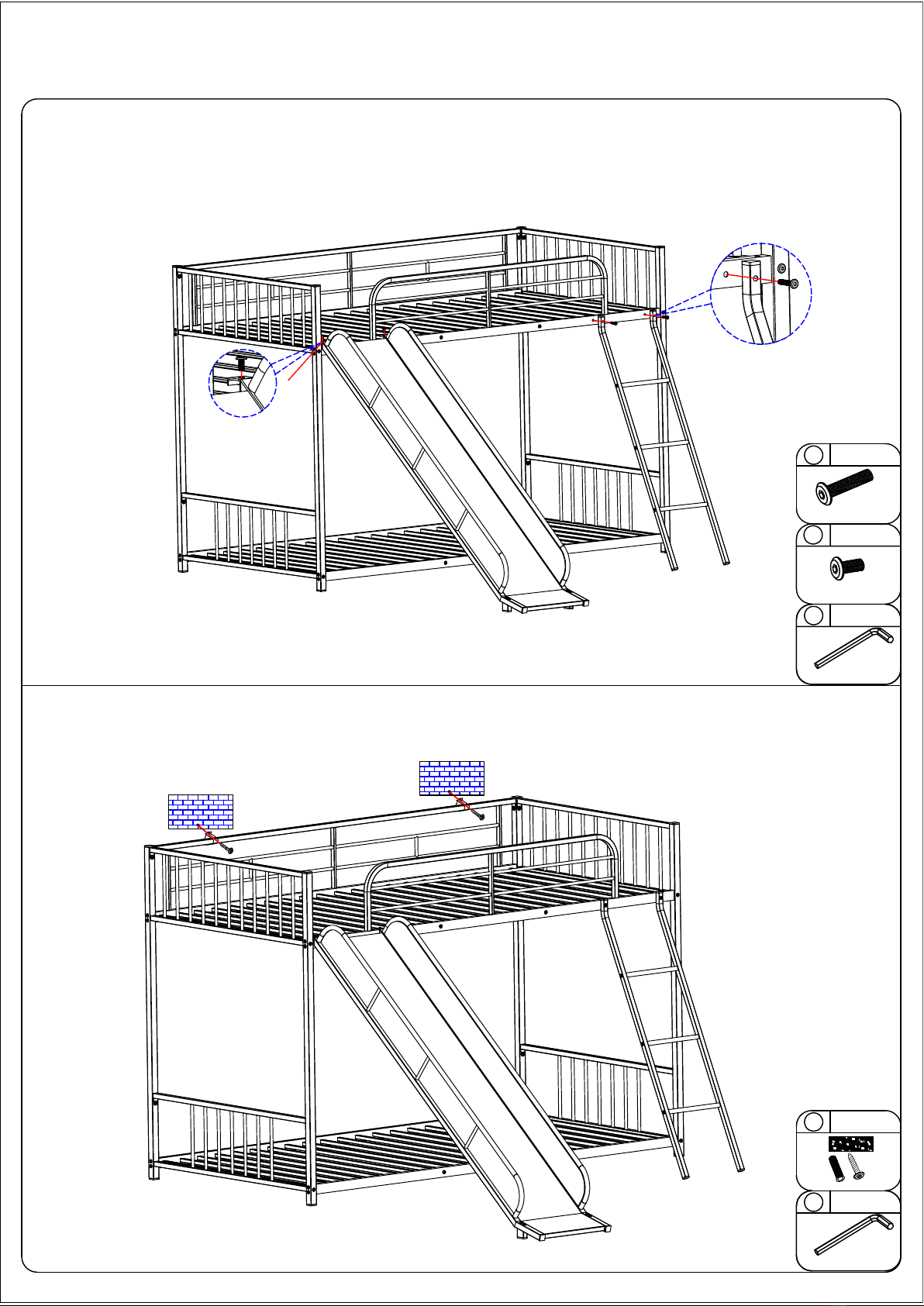

STEP 8 : Following below illustration Assembly Frame #8. Using hardware #C, #D connect Frame #7 with
Frame #5, Frame #6 to complete Frame #8.
K 1PC
4*59
C 2PCS
1/4*35
D 2PCS
1/4*15
K 1PC
4*59
C
D
I 2 SET
STEP 9 : Following below illustration Assembly Frame #9.
Using hardware #I connect Frame #8 with Wall to complete .
COMPLETED BUNK BED
I
Wall
I
Wall Frame #8
Frame #6
Frame #5
Frame #7
NOTE: Tighten all step before using. Thank you.
NOTE:In this step, DO NOT tighten any bolt until you connect all part together
PAGE 8 OF 8
C*2
D*2
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671
