Mercedes-Benz X-Class User manual

OWNERS MANUAL
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 8-12 hours.
Read and understand this entire manual before using!
with Assembly Instructions
• Suitable for 3+ Years
• Maximum user weight: 50kg
Ride On Toy
Mercedes-Benz X-Class

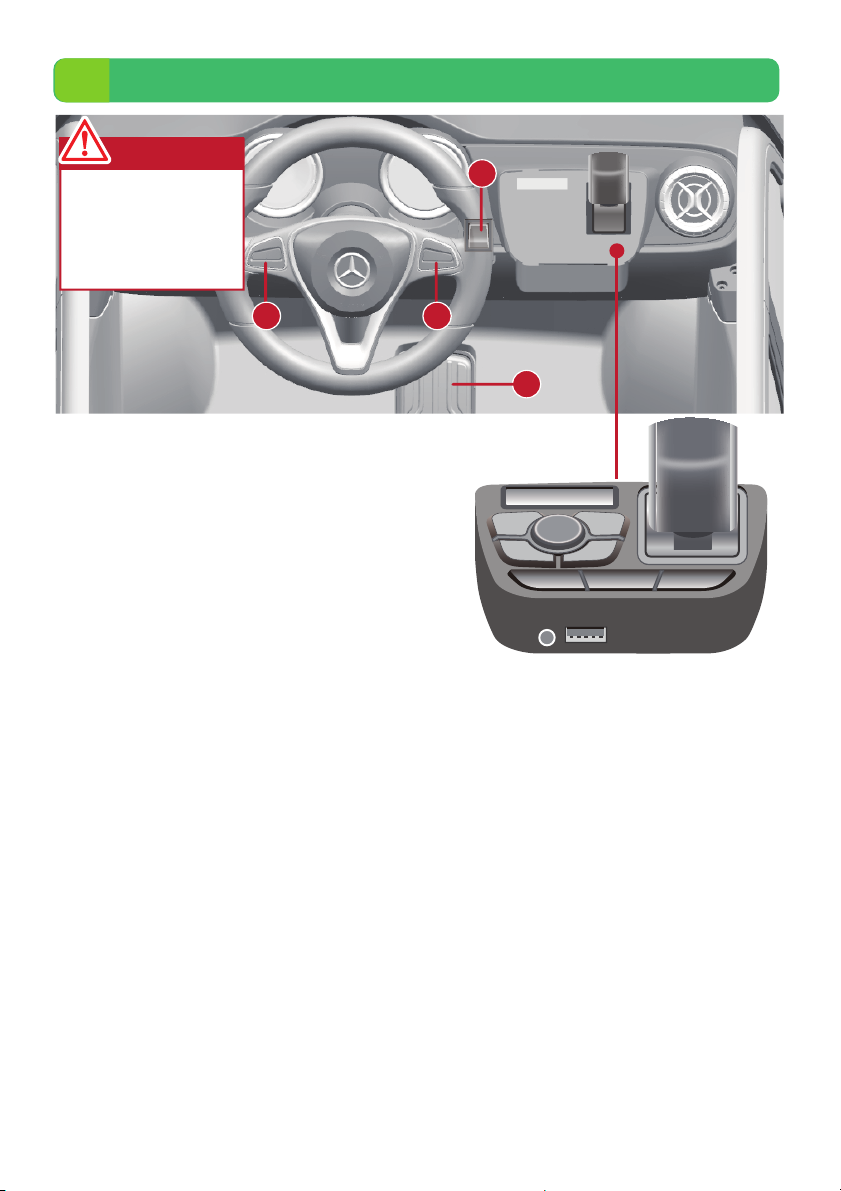

AAbout Your New Vehicle │ 1
●Non-rechargeable batteries are not to be recharged.
●If removable rechargeable batteries are used, the are only to be charged under adult supervision.
●Remove rechargeable batteries from the product before charging.
●Do not mix old and new batteries. Do not mix different types of batteries: alkaline, standard
(carbon-zinc) or rechargeable (nickel-cadmium).
●Insert batteries as indicated inside the battery compartment, anode to anode, cathode to cathode.
●Remove batteries during long periods of non-use. Always remove exhausted batteries from the
product. Battery leakage and corrosion can damage this product. Dispose of batteries safely.
●Never short circuit the battery terminals.
BATTERY INFORMATION
“Mercedes-Benz”, , and the design of the enclosed
product are subject to intellectual property protection owned by
Daimler AG. They are used by Pinghu City Xiao Ming Xing
Children's Products CO.,LTD
12V7AH X1
12V700-1000mA
550-12000
12V7AH X2
12V1500mA
550-10000
12V10AH X1
12V900-1000mA
550-10000
Specification
Suitable age:
Charge time:
Load capacity:
Size of car:
Speed:
3+ Years
8-12 hours
Under 50 kg
140 x 76.2 x 64.3 cm
2-8 km/h
2WD 4WD 4WD
Battery
Charger
input
Motor
Depend on local voltage

19
B
1
2
2
6
4
4
2
1
12
2
2
1
1
1
1
1
1
1
2
1
1
1
4
4
6
4
4
0
1
12
2
2
1
1
1
1
1
1
1
2
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
NO. PART NAME Q’TY (PCS) REMARK
Vehicle body
Gear box
Driving wheel
Φ12 washer
Lock nut
Wheel cover
Front wheel
Seat
Φ4x12 screw
Door
Wing mirror
Steering wheel
M5X45 machine screw
Φ5 nut
Trailer board
Rear support
Roll bar
Trailer gate
Spanner
Charger
Remote controller
Parts List │ 2
4WD 2WD
Screwdriver (not included)Spanner
• Assembly tools required:

20
21
1
19
2
8
15
916
17
18
9
910
11
3
7
4
4
4
13
14
5
5
6
6
12
HINT: Some parts shown are assembled on both sides of vehicle
CParts Diagram │ 3

D
Safety │ 4
WARNING:
• CHOKING HAZARD! Not suitable for children under 36 months.
• Must be assembled by an adult.
• To reduce the risk of injury, adult supervision is required.
• Never use in roadways, near motor vehicles, on or near steep inclines or steps,
swimming pools or other bodies of water; always wear shoes, and never allow more
than 1 rider.
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always
keep child in view when child is in vehicle.
Rules for Safe Riding
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before
using, guarantee the security.
• Keep Children within Safe Riding Areas.
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident.
Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .
• This toy should be used with caution since skill is required to avoid falls or collisions
causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, or on near steep inclines or steps, swimming pools or
other bodies of water.
• Always wear shoes, always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum
user weight is 50 kg.
• This toy has no brake.

6
8
9
10
7
1
2
345
6-A
E
Turn the vehicle body upside down.
1. Side the gear box onto the rear axle (“R” labeled gear box should be fit the “R” side of
vehicle, and “L” labeled gear box should be fit the “L” side of vehicle). and keep the
connector on the gear box pass through the hole on the vehicle.
2. Slide a driving wheel onto the rear axle.
3. Slide a Φ12 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with a spanner.
Repeat for the other rear wheel.
Hint: An extra spanner has been provided to hold the lock nut
on the other side of the rear alxe while tightening the
lock nut on the other side.
5. “Snap” the hubcap to the driving wheel.
Remove all the parts from the front axle.
6. Slide a Φ12 washer onto the front axle.

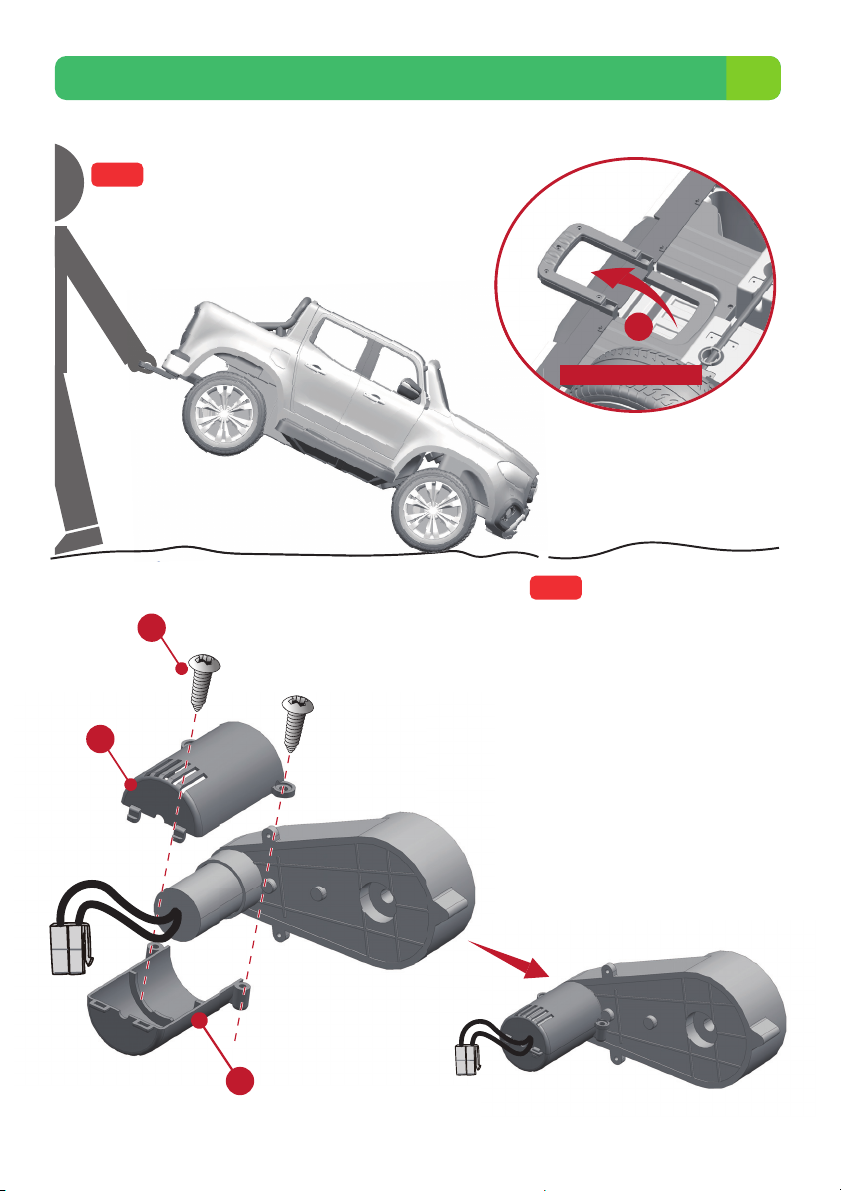

Slide a gear box onto the front axle (Please fit the motor hood to the motor,
refer to page 10). Plug the connector on the motor into connector on the vehicle
body (6-A)
2. Slide a driving wheel onto the front axle.
3. Slide a Φ12 washer onto the front axle.
4. Tighten a lock nut to the end of the front axle with a spanner.
5. “Snap” the hubcap to the driving wheel.
Repeat for the other front wheel.
Attach the Wheels │ 5
Rear bottom view
Front bottom view
4WD
2WD

2
4
1
3
E
Attach the Trailer Board, Rear Support & Roll Bar │ 6
Turn the vehicle body over.
1. Fit the tabs on the trailer board into
the slots on the rear of the vehicle.
2. Insert the two Φ4x12 screws and
tighten with a screwdriver.
3. Fit the tabs on the rear support into
the slots on the vechiel. push until
your hear it “click” into place.
4. Fit the tabs on the roll bar into the
slots on the vechiel. push until your
hear it “click” into place.
Rear view

1
3
5
4
2
EAttach the Steering Wheel & Windshieldr │ 7
1. Plug the sound unit connector on the steering wheel into the connector on the
vehicle body.
2. Fit the steering wheel to the end of the steering column.
3. Line up the holes on the steering wheel with the holes on the steering column,
insert the M5x45 machine screw.
4. Fasten a nut on the opposite end of the screw with a screwdriver.
5. Insert the tabs on the windshield into the slots on the vehicle, push until you
hear ”click” into place.

3
2
1
4
Side view
Side view Rear view
Door inside view
E
Attach the Wing Mirror, trailer gate & doorsr │ 8
1. Fit the door to side of vehicle.
2. Insert the two Φ4x12 screws pass through the door and into the vehicle body,
tight them with a screwdriver. Repeat for the other door.
3. Fit the tabs on the wing mirror into hole on door, push until you hear it “click”
into place. Repeat for the other wing mirror.
4. Fit the rear door to the rear of vehicle.
Repeat for the other door.

33
4
E
1
Top view
Vehicle
connector
Motor
connector

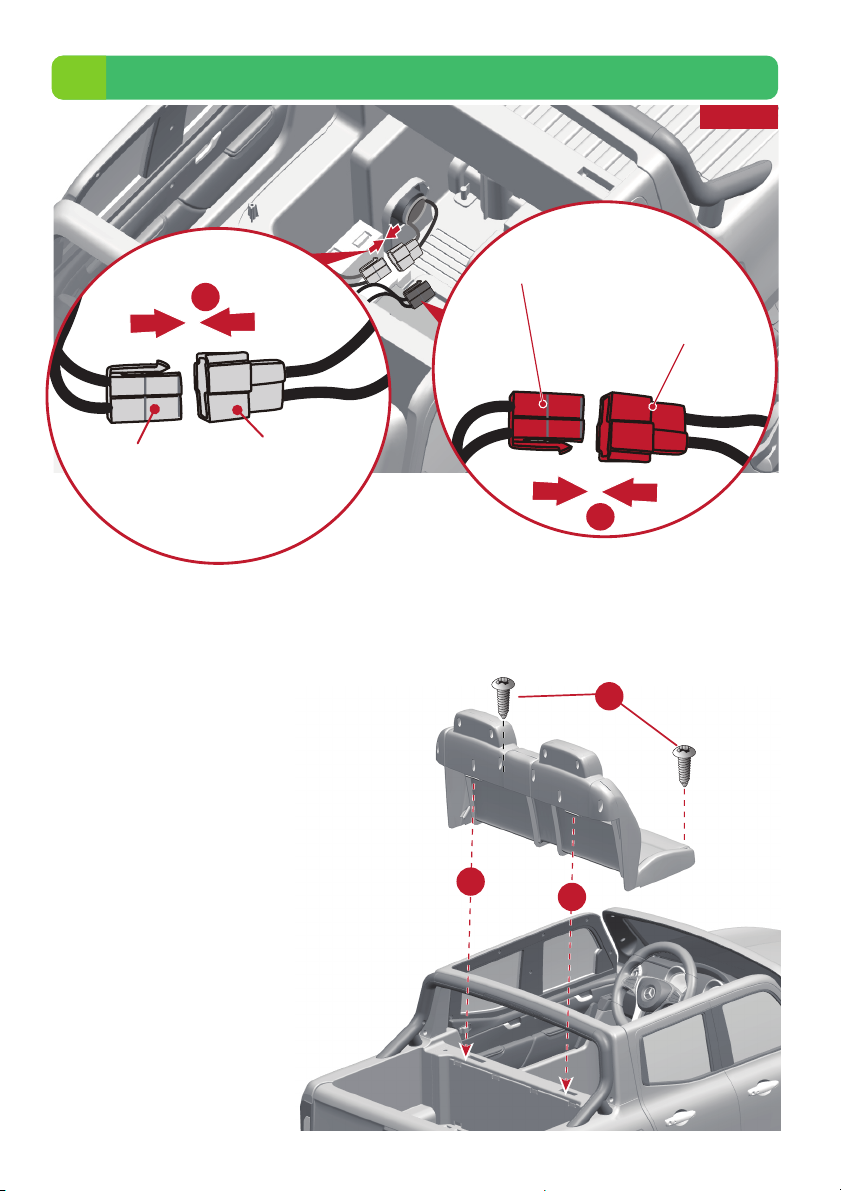

Connect the Power Supply & Attach the Seat │ 9
2
Vehicle connector
Battery connector
1. Plug the vehicle connectors into the motor connectors.
2. Plug the battery connector into the vehicle connector.
3. Insert the tabs on the back of seat into the slots on trailer board.
4. Insert two Φ4x12 screws and tighten.
