Metal-Fach Z589 Installation and operation manual

OPERATING & MAINTENANCE MANUAL
Z589 ROUND BALER
Read the operating manual before using this machine.
EN Z589 EN03
28.08.2012

This Manual contains the general information required to safely operate your product. Contact the nearest
dealership or an Authorised Service Centre for more information.
All components must only be replaced with original spare parts from METAL-FACH, which are available from
dealerships and the Manufacturer's warehouse.
LEGEND:
Model Z589 Series 3 ............................................................................................ Z589 Round baler with collector
Model Z589 Series 3 ................................................................... Z589 Round baler with 13-blade cutting system
Unauthorised copying or reproducing this Manual in part or whole is prohibited. METAL- FACH reserves the right
to exercise claims for damage from unauthorised copying or reproduction.
METAL-FACH Sp z o.o. is committed to continuous improvement of its products and reserves the right to modications without prior notice or implementation thereof in already sold
machines. Any unauthorised modication will void the warranty given by METAL- FACH and release the Manufacturer from all liability for any damage to property, people or animals.
METAL-FACH shall not be liable for any non-intended use of the machine.

CONTENTS
CHAPTER 1 GENERAL
CHAPTER 2 DECLARATION OF CONFORMITY
CHAPTER 3 TECHNICAL DATA
CHAPTER 4 GENERAL SAFETY STANDARDS
CHAPTER 5 TRANSPORT AND DRIVING
CHAPTER 6 OVERVIEW
CHAPTER 7 OPERATING INSTRUCTIONS
CHAPTER 8 FIELD WORK OF THE MACHINE
CHAPTER 9 MAINTENANCE AND ADJUSTMENT
CHAPTER 10 F Bus CONTROL SYSTEM
CHAPTER 10-ET EASYTRONIC CONTROL TERMINAL
CHAPTER 11 TABLES AND DIAGRAMS
CHAPTER 12 TROUBLESHOOTING
CHAPTER 13 ACCESSORIES AND KITS (optional equipment)

page 1
Z589 Round Baler
1 GENERAL
Dear Customer!
congratulations on your purchase of a METAL- FACH product.
Follow the instructions contained in the Operating Manual for maximum safety, efciency and durability of your
product.
1.1 OPERATING MANUAL
This Manual is an essential equipment of the machine you have purchased. All suppliers of machines, new or
pre-owned, are required to provide the user with the Manual originally enclosed with the product. If you sell the
machine to a third party, provide them with this Manual too.
If the Operating Manual is lost or destroyed, immediately contact the Spare Parts Centre for a new copy. Refer to
the Manual number or the data from the metal nameplate of the machine when ordering your copy.
Read this Manual thoroughly and in full. If you have questions about any of its contents, contact the nearest
METAL-FACH Dealership or Authorised Service Centre.
This Manual must also be known and understood by all operators of this machine to assure that the only persons
who will operate the machine are trained and understand the operation and potential hazards of using the machine
and how to maintain it.
The Manufacturer disclaims any liability for damage due to negligence or failure to comply with this
Manual.
USE ORIGINAL SPARE PARTS ONLY.
You can order original spare parts by contacting the nearest META L- FACH Dealership or Spare Parts Centre.
1.2 WARRANTY
The Warranty Card is enclosed at the end of this Manual.
1.3 USE
The round baler is intended for collecting and baling of the following material: straw, semi-dry silage, grass and
hay. The machine can be operated by one person only from the tractor cab.
Using the machine in any way other than permitted in this Manual is non-intended use and shall release
METAL- FACH from any liability for damage to property, people or animals.

page 2
Z589 Round Baler
CE DECLARATION OF CONFORMITY
FOR THE MACHINE
METAL-FACH Sp. z o.o.
ul. Kresowa 62
16-100 SOKÓŁKA
acting as the Manufacturer
declares under sole responsibility that the following machine:
to which this declaration applies, meets the following requirements:
- Directive 2006/42/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL dated
17 May 2006 on machines and the Resolution of the Minister of Economy of 21 October 2008
concerning general requirements for machinery (Journal of Laws No. 199 item 1228);
The following harmonised standards were used for compliance evaluation:
PN-EN ISO 4254-1:2009 / AC:2010 PN-EN ISO 12100:2011
PN-EN ISO 4254-11:2012 PN-EN ISO 13857:2010
- and the following standards: PN-ISO 3600:1998, PN-ISO 11684:1998; and the Regulation of
the Ministry of Infrastructure of 31/12/2002 on the technical requirements for vehicles and
the scope of their necessary equipment (Journal of Laws 2003, issue 32 item 262 as amended).
Safety Test Report No. LBC/07/11
Unit responsible for engineering documentaon: Metal-Fach Engineering Department
This Declaraon of Conformity becomes null and void if the machine is changed or
modied in any manner without prior consent from the Manufacturer.
Sokółka, August 2012 President of the Managing Board
Jacek Marek Kucharewicz
ROUND BALER
type/model: Z589-...............................
serial number:............................................
year of manufacture:..................................

page 3
Z589 Round Baler
3 TECHNICAL DATA
All technical data shown in the following tables is indicative only. The Manufacturer may modify it
without notice.
All dimensions are given in millimetres (mm).
All references to mass (weight) are in kilograms (kg).
The character "÷" is any value between a minimum and a maximum value of a range.

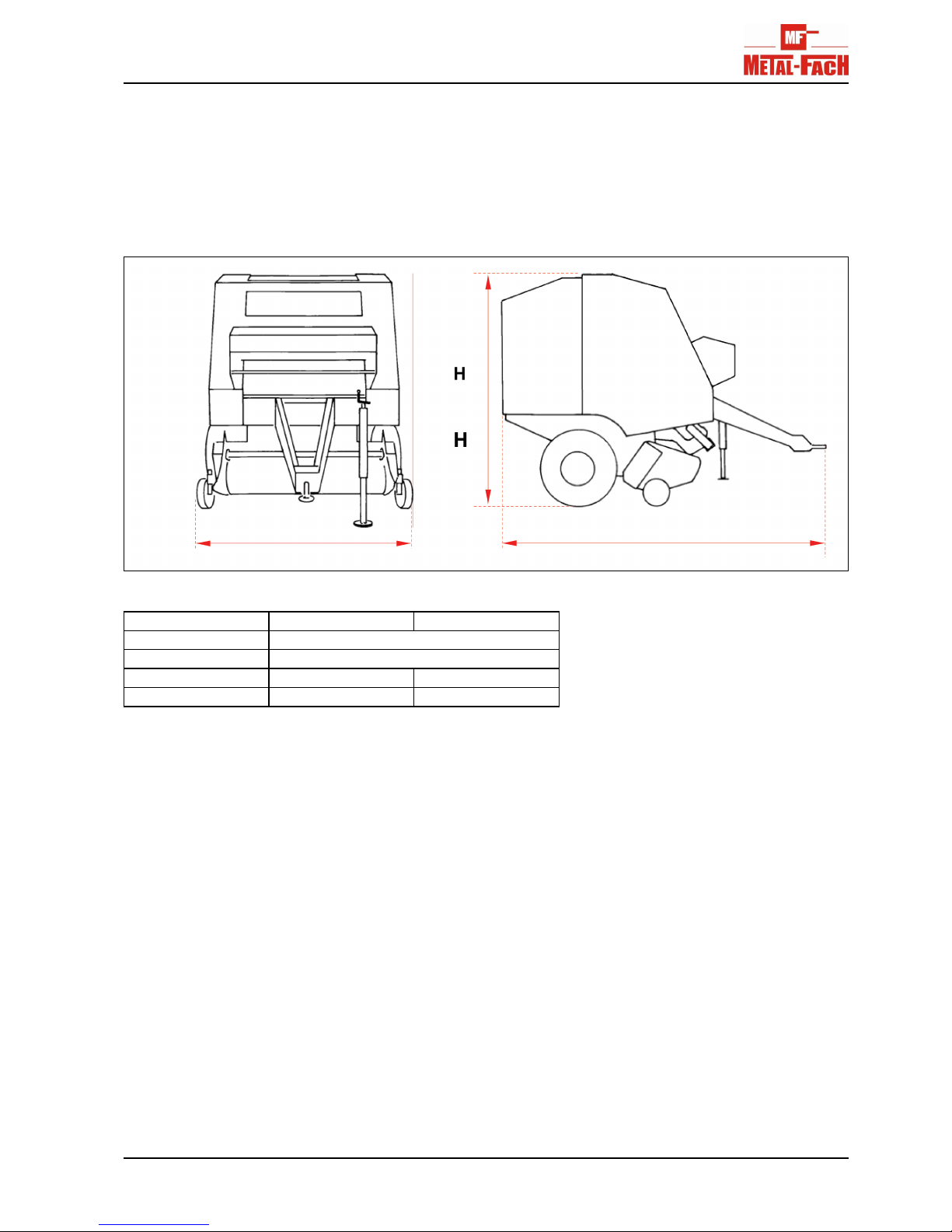

3.1 DIMENSIONS AND WEIGHT
Z589-3… Z589-2…
Length (L)3920
Width (W)2400
Height (H)2500 2650
Mass 2330 3200
WL

page 4
Z589 Round Baler
3.2 PICKUP AND HANDLING ASSEMBLY
PICKUP Z589-3… Z589-2…
Max. collecting width 2000
Service collecting width 1869
Prong spacing 69
Frame diameter 250
Number of rows on the frame 4
Number of prongs per row 28
Total no. of prongs 112
Support wheels Fixed
Tyre/tyre tread size 16.650 / 10
Service height adjustment Mechanical, 7 positions
COLLECTOR Z589-3…
No. of prongs 16
Prong spacing 69
CUTTING ASSEMBLY Z589-2…
No. of blades 13
Blade spacing 77
Cutter blade control Electrical drive
Blade protection Single spring action
Feeding rotor Star-type with 3 vertices

page 5
Z589 Round Baler
3.3 WRAPPING
CORD NET PLASTIC
SHEET
Cord wrapper Double cord
Cord weight 500 ÷ 1000
Cord hanks 6
Net reel diameter 250÷300 mm
Net titre 12÷16 g/m
Plastic sheet ---
Control electronic electronic
Max. no. of reels (with 1 wrapping) 61 1
Max. no. of reels (with double wrapping) 6 (cord) + 1 (net) 1
3.4 BELTS
Z589-2… Z589-3…
No. of belts 6
Width 179
Length 10540
Fasteners MATO U24BS n°.13
3.5 TYRES
Ply rating Radius
(mm)
Speed
(km/h)
Capacity
(kg)
Pressure
(bar)
Outer diameter
(mm)
Serial: 400/60-15.5 10-14 P.R. 380 40 2240÷2745 2.5÷3.5 875
3.6 PTO drive shaft
The baler is equipped with a PTO drive shaft type 3600076 BYPY 1R6, code 71R6111CEWR7N70A, manufactured
by Bondioli & Pawesi. The shaft is protected by a friction coupling.

page 6
Z589 Round Baler
3.7 TRACTOR REQUIREMENTS *
Z589-2… Z589-3…
PTO rotational speed 540 RPM.
Min. power demand (kW-HP) 45-60
Hydraulic 2 bi-directional control valves
Required oil ow rate 25 lpm
Electrical system 12 V= / negative common
Max. transport speed
(*) For tractors with closed cab.
If using a tractor, order a hydraulic hose guard.
3.8 BALE CHARACTERISTICS
Z589-2… Z589-3…
Diameter 500÷1600
Max. width 1200
Hay bale weight 300÷625
Straw bale weight 280÷420
Silage bale weight 600÷1235
Capacity per hour 25÷45

page 7
Z589 Round Baler
3.9 F Bus CONTROL SYSTEM CHARACTERISTICS
Name EASYTRONIC
Power supply 11÷15 V DC
Controls: membrane keypad 9 keys
Display Graphics LCD: 128x64 pixels
Backlight White LED
CPU 16bit 24Mhz
Memory Flash + Static RAM + EEPROM
Sound alarm Buzzer
Protection IP65
Operating temperature 0÷50
Storage temperature -10÷70
Relative humidity 100%
Enclosure ABS
Colour Black
Mounting Magnet
Dimensions (max.) 190x105x90
Weight 420 g
CE compliance Yes
MODULES (sensors, motor control, etc.)
Power supply 11÷15 V DC
Protection IP65
Operating temperature -20÷70
Storage temperature -30÷80
Relative humidity 100%

page 8
Z589 Round Baler
4 GENERAL SAFETY STANDARDS
Aside from compliance with this Manual, follow the general safety and accident prevention rules and regulations
in your country. This machine has been designed and built to assure maximum operating safety. The user must
maintain the safety conditions.
Read this Manual thoroughly:understand the safety rules contained herein and be careful when attempting any
actions which may potentially be extremely hazardous. It will be too late to learn that during work!
METAL- FACH disclaims any liability for failure to comply with the safety and accident rules provided
herein.
The Manufacturer will not accept any liability for any damage caused by unintended use of the round
baler or its unauthorised modications.
4.1 TERMS AND DEFINITIONS
Thoroughly read and understand all sections identied with the following symbols. Have all operators of the
machine do that too.
This symbol is a personal safety WARNING of a potentially hazardous situation.
All personal safety WARNINGS herein are identied with this symbol and a warning phrase,
which indicates imminent or potential hazards:
DANGER!
The phrase DANGER means a potentially hazardous situation which must be prevented to avoid death
or severe injury.
CAUTION!
The phrase CAUTION means a potentially hazardous situation which must be prevented to avoid light to
moderate injury.
This symbol is a mechanical WARNING of a potentially hazardous situation.
IMPORTANT!
This symbol and the phrase IMPORTANT warns of actions which, if incorrect, may result
in severe damage of the machine.
This is a warning sign for the operator to stop the tractor engine and remove the ignition
key.
Stop the tractor engine and remove the ignition key before attempting the actions identied with
this symbol.
METAL- FACH disclaims liability for any incidents caused by failure to comply with the safety precautions.
This symbol means "Note:"
The operator must read, understand and remember the notice marked with this symbol!

page 9
Z589 Round Baler
4.2 SAFETY WARNING
Before starting the machine:
• Make sure that you perfectly understand the controls and their functions.
• Periodically check the whole machine, especially all safety and protection equipment.
• All work safety equipment shall be installed as required by the Manufacturer. DO NOT tamper with the safety
equipment.
DANGER!
No personnel which has not read and understood this Manual may operate the round baler.
4.2.1 PERSONNEL PRECAUTIONS
Mind the warning symbols contained herein and on the machine. Keep all warning stickers perfectly legible and
visible.
• Keep the warning symbols clean and replace them whenever they become damaged or illegible.
• See Chapter 4.4 "Safety signals" for the list of warning symbols and their locations.
DANGER!
CAUTION!
• Never leave the machine unattended during operation.
• Never leave the tractor unattended with its engine running.
• This machine must not be operated by underage persons or unskilled persons, persons with health
problems, or persons without a valid driver's license.
• The work range of the machine is a hazardous area. Before starting the machine make
sure that there are no persons or animals in its direct vicinity. If any person or animal is in
the machine vicinity, stop the machine and resume only when the area is clear.
The round baler user is liable to third parties for any damage caused by operation of this
machine.
• Keep clear of any mechanical equipment, do not touch any moving parts or reach inside
them when operating this machine.
Keep your face, hands and feet away from moving parts. Always keep a safe distance.
• Do not stand behind the machine: the gate may open, releasing a bale.
• The area in front of the pickup is extremely hazardous. NEVER drive the product into the
machine with your hands, feet or any tools when the machine is working.

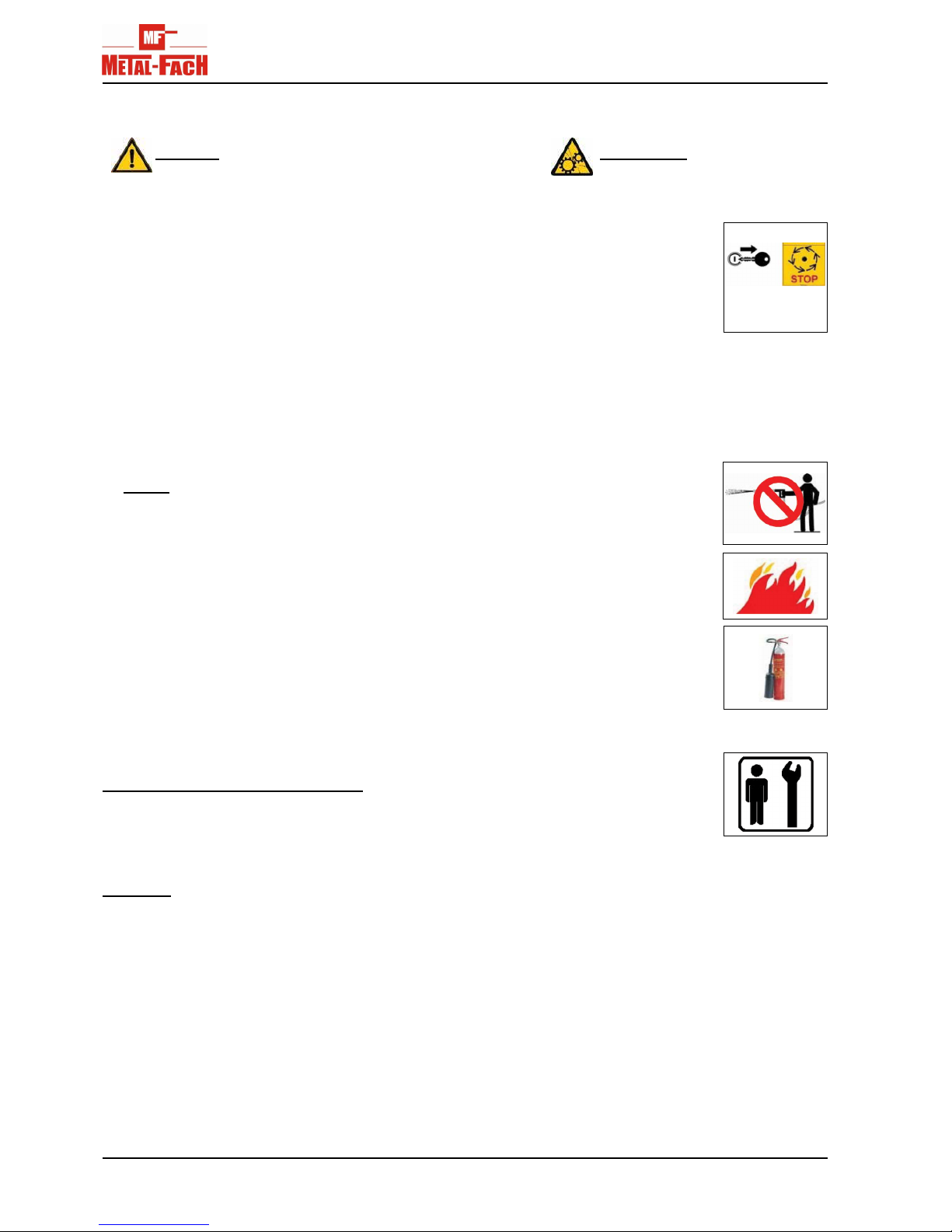

DANGER! If the product is jammed in the feeding section:
• Stop the tractor, remove the ignition key and wait until all machine parts stop
completely.
• Turn off the F Bus system.
• Follow the instructions in Chapter "8.8 Jamming of products".
•

page 10
Z589 Round Baler
• Install the cord only with the tractor engine stopped and the F Bus powered off.
• Do not use the controls, hoses or other protruding parts of the machine as handles or feet support.
• Follow the PTO drive shaft safety of use standards and instructions in the enclosed shaft manufacturer's
instructions to install, start and remove the PTO drive shaft.
• Carrying persons or animals on the tractor is STRICTLY PROHIBITED.

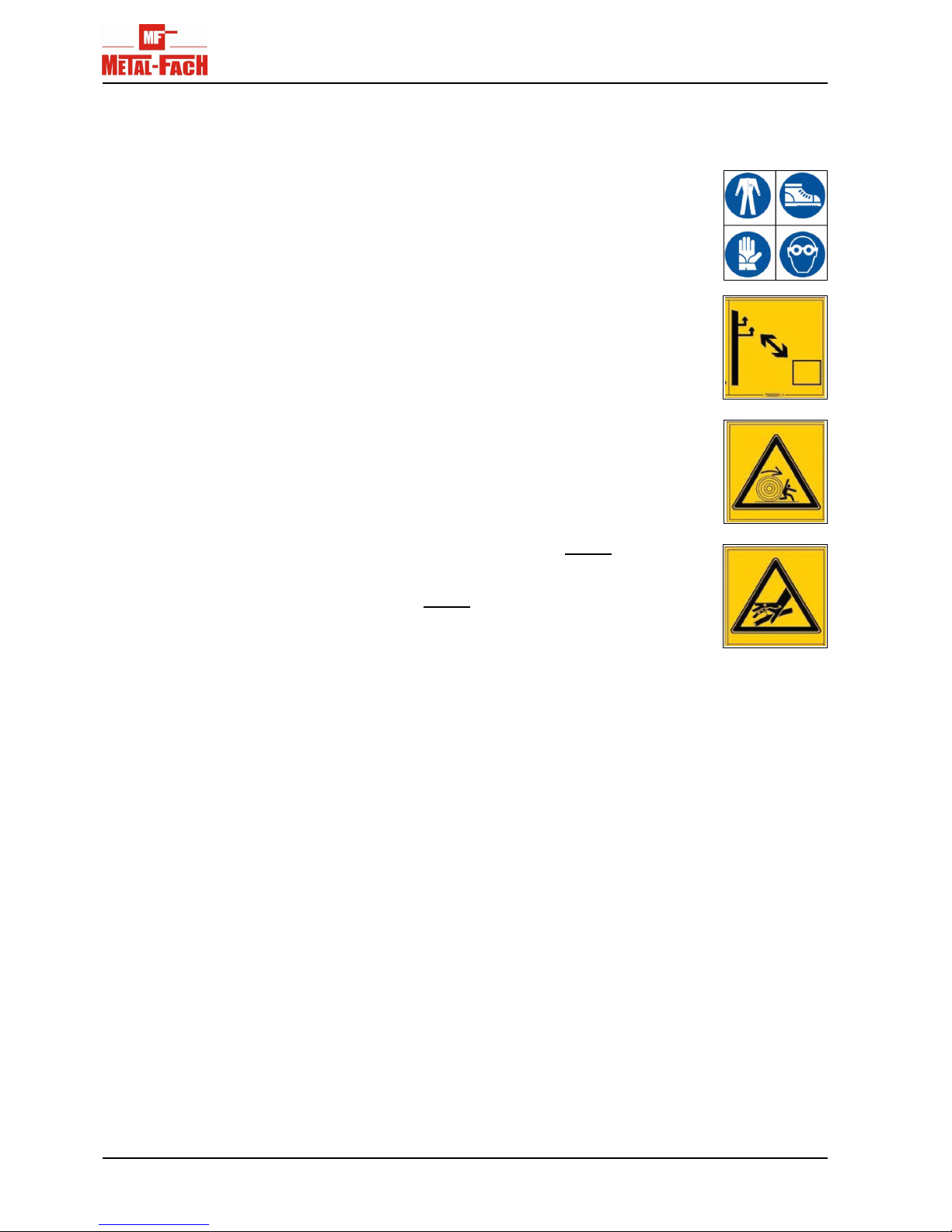

• Wear protective clothing, cut-resistant gloves, safety shoes and protective goggles when
maintaining or repairing the machine.
• Do not wear any clothing which can be caught by moving machine parts.
Wear a safety helmet with a face shield when there is hazard of objects being thrown. See
Chapter 4.6 "Work garment" for more information.
• Keep a safe distance of the working machine from electrical power lines. The machine is
largely made of metallic parts: any contact with electrical power lines or electrical arcing
between a power line and the machine can be a health or death hazard to the operator.
If you absolutely need to work near electrical power lines, notify the relevant power
distribution operator rst.
• Unload the bales on a at ground or with the machine discharge facing the bottom of the
slope.
• Hydraulic oil under high pressure may puncture skin and cause severe injury. Always
depressurize the hydraulic lines before opening or inspecting them.
If injured by high-pressure jets of hydraulic oil, immediately seek medical attention or call
medical help. Otherwise the injure is at risk of severe infection.
METAL- FACH disclaims liability for any incidents caused by failure to comply with the safety precautions.

page 11
Z589 Round Baler
4.2.2 MACHINE WARNINGS
DANGER!
CAUTION!
• Keep hydraulic couplings clean at all times. Protect the hydraulic couplings from damage and dirt by plugging
them with the plastic caps provided by the manufacturer.
Inspect and replace the damaged hydraulic lines and couplings as required. Replace each hydraulic hose in 5
years from the manufacturing date identied on the hose body.
Verify that the hydraulic lines and couplings are tightly closed before pressurizing. Use a piece of cardboard or
absorbent paper to detect any leaks.
• Every PTO drive shaft is supplied with its Operating and Maintenance Manual enclosed by the manufacturer.
Use all protective equipment, lines and guards of the PTO drive shaft as intended to and keep them in a
perfect condition.
Note: Maintain the PTO drive shaft by strictly following its Manual enclosed by the shaft manufacturer.
Verify the following before installing the PTO drive shaft:
• The tractor output RPM to the shaft meets the required RPM (refer to the data on the nameplate located on
the machine tow bar).
• The sense of rotation matches the sense of rotation on the warning sticker.
• DO NOT install the PTO drive shaft before starting the tractor engine.
• Stop the PTO before turning back at the end of the headland and before negotiating very tight turns.
• Rest the PTO drive shaft on a suitable support when unhitching the machine from the tractor.
• Do not start rolling a bale before the baler gate is rmly locked. Verify the lock engagement on the control
panel display.
DANGER! FIRE HAZARD
Regularly remove the collected material to minimise the risk of re and prevent ingress
of the material into the mechanical components of the machine.
If a bale catches re:
• Immediately release the bale and leave the baler gate open.
• Drive away with the machine hitched from the product on the ground and other ammable
materials.
• Fight the re with an extinguisher the tractor must be equipped with.
The tractor must be equipped a re extinguisher, especially if you want to work with dry products.
• Wheels and tyres shall only be repaired by suitable trained and experienced personnel
equipped with the right tools.
• Do not drive on public or private roads with a bale in the baler chamber.
Empty the baler chamber and make sure that the gate is shut and locked before leaving the eld. Follow the
trafc code regulations on all roads.
Note that the vehicle traction, steering control and brake performance are largely affected by the towed load.
• Fold the support in the transport position before towing the machine.
METAL- FACH disclaims liability for any incidents caused by failure to comply with the safety precautions.

page 12
Z589 Round Baler
4.3 MAINTENANCE SAFETY
DANGER! IMPORTANT!
Follow these safety precautions before attempting any adjustments, maintenance or other servicing of
this machine or leaving the machine unattended:
1) Stop the machine and disconnect the PTO drive shaft.
2) Rest the pickup on the ground.
3) Stop the tractor engine, remove the ignition key and engage the parking brake of the
tractor.
4) Make sure that all moving components of the machine have come to a full stop.
5) Turn off the F Bus system.
• NEVER remove any safety equipment or tamper with their function: the safety equipment has been designed
and built for user safety. Replace the safety equipment one before using the machine.
• Regularly inspect the joints of nuts, bolts and screws.
• Periodically inspect the wear of bearings, rollers, chains and transmission gears.
• Do not attempt any maintenance or cleaning before stopping the tractor engine and removing the ignition key.
• Remove all dirt accumulated between the moving parts of the machine.
• Do not clean the machine with high pressure jets of water, otherwise there is a risk of
severe damage of mechanical parts.
• Follow proper safety precautions for welding.
Unhitch the machine from the tractor, remove all residues of plant material from the baler
and make sure there are no plastic components nearby to avoid re hazards.
• Have a re extinguisher at hand.
• Use the recommended oils for the machine.
• All maintenance of the machine must follow this Manual. Worn out or damaged parts
shall be replaced by qualied personnel only.
USE ORIGINAL SPARE PARTS ONLY.
• Spare parts must meet the Manufacturer's requirements.
• Use only the PTO drive shafts specied by the machine manufacturer.
DANGER!
This Operating Manual must be read and kept for the entire service life of the machine. Understand and
remember all information contained herein.
METAL-FACH disclaims liability for any incidents caused by failure to comply with these guidelines.

page 13
Z589 Round Baler

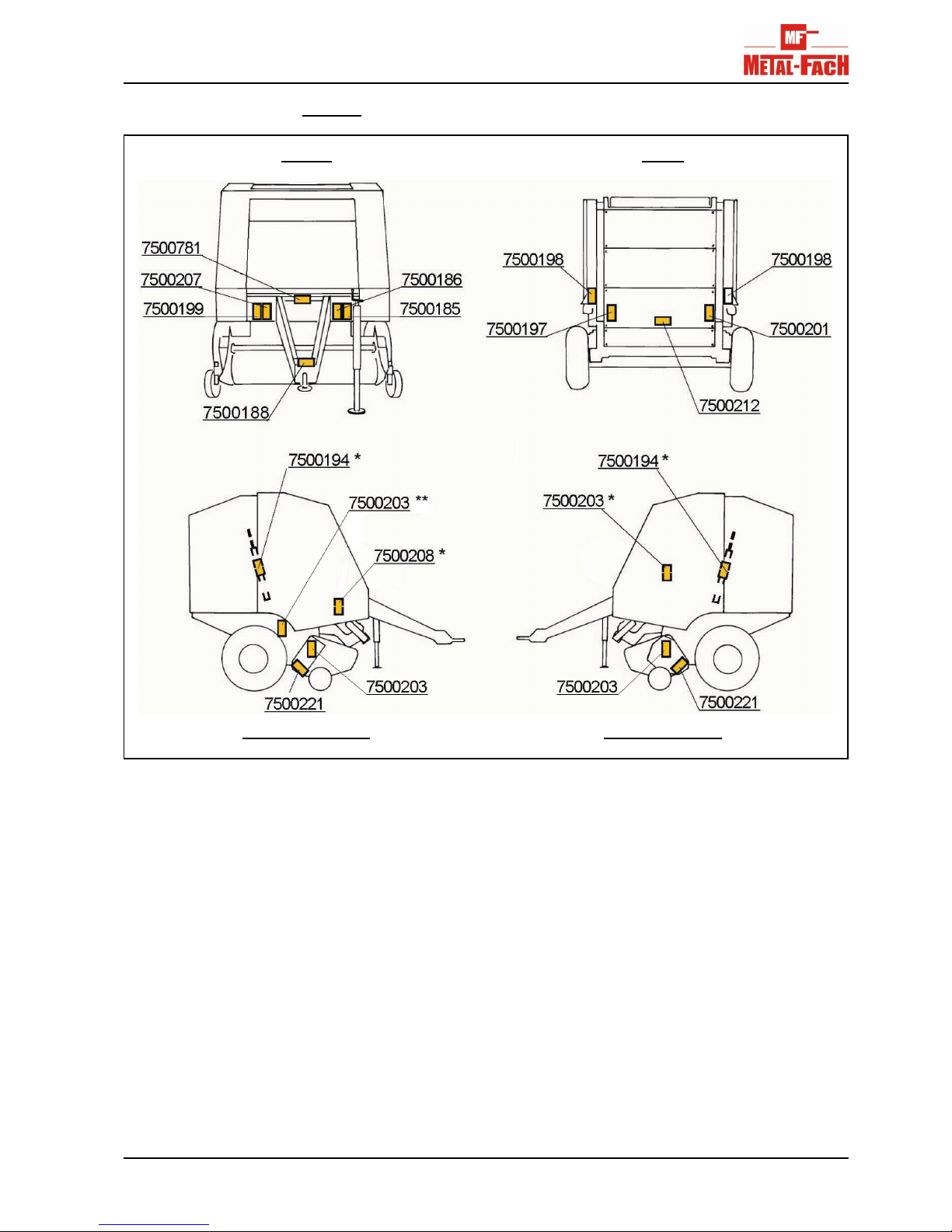

Diagram: LOCATIONS OF ROUND BALER SYMBOLS
( * ) INSIDE
( ** ) Z589-2… only
FRONT
RIGHT-HAND side
REAR
LEFT-HAND side

page 14
Z589 Round Baler
4.4 WARNING STICKERS
The machine features warning symbols which provide important personal safety information. The symbols explain
the occupational hygiene and safety standards and any potential hazards during operation and maintenance of
the machine.
• The warning symbols are pictogram in black and red on yellow background.
• Keep all symbols clean and legible at all times. Replace all lost or damaged symbols.
• If you need to replace or repaint a part which has a warning symbol, apply new stickers once the part has been
recoated or replaced.
Each warning sticker as a part number recognised by the Spare Parts Centre. Submit the part numbers of the
warning symbols you want to purchase.
The following pages show and explain all warning signs placed on the baler and shown in the diagram Locations
of round baler symbols.
Read and understand each warning symbol description and have every operator or persons near the machine at
work or during maintenance do the same.
4.4.1 DRAWINGS
The explanations of the warning symbols on the machine and shown in the diagram Locations of round baler
symbols.

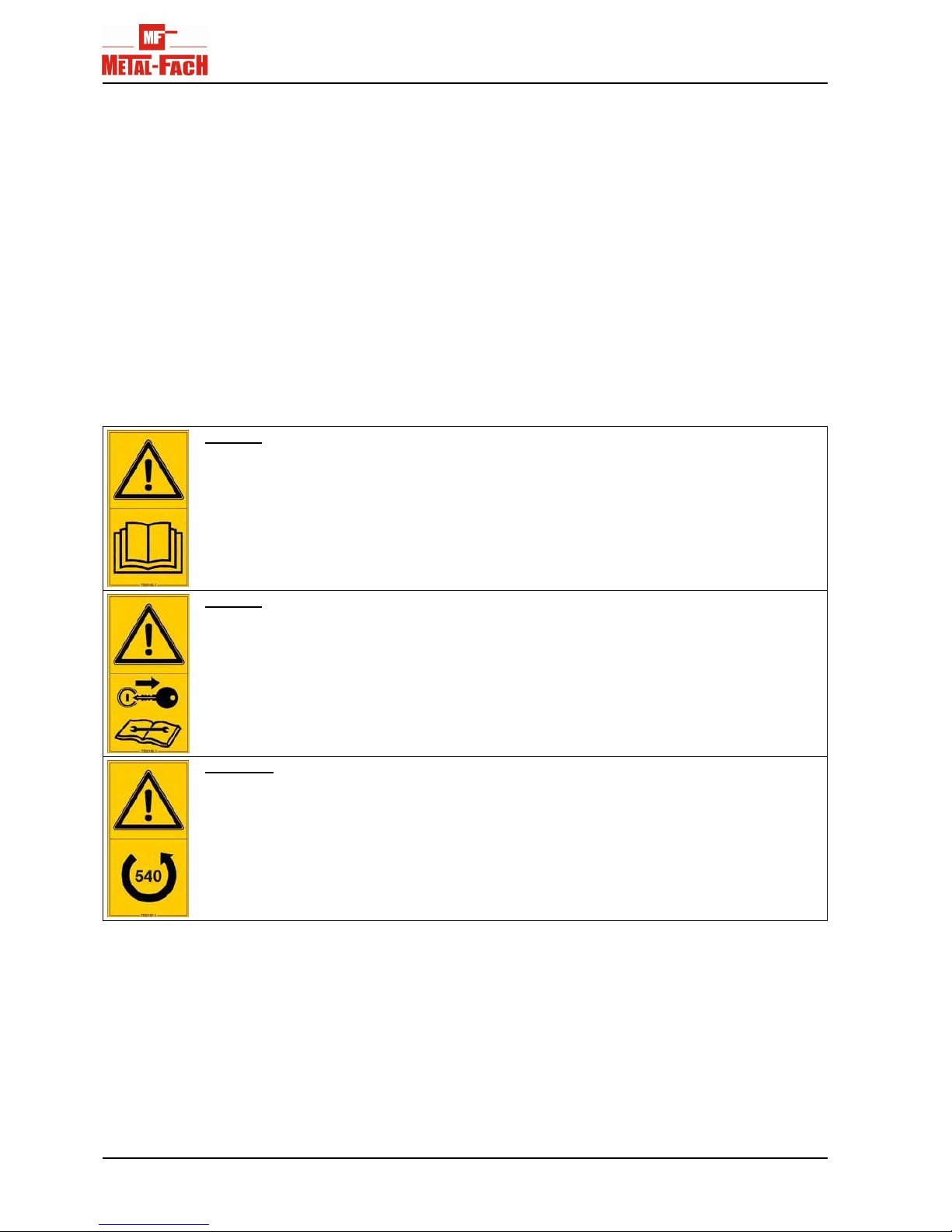

7500185
CAUTION! Read and understand the Operating and Maintenance Manual before commissioning
the machine at the start of the work season or servicing the machine.
7500186
CAUTION! Stop the tractor engine, remove the ignition key and read the Operating Manual
before attempting any maintenance or repairs of the machine.
7500187-1
CAUTION! This machine has been designed for coupling with tractors with the output of 540
RPM and the PTO sense of rotation required by the machine.

page 15
Z589 Round Baler

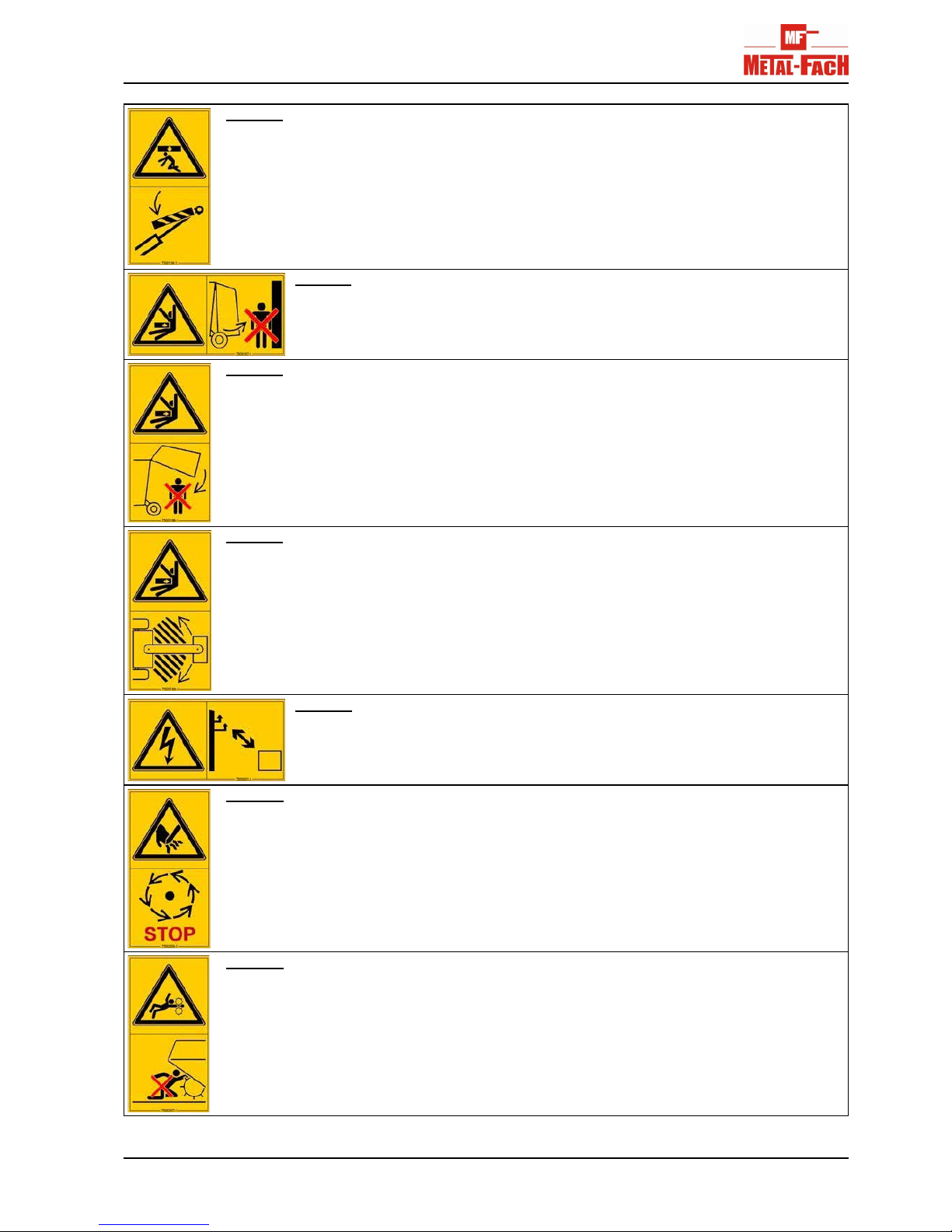

7500194
DANGER! Before entering the baler chamber for servicing, lock the hydraulic lifts with suitable
clamps to avoid crushing hazard.
7500197
DANGER! Do not stand behind the machine to prevent crushing hazard from sudden
movement.
7500198
DANGER! Do not pass or stay under the lifted baler gate to avoid crushing hazard, unless
suitable protective measures are in place.
7500199
DANGER! Keep clear from the space between the tractor and the machine when the engine is
running. This area is extremely hazardous.
7500201
DANGER! Exercise extreme caution when working near electrical power lines.
7500203
DANGER! Before attempting any intervention with the machine, make sure that all machine
parts have come to a full stop and prevent any sudden movement with proper precautions.
7500207
DANGER! Do not feed or remove the product by hand in front of the pickup when the machine
components are running. This may result in the hazard of pinching your upper limbs or the entire
body by the machine.

page 16
Z589 Round Baler
7500208
DANGER! Before attempting to intervene with the hydraulic system, read and understand the
Operating Manual. Hydraulic oil under high pressure may cause severe injury.
7500210
DANGER! Do not remove any protective components and keep clear of all parts which are a
crushing hazard to the upper limbs.
7500212
DANGER! Do not stand behind the machine before the bale is released. Keep a safe
distance.
7500221
DANGER! Do not approach too close to the machine. Hazard of limb crushing or severing due to
the machine weight and descent. Keep a safe distance.
7500781
DANGER! Hazard of catching the telescoping jointed shaft and dragging
the persons body by the machine.
4.4.2 PTO DRIVE SHAFT WARNING STICKER
The PTO drive shaft bears a warning sticker with operator precautions and safety instructions
for operating the shaft.

page 17
Z589 Round Baler
4.5 SAFETY EQUIPMENT
The machine is equipped with safety devices which guarantee proper operation and risk mitigation under normal
conditions of use.
DANGER!
Verify that all machine equipment are in a good condition and in proper locations before work.

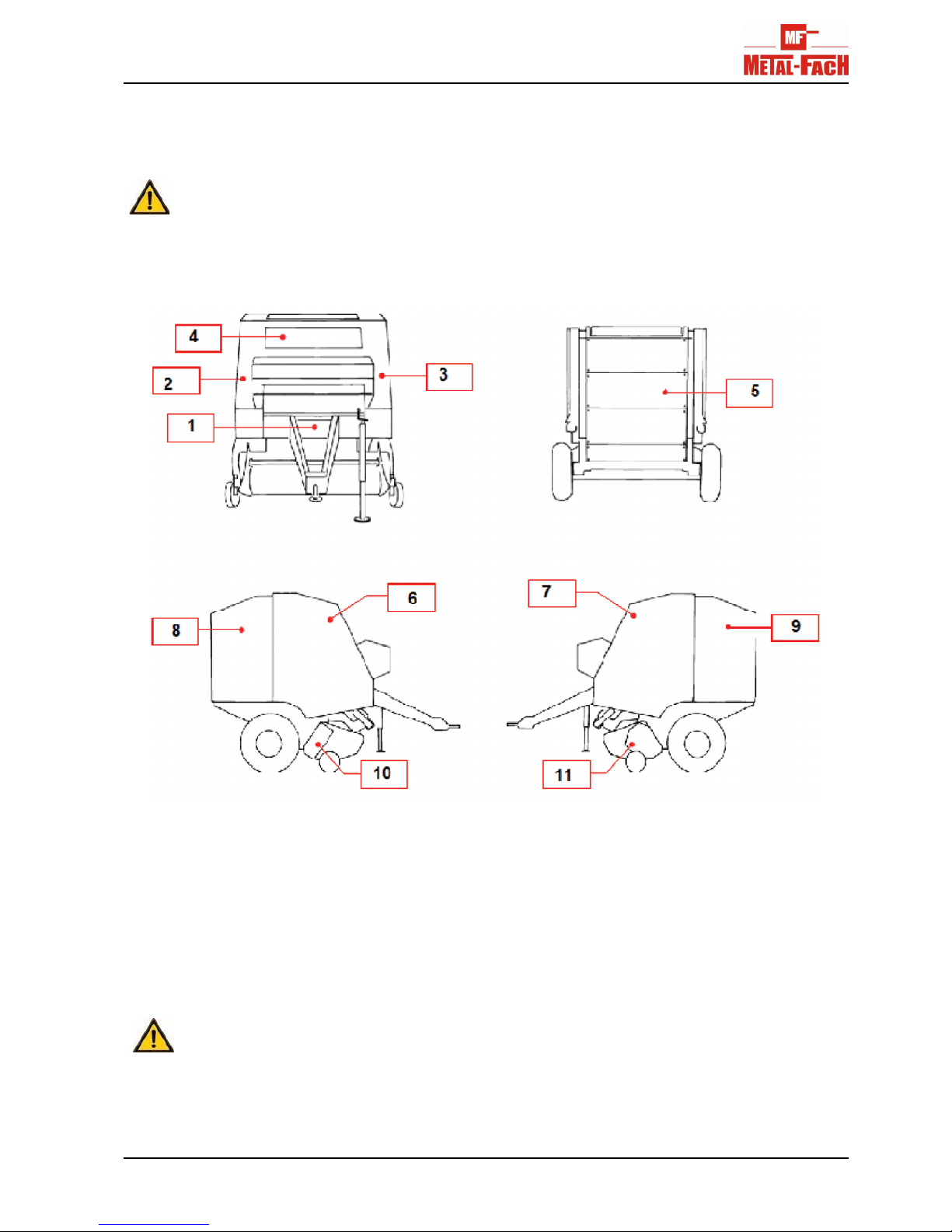

4.5.1 GUARDS
The machine features enclosures which protect the operator against moving mechanical components and those
components from accidental ingress of foreign bodies:
1) Transmission gearbox guard.
2) Front right-hand belt guard.
3) Front left-hand belt guard.
4) Belt front guard.
5) Tail gate belt guard.
6) Front right-hand panel guard.
7) Front left-hand panel guard.
8) Tail right-hand panel guard.
9) Tail left-hand panel guard.
10) Pickup left-hand guard.
11) Pickup right-hand guard.
DANGER! Before removing the protective guard(s):
• Stop the machine.
• Stop the tractor engine and remove the ignition key.
