Mounting and User Instructions for
Folding screen awning
Content
Packing List...................................
2
Product Description.......................
3
Safety Instructions.........................
3
Preparations..................................
4
Mounting........................................
5
Usage............................................
Maintenance……………………….
6
7
Cleaning.........................................
8
Dismounting...................................
8
Storage...........................................
8
Attention:
Read this instruction manual carefully and completely before mounting and
usage. Keep this manual for future reference.

2
Dear Customer,
congratulations and thank you for buying folding screen awning, to enjoy this product for a long
time and for your own and the safety of other people please obey the mounting instructions.
Before you start mounting and using the awning, please get familiar with this product. Make sure
all parts listed up in below packing lists are delivered and intact. If you find that there are parts
missing or damaged please do not install the awning but contact your dealer. Do not start the
mounting if parts are missing our defect.

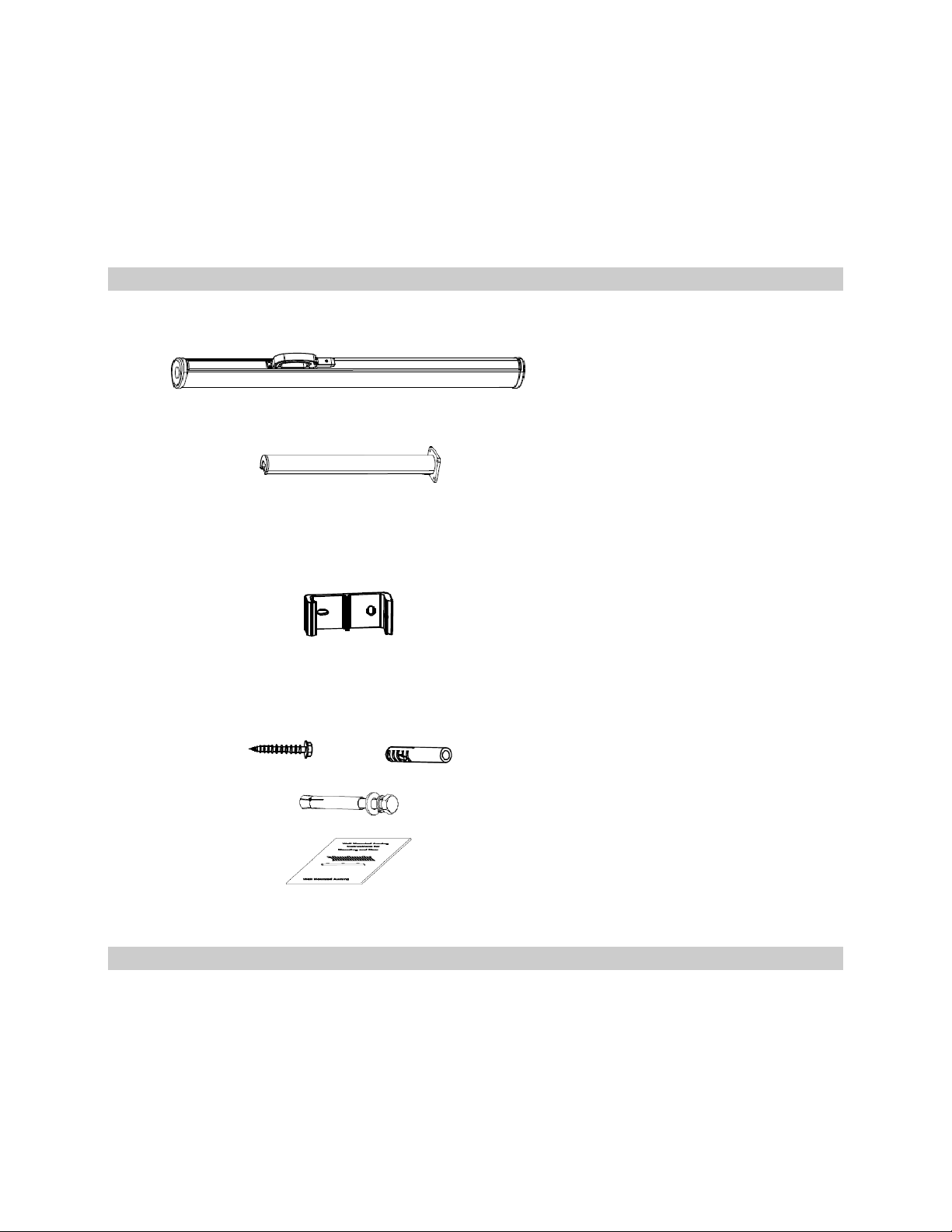

Packing List
You should find following parts in the package:
Part
Quantity
Awning
1
Standing pole
1
Wall Bracket
2
Wall-mounted Front Bar hook (bottom)
Screw
Wall Nuts and bolts
Instruction manual
4
4
1
Product Description
Folding screen awning is a new screen. It is a retractable system that provides shade and privacy
for your outdoor area; easy assembly, convenient to use. It can use for balcony, bar, restaurant
etc. The folding screen awning offers a large individual free space if you want. In one words, The
folding screen awning is custom made to fit your needs without big wind and heavy rain condition.

3
1
Awning cover
5
Front bar
2
Wall bracket
6
handle
3
Side cover
7
Standing pole
4
Fabric
8
Standing pole chassis
Important Safety Instructions
Warning: For your own and the safety of other persons, it is important to follow below
instructions and obey warnings.
Symbol explanation
This warning triangle calls attention to hazards that that can lead to death or to severe
injuries or which are important for the functioning of the awning.
This sign identifies important notes.
Safety instructions
To install this folding screen awning technical knowledge is necessary. Do not
mount this folding screen awning yourself but contact a professional workman for help
if
you are unsure if the awning can be mounted on the place you chose for
installation.
you do not understand the instruction manual or parts of it.
you do not have necessary tools available.
you do not have necessary technical knowledge
Do not install the folding screen awning when you find damage parts or parts are
missing. Contact your dealer.
This product and its fixing parts are only suitable for installation on a plain
cement wall or stable unrendered brickwork. If the wall/brickwork shows cracks
you have to consult a professional.

4
Nobody is allowed to change the products’ design and structure without the
permission of manufacture or authorized deputy.
Please make sure that your hands are clean at the time of the assembly; otherwise you
may soil the awning fabric and frame.
Preparations
Make sure that no children and pets are present during mounting. They could get hurt by
lain out parts or tools.
Carefully remove the box and remove the foam protectors from folding screen awning. Remove
the plastic bags and plastic guards from the awning and carefully place the awning .aside to
avoid having it damaged by scratches or otherwise damaged or soiled during assembly. Check
the number of parts in the packaging whether the packing list requirements, the quality of parts
availability issues, if questions, please contact the supplier.
Be aware the sudden extension may occur during unpacking.
Tools needed for assembly:
✓Drill
✓Masonry drill bit, 14 mm and 10mm
✓Level
✓Wrench 10mm, 17 mm
✓4mm hexagon spanner
✓Tape measure
✓Chalk or marker pen
✓Wooden hammer
Mounting
Mounting on a concrete or brick wall
Please ask professionals for help if you are not sure
If your building has an exterior shell (such as insulation, double brick wall, brick facing),
installation should be taken out by a professional.）
If the wall/brickwork shows cracks you have to consult a professional.
For safe and smooth installation think about where you will be securing the
awning to the wall before you start drilling holes.
Step 1: Chose Mounting Location
For safe and smooth installation think about where you will be securing the awning to the wall before
you start drilling holes, make sure the wall/support place is plain, so that bracket seats solidly.
Step 2: Drilling Holes and Installation mounting bracket
After choosing mounting position you can mark where you need to drill holes for the brackets. We
already marked where and with what width brackets need to be mounted measure the width between
the brackets and copy it to the line on your wall/support place.
Figure 1:

5
Use 10-mm drill to drill the holes for the front bar hook at the appropriate marks on the wall .The holes
Should be 4.5cm deep in the wall/support place
Step 3: Fixing Awning
Up lift the awning casing back card slot snaps into wall brackets, using M5*10 hex bolts fixed the
awning on wall.
According to customer needs, awning can be installed from A or B or C direction.
Figure2
Step 4: Fixing Standing Pole
Use 14-mm drill to drill 4 holes on floor for the brackets at the appropriate marks on the wall. The
holes should be more than 7cm deep in the floor/support place.

6
Figure 3: Fixing Standing Pole Chassis
Figure 4: Fixing Standing Pole
Attention: The standing pole should be mounted at the same level ground with the awning.
Attention: Misplacing and misapplying the awning can cause seriously danger. Only mount the
awning yourself when you understand the mounting instructions completely and when you are sure
that the wall/support place you want to mount the awning on is suitable. For your own and the safety
of other people , please contact an authorized assembler for help.
Usage

7
How to use standing pole
Pull the front bar’s handle horizontally to the fixed standing pole.
Attention:
1. the folding screen awning are intended as a protection against the sun only. It is not to be
used during periods of strong wind, retract the awning immediately.
2. Never allow children to play with the folding screen awning.
3. To avoid sudden extension of the awning during extend or retract it, make sure that no other
people is standing near the awning during the operation.
Maintenance
Regular maintenance will not only help to keep a long durability but is also important for your own and
the safety of other people.
Examine regularly if wall brackets are tight, fasten them if loose or lax.
Examine the bolts and nuts once in half a year, fasten them if loose or lax.
Stop using the awning immediately if is has been damaged or it is not tighten properly.
Please contact an authorized service centre for repair and if you have any further questions.

8
Cleaning
Frame: Over time, dust and dirt will collect on the frame and will require periodic cleaning to maintain
its appearance.
A mild spray cleaner or water/detergent mixture may be applied to the frame to clean it. Wipe dust off
with a damp cloth. Do not use aggressive detergents e. g. to clean oil residues.
Fabric: Clean the fabric every six months.
Only use natural soap, never use chemical detergents. Water should be cold to lukewarm. Let the
fabric dry completely. Do not use heating appliances e. g. hairdryer for drying.
Dismounting
When you don’t want to use the awning anymore or if you want to dispose it one day you have to demount
it.
Attention! At least two healthy adults are need for this step.
Retract the awning completely before you begin with dismounting. Bind the arms of the awning
together to avoid unintended unfolding. This might cause damage and injury. You can use the
protection band that was fixed on the awning when purchasing it.
Follow the mounting instructions in reversed order to dismount the awning.
Make sure that drilling holes in the wall will be sealed professional.
Attention! Safety hints and instructions have to be followed for dismounting as well.
Storage
When you do not want to use the awning for a longer period of time it is recommended to take the
awning out of the brackets and store it.
Make sure that the fabric is dry completely before storing. Storing a wet fabric can cause spots
and damage.
Store the awning at a dry and safe place that is not reachable for children.
Disposal
Do not dispose this awning with other household wastes. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling. Dispose packing materials according to local guidelines.
