MetalTech WALL HAULER I-BMD3031R User manual

IN-BMD3031-NA-08
READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
KEEP THIS MANUAL HANDY FOR FUTURE REFERENCE.
Picture may differ from actual product
ENGLISH
FRANÇAIS
ESPAÑOL
ENGLISH
FRANÇAIS
ESPAÑOL
OSHA ANSI CSA
CONFORMANCE TO MEETS CONFORMITY TO
2YEAR
WARRANTY
MODELS: I-BMD3031R
I-BMD3031P
I-BMD3031RK
I-BMD3031PK
WALL HAULER™ SERIES 3000
DRYWALL CART
OPERATIONAL SAFETY AND
ASSEMBLY INSTRUCTIONS

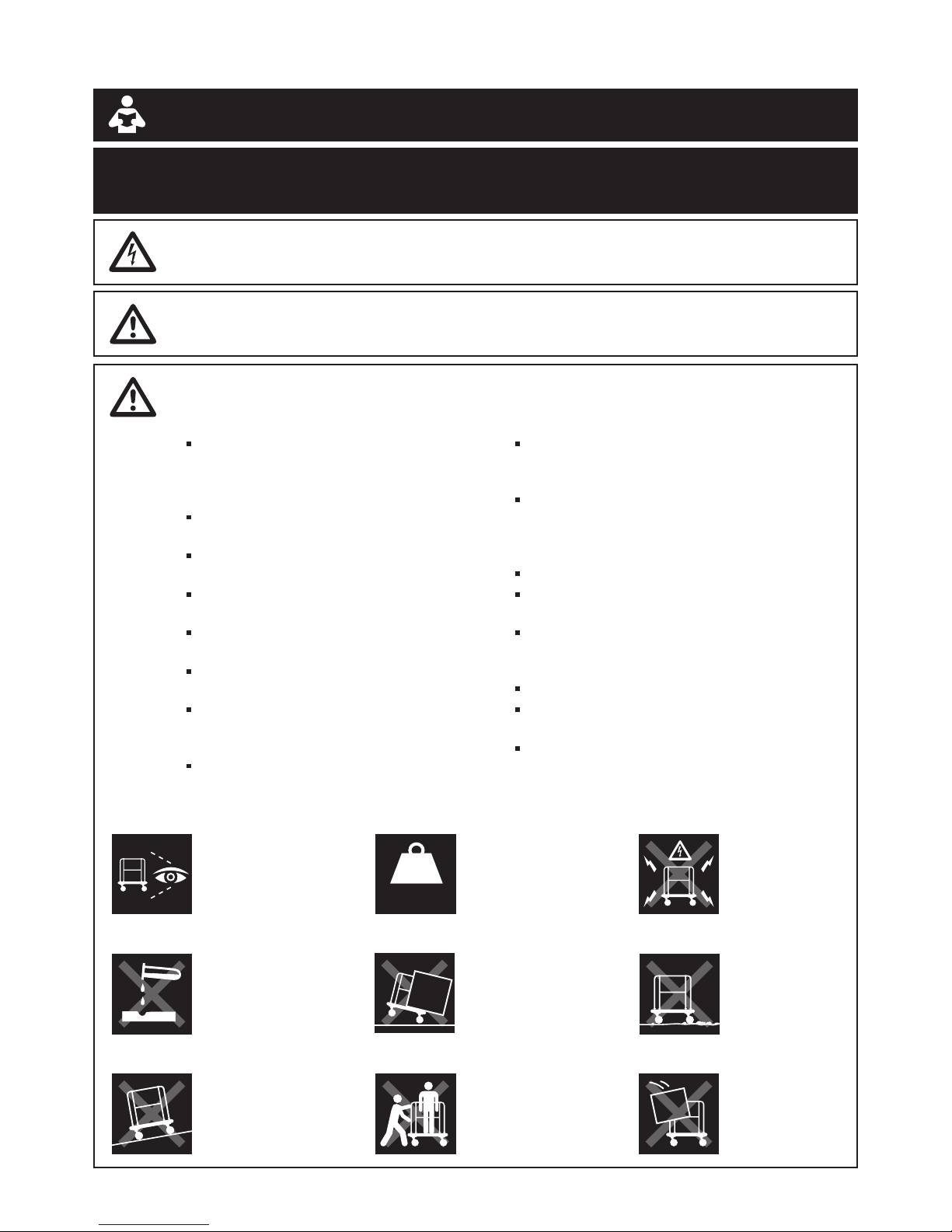

OPERATIONAL SAFETY
METAL CONDUCTS ELECTRICITY:
Do not use this equipment where contact may be made with power lines or other live electrical circuits.
DO NOT OVERLOAD:
This Drywall Cart is designed to support a maximum load of 3,000 lb (1,361 kg)
FAILURE TO UNDERSTAND AND FOLLOW ALL SAFETY RULES AND ASSEMBLY INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR DEATH.
READ BEFORE BEGINNING ASSEMBLY.
OPERATION AND SAFETY
All photos and drawings in this booklet are for reference purposes only. Refer to applicable
OSHA, ANSI or CSA codes and regulations for the proper use of this equipment.
2
LB
/
KG
MAX. 3,000lb
(1,361 kg)
ALWAYS INSPECT
BEFORE USE
DRYWALL CART
MAXIMUM LOAD
CAPACITY:
3,000 lb (1,361 kg)
METAL CONDUCTS
ELECTRICTY
ACIDS ARE
CORROSIVE. DO
NOT EXPOSE UNIT
TO CORROSIVE
SUBSTANCES
UNEVEN WEIGHT
DISTRIBUTION COULD
CAUSE CART TIPPING
MUST BE USED ON A
FIRM SURFACE THAT
IS FREE OF PITS,
DEBRIS, HOLES OR
OBSTRUCTIONS.
UNIT SHALL ONLY BE
USED ON FIRM AND
LEVEL SURFACES
NEVER MOVE
A DRYWALL CART
WITH WORKER WITHIN
SUDDENLY
DROPPING OR
BOUNCING A LOAD
ON THE DRYWALL
CART MAY CREATE
AN EXCESS LOAD
Do not use this equipment if you are in poor health,
taking medications, drugs, or have been consuming
alcohol, all of which may impair your ability to work
safely on this product.
Always use this cart in conformity with local or national
legislation which applies.
Inspect before use. Do not use if damaged. Check for
missing parts.
Examine thoroughly to make sure Drywall Cart is set
up properly.
All components must be complete, functioning
properly and correctly assembled.
Any incomplete part, missing part, or ill-fitting part
should be replaced prior to use.
Use the right product for the job. Do not modify the
Drywall Cart and do not use the Drywall Cart for a
purpose for which it was not intended.
Do not exceed the maximum load capacity
of 3,000 lb (1,361 kg).
Always distribute objects in the Drywall Cart evenly,
and resting adequately on the handle bar. Uneven
weight distribution could cause Drywall Cart tipping.
Be aware of dynamic loading. Suddenly dropping or
bouncing a load on the Drywall Cart may create, for
a brief instant, an excess load, which may result in
damage to the product and/or personal injury.
This Drywall Cart must be used on solid flat surfaces.
This Drywall Cart must be used on a firm surface that
is free of pits, debris, holes or obstructions.
Acids are corrosive and can seriously affect strength.
Do not expose this Drywall Cart to corrosive
substances.
Never move a Drywall Cart with worker within.
Do not use powered devices to propel this Drywall
Cart. Use extra caution near operating machinery.
Do not modify this Drywall Cart or any of its
component.

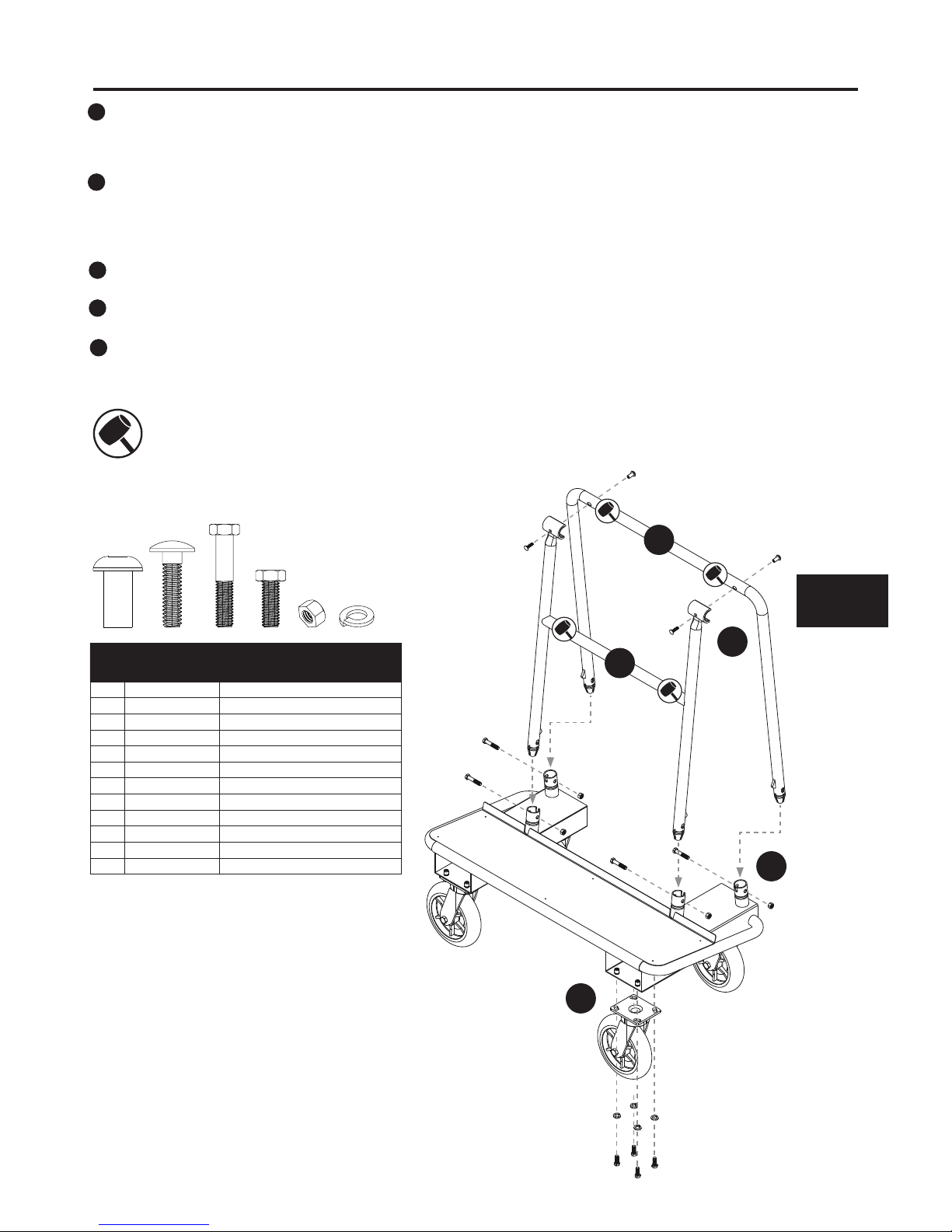

ASSEMBLY INSTRUCTIONS
Engage the first handle bar (“C” shape) on the cart platform. With a rubber mallet, firmly hit each upper ends of
the handle, as shown in the figure below (1), make sure that the handle is fully inserted by verifying that holes of
the handle bar are aligned with those on the cart platform. Do not screw anything at this stage.
Join the top of the second handle bar (“H” shape) with the first handle bar installed, as shown in the diagram
below (2), do not screw anything at this stage. Engage the “H” handle bar on the cart platform. With a rubber
mallet, firmly hit each side of the central tube, as shown in the diagram below (2), make sure that the handle is
fully inserted by verifying that holes of the handle bar are aligned with those on the cart platform.
Put together the tops of both handle bars using two 3/4 in. barrel nut and two 1 in. carriage bolt supplied. Make
sure that everything is firmly screwed.
Fasten the assembled handle bar to the cart platform using four 2 in. hex bolts and nuts supplied. Make sure that
everything is firmly screwed.
Lay down the cart on its side to install casters. Firmly screw the casters under the cart using sixteen 3/8 x 1 in.
hex bolts and washers supplied.
3
1
2
3
4
5
THE USE OF A RUBBER MALLET IS RECOMMENDED TO
AVOID DAMAGE TO THE COMPONENTS OF THE CART.
(NOT INCLUDED)
ENGLISHENGLISH
2x
2x
16x
4x
4x 16x
BOX CONTENTS
QTY. PART CODE DESCRIPTION
2VB-NB1/4X3/4Z 3/4 in. barrel nut
2VB-BC1/4X1Z 1 in. carriage bolts
4VB-B3/8X2Z 2 in. hex bolts
16 VB-B3/8X1Z 1 in. hex bolts
4VB-N3/8Z 3/8 in. hex nuts
16 VB-WL3/8Z 3/8 in. lock washers
1321116900 Cart platform
1321117300 “C” handle bar
1321117200 “H” handle bar
4I-DCC8R Swivellings casters
1I-DCCDL Directional lock
1I-DCCWL Caster brake
3
5
4
2
1

AVAILABLE OPTIONS*
SEE YOUR RETAILER FOR DETAILS
PRODUCT CODE DESCRIPTION
I-BMDSP Optional sliding coating, protects the surface
against abrasion
*Options not included, sold separately
Metaltech is a registered trademark of Metaltech-Omega inc.
DESIGNED IN CANADA / MADE IN CHINA
WWW.METALTECH.CO
1 800 363-7587
LAVAL, QUEBEC, CANADA H7L 3N6
Two-Year Limited Warranty
Metaltech-Omega Inc. guarantees this product against any material defect. Please return this product, freight prepaid, to Metaltech-Omega
Inc.At its own discretion, Metaltech-Omega Inc. will replace or repair this product and return it within a reasonable time.This warranty does
not cover any damage(s) caused by any incorrect or inappropriate use, care or maintenance. Proof of purchase must accompany the return.
Customer Service: 1 800 363-7587
Our customer service staff is available to help you. For help with product assembly, to report damaged or missing parts, or for any other
information about this product, please call our toll-free number.
KEEP THIS MANUAL FOR FUTURE REFERENCE
Keep this manual and the original sales invoice in a safe, dry place for future reference.
