METER AROYA H512 User manual

18442-01
10.2021
AROYA SCALE CART INSTRUCTION SHEET
METER Group, Inc. USA
2365 NE Hopkins Court, Pullman,WA 99163
T +1.509.332.5844 F +1.509.332.5158
E [e-mail] W metergroup.com

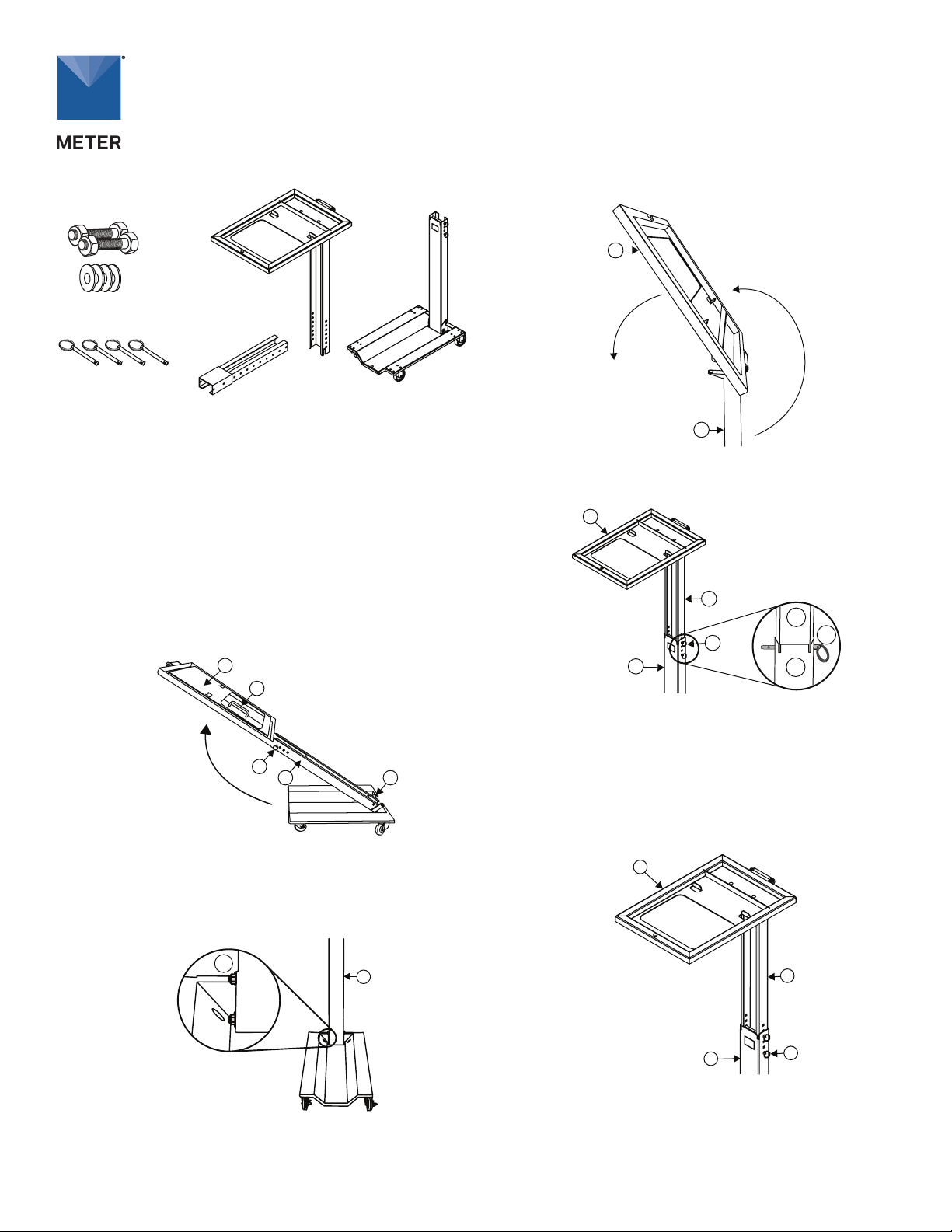

Preparation
The AROYA H512 Scale Cart is designed to be used with the
AROYA H510 Portable Scale to hang and weigh individual plants.
Remove all contents from the box and confirm that the pieces
shown above have arrived intact. A 9/16-in wrench is needed to
assemble the cart.
Installation
1. With a 9/16-in wrench, loosen and remove the top nut,
washer, and bolt (A) at the base of the bottom neck (C).
2. Grasp the top neck handle (B) and lift the bottom neck (C),
top neck (E), and tabletop (F) up to an upright position.
F
B
C
DA
3. Reinsert the bolt and washer (A) at the base of the bottom
neck (C).
4. Screw the nut onto the bolt (A) and hand tighten.
NOTE: Do not overtighten before raising the neck or the neck will not raise up easily.
C
A
5. Rotate the table top (F) over so it provides a flat surface for
the portable scale.
E
F
6. Remove the neck pins (D) located where the bottom neck
(C) and top neck (E) overlap and set aside.
F
E
D
C
Front view
E
C
D
7. Adjust the top neck (E) to the desired height by lifting up on
the top neck (E).
The top neck (E) fits and slides up and down inside the
bottom neck (C) to change the tabletop (F) height to a
maximum height of 5.5 ft.
8. With the top neck (E) holes aligned with the bottom neck (C)
holes at the desired height, insert the neck pins (D) to secure.
E
CD
F
The scale cart is ready for the scale to be placed on the tabletop (F).
C—Bottom neck
E, F—Top neck, Tabletop
D
—Bolt and pin (x4) G—Neck extension
A
—Screws (x2)
nuts (x2)
w
ashers (x4)

METER Group, Inc. USA
2365 NE Hopkins Court, Pullman,WA 99163
T +1.509.332.5844 F +1.509.332.5158
E [e-mail] W metergroup.com
Neck Extension Installation
If a height of more than 5.5 ft is required, follow step9 through
step15 to install a neck extension (G).
The neck extension (G) raises the tabletop (F) to a maximum
height of 6.5 ft (measured from the bottom of the tabletop (F) to
the top of the cart portion of the bottom neck (C).
G
9. Remove the two neck pins (D) where the top neck (E) and
bottom neck (C) are joined.
10. Grasp the neck handle (B) on the top neck (E) and pull it out
of the bottom neck (C) and set aside for step13.
NOTE: The top neck (E) and tabletop (F) are all one piece.
B
E
C
D
F
11. Insert the neck extension (G) into the bottom neck (C) until
it is firmly seated.
Align the neck extension (G) so it moves into the bottom
neck (C) smoothly.
12. Insert two neck pins (D) through aligned holes where the
neck extension (G) an bottom neck (C) overlap.
C
G
D
13. Insert the top neck (E) into the neck extension (G).
C
G
D
Align and insert
Top neck (E) into the
Neck extension (G)
F
E
14. Adjust the top neck (E) to the desired height.
15. Reinsert the neck pins (D) all the way into the appropriate
set of holes.
The scale cart is ready for the scale to be placed on the tabletop (F).
