Meyer RT 2016 Series User manual

6990633 (1-13) Printed in U.S.A. © Bobcat Company 2013
RT SERIES
RT116 • RT118 • RT120 • RT122 • RT124
PB-RT-REAR
2016 Model Year And Later
Owner / Operator’s Manual
&
Parts Book
Patent
6,996,935
7,293,817
7,631,459
10 / 2020

Meyer Manufacturing Corporation - 2 - PB-RT-REAR
1.0 IMPORTANT INFORMATION
The serial number plate is located on the front left upright.
Please enter the model, serial number and additional information in the space provided for future reference.
Always use your serial number when requesting information or when ordering parts.
HOW TO READ YOUR SERIAL NUMBER
Meyer Manufacturing Corporation
674 W. Business Cty Rd A
Dorchester, WI 54425
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.meyermfg.com
Model No.
Serial No.
Date of Purchase
Dealership
Dealership Phone No.
Serial Number Plate
EXAMPLE: 16R1201
Model Year / RT / Model / Sequence Of Build
16 1 201 R

1-800-325-9103
PB-RT-REAR - 3 - www.meyermfg.com
2.0 PRE-DELIVERY & DELIVERY CHECK LIST
This Pre-Delivery & Delivery Check List must be gone through by the Selling Party and the Customer to validate the
Owner’s Registration Form.
PB-RT-REAR Check List
Meyer Manufacturing Corporation
Phone: [phone] • Toll-Free: 1-800-325-9103 • P.O. Box 405 • Dorchester, WI 54425
All shields and guards are in place and securely
fastened.
All bolts and other fasteners are secure and tight.
All mechanisms operate trouble free.
All grease fittings have been lubricated, gear
boxes filled to proper levels, and all roller chains
are oiled. See “Lubrication” section of this
manual.
Main Apron Chains are at proper tension. See
“Adjustments” section in this manual.
All stop/tail/turn lights work properly.
All decals are in place and legible.
PRE-DELIVERY CHECK LIST
After the New Meyer Forage Box has been completely
set-up, check to be certain it is in correct running order
before delivering it to the customer.
The following is a list of points to inspect:
Check off each item as you have made the proper
adjustments and found the item operating
satisfactorily. Any adjustments made, MUST be
according to specifications defined in this manual.
DELIVERY CHECK LIST
The following check list is an important reminder of
valuable information that MUST be passed on to the
customer at the time the unit is delivered.
Check off each item as you explain it to the
customer.
Explain to the customer that pre-delivery check
list was fully completed.
Give customer the Owner & Operator’s Manual.
Instruct to read and completely understand its
contents BEFORE attempting to operate the
Forage Box.
Explain and review with customer the New Meyer
Forage Box manufacturer’s warranty.
Show the customer where to find the serial
number on the implement.
Explain and review with the customer “Safety
Precautions” section of this manual.
Explain and review with customer the proper
“Start-up and Operating Procedures” sections of
this manual.
Demonstrate the start-up & shutdown controls,
proper hydraulic hose storage and tip holder used
to keep system clean from contaminants.
Explain that regular lubrication and proper
adjustments are required for continued proper
operation and long life of the Forage Box. Review
with the customer the “Lubrication” and
“Adjustments” sections of this manual.
Explain the importance of main apron chain
tension, and the need to watch and tighten during
the break in period.
Explain and review with the customer the
recommended loading and unloading
procedures.
Fully complete this “PRE-DELIVERY &
DELIVERY CHECK LIST” with the customer.

Meyer Manufacturing Corporation - 4 - PB-RT-REAR
Meyer Manufacturing Corporation
674 W. Business Cty Rd A
Dorchester, WI 54425
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.meyermfg.com

1-800-325-9103
PB-RT-REAR - 5 - www.meyermfg.com
3.0 INTRODUCTION
Congratulations on your purchase of a new Meyer farm equipment product. Undoubtedly you have given
much consideration to your purchase and we’re proud that you have selected Meyer. Pride in craftsmanship,
engineering and customer service have made Meyer products the finest in the farm equipment industry today.
There is no substitute for quality. That is why thousands of people like you have purchased Meyer farm
equipment. They felt it was the best equipment to serve their farming needs, now and in years to come. We
ask that you follow our policy of “safety first”, and we strongly suggest that you read through the Operator’s
& Parts manual before operating your Meyer farm equipment. Meyer Manufacturing Corporation wants to
thank you for not compromising quality. We are determined to offer excellence in customer service as well as
provide you with the very best value for your dollar.
Sincerely,
All Employees of
MEYER MANUFACTURING CORPORATION
The RT Model is available as a truck, Ag cart or wagon mounted unit pulled and powered by a farm tractor.
The RT Model may be referred to as dump box, forage box implement or rear unloading forage box in this manual.
NOTE: All references to right hand (RH), left hand (LH) front and rear apply to the product as viewed from the rear
of the box.
Manufacturer’s Statement: Meyer Manufacturing Corporation reserves the right to make improvements in design, or
changes in specifications at any time, without incurring any obligation to owners of units previously sold. This supersedes
all previous published instructions.
IMPORTANT: You are urged to study this manual and follow the instructions carefully. Your efforts will be
repaid in better operation and service as well as a savings in time and repair expense. Failure to read this
manual and understand the machine could lead to serious injury. If you do not understand instructions in
this manual, contact either your dealer or Meyer Manufacturing Corp. at Dorchester, WI 54425.
WARRANTY: At the front of this manual is an “Owner's Registration Form”. Be sure your dealer has
completed this form and promptly forwarded a copy to Meyer Manufacturing to validate the manufacturer’s
warranty. The product model and serial number are recorded on this form and on the inside of the front
cover for proper identification of your Meyer Forage Box by your dealer and the manufacturer when
ordering repair parts. The serial number plate is riveted to the front left upright.
REPAIR PARTS: At the back of this manual is the repair parts section. All replacement parts are to be
obtained from or ordered through your Meyer dealership. When ordering repair parts, refer to the parts
section and give complete information including quantity, correct part number, detailed description and
even Model No. and Serial No. of the forage box which needs repair parts.

Meyer Manufacturing Corporation - 6 - PB-RT-REAR

1-800-325-9103
PB-RT-REAR - 7 - www.meyermfg.com
TABLE OF CONTENTS
1.0 IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.0 PRE-DELIVERY & DELIVERY CHECK LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.0 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.0 MANUFACTURER’S WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.0 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.1 SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

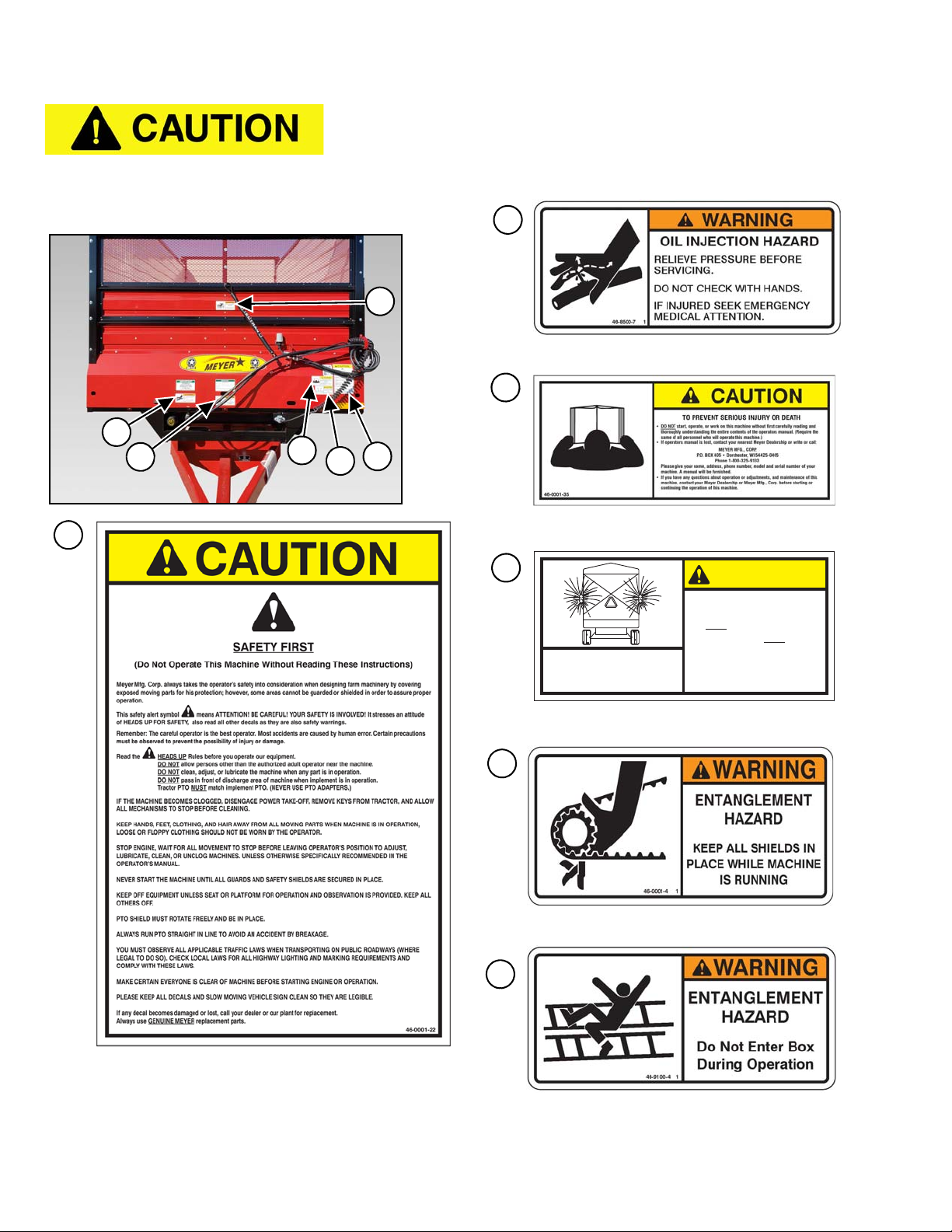

5.2 SAFETY SIGNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5.3 SHUTOFF & LOCKOUT POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.3.1 Shutoff & Lockout Power Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.0 PRE-OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.1 STATIC INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6.2 LIGHT HOOK-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.3 HYDRAULIC HOOK-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.4 HITCHING TO TRACTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.5 START-UP AND SHUT-DOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.5.1 Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.5.1 Start-Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.6 OPERATIONAL CHECKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.7 TRANSPORTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.7.1 Safety Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
6.7.2 Brake Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
6.7.3 Tractor Towing Size Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.0 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1 LOADING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2 NO ROOF IMPLEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
7.3 UNLOADING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.4 UNHOOKING THE TRACTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.5 REAR DISCHARGE DOOR GATE DELAY (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . . . . 30
8.0 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
8.1 LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.2 ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
8.2.1 Main Apron Cross Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8.3 STORING THE FORAGE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Meyer Manufacturing Corporation - 8 - PB-RT-REAR
8.4 RETURNING THE FORAGE BOX TO SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
9.0 PARTS REPAIR AND REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
9.1 REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
MAIN FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
FRONT ENCLOSURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
REAR GATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
ROOF ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
MAIN APRON DRIVE SYSREM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
MAIN APRON GEARBOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
HYDRAULIC SYSTEM
(PRIOR TO SN 17R1221, EXCLUDING SN17R1214) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
HYDRAULIC SYSTEM
(SN 17R1221 & LATER, INCLUDING SN17R1214) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
HIGHWAY LIGHT PACKAGE KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
STEEL STRINGER TIE DOWN KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
10.0 OPTIONAL EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
REAR GATE DELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
SIDE HOOD DEFLECTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
11.0 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
MAINTENANCE RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

1-800-325-9103
PB-RT-REAR - 9 - www.meyermfg.com
4.0 MANUFACTURER’S WARRANTY
MEYER RT FORAGE BOX
2/2015
I. The "Owner's Registration Form" must be completed in full and promptly returned to Meyer Mfg. Corp. for this
warranty to become both valid and effective. All warranties on new Meyer forage boxes shall apply only to the
original retail customer from an authorized Meyer Mfg. Corp. dealership.
II. This warranty shall not apply to any Meyer forage box which has been subjected to misuse, negligence, alteration,
accident, incorrect operating procedures, has been used for an application not designed for or pre-authorized by
Meyer in writing, has had the serial numbers altered, or which shall have been repaired with parts other than those
obtained through Meyer Mfg. Corp. Meyer is not responsible for the following: Depreciation or damage caused by
normal wear, lack of reasonable and proper maintenance, failure to follow the operator's manual recommendations
or normal maintenance parts and service. Meyer is not responsible for rental of replacement equipment during
warranty repairs, damage to a power unit (including but not limited to a truck or tractor), loss of earnings due to
equipment down time, or damage to equipment while in transit to or from the factory or dealer.
III. Meyer Mfg. Corp. warrants new Meyer forage box to be free from defects in material and workmanship under
recommended use and maintenance service, as stated in the "Owner / Operator's Manual & Parts Book", as
follows:
A. Meyer Mfg. Corp. will repair or replace F.O.B. Dorchester, WI, as Meyer Mfg. Corp. elects, any part of a
new Meyer Forage Box which is defective in material or workmanship:
i. Without charge for either parts or labor during the first (1) year from purchase date to the
original retail customer.
ii. Without charge for parts only during the second (2) year from purchase date to the original
retail customer.
IV. COMMERCIAL USE: Coverage as in paragraph III.A.i. ONLY, except warranty coverage is for (90) days for parts and
labor to the original commercial retail customer.
V. Repairs eligible for labor warranty must be made by Meyer Mfg. Corp. or an authorized Meyer dealership. The original
retail customer is responsible for the transportation of the forage box to the dealership for warranty service or for any
service call expenses.
VI. Except as stated above, Meyer Mfg. Corp. shall not be liable for injuries or damages of any kind or nature, direct,
consequential, or contingent, to persons or property. This warranty does not extend to loss of crop or for any other
reasons.
VII. No person is authorized to give any warranties or to assume any other obligation on Meyer Mfg. Corp.'s behalf unless
made or assumed in writing by Meyer Mfg. Corp. This warranty is the sole and exclusive warranty which is applicable
in connection with the manufacture and sale of this product and Meyer Mfg. Corp's responsibility is limited accordingly.
VIII. Tires, optional scales and tarps fall under the original manufacturer's warranty.

Meyer Manufacturing Corporation - 10 - PB-RT-REAR

1-800-325-9103
PB-RT-REAR - 11 - www.meyermfg.com
5.0 SAFETY
The Meyer Forage Box is manufactured with operator safety in mind. Located on the forage box are various safety signs
to aid in operation and warn of hazardous areas. Pay close attention to all safety signs on the forage box.
Carefully follow the operating and maintenance instructions in this manual and all applicable safety laws. Failure to follow
all safety procedures may result in serious injury or death.
Before attempting to operate this forage box, read and study the following safety information. In addition, make
sure that every individual who operates or works with the forage box, whether family member or employee, is
familiar with these safety precautions.
Meyer Mfg. Corp. provides guards for exposed moving parts for the operator’s protection; however, some areas
cannot be guarded or shielded in order to assure proper operation. The operator’s manual and safety signs on
the forage box itself warn you of hazards and must be read and observed closely!
Danger, Warning, Caution, and instructional decals and plates are placed on the equipment to protect anyone working on
or around this machine, as well as the components of the machine. All personnel operating or maintaining this equipment
must familiarize themselves with all Danger, Warning, Caution, and instructional decals and plates.
This symbol is used to call attention to instructions
concerning personal safety. Be sure to observe and
follow these instructions. Take time to be careful!
The signal word DANGER on the machine and in the manual identifies
a hazardous situation which, if not avoided, WILL result in death or
serious injury.
The signal word WARNING on the machine and in the manual
indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
The signal word CAUTION on the machine and in the manual indicates
a potentially hazardous situation which, if not avoided, MAY result in
minor or moderate injury. It may also be used to alert against unsafe
practices.
This notice identifies procedures which must be followed to avoid
damage to the machine.

Meyer Manufacturing Corporation - 12 - PB-RT-REAR
5.1 SAFETY PRECAUTIONS
• DO NOT allow anyone to operate, service, inspect or otherwise handle this forage box until all operators have read
and understood all of the instructional materials in this Operator’s And Parts Manual and have been properly trained
in its intended usage.
• For an operator to be qualified, he or she must not use drugs or alcohol which impair alertness or coordination while
working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely
operate a machine and the equipment.
• Make sure all personnel can READ and UNDERSTAND all safety signs.
• DO NOT allow minors (children) or inexperienced persons to operate this forage box.
• DO NOT operate until all shields and guards are in place and securely fastened.
• DO NOT adjust, clean, lubricate, or reset the emergency stop while the forage box is in motion.
• Inspect when first delivered and regularly thereafter; that all connections and bolts are tight and secure before
operating.
• Know how to stop operation of the forage box before starting it!
• Make certain everyone is clear of the forage box before applying power.
• Make certain everyone stays clear of the discharge opening while operating.
• Keep hands, feet and clothing away from moving parts. Loose or floppy clothing should not be worn by the operator.
• Observe all applicable traffic laws when transporting on public roadways (where legal to do so). Check local laws for
all highway lighting and marking requirements.
• Shut off and lock out power before adjusting, servicing, maintaining or clearing an obstruction from this machine. (See
5.3 SHUTOFF & LOCKOUT POWER on page 18.)
• Always enter curves or drive up or down hills at a low speed and at a gradual steering angle.
• Never allow riders on either tractor / truck or equipment.
• Keep tractor / truck in a lower gear at all times when traveling down steep grades.
• Maintain proper brake settings at all times (if equipped).
• DO NOT step up on any part of the forage box at any time.
• Replace damaged or missing shields.
• Stay away from overhead power lines. Electrocution can occur without direct contact.
• Use only properly rated undercarriage and tires.
All individuals who will operate this Forage Box must read
and completely understand this Operator’s And Parts
Manual. Operator must have instructions before operating
the machine. Untrained operators can cause injury or death.

1-800-325-9103
PB-RT-REAR - 13 - www.meyermfg.com
Safety Precautions For Tractor Towed Units:
• Do not exceed 20 mph (32 kph). Reduce speed on rough roads and surfaces.
• Always install a SMV emblem on pull-type equipment when transporting on roadways and keep clean and bright.
• Always yield to oncoming traffic in all situations and move to the side of the road so any following traffic may pass.
Safety Precautions For Truck Mounted Units:
• Comply with state and local laws governing highway safety and movement of machinery on roadways.
Safety Precautions For Hydraulic System:
• Check hydraulic tubes, hoses and fittings for damage and leakage. Never use hands to check for leaks. Hydraulic
tubes and hoses must be properly routed and have adequate support and secure clamps. Tighten or replace any parts
that show leakage.
• Always clean fluid spills. Do not use gasoline or diesel fuel for cleaning parts. Use commercial nonflammable solvents.

Meyer Manufacturing Corporation - 14 - PB-RT-REAR
5.2 SAFETY SIGNS
Read all safety signs on the Forage Box and in this manual. Keep all
safety signs clean and replace any damaged or missing safety signs
before operating the equipment. Do Not remove any safety signs.
Safety signs are for operator protection and information.
CAUTION
46-0001-62 1
Use Flashing Warning
Lights when transporting
on ALL highways (public
roadways) at ALL times.
EXCEPT
WHEN PROHIBITED BY LAW!
(Check w/local law enforcement)
By all State and Federal laws, implement lights
do not replace the SMV (Slow-Moving Vehicle)
Identification Emblem. All towed agricultural
vehicles must display SMV Emblems when
traveling LESS than 20 mph (32 kph).
1
4
5
6
3
2
1
PART NO. 46-0001-35
PART NO. 46-8500-7
2
3
4
PART NO. 46-0001-22
FRONT OF FORAGE BOX
PART NO. 46-0001-62 (Pull Type Only)
5
PART NO. 46-0001-4
PART NO. 46-9100-4
6

1-800-325-9103
PB-RT-REAR - 15 - www.meyermfg.com
21
REAR OF FORAGE BOX
1
2
PART NO. 46-0011
PART NO. 46-9100-4

Meyer Manufacturing Corporation - 16 - PB-RT-REAR
1
2
2
1
PART NO. 46-0001-205
1
PART NO. 46-9100-4
2
LEFT SIDE OF FORAGE BOX

1-800-325-9103
PB-RT-REAR - 17 - www.meyermfg.com
RIGHT SIDE OF FORAGE BOX
3
2
3
1
1
2
1
PART NO. 46-9100-4
PART NO. 46-0001-205
2
PART NO. 46-8500-7

Meyer Manufacturing Corporation - 18 - PB-RT-REAR
5.3 SHUTOFF & LOCKOUT POWER
Any individual that will be adjusting, servicing, maintaining, or clearing an obstruction from this machine needs
to ensure that this machine stays safely “OFF” until the adjustment, service, or maintenance has been
completed, or when the obstruction has been cleared, and that all guards, shields, and covers have been
restored to their original position. The safety of all individuals working on or around this machine, including
family members, are affected. The following procedure will be referred to throughout this manual, so be familiar
with the following steps.
5.3.1 Shutoff & Lockout Power Recommendations
1. Think, Plan and Check
a. Think through the entire procedure and identify all the steps that are required.
b. Plan what personnel will be involved, what needs to be shut down, what guards / shields need to be removed, and
how the equipment will be restarted.
c. Check the machine over to verify all power sources and stored energy have been identified including engines,
hydraulic and pneumatic systems, springs and accumulators, and suspended loads.
2. Communicate - Let everyone involved, including those working on or around this machine, that work is being done
which involves keeping this machine safely “OFF”.
3. Power Sources
a. LOCKOUT - Shut off engines and take the key, or physically lock the start/on switch or control. Disconnect any
power sources which are meant to be disconnected (i.e. electrical and hydraulic of pull-type units).
b. TAGOUT - Place a tag on the machine noting the reason for the power source being tagged out and what work is
being done. This is particularly important if the power source is not within your sight and/or will need to be isolated
for a longer period of time.
4. Stored Energy - Neutralize all stored energy from its power source. Ensure that this machine is level, set the parking
brake, and chock the wheels. Disconnect electricity, block moveable parts, release or block spring energy, release
pressure from hydraulic and pneumatic lines, and lower suspended parts to a resting position.
5. Test - Do a complete test and personally double check all of the above steps to verify that all of the power sources are
actually disconnected and locked out.
6. Restore Power - When the work has been completed, follow the same basic procedures, ensuring that all individuals
working on or around this machine are safely clear of the machine before locks and tags are removed and power is
restored.
It is important that everyone who works on this equipment is properly
trained to help ensure that they are familiar with this procedure and
that they follow the steps outlined above. This manual will remind you
when to Shutoff & Lockout Power.

1-800-325-9103
PB-RT-REAR - 19 - www.meyermfg.com
6.0 PRE-OPERATION
6.1 STATIC INSPECTION
Before operating the forage box for the first time and each time thereafter, check the following items:
1. Check that all safety signs are in good and legible condition.
2. Inspect the forage box for proper adjustments. (See 8.2 ADJUSTMENTS on page 33.)
3. Lubricate the equipment. (See 8.1 LUBRICATION on page 31.)
4. Make sure that all guards and shields are in place, secured and functioning as designed.
5. Check condition of all hydraulic components for leaks. Repair or replace as required.
6. Check the gear box oil level. (See 8.1 LUBRICATION).
7. Inspect the condition of safety lighting. Repair or replace as required.
8. Check to see that no obstructions are present in the forage box. Be sure that there are no tools laying on or in the
forage box.
9. Verify that all electrical and hydraulic connections are tight and secure before operating.
10. Verify that all electrical and hydraulic connections are tight and secure before operating.
11. Watch for any worn or cracked welds. If found, have qualified personnel repair immediately, replacement is necessary.
12. Check all bearings for wear. Replace as needed.
DO NOT allow anyone to operate, service, inspect or otherwise
handle this forage box until all operators have read and understand
all of the instructional materials in this Operator’s And Parts Manual
and have been properly trained in its intended usage.
Verify that the forage box is securely fastened to the tractor / truck.
Verify that all electrical / hydraulic connections and bolts / hardware
are tight and securely fastened before operating the forage box.
Always keep all shields and guards in place and securely fastened.
Keep hands, feet and clothing away.
Wear safety glasses to prevent eye injury when any of the following
conditions exist:
• When fluids are under pressure.
• Flying debris or loose material is present.
• Tools are being used.
Hydraulic fluid escaping under pressure can have sufficient force to
cause injury. Keep all hoses and connections in good serviceable
condition. Failure to heed could result in serious personal injury or
death.

Meyer Manufacturing Corporation - 20 - PB-RT-REAR
6.2 LIGHT HOOK-UP
Truck Mounted Models: A 4 pin electrical socket is provided to connect the electrical control plug from your truck. This
will operate signal, tail, clearance and brake lights.
NOTE: Depending on make and model of the truck, it may be necessary to install a light converter. (Meyer part
#56-0028). The converter allows signal lights and brake lights to operate according to DOT Lighting
Standards.
6.3 HYDRAULIC HOOK-UP
Truck & Tractor hydraulic system should be capable of 25 GPM @ 3000 PSI peak pressure. If truck mounted, install
a relief valve set at 3000 PSI. Engine RPM should be 1500 RPM. Set up hydraulic system on Truck mounted units
using a 35-40 gallon reservoir filled with a minimum of a 30 gallons of hydraulic oil. 3/4” NPT for front and rear
hydraulic hookup.
Call the factory for further information.
NOTE: The PTO horsepower and / or hydraulic requirements may not reflect adequate tractor size for towing the
machine. Refer to Tractor Weight Requirements 6.7.3 for these recommendations and transporting
section for additional tractor and towing requirements.
6.4 HITCHING TO TRACTOR
Move to the operator’s position, start the engine and release the parking brake.
Move the tractor in front of the forage box. Slowly move the tractor backwards towards the forage box and align the
drawbar with the implement’s hitch.
NOTE: Lower or raise the forage box jack to properly align the drawbar and hitch.
Fasten the forage box hitch to the tractor drawbar with a properly sized hitch pin with safety retainer. (Reference ANSI/
ASABE AD6489-3 Agricultural vehicles - Mechanical connections between towed and towing vehicles - Part 3: Tractor
drawbar.) (See your Trailer / Chassis / Wagon manual for further details.)
Before operation and after hitching the tractor to the implement, connect the hydraulic hoses and light cord to the tractor.
Connect any optional equipment as needed.
Do not exceed maximum PSI or a motor failure could result.
Do not allow anyone to stand between the tongue or hitch and the
tractor when backing up to the Forage Box.
