Operating Instructions
Chopper Trailer
Giga-Trailer 1840 / 1840 DO
Giga-Trailer 2246 / 2246 DO
Ausgabe 540 00 903/3
12/05
B. Strautmann & Söhne GmbH & Co.
•
Landmaschinenfabrik • Bielefelder Straße 53 • D-49196 Bad Laer
Tel.: [phone] • Fax: [phone] • E-Mail: [email protected] • www.strautmann.com
Operating Instructions
09
/06

EC – Declaration of Conformity
According to EC Directive 89/392/EWG
We, the company B. Strautmann & Söhne GmbH & Co. KG
Bielefelder Str. 53
D-49196 Bad Laer
Declare in sole responsibility that the product
Giga - Trailer 1840 / 1840 DO
Giga - Trailer 2246 / 2246 DO
to which this declaration refers, fulfi ls the safety standards and respective safety and health
regulations of EC Directive 89/392/EWG at the time of issue.
To comply with the safety and health requirements of the named EC Directive, the following
standard(s) and/or technical specifi cations(s) was(were) used as a reference.
EN 292
Bad Laer, September
22
nd
2006
Dipl. Kfm. W. Strautmann R. Kleine – Niesse
Managing Director Senior Manager, Construction
Vehicle Technology
Dr. K.-P. Strautmann D. Werries
Managing Director Senior Manager,
Quality Control

1. Foreword ......................................................................................................... 2
2. Proper Use ....................................................................................................... 3
3. Accident Prevention Information ......................................................................... 4
3.1 General and Hazard warning Pictograms ........................................................... 4
3.2 Linkage and Traction Mode ............................................................................... 7
3.3 P.T.O. Shaft Operation ...................................................................................... 9
3.4 Wheels, Tyres, Brakes ....................................................................................... 10
3.5 Hydraulics ....................................................................................................... 10
3.6 Maintenance - General ..................................................................................... 11
3.7 Road Traffic Regulations .................................................................................... 11
4. Technical Data ................................................................................................. 12
5. Tyre Pressure Chart ........................................................................................... 13
6. Hydraulic System .............................................................................................. 14
6.1 Regulating the floor conveyor ............................................................................. 14
6.2 Electro-hydraulics (special feature) ...................................................................... 15
6.3 LS Connection .................................................................................................. 15
7. Operation ....................................................................................................... 16
7.1 Electric Control Box (standard) ........................................................................... 16
7.2 Electric Control Box (special feature) ................................................................... 17
8. Technical Data and Notes on practical Usage ...................................................... 18
9. Hitching to Tractor ............................................................................................ 19
9.1 Universal Drive Shaft Adjustment ........................................................................ 20
9.2 Forced Steering ................................................................................................ 21
10. Practical Usage (loading/unloading) .................................................................. 23
11. Maintenance and Care ..................................................................................... 23
11.1 Floor Conveyor Chains ...................................................................................... 23
11.2 Shredder drum – drive chains ............................................................................ 23
11.3 Hydraulic Oil Filter (for electro-hydr.) ................................................................... 24
11.4 Axles .............................................................................................................. 24
11.5 Tyres ............................................................................................................... 25
11.6 Torques for metric screws ................................................................................... 26
12. Compressed Air Brake System ............................................................................ 27
12.1 Coupling to Tractor ........................................................................................... 27
12.2 Brake System Components ................................................................................. 28
12.3 Brake Plan ....................................................................................................... 29
13. Lubrication ....................................................................................................... 30
13.1 Lubrication Chart ............................................................................................. 31
14. Circuit Diagrams .............................................................................................. 32
14.1 Hydraulic Circuit Diagram ................................................................................. 32
14.2 Electro-hydraulic Circuit Diagram ........................................................................ 33
14.3 Wiring Diagram (standard) ................................................................................ 34
14.4 Wiring Diagram (special feature) ....................................................................... 35
15. List of Malfunctions – Hydraulics ......................................................................... 36
16. List of Malfunctions – Electric .............................................................................. 37
Contents Page

OPERATING INSTRUCTIONS
Page 2 Giga-Trailer
1. Foreword
Dear Customer
We thank you for the confidence you have shown in us.
You have purchased a top-quality technical product which will enable you to improve your operating results.
Strautmann’s many years of experience guarantee you optimum performance, quality and ease of operation.
Safety
Before putting the machine into operation, please read these operating instructions and observe the regulations
and advice on safety.
Throughout these operating instructions all points which relate to your
safety have been marked by a warning triangle. Please pass all safety
instructions on to other users.
The hazard-warning and safety-advice signs provide important information on safe operation. Observing them is
in the interests of your own safety.
Due to the many different types of machines and special features available, not every variation described here is
to be found on your machine.
Should you have any further questions, please do not hesitate to contact your Strautmann representative or the
factory.
Machine References: This information should always be to hand. Please quote when ordering
spare parts.
Therefore please copy down the machine ref. from the vehicle ident. plate
of your new trailer into the space provided below:
Vehicle – ID.-No: Model Year of Manufacture

OPERATING INSTRUCTIONS
Giga-Trailer Page 3
2. Proper Use
The Strautmann chopper trailer has been designed for exclusive use in agricultural work. Its intended function is
the transport and spreading of chopped forage material.
Any use beyond this will be considered as improper.
The manufacturer will not be held responsible for any damage
resulting thereof. The user will solely bear the risk.
Adherence to all operating, servicing and maintenance conditions specified by the manufacturer will also be part
of ‘proper use’.
The vehicle may only be operated, maintained and serviced by people who are acquainted with the said vehicle
and its equipment and have been instructed as to the dangers involved.
Any unauthorized modifications carried out on the machine will invalidate the product liability and the
manufacturer’s liability for any damage resulting thereof.
Any costs arising from modifications or malfunctions due to peculiarities of the tractor or carelessness on the part
of the operator will not borne by the Strautmann Company.
Only genuine Strautmann spare parts may be used!

OPERATING INSTRUCTIONS
Page 4 Giga-Trailer
3. Accident Prevention Information
For your safety and accident prevention
Most farming accidents are caused by non-observance of the simplest safety rules. Careful observance of the
following suggestions and rules helps prevent accidents from the very outset.
3.1 General and hazard warning pictograms
Fig. 1
Attention: Torn-off or unreadable signs or pictograms must be replaced immediately
by new ones.
Pictograms or signs can be procured from specialist stores or directly from Strautmann’s
spare-parts warehouse (Tel.:[phone])
on both sides
on both sides
on both sides
on both sides

OPERATING INSTRUCTIONS
Giga-Trailer Page 5
Please observe the general accident prevention regulations in addition to the infor-
mation given in these operating instructions; any other generally recognized safety,
industrial medicine and traffic regulations are to be complied with.
Familiarize yourself with all the equipment, actuating elements and their functions
before beginning work on the unit.
When you have already started work it will be too late!
The machine is designed for single-handed operation. The operator may only ope-
rate the machine and actuate its functions when there are no other persons in the
danger zone (please pay particular attention to children).
Foreign objects in the forage can be slung out during discharge by the spreader
drums.
All safety guards must be properly mounted at all times.
Never open or remove safety guards while the motor is running.
Do not enter the loading area while the P.T.O. shaft/hydraulic system is connected
and the motor is running.
870 07 101
870 07 119
870 07 116
870 07 117

OPERATING INSTRUCTIONS
Page 6 Giga-Trailer
Do not reach into the discharge opening while the P.T.O. shaft is connected and the
motor is running.
Never try to clear blockages while the motor is running.
Never take hold of the moving floor conveyor rails (risk of fingers/hand being crushed).
Before every machine start-up, put the hydraulic controls and electro-hydraulic switches to
zero position.
Before carrying out any work (e.g. maintenance and repairs) on the machine, switch off
the motor and remove the ignition key.
870 07 113
870 07 115
870 07 120

OPERATING INSTRUCTIONS
Giga-Trailer Page 7
3.2 Linkage and Traction Mode
Vehicle brake system:
The trailer can be equipped with various types of brake system (acc. to the relevant
national regulations).
a) Compressed air brake (two-line air brake system)
b) Hydraulically operated brake system
The tractor brake system must match the relevant trailer brake system.
Before starting up, make sure that all road safety and operating safety regulations
have been complied with and that the brake system and lighting function correctly.
Where compressed air brake systems are used, check that the brake power control is
correctly positioned. (see note 19.2)
Hitch the vehicle to the tractor in the prescribed manner. Be particularly careful during
hitching and unhitching!
Ensure that the tractor hitch has been approved to take the hitch eye fitted to the trailer.
If a ball hitch 80 is being used take particular care that the crop guard to ball clearan-
ce is adequate when driving on stacks.
To attain greater freedom of movement on the tractor-side “Scharmüller ball head
hitch”, use the shorter crop guard 1 (Scharmüller order no. 02481316).
Damaged or bent hitching equipment is a threat to safety and should not be used
again.
Before every start-up or drive make sure that there is no-one in the danger zone. Watch
out in particular for children.
When reversing make sure you have a good all-round view. You may need an additio-
nal person to guide you.
After hitching or unhitching is completed, adjust the support stand as required and
secure.
Before loading check that the back panel and/or inspection door is/are closed. Fold
up the inspection ladder.
Do not put down loaded vehicles onto supports.
Before unhitching make sure the support stand is in a stable position. Secure vehicle
against rolling (parking brake, chocks).
870 07 126

OPERATING INSTRUCTIONS
Page 8 Giga-Trailer
Independent braking must be prevented (lock pedals) on all runs with trailers.
Do not go between tractor and trailer while the engine is running.
Observe permitted axle loads, tongue loads and laden weights, in particular the maximum
tongue load which the trailer hitch can take on.
It is forbidden to go within the chute rotation range of the hydraulically swivelled back panel.
When maintenance and repair work is being carried out with the back panel open, the latter
must be secured by closing the stop cock.
Keep an eye on the reactions of your tractor on the road when the load is unevenly distributed
due to loading and auxiliary parts.
Always adapt your driving speed to the prevailing local conditions. When driving up and
down steep hills as well as across hills avoid sudden cornering.
Ensure adequate steering and braking performance.
Single and tandem axle vehicles with tongue load are in danger of tipping over if they have
been unevenly loaded, especially during hitching or in uncoupled condition. Ensure sufficient
tongue load!
Please take care during driving and unloading on the stack that the vehicle is kept stable
(danger of tipping over).
When driving over stacks with soft sides keep to the middle as the danger of tipping over is
particularly high. Take care to stay at a safe distance from anyone in the vicinity!
Lock the steering axle when driving across slopes and over stacks.
This is recommended for driving on public roads.
If the steering axle is not locked, cornering at high speeds is not permitted.
870 07 104
870 07 119
870 07 130

OPERATING INSTRUCTIONS
Giga-Trailer Page 9
3.3 P.T.O. Operation (only with discharge unit)
Observe the operating instructions of the drive shaft manufacturer.
Only use the drive shafts specified by the manufacturer.
Mount and dismount the drive shaft only when the engine has been switched off and the igniti-
on key removed.
Only use the drive shaft with the proper safety guard and in good condition and with the pro-
tective tubes secured against twisting.
Ensure sufficient tube overlapping of the drive shaft.
When cornering and with overrunning brake, keep to the permitted bending range and ensure
adequate drive shaft leeway.
Before switching on the P.T.O. shaft make sure that the selected speed and sense of rotation of
the tractor P.T.O. corresponds to the permitted speed and sense of rotation of the machine.
Before every drive shaft start-up check that the locking mechanisms have locked into place
properly.
Never switch on the drive shaft with the engine switched off.
If drive shafts with overload or free wheel clutch are used, these types of clutch must be
mounted on the trailer side.
After the P.T.O. shaft has been switched off, the unit driven by it can run on.
Stay out of the danger zone until all the equipment has come to a standstill.
870 07 131

OPERATING INSTRUCTIONS
Page 10 Giga-Trailer
3.4 Wheels, Tyres, Brakes
To ensure operation safety, wheels, tyres and brakes are subject to special checks.
Retighten wheel nuts after a short period of use and after every 50 hours of operation (see note 11.3)
Check air pressure regularly (see note 5)
Check tyres as well as wheels and brakes regularly for wear and tear. Check brake lines regularly for leaks and
good general condition.
Connect brake system properly before start-up.
Adjustments and repairs to the brake system are only to be carried out by authorized brake service centres or
qualified personnel.
Fitting tyres and wheels requires specialist knowledge and equipment.
If you wish to use a different tyre size, please consult the vehicle manufacturer first.
3.5 Hydraulics
Check the hydraulic lines and hose as well as fittings and parts for damage and leaks regularly. Hydraulic hoses
should be replaced every 6 years. Only use spare parts that meet the manufacturer’s requirements.
Ensure that the hydraulic hoses never bend or rub.
When connecting to tractor, make sure the hydraulic system is depressurised both on the tractor and machine side
and make sure the hydraulic connections do not get mixed up (accident risk due to reversed functions). Keep the
hydraulic couplings clean.
Attention: The hydraulic system is under high pressure. Before carrying out any
maintenance or repair work, always depressurise the system.
Liquids (hydraulic oil) escaping under pressure can penetrate the skin causing serious injuries
and infections.
Never try to block leaks with your fingers.
If injuries occur, consult a doctor or medical services immediately.
870 07 123

OPERATING INSTRUCTIONS
Giga-Trailer Page 11
3.6 Maintenance – General
Any repair, maintenance, cleaning and conversion work and the clearing of malfunc-
tions is only to be carried out with the drive system switched off, the hydraulic system
depressurised, the electrical system de-energised and the tractor engine stopped!
Remove the ignition key!
Check regularly that nuts and bolts have not loosened and retighten if necessary.
Observe and maintain the correct torque settings!
Check and mount safety guards!
Dispose of oils, greases and filters according to regulations.
Ensure adequate, safe support and stability.
Attention!
If work is being carried out under the hydraulic back panel, the latter must additionally
be protected by the stopcock on the vehicle front panel.
3.7 Road Traffic Regulations for Germany
In the case of exported vehicles, the road traffic regulations in force in the relevant country shall apply.
1. Registration (§ 18)
Trailers running at a speed of over 25 km/h are always subject to registration.
2. TÜV – Re-examination (§ 29)
Trailers with an admissible maximum speed of 40 km/h are subject to this examination by the TÜV every 24
months.
Trailers with an admissible maximum speed of over 40 km/h are subject to this examination every 12 months.
Trailers with an admissible gross weight of over 10 tons must also undergo a safety test every 6 months or, in the
case of vehicles on the road for the first time, starting with the initial test after 24 months.
3. Brakes (§ 41)
The chopper trailer is fitted ex-works with a properly functioning brake system (two-line air brake system). Please
have any readjustment or initial adjustment of brakes done by a renowned brake service centre
870 07 120

OPERATING INSTRUCTIONS
Page 12 Giga-Trailer
4. Registration Number Plate (§ 18)
Trailers over 25 km/h require their own registration number plate.
5. Obligatory Insurance (§ 29)
Trailers over 25 km/h require a third-party insurance.
6. Driving Licence (§ 4 and 5 or driving permit – ordinance – FeV)
Lof vehicles and vehicle combinations up to a maximum speed of 60 km/h may be driven with a class T driving
license. However over 40 km/h a minimum age of 18 years is required.
(If the vehicle is to be driven with a licence class L, a sign showing 25 km/h (§ 58, STVZO traffic regulations)
must be displayed on the rear of the vehicle.
4. Technical Data
fig. 2

OPERATING INSTRUCTIONS
Giga-Trailer Page 13
5. Tyre Pressure Chart
up to 40 km/h Axle load
2,55 m 16 to 18 to max.
600/50 - 22.5 12PR bar 2,0 - 2,7
600/55 - 22.5 12PR bar 1,5 1,8 2,7
700/45 - 22.5 12PR bar 1,5 1,7 2,3
700/50 - 22.5 12PR bar 1,5 1,5 2,5
600/55 - 26.5 12PR bar 1,5 1,7 2,7
600/55 - R 26.5 165D bar 1,5 1,8 4,0
650/55 - R 26,5 175A8 bar 1,5 1,9 4,8
680/55 - R 26,5 165D bar 1,4 1,7 3,2
700/50 - 26.5 12PR bar 1,5 1,5 2,5
710/45 - 26.5 169A8 bar 1,5 1,8 2,4
710/50 - R 26.5 170D bar 1,3 1,5 4,0
750/45 - R 26.5 178A8 bar 1,3 1,5 4,8
800/40 - R 26.5 172D bar 1,5 1,8 4,0 1 bar = 14,5 psi
Machine Type 1840 1840 DO 2246 2246 DO
Perm.veh.gross weight, acc. to tyres used* to 18 / 20 18 / 20 18 / 20 18 / 20
perm.axle load, acc. to tyres used* to 16 / 18 16 / 18 16 / 18 16 / 18
perm.tongue load kg 2000 2000 2000 2000
unladen weight kg 6700 7100 7800 8200
A = overall length m 8,58 8,58 9,64 9,64
B = overall width m 2,63 - 2,76 2,63 - 2,76 2,65 - 2,80 2,65 - 2,80
C = extension width m 2,55 2,55 2,55 2,55
D = overall height m 3,95 3,95 4,00 4,00
E = loading area length m 6,76 6,76 7,71 7,71
F = loading area width (conical) m 2,34 - 2,38 2,34 - 2,38 2,34 - 2,38 2,34 - 2,38
G = loading area height m 2,32 2,32 2,32 2,32
H = track width m 2,03 2,03 2,05 2,05
I = Axle spacing m 1,50 1,50 1,60 1,60
J = drawbar height top hitch m 1,00 1,00 1,00 1,00
K = drawbar height bottom hitch m 0,55 0,55 0,55 0,55
load capacity m³ 37,0 37,0 42,5 42,5
max. hydraulic pressure bar 210 210 210 210
oil flow rate l/min 40 - 70 40 - 70 40 - 70 40 - 70
min. power requirement KW (PS) 96 / 130 96 / 130 110 / 150 110 / 150
min. weight of towing vehicle kg 5000 5000 5500 5500
P.T.O.shaft speed (for discharge unit) rpm - 1000 - 1000
voltage supply Volt 12 VDC 12 VDC 12 VDC 12 VDC
noise level dBA 79,3 82,2 79,3 82,2
*If drawbar bottom hitch and Scharmüller ball hitch eye or Scharmüller ring hitch eye are used, the tongue load and the
overall gross weight will increase in each case by 2000 kg. This does not apply to flanged Scharmüller ring or ball hitch
couplings and only up to 40 km/h.
*see typeplate
Diagrams, technical data and weights may be altered from time to time due to technical advancement and are therefore not
binding for every delivery
If the vehicle width exceeds 2.55 m.
due to wide tyres, the German traffic
(StVZO) regulations permit a max.
1.5 bar tyre inner pressure.

OPERATING INSTRUCTIONS
Page 14 Giga-Trailer
6. Hydraulic System
Every hydraulic function is directly connected with and controlled from the tractor.
The tractor requires a double- or single-acting control valve with free return (red = supply; blue = return) for
the floor conveyor drive.
A free return direct to the hydraulic oil tank is preferable as it involves less tailback pressure.
A double-acting control valve on the tractor is required for each of the following functions: Tailgate, steering
axle, hydr.upper front panel or hydr. stand. The control valve requires a floating position for the steering
axle.
As a special feature, an electro-hydraulic remote control is available for controlling. The hydraulic block is
constructed in modular design so that optional equipment can be fitted at a later date by simply extending
the hydraulic block. The flow regulator for the neutral circuit, the pressure relief valve and the floor conveyor
valve are to be found in the pump inlet plate. Speed adjustment for consumers other than the floor conveyor
is regulated from the adjusting screw on the intermediate plate.

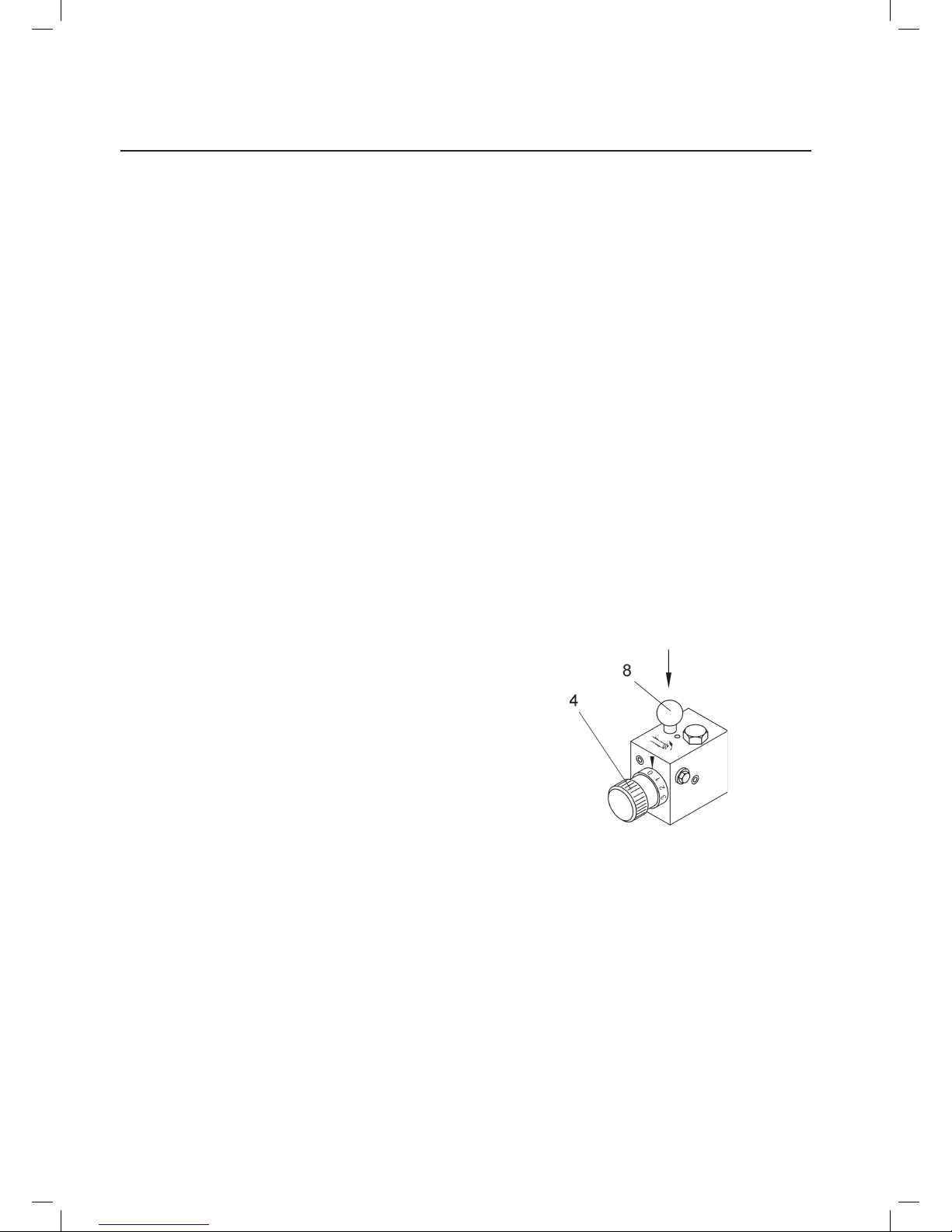

6.1 Regulating the floor conveyor
All Giga Trailers (with or without discharge unit) are equipped
with hydraulic floor conveyor drive. The floor conveyor speed
can be variably adjusted infinitely by turning knob 4 fig.3
(on the left, vehicle rear).
The floor conveyor return can be actuated by pressing button 8.
Fig. 3
Attention: Only reverse floor conveyor briefly
The fast run floor conveyor speed (special feature) can be switched
on from the toggle switch on the control box.

OPERATING INSTRUCTIONS
Giga-Trailer Page 15
6.2 Electro-hydraulics (special feature)
The hydraulic system can be driven as an open system with max. 80 l. /min. The tractor requires a double- and a
single-acting control valve with free return (red=supply;blue( thick hose)=return for the hydraulic connection.
A free return directly to the hydraulic oil tank is preferable as it involves less tailback pressure. The flow regulator
for the neutral circuit and the speed adjuster for the small consumers such as pick-up, the articulated drawbar,
tailgate etc. are to be found in the pump inlet plate. The speed adjustment for consumers other than floor conveyor
and cross conveyor is regulated from the adjusting screw (1). The flow rate can be set from 1 – 16 l. / minute.
If the tractor control valve is actuated, oil flows through the
hydraulic system.
(Attention: Always ensure correct flow direction!)
The tractor control valve lever should always be locked in
place so that it does not have to be held onto constantly.
The functions required can now be selected directly from
the control box using the toggle switches.
Attention: Before depressurising the hydraulic system again
via the tractor control valve, the toggle switches on the
electrical control box must be put to zero position.
High accident risk!
Fig.3.1
6.3 LS – Connection
The self-loading trailer hydraulic system can be regulated with the tractor LS system. (The hydraulic pump’s pres-
sure and delivery rates are adjusted to current need).
For this purpose the LS connection on the tractor is connected up to the LS connection (2) fig. 3.1 on the self-loa-
ding trailer control valve.
The supply is connected directly to the hydraulic pump.(Not via the tractor control valve).
Attention: Never use the pressure connection without the LS connection.
The pressure regulator must be blocked by screwing in the bolt (3) fig. 3.1 as far as it will go. The regulating
current cut-off must be set to open system.
Attention: If connecting via the tractor control valve, the bolt (3) will have to be screwed out again as far as it will
go.
Tractor Trailer

OPERATING INSTRUCTIONS
Page 16 Giga-Trailer
7.1 Electric Control Box (standard)
1. Control: on
2. Control: off
3. Check light: control on
4. Floor conveyor speed: level I
5. Floor conveyor speed: level II
6. Work lights: on (not permitted
on public roads)
7. Work lights: off
8. Check light: tailgate open
9. Check light: work lights: on
Fig. 4
7. Operation
The Strautmann “Giga Trailer” chopper is equipped with an electric control box.
In this electric control box, which is mounted in full view of the driver, you will find the switches and check
lights (acc. to model) which the tractor driver has to operate and/or control.
Wherever necessary the toggle switches are fitted with a ‘locked’ position so that they do not have to be
continually held.

OPERATING INSTRUCTIONS
Giga-Trailer Page 17
7.2 Electric Control Box (optional equipment)
Fig. 5
1. Control: on 12. Hydr. stand: down
2. Control: off 13. Hydr. stand: up
3. Check light: control on 14. Front panel grid: open
4. Floor conv. speed: level I 15. Front panel grid: closed
5. Floor conv. speed: level II 16. Work lights: on
6. Floor conveyor: on (not permitted on public roads)
7. Floor conveyor: off 17. Work lights: off
8. Tailgate: open 18. Check light: tailgate open
9. Tailgate: closed 19. Check light: work lights on
10. Steering axle: locked 20. Check light: speed control
11. Steering axle: free
In case of power failure, it is possible to actuate the control
valve by pressing the starter (7) on the solenoid.

OPERATING INSTRUCTIONS
Page 18 Giga-Trailer
8. Technical Data and Notes on practical Usage
1. The system can only be operated at 12 volts
2. Connecting terminal 15 / 30 – plus; 31 – minus
3. Hydraulic system maximum flow rate 70 l/min.
4. Hydraulic system maximum pressure 210 bar
5. Supply (marked red)
6. Return (marked blue)
7. Tailback pressure at tractor must not exceed 10 bar
8. Hydraulic block torque setting 25 – 28 Nm.
9. Every unit must possess an emergency hand-operated actuator. If the electrical system breaks down,
the magnets can be actuated with a sharp object.
10. When hitching, make sure that the hydraulic couplings are perfectly clean. If dirt gets into the hydraulic
system, malfunctioning is likely to occur.
11. The hydraulic couplings on the trailer must match those of the self-loading or discharge trailer. On
certain types of trailer, for example, John Deere, Ford or Fiat, the hydraulic couplings are fitted with
a ball. If this kind of coupling is used, tailback pressure or complete closure of the coupling can occur.
12. Protect the control box against humidity.
13. When driving for longer periods on the road, it is advisable to switch off the tractor hydraulic system.
This prevents the system from heating up unnecessarily.
14. During long downtimes the self-loading and discharge trailer electrical systems should be switched
off as otherwise the consumers connected up to it will cause the tractor battery to discharge completely.
