PS-2040
Network Power Supply
Installation Instructions
Mechanical Installation for the PS-2040 Power Supply
The PS-2040 Power Supply is mounted into the Network Fire Alarm panel backbox near the bottom. Remove the
transformer cover (held in place by two #8 hex nuts) from the backbox, then mount the power supply using four #8-32
nuts to secure it to the backbox. Replace the transformer cover. Refer to figure below for location of the PS-2040.
16.5”16.5”
25”25”
33.5”33.5”
Enclosure
QMB-5000N Audio Card Cage
Main Chassis with
provision to mount FNC-2000
Network Controller Module and
2 adder modules/loop controllers
PS-2040 Power Supply and space
to mount 6 adder modules/
loop controllers
Batteries (maximum 40 AH)
Metal plate with ANC-5000 and
TNC-5000 modules aboard fit
into position 1 of the QMB-
5000N Audio Card Cage
QAA Amplifiers fit
into slot positions 2,
3, 4 and 5.

LT-6015 Rev. 1 May 2012 Page 2 of 2

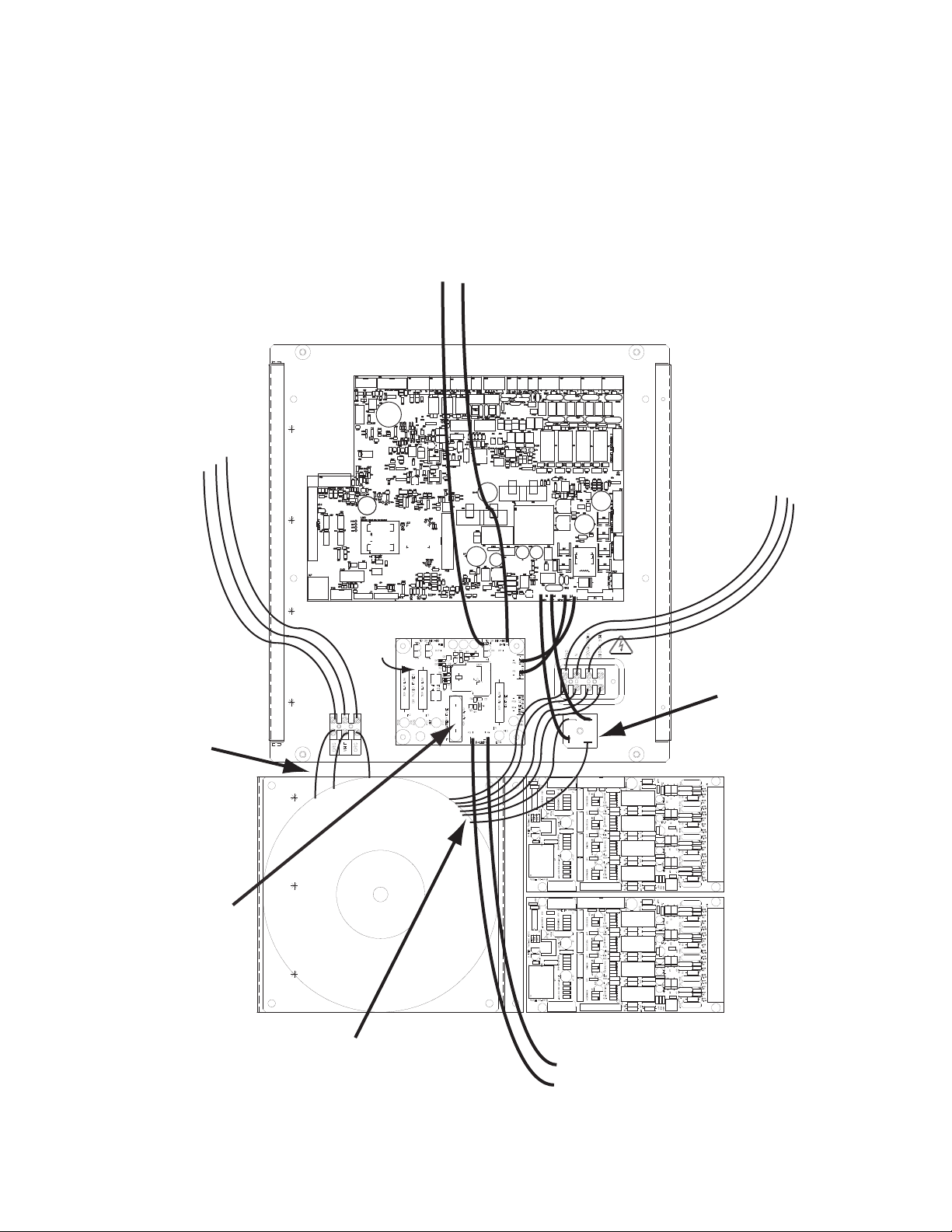

Wiring
Connect the white and orange wires to the terminal block above the transformer labelled for the orientation of the wires.
The two brown wires from the transformer are connected to the bottom right connector and the top left connector of the
bridge rectifier.
The four power wires from the transformer are connected to the AC terminals (bottom side). The green wire is connnected
to the GND terminal, the black wire is neutral and connected to the N terminal, the red wire is 120V AC and the yellow wire
is 240V AC. Once wiring is complete, place metal cover over transformer and fasten with two #8 hex nuts.
Orange-White-Orange
Wires connected from
the transformer
to this terminal block
Connected to Batteries
Battery Fuse F1
32V, 40A MAX
Fast-acting
Battery
Disconnect
Board
AC Power IN
G N 120VAC or 240VAC
Wire as per label.
Orange-White-Orange
Wires from the Amplier
backplane (soldered on
board) are wired
to this terminal
block
Red (positive) and Black (negative) wires
from the Amplier backplane (soldered
on board) are connected to lug terminals
on the Battery Disconnect board
Two brown wires
connected from the
transformer to the
bridge rectier.
Green (GND), black (N), red (120V AC)
and yellow (240V AC) wires connected
from the transformer to the AC Input
Terminals.
-
-
-
-
-
+
+
+
+
+
