MGE UPS Systems Pulsar EX7 User manual

Pulsar EX : 51032233XT/AC
MGE UPS SYSTEMS
Manuel d'utilisation
User Manual
Manual de instrucciones
PulsarTM
EX7 / EX10 / EX15
EXB10 / EXB15
%
!
…
…
…
…
…
%
…
–
+
–
+

Pulsar EX : 51032233XT/AC MGE UPS SYSTEMS
0
Thank you for purchasing the EX
Uninterruptible Power Supply.
The EX has been designed to provide
many years of trouble-free operation.
Please review the manual which has
been prepared to provide you with all
the necessary information concerning
the installation and use of your EX.
For service call 1-800-523-0142.
Sincerely,
MGE UPS SYSTEMS
Nous vous remercions pour l’achat de
l'Alimentation sans interruption EX.
Nous vous invitons à lire ce manuel en
souhaitant qu’il apporte tous les
éléments nécessaires à l’installation et
à l’utilisation de votre onduleur EX.
Appelez le numéro de téléphone 714-
513-7349.
Nous vous prions d’agréer, Madame,
Monsieur, nos sentiments les meilleurs.
MGE UPS SYSTEMS
Le agradecemos la compra del
ondulador EX.
Lo invitamos a leer este manual
esperando que éste le brindará todos
los elementos necesarios para la
instalación y la utilización de su
ondulador EX.
Contáctenos al siguiente número de
teléfono 714-513-7349.
Le saludamos a Ud. muy cordialmente.
MGE UPS SYSTEMS
Federal Communications
Commission (FCC) Statement
Note: this equipment has been tested and
found to comply with Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when equipment is operated in
a residential environment. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Properly shielded
and grounded cables and connectors must
be used in order to meet FCC emission
limits.

Pulsar EX : 51032233XT/AC
MGE UPS SYSTEMS
note
cthis equipment has been tested and found to comply with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
service and factory repair - call 1 - 800 - 523 - 0142
cdirect questions about the operation, repair, or servicing of this equipment to MGE UPS SYSTEMS, Inc. Customer Support Services. Include
the part number, assembly number, and serial number of the unit in any correspondence. Should you require factory service for your equipment,
contact MGE UPS SYSTEMS, Inc. Customer Support Services and obtain a Return Materials Authorization (RMA) prior to shipping your unit.
Never ship equipment to MGE UPS SYSTEMS, Inc. without first obtaining an RMA.
proprietary rights statement
cthe information in this manual is the property of MGE UPS SYSTEMS, Inc., and represents a proprietary article in which MGE UPS SYSTEMS,
Inc., retains any and all patent rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this information does not
convey any permission to reproduce, print, or manufacture the article or articles shown herein. Such permission may be granted only by specific
written authorization, signed by an officer of MGE UPS SYSTEMS, Inc.;
cIBM, PC-AT, ES/9000, and AS/400 are trademarks of International Business Machines Corporation. Other trademarks that may be used herein
are owned by their respective companies and are referred to in an editorial fashion only.
two years warranty policy
cMGE UPS SYSTEMS, Inc. (herein after referred to as MGE) warrants Topaz and Pulsar equipment manufactured by MGE to be free from
defects in materials and workmanship for a period of two years from date of purchase. If within such period purchaser discovers defective item
and promptly notifies MGE in writing, MGE shall repair or replace the item at the Company's option. This warranty shall not apply:
vto equipment not manufactured by MGE,
vto equipment repaired or altered by others than MGE,
vto equipment subjected to negligence, accident, or damage by circumstances beyond MGE's control, or to improper operations, maintenance,
or storage, or to other than normal use or service.
With respect to equipment not manufactured by MGE, the Warranty obligations of MGE shall in all respects conform and Warranties do not cover
reimbursement for labor, transportation, removal, installation, or other expenses which may be incurred in connection with repairs or replacement.
Except as may be expressly provided in an authorized writing by MGE, MGE shall not be subject to any other obligations or liabilities whatsoever
with respect to equipment manufactured by MGE or service rendered by MGE. After Sales Service Support Line: 1-800-523-0142.

Pulsar EX : 51032233XT/AC MGE UPS SYSTEMS
Postal address:
1660 Scenic Avenue
Costa Mesa, CA 92626
714-557-1636
51032233XT/AC
MGE UPS SYSTEMS, Inc.

MGE UPS SYSTEMS Pulsar EX : 51032233XT/AC i
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions for Models EX7/EX10/EX15/EXB10/EXB15 that should be
followed during installation and maintenance of the UPS batteries.
cThis equipment can be operated by any
individual, with no previous training;
cCAUTION: Risk of electric shock, even
with unit disconnected from AC power
source. Hazardous voltage still may be
present through operation from battery.
The battery supply should be disconnected
at the plus and minus terminals using the
quick disconnect connectors of the battery
when maintenance or service work inside
the UPS is necessary.
cThe UPS contains voltages which are
potentially hazardous. All repairs should
be performed by qualified service
personnel only;
cdo not attempt to power the UPS from
any receptacle other than a 2-pole 3-wire
grounded receptacle;
cdo not place Pulsar near water or in
environment of excessive humidity;
cdo not allow liquids or any foreign objects
to get inside Pulsar;
cdo not block air vents in the back of
Pulsar;
cdo not plug household appliances such as
hair dryers to Pulsar receptacles;
cdo not place Pulsar in direct sunlight or
close to heat-emitting source;
c~: alternating current supply symbol;
cCAUTION: do not dispose of battery or
batteries in a fire. The battery may explode;
cCAUTION: do not open or mutilate the
battery or batteries, released electrolyte is
harmful to the skin and eyes. It may be toxic;
cCAUTION: a battery can present a risk of
electric shock and high short circuit current.
The following precautions should be
observed when working with batteries:
vremove watches, rings or other metal
objects,
vuse tools with insulated handles,
vwear rubber gloves, boots and safety
glasses;
cplease dispose of the packaging in
accordance with the applicable legislation.
cthe AC power receptacle should be near
the equipment and easily accessible. To
isolate Pulsar from AC input, remove the
input power cord from the AC power
receptacle;
cif Pulsar is to be stored for a long time, it
is recommended to recharge the batteries
(by connecting AC power source to Pulsar,
switch "ON" or "OFF"), once a month for 24
hours to avoid a full batteries discharge;
cPulsar contains batteries that should be
disposed of or recycled in accordance with
local applicable laws;
cprior to installation, store Pulsar in a dry
location;
cstorage temperatures must be between
–4°F (-20°C) and +113°F (+45°C);
cservicing of batteries should be performed
or supervised by personnel knowledgeable
of batteries and the required precautions.
Keep unauthorized personnel away from
batteries;
cwhen replacing the batteries, use the
same number and the following type of
batteries:
vPulsar EX7: 2 x 12V - 7.2Ah,
vPulsar EX10 : 3 x 12V - 7.2Ah,
vPulsar EX15 : 4 x 12V - 7.2Ah;

iv Pulsar EX : 51032233XT/AC MGE UPS SYSTEMS
ENGLISH
introduction
In critical situations, count on MGE UPS
SYSTEMS Pulsar EX7, EX10 and EX15
uninterruptible power supplies (UPS). Their
protection keeps your data intact and
accessible.
Pulsar EX7, EX10 and EX15 UPSs ensure
top quality power around the clock, and
continue operations during power failures.
An intelligent microprocessor detects any
operating anomalies of the UPS and triggers
an alarm if corrective action is necessary.
In addition to the high-technology aspect of
these UPSs, you can count on backup from
our staff, a team of specialists, around the
corner from you, throughout the world. It’s
no accident that MGE UPS SYSTEMS is the
world leader in UPS protection.
application of Pulsar EX7, EX10
and EX15:
Network servers and interconnection
devices are very sensitive to electrical
disturbances of all types, including outages,
voltage sags, brownouts, spikes, etc. The
origins of the disturbances also vary, ranging
from atmospheric phenomena, to nearby
devices generating interference such as
elevators, photocopy machines and machine
tools, not to mention human errors, like the
accidental pulling out of power cords or
tripping of circuit breakers. The
consequences of these disturbances on
computer systems range from data losses to
hardware damage (power supplies, hard
disks).
Pulsar EX7, EX10 and EX15 are specially
designed to protect network servers and all
other interconnection devices that are
sensitive to electrical disturbances.
Pulsar EX7, EX10 and EX15 add fault-
tolerance to the utility supplying your
sensitive equipment.
Pulsar EX7, EX10 and EX15 are designed
as compact units and feature very silent
operation. They can be installed under a
desk, and can also be installed in a rack
(see "options").
Pulsar EX7, EX10 and EX15 provide a
stable supply of clean power, long back-up
time during a utility outage (see table) and
vast information and control possibilities
according to the configuration selected.
Pulsar EX7, EX10 and EX15 On-Line
technology provides maximum protection
and availability of your workstations, server,
and network communication devices.
Pulsar EX7, EX10 and EX15 offer many
functions and characteristics designed to
simplify power management:
cautomatic battery test carried out
periodically. In the event of a fault, a LED
provides advance warning for battery
replacement;

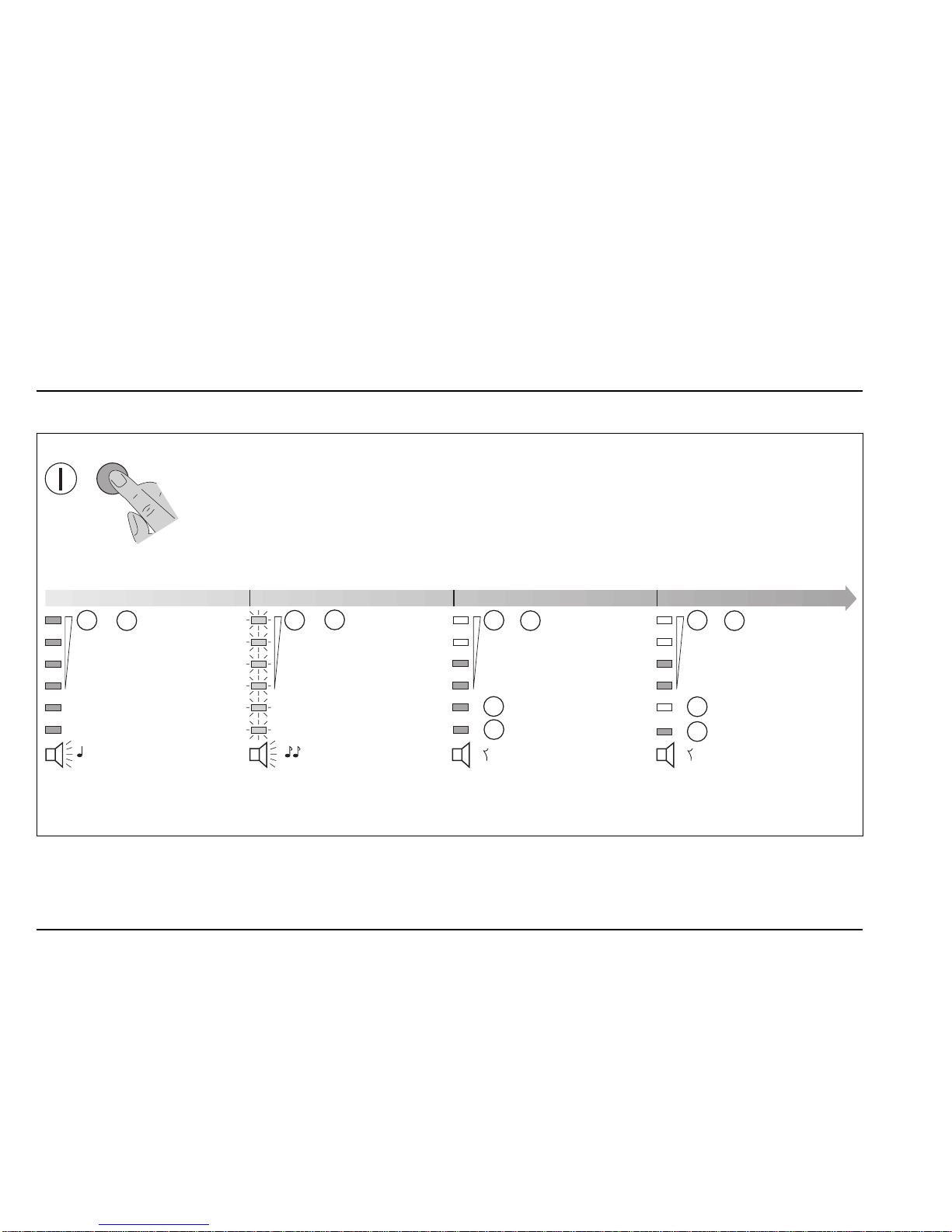

cfront panel LEDs signal all types of faults
and alarms;
cBar graph continuously indicates the
battery charge level or the critical load
power level;
cPulsar EX7, EX10 and EX15 are
environment friendly: all components are
recyclable and an electronic power-saver
device reduces power consumption if the
UPS is not active for a period exceeding 5
minutes while on battery back-up;
cEX Driver software provides rapid startup
of Pulsar EX7, EX10 and EX15 using the
EX Tuner configuration module. This module
adapts Pulsar EX7, EX10 and EX15 to user
preferences (battery test frequency, startup
and shutdown sequences, setting of battery
thresholds, etc.). Operation and monitoring
are ensured by the UPS Manager 3.1
module operating under Windows 3.1.
EX Driver connects to the RS 232 port on
the Pulsar EX7, EX10 and EX15 (see
"communication" section for further details);
cSolution-PacTM is a CD-ROM which
contains all the tools needed to supervise
your UPS.

MGE UPS SYSTEMS Pulsar EX : 51032233XT/AC v
options
crack installation kit: this kit is used to
install Pulsar EX7, EX10 and EX15 in a 19-
inch rack. The kit is designed to receive two
Pulsar EX7, EX10 and EX15, or one Pulsar
EX10/EX15 and a battery extension unit,
thus offering up to 3000 VA of power;
cUM Sensor environment measurement
unit: compatible with SNMP and UPS
Manager 2 Unix and OS/2, or Solution
PacTM, this unit measures the temperature
and the relative humidity in the room where
the Pulsar is installed. Eight relay contacts
are provided to transmit signals to an
administration platform, in the form of
voltage free contacts to enable monitoring of
(fire alarm, climate control fault, intrusion,
etc.);
cbattery extension module: Pulsar
EXB10/EXB15 battery extension modules
lengthen the battery time of the Pulsar
EX10/EX15 to meet your requirements.
additional communications
options:
ccommunication cables: these cables are
used for the file-closing utilities offered by a
number of network operating systems. They
are available for Novell NetWare, Microsoft
Lan Manager and Windows NT, IBM Lan
Server, Artisoft LANtastic, Banyan Vines,
Apple System 7, IBM AS400 and many
others;
cUPS Manager 2 communication
software: this software can be used for
automatic file closing on one or more
servers, as well as for remote UPS
shutdown and interrogation of all Pulsar
EX7, EX10 and EX15 operating parameters.
It is available for Novell NetWare, Microsoft
Lan Manager, IBM Lan Server, the main
Unix systems on the market (SCO, AIX, HP/
UX, OSF 1, etc.) VAX UMS and many
others;
cSNMP administration: MGE UPS
SYSTEMS has the most complete offering
for the administration of a group of UPSs
using the SNMP protocol with different
network-connection modules (UM Link
adaptor or proxy UM Agent software),
supervision modules (dedicated software
under Windows UM View or application for
NMS platforms such as HP OpenView or
Novell NMS) and a file-closing module (UM
Client). The MGE UPS SYSTEMS offering
complies with RFC 1628 specifications
(IETF) and was certified by the InterWorking
Labs during the Test Summit in June 1994;
cSNMP card: this card, inserted into your
unit, makes your UPS SNMP-compatible in
any environment;
cstatus information card: this option
provides you with 5 voltage free contacts: on
battery, on by-pass, low battery, load on
UPS.
Contact your dealer for further information
on these options.

vi Pulsar EX : 51032233XT/AC MGE UPS SYSTEMS
software supplied with
Pulsar EX7, EX10 and EX15
To meet the different operating
environments of your UPS, Pulsar EX
includes 2 MGE UPS SYSTEMS software
programs:
cEX-Driver software for Windows (on 3.5"
diskettes);
cSolution-PacTM network software (on CD-
ROM).
EX-Driver for Windows
EX Driver for Windows provides
communication with the UPS from a simple
Windows workstation. EX-Driver is
compatible with Windows 3.1x and Windows
95, for communication with the UPS via a
serial connection for various needs:
cpersonalization of the UPS operating
mode: the EX-Tuner utility, can be used to
change certain UPS operating parameters if
the standard factory settings are not ideal for
the operating conditions.
It is possible to modify the output voltage,
battery-test frequency, startup and shutdown
sequences, operation of automatic by-pass,
etc.;
cUPS monitoring from a Windows
workstation and system safety:
EX-Driver, UPS Manager 3 software, can
display the UPS status, warn the user if a
problem arises, and provide automatic
shutdown.
The many possibilities available include:
vsupervision of operating parameters
through a graphic interface (display of
battery charge level, remaining battery time
and UPS load level). These values can be
recorded periodically in a log file,
vmessages to the user in case of power
outage or UPS problem and recording of
events in a log file,
vduring long-term power outages,
automatic shutdown of the system and of
the UPS, followed by automatic restart of the
UPS (system reboot) on return of utility
power,
vPowerShareTM functions.
Solution-PacTM for networks and
multi-station systems
Novell Netware, Windows NT, OS/2 Lan
Server, SCO Unix, etc.)
Protection by UPS is only complete and
effective if combined with powerful software
functions which warn users and the operator
of any power supply problem, automate
system shutdown, supervise and remotely
control the UPSs. MGE UPS SYSTEMS
created Solution-PacTM for this purpose.
Solution-PacTM combines all these functions
in a single CD-ROM, usable in local or
remote mode (SNMP), and covering the
main network environments.
Solution-PacTM is the ideal solution for
protecting networks and multistation
systems.
Solution-PacTM on a single CD-ROM
contains everything needed to safeguard
one or more systems and to supervise one
or more UPSs from a local or remote station.
Solution-PacTM includes SNMP UM-Agent,
UM-Client system shutdown software, and
UM-Console supervision software.
Solution-PacTM is a powerful and upgradable
software tool which provides all the
supervision, control and safety functions
associated with a UPS:
vgraphic display of the UPS,
vremote control of the UPS and output
receptacles,
vuser alarm of problems,
vrecording of events in log files,
vautomatic system shutdown and restart,
vlocal or remote supervision of UPSs and
ancillary devices,
vtransmission of UPS information and
alarms to any SNMP supervisor.

Pulsar EX7/EX10/EX15/EXB10/EXB15 presentation
présentation de Pulsar EX7/EX10/EX15/EXB10/EXB15
presentación de Pulsar EX7/EX10/EX15/EXB10/EXB15
general contents / sommaire général / sumario general
Pulsar presentation............................................................................................................................. 3
présentation de Pulsar
presentación de Pulsar
english....................................................................................................................................................................... 11
getting started / operation
français.................................................................................................................................................................... 19
mise en service / exploitation
español..................................................................................................................................................................... 27
puesta en servicio / explotación
Pulsar EX : 51032233XT/AC
MGE UPS SYSTEMS 12
Pulsar EX : 51032233XT/ACMGE UPS SYSTEMS

3Pulsar EX : 51032233XT/AC MGE UPS SYSTEMS 4Pulsar EX : 51032233XT/AC MGE UPS SYSTEMS
Pulsar EX7/EX10/EX15 Pulsar EX7/EX10
front view / vue avant / vista delantera rear view / vue arrière / vista trasera Pulsar EX15 Pulsar EXB10/EXB15 rear view / vue arrière / vista trasera rear view / vue arrière / vista trasera
%
!
…
…
…
…
…
%
…
–
+
–
+
1a
1b
1f
2
3
1c
1d
1e
T 15A 125V
Vac IN
U-Talk
10
4
12
6a 6b
6
13
9
7
5
I max 8.3A
Vac OUT
Site wiring
fault
8
11
18
16
solution-pac
17
DC BREAKER
30A 65Vdc
21
22
19
20
I O
23
5
T 20A 125V
U-Talk
10
6b
7
I max 12.5A
Vac OUT
Site wiring
fault
8
11
4
6a
13
9
12
6
MGE UPS SYSTEMS
ATTN: CUSTOMER SUPPORT SERVICES
1660 SCENIC AVENUE
COSTAMESA, CA 92626
PLACE
STAMP
HERE
14

MGE UPS SYSTEMS Pulsar EX: E-51032233XT/AC 11
contents
getting started ..................................................................................................................12
location......................................................................................................................................12
preliminary checks ....................................................................................................................12
connections ...............................................................................................................................12
communication .......................................................................................................................... 13
operation .............................................................................................................................14
starting up with utility power present ......................................................................................... 14
starting up with out utility power ................................................................................................ 15
operation on battery ..................................................................................................................16
overload ....................................................................................................................................17
operating anomalies..................................................................................................................17

12 Pulsar EX: E-51032233XT/AC MGE UPS SYSTEMS
8
0V
n
g
I max 8.3A
Vac
OUT
7
?
e
s
s
r
e
s
to computer
loads
getting started
location
cobserve the safety rules indicated at the
beginning of this document.
preliminary checks
ccheck that the "on/off" button " " on the
front is not pushed in;
ccheck that rating shown on the rating label
corresponds to the input voltage
specification and power requirement of the
load.
connections
cuse the AC input cord to supply input
power to Pulsar as shown.
Connect the AC input cord between UPS
utility power input receptacle, and utility
power outlet.
cconnect the computer loads to output
sockets 7.
Note 1: following connection, the battery
automatically charges, whenever plugged in.
Note 2: the batteries will provide full back-up
time after approximatively 8 hours of
recharge time.
Note 3: the rating of input power cord must
be not less than the nominal input rating of
Pulsar EX: use the supplied cord.
Note 4: if site wiring fault LED 8is lit and
buzzer sounds, line/neutral connections are
reversed.
cconnection of the Pulsar EXB10/EXB15
battery extension module (optional):
vcheck that the button "on/off" " " on the
front of the Pulsar EX10/EX15 is not pushed
in,
vdisconnect the input connection cord,
vflip the circuit-breaker of the battery unit to
the right (position "O"),
vconnect the battery connection cord to the
DC connector of the battery module and
connect to the Pulsar EX10/EX15,
vif the installation has 2 battery modules,
connect the second cord to the DC
connector of the second module and to the
first module,
vthe use of connectors is strictly limited to
connecting the battery modules to the
Pulsar EX10/EX15. Any other connection to
these connectors is prohibited and risks
damaging the battery, not covered by
warranty,
vto start, flip the battery circuit-breaker to
the left (position "I"),
vif your installation is operated with MGE
UPS SYSTEMS software, update your
battery configuration with EX Tuner.
T 15A 125V
Vac IN
I max 8.3A
?
p
r
e
s
s
r
e
s
e
t
4
utility power
receptacle

MGE UPS SYSTEMS Pulsar EX: E-51032233XT/AC 13
communication
cthe U-Talk communication port, at the rear
of the Pulsar, delivers information in the
form of an RS232 series link supported by
the communication protocol exclusive to
MGE UPS SYSTEMS.
The Solution-PacTM programs use the data
made available by this protocol.
option 2
cSNMP card: after the card is installed in
the rear of the Pulsar, the communication
port transmits information supported by the
SNMP protocol on an RJ45 or BNC
connector.
Contact your sales agent for further details.
option 1
cstatus information card: after the card is
installed in the rear of the Pulsar,
communication port transmits the status
information on a SUB-D 9-pin female
connector using the following pinouts:
1- ground,
4- normal operation,
5- common,
6- operation on utility power,
7- low battery warning,
8- load supplied by UPS,
9- operation on battery.
optional port
12
54321
9876
0V
0V
n.o.
n.c.
0V
n.o.
0V
n.o.
0V
n.o.
Relay breaking capacity:
Vmax = 25V DC
Imax = 10mA
n.o. : normally open,
n.c. : normally closed.
With the EX Driver software program you
can set up Pulsar EX to suit your user
conditions (EX Tuner), supervise your UPS
and safeguard your system (UPS Manager
3.1). To install EX Driver, connect the serial
cable supplied to COM1 to COM4 (set up by
EX Tuner) series port of your computer
equipped with Windows 3.1 on the one end,
and to the serial Pulsar EX connector on the
other end. Insert the disk and type A:\Install.
Follow the installation instructions on the
screen. You may then use 2 software
programs :
vEX Tuner to set up Pulsar EX,
vUPS Manager 3.1 to supervise and
safeguard your system.
11
54321
9876
0V RD TD
standard port

14 Pulsar EX: E-51032233XT/AC MGE UPS SYSTEMS
operation
starting up with utility power present
17 s7 s5 s0 s
several beeps
1a to 1f on
UPS is on utility power
1 s beep
output off output off
normal operation
indicator lights testpress button "on/off" :
automatic sequence:
your load is supported
by the battery
1a to 1f flashing
device and battery test
indicating the
remaining battery
time percentage
(here 50%)
1f
on
1a
to
1d
1f
on
indicating the
recharge
percentage of the
battery (here 50%)
silence
1e 1e
off
1a 1d
to
on
silence

MGE UPS SYSTEMS Pulsar EX: E-51032233XT/AC 15
starting up with out utility power
17 s7 s5 s0 s
several beeps
1a to 1f on
1 s beep
output off output off
normal operation on battery
indicator lights testpress "on/off" button:
automatic sequence:
your load is supported
by the battery
1a to 1f flashing
UPS is on utility power
device and battery test
indicating the
remaining battery
time percentage
(here 50%)
1f
on
1a
to
1d
1f
on
1 beep every 10 s
1e 1e
flashing
1a 1d
to
on
3 s beep
indicating the
remaining autonomy
percentage
(here 50%)

16 Pulsar EX: E-51032233XT/AC MGE UPS SYSTEMS
operation on battery
no utility power
1a to 1d indicating the battery
recharge percentage: here,
between 12 and 25%
1e indifferent
1f on
silence
your load is supplied by the utility power
(on line)
1a to 1d indicating the load charge
percentage: here 50%
1e off
1f on
silence
At whatever point the utility power
returns, Pulsar switches to normal
operation:
return of utility power load charge percentage
Note:
The alarm silence button is to deactivate or
activate the audio warning device when
operating on battery, or when site wiring
fault occured.
If utility power is present, hold alarm
silence button in:
x + ε mn
x mn 5 mn 0 mn
to
if Pulsar is operating on battery
without load: UPS switches off
Pulsar switches off
automatically
warning alarm at low
battery
indicating the
remaining battery
time: here, between
75 and 87%
to
silence
1a 1c 1a 1f 1a 1f
silence
flashing
1d
1f
1a 1d
1e
1f
flashing
1e
load off
1 beep every 10 s
your load is supported
by the battery
to off
you have less than 12% battery
time remaining: power down
your load, Pulsar will soon
switch off automatically
UPS output "off"
to off off
1 beep every 3 s
break in utility power
on
flashing
on

MGE UPS SYSTEMS Pulsar EX: E-51032233XT/AC 17
overload
utility power present
1a flashing
1d flashing
1e off
1f on
1 beep every second
automatic load transfer to bypass
operating anomalies
device fault
vv
vv
vautomatic load transfer to bypass,
vv
vv
vswitch off Pulsar (release "on/off" button),
disconnect from the wall socket (check input
cord), and check that Pulsar has not short-
circuited (disconnect all loads),
vv
vv
vif necessary, change the input fuse,
vv
vv
vre-start Pulsar.
1b flashing
1d flashing
1e off
1f on
1 beep every second
battery fault
A battery test is carried out while Pulsar, is in
start-up mode, then automatically every 7
days (interval times adjustable using EX
Driver). If a battery fault is detected, the
following occurs:
recharge your battery for 8 hours.
1c flashing
1e off
1f on
1 beep every second
operation on bypass
see "overload" and "device fault" section
Note:
This operating mode provides temporary
inverter fault tolerance.
1a and 1b indifferents
1d flashing
1e off
1f on
1 beep every second
no utility power present
1a flashing
1e flashing
1f on
1 beep every second
Pulsar switches off automatically after a
length of time which depends on the level
of overload.
Note: overload occurs if the load
consumption is greater than the rated power
of Pulsar.
To acknowledge the fault, release the "on/
off" button, temporarily disconnected Pulsar
from the wall socket (check input cord),
disconnect loads and re-start Pulsar.
…
1a to 1f off
continuous beep
after the start-up sequence, if the audio
warning device sounds continuously,
recharge your battery for 8 hours.
Note: if the previous symptoms persist,
contact technical support.
battery low

18 Pulsar EX: E-51032233XT/AC MGE UPS SYSTEMS
www.kesintisizservis.com
