MHC Medical Products Easy Touch User manual

Easy•Touch
®
Glucose Monitoring System
User Manual

See our other products at
www.EasyTouchProducts.com
Easy•Touch
®
Glucose Monitoring System

Important Information ..................................................................................3
Introduction...................................................................................................7
About the Product ........................................................................................8
About the EasyTouch®Meter................................................................9
About the EasyTouch®Meter Display................................................. 11
About the EasyTouch®Test Strip........................................................13
About the EasyTouch®Test Strip Vial.................................................14
Installing/Replacing the Battery..........................................................15
Setting Up the Meter...................................................................................16
Setting Up the Date, Time ..................................................................16
Setting Up Alarm ................................................................................17
Unit Selecton......................................................................................20
Table of Contents

The Control Solution Test......................................................................... 21
Testing Your Blood Glucose Level........................................................... 25
Preparing the Test Strip..................................................................... 26
Obtaining a Blood Sample................................................................. 27
Applying Blood Sample to the EasyTouch®Test Strip ....................... 28
Memory Features....................................................................................... 31
Transfer Test Results to a Computer....................................................... 33
Care and Storage....................................................................................... 34
Display Messages...................................................................................... 35
Specications ............................................................................................ 42
Limitations of the Procedure.............................................................. 44
Service and Warranty................................................................................ 44
Customer Service...................................................................................... 46

3
There are limitations for doing AST. Please
consult your healthcare professional before
you do AST.
Forearm
Palm
Available Alternate Sites Testing : Palm and Forearm.
Alternate Site Testing (AST) means you can use other parts of the body other
than your more sensitive ngertips to check your blood glucose levels.
1. The EasyTouch®Glucose Monitoring System allows you to test on the
palm and the forearm with the equivalent results to ngertip testing.
Important Information

4Alternative site results differ from ngertip results when glucose levels are
changing rapidly such as after a meal, after taking insulin, during exercise,
or when you are ill or under stress. Use blood from a ngertip rather than an
alternative site if:
• You think your blood glucose is low,
• You don’t regularly have symptoms when your blood glucose is low,
• How you feel doesn’t match the results from the alternative site,
• When you have just taken insulin, or any time during or after exercise,
• When there are unknown variables occurring in your day, such as illness,
• Whenever you are about to drive.
CAUTION:
1. Physical differences in the circulation between the nger and other test
sites like the forearm and palm may result in differences in blood glucose
measurements from the other test sites and your ngertips. Changes in
blood glucose may be observed in nger blood samples sooner than blood
samples from the forearm and other alternate sites. Rub the alternate test
sites about 20 seconds before lancing. If you are testing for hypoglycemia
(low blood glucose), or if you suffer from hypoglycemia unawareness, we
recommend that you test on your ngertips.

5
2. Talk to your doctor to see if alternate site testing is right for you. With a
little bit of education, you can give your ngertips a rest and maybe test
more often than you do now. For people with diabetes, more frequent
testing is a good thing. Just remember: any time you want to be sure of an
accurate, up-to-date blood glucose reading, test on your ngertip.
3. We strongly recommend you do AST ONLY in the following intervals:
• In a pre-meal or fasting state (more than 2 hours since the last meal).
• Two hours or more after taking insulin.
• Two hours or more after exercise.
DO NOT use AST if:
• You think your blood glucose is low.
• You are unaware of hypoglycemia.
• Your AST results do not match the way you feel.
• You are testing for hyperglycemia.
• Your routine glucose results are often uctuating.
• If you are pregnant.

6• Low or high blood glucose readings can indicate a potentially serious
medical condition. If your blood glucose reading is unusually low or high,
or if you do not feel the way your reading indicates, repeat the test with
a new test strip. If your reading is not consistent with your symptoms or
if your blood glucose result is less than 60 mg/dL (3.3 mmol/L) or higher
than 240 mg/dL (13.3 mmol/L) you should contact your
healthcare professional.
• Any change or administer of medication based on the EasyTouch®blood
glucose test results without the consent and advice of a physician or
healthcare professional is not recommended.
• Severe dehydration and excessive water loss may cause false low
results. If you believe you are suffering from severe dehydration, consult
your physician immediately.

7
Thank you for choosing the EasyTouch®Glucose Monitoring System, the
latest advancement in biosensor technology.
Recognized for its ease of use and quick response time, the EasyTouch
®
Glucose Monitoring System is designed to process accurate results utilizing
only a small amount of blood for in vitro diagnostics. The EasyTouch®
Glucose Monitoring System is intended for use in the home and in
professional settings to monitor whole blood glucose levels obtained from the
ngertip, palm and forearm. This is an over the counter (OTC) product.
Please read the entire User’s Manual carefully before using this product.
Introduction

8
The EasyTouch®Glucose Meter & Monitoring System is available in two
different package options with the following contents:
A. Your EasyTouch®Glucose Monitoring System contains:
• EasyTouch®Meter
• One Lancing Device
• Ten Lancets
• One Carrying Case
• User Manual
• Log Book
• Quick Reference Guide
B. Your EasyTouch®Institutional (Meter Only) Box contains:
• EasyTouch®Meter
• User Manual
Test Strips, Control Solution, & Lancing Device can be purchased individually.
About the Product

9

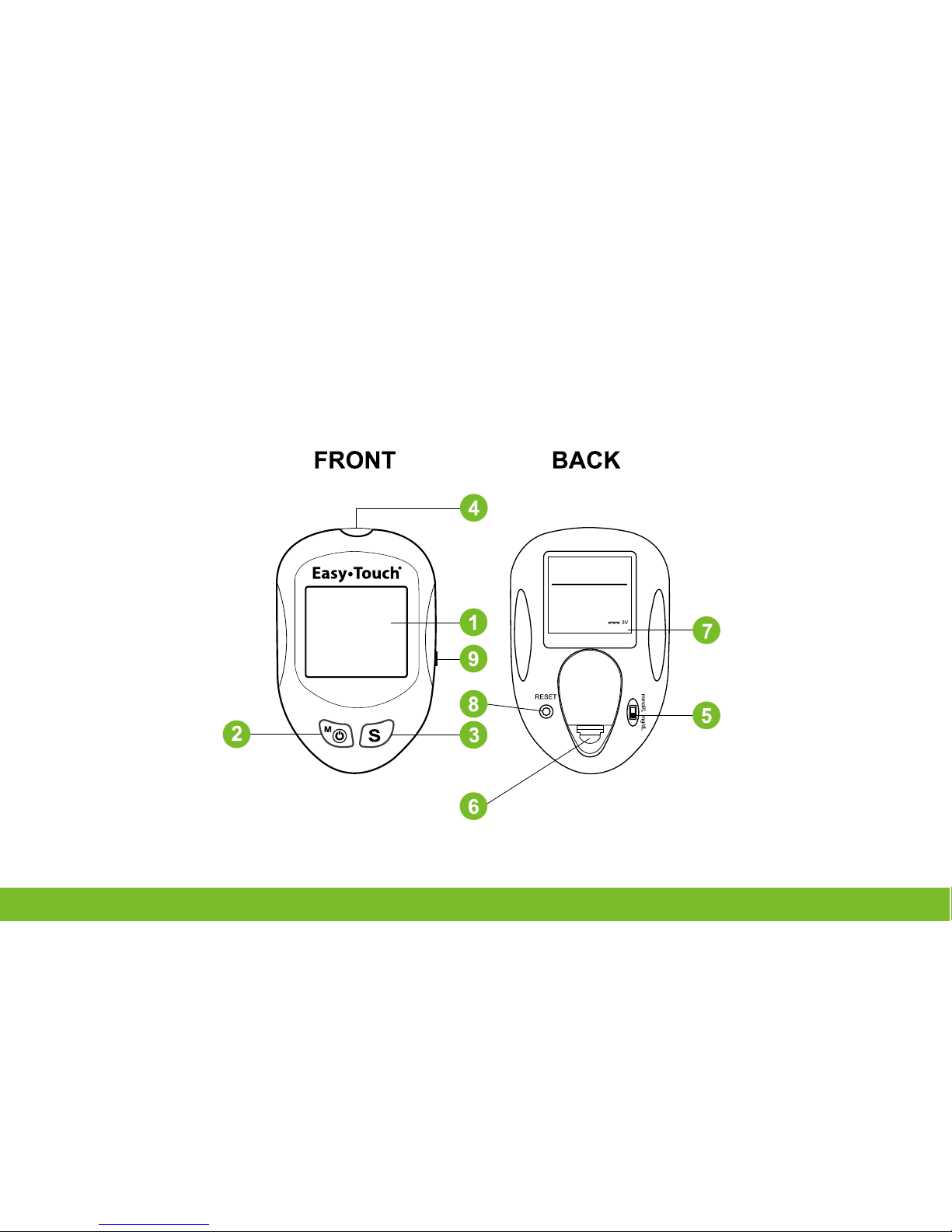

About the EasyTouch®Meter
S/N:M05B13286
BLOOD GLUCOSE METER
Easy•Touch
®
For In Vitro Diagnostic Use Only
Made in Taiwan to Specs of
MHC Medical Products, LLC
8695 Seward Road
Faireld, OH 45011
Toll #: 877.358.4342
DH-083011.5 • Rev. date: 09/2011

10 1. Display Your test results are displayed here. The large, easy to read
screen guides you through the test by using numbers and symbols.
2. M Button The M(mode) button is used to set time, alarm, enters the
memory mode to show the consecutive 7/14/30-day average results and
turns the Meter on and off.
3. S Button The S(select/set) button is used to select year, month, day,
time, memory of results and control solution mode.
4. Test Port This is where you insert the Test Strip into the Meter.
5. Unit Switch Switch for mmol/L or mg/dL.1 mmol/L =18 mg/dL
6. Battery Cover
7. Label
8. Reset Button Press this button to re-set the system.
9. Data Port Connect interface cable to transfer data.

11
1. Date
2. Time
3. Control Solution Test
Appears when doing a control
solution test and marking the
result as a control solution
test.
4. Memory Symbol
Indicates in memory mode.
5. Units of Measurement
Unit of mmol/L or mg/dL will
appear with the test result.
About the EasyTouch®Meter Display
5
2
7
10
13
6
8
11
3
1
4
9
12

12 6. Battery Symbol
Appears when the battery is low or must be replaced.
7. Blood Drop Symbol
Flashes when it is ready to apply sample to Test Strip.
8. Warning Symbol
Appears when result is out of the range of your setting reference value.
9. Alarm Function Symbol
Appears when the clock alarm is set.
10. Test Strip Symbol
Appears to tell you when the meter is ready for test.
11. Day Average Symbol
Shows the average value of test results.
12. Test Result Area
Display test results.
13. Temperature Message
Appears if your meter is out of operating temperature range.

13
About the EasyTouch®Test Strip
The EasyTouch®Test Strip is used to perform
the blood glucose test in conjunction with the
EasyTouch®Meter.
Each strip can be used only once.
The Test Strip consists of the following parts:
1. Conrmation Window
This is where you can conrm that enough blood
has been applied to the target area.
2. Target Area
This is where blood is drawn into the Test Strip.
3. Contact Bar
This end of the Test Strip is inserted into the Test
Port to activate the Meter. (white side face up).
3
1
2

14
WARNING: Re-cap immediately &
always close lid tightly.
Store at 39-86°F (4-30°C).
Do not refrigerate.
Always store test strips inside vial.
Discard Date: ______________
Discard 3 months after opening.
Made in Taiwan to Specications of
MHC Medical Products, LLC
8695 Seward Rd, Faireld, OH 45011
DH-080411.6 • Rev date: 09/2011
For testing of glucose in capillary whole blood.
For in vitro diagnostic use.
EXP
50
TEST STRIPS
Glucose Test Strips For use with Easy•Touch® Meter.
Easy•Touch
®
About the EasyTouch®Test Strip Vial
Control Solution Range
Lot Number
Expiration Date
VIAL LABE
LT
EST STRIP VIAL
WARNING: Re-cap immediately &
always close lid tightly.
Store at 39-86°F (4-30°C).
Do not refrigerate.
Always store test strips inside vial.
Discard Date:
______________
Discard 3 months after opening.
Made in Taiwan to Specications of
MHC Medical Products, LLC
8695 Seward Rd, Faireld, OH 45011
DH-080411.6 • Rev date: 09/2011
For testing of glucose in capillary whole blood.
For in vitro diagnostic use.
EXP
50 TEST STRIPS
Glucose Test Strips For use with Easy•Touch® Meter.
Easy•Touch®

15

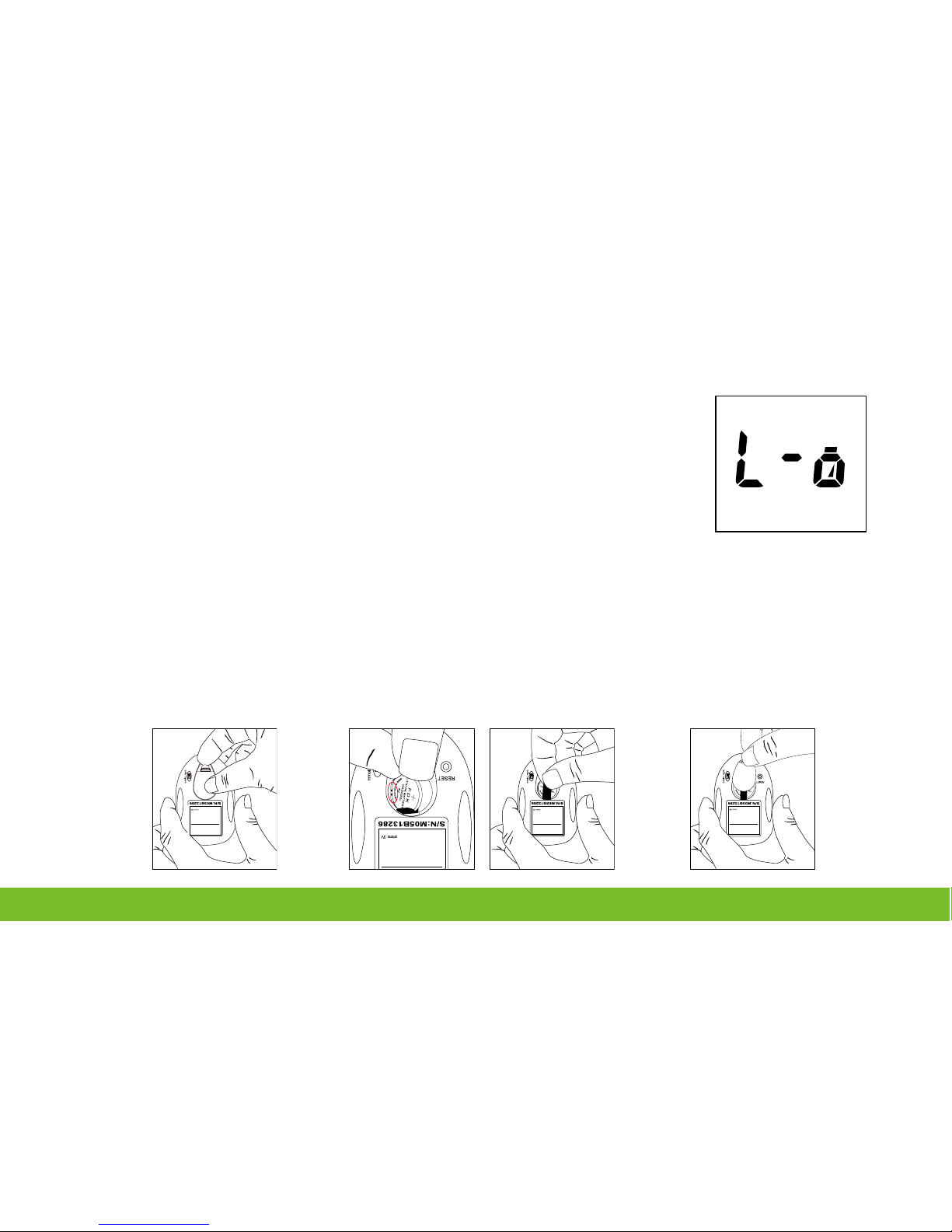

When the battery is low, the Meter will show a warning
signal. When this display appears, it is time to replace
a new battery. When the low battery warning signal
is shown, the Meter will provide accurate results for
approximately 50 more measurements.
1. From the back of the Meter, gently lift the battery cover.
2. Insert a 3-Volt Lithium battery (CR-2032) with the “+” side facing up.
3. Close battery cover.
Installing/Replacing the Battery
How to Replace the Battery
1 2 3
BLOOD GLUCOSEMETER
Easy•Touch
®
ForIn Vitro Diagnostic Use Only
Made in Taiwanto Specs of
MHC Medical Products, LLC
8695 Seward Road
Faireld, OH 45011
Toll#: 877.358.4342
DH-083011.5 • Rev. date: 09/2011
BLOOD GLUCOSEMETER
Easy•Touch
®
ForIn Vitro Diagnostic Use Only
Made in Taiwanto Specs of
MHC Medical Products, LLC
8695 Seward Road
Faireld, OH 45011
Toll#: 877.358.4342
DH-083011.5 • Rev. date: 09/2011
BLOOD GLUCOSEMETER
Easy•Touch
®
ForIn Vitro Diagnostic Use Only
Made in Taiwanto Specs of
MHC Medical Products, LLC
8695 Seward Road
Faireld, OH 45011
Toll#: 877.358.4342
DH-083011.5 • Rev. date: 09/2011
BLOOD GLUCOSE METER
Easy•Touch
®
For In Vitro Diagnostic Use Only
Made in Taiwan to Specs of
MHC Medical Products, LLC
8695 Seward Road
Faireld, OH 45011
Toll #: 877.358.4342
DH-083011.5 • Rev. date: 09/2011

16 Setting Up the Meter
Setting Up the Date & Time
To turn the Meter on, rst insert a battery, then press the reset button located
at the back of the Meter and proceed with the following instructions.
1. Press the Mbutton to enter this mode.
Press and release S button to choose “24hr”
or “12hr” display. With your preferred clock
mode, press Mbutton and the year setting
will appear. Press and release the Sbutton
until the correct year appears. (Fig.1)
2. To set the year and move on to choose the
month, press the Mbutton. To change the
month, press the Sbutton. (Fig.2)
3. To set the month and move on to choose the
day, press the Mbutton. To change the day,
press the Sbutton. (Fig.3)
(Fig.1)
(Fig.2)
(Fig.3)

17

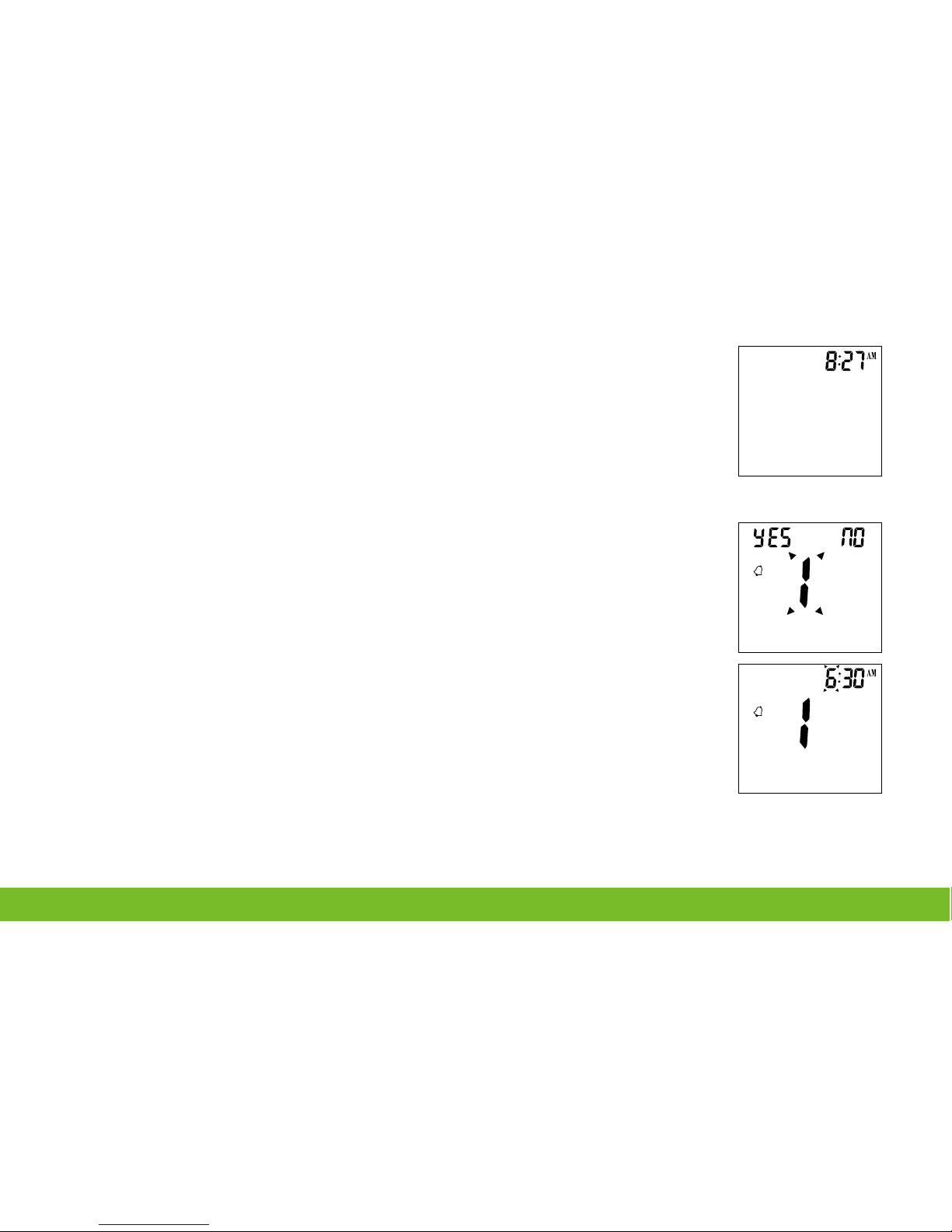

4. To set the day and move on to choose the hour setting,
press the Mbutton. (Fig.3)
5. To change the hour, press the Sbutton. To set the hour
and move on to change the minutes, press the Mbutton.
(Fig.4)
6. To change the minutes, press the Sbutton. To set the
minutes and move on to choose the alarm setting, press
the Mbutton. (Fig.4)
7. To set the rst alarm, press the M button (yes). If you
press S button (no), it will be moved on to health
management alarm setting (step 11). To change the hour,
press Sbutton. To enter the hour and move on to change
the minutes, press Mbutton. To change the minutes,
press S button. To enter the minutes and move on to
choose the second alarm setting, press the M button.
(Fig.5)
Setting Up Alarm
(Fig.4)
(Fig.5)

18 8. To set the second alarm, press the M button (yes).
If you press S button (no), it will be moved on to health
management alarm setting (step 11). To change the hour,
press Sbutton. To set the hour and move on to change the
minutes, press Mbutton. To change the minutes, press S
button. To set the minutes and move on to choose the third
alarm setting, press the Mbutton. (Fig.6)
9. To set the third alarm, press the M button (yes). If you press
S button (no), it will be moved on to health management
alarm setting (step 11). To change the hour, press Sbutton.
To set the hour and move on to change the minutes, press
Mbutton. To change the minutes, press Sbutton. To set the
minutes and move on to choose the fourth alarm setting,
press the Mbutton. (Fig.7)
(Fig.6)
(Fig.7)
