ProCon Streamline Gas Condensing
Boiler.
Installation and Operating Manual.

© MHG Heating Ltd
Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010709 Draft
2
The modulating gas condensing boiler can operate on either Natural Gas or LPG, Conversion kit required.
Kit Name
Product Code
Natural Gas
96.38200-7202
LPG
96.38200-7201
Installation Regulations and Requirements
The installation of GK boilers must be in accordance with the relevant requirements of Gas Safety
(Installation & Use) Regulations 1994, Health & Safety at Work Act, Building Regulations, IEE Regulations,
Construction (Design & Management) Regulations 1994, Local Authority Bye-Laws, National, Fire
Regulations and Insurance Company requirements.
The following Codes of Practice are also applicable:-
BS 5440-1: 2000 Installation of flues and ventilation for gas appliances of rated input not exceeding 70
kW net (1st, 2nd and 3rd family gases).
Part 1: Specification for the installation of flues.
BS 5440-2: 2000 Installation of flues and ventilation for gas appliances of rated input not exceeding 70
kW net (1st, 2nd and 3rd family gases).
Part 2: Specification for installation and maintenance of ventilation for gas appliances.
BS 5449: 1990 Specification for forced circulation hot water central heating systems for domestic
premises.
BS 6644: 2005 Specification for gas fired hot water boilers of rated inputs between 70kW (net) and
1.8MW(net) (2nd and 3rd family gases).
BS 6798: 1987 Specification for installation of gas fired hot water boilers of rated input not exceeding
60 kW.
BS 6880: 1988 Code of Practice for low temperature hot water heating systems of output greater than
45kW. Parts 1, 2 & 3.
BS 6891: 1988 Specification for installation of low pressure gas pipework of up to 28mm (R1) in
domestic premises (2nd family gases)
BS 7593: 1992 Code of Practice for treatment of water in domestic hot water central heating systems.
BS 7671: 1992 Requirements for electrical installations. IEE Wiring Regulations. Sixteenth edition.
CISBE Guide reference sections B7, B11 and B13.
CP342 Part 2: 1974 Code of Practice for centralized hot water supply.
IGE/UP/2 Gas installation pipework, boosters and compressors on industrial and commercial premises.
IGE/UP/4 Commissioning of gas fired plant on industrial and commercial premises
IGE/UP/10 Installation of gas appliances in industrial and commercial premises. Part 1: Flued appliances.
And any addition prevailing regulation and or code of practice not detailed above.

© MHG Heating Ltd
Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010709 Draft
3
Appliance Warranties
All MHG appliances enjoy a full 24 month warranty as detailed in our terms and conditions.
The guarantee period shall begin on the day of commissioning, or at latest 3 months after delivery has
been made.
The customer shall only be able to claim against MHG under guarantee if the commissioning of the
object of delivery has been carried out by MHG staff or the authorised supplier, if the customer has
followed MHG's instructions relating to the treatment and maintenance of the object of delivery, and if no
replacement parts of outside origin have been fitted.
Parts subject to wear such as ignition electrodes, seals etc. are strictly excluded from the guarantee.”
In addition to the above warranties, the gas condensing boilers Primary Heat Exchangers carry a 60
month guarantee against manufacturing or material defect.

© MHG Heating Ltd
Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010709 Draft
4
Technical Data
Gas Condensing Boiler
Description
Unit
Product Number
CE-0063AR3527
Category
II2ELL3P
Weight
Kg
64
Dimensions
mm
1070 x 870 x 450
Primary Water Content
L
1.4
Heating Flow & Return
mm
22
DHW Inlet & Outlet
mm
15
Gas Supply Inlet
mm
15
Flue Gas/Combustion Air
mm
80/125
Nominal Input
kW
7.2 –27.3
Nominal Output 80/60°C
kW
7.0 –26.2
Nominal Output 50/30°C
kW
7.7 –26.8
Nominal Efficiency 80/60°C
%
97.2 –96.0
Nominal Efficiency 50/30°C
%
98.2 –106.9
Nominal Efficiency 40/30°C
%
101.0 –108.5
Maximum Flow Temperature
°C
90
Nominal Mass Flow Rate @20 ΔT
L/h
1160
Maximum Operating Pressure
bar
3
Maximum Inlet Gas pressure
mbar
50
Minimum Inlet Gas Pressure
mbar (N/
L)
18/35
Nominal Power Input
V / Htz
230/50
Installation Categories
B23, B33, C13X , C33X, C43X, C53X, C63X, C83X
Residual Flue Gas Pressure
Pa
90
Flue Gas Temperature @ 80/60°C
°C
94

© MHG Heating Ltd
Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010709 Draft
5
Pressure (Safety) Relief Valve
In accordance with the prevailing British Standard 5440/6644, the installer shall install as suitably sized
Pressure (Safety) Relief Valve.
The location of this valve is important with respect to the applied pressure of the units circulation pump,
it is therefore recommended to locate the Pressure (Safety) Relief Valve on the return pipe immediately
adjacent to the heat generator; furthermore, there must not be any means of isolation between the unit
and the Pressure (Safety) Relief Valve.
To assist with the correct positioning of the pressure relief valve hydraulic connector kits are available as
an optional extra.

© MHG Heating Ltd
Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010709 Draft
6
Internal Wiring Diagram Gas Condensing Boiler

© MHG Heating Ltd
Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010709 Draft
7

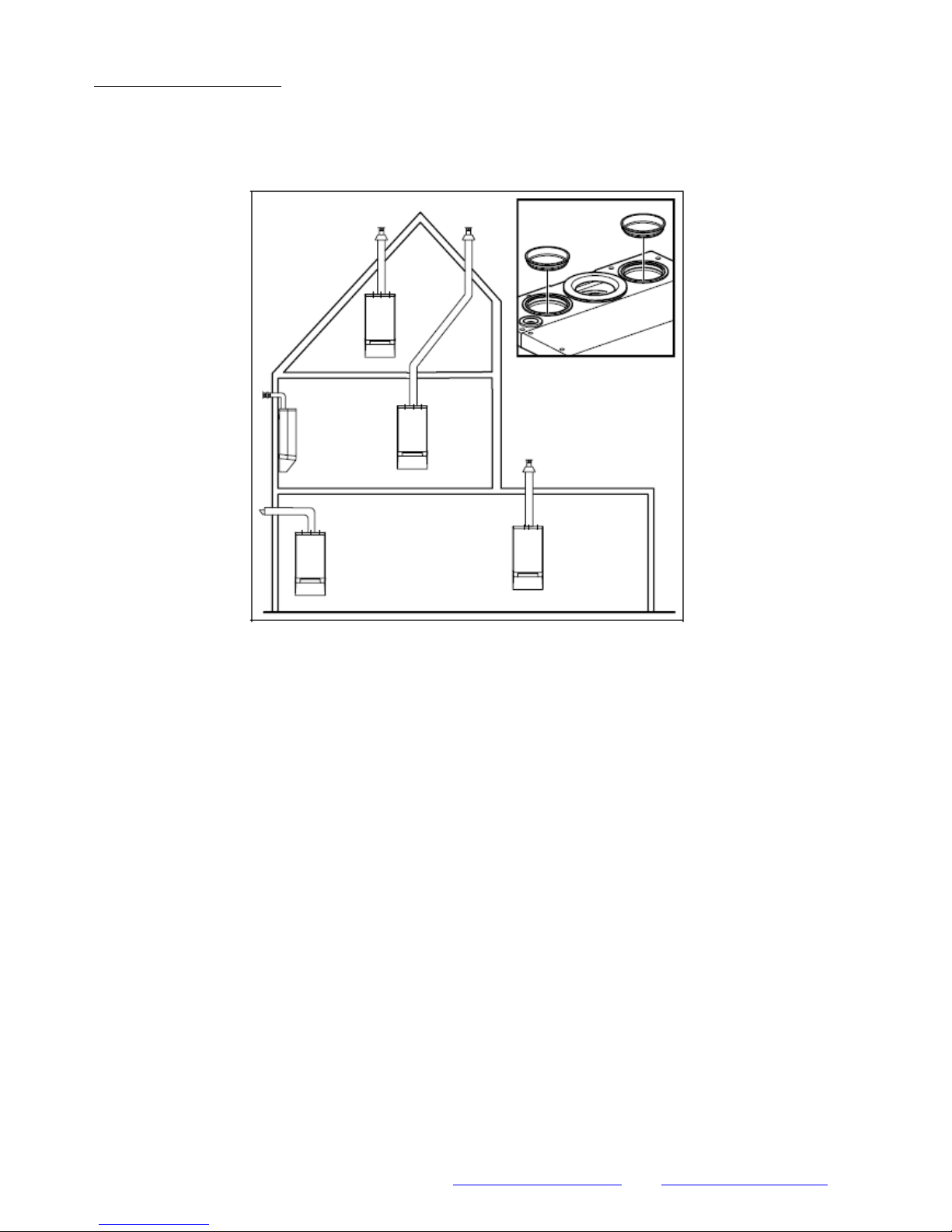

Fluing Installation Options
To Follow

© MHG Heating Ltd
Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010709 Draft
8
Fuel Gas Conversion Procedure
Conversion of the gas setting ring
1. Switch off the electrical supply to the appliance.
2. Close the gas tap.
3. Remove the front cover of the appliance.
4. Disconnect the coupling (1) above the gas valve and turn the gas mixing pipe (2) backwards.
5. Replace the O-ring (3) and the gas setting ring (4) by the rings of the conversion set.
6. Reassemble in reverse order.
7. Open the gas tap.
8. Check the gas connections for tightness/ leaks.
9. Switch on the electrical supply to the appliance.
10. Change the parameters d and F to the values given in the table below.
11. Now check the setting of the gas/air ratio. (See below)
12. Attach a sticker of the set gas type over the existing sticker on the gas mixing pipe (2).
13. Apply a sticker of the set gas type at the appliance plate.
14. Re-fix the front cover of the appliance

© MHG Heating Ltd
9
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Boiler Controls
Please note that the orientation of the panel may differ depending upon the version and country of
operation.
All settings are made via the boilers control panel.
#
Description / Function
1
Power Mode Selector
2
Parameter Adjustment Selectors
3
Temperature Set Point Selector
4
Commissioning Mode Selector
5
Boiler Reset / Setting Store Selector
A
Power Indicator LED
B
Heating Mode Output Set Point Indicator LED
C
HWS Mode Output Set Point Indicator LED
D
Boiler Flow Set Point Temperature
E
Operating Mode Indication Display
F
Reset Required Indicator

© MHG Heating Ltd
10
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Controller Adjustment
The control panel can be used to set or review the operation parameters of the boilers. A number
of the buttons have dual/multiple functions dependant to the sequence of operation or function
mode the unit is in.
1 / A Power Mode Selector/Indicator.
Pressing the button once will change to operating mode of the boiler.
If the LED is Red and the display is indicating -- the boiler is OFF and will not respond to an
enabling signal.
If the LED is Green and the display is blank the boiler is ON and will respond to an enabling signal.
2 / 3 / B / C / D Boiler Flow Temperature Adjustment for Heating and HWS Operation.
Pressing button 3 will illuminate the heating mode LED B and display the respective target flow
temperature on the display D. This can be adjusted via the + & - buttons 2. The setting can be
stored by pressing the Reset Button 5.
Pressing button 3 twice will illuminate the HWS mode LED C and display the respective target flow
temperature on the display D. This can be adjusted via the + & - buttons 2. The setting can be
stored by pressing the Reset Button 5.
4 / E / 2 Commissioning Mode Selection
The commissioning mode can be activated by pressing the following buttons in the required
sequence.
Required Function
Buttons
Display
Low Fire
Service Button 4 & Minus Temperature Button 2
L
Hire Fire Heating Mode
Service Button 4 & Plus Temperature Button 2
h
Highest Firing Mode
Service Button 4 & Plus Temperature Button 2 Twice
H
Exit Commissioning
Mode
Minus Temperature Button 2& Plus Temperature Button
2
Normal
Control
These operating mode must be used when commissioning the appliance and following any service
interventions.

© MHG Heating Ltd
11
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
5 / F Reset / Storage Button
If the unit fails to operate correctly and the unit Locks-Out the F LED will be illuminated, a fault
code will be displayed on E and the Reset button must be pressed for up to 5 Seconds to reset the
boiler. Prior to resetting the boiler the fault code displayed on E should be noted.
Second Level Access and Alteration
A second level of operational parameters can be accessed and altered if required to suit the
installation.
The second level is accessed as follows.
Switch Off the boiler by pressing button 1 so that the display E indicates -.
Press Service 4 and Reset 5 buttons simultaneously until the display E indicates –and the display
D indicates 0.
Press the + button to change the Display D to 15. Press the Service 4 button to accept the
password.
Access to the second level is now available.

© MHG Heating Ltd
12
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Pressing the Service 4 buttons provides access to the different functions. The + & - buttons are
used to alter the function. The Reset 5 button is used to store the altered functions.
Function
Setting
Required
Setting
Description
0
Access Code
15
Second Level Access Code
1
System Type
3
2
CH Pump Continuous
0
0 = Pump Overrun Only
1 = Pump Continuous
2 = CH Pump Continuously Active with
External MIT Switch
3
Set CH Power %
70
CH Output
4
Set Max Power
80
HWS Output
5
Weather Comp Curve Min Flow
Temp.
25
Max Outside Air Temp For Min CH Flow
Temp
6
Weather Comp Curve Outside
Air Max Flow Temp.
-1
Min Outside Air Temp For Max CH Flow
Temp
7
Weather Comp Curve Outside
Air Max Temp.
25
Max Outside Air Temp for CH
Operation
8
CH Pump Over-run Time
1
0 -15 Minutes
9
CH Pump Over-run Time HWS
Mode
1
0 –15 Minutes
A
Rest Position of 3 way valve or 2
Port Valve Present
0
0 = Confirmed During CH Operation
1 = Confirmed During HWS Operation
C
Step Modulation
0
0 = Step Modulation Off During CH
Operation
1 = Step Modulation On During CH
Operation
d
Minimum Output
30
25%-40% Nat Gas
40% LPG
E
Min Flow Temp Requested by
Open-Therm Controller
40
Requested Flow Temp Below Which the
Boiler Will Not Operate
F
Ignition Speed % of Max
70
40 –99%
H
Max Fan Speed
45
40 = 4000rpm 50 = 5000rpm

© MHG Heating Ltd
13
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Commissioning The Appliance
Pre-Commissioning Checks
Prior to undertaking the commissioning of the unit please ensure that the system water has been
cleansed and treated with a suitable inhibitor as detailed in Filling the system and system water
quality.

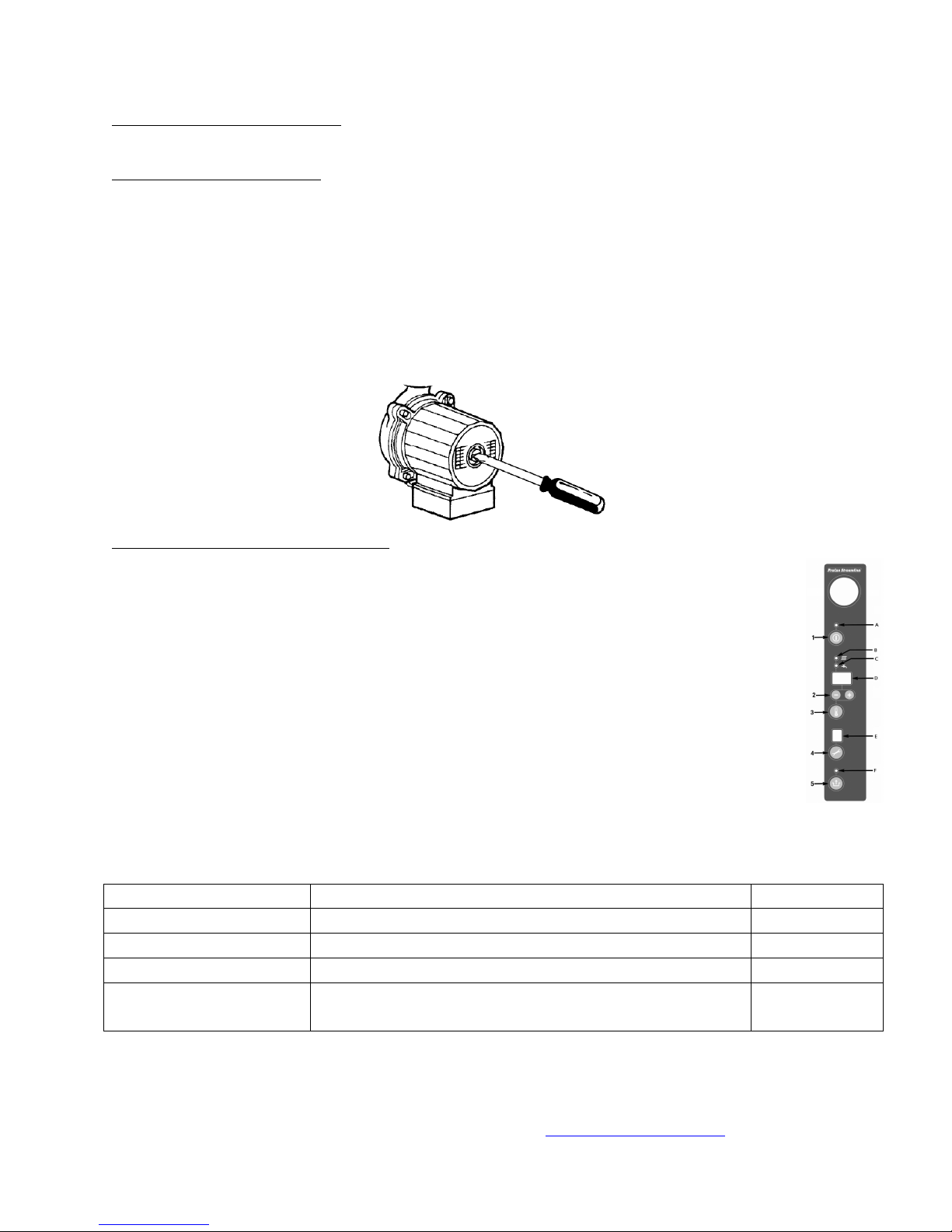

Prior to applying power to the appliance its circulation pumps should be bled and checked to
ensure free rotation of the armature.
Combustion System Commissioning.
A flue gas analyser must be used to ensure that the correct combustion settings are
achieved.
The appliance must be placed in the commissioning mode to check and set the
combustion at Maximum and Minimum outputs.
This achieved as follows.
Locate the flue gas sampling point on the flue adapter mounted directly above the boiler.
The commissioning mode can be activated by pressing the following buttons in the required
sequence.
Required Function
Buttons
Display
Low Fire
Service Button 4 & Minus Temperature Button 2
L
Hire Fire Heating Mode
Service Button 4 & Plus Temperature Button 2
h
Highest Firing Mode
Service Button 4 & Plus Temperature Button 2 Twice
H
Exit Commissioning
Mode
Minus Temperature Button 2& Plus Temperature Button
2
Normal
Control

© MHG Heating Ltd
14
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Insert your flue gas analyser in the sampling point and note the readings for the low and high
outputs.
The High fire setting should always be set prior to adjusting the Low fire.
Adjust the unit to operate at High fire and adjust the gas valve B to obtain the correct CO2%.
Adjust the unit to operate at Low fire and adjust the gas valve B to obtain the correct CO2%.
Following the successful adjustment of both High and Low fire setting the boiler should be
allowed to pass through one ignition cycle prior to the settings being rechecked.
Gas Valve Adjustments.
A = Dust Cap, B = High & Low Fire Adjustment, C = Off-Set pressure point, D = Inlet pressure
point.
Required combustion settings.
Setting
Natural Gas (H) (G20)
LPG (P) (G31)
Low Fire CO2%
8.9
9.9
High Fire CO2%
9.1
10.3
Minimum Inlet Dynamic Gas Pressure
Mbar
18
29
Outlet Restrictor Diameter mm
7.05
5.35
Minimum Fan Speed (Parameter d)
25
40
Minimum Ignition Speed (Parameter F)
70
50

© MHG Heating Ltd
15
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Routine Inspection and Servicing.
As with all appliances, we would highly recommended that a competent heating engineer services the
ThermiPro unit, at least every 12 months. This is assuming a normal daily usage of 8 –10 hours.
If however the unit is to be operated 24 hours a day, 7 days, we would recommend services every 6 months.
If the Installer/Commissioning Engineer is unable to undertake the Routine Service Inspection, as detailed in
the following section for the boiler and the respective section of the installed burner manual, please contact
the MHG Technical Department, who will be able to arrange the Routine Service Inspection to be undertaken.
Routine Service Inspection
Before commencing any service/maintenance work, the following tasks must be undertaken.
a) Ask the end user about any problems with the operation of the boiler unit and note their comments.
b) Check the water pressure of the installation.
c) Remove the boiler casing and visually inspect all pipe and water joints for signs of leakage.
d) Inspect the appliance for signs of water leakage or ingress.
e) Run the unit in Commissioning Mode HIGH FIRE; with the use of a flue gas analyzer record the CO2level.
f) Run the unit in Commissioning Mode LOW FIRE; with the use of a flue gas analyzer record the CO2
level.
g) Listen to the sound of the combustion fan.
h) Undertake a System Water Analysis to check the concentration level of the Water Treatment, and
note the level onto the Service Report.
i) Check the flue route including the terminal position for conformity with prevailing regulations, and trim
back any foliage that may be around the terminal.
j) Check the plant room/compartment ventilation system for conformity with prevailing regulations.
k) Check the Pressure (Safety) Relief Valve size, rating and orientation, for conformity with prevailing
regulations.
The results of the Inspections undertaken above must be acted upon, and all discrepancies should be
recorded on the Service Report and brought to the Client / End User’s attention.
Undertake any maintenance, and if necessary any preventative maintenance, that’s required.

© MHG Heating Ltd
16
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Routine Cleaning & Maintenance
As part of the Routine Service Inspection, certain areas of the boiler need to the checked and cleaned as
necessary.
a) Turn the boiler OFF at the ON/OFF switch and electrically isolate the boiler by removing the plug or
fuse from the boiler supply.
b) Turn off the fuel supply at the boiler isolation tap, fitted by the installer, adjacent to the appliance.
c) Remove the electrical connections from the boiler.
d) Remove the burner plate from the boiler.
e) Inspect the burner and clean with compressed air as required. Do not brush the burner. Ensure that the
compressed air does not damage the burner surface.
f) Brush the heat exchanger with a suitable soft bristled brush.
g) Adjust the ignition electrode as indicated in the image below.
h) Flush the heat exchanger with water.
i) Open the condensate trap and clean.
j) Refit the condensate trap and refill with water via the heat exchanger.
k) Refit the burner plate assembly.
l) Ensure that all electrical connections are correctly and securely connected.
m) Inspect all water joints. Any joints found to be leaking MUST be replaced. It is also advisable when
replacing water joints to also change any adjacent joints at the same time.
n) Inspect all fuel joints with a suitable leak detection method. Any joints found to be leaking MUST be
replaced. It is also advisable when replacing joints to also change any adjacent joints at the same time.
o) With the use of a suitable Flue Gas Analyser, check and adjust the combustion settings.
p) Inspect the general condition of the flue system, including the termination, repair as necessary or
advice on any remedial action as required.
q) Following the satisfactory completion of the above service procedure complete the required paperwork
and leave the boiler as found if possible.

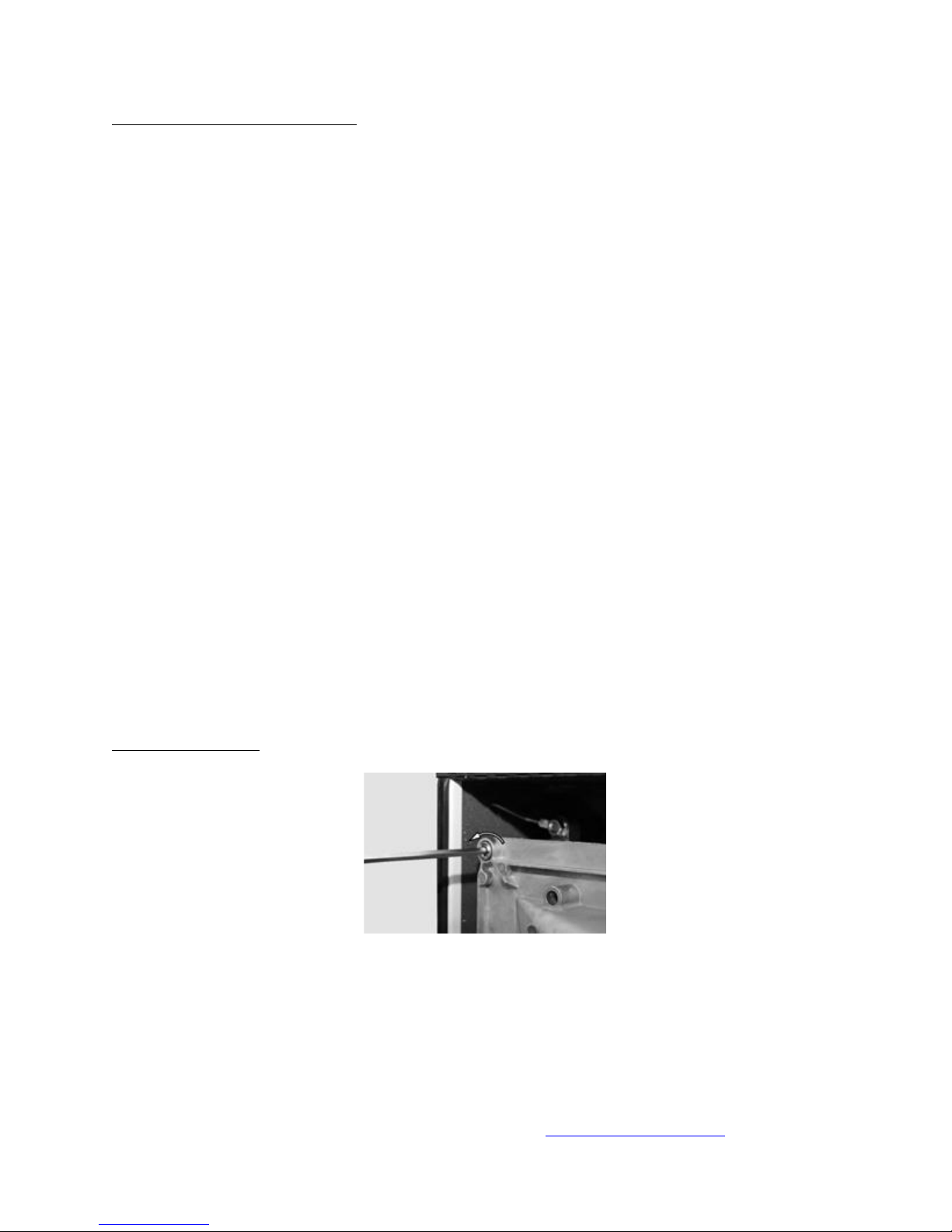

Burner Plate Removal.

© MHG Heating Ltd
17
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft

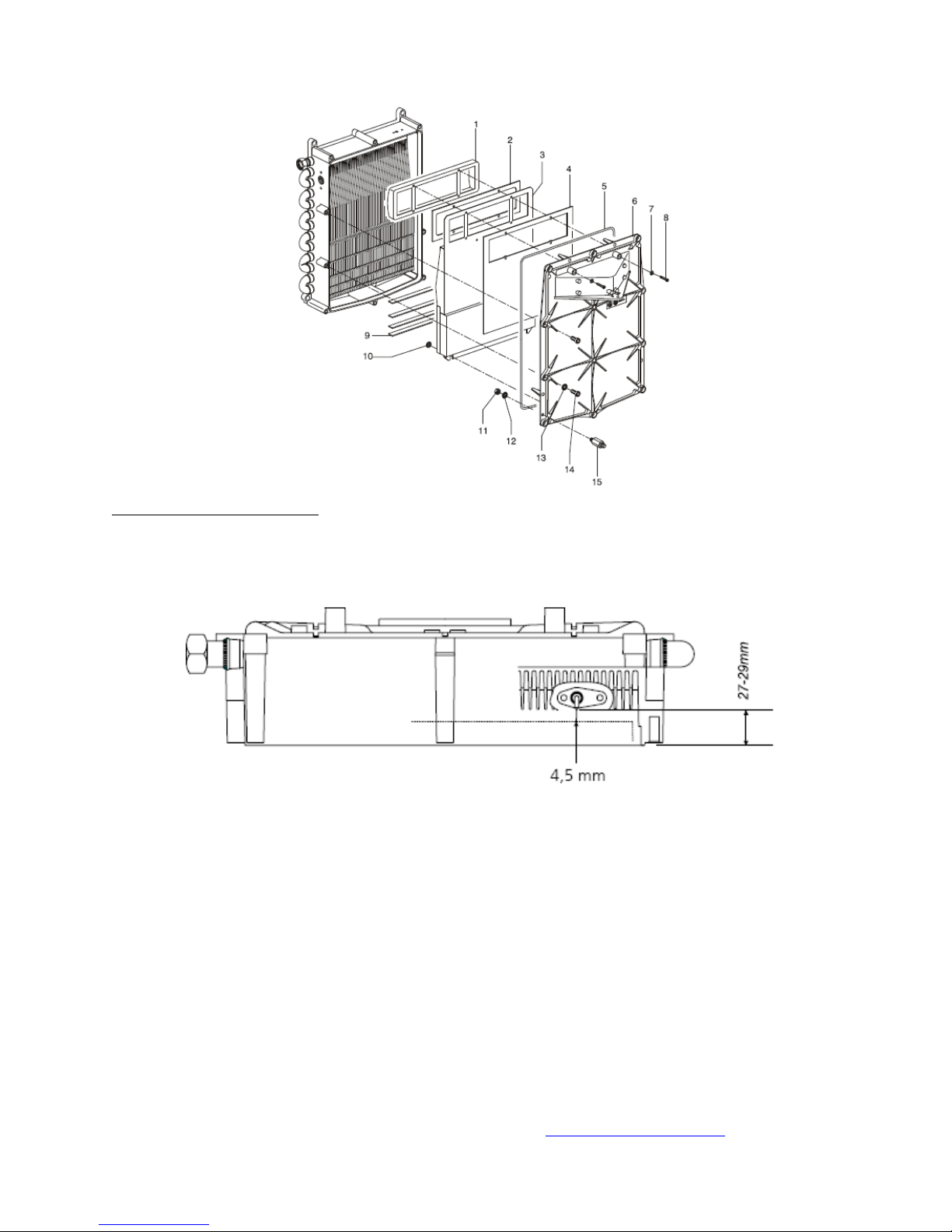

Ignition Electrode Adjustment.
With the burner assembly removed set the ignition electrode to 27-29mm from the edge of the casing. This
will ensure that the gap will be 4.5 mm when the burner assembly is refitted.

© MHG Heating Ltd
18
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
Fault Codes.
If the boiler encounters an operation fault a code will be displayed on the boiler s control panel.
Please note the fault code prior to resetting boiler.
Pressing the Reset button for 5 seconds resets the unit.
Fault Code
Display D
Fault Code
Display E
Description
Cause / Remedy
1
Flow Sensor S1 Fault
Check sensor and wiring
2
Return Sensor S2 Fault
Check sensor and wiring
3
Not Used
Not Used
0
General Sensor Fault After Self Check
Check wiring, replace sensors
1
Temperature Too High
Air in system, Strainer blocked,
Pump failure.
2
S1 or S2 Requires Replacing
Check wiring, replace sensors
4
No Flame Signal After 4 Ignition
Attempts
Gas supply Off, Gas pressure too
low, Gas Valve Faulty, Gas valve
out of adjustment, ignition
electrode /cable fault,
Condensate drain blocked.
5
Flame Out 4 Restarts
Gas pressure too low, Gas valve
out of adjustment, ignition
electrode /cable fault,
Condensate drain blocked.
6
Flame Detected When Fan Off
Ignition electrode /cable fault,
Controller fault.
7
Computer Connected to Controller
Reset Unit
8
Fan Speed Incorrect
Fan fault, Fan wiring fault,
F or h
Internal Controller Fault
Reset Unit, Earthing fault

© MHG Heating Ltd
19
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft
15.0 Weather Compensation Slope
Outside Air Temperature Sensor Resistance Curve (NTC 12k Ω)

© MHG Heating Ltd
20
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax. Email [e-mail] Website
www.mhgheating.co.uk
010113 Draft

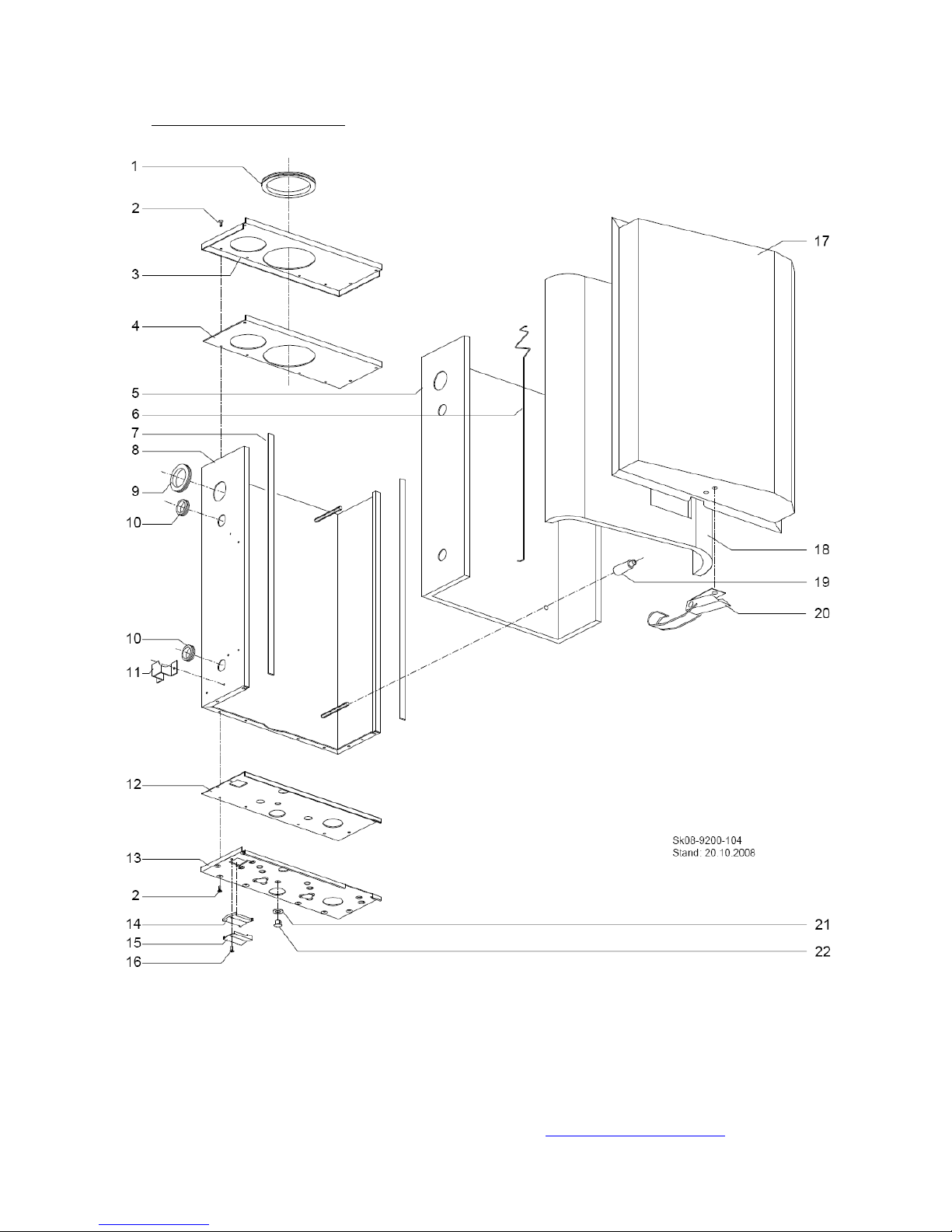

17.0 Exploded Spares Diagram
