Installation and Operating Manual for the
ProCon 16, 27, 47, 75 & 77
Wall Mounted Condensing Boiler Range.
(RVS 43 Cascade Models)

© MHG Heating Ltd
2
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
Section
Page #
1.0
Appliance Type
3
1.1
ProCon H
3
1.2
ProCon S
3
1.3
ProCon HS
3
1.4
ProCon HS+
3
1.5
ProCon HM
3
2.0
Installation Regulations and Requirements
4
2.1
Appliance Warranties. Supplied Components.
5
3.0
Dimensions 16, 27 & 47
6
3.1
Dimensions 75
7
3.2
Dimensions 77
8
3.3
Dimensions Kompact (For Information only)
9
3.4
Installation Clearances and Mounting Information 16, 27 & 47
10
3.5
Installation Clearances and Mounting Information 75
12
3.6
Installation Clearances and Mounting Information 77
14
4.0
Delivery and Mobility
16
4.1
Case Removal
16
5.0
Technical Data
17
6.0
Pressure Relief Valve
18
7.0
Electrical Connections
18
8.0
Hydraulic and Wiring Guide Single Unit Option 1 (Heating Only) (Low Resistance Circuit)
20
8.1
Hydraulic and Wiring Guide Single Unit Option 2 (Heating & HWS) (External 3 Way Valve)
21
8.2
Hydraulic and Wiring Guide Single Unit Option 3 (Heating & HWS) (HS)
22
8.3
Hydraulic and Wiring Guide Single Unit Option 4 (Heating Only) (High Resistance Circuit)
23
8.4
Hydraulic and Wiring Guide Single Unit Option 5 (Heating & HWS) (High Resistance Circuit)
24
8.5
Hydraulic and Wiring Guide Single Unit Option 6 (Heating & HWS) (Two Heating Circuits)(HS)
25
8.6
Hydraulic and Wiring Guide Single Unit Option 7(Heating & HWS) (Two Heating Circuits)
26
8.7
Hydraulic and Wiring Guide Single Unit Option 8 (Heating & HWS) (Two Heating Circuits)(Mixing)(HS)
27
8.8
Hydraulic and Wiring Guide Single Unit Option 9 (Heating & HWS) (Two Heating Circuits)(Mixing)
28
8.9
Hydraulic and Wiring Guide Single Unit Option 10 (Heating & HWS) (Two Heating Circuits)(RVA63)
29
8.10
RVA63 Zone Controller Wiring Information
30
8.11
Hydraulic and Wiring Guide Multiple Units Option 11 (Heating & HWS) (RVS43 Cascade Manager )
31
8.12
RVS43 Cascade Manager Wiring Information (Controller Only)
32
8.13
RVS63 Cascade Manager Housing Wiring Information (Including Space For RVA46 Zone Controller)
33
8.14
Hydraulic and Wiring Guide Multiple Units Option 12 (Heating & HWS) (RVS43 Cascade Manager+RVA63)
35
9.0
BMS Interface Installation and Parameter Alteration & AGU Mixing Zone Clip Installation and Parameter Alteration
36
10.0
Fluing Options
38
10.01
MicroMat EC 60-75 Flue Adapter for use with ProCon 77
38
10.1
Single Unit Balanced Flue Wall Termination
39
10.2
Single Unit Balanced Flue Vertical Termination
39
10.2.5
Single Unit Balanced Flue with Concentric to Twin DN80 Products of Combustion and Combustion Air Ducts.
39
10.3
Single Unit open Flue Wall Termination
40
10.4
Single Unit Open Flue Vertical Termination
40
10.5
Cascaded Open Flue Vertical Termination
40
10.6
Dimensions of Available Flue Components
41
10.7
Balanced Flue Terminal Positions For Boilers below and Above 70kW Net Input
42
11.0
Filling The System
43
11.1
Pressure Vessel
44
12.0
System Water Quality
44
12.1
Care With The Use Of Solder Flux
45
13.0
Appliance Controls
46
13.1
Module Operating Codes
48
14.0
Appliance Fault Codes
49
14.1
Enhanced Appliance Fault Codes
51
15.0
Accessing Boiler Parameters (Control Parameter Default Settings)
53
16.0
RVS43 Cascade Manager General Information
58
16.1
RVS43 Cascade Manager Parameter Setting
64
17.0
Commissioning
88
17.1
Pre-Commissioning Checks.
88
17.2
Combustion System Commissioning
88
17.3
NG/LPG –LPG/NG Conversion Procedure
90
18.0
Routine Inspection and Servicing
92
18.1
Routine Service Inspection
92
18.2
Routine Cleaning and Maintenance
92
19.0
Weather Compensation Slope Graph
94
20.0
Optional System Controls
95
21.0
Internal Wiring Diagrams
96
21.1
Internal Wiring Diagrams 16, 27 & 47 H , HS & S
96
21.2
Internal Wiring Diagrams 47 H & S
97
21.3
Internal Wiring Diagrams 75 & 77 H
98
21.4
Internal Wiring Diagrams 75 & 77 HM
99
22.0
HM and Cascade Slave Units Equipped with OCI420 Communication Clips (LED Indication)
100
23.0
Exploded Spares Diagrams 16, 27 & 47
101
24.0
Exploded Spares Diagrams 75
107
25.0
Exploded Spares Diagrams 77
109
Notes
112

© MHG Heating Ltd
3
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
1.0 Appliance TypeThere are four build types and four outputs within the ProCon range.
Please ensure you have the correct unit for the application and where required located correctly
within the cascade prior to beginning the installation.
ProCon 16H & 16HS, ProCon 27H, 27S & 27HS, ProCon 47H & 47S, ProCon 75&77H & 75&77HM
1.1 The ProCon H range of appliances is designed to be applied to systems requiring direct on
boiler weather compensated heating and priority hot water production via a separate high
recovery calorifier/cylinder.
1.2 The ProCon S range of appliances is designed to be applied to systems requiring direct on
boiler weather compensated heating and priority on demand hot water production via an internal
late heat exchanger.
1.3 The ProCon HS range of appliances are designed to be applied to systems requiring direct on
boiler weather compensated heating and priority hot water production via a separate high
recovery Calorifier/Cylinder, where the diverter valve controlling the production of hot water is
within the boiler case.
1.4 The ProCon HS+ can be supplied complete with an integrated high recovery calorifier for
simplified and attractive installation housed within and extended case. The high recovery calorifer
can be located beneath of adjacent to the boilers. (Further information available via the website
www.mhgheating.co.uk)
1.5 The ProCon HM appliance is supplied complete with and integral RVS43 Cascade Manager
capable of controlling an additional 11 ProCon boilers. Each subsequent boiler must be fitted with
an OCI420 Communication Clip.
The product codes for the entire range are:
Product Name
Product Code
ProCon 16 H
96.30000-7192
ProCon 16 HS
96.30000-7193
ProCon 27 H
96.30000-7194
ProCon 27 S
96.30000-7195
ProCon 27 HS
96.30000-7196
ProCon 47 H
96.30000-7197
ProCon 47S
96.30000-7198
ProCon 75 H
96.30000-7188
ProCon 75 HM
96.30000-7189
ProCon 77 H
96.30000-7190
ProCon 77 HM
96.30000-7191

© MHG Heating Ltd
4
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
2.0 Installation Regulations and Requirements
The installation of ProCon HT boilers must be in accordance with the relevant requirements of Gas
Safety (Installation & Use) Regulations 1994, Health & Safety at Work Act, Building Regulations, IEE
Regulations, Construction (Design & Management) Regulations 1994, Local Authority Bye-Laws,
National, Fire Regulations and Insurance Company requirements.
The following Codes of Practice are also applicable:-
BS 5440-1: 2000 Installation of flues and ventilation for gas appliances of rated input not
exceeding 70 kW net (1st, 2nd and 3rd family gases).
Part 1: Specification for the installation of flues.
BS 5440-2: 2000 Installation of flues and ventilation for gas appliances of rated input not
exceeding 70 kW net (1st, 2nd and 3rd family gases).
Part 2: Specification for installation and maintenance of ventilation for gas appliances.
BS 5449: 1990 Specification for forced circulation hot water central heating systems for domestic
premises.
BS 6644: 2005 Specification for gas fired hot water boilers of rated inputs between 70kW (net)
and 1.8MW(net) (2nd and 3rd family gases).
BS 6798: 1987 Specification for installation of gas fired hot water boilers of rated input not
exceeding 60 kW.
BS 6880: 1988 Code of Practice for low temperature hot water heating systems of output greater
than 45kW. Parts 1, 2 & 3.
BS 6891: 1988 Specification for installation of low pressure gas pipework of up to 28mm (R1) in
domestic premises (2nd family gases)
BS 7593: 1992 Code of Practice for treatment of water in domestic hot water central heating
systems.
BS 7671: 1992 Requirements for electrical installations. IEE Wiring Regulations. Sixteenth edition.
CISBE Guide reference sections B7, B11 and B13.
CP342 Part 2: 1974 Code of Practice for centralized hot water supply.
GE/UP/2 Gas installation pipework, boosters and compressors on industrial and commercial
premises.
IGE/UP/4 Commissioning of gas fired plant on industrial and commercial premises
IGE/UP/10 Installation of gas appliances in industrial and commercial premises. Part 1: Flued
appliances.
And any addition prevailing regulation and or code of practice not detailed above.

© MHG Heating Ltd
5
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
2.1 Appliance Warranties
All MHG appliances enjoy a full 24 month warranty as detailed in our terms and conditions.
The guarantee period shall begin on the day of commissioning, or at latest 3 months after delivery
has been made.
The customer shall only be able to claim against MHG under guarantee if the commissioning of
the object of delivery has been carried out by MHG staff or the authorised supplier, if the customer
has followed MHG's instructions relating to the treatment and maintenance of the object of
delivery, and if no replacement parts of outside origin have been fitted.
Parts subject to wear such as ignition electrodes, seals etc. are strictly excluded from the
guarantee.”
In addition to the above warranties, the Primary Heat Exchangers carry a 60 month guarantee
against manufacturing or material defect.
Supplied Components
All ProCons are supplied with the following components.
QAC 34 Outside Air Sensor. (To activate direct on boiler weather compensation.)
Wall Mounting bracket and fixing kit.
Condensate outlet adapter. (To convert ¾” BPS to 22mm plastic waste.)
Bleed key & heat exchanger venting hose.
Condensate syphon flushing hose. (To be attached to the heat exchanger and flue waste pipes and
flushed with clean water.)

© MHG Heating Ltd
6
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.0 Dimensions. 16 –47 Boilers
Legend
1
Cable Entry Grommets
5
Hot Water Primary Return 22mm (HS Models)
Cold Water Inlet 22mm (S Models)
2
Heating Flow 22mm (All Models)
6
Heating Return 22mm (All Models)
3
Hot Water Primary Flow 22mm (HS Models)
Hot Water Outlet 22mm (S Models)
7
Condensate Outlet ¾” BSP Plastic
4
Gas Inlet 22mm
7.1
Condensate Cleanout Connection ¾” Cap

© MHG Heating Ltd
7
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.1 Dimensions.75 Boiler
Legend
A
Condensate Cleanout Connection ¾” Cap
D
Heating Return 1 ¼”
B
Condensate Outlet ¾” BSP Plastic
E
Gas Supply inlet ¾”
C
Heating Flow 1 ¼”
F
Cable Entry Grommets

© MHG Heating Ltd
8
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.2 Dimensions. 77 Boiler
Legend
1
Heating Return Connection 1 ¼”
4
Condensate Cleanout Connection ¾” Cap
2
Heating Flow Connection Option 1 ¼”
5
Gas Inlet ¾”
3
Condensate Outlet ¾” BSP Plastic
6
Cable Entry Grommets
**Please note that the flexible flow connection can be rerouted to the top of the boiler if
required.**

© MHG Heating Ltd
9
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.3 Dimensions HS + Calorifier Below (Additional information available from the website www.mhgheating.co.uk)
Legend
VL
Hot water Primary Flow 1”
RL
Hot Water Primary Return 1”
WW
Hot Water Secondary Outlet ¾”
A
120 Litre Calorifier
Z
Hot Water Secondary Return ½”
B
Pipework Cover
KW
Cold Water Secondary Inlet ¾”
C
Calorifier Cover
3.3 Dimensions HS + Calorifier Adjacent (Additional information available from the website
www.mhgheating.co.uk)
Legend
RL
Hot Water Primary Return ¾”
VL
Hot water Primary Flow ¾”
WW
Hot Water Secondary Outlet ¾”
D
60 Litre Calorifier
KW
Cold Water Secondary Inlet ¾”
E
Calorifier Cover
Z
Hot Water Secondary Return ½”
F
Pipework Cover

© MHG Heating Ltd
10
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114

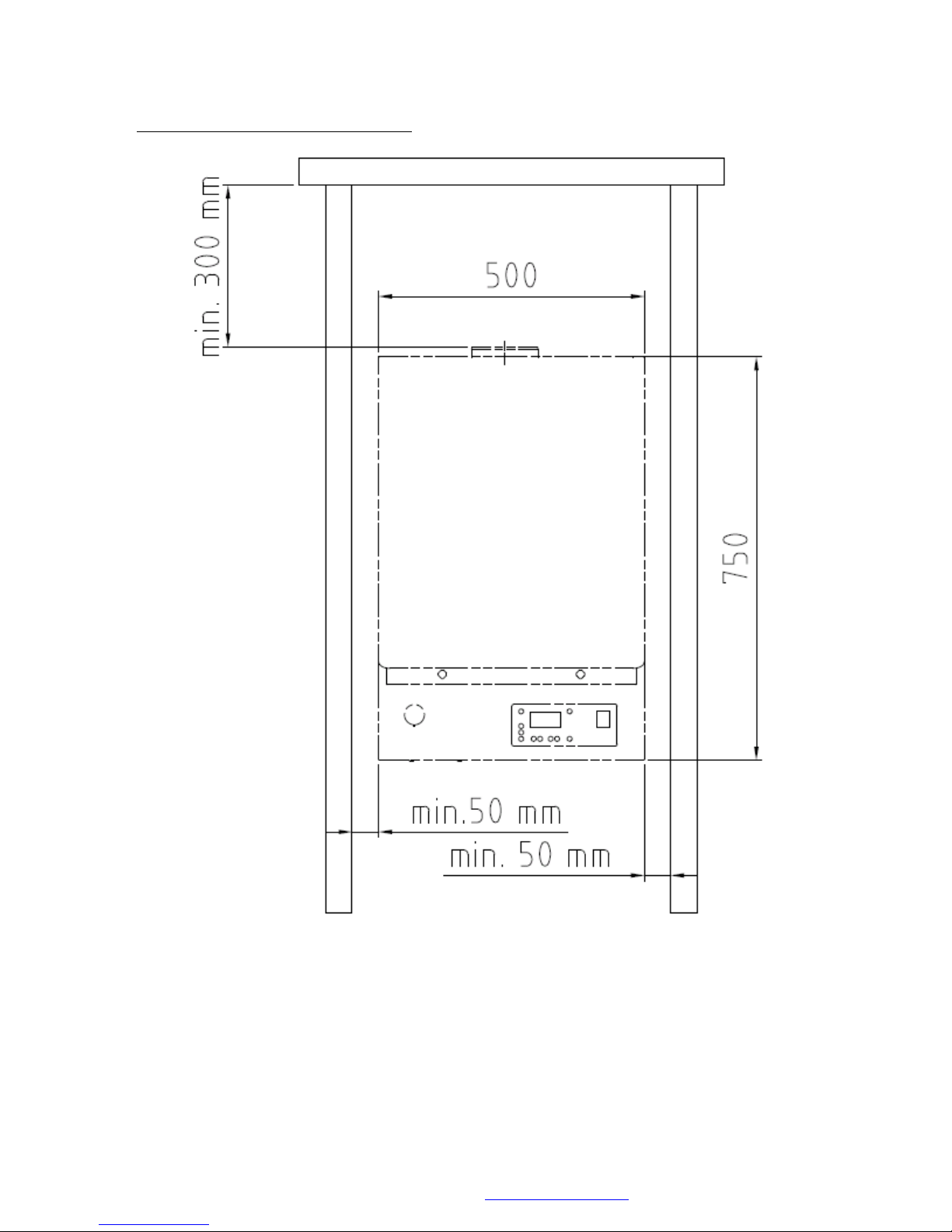

3.4 Installation and Service Clearances 16-47 Boilers

© MHG Heating Ltd
11
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.4 Mounting Information 16 –47 Boilers

© MHG Heating Ltd
12
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114

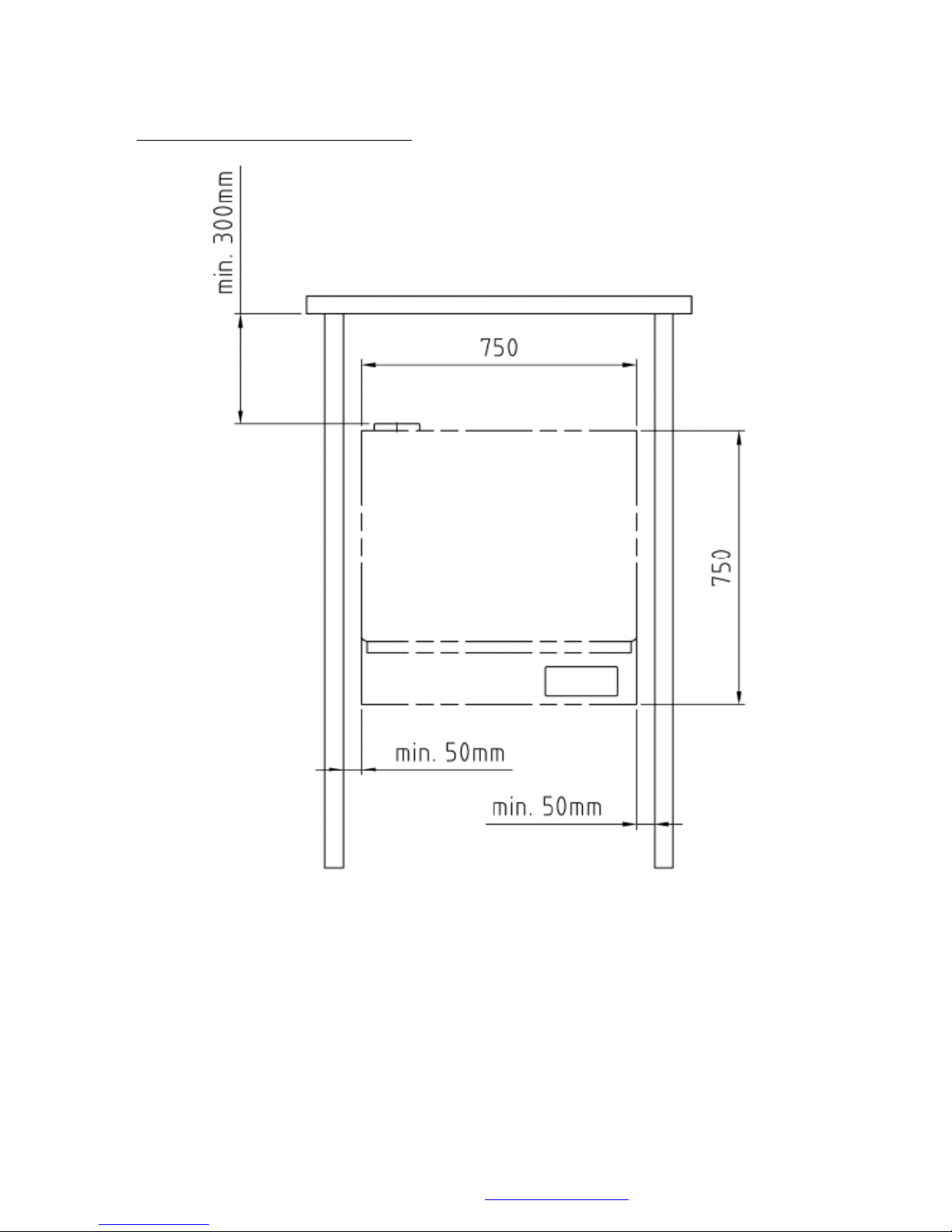

3.5 Installation and Service Clearances 75 Boiler

© MHG Heating Ltd
13
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.5 Mounting Clearances 75 Boiler

© MHG Heating Ltd
14
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.6 Installation and Service Clearances 77 Boiler

© MHG Heating Ltd
15
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
3.6 Mounting Clearances 77 Boiler

© MHG Heating Ltd
16
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
4.0 Delivery and Mobility
All ProCons are supplied fully tested and therefore may contain residual test water.
The test water utilised contains additives that will help prevent the pump from sticking and other
metals from oxidising.
To maintain the structural integrity of the appliance the internal components should not be used
during the lifting and positioning of the unit onto the wall bracket.
All packaging materials should be disposed of in an environmentally way.
4.1 Case Removal
To remove the case insert a flat blade screwdriver or similar into the black latch slots and turn
through 900 .
Pull the base of the cover forward and up to release the hooks at the top. Ensure that the earth
cable is removed prior to lifting the cover clear.
The lower case housing the display panel can be hinged down to all greater access to all internal
components.
The lower case is secured on either side by thumb nuts located on the return edge on the side
case.

© MHG Heating Ltd
17
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
5.0 Technical Data
Technical Data
Units
16 H &
HS
27 H &
HS & (S)
47 H &
(S)
75 & 77
H & HM
Nominal Heat Input Net
Min/Max
kW
4.0/15.0
6.5/25.0
12.0/45.0
15.0/70.0
Nominal Heat Input Gross
Min/Max
kW
4.4/16.5
7.2/27.5
13.2/49.5
16.5/77.0
Carbon Emissions
100% Of max Output
G20
G31
kgC/kWhr
kgC/kWhr
0.061
0.078
0.061
0.078
0.061
0.078
0.060
0.077
Carbon Emissions
30% Of max Output
G20
G31
kgC/kWhr
kgC/kWhr
0.055
0.070
0.055
0.070
0.055
0.070
0.055
0.070
SEDBUK Rating
B
B
B
B
Operating Efficiency (40ºC/30ºC)
%
108.8
108.7
108.5
108.5
Nominal Heat Output (50ºC/30ºC)
Min/Max
kW
4.3/15.8
7.0/26.2
12.9/47.0
16.0/74.6
Design Flow Rate (50ºC/30ºC)
Ltr/sec
0.188
0.312
0.560
0.880
Nominal Heat Output (80ºC/60ºC)
Min/Max
kW
3.7/14.5
6.3/24.2
11.7/43.5
14.5/67.8
Design Flow Rate (80ºC/60ºC)
Ltr/sec
0.172
0.288
0.519
0.807
Hot Water Generation Output
kW
(31.3)
(45)
Hot water flow rate @ DT 30)C
Ltr/min
(15)
(20)
Min Flow Rate For H/W
Activation
Ltr/min
(3)
(3)
Maximum Secondary Water
Pressure
bar
(10)
(10)
Minimum Flow Rate
Ltr/sec
0.125
0.246
0.373
0.592
Residual Head from In-built
Pump
m/W.C
3.7
1.3
0.5
0.75
Maximum Input Gas Rate
G20
G31
m³/hr
m³/hr
1.55
0.57
2.55
1.00
4.65
1.72
6.91
2.60
Gas Inlet Pressure
Min/Max
Mbar
18.0/50.0
18.0/50.0
18.0/50.0
18.0/50.0
Maximum Flue Gas Volume
(Hot)
m³/hr
21.36
40.81
64.08
96.84
Available Fan Pressure
Pa
400
400
400
400
Maximum Water Pressure
(Hot)
bar
3.0
3.0
3.0
3.0
Minimum Water Pressure
(Cold)
bar
0.8
0.8
0.8
0.8
Maximum Flow Temperature
ºC
90
90
90
90
Power Supply (230 V / 50 Hz)
Amps
5
5
5
5
Max Power Consumption
Watts
122
129
145
250
Water Content
Ltrs
4
5.2
5.2
8.2
Lift Weight (Dry)
kg
43.0
43.0
43.0
70.0
Flue Connection
Flue Gas Outlet
Female
80mm
80mm
80mm
80mm
Combustion Air Inlet
Male
125mm
125mm
125mm
125mm
Concentrically Configured
(Straight or Elbow Adapter
Required.)
Yes
Yes
Yes
Yes

© MHG Heating Ltd
18
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
6.0 Pressure (Safety) Relief Valve
In accordance with the prevailing British Standard 5440/6644, the installer shall install as suitably
sized Pressure (Safety) Relief Valve.
The location of this valve is important with respect to the applied pressure of the boiler circulation
pump, it is therefore recommended to locate the Pressure (Safety) Relief Valve on the flow pipe
immediately adjacent to the boiler; furthermore, there must not be any means of isolation
between the boiler and the Pressure (Safety) Relief Valve.
7.0 Electrical Connections
Basic electrical connection for all types of ProCon
Legend
Low Voltage Control terminals < 25 Volts
RU
1
QAA73 Room Unit Not Polarity Sensitive < 24Volts
(Link terminals to activate second heating zone control.)
2
RT
3
Heating Circuit 1 Volt Free Enable Not Polarity Sensitive (Room stat/BMS) < 24 Volts
4
AT
5
Outside Air Sensor (QAC34) Not Polarity Sensitive < 24Volts
(Required to Activate Direct on Boiler Weather Compensation)
6
BW
7
Hot Water Sensor (QAZ36) or Hot Water Volt Free Enable (Thermostat/BMS).
Not Polarity Sensitive < 24Volts
8
High Voltage Output and Input Terminals 230 Volts
E
9
Common Earth Terminal
BW/K3
10
Permanent 230 Volt Output for Motor Open Motor Close Hot Water Diverter Valve
11
Neutral Terminal for Hot Water Diverter Valve or Charging Pump
12
230 Volt Output For Hot Water Diverter Valve or Charging Pump (Max 1Amp)
K2
13
230 Volt Output For Heating Circuit Pump (ProCon 16-27)/Boiler Pump ProCon 47, 75&77) (Max 1Amp)
14
Neutral Terminal for heating/Boiler Pump
E
15
Common Earth Terminal
K1
16
Neutral Terminal for heating/Boiler Pump
17
230 Volt Output For Boiler Pump (ProCon 16-27)/Heating Circuit Pump ProCon 47,75&77) (Max 1Amp)
E
18
Permanent Earth Terminal
N
19
Switched Fused Permanent Neutral
L
20
Switched Fused Permanent 230 Volt Live (Max 5Amp)

© MHG Heating Ltd
19
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
Enhanced electrical connection for ProCon HM (Units supplied with an integral Cascade manager)
Legend
High Voltage Output Terminals 230 Volts
BW
N
Neutral Terminal for Hot Water Charging Pump
E
Earth Terminal for Hot Water Charging Pump
L
230 Volt Output For Hot Water Charging Pump (Max 1Amp)
HK/ZB
N
Neutral Terminal for Heating Circuit Pump
E
Earth Terminal for heating Circuit Pump
L
230 Volt Output For Heating Circuit Pump (Max 1Amp)
Low Voltage Control terminals < 25 Volts
H1
M
H1 Ground Terminal
H1
Controller Operating Input (Volt free Enable/0-10 Volt Control/Mode Alteration)
RL
M
System Return Sensor (QAD 36) Terminal Not Polarity Sensitive < 25 Volts
B70/B4
VL
M
System Flow Sensor (QAD 36) Terminal Not Polarity Sensitive < 25 Volts
B10
BW
M
Hot Water Sensor (QAZ36) or Hot Water Volt Free Enable (Thermostat/BMS).
Not Polarity Sensitive < 24Volts
B3
AF
M
Outside Air Sensor (QAC34) or (3000ΩSubstitute Resistor = -10C) Not Polarity Sensitive < 24Volts
(Required to Activate Direct On Boiler Weather Compensation)
B9
RU
MD
Cascade Controller Output to Slave Boilers. Polarity Sensitive (Screened Cable Required)
(X41 Terminal 2 (Right) OCI420 Communication Clip)
A6
Cascade Controller Output to Slave Boilers. Polarity Sensitive (Screened Cable Required)
(X41 Terminal 1 (Left) OCI420 Communication Clip)
Please note that two outside air sensors are available. Please ensure that the units are wired as
follows.
QAC34
Wired to the either AT terminals.
In either case the outside air temperature will be communicated to all controllers.

© MHG Heating Ltd
20
MHG Heating Ltd Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth, Surrey KT20 5LR
Telephone [phone] Fax [phone] Email [e-mail] Web www.mhgheating.co.uk
010114
8.0 Hydraulic Design Single Unit (Option 1)
Electrical Connections Single Unit (Option 1)
Parameter #
Parameters Description
Default
Proposed Change
H554 b3
Weather Compensation (1) / Constant Flow Temperature Operation
(0)
(E10 Error signal when outside air sensor is not installed.)
1
0
