MHG Heating ProCon HT 225 User manual

Installation and Operating Manual for the
ProCon HT 150 & 225
Floor Standing Condensing Boiler Range.
MHG Heating Ltd, Unit 4 Epsom Downs Metro Centre, Waterfield, Tadworth,
Surrey, KT20 5LR
0845 6448802 Telephone. [phone] Fax.
Email [email protected] Website www.mhgheating.co.uk

© MHG Heating Ltd
010108 2
Contents.
Section Page #
1.0 Appliance Type 3
1.1 Single Unit 3
1.2 Cascade Manager 4
1.3 Cascade Slave 5
2.0 Installation Regulations and Requirements 6
2.1 Appliance Warranties 6
3.0 Dimensions 7
3.1 Installation Clearances 8
4.0 Delivery and Mobility 8
4.1 Case Removal 9
5.0 Technical Data 11
6.0 Pressure Relief Valve 12
7.0 Electrical Connections 12
8.0 Hydraulic Design Single Unit 13
8.1 Control Wiring Single Unit 13
8.2 Hydraulic Design Cascade Units 14
8.3 Control Wiring Cascade Units 14
9.0 Fluing Options 15
9.1 Single Unit Conventional Flue 15
9.2 Single Unit Balanced Flue 15
9.3 Cascade Conventional Flue 16
9.4 Cascade Balanced Flue 17
10.0 Filling The System 18
10.1 Pressure Vessel 18
11.0 System Water Quality 19
11.1 Care With The Use Of Solder Flux 19
12.0 Appliance Controls 20
12.1 Control Panel 20
12.2 RVA47 Cascade Manager 20
12.3 Module Controller 21
12.4 Module Controller End User Settings 21
12.5 Accessing Module Parameters 22
12.6 Module Operating Codes 23
13.0 Appliance Error Codes 24
14.0 Control Parameter Defaults 26
14.1 RVA47 Cascade Manager 26
14.2 Module LMU64 Controller (QAA73 Unit Required.) 32
15.0 Commissioning 36
15.1 Pre-Commissioning Checks. 36
15.2 Combustion System Commissioning 36
15.3 NG/LPG – LPG/NG Conversion Procedure 38
16.0 Routine Inspection and Servicing 39
16.1 Routine Service Inspection 39
16.2 Routine Cleaning and Maintenance 39
16.3 QAA73 Room Unit/Service Tool 41
17.0 Optional System Controls (RVA 63, RVA46, QAA70, QAA50, QAA10) 42
18.0 Internal Wiring 43
18.1 Module Control Indication (OCI420 Communication Clip LED) 43
18.1.1 Module BMS Fault Indication Clip Installation and Setting (AGU2.511 Clip) 44
18.2 Internal Wiring Diagram 45
19.0 Exploded Diagrams 46
20.0 Spares Listings 50
21.0 Installer / End Users Note 53

© MHG Heating Ltd
010108 3
1.0 Appliance Type.
There are three build types within the ProCon HT range.
Please ensure you have the correct unit for the application and where required located
correctly within the cascade prior to beginning the installation.
1.1 Single Units.
(150 Product Code 96.30000-7182)
(225 Product Code 96.30000-7183)
The Single Unit is supplied with an integral low loss header.
This unit does not require the installation of a second low loss header remote from the
appliance.
The system’s (Secondary) circulating pumps (Heating / HWS) are to be connected
(hydraulically) to the appliances flow and return connections.
The Single Unit is supplied complete with an integral RVA47 Single Unit Cascade
Manager wired to integral flow and return sensors.(QAZ21). An outside are sensor
(QAC32) is also supplied and located in the base of the unit.
Integral Low
Loss Header.
Complete with
Flow and Return
Sensors

© MHG Heating Ltd
010108 4
1.2 Cascade Manager Units
(150 Product Code 96.30000-7184)
(225 Product Code 96.30000-7185)
The Cascade Manager Unit is supplied without an integral low loss header.
A suitably sized low loss header must be installed within the system.
The system’s (Secondary) circulating pumps (Heating / HWS) are to be connected
(hydraulically) to the external low loss header and not to the appliances flow and return
connections.
The Cascade Manager Unit is supplied complete with an integral RVA47 multiple unit
Cascade Manager. Remote Flow and Return sensors (QAD21) must be mounted as
indicated in the hydraulic diagram section of manual and wired back the unit. An
outside are sensor (QAC32) is also supplied and located in the base of the unit.
Integral
Distribution
Header.

© MHG Heating Ltd
010108 5
1.3 Cascade Slave Units.
(150 Product Code 96.30000-7186)
(225 Product Code 96.30000-7187)
The Cascade Slave Unit is supplied without an integral low loss header and should only
installed where a Cascade Manager is also installed
A suitably sized low loss header must be installed within the system.
The system’s (Secondary) circulating pumps (Heating / HWS) are to be connected
(hydraulically) to the external low loss header and not to the appliances flow and return
connections.
The Cascade Slave Unit is supplied without an integral RVA47 multiple unit Cascade
Manager and therefore relies on the presence of a Cascade Master Unit to provide
operational signals via the LPB communication wiring.
Integral
Distribution
Header.

© MHG Heating Ltd
010108 6
2.0 Installation Regulations and Requirements
The installation of ProCon HT boilers must be in accordance with the relevant
requirements of Gas Safety (Installation & Use) Regulations 1994, Health & Safety at
Work Act, Building Regulations, IEE Regulations, Construction (Design & Management)
Regulations 1994, Local Authority Bye-Laws, National, Fire Regulations and Insurance
Company requirements.
The following Codes of Practice are also applicable:-
BS 5449: 1990 Specification for forced circulation hot water central heating systems for
domestic premises.
BS 6644: 2005 Specification for gas fired hot water boilers of rated inputs between
70kW (net) and 1.8MW(net) (2nd and 3rd family gases).
BS 6798: 1987 Specification for installation of gas fired hot water boilers of rated input
not exceeding 60 kW.
BS 6880: 1988 Code of Practice for low temperature hot water heating systems of
output greater than 45kW. Parts 1, 2 & 3.
BS 6891: 1988 Specification for installation of low pressure gas pipework of up to 28mm
(R1) in domestic premises (2nd family gases)
BS 7593: 1992 Code of Practice for treatment of water in domestic hot water central
heating systems.
BS 7671: 1992 Requirements for electrical installations. IEE Wiring Regulations. Sixteenth
edition.
CISBE Guide reference sections B7, B11 and B13.
CP342 Part 2: 1974 Code of Practice for centralized hot water supply.
GE/UP/2 Gas installation pipework, boosters and compressors on industrial and
commercial premises.
IGE/UP/4 Commissioning of gas fired plant on industrial and commercial premises
IGE/UP/10 Installation of gas appliances in industrial and commercial premises. Part 1:
Flued appliances.
And any addition prevailing regulation and or code of practice not detailed above.
2.1 Appliance Warranties
All MHG appliances enjoy a full 24 month warranty as detailed in our terms and
conditions.
“The guarantee period shall begin on the day of commissioning, or at latest 3 months
after delivery has been made.
The customer shall only be able to claim against MHG under guarantee if the
commissioning of the object of delivery has been carried out by MHG staff or the
authorised supplier, if the customer has followed MHG's instructions relating to the
treatment and maintenance of the object of delivery, and if no replacement parts of
outside origin have been fitted.
Parts subject to wear such as ignition electrodes, seals etc. are strictly excluded from the
guarantee.”
In addition to the above warranties, the Primary Heat Exchangers carry a 60 month
guarantee against manufacturing or material defect.

© MHG Heating Ltd
010108 7
3.0 Dimensions.

© MHG Heating Ltd
010108 8
3.1 Installation / Service Clearances
Dimension [Minimum mm Clearance ]
A 500
B 1000
C 700
D 680
E 1050
4.0 Delivery And Mobility.
Each ProCon HT boiler is supplied with a manoeuvring tool. This is to be used to
facilitate the correct position of the unit.

© MHG Heating Ltd
010108 9
4.1 Case Removal
A 4.0mm Allen Key is required to initiate the removal of the appliances case.
1. Case In Place 2. (1) Turn the MHG Logo, (2) insert
Finger and open the cover to the right.
3. Locate the top sprung hinge pin 4. Using a 4mm Allen Key loosen
and pull down to release the cover. the two captive bolts.

© MHG Heating Ltd
010108 10
5. (1)Swing the Control Panel to the right 6. (1) Swing the control panel back
(2) Slide panel A to the right and remove. into its rest position, (2) slid panel
B up and remove.
7. (1) Lift the top panel up, (2) push to the rear 8. (1) Pull the base of each side
of the unit and remove. panel to disengage it from the
press studs, (2) lift the panel
clear of the top pins.

© MHG Heating Ltd
010108 11
5.0 Technical Data
Technical Data 150 225
Nominal Heat Input Net Min/Max kW 15.0/149.2 15.0/216.0
Nominal Heat Output
(50ºC/30ºC) Min/Max
kW 16.0/155.0 16.0/225.0
Nominal Heat Output
(80ºC/60ºC) Min/Max
kW 14.5/143.2 14.5/206.0
Operating Efficiency (40ºC/30ºC) % 109.5 109.5
Design Water Flow Rate Ltr/sec 1.8 2.66
Residual Head from In-built
Pumps (Cascade version only) kPa 15.0 15.0
Maximum Input Gas Rate G20
G31
m³/hr
m³/hr
15.0
5.77
21.7
8.35
Gas Inlet Pressure Min/Max mbar 18.0/50.0 18.0/50.0
Maximum Flue Gas Mass G20 (Hot) Kg/hr 250.9 363.6
Maximum Flue Gas Mass G31 (Hot) Kg/hr 231.4 335.1
Residual Fan Pressure Pa 200 200
Maximum Water Pressure (Hot) bar 3.0 3.0
Minimum Water Pressure (Cold) bar 1.0 1.0
Maximum Flow Temperature ºC 90 90
Power Supply (240 V /50 Hz) Amps 7 7
Max Power Consumption Watts 690 800
Water Content Ltrs 30 35
Lift Weight (Dry) kg 250 270
Lift Weight (Wet) kg 280 305
Efficiency @ Full Load Gross % 86.48 85.67
Efficiency @ 30% of Full Load
Gross
% 98.20 98.37
NOx emission @ 0% O2Mg/kW
h
26.7 (Class 5)
Flue Classification B23, C33, C43, C53, C63, C83.
Connections
HTG Primary Flow PN6 DN 40 DN 40
HTG Primary Return PN6 DN 40 DN 40
Gas BSP R1.25” R1.25”
Flue Connection DN 160 DN 160
Combustion Air Connection
The combustion air duct must have a
resistance no greater than 100Pa
DN 125 DN 125
Condensate Outlet Plastic 20mm 20mm
Please note that the condensate disposal system must be installed in Plastic or Stainless
Steel. (Copper is not acceptable.)

© MHG Heating Ltd
010108 12
6.0 Pressure (Safety) Relief Valve
In accordance with BS 6644: 2005, the installer shall install as suitably sized Pressure
(Safety) Relief Valve.
The location of this valve is important with respect to the applied pressure of the boiler
circulation pump, it is therefore recommended to locate the Pressure (Safety) Relief
Valve on the flow pipe immediately adjacent to the boiler; furthermore, there must not
be any means of isolation between the boiler and the Pressure (Safety) Relief Valve.
7.0 Electrical Connections
Basic electrical connection for all type of ProCon HT
External Flow and return sensors (QAD21) are required for Cascade Manager Units only.
The sensors must be wired to the terminal detailed below.
These terminals are located on the top left of the boiler frame when viewed from the front.
(These terminals are pre-wired on Standalone ProCon HT units.)
Module Controller Mounted Safety Interlock Terminals (X10:03) (Low Voltage<25V)
If required each module can be connected to an external safety device. A relay must be
used to ensure separation of the voltages generated by each module controller. (X10:03)

© MHG Heating Ltd
010108 13
8.0 Hydraulic Design Single Unit
8.1 Electrical Connections Single Unit
If Direct On Boiler Weather Compensation is not required a 620 Ohm Resistor must be applied to the AF terminals to remove the E10 Error Code from the RVA47 Cascade
Manager LPB Network.

© MHG Heating Ltd
010108 14

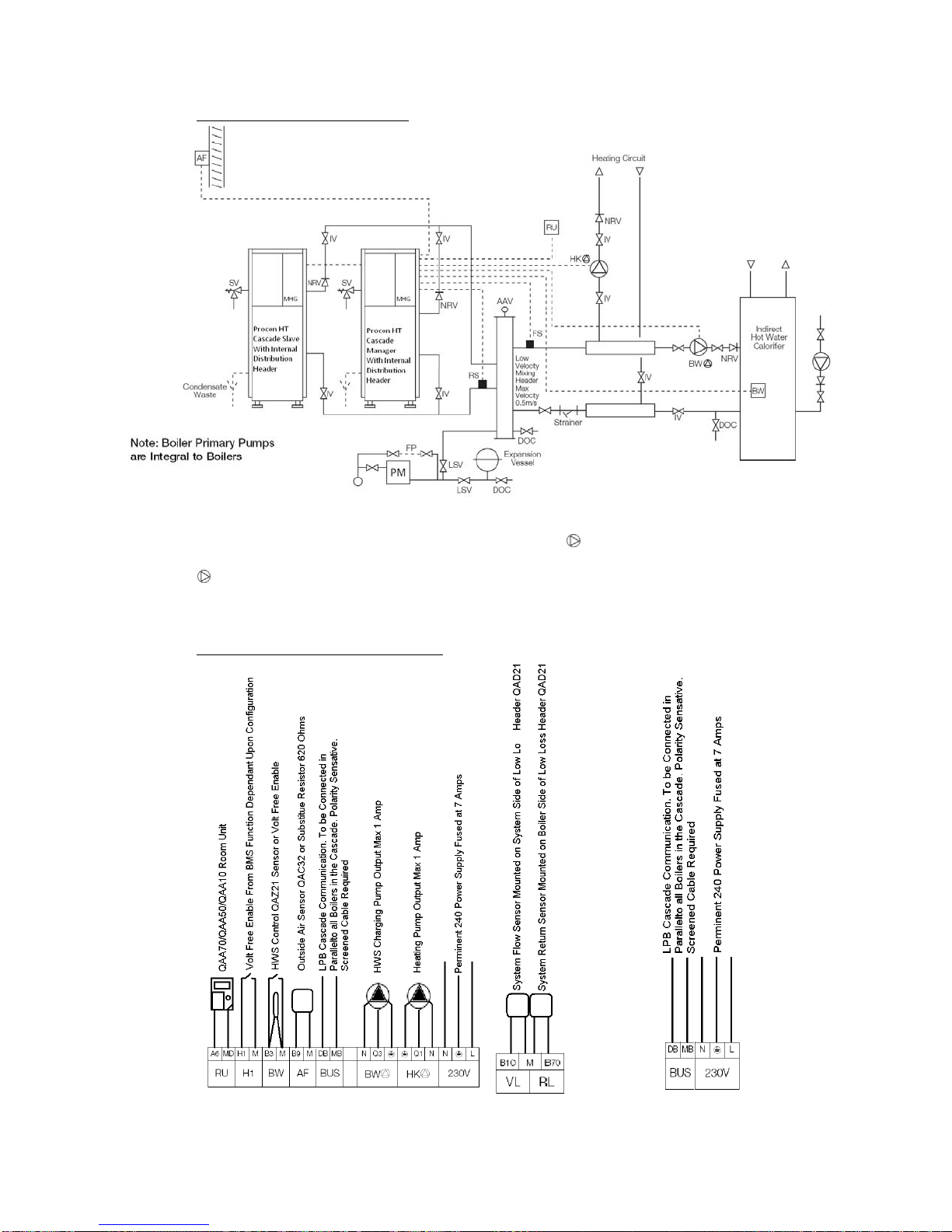

8.2 Hydraulic Design Cascade Units
Legend
AF Outside Air Sensor (QAC32) HK Heating Circuit Pump
BW Hot Water Sensor(QAZ21) or VF Thermostat PM System Pressure Manager
BW Hot Water Primary Pump RU Room Unit (QAA), BMS etc
FP System Filling (Approved) FS Flow Sensor
RS Return Sensor
8.3 Electrical Connections Cascade Units
If Direct On Boiler Weather Compensation is not required a 620 Ohm Resistor must be applied to the AF terminals to remove the E10 Error Code from the RVA47 Cascade
Manager LPB Network.
Master Unit Wiring Slave Unit Wiring

© MHG Heating Ltd
010108 15
9.0 Fluing Options
Please note that excessive resistance within the flue and combustion air supply systems
will lead to a reduction in the output of the appliance and induce operation faults.
Boiler Type Flue Outlet Size Flue Size Maximum Length
Flue and Combustion Air Ducts
Combined Max 100Pa for Combustion
Air Duct
ProCon 150 DN 160 DN 160 28m
ProCon 225 DN 160 DN 160 23m
9.1 Single ProCon HT. Conventionally Flued.
9.2 Single ProCon HT. Balanced Flued.
Please note: The combustion air duct must have a resistance no greater than 100Pa

© MHG Heating Ltd
010108 16
9.3 Multiple Cascade ProCon HT’s. Conventionally Flued.
Preferred Method of Fluing Cascaded units
Conventional Flue Header Arrangement.
If this method is utilised the flue must be sized to prevent back pressure effecting other
appliances on the flue system.

© MHG Heating Ltd
010108 17
9.4 Multiple Cascade ProCon HT’s. Balanced Flued.
Preferred Method of Fluing Cascaded units
Please note: The combustion air duct must have a resistance no greater than 100Pa
Conventional Flue Header Arrangement.
If this method is utilised the flue must be sized to prevent back pressure effecting
associated appliances.
Please note: The combustion air duct must have a resistance no greater than 100Pa

© MHG Heating Ltd
010108 18
10.0 Filling The System
The Initial filling of a sealed heating system, and subsequent refilling, must be by a
method that has been approved by the Water Regulation Advisory Scheme (WRAS) for
that type of heating system.
i.e. Domestic (
In-House ) Fluid Category 3 ( C-3 )
Non Domestic (Other than
In-House ) Fluid Category 4 ( C-4 )
For Category 3 systems, the approved method of filling must comprise of the following
components in the arrangement shown;
•Control Valve incorporating a Double
Check Valve on the Mains Cold Water
pipework.
•Temporary Connecting Hose, which must
be disconnected after use.
•Control Valve, on the heating system.
For Category 4 systems, the approved method of filling must comprise of the following
components in the arrangement shown;
•Control Valve.
•Strainer.
•Verifiable Backflow Device with Reduced
Pressure Zone (RPZ Valve)
•Incorporating a ‘Type BA’ Air Gap.
•Tundish.
•Control Valve.
Further more, in accordance with BS 6644: 2005 system with an input greater than 70kW
(nett), an automatic water replenishment unit shall be installed to automatically
replenish any lost or evaporated water.
Please refer to BS 6644: 2005 for allowable water replenishment methods for use with
sealed/pressurized heating systems.
For information on a comprehensive range of pressurization units that comply with
current British Standards and WRAS Regulations, please contact MHG Heating Ltd Sales.
10.1 Expansion Vessel
In accordance with BS 6644: 2005, WRAS Regulations, and Local Authority Water
Regulations, as applicable, the installer shall install a suitably sized, and approved,
Expansion Vessel to ensure that the water capacity of the system has ample expansion
capacity.
The location of the expansion vessel shall only be isolatable from the system via a
Lockable Type Service Valve, which shall be locked in the
OPEN position, to prevent
accidental isolation.
Furthermore, a drain facility should be provided adjacent to the expansion vessel to
aide the routine maintenance, overhaul, of the vessels Air Pressure setting.
For information on a comprehensive range of expansion vessels that comply with
current British Standards and WRAS Regulations, please contact MHG Heating Ltd Sales.

© MHG Heating Ltd
010108 19
11.0 System Water Quality
Water Treatment, System Cleaning (BS 7592: 2006)
The entire primary system MUST be thoroughly cleaned and flushed to remove debris,
flux residues, etc. before opening the boiler isolation valves & flooding the boiler.
Particular care must be taken where the ProCon boiler is being retro-fitted into an
old/existing system, as system silt or magnetite can be very damaging to the new boiler.
Following cleaning and flushing the system MUST be dosed with a good quality water
treatment to prevent corrosion and the formation of scale. FAILURE TO OBSERVE THESE
REQUIREMENTS WILL RENDER THE WARRANTEE ON THE APPLIANCE VOID.
Cleaning, flushing and water treatment must be carried out in accordance with the
requirements of BS 7593:1992, prior to commissioning the boiler.
Repeated draining and refilling of the system, without replenishment of water
treatment, must be avoided, as this is very damaging to the boiler. The boiler must not
operate without the system water being correctly and adequately treated, and
maintained, with an appropriate level of corrosion inhibitor.
For specific guidance on water treatment, direct contact is advisable with:-
Betz Dearborn Limited
(Sentiel)
Foundry Lane
Widnes
Cheshire
WA8 8UD
Tel: [phone]
Fax: [phone]
Alpha-Fry Technologies
(Fernox)
Cookson Electronics
Forsyth Road
Sheerwater
Woking
Surrey
GU21 5RZ
Tel: [phone]
Fax: [phone]
11.1 Care With The Use of Solder Flux
The ProCon HT range has heat exchangers fabricated from 316L Stainless Steel. It is most
important that the compatibility of any flux is checked with the supplier before use, and
that any flux manufactures recommendations are strictly followed with regards to use in
conjunction with Stainless Steel.

© MHG Heating Ltd
010108 20
12.0 Appliance Controls
12.1 Control Panel
12.2 RVA47 Cascade Manager
Legend
1. Room Temperature Set Point Adjuster. Assumed Room Temperature if no Room Unit Fitted
2. Parameter Setting Buttons - / +
3. Parameter Line Selection Buttons Down / Up
4. Display Screen
5. Mode Selection Buttons. Operating Mode Indication
Automatic Operation
Continuous Operation On / Off
Standby
HWS On / Off
6. Manual Override Button and Indicator
Manual Operation On / Off
7. Computer Access Port
