Mi-T-M MH-0042-PM11 User manual

Propane Patio Heater Manual 1
CAUTION
RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING!
THIS MANUAL IS AN IMPORTANT PART OF THE HEATER
AND MUST REMAIN WITH THIS UNIT!
Propane
Patio Heaters
OPERATOR'S MANUAL
MH-0042-PM11
©Copyright 2021, Mi-T-M Corporation® 37-1494-E-082521
3181069

2 Propane Patio Heater Manual
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS...................................................................................................4
PATIO HEATER FEATURES .....................................................................................................................8
GENERAL SAFETY INFORMATION ........................................................................................................9
COMPONENTS .............................................................................................................................11
ADDITIONAL REQUIREMENTS.....................................................................................................11
ASSEMBLY..............................................................................................................................................11
REPLACING GAS CYLINDER................................................................................................................16
OPERATION ............................................................................................................................................ 18
BEFORE TURNING GAS SUPPLY ON ..........................................................................................18
BEFORE LIGHTING.......................................................................................................................19
LIGHTING ......................................................................................................................................19
WHEN HEATER IS ON...................................................................................................................20
RE-LIGHTING................................................................................................................................20
SHUTDOWN..................................................................................................................................20
OPERATION CHECKLIST..............................................................................................................20
MAINTENANCE ......................................................................................................................................22
STORAGE......................................................................................................................................22
SERVICE........................................................................................................................................22
TROUBLESHOOTING ............................................................................................................................23
STATEMENT OF WARRANTY................................................................................................................24
WARNING: This product can expose you to
chemicals including Lead, which is known to
the State of California to cause cancer and birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov
WARNING

Propane Patio Heater Manual 3
IMPORTANT!
A "DANGER, WARNING or CAUTION" safety warning will be surrounded by a "SAFETY ALERT BOX". This
box is used to designate and emphasize Safety Warnings that must be followed when operating this heater.
Accompanying the safety warnings are "Signal Words" which designate the degree or level of hazard seri-
ousness. The "Signal Words" used in this manual are as follows:
DANGER: INDICATES AN IMMINENTLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, WILL
RESULT IN DEATH OR SERIOUS INJURY.
WARNING: INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED,
COULD RESULT IN DEATH OR SERIOUS INJURY.
CAUTION: INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED MAY
RESULT IN MINOR OR MODERATE INJURY OR DAMAGE TO THE HEATER.
The symbols set below are "Safety Alert Symbols". These symbols are used to call attention to items or
procedures that could be dangerous to you or other persons using this equipment.
ALWAYS PROVIDE A COPY OF THIS MANUAL TO ANYONE USING THIS EQUIPMENT. READ ALL
INSTRUCTIONS IN THIS MANUAL AND ANY INSTRUCTIONS SUPPLIED BY MANUFACTURERS OF
SUPPORTING EQUIPMENT BEFORE OPERATING THE HEATER AND ESPECIALLY POINT OUT THE
"SAFETY WARNINGS" TO PREVENT THE POSSIBILITY OF PERSONAL INJURY TO THE OPERA-
TOR.
INTRODUCTION
Congratulations on the purchase of your new Mi-T-M® Patio Heater! You can be assured your Mi-T-M®
Heater was constructed with the highest level of precision and accuracy. Each component has been rigor-
ously tested by technicians to ensure the quality, endurance and performance of this heater.
This operator's manual was compiled for your benet. By reading and following the simple safety, installa-
tion and operation, maintenance and troubleshooting steps described in this manual, you will receive years
of trouble free operation from your new Patio Heater. The contents of this manual are based on the latest
product information available at the time of publication. The Manufacturer reserves the right to make chang-
es in price, color, materials equipment, specications or models at any time without notice.
Once the unit has been uncrated, immediately write in the serial number of your unit in the space provided
below.
SERIAL NUMBER ________________________________
Inspect for signs of obvious or concealed freight damage. If damage does exist, le a claim with the trans-
portation company immediately. Be sure that all damaged parts are replaced and that the mechanical and
electrical problems are corrected prior to operation of the unit. If you require service, contact Mi-T-M®Cus-
tomer Service.
Mi-T-M®Corporation, 50 Mi-T-M Drive, Peosta, IA 52068
563-556-7484 / 800-553-9053 / Fax [phone]
Monday - Friday 8:00 a.m. - 5:00 p.m. CST
Please have the following information available for all service calls:
1. Model Number
2. Serial Number
3. Date and Place of Purchase

4 Propane Patio Heater Manual
Hazard Potential Consequence Prevention
RISK OF EXPLOSION OR
FIRE
Serious injury may occur if
the heater air inlet or outlet is
blocked.
Serious injury or death may
occur, if heater is running while
operating.
Serious injury may occur if
heater is not placed on level
surface.
Serious injury or death may oc-
cur if a ame is used to test for
leaks.
Serious injury could occur from
touching exposed metal parts.
These areas can remain hot for
some time after the heater is
turned off.
Always operate heater in a well
ventilated area free of ammable
vapors, combustible dust, gases
or other combustible materials.
Do not insert or allow any foreign
objects to enter any ventilation
or exhaust opening as this may
cause a re, or damage to the
heater.
This heater is EXTREMELY HOT
while in operation.
Bulk fuel storage should be a
minimum of 25 ft. from heaters,
torches, portable generators, or
other sources of ignition. All fuel
storage should be in accordance
with federal, state, or local au-
thorities having jurisdiction.
Never move or handle heater
while still hot.
Always locate heater on a stable
level surface.
Always keep away from children
and animals.
Do Not use a ame to test for
leaks. Follow Checking for Leaks
on page 9.
Never allow any part of your
body or other materials to make
contact with any exposed metal
parts on the heater.
IMPORTANT SAFETY INSTRUCTIONS
RISK OF BURNS
WARNING: NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A
POWER SOURCE.

Propane Patio Heater Manual 5
IMPORTANT SAFETY INSTRUCTIONS
Hazard Potential Consequence Prevention
RISK TO BREATHING Serious injury or death could
occur from failure to provide
proper ventilation according to
this manual..
Carbon monoxide is toxic. Hu-
mans can tolerate small amounts
of carbon monoxide, and precau-
tions should be taken to provide
proper ventilation..
Early signs of carbon monox-
ide poisoning resemble the u.
Symptoms of improper ventila-
tion are: * headache * dizziness
* burning of the nose and eyes *
nausea * dry mouth * sore throat
Use this heater only in well ven-
tilated areas! Provide at least a
three square foot (2,800 sq cm)
opening of outside air for every
100,000 BTU/hr of heater rating.
People with breathing problems
should consult a physician before
using the heater.
Carbon Monoxide Poisoning:
Early signs of carbon monox-
ide poisoning resemble u-like
symptoms such as headaches,
dizziness, and/or nausea. If you
have these symptoms, your heat-
er may not be working properly.
Get fresh air at once! Have the
heater serviced. Some people are
more affected by carbon mon-
oxide than others. These include
pregnant women, those with
heart or lung problems,anemia,
or those under the inuence of
alcohol, or at high altitudes.
Never use this heater in living or
sleeping areas.

6 Propane Patio Heater Manual
IMPORTANT SAFETY INSTRUCTIONS
! SAVE THESE INSTRUCTIONS !
NEVER USE THE HEATER IN LOCATIONS WHICH CONTAIN PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNERS, DUST PARTICLES, VOLATILE OR AIRBORNE COMBUSTIBLES,
OR ANY UNKNOWN CHEMICALS.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF
LIFE.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
AN LP CYLINDER NOT CONNECTED FOR USE SHALL NOT BE STORED IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
PROPOSITION 65 WARNING: FUELS USED IN GAS, WOOD BURNING OR OIL-FIRED APPLIANCES,
AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CONTAIN CHEMICALS KNOWN
TO THE STATE OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS AND OTHER
REPRODUCTIVE HARM.
WARNING: NOT FOR USE INSIDE; FOR OUTSIDE USE ONLY.

Propane Patio Heater Manual 7
WARNING
THE FOLLOWING PAGES CONTAIN OPERATING AND
MAINTENANCE INSTRUCTIONS.
DO NOT ATTEMPT TO OPERATE THIS PATIO HEATER
UNTIL YOU HAVE READ AND UNDERSTOOD ALL SAFETY
PRECAUTIONS AND INSTRUCTIONS LISTED IN THIS MANUAL.
INCORRECT OPERATION OF THIS UNIT CAN CAUSE SERIOUS
INJURY!!
DO NOT ALTER OR MODIFY THIS EQUIPMENT
IN ANY MANNER!
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE.

8 Propane Patio Heater Manual
PATIO HEATER FEATURES
1. Reflector (3)
4. Post
8. Wheel Kit
7. Stand
6. Tank Housing
Support (3)
5. Tank Housing
3. Burner
2. Flame Screen

Propane Patio Heater Manual 9
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE INJURY OR PROPERTY DAMAGE. READ THE INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.
IMPORTANT: Read this User's Manual carefully and completely before attempting to operate or service this
heater. Failure to comply with the precautions and instructions provided with this heater can result in death,
serious bodily injury and property loss or damage from hazards of re, explosion, burn, asphyxiation, and/
or carbon monoxide poisoning. Only persons who can understand and follow the instructions should use or
service this heater.
WARNING: We cannot foresee every use which may be made of our heaters. Check with your local re
safety authority if you have questions about heater use. Other standards govern the use of fuel gases and
heat producing products for specic uses. Your local authorities can advise you about these.
IMPORTANT SAFETY INFORMATION
1. Keep solid combustibles, such as building materials, paper or cardboard, a safe distance away from the
heater as recommended by the instructions.
2. Provide adequate clearances around air openings into the combustion chamber.
3. Never use the heater in spaces which do or may contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles or unknown chemicals.
4. During operation, this product can be a source of ignition . Keep heater area clear and free from combustible
materials, gasoline, paint thinner, cleaning solvents and other ammable vapors and liquids. Do not use
heater in areas with high dust content. Minimum heater clearances from combustible materials: two (2) feet
from the sides & three (3) feet from the top.
5. Keep all connections and ttings clean. Make sure propane cylinder valve outlet is clean.
6. Inspect hose before use. Replace if there is evidence of abrasion or wear.
7. During set up, check all connections and ttings for leaks using soapy water. Never use a ame.
8. Use as a heating appliance only. Never alter in any way or use with any device.
9. Check entire hose at least annually.
10. Failure to comply with the precautions and instructions provided with this heater can result in death, serious
bodily injury and property loss or damage from hazards of re, explosion, burn, asphyxiation, and/or carbon
monoxide poisoning. Only persons who can understand and follow the instructions should use or service
this heater.
11. If you smell gas:
Shut off gas to the appliance.
Extinguish any open ame.
If odor continues, immediately call gas supplier.
12 This heater is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during
the combustion process. This product is designed to produce extremely minute, non-hazardous amounts
of CO if used and maintained in accordance with all warnings and instructions. Do not block air ow into
or out of the heater.
13. Carbon Monoxide (CO) poisoning produces u-like symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can’t see it and you can’t smell it. It’s an invisible killer. If these symptoms are
present during operation of this product get fresh air immediately!
14. For outdoor use only.
15. Never use inside house, or other unventilated or enclosed areas.
16. This heater consumes air (oxygen) . Do not use in unventilated or enclosed areas to avoid endangering
your life.
17. This product is fueled by propane gas. Propane gas is invisible, odorless, and ammable. An odorant is
normally added to help detect leaks and can be described as a “rotten egg” smell. The odorant can fade
over time so leaking gas is not always detectable by smell alone.
18. Propane gas is heavier than air and leaking propane will sink to the lowest level possible. It can ignite by
ignition sources including matches, lighters, sparks or open ames of any kind many feet away from the
original leak. Use only propane gas set up for vapor withdrawal.
GENERAL SAFETY INFORMATION

10 Propane Patio Heater Manual
GENERAL SAFETY INFORMATION
19. Propane gas should be stored or used in compliance with local ordinances and codes or with ANSI/NFPA
58. Turn off propane when not in use.
20. Never leave heater unattended when hot or in use.
21. Keep out of reach of children.
22. Never store propane near high heat, open ames, pilot lights, direct sunlight, other ignition sources or where
temperatures exceed 120 degrees F (49°C).
23. Propane vapors are heavier than air and can accumulate in low places. If you smell gas, leave the area
immediately.
24. Never install or remove propane cylinder while heater is lighted, near ame, pilot lights, other ignition sources
or while heater is hot to touch.
25. This heater is red hot during use and can ignite ammables too close to the burner. Keep ammables at
least 2 feet from sides & 3 feet from top. Keep gasoline and other ammable liquids and vapors well away
from heater.
26. The propane cylinder must always be stored outdoors in a well ventilated space. Never store propane
cylinder in an enclosed area (house, garage, etc.). If heater is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
WARNING: NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A
POWER SOURCE.

Propane Patio Heater Manual 11
ASSEMBLY
COMPONENTS
Remove all components from package.
ADDITIONAL REQUIREMENTS
The following items are not included, but are necessary for the proper assembly of your heater, DO NOT at-
tempt to assemble without proper tools.
Philips screwdriver w/medium blade.
Leak Detection Solution
HARDWARE
Item # Description Picture Qty.
9M6 Cap Nut 9
10 M6*8 Bolt 9
11 Reector Stud 3
12 Wing Nut 3
13 M6*12 Bolt 12
14 M6*30 Bolt 6
15 M6 Nut 18
16 Anchoring Arm 3
17 M8*15 Bolt 5
18 M8 Big Washer 9
19 M6/M8 Wrench 1
20 Anchoring 3
21 Cylinder Fixer 3
22 M8 Flange 2

12 Propane Patio Heater Manual
Secure the cylinder xer (21) with two M6 bolts (13) and nuts (15). Fix another two cylinder xers (21) with
bolts and nuts, and reverse the base (7).
Secure the ground xer (16) with two M6 bolts (13) and nuts (15). Fix another two ground xers (16) with
bolts and nuts, and reverse the base (7).
Note: To secure the unit, please use three nails (20) to nail the unit to the ground. For cement ground or wood ground unsuit-
able for nails, please use expansion screws (screws not included, may be bought from local stores).
Attach wheel assembly (17) to base (7). Line up holes in wheel bracket with corresponding holes in base,
insert two bolts M8 x 16 (10) through holes, and nger tighten two M8 ange nuts (9). Be sure that the wheel
assembly (8) is parallel to the base, and fully tighten bolts.
ASSEMBLY
13
7
21
19
15
16
7
13
15
7
20
7
17
22
8

Propane Patio Heater Manual 13

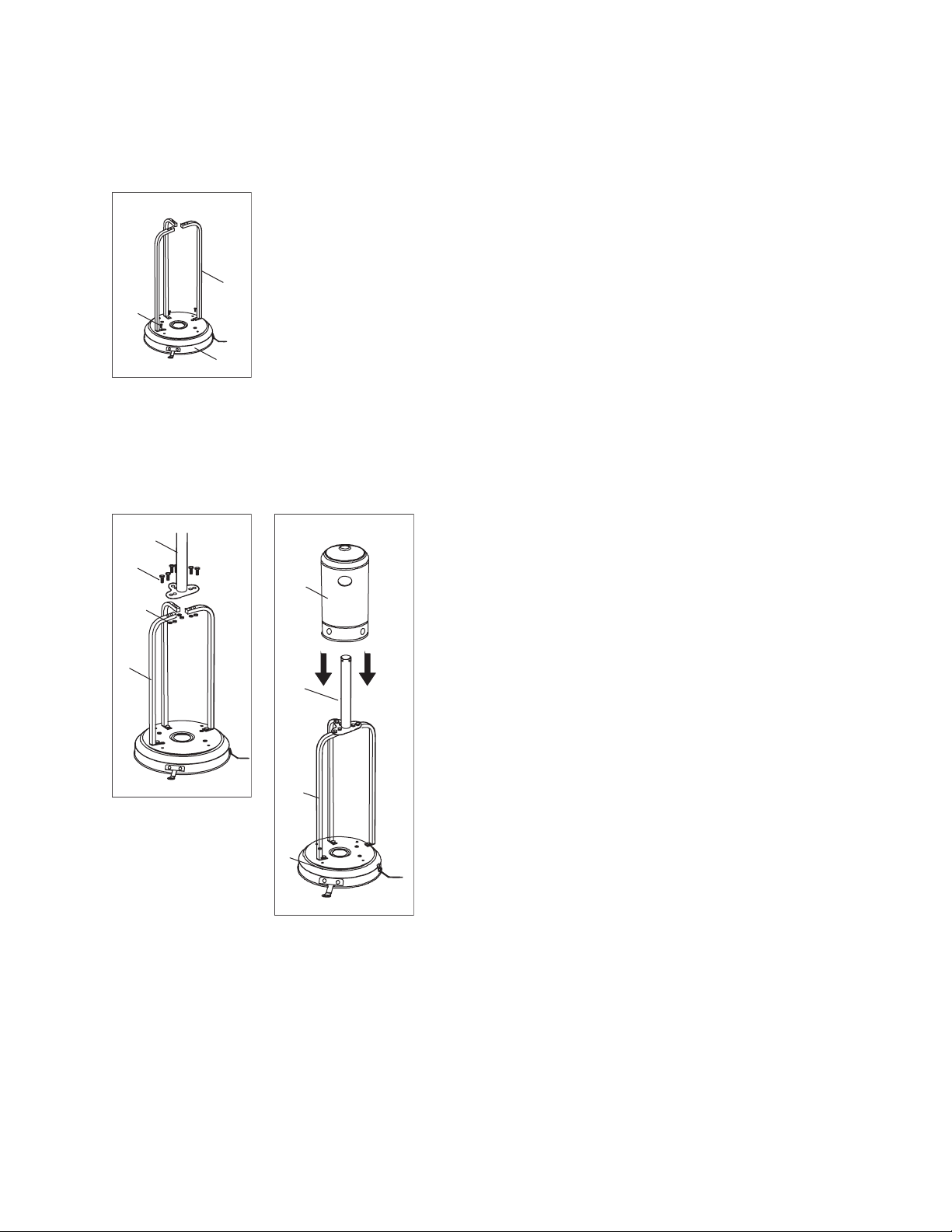

STEP 1
• Position the 3 post brackets (6) on the base (7) as shown in the picture.
• Use 3 bolts (M8 x 15 mm) (17) to assemble the post, brackets and stand
STEP 2
Put the post on the top of 3 post brackets. Use 6 M6 bolts (14) and nuts (15) to connect the post to the 3
post brackets. Tighten the bolts and nuts.
STEP 3
Place the tank housing (5) on the base (7).
ASSEMBLY
17
6
7
4
14
15
6
5
4
6
7

14 Propane Patio Heater Manual

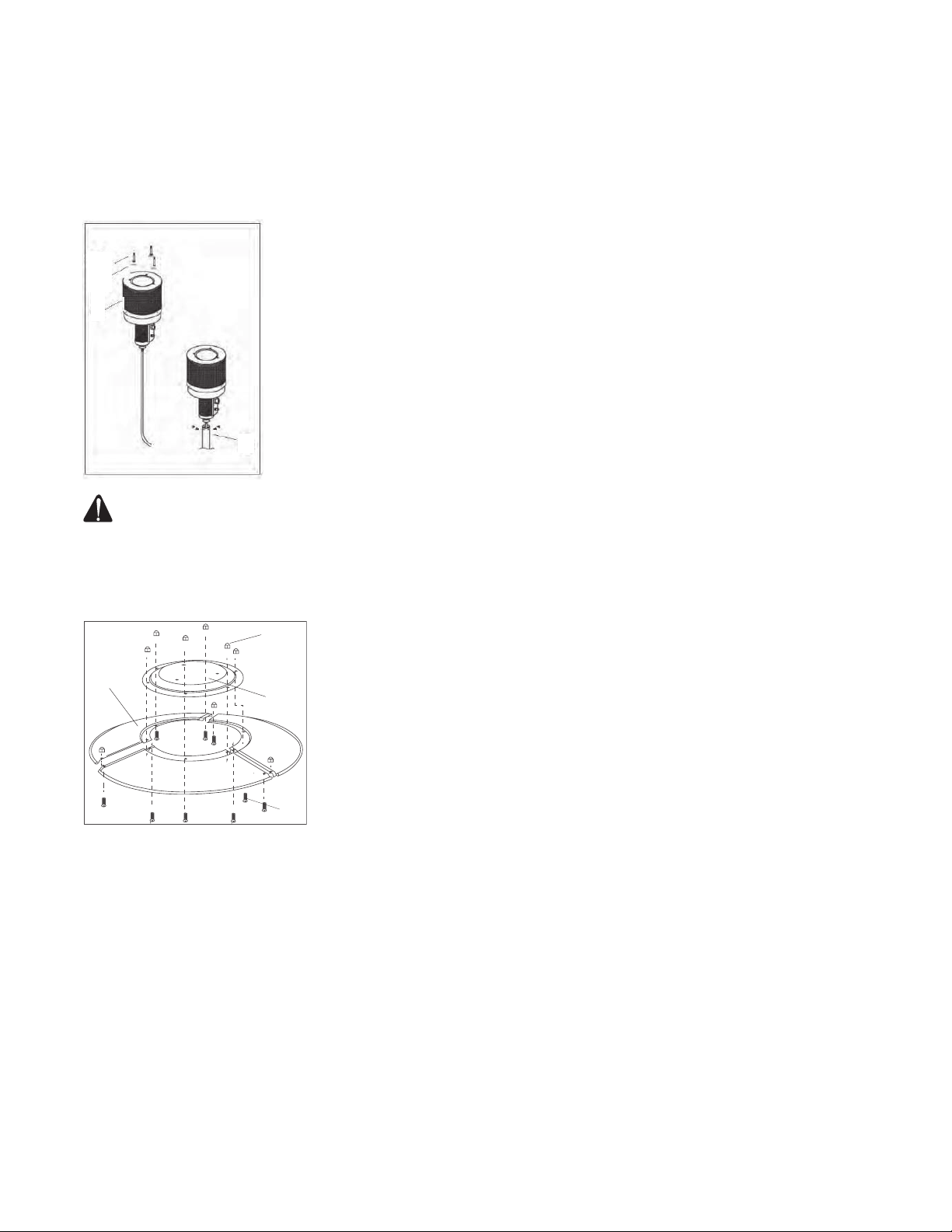

STEP 4
Attach a reector stud (11) and three washers Ø8mm (18) to the top of the burrer (3). Tighten the reector
stud. Unscrew the four screws that are preassembled on the head assembly (3). Place the head assembly (3)
into the top of the post (4) by inserting the regulator into the post (4). Tightly fasten the previously removed
screws back into the head assembly (3) through the slots at the top of the post (4).
WARNING: REMOVE THE PLASTIC PROTECTIVE COATING ON THE REFLECTOR PANEL AND
CENTRE THE REFLECTOR BEFORE ASSEMBLING!
STEP 5
Install the two reectors with 1 cross bolt M6*8 (10) and 1 ball nut M6 (9), repeat this step to install the third
reector. Then install and lock the centre disc and the newly installed reector with 6 cross bolts M6*8 (10)
and 6 ball nuts M6 (9).
ASSEMBLY
CC
JJ
C
11
18
3
1
9
2
10

Propane Patio Heater Manual 15
STEP 6
Put 8mm washer (18) on each reector stud (11). Fasten the reector with 3 washers and 3 wing nuts (12).
STEP 7
Lift the tank housing and rest it on the post plate. Connect the regulator to the gas cylinder and tighten it
with an adjustable wrench. Put the gas cylinder on the base.
ASSEMBLY
12
18
18

16 Propane Patio Heater Manual
Screw gas hose and regulator onto propane 8 cylinder (not included). Do not cross-thread.Every part of the
heater should be secure against displacement and should be constructed to maintain a xed relationship be-
tween essential parts under normal and reasonable conditions of handling and usage. Parts not permanently
secured should be designed so they cannot be incorrectly assembled and cannot be improperly located or
misaligned in removing or replacing during cleaning or other servicing.
Not included.
Use a standard 20 lb. (Not included.)propane cylinder only (approximately 12.2 in./ 31 cm. in diameter and
17.9 in. / 45.5 cm high).
Use this heater only with a propane vapour withdrawal supply system. See the standard for storage and
handling of liqueed petroleum gas, ANS/NFPA 58. Your local library or re department should have this
book. Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from
the appliance. A cylinder must be stored outdoors in a well ventilated area out of the reach of children. A
disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage or
any other enclosed area. The maximum inlet gas supply pressure: 250 psi /1750 kPa. The minimum inlet gas
supply pressure: 5 psi /35 kPa. Manifold pressure with regulator provided: 11 inch W.C/ 2.74 kPa. The pres-
sure regulator and hose assembly supplied with the appliance must be used. The installation must conform
with local codes, or in the absence of local codes, with National fuel gas code, ANSI Z223.1/NFPA54, Natu-
ral gas and propane installation code, CSA B149.1, or Propane storage and handling code, B149.2.
REPLACING GAS CYLINDER
Gas Hose
Regulator
Regulator
Gas Tank
Anchorning

Propane Patio Heater Manual 17
A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder
supplier. Never use a propane cylinder with a damaged valve connection.
The propane cylinder must be constructed and marked in accordance with the specications for LP gas
cylinders of the U.S. Department of Transportation (DOT) or the standard for cylinders, spheres and tubes for
transportation of dangerous goods and commission, CAN/CSA-B339.
The cylinder must have a listed overlling prevention device. The cylinder must have a connection device
compatible with the connection for the appliance. The cylinder used must include a collar to protect the cyl-
inder valve. Never connect an unregulated propane cylinder to the heater.
To Connect:
The knob on the LP tank must be closed. Make sure that the knob is turned clockwise to a full stop. The
cylinder supply system must be arranged for vapour withdrawal. Check that the control knob on the control
unit is turned off. Hold the regulator in one hand and insert the nipple into the valve outlet. Be sure the nipple
is centred in the valve outlet. The coupling nut connects to the large outside threads on the valve outlet.
Hand-tighten the coupling nut clockwise until it comes to a full stop. Firmly tighten by hand only.
To Disconnect:
Fully close the tank valve by turning until the regulator assembly detaches clockwise. Turn the coupling
nut counterclockwise.
• Do not store a spare LP-gas cylinder under or near this appliance;
• Never ll the cylinder beyond 80 percent full;
• Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install the
type of dust cap on the cylinder valve that is provided with the cylinder valve. Other type of caps or
plugs may result in leakage of propane.
WARNING: AAA BATTERY NEEDED, NOT INCLUDED. PLEASE DISPOSE OF OR RECYCLE THE
BATTERIES ACCORDING TO MUNICIPAL REQUIREMENTS. SWALLOWED SMALL BATTERIES
CAN CAUSE CHOKING HAZARD. SEEK IMMEDIATE MEDICAL ATTENTION IF BATTERIES ARE
SWALLOWED OR INHALED. KEEP CHILDREN AWAY FROM THE SMALL BATTERIES.
REPLACING GAS CYLINDER
Standard 20 lb. tank

18 Propane Patio Heater Manual
DANGER: CARBON MONOXIDE HAZARD FOR OUTDOOR USE ONLY. NEVER USE INSIDE
HOUSE, OR OTHER UNVENTILATED OR ENCLOSED AREAS. THIS HEATER CONSUMES AIR
(OXYGEN). DO NOT USE IN UNVENTILATED OR ENCLOSED AREAS TO AVOID ENDANGERING
YOUR LIFE.
CAUTION: DO NOT ATTEMPT TO OPERATE UNTIL YOU HAVE READ & UNDERSTAND ALL
GENERAL SAFETY INFORMATION IN THIS MANUAL AND ALL ASSEMBLY IS COMPLETE &
LEAK CHECKS HAVE BEEN PERFORMED.
DANGER: EXPLOSION - FIRE HAZARD
NEVER STORE PROPANE NEAR HIGH HEAT, OPEN FLAMES, PILOT LIGHTS, DIRECT SUNLIGHT,
OTHER IGNITION SOURCES OR WHERE TEMPERATURES EXCEED 120 DEGREES F (49°C).
PROPANE VAPORS ARE HEAVIER THAN AIR AND CAN ACCUMULATE IN LOW PLACES. IF YOU
SMELL GAS, LEAVE THE AREA IMMEDIATELY.
NEVER INSTALL OR REMOVE PROPANE CYLINDER WHILE HEATER IS LIGHTED, NEAR FLAME,
PILOT LIGHTS, OTHER IGNITION SOURCES OR WHILE HEATER IS HOT TO TOUCH.
THIS HEATER IS RED HOT DURING USE AND CAN IGNITE FLAMMABLES TOO CLOSE TO THE
BURNER. KEEP FLAMMABLES AT LEAST 2 FEET FROM SIDES & 3 FEET FROM TOP. KEEP
GASOLINE AND OTHER FLAMMABLE LIQUIDS AND VAPORS WELL AWAY FROM HEATER.
THE PROPANE CYLINDER MUST ALWAYS BE STORED OUTDOORS IN A WELL VENTILATED
SPACE. NEVER STORE PROPANE CYLINDER IN AN ENCLOSED AREA (HOUSE, GARAGE,
ETC.). IF HEATER IS TO BE STORED INDOORS, DISCONNECT THE PROPANE CYLINDER FOR
OUTDOOR STORAGE.
BEFORE TURNING GAS SUPPLY ON
WARNING PERFORM ALL LEAK TESTS OUTDOORS. EXTINGUISH ALL OPEN FLAMES. NEVER
LEAK TEST WHEN SMOKING. DO NOT USE THE HEATER UNTIL ALL CONNECTIONS HAVE
BEEN LEAK TESTED AND DO NOT LEAK.
To check for a leak:
1. Make 2-3 oz. leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where regulator connects to cylinder and to all hose and valve connections.
3. Make sure all patio heater and light valves are OFF.
4. Turn cylinder valve ON.
WARNING: IF BUBBLES APPEAR AT ANY CONNECTION, THERE IS A LEAK.
To x a leak:
1. Turn cylinder valve OFF.
2. If leak is at regulator/cylinder valve connection: Disconnect, reconnect, and perform another leak check.
Apply the soapy solution to all hose and valve connections. If you continue to see bubbles after several
attempts, cylinder valve is defective and should be returned to cylinder’s place of purchase.
3. If leak is at hose/regulator connection: This part is defective and you should contact the customer service
department for replacement.
WARNING: IF NO BUBBLES APPEAR AT ANY CONNECTION, THE CONNECTIONS ARE SECURE.
OPERATION
Regulator / Cylinder connection

Propane Patio Heater Manual 19
NOTE: Whenever gas connections are loosened or removed, you must
perform a complete leak test.
CAUTION: DO NOT ATTEMPT TO OPERATE UNTIL YOU HAVE READ
AND UNDERSTOOD ALL GENERAL SAFETY INFORMATION IN THIS
MANUAL AND ALL ASSEMBLY IS COMPLETE AND LEAK CHECKS
HAVE BEEN PERFORMED. THIS APPLIANCE SHALL BE USED ONLY
IN A WELL-VENTILATED SPACE AND SHALL NOT BE USED IN A
BUILDING, GARAGE OR ANY OTHER ENCLOSED AREA.
An appliance may be installed with shelter no more inclusive than:
1. With walls on all sides, but with no overhead cover. Always maintain a clearance
of 1.2 m (47") from combustible materials from the top and side.
2. Within a partial enclosure which includes an overhead cover and no more than two side walls. These side
walls may be parallel, as in a breezeway, or at right angles to each other.
3. Within a partial enclosure which includes an overhead cover and three side
walls, as long as 30 percent or more of the horizontal periphery of the enclosure
is permanently open.
ASSEMBLING THE BATTERY
(AAA batteries.not included). Unscrew the black ignitor spring cover counter-
clockwise. Put the positive pole outward toward the ignitor and screw back the
balck ignitor spring coverr.
BEFORE LIGHTING
1. Heater should be thoroughly inspected before each half year use, and by a
qualied service person at least annually. If relighting a hot heater, always wait at least 5 minutes.
2. Inspect the visible portion of the hose before each use of the appliance. If the hose leaks, it must be replaced
prior to operation. Only use the replacement hose assembly specied by manufacturer.
3. The pressure regulator and hose assembly supplied with the appliance must be used. Replacement pressure
regulators and hose assemblies must be those specied by the appliance
manufacturer.
DANGER: CARBON MONOXIDE HAZARD FOR OUTDOOR USE
ONLY. NEVER USE INSIDE HOUSE, OR OTHER UNVENTILATED
OR ENCLOSED AREAS. THIS HEATER CONSUMES AIR
(OXYGEN). DO NOT USE IN UNVENTILATED OR ENCLOSED
AREAS TO AVOID ENDANGERING YOUR LIFE.
LIGHTING
1. Turn on the valve on the gas cylinder.
2. Press and turn the control knob to PILOT position (anti-clockwise 90º).
3. Holding down the control knob, press the igniter button several times until
the main ame is ignited. Release the control knob 10 seconds after the
ignition.
4. Press lightly and turn the variable control knob to HI (maximum) position and
leave it there for 5 minutes or more before turning the knob to the desired
temperature setting.
5. If the burner ame goes out, turn off the heater and wait at least 5 minutes
or more to let the gas dissipate before re-lighting to avoid gas explosion.
Repeat steps 2 to 4.
Note: Improper operation can cause injury or property damage. If pilot fails to remain
lit, all valves should be closed and you should wait for at least 5 minutes before
attempting to light it again. If you experience any ignition problem, please consult
“Troubleshooting”.
OPERATION
WALL
CEILING

20 Propane Patio Heater Manual
CAUTION: AVOID INHALING FUMES EMITTED FROM THE HEATER’S FIRST USE. SMOKE AND
ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH
SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE HEATER
SHOULD NOT PRODUCE THICK BLACK SMOKE.
Note: The burner may be noisy when initially turned on. Turn the knob to the level of heat desired.
WARNING: FOR YOUR SAFETY BE CAREFUL WHEN ATTEMPTING TO MANUALLY IGNITE THIS
HEATER. HOLDING THE CONTROL KNOB FOR MORE THAN 10 SECONDS BEFORE IGNITING
THE GAS WILL CAUSE A BALL OF FLAME UPON IGNITION.
WHEN HEATER IS ON
Emitter screen will become bright red due to intense heat. The color is more visible at night. Burner will
display tongues of blue and yellow ame. These ames should not be yellow or produce thick black smoke,
indicating an obstruction of airow through the burners. The ame should be blue with straight yellow tops. If
excessive yellow ame is detected, tum off heater and consult the “Troubleshooting” section of this manual.
RE-LIGHTING
• Turn control knob to off.
• Repeat the “Lighting” steps.
SHUTDOWN
Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
WARNING: FOR YOUR SAFETY HEATER WILL BE HOT AFTER USE. HANDLE WITH EXTREME
CARE.
Note: After use, some discoloration of the emitter screen is normal.
OPERATION CHECKLIST
For a safe and pleasurable heating experience, perform this check before each use.
BEFORE OPERATING
• I am familiar with entire owner's manual and understand all precautions noted .
• All components are properly assembled, intact and operable.
• No alterations have been made.
• All gas connections are secure and do not leak.
• Wind velocity is below 10 mph.
• Unit will operate at reduced efciency below 40°F.
• Heater is outdoors (outside any enclosure).
• There is adequate fresh air ventilation.
• Heater is away from gasoline or other ammable liquids or vapors.
• Heater is away from windows, air intake openings, sprinklers and other water sources.
• Heater is at least 2.3 feet on top and at least 3.3 feet on sides from combustible materials.
• Heater is on a hard and level surface.
• There are no signs of spider or insect nests.
• All burner passages are clear.
• All air circulation passages are clear.
• Children, pets, clothing, ammable materials and items that can be damaged from radiant heat are
away from the heater.
• Children and adults in the area have been alerted to the high temperature hazards: especially bums
and clothing res.
• Children and adults in the area have been warned not to touch heater near engine during operation
and until unit has cooled.
OPERATION
