EAST OAK PYROL EO-PH22006 User manual

PYROL Pyramid
Patio Heater 48000 BTU
Owner’s Manual
MODEL:
EO-PH22006

1
EASTOAK.COM PYRAMID PATIO HEATER
Claim 3-year warranty
at eastoak.com/warranty
Question? Comments?
Reach out to us to get expert support!
[e-mail]
eastoak.com
1-833-EAST-OAK (USA)
(1-833-327-8625)
eastoak.com
Follow eastoakliving on

2
[email protected]1-833-327-8625
DANGER
If there is any gas odor present:
• Shut off all gas valves immediately. Turn off the heater.
• Extinguish any open ames.
• If the odor continues, stay away from the appliance and immediately call your
gas supplier or dial 911 to call the re department.
CAREFUL
• Please use it when the temperature is higher than 5 degrees, if the
temperature is too low, the propane gas will not be liqueed, and the heater
will not work normally.
• Please do not use it when the wind spcod is higher than 3.2m/s,
otherwise it will cause the heater to turn off or be blown down.
CAUTION: CARBON MONOXIDE HAZARD
This appliance may produce an odorless carbon monoxide. Using this appliance
in an enclosed space may cause injury, damage, or death. NEVER use this
product in an enclosed space, such as a tent, car, or house.
IMPORTANT INFORMATION
IMPORTANT CAUTION
Please verify all parts and components present and check for any damaged
pieces before assembly. If you have any damaged or missing parts, please
contact customer service at [e-mail].
• Some parts may contain sharp edges and may cause injury or property
damage. We recommend you wear protective gloves during assembly.
• If you are using power tools, please set the speed to the lowest setting
possible to ensure there will be no damage to the parts.

3
EASTOAK.COM PYRAMID PATIO HEATER
WARNING
• Do not store or use any gasoline or other ammable vapors or liquids close
to this appliance. All propane tanks not connected to the heater should be
stored at a separate location.
• Improper installation, alteration, service, or maintenance may cause property
damage, injury, or death. Please read the manual for installation, use, and
maintenance instructions before assembly and operating this product. If
instructions are not followed thoroughly, a re or explosion may occur and
result in property damage, injury, or death.
CONSUMER
Retain this manual for future reference.
SAFETY GUIDE
• The installation of this unit must adhere to local codes or Propane Storage
and Handling Code, CSA B149.2.
• THIS APPLIANCE IS INTENDED FOR OUTDOOR USE ONLY. Do not use
this product in an enclosed space.
• ONLY use this appliance with a propane gas tank (sold separately).
• Do not use this heater with any natural gases.
• Do not attach a remote gas supply to this unit.
• Converting this unit to natural gas is dangerous and not recommended. The
conversion of this unit will void the manufacturer warranty.
• Do not use any solid fuel or charcoal for this unit.
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss.
Do the following:
◦ Disconnect the propane gas tank.
◦ Do not attempt to x the problem yourself.
◦ Contact your gas supplier or re department for help.
• Applying too much propane may result in gas pooling and will not burn.
Allow fresh air into the unit so that the remaining gas may escape.
5020959

4
[email protected]1-833-327-8625
• Do not attempt to use re to check for gas leaks.
• Max. supply pressure is 11 WC.
• Recommended propane gas tank size is as follows – diameter: 12”, height:
18”, weight: 20 lbs.
• You must use a propane tank that has a collar to protect the gas valve.
• DO not ll tank over 80 percent full.
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and
dents may be hazardous and should be inspected by a gas supplier.
• Do not burn anything other than the provided materials for this patio heater.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Do not attempt to move the appliance while in use. It is extremely hot.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
• Keep any ammable items away.
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
• Never place hands or ngers on upper portion of this unit while in use.
• Keep all electrical cords and fuel supply hose away from heated surfaces.
• Combustible material should not be within 48 inches of the top of the unit,
or within 48 inches around the entire unit.
• Keep the appliance area clear and free from combustible material, gasoline
and other ammable vapors and liquids.
• If the ame goes out while burning, turn the gas valve off. Wait 5 minutes
before repeating the initial lighting procedure. Once you have a ame started,
hold down the control knob for 1 minute.
• Never add water to the unit.
• If water gets into the appliance for any reason, please contact our customer
service at suppor[email protected] to replace any damaged parts.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
SAFETY GUIDE

5
EASTOAK.COM PYRAMID PATIO HEATER
• Do not operate on a boat or vehicle. This unit must be used on a at surface
and outdoors ONLY.
• Always remove protective cover before operating (if applicable).
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while
near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if external tank)
• The maximum gas supply pressure is 250psi.
• Inspect all elements of this heating unit before each use. If there is damage,
the burner must be replaced.
• High temperatures are extremely hazardous. Stay at least 6 ft away from the
unit to prevent any burns, injury, or deaths.
• The gas supply tank should be constructed and marked with the
specications for the LP gas tanks of the U.S. Department of Transportation
or the National Standard of Canada CAN/CSA-B339, LP gas tanks, spheres
and tubes for Transportation of Dangerous Goods; and Commission.
• For appliances designed to use a CGA No. 791 Connection: “Place the dust
cap on the cylinder valve outlet whenever the cylinder is not in use. Only
install the type of dust cap on the cylinder valve that is provided with the
cylinder valve. Other types of caps or plugs may result in leakage of
propane”.
• This heating appliance should not be used on plastic or articial wood decks.
• Children and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
• Children and pets should stay away from the unit and carefully supervised
when ignited.
• Clothing or other ammable materials should not be hung from the
appliance or placed on or near the appliance.
• Any guard or other protective device removed for servicing the appliance
shall be replaced prior to operating the appliance.

6
[email protected]1-833-327-8625
• Do not obstruct the ow of combustion or ventilated air.
• Keeping the ventilation opening(s) of the cylinder enclosure free and clear
from debris.
• Visually inspect the burner ames for anything alarming.
• Clean the appliance with recommended products only.
• Lubricate parts as needed with an appropriate amount.
• Visually inspect the hose assembly within the appliance as needed.
NOTE: You must follow all steps to properly assemble this heating item. Make
sure the gas valve is turned “OFF” before assembling. Do NOT attempt to
assemble without proper tools.
48"
48" 48"
Any items stored above, next to, or under this heater may be subject to
radiant heat and in result may be damaged. Combustible materials should
not be within 48 inches of the product.
SAFETY GUIDE
BE CAREFUL

7
EASTOAK.COM PYRAMID PATIO HEATER
• Before any maintenance, always disconnect the propane gas tank.
• Ensure the heater is free from any debris or combustible materials.
• Use a soft brush to clean any mild stains, loose dirt, or soil only after the
heater has completely cooled down. Wipe appliance with a soft cloth.
• Harsh weather conditions may result in stain, discoloration, or rust.
• Certain powders or solvents may cause permanent damage if used on the
appliance.
• Store the heating unit away from direct sunlight.
• Indoor storage is only applicable if the cylinder is disconnected and removed
from the product.
• Unapproved parts or accessories may result in product defect and will void
the warranty of this appliance.
• Always place a protective cover on the appliance when not in use.
CARE AND MAINTENANCE

8
[email protected]1-833-327-8625
PARTS DIAGRAM
Item Description Qty
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Glass Tube
Protective Guard
Top Plate Assy
Upper Support
Black Silicone Ring
Side Panel
Front Panel
Lower Support
Control Box Assy
Middle Plate
Gas Hose & Regulator
Wheel Assembly
Bottom Plate
Block Belt
1
1
1
4
4
1
3
1
1
1
1
4
1
1
1
A
B
C
D
E
F
G
H
O
I
N
M
L
K
J
Reector

9
EASTOAK.COM PYRAMID PATIO HEATER

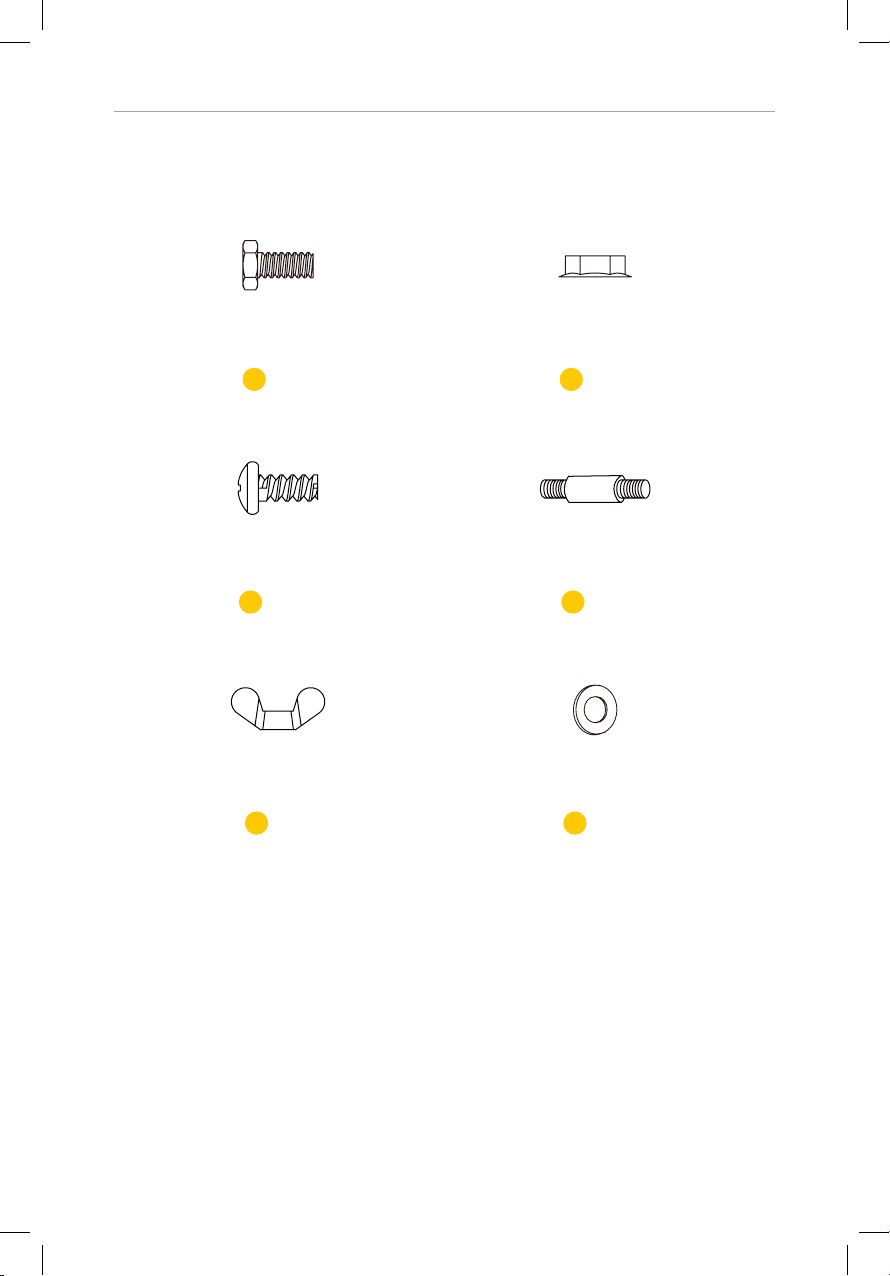

PARTS LIST
Wing nut
Screw M5x10
EE (X3)
CC (X18)
FF (X6)
DD (X3)
Flat washer
Stud
Bolt M6x10
AA (X4) BB (X4)
M6 nut

10
[email protected]1-833-327-8625
PARTS LIST
Knob
II (X1) JJ (X1)
Large at washer
Screw M4 X 8
KK (X1) LL (X1)
Philips screwdriver
Fixing Bracket
GG (X4) HH (X30)
Screw 3/16”

11
EASTOAK.COM PYRAMID PATIO HEATER
Wrench
MM (X1) NN (X1)
AA Battery (1.5 V)
Ground xer
OO (X4) PP (X4)
Ground xer screws
Before assembly, check and conrm all parts are present. Compare parts present
with the content lists, including all hardware.
If any parts or hardware pieces are missing or damaged, please contact customer
service at suppor[email protected]. In your email, include your shipping address
and product purchased. We will send you replacement parts for free.
Estimated Assembly Time: 90 minutes

12
[email protected]1-833-327-8625
1
2
AA (X4) BB (X4)
OO (X4)
PP (X4)
CC (X10)
AA
BB
M

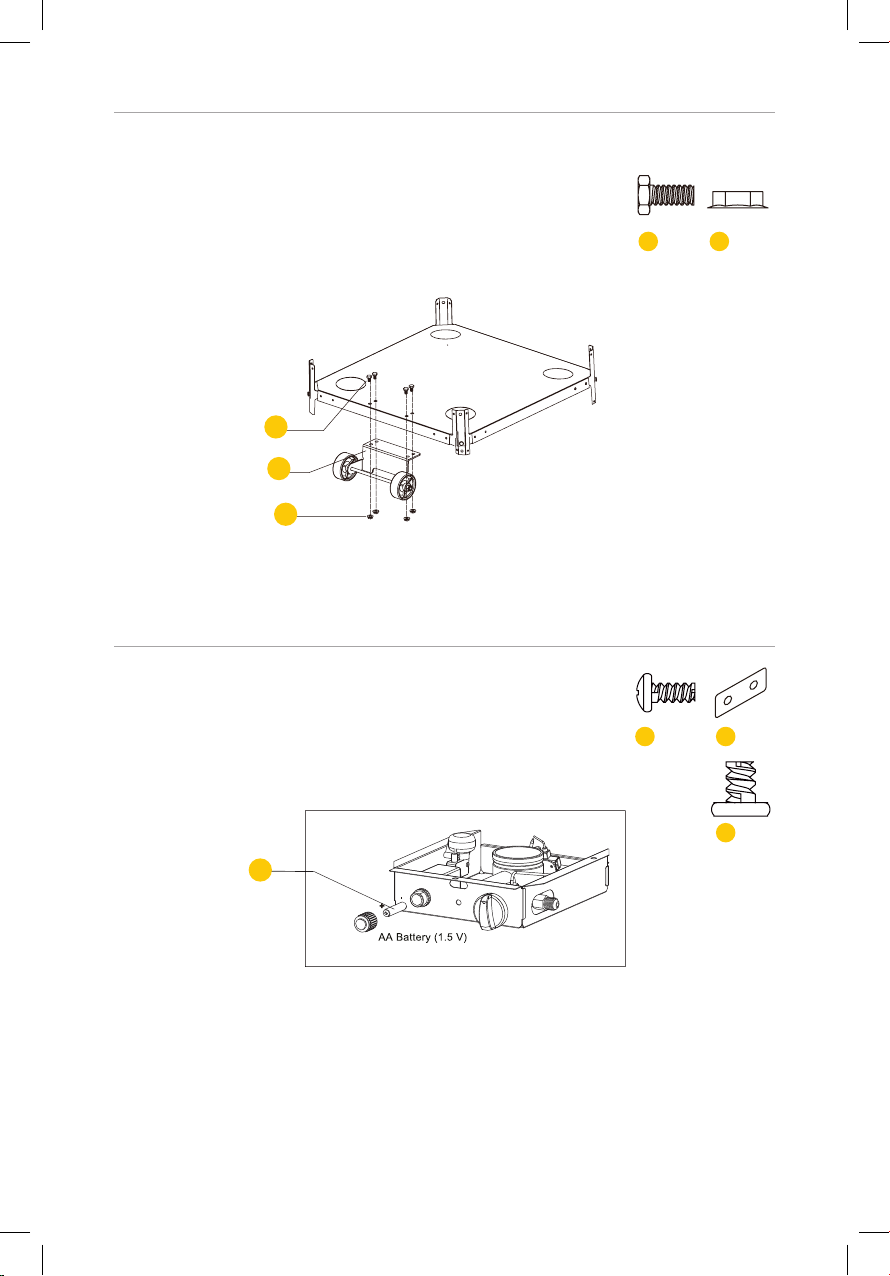

Attach the wheel assembly (M) to the bottom plate
(N) with 4 M6x10 bolts (AA) and 4 M6 nuts (BB).
NOTE: Move the cover of the bottom plate (N)
before connecting the wheel assembly.

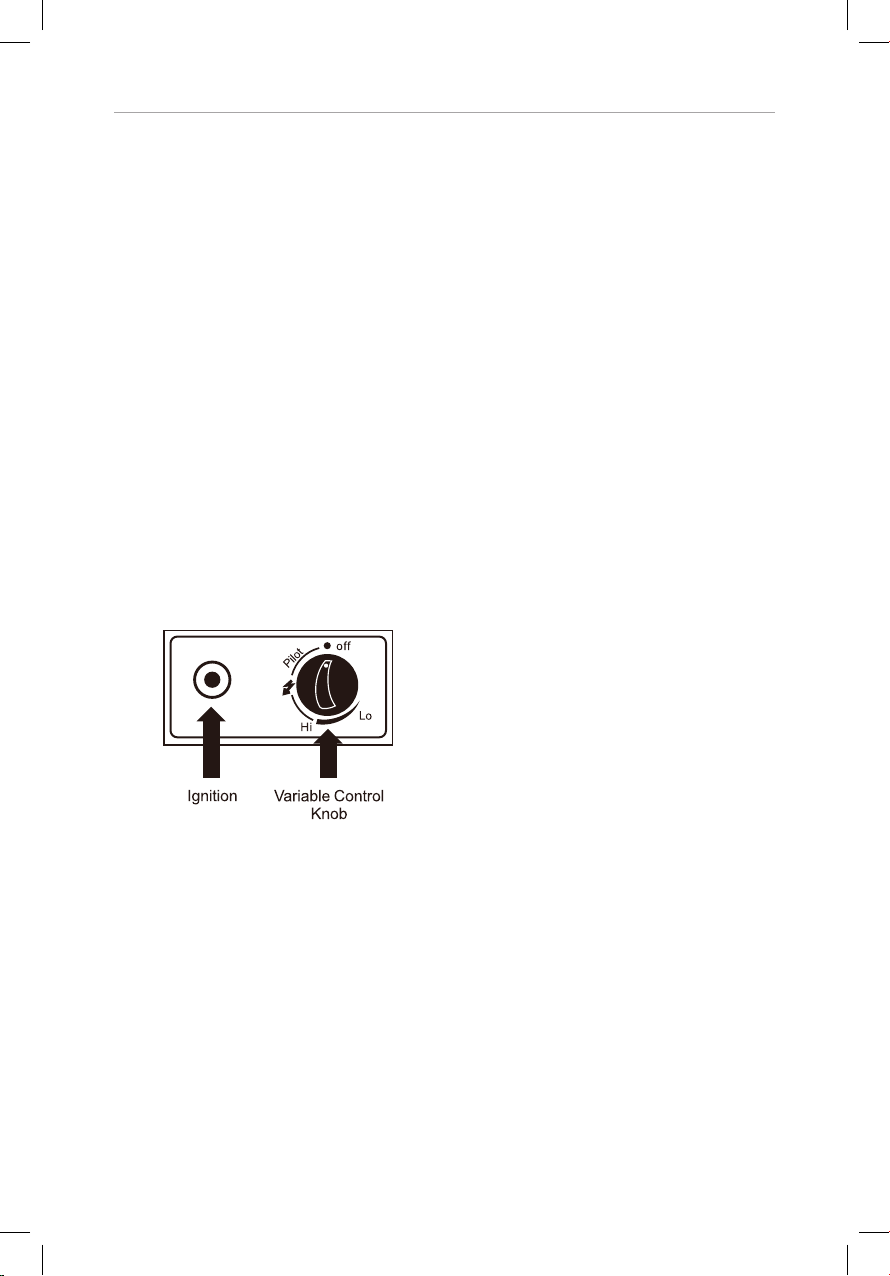

2-1. Unscrew the ignition and load the AA battery
(1.5 V). Then, screw and tighten the ignition.
2-2. Assemble the grand xer to the lower
support(L).
NN
ASSEMBLY INSTRUCTIONS

13
EASTOAK.COM PYRAMID PATIO HEATER
2-3. Insert the pins on the bottom plate (N) into the holes of
the lower support (L). Secure the pins on the bottom late to
the lower support with 4 M5x10 screws.
Insert the pins of the middle plate (J) into the holes of the
lower support (L). Secure the pins with 4 M5x10 screws.
2-4. Connect the block belt (O) to the lower support (L).
NOTE: Make sure the block belt is above the wheels. The
control box and front panel should be on the opposite side
of the wheels.
J
O
L
N
CC
CC
CC
PP
OO
OO (X4)
PP (X4)
CC (X10)

14
[email protected]1-833-327-8625
4

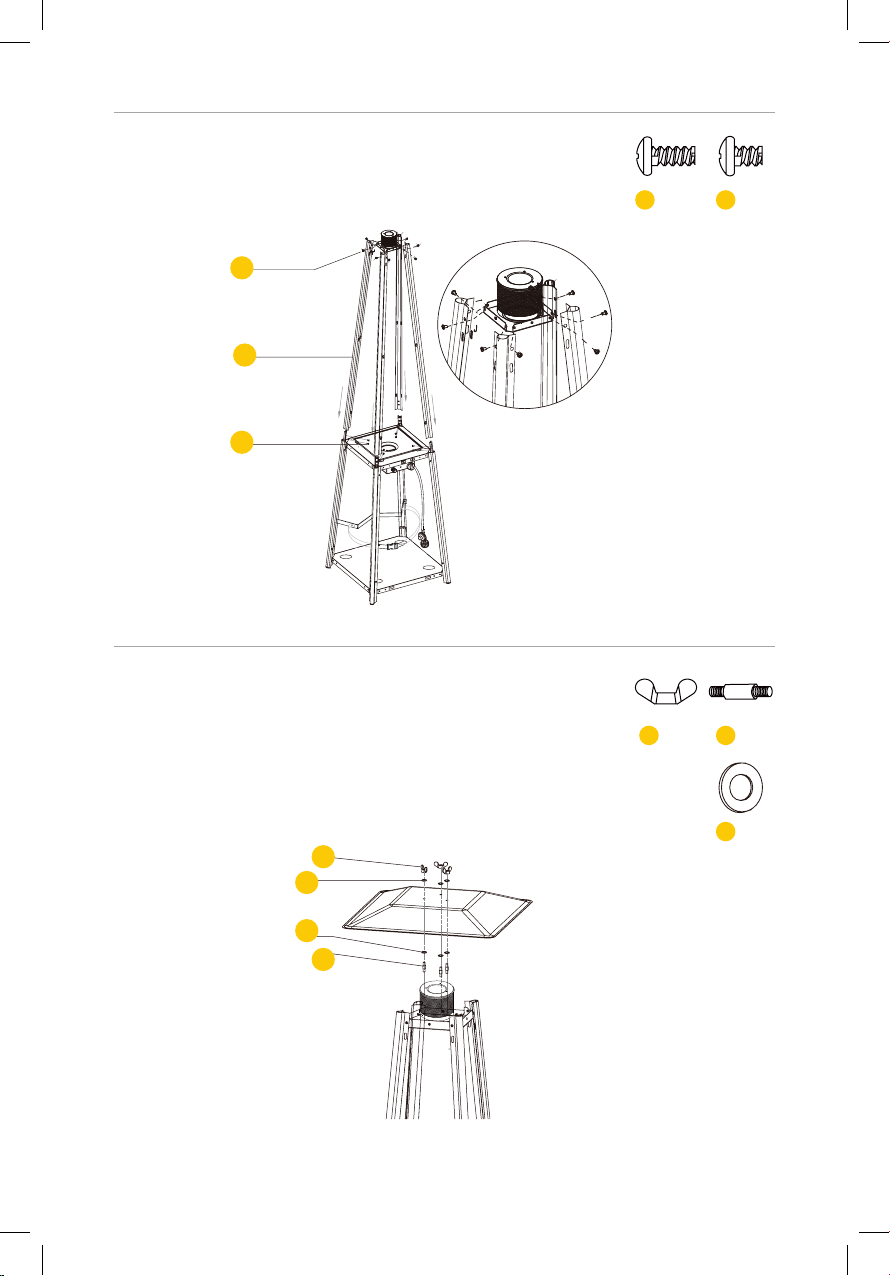

3Connect the upper support (D) to the lower support
(L) using 8 M5x10 screws. Attach the top plate (B)
the upper support (D) with 8 3/16” screws.
Attach the reector (A) to the top plate (B). Secure
the top plate to the reector with 3 studs (DD), 3 at
washers (FF), and 3 wing nuts (EE).
ATTENTION: Move the cover of reector (A) before
assembly.
HH (X8)
DD (X3)
FF (X6)
CC (X10)
EE (X3)
CC
HH
D
EE
FF
FF
DD

15
EASTOAK.COM PYRAMID PATIO HEATER
6

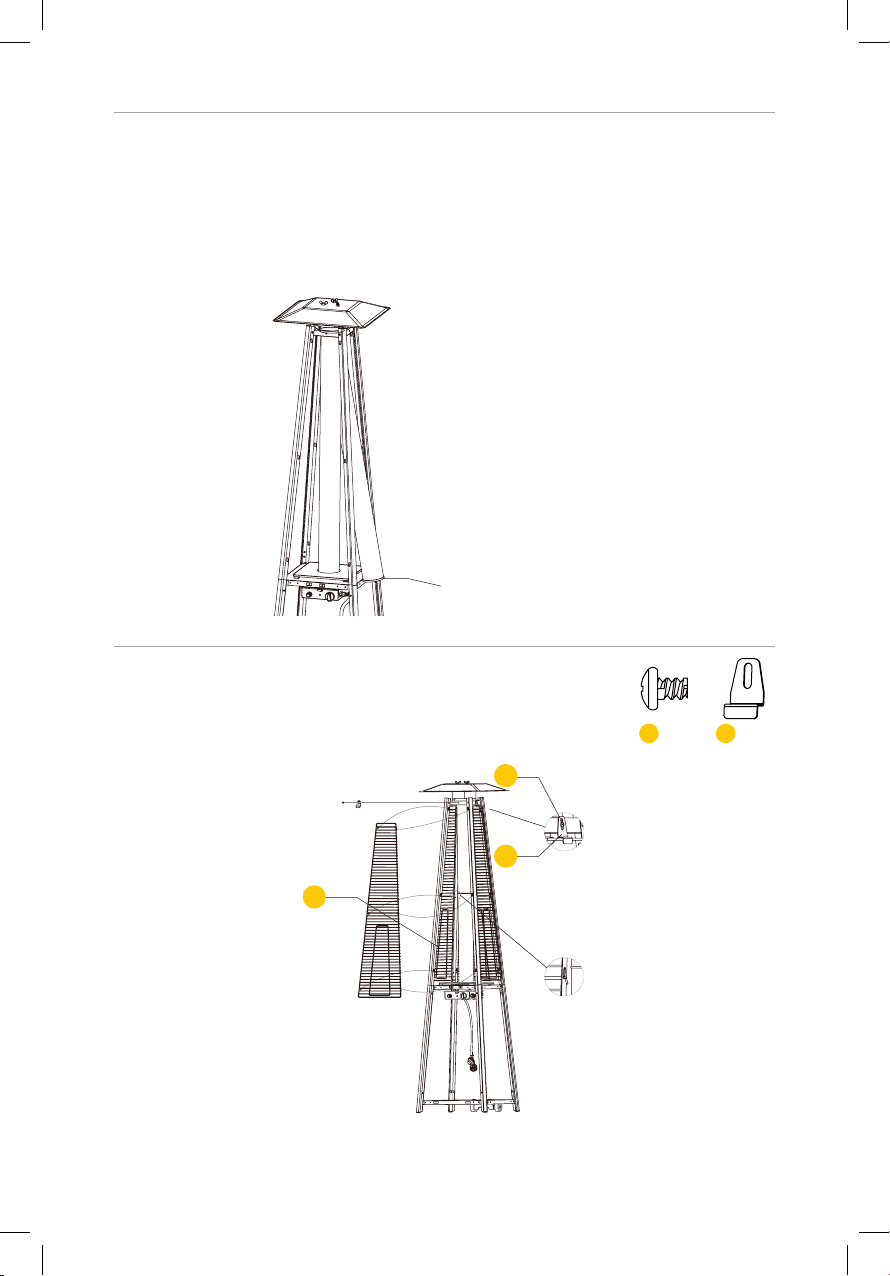

5Carefully insert the glass tube through the center opening of the top plate.
Make sure to lift the top plate up rst. The black silicone ring (F) should
be attached to the lower edge of the glass tube (C) as illustrated below.
Slide the glass tube © through the opening of the lower plate and onto the
middle plate (J). Make sure the glass tube (C) is positioned in the center
and completely covers the center hole of the middle plate (J).
WARNING! DO NOT use the heater UNLESS the black silicone ring is
placed on the bottom of the glass tube.
Assemble the protective guard (E) by hanging its
hooks onto the supports. Secure the guards with
xing brackets (GG) and 4 3/16” screws (HH).
To aid in installation place black
silicone ring on the middle plate and
then install glass tube. Ensure the
rim of the glass tube sits rmly in the
black silicone ring.
BLACK SILICONE
RING
HH
GG
E
GG (X4)HH (X4)

16
[email protected]1-833-327-8625
8

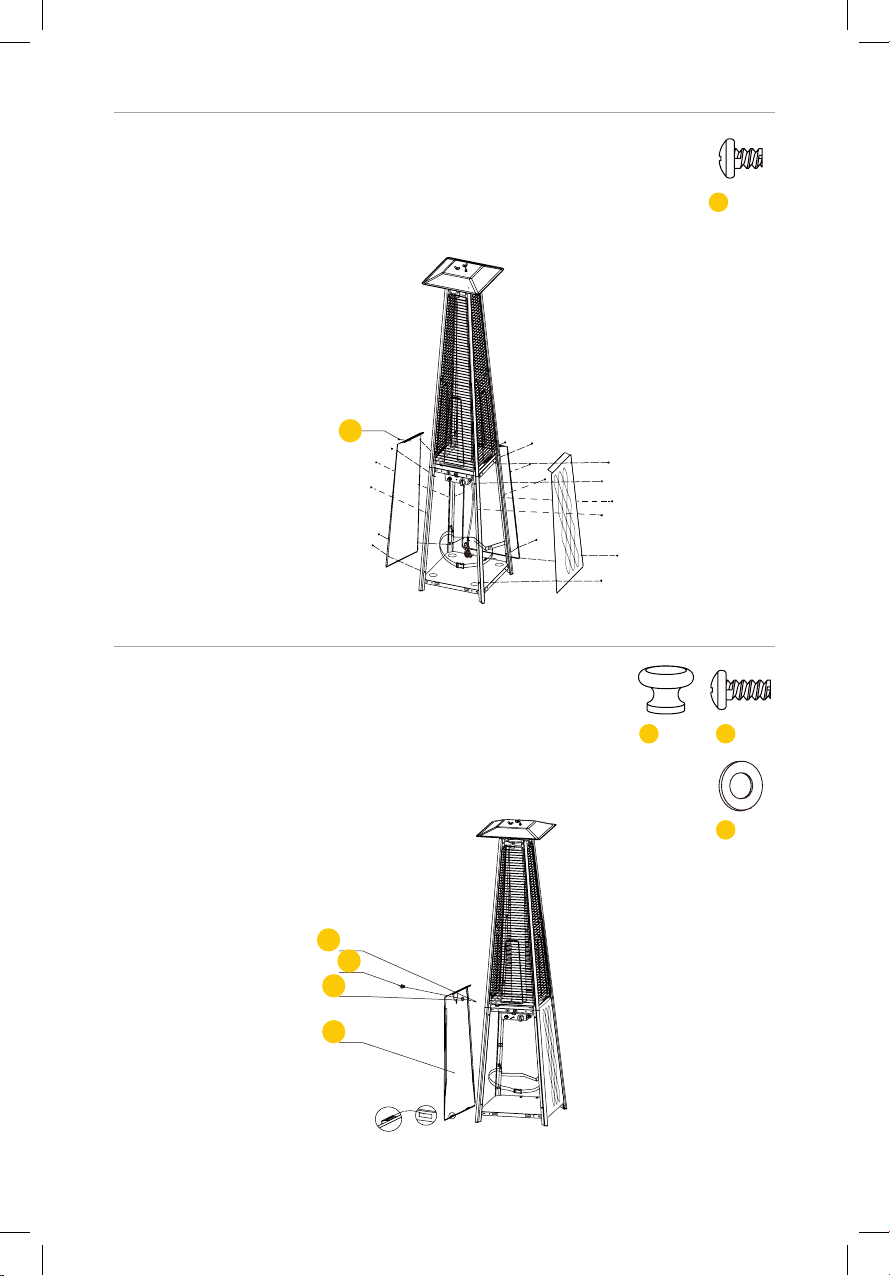

7Attach the three side panels (G) to the heater with 18
3/16” screws.
ATTENTION: Do not cover the side with the control knob.
ATTENTION: Move the cover of side panels (G)
before assembly.
Install the knob (II) with 1 M4x8 screw and 1 large at
washer (JJ). Place the pothook of the front panel (H)
on the holes of the bottom plate (N).
NOTE: We recommend you x the heater to the
ground with a xing pin (sold separately).
ATTENTION: Move the cover of front panels (H)
before assembly.
HH (X18)
KK (X1)
JJ (X1)
II (X1)
HH
KK
II
JJ
H

17
EASTOAK.COM PYRAMID PATIO HEATER
10
CYLINDERVALVE
PRESSURE
RELIEFVALVE
BLEED-OFF
VALVE
turn clockwise
to reseal
BLACK COUPLING NUT
turn clockwise to connect
REGULATOR

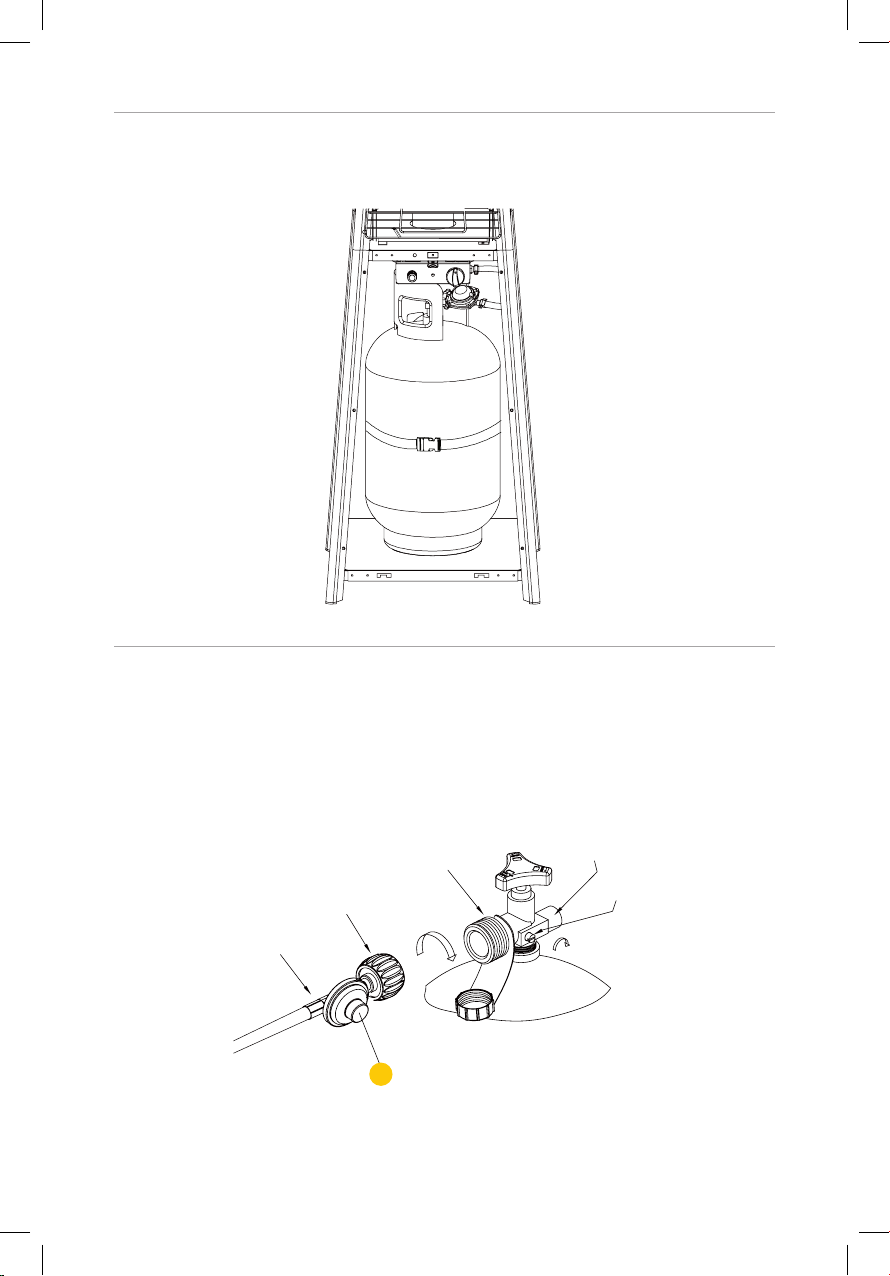

9Insert the propane gas tank (sold separately) into the lower opening.
Connect the gas cylinder to the block belt.
To close the propane tank, turn the cylinder valve clockwise. Attach the
regulator (J) to the cylinder valve by turning the regulator coupling nut
clockwise.
IMPORTANT: Ensure the valves are secured tightly. Only do this manually
with your hands.
J

18
[email protected]1-833-327-8625
OPERATION
• Before every leak test, ensure that there are no combustible or ammable
materials, such as gas, liquids, or vapor. Ensure there are no items that can
catch on re; this may include loose clothes, hair, etc.
• Attach the propane gas tank to the regulator. Turn the valve knob to
the “OFF” position. Brush or apply a mild soap and water solution to all
connections. Turn the gas supply on.
• If bubbles are present on any of the connection, there may be a leak and
you must turn off your gas valve immediately. If you smell any gas, turn of
your gas valve immediately. Disconnect the gas tank and do not use the
appliance until the leak is repaired or parts are replaced.
• NEVER use the heater without inspecting the gas hose rst.
• If any signs of wear or abrasion occur, the hose must be replaced
immediately and before the next use.
NOTE: The central spigot is designed
with a reverse angle to ensure the
canopy sits level once assembled. It
is very important to correctly locate
the crank winder directly above the
tension screws as shown.
