Well HTR-IR-PW2000-WL User manual

INSTRUCTION MANUAL

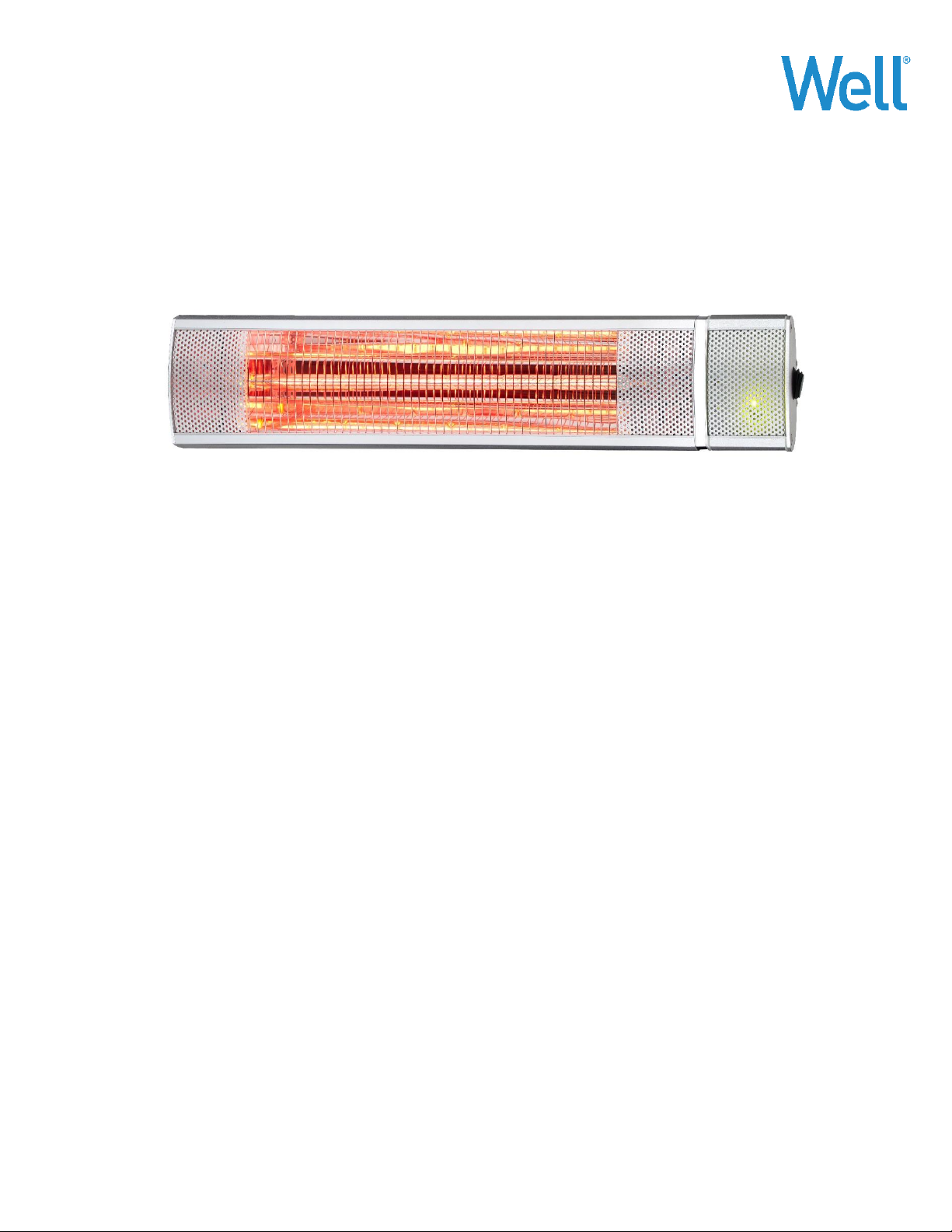

ELECTRIC PATIO HEATER
Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
Reorder No: HTR-IR-PW2000-WL

SAFETY WARNINGS
•Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical
shock.
•Read this Instruction Manual carefully to maximize this appliance’s performance and keep for future
reference.
•Always ensure that your power supply voltage matches this appliance’s rating label.
•Never leave the appliance unattended while in operation. Always unplug the appliance when not in use.
•This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
•Caution: Some parts of this product can become very hot and cause burns. Particular attention has to be
given when children and vulnerable people are present.
•Always use the handle when moving the heater (if available) or hold on the sides if not available (make
sure the unit is turned off). Keep combustible materials such as furniture, pillows, bedding, papers,
clothes and curtains at least 1m from the heater.
•For safe use of the product, the product installation position should have a minimum height of 1.8 m
from the ground, and a minimum distance of 0.5m from ceiling, roof and both sides walls.
•The heater must not face with the heating element pointing upwards towards a ceiling. The heater
element must be facing the area it is to heat.
•Warning: In order to avoid overheating do not cover the heater.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
•Do not use the product if there are any visible signs of damage to the appliance.
•Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not
contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs.
Attempting to repair the unit yourself will void your warranty.
•If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
•Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a
soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing
premature heater failure.
•Do not replace or attempt to replace the element in this product.
•This product is suitable for indoor and outdoor use. Do not operate the appliance in direct sunlight, near
heat sources, humid environments or in places near water or other liquids such as bathrooms, shower or
swimming pool.
•This product must not be left outdoors exposed to the elements for long periods of time.
•Do not operate with wet hands or spill water or other liquids on to the appliance the mains cable or plug.
•Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar
coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.
•Do not wind the power cable around the unit.
•Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result
in electric shock, fire, or damage to the heater.
•To prevent a possible fire, do not block the air vents.
•Do not use the appliance in areas where petrol, paints or other flammable substances are used or stored.
•Always position the appliance with the mains plug in an accessible position and avoid the use of an
extension cables as they may overheat and create a potential fire risk.
•Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.
•To disconnect heater, turn controls to OFF, then remove plug from socket. Do not unplug by pulling on
the power cable.
•Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
•This heater is intended for domestic use only and should not be used commercially for contract purposes.
Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury

to persons.
•The use of attachments on the heater is not recommended.
•Warning: This heater does not equipped with a device to control the room temperature. Do not use this
heater in small rooms when occupied by persons not capable of leaving a room on their own, unless
constant supervision is provided.
•Check exterior walls for areas of damage before installing the heater.
•Check exterior walls for communication and electrical cables and pipelines.
•Should any service lines be present in the immediate vicinity do not install your heater, find an alternative
location to install this product.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
•The heater must not be located immediately below a socket outlet.
•Do not use this heater with a programmer, timer, separate remote-control system or any other device that
switches the heater on automatically, since a fire risk exists if the heater is covered or position incorrectly.
•Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children without supervision.
•Children of less than 3 years should be kept away unless continuously supervised.
•Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it
has been placed or installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
•CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has
to be given where children and vulnerable people are present.
•Pay attention that, no combustible material due to Wind or other environmental influences covers or
obstructs the appliance, such as curtains, marquees, flags, plastic foil etc.
INSTALLATION INSTRUCTION

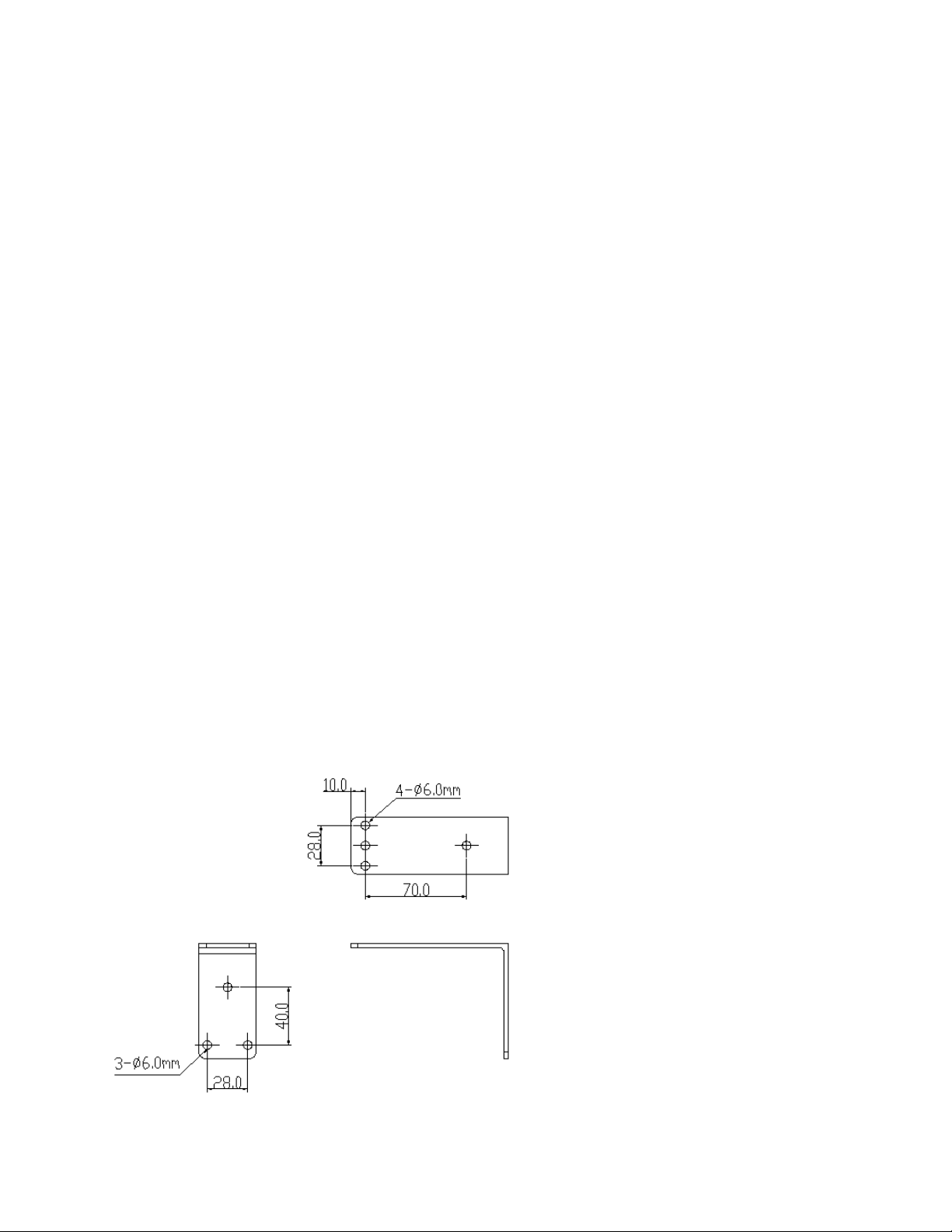

Spare parts size drawing
Step 1: 3 holes on the wall then 3 expansion
screws into the hole, as arrow points

Step 2: Fix fixed bracket on the wall, as arrow points.
Step 3: Installation of one adjusting brackets, make sure
lock brackets tight by Butterfly hand screw. Then use
hexagon key wrench to adjust the Hexagon nut according
to installation design Angle
Hole diameter 8 mm
Expansion screws specs ø8*35
Screws 3x32
Expansion screws
Hexagon nut
Butterfly nut
M6 screw
Hexagon key wrench

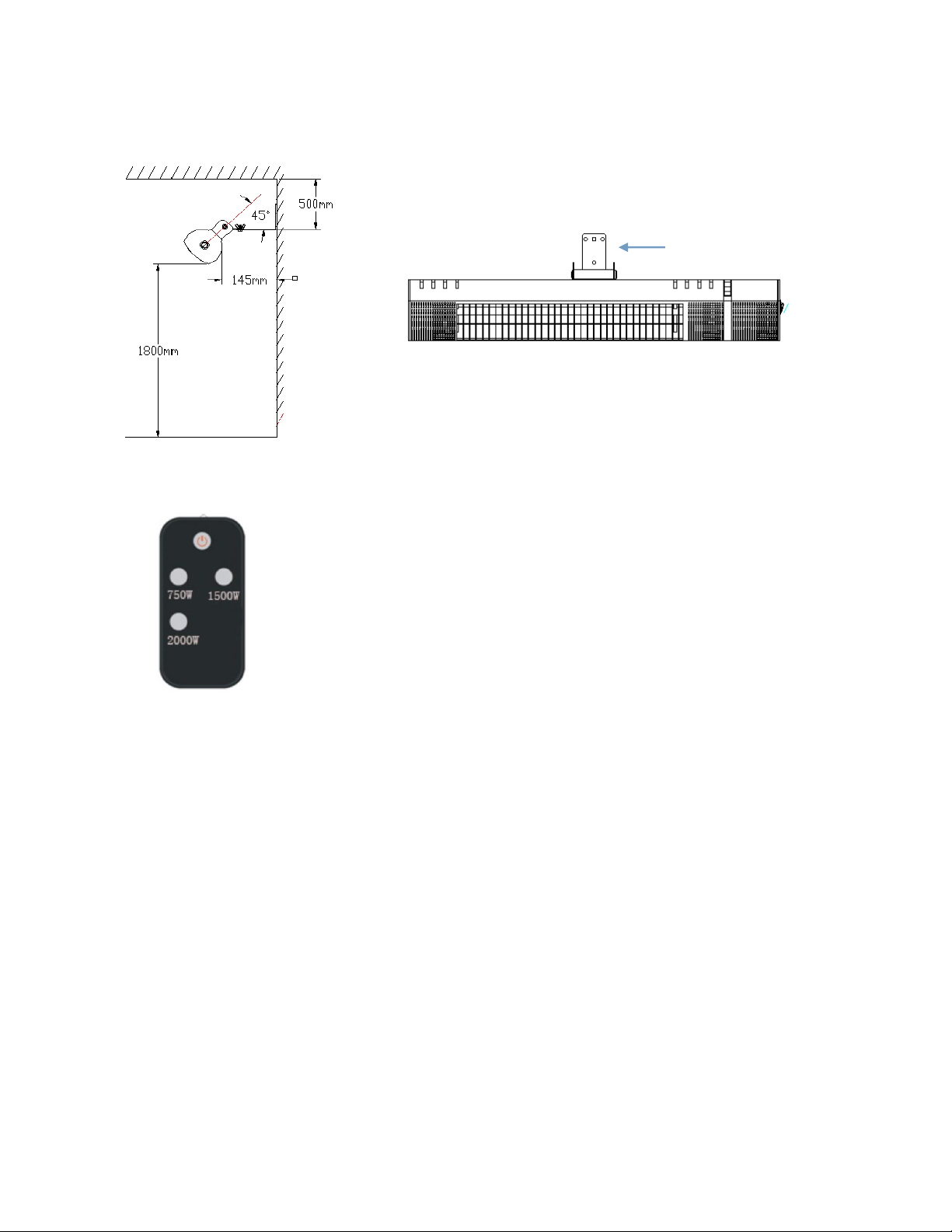

INSTALLATION DIAGRAM
THE REMOTE CONTROL
MAINTENANCE AND CLEANING
Maintenance
Attention! Careful and regular maintenance of Infrared Heater is required to attain a long and efficient operation of
your appliance.
Check the cleanliness of the Reflector and IR-Filament at least once a month. If necessary, apply cleaning and
maintenance instructions.
The number of checks may be increased considering the amount of dust in the environment.
Check the deformation of the Reflector, Wire and Frame visually while cleaning the appliance. In case of any
deformation, consult a qualified technician.
Check the power cable and plug visually while cleaning the appliance. In case of any deformation, consult a qualified
technician.
It is recommended to change the reflector every 2 years for more efficient operation.
Cleaning
Attention! Regular and careful cleaning helps your heater to operate efficiently for many years.
Unplug your power cable for your safety before cleaning your appliance.
Take out the front grid wire through the inlets on the frame using a slotted screwdriver.
The reflector and filament must be cleaned with a soft cloth, a smooth brush or cool or dry air. The cloth may be damp
but never too wet and the cleaner should not include any chemicals.
Refrain from using cleaning materials likely to damage the reflector (cleanser etc.).
Reinsert the wire grid using a slotted screwdriver.
One fixed bracket

SPECIFICATIONS
Voltage: 230V 50Hz
Maximum power: 2000W
3 heating power: 750/1500/2000W
Tungsten wire gold-plated heating pipe
Adjustable angle: 0-45°
Infrared remote control
Power cord length: 1.8m
Aluminum alloy housing
Decorative mesh
IP rating: IP55
Wall mounted
Waste electrical and electronic equipment are a special waste category, collection,
storage, transport, treatment and recycling are important because they can avoid
environmental pollution and are harmful to health. Submitting waste electrical and
electronic equipment to special collection centers makes the waste to be recycled
properly and protecting the environment. Do not forget! Each electric appliance that
arrives at the landfill, the field, pollutes the environment!
Importer & distributor:
SC VITACOM ELECTRONICS SRL
CIF: RO 214527
Tel. [phone]*
[email protected], www.vitacom.ro
