MICERIUM ENA HEAT User manual

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 1 of 16
ENA HEAT
COMPOSITE HEATING CONDITIONER
Ref. CHC3
INSTRUCTION MANUAL

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 2 of 16

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 3 of 16
INSTRUCTION MANUAL
DECLARATION OF CONFORMITY_______________________________________________________ 4
CHAPTER 1 ________________________________________________________________ 5
GENERAL REMARKS ________________________________________________________ 5
1.1 CONGRATULATIONS ON YOUR PURCHASE ____________________________________________ 5
1.2 PRODUCT DESCRIPTION AND INFORMATION __________________________________________ 5
1.3 GLOSSARY _______________________________________________________________________ 5
1.4 GENERAL SAFETY DIRECTIONS______________________________________________________ 6
1.5 GENERAL CONSIDERATIONS ________________________________________________________ 8
CHAPTER 2 ________________________________________________________________ 9
HEATER SPECIFICATION_____________________________________________________ 9
2.1 INTRODUCTION____________________________________________________________________ 9
2.2 TECHNICAL DESCRIPTION OF THE MACHINE___________________________________________ 9
2.3 TECHNICAL SPECIFICATIONS________________________________________________________ 9
CHAPTER 3 _______________________________________________________________ 10
INSTRUCTIONS FOR USE ___________________________________________________ 10
3.1 INTENDED USE ___________________________________________________________________ 10
3.2 CONTROLS ______________________________________________________________________ 10
3.3 HOW TO USE _____________________________________________________________________ 11
CHAPTER 4 _______________________________________________________________ 13
CUSTOMER CARE & WARRANTY_____________________________________________ 13
4.1 CUSTOMER CARE_________________________________________________________________ 13
4.2 WARRANTY ______________________________________________________________________ 14
4.3 TECHNICAL SERVICE ______________________________________________________________ 14
4.4 DEVICE DISPOSAL ________________________________________________________________ 14
PICTURES INDEX

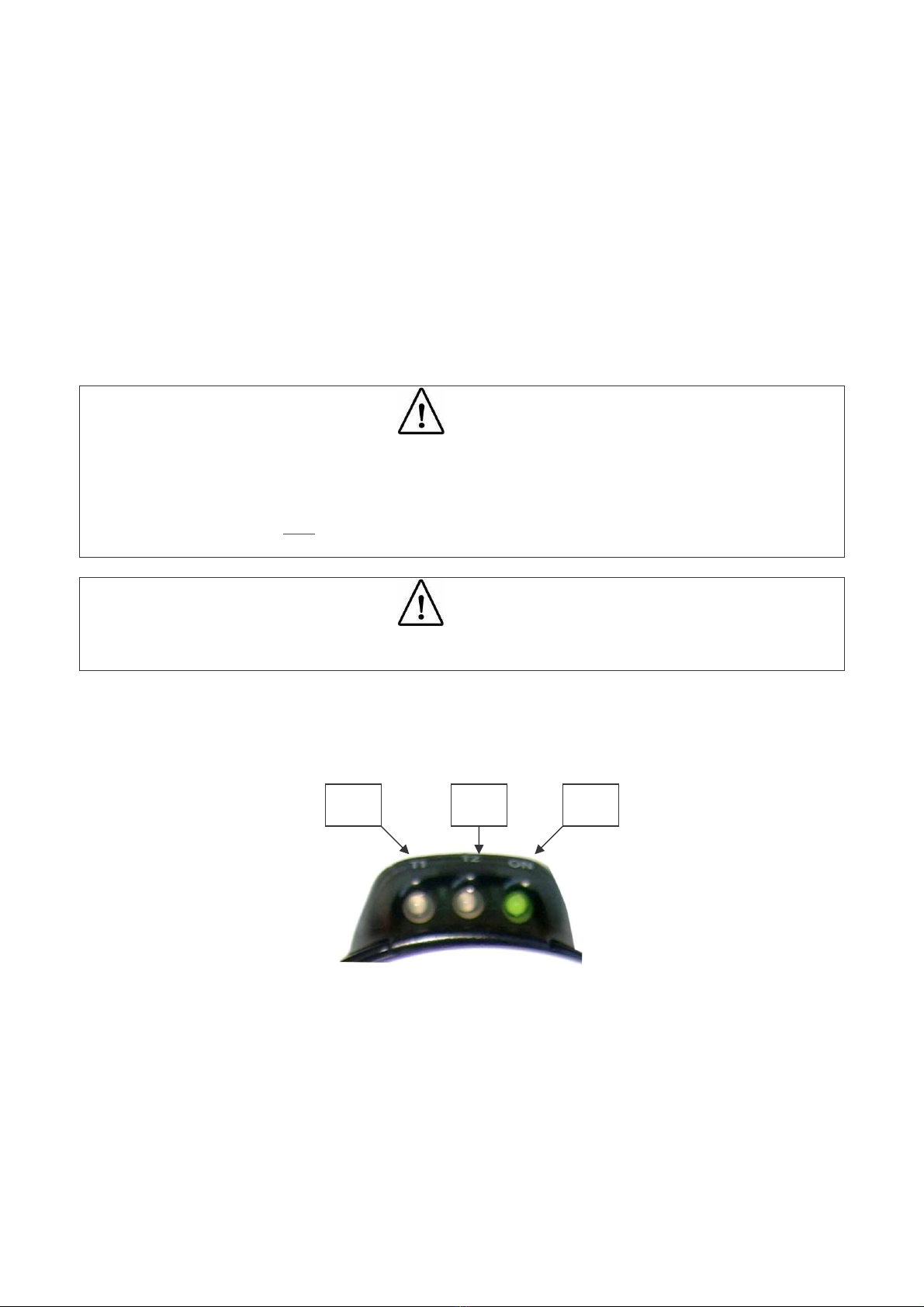

Fig. 1: Ena Heat (front view detail) .................................................................................................................. 10

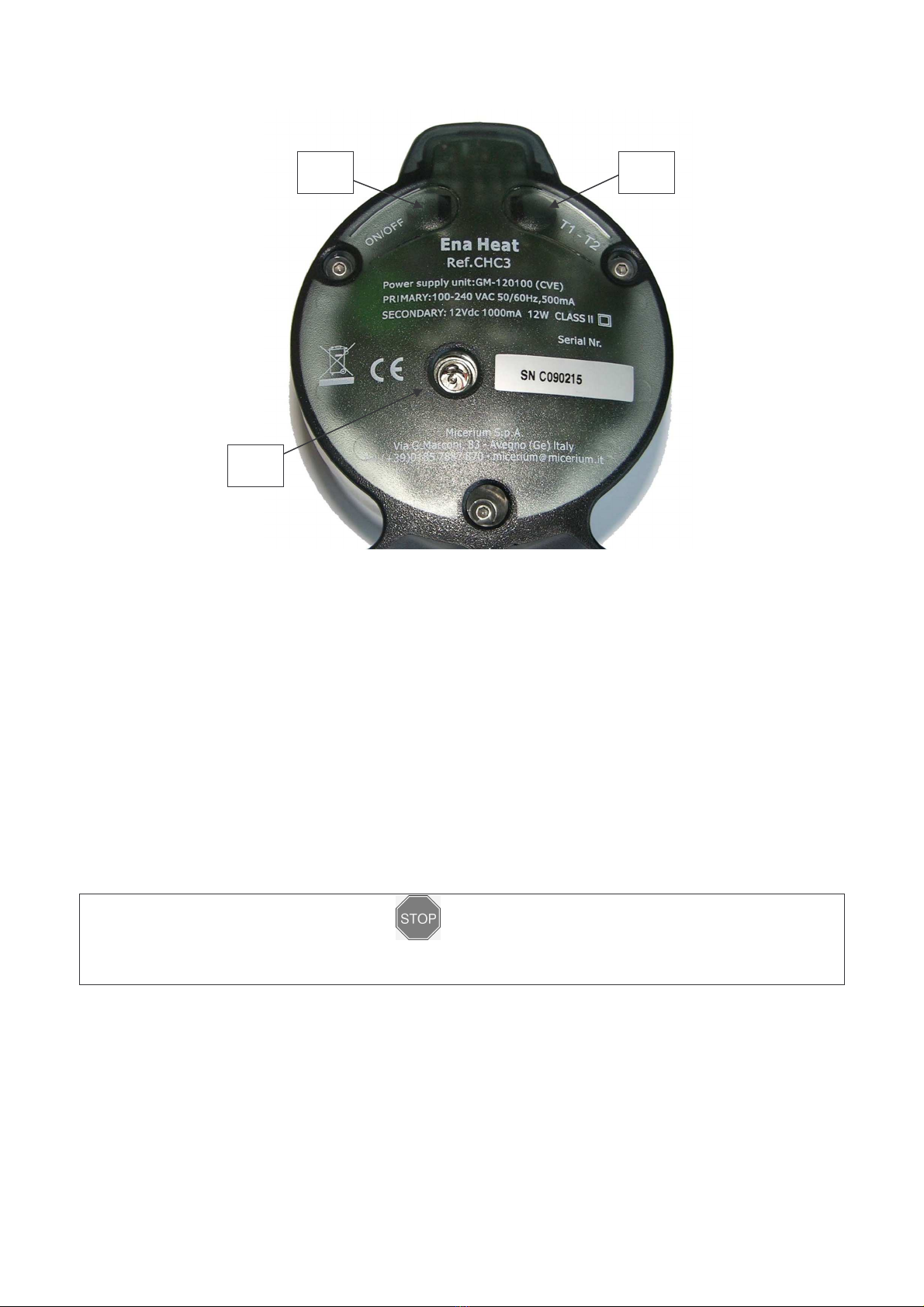

Fig. 2: Ena Heat (back view detail).................................................................................................................. 11

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 4 of 16
CE DECLARATION OF CONFORMITY
WE
MICERIUM S.p.A.
VIA G. MARCONI, 83
16030 AVEGNO (GE) ITALY
Tel.: [phone] Fax: [phone]
DECLARE UNDER OUR EXCLUSIVE RESPONSIBILITY THAT THE PRODUCT :
ENA HEAT
COMPOSITE HEATING CONDITIONER
Ref. CHC3
WHICH THIS DECLARATION IS REFERRED TO, IS IN COMPLIANCE WITH WHAT IS
ESTABLISHED BY THE DIRECTIVES:
89/336/CEE Electrical equipment - Electromagnetic compatibility
73/23/EC Electrical components
93/42/CE Medical Devices
2002/95/CEE ROHS
and further modifications
and to the armonized standard:
EN61326-1:1997 + A1:1998
EN61010:2001 (2nd Edition)
Avegno (GE), March 2009
(Dr. Eugenio Miceli)

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 5 of 16
CHAPTER 1
GENERAL REMARKS
1.1 CONGRATULATIONS ON YOUR PURCHASE
Congratulations for choosing this product.
You have purchased a product that has been manufactured with the highest precision and verified
and tested with meticulous craftsmanship.
Since the 1980’s Micerium S.p.A. has been introducing innovative products and receiving
prestigious achievements in the dental industry.
Micerium S.p.A., to confirm its continuous involvement to fulfil its Customers requirements, applies
from 1998, the most comprehensive quality system that ensures a good quality management in all
the stages from design to development, manufacture, installation and service.
We want to thank You for choosing us and we are confident this new purchase will give You an
efficient support for your job.
1.2 PRODUCT DESCRIPTION AND INFORMATION
NAME: ENA HEAT COMPOSITE HEATING CONDITIONER
MODEL: CHC3
Ref. CHC3 with EC adapter
Ref. CHC3-GB with UK adapter
Ref. CHC3-US with US adapter
YEAR OF MANUFACTURING : 2009
MANUFACTURER : MICERIUM S.p.A
Via G. Marconi 83
16030 Avegno (GE) - Italy
For more information, please contact the Micerium’s sales offices at the followings:
- Phone number: ([phone] (our sales offices are open all weekdays);
- Fax: [phone];
- E-mail: [e-mail]
1.3 GLOSSARY
The following symbols and their respective meanings are found in this instruction manual:
CAUTION
The caution symbol calls the attention to an operating procedure, practice or another similar
measure that, if not properly followed or respected, can seriously damage the functionality and
the safety of the product.
WARNING
The warning symbol calls the attention to an operating procedure, practice or another similar
measure that, if not properly followed or respected, can CAUSE INJURIES.

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 6 of 16
1.4 GENERAL SAFETY DIRECTIONS
WARNING
The unit can only be safely used after reading and understanding the instruction manual, the safety
indications, all additional literature and strictly following the directions given.
The machine must be used only for the indicated purposes.
Failure to follow all instructions listed in both documents may result in electric shock, fire, and/or
serious personal injury.
KEEP THESE INSTRUCTIONS!
USER:
1. This is a medical device intended for professional use only.
2. The equipment must be used only by one trained user. Tools are dangerous in the
hands of untrained users.
3. Before using the device, please read the Instruction Manual carefully and
completely. Please, learn the operation, applications and potential hazards related
to the unit.
INTENDED USE:
Ena Heat Composite Heating Conditioner allows the use of composite at a clinically ideal
temperature during its application in the oral cavity and in the laboratory. It can also be used to
heat hypochlorite and anaesthetics. Any other use is forbidden.
WORK AREA SAFETY:
1. Do not use the electric device in wet or outdoor environments.
2. Keep work area clean and well lit. Cluttered benches and dark areas invite accidents.
3. Do not operate the device in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
4. Keep children, and visitors away from work area. The work area is forbidden to all these
people. They are not understood of any instruction so they could have serious personal
injuries. Furthermore, distractions can cause you to loose control.
5. Do not let visitors contact the tool or extension cord. Such preventive measures reduce the
risk of injury.
6. Danger zone - An area of at least 0.5 m around the unit has to be declared a danger zone,
as this is the area in which the personnel does all work.
ELECTRICAL SAFETY:
1. Avoid to contact grounded objects such as tubes, radiators, refrigerators.
2. Do not use any adapter plugs.
3. Don’t expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electrical shock.
4. Do not abuse cord. Never use the cord to carry the equipment or pull the plug from a
socket. Keep cord away from heat, oil, sharp edges or moving parts.
5. Immediately replace the ACDC adapter when cord is waste or damaged. Damaged cords
increase the risk of electrical shock.

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 7 of 16
6. Connect the tool to an AC power supply that matches the power unit specifications.
Incorrect voltage supply can cause electrical shock or burns
7. Use only the supplied type of ACDC adapter. Other types than those listed may cause
severe damage to the device and short-circuits to the electrical system.
8. Emergency - Switch off the unit with the main switch and disconnect the plug from the wall
socket.
TOOL USE AND CARE:
1. Do not insert metal objects or liquids into the device.
2. Do not use equipment if switch does not turn it ON or OFF. Any equipment that cannot be
controlled with the switch is dangerous and must be repaired.
3. Disconnect plug from the power source before making any adjustments or storing the tool.
Such preventive safety measures reduce risk of starting tool accidentally.
4. Always control that the tool isn’t damaged – Before using the unit, check with attention its
efficiency and the perfect working of the safety devices and if necessary of damaged parts.
Safety devices or damaged parts must be repaired or changed by an Authorized Center of
Assistance it different indications aren’t given. Many accidents are caused by poorly
maintained tools.
5. If the device falls down, do not use it and send it to an authorized centers of assistance for
the proper functional tests
6. Have qualified people to change the tools – This electric unit is in conformity with the safety
directions in force. The repair of electric tools must be done only by authorized centers of
assistance
7. Inspect equipment, connection plug and cord periodically and replace the ACDC adapter if
they are damaged .
MAINTENANCE:
1. Tool service must be performed only by qualified repair personnel authorized by Micerium
S.p.A. Service or maintenance performed by unqualified repair personnel are not allowed
and could result in injury.
2. When servicing an equipment, use only identical replacement parts. Follow instructions in
the Maintenance Section of the Instruction Manual. Use of unauthorized parts or failure to
follow maintenance instructions may create a risk of electrical shock or injury.
CLEANING AND DISINFECTION
The structure is of aluminium and plastic. For cleaning and disinfection is recommended to cut off
the ACDC adapter and lightly rub the surface with a cloth dampened with alcohol (do not use
acetone or other aggressive agents for plastics). Dry completely, including syringe and tips slots,
with a dry cloth, if needed.
CAUTION
Do not dip any elements into liquids, nor pour liquids into the syringe and tips slots.
Do not autoclave.
Never spray disinfectant or cleaning agent directly onto the system.
For additional safety instructions, please read any enclosed information about the general
operation of the machines.

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 8 of 16
WARNING
Read and follow safety labels on machine!
Know the location and functions of all controls before using this tool
1.5 GENERAL CONSIDERATIONS
This manual gives the indications about the recommended use of the machine and its
maintenance. All personnel responsible for these activities should read and become familiar with
this information.
This manual must be considered as an integral part of the machine and must be “kept for future
reference”.
If this manual is damaged or lost, please contact the Micerium’s sales office to request a
replacement copy.
Micerium S.p.A. reserves the right to update machinery and manuals without the obligation of
updating any previous revisions, unless there is an exceptional change made in the instructions.
The user can however request that Micerium’s sales office provide an updated version of the
manual and once it is received, the previous version should be discarded.
If you have any questions that are not answered in the manual, please contact the company
directly for assistance.
If you decide to sell this machine, please provide the new owner with Micerium’s contact
information so assistance and training can be provided to the new owner.
If this contact information IS NOT provided to the new owner, the manufacturer is relieved of all
responsibility linked to an improper use of the machine, and to all other information concerning the
machine contained in this manual

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 9 of 16
CHAPTER 2
HEATER SPECIFICATION
2.1 INTRODUCTION
The use of Ena Heat CHC3 Composite Heating Conditioner is allowed only to well trained
operators.
The machine must be connected to an electrical system (tension 100-240VAC 50/60Hz,
500mA ) by using the provided ACDC adapter 12Vdc 1000mA 12W Class II (Ref. CHC3 with EC
adapter, Ref. CHC3-GB with UK adapter, Ref. CHC3-US with US adapter).
CAUTION
Only use the enclosed ACDC adapter:
GM-120100 (CVE) type P2 EF, SW3, 12W, 100-240 V~, 50-60 Hz, 500 mA, class II).
2.2 TECHNICAL DESCRIPTION OF THE MACHINE
Ena Heat CHC3 Composite Heating Conditioner consists of a cilinder body with recesses in two
different sizes for placing syringes, vials and tips and an electronic control with an on-/off-switch, a
led control, a temperature selector switch and a power supply unit.
2.3 TECHNICAL SPECIFICATIONS
Power Tension: 12Vdc stabilized
Current: 1A
Power: 12W
Working temperature Troom > -20°C (-4°F)
Selectable temperatures
T1: +39°C (102.2°F) +/-1%
T2: +55°C (131°F) +/-1%
Heating times
at +20°C (68°F) Troom.
T1: +39°C (102°F) ~ 16 min.
T2: +55°C (131°F) ~ 55 min.
T1 T2 ~ 30 min.
Signals LED ON: green: on
LED T1 and T2: flashing yellow: heating
fix yellow: temperature reached
red: alarm
Alarm conditions
(LED ON turning red) a. T> +60°C (140°F) b. T< -20°C (-4°F)
c. temperature sensor failure or interrupted
a. ascent of temperature below 1°C (33.8°F)/200 sec.
Active protections Software protections
Passive protections 2A quick-active fuse on power connection. 86°C (186.8°F) thermo - fuse
Dimensions (mm) 115x110x125 (height, width, depth)
Weight (gr) 750 (power unit included)

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 10 of 16
CHAPTER 3
INSTRUCTIONS FOR USE
3.1 INTENDED USE
Ena Heat CHC3 Composite Heating Conditioner has been designed to keep composite (syringes
and tips) at a clinically ideal temperature for its application in the oral cavity and in the laboratory.
The first temperature (T1: 39°C = 102.2°F) is perfect to heat composite for build up and to heat
anaesthetics and hypochlorite; the second temperature (T2: 55°C = 131°F ) to heat composite for
luting.
CAUTION
The syringe heater may only be used with composite materials which are suitable for temperatures
of 39°C / 55°C (102.2°F/ 131°F) , as Enamel Plus HFO and HRi (Ena HRi/HFO for US). Please refer
to manufacturer instructions for other composites.
To heat hypochlorite use only airtight syringes or sealed vials to avoid liquid entering the cavity of
the unit.
CAUTION
All uses different from those described are not allowed. Do not use the machine with any
other material which is not indicated for this machine.
3.2 CONTROLS
Fig. 1: Ena Heat (front view detail)
1. Led T1 for temperature 39°C (102.2°F) (flashing yellow = heating; fix yellow: temperature
reached; red: alarm)
2. Led T2 for temperature 55°C (131°F) (flashing yellow = heating; fix yellow: temperature
reached; red: alarm)
3. Led ON for switch on control (green: on)
1 2 3

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 11 of 16
Fig. 2: Ena Heat (back view detail)
1. On/off switch
2. T1/T2 temperature selector
3. Power supply
3.3 HOW TO USE
1. Connect the ACDC adapter to the heating unit and connect it to a 110-240 V electrical
socket.
2. Switch on the On/Off switch (the green led will light up). When the system works and the
led On is lit, the surface of the system should soon begin to heat. This is a sign that the
system works.
WARNING
If the system is turned on, but the LED is not lit, please check the correct connection of the power
unit and socket. If the problem persists, contact the manufacturer.
3. Regulate the temperature with the temperature selector: 55°C (131°F) for luting procedures
and 39°C (102.2°F) for build up and to heat anaesthetics and hypochlorite. The selection of
the temperature will be highlighted by the turning on of the flashing yellow LED. Before use,
wait for the time necessary to achieve the ideal temperature: upon reaching the set
temperature, the LED will become fixed.
1 2
3

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 12 of 16
CAUTION
T1: (corresponds to 39°C = 102.2°F)
To heat composite for build up, to heat anesthetics and hypochlorite.
T2: (corresponds to 55°C = 131°F)
To heat composite for luting
CAUTION
In table at Point 2.3 the mean times for heating at room-temperature of 20°C (68°F) are
reported. Lower room-temperature will increase these times.
4. Insert syringes, vials or tips in the holes at least 10 minutes before using the material (20
min. for luting)
5. Once restoration is finished, remove the syringes or the tips from the unit. The unit can
remain switched on even the whole day. If you are working at 55°C (131°F) please insert
only the syringes and tips of the colour you need.

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 13 of 16
CHAPTER 4
CUSTOMER CARE & WARRANTY
4.1 CUSTOMER CARE
The control of all functions, both function and security, is operated by a microcontroller to supervise
very clearly the proper conduct of the activities of heating and maintaining the temperature. During
heating, the slope of the temperature curve is monitored to verify that the increment is at least 1°C
(33.8°F) every 200 seconds. If this condition does not occur or is interrupted, there would be an
alarm (red LED) and the shutdown of the machine (software protection). To remove the alarm
condition (reset), you have to power cycle the machine by using the On-Off.
WARNING
If the problem becomes repetitive, please return the machine to the assistance.
You can have reports of alarm (software protection), even in the following cases :
a) exceeding a temperature of +60°C (140°F)
b) below –20°C (-4°F)
c) in case of failure of temperature control
WARNING
In case of a) or c), you have to send the device to the assistance .
In addition, the following and other kind of passive securities have been introduced, that are
independent of any control function of electronics:
a) non-resettable 2A fuse on power supply as a protection against overcurrent or short
circuit inside. The merger of the component makes the machine unusable.
b) Thermo-fuse calibrated to +86 ° C in contact with the heating chamber to protect
against overheating caused by a loss of electronics regulation. This component
melts reaching the temperature setting, preventing the operation of the
machine .
WARNING
In both cases you have to send the device to the assistance .

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 14 of 16
4.2 WARRANTY
The unit is guaranteed for 12 months both for materials and construction.
This unit has been constructed and manufactured under consideration of all safety regulations.
Should the unit show any manufacturing errors or irregularities during the guarantee period, the
manufacturer according to our standards will fix them. For any guarantee claim, the invoice or
delivery note must be provided as proof. The guarantee is limited to the replacement of the part or
parts which show the manufacturing error or irregularity.
Excluded from guarantee are: personnel costs, expenses of the technical staff, transport costs,
packaging, etc. Furthermore, errors or other problems that the manufacturer cannot be blamed for
or parts that are subject to normal wear may not be claimed under guarantee.
Direct or indirect damage claims towards any persons or things may not be derived from this
guarantee, even if the reason for the damage could be traced back to the unit. This guarantee will
automatically be terminated, if the unit is repaired, changed or opened by force by the user/buyer
or any unauthorized third party.
Should any problem occur during the guarantee period, the user/buyer have only to contact the
manufacturer or an authorized service center named by the manufacturer.
The right to exchange the complete unit for a new one is excluded. Any parts replaced during the
guarantee period must be returned to Micerium S.p.A., who will supply a new part. Should the
replaced part not be returned, it will be billed to the user/buyer
4.3 TECHNICAL SERVICE
Please contact Micerium S.p.A. at the followings:
- Phone number: ([phone] (our sales offices are open all weekdays);
- Fax: [phone];
- E-mail: [e-mail]
4.4 DEVICE DISPOSAL
Information to Users
This product is covered by the European Directives 2002/95/EC, 2002/96/EC and
2003/108/EC, for the reduction of the use of hazardous substances in electrical and
electronic equipment, and disposal of waste.
The symbol of bin crossed reported on your equipment or its packaging indicates
that the product at the end of its useful life must be disposed separately from other
waste.
A separate collection of this equipment arrived at the end of its life is organized and
managed by the manufacturer. If you want to get rid of this equipment, please
contact the manufacturer and follow the system that he has chosen to allow
separate collection of the apparatus arrived at the end of its life.
A proper separate collection for the next launch of the disused equipment to
recycling, treatment and environmentally compatible disposal helps to avoid possible
negative effects on the environment and on health and promotes reuse and / or
recycling of materials composing the equipment. The illegal disposal of the product
by the holder includes the application of administrative sanctions provided for by law.

Ena Heat Manual
________________________________________________________________________________
________________________________________________________________________________
Micerium S.p.A. File: manuale CHC3 (GB) v1.2.2 03-09.doc page 15 of 16

Ena Heat Manual
