MICRO-EPSILON scanCONTROL 3050/BL User manual

1. Warnings
Connect the power supply and the display-/output device according to the safety
regulations for electrical equipment. The power supply must not exceed the specified
limits.
> Risk of injury, damage to or destruction of the sensor
Avoid shocks and impacts to the sensor. Avoid continuous exposure to dust and
spray on the sensor. Avoid exposure of sensor to aggressive materials (detergents,
cooling emulsions).
> Damage to or destruction of the sensor
Read the detailed instruction manual before operating the sensor. You will find this
manual on the provided CD or online at www.micro-epsilon.com.
2. Notes on CE Identification
The following applies to the scanCONTROL 30xx/BL:
- EU Directive 2014/30/EU
- EU Directive 2011/65/EU, „RoHS“ category 9
The sensor is designed for use in industry and satisfies the requirements.
The sensor fulfills the specifications of the EMC requirements, if the instructions in the
manual are followed.
3. Proper Environment
- Protection class: IP 67
- Operating temperature: 0 to +45 °C (+32 to +113 °F), by free circulation of air
- Storage temperature: -20 to +70 °C ( -4 to +158 °F)
- Humidity: 5 - 95 % (non condensing)
4. Scope of Delivery of scanCONTROL 30xx/BL
- 1 Sensor scanCONTROL 30xx/BL with integrated controller
- 1 Multifunction cable PCR2600/2900-5, length 5 m; for power supply, trigger and
RS422; screw connector and free cable ends
- Calibration final inspection / assembly instructions
- 2 protective caps
- scanCONTROL Sofware-CD with drivers, programs and documentation
Assembly Instructions
scanCONTROL 3000/BL / 3050/BL

5. Laser Safety
The scanCONTROL 30xx/BL sensors operate with a semiconductor laser having a
wavelength of 405 nm (visible/blue). The laser operation is indicated visually by the
LED on the sensor.
Laser Class 2M
scanCONTROL 30xx/BL sensors with a maximum laser power up to 10 mW are clas-
sified in Laser Class 2M (IIM). Attache the following warning labels to the cover (front
side) of the sensor housing. The laser warning labels for Germany have already been
applied. Those for other non German-speaking countries an IEC standard label is
included in delivery and the versions applicable to the user’s country must be applied
before the equipment is used for the first time.
LASER RADIATION
DO NOT STARE INTO BEAM
OR EXPOSE USERS OF
TELESCOPE OPTICS
CLASS 2M LASER PRODUCT
IEC 60825-1: 2014
P≤10mW, P ≤10mW; E≤6mW/cm²;
0 P
λ= 405nm; F = 0...25kHz, t = 7µs...∞
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR CONFORMANCE WITH
IEC 60825-1 ED. 3., AS DESCRIBED IN
LASER NOTICE NO. 56, DATED MAY 8, 2019
Laser label and
warning label acc. to
IEC 60825-1
Laser label
acc. to IEC 60825-1
for USA only
i
If the information labels are hidden in the installed state, the user must
ensure that additional labels are fitted at the point of installation.
Hazard to the eye via laser radiation! Consciously close your
eyes or turn away if the laser radiation impinges on the eye.
iLaser areas must be marked duarably and clearly, if the laser beam runs
through a work or traffic area. Class 2M laser devices are not subject to re-
porting and a laser protection officer is not required.

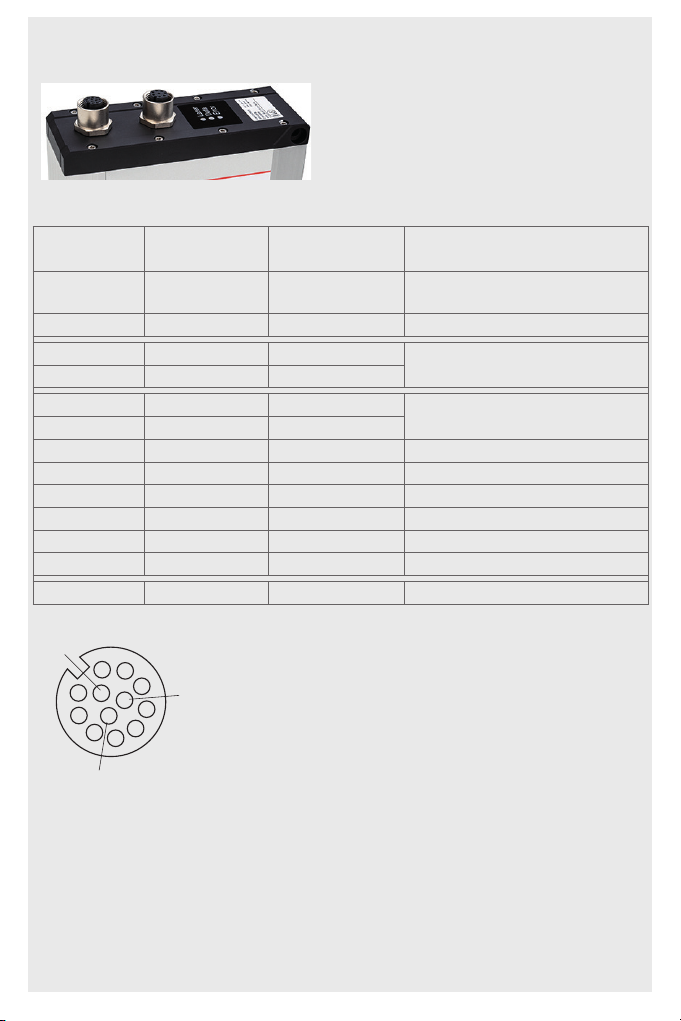

6. Connections, LED Displays
1 2
1 Multifunction port (Power supply, IO)
2 Ethernet port
Multifunction Port
Designation Sensor con-
nector Pin
Cable color
PCR2600/2900-x
Notes
+Ub 9 red + 11 V - 30 V DC
(rated value 24 V); max. 5 W
GND 2 blue 0 V
+Laser on/off 3 white available with SI option
-Laser on/off 1 brown
RS422 12 red-blue RS422
input respectively output
/RS422 11 gray-pink
GND RS422 10 purple Ground connection RS422
In1 4 green Switching input In1
In2 6 yellow Switching input In2
In3 8 gray Switching input In3
In4 5 pink Switching input In4
GND-In 7 black Ground connection In
Screen Housing black Not electrically connected to GND
2
3
4
5
6
7
8
9
1
10
11
12
GND: galvanically isolated from IN1, 2, 3, 4, RS422,
Laser on/off
Laser on/off: Input galvanically isolated from GND,
IN1…4, RS422
IN1, IN2, IN3, IN4, RS422: Inputs galvanically isolated
from GND and Laser on/off
12-pin screw connector, view on solder pin side (cable)
RS422, Synchronization
The RS422 connection (Pin 11 and 12 of the multifunction port) can be used with
either of the following configurations:
- RS422 (half-duplex): Load user modes, sensor control and transmit measurement
results (Modbus RTU or ASCII-Format).
- Synchronization/triggering: Synchronization respectively triggering using switching
signals.

Trigger, Encoder, Mode Switching
The switching inputs of the multifunction port can either be used for encoder-, trigger
input or for loading previously stored user modes.
The signal levels are switchable for all switching inputs between LLL (TTL logic) and
HLL (HTL logic):
- LLL level: Low 0 V … 0.8 V, high 2.4 V … 5 V, internal pull-up/down switchable
resistor 10 kΩ
- HLL level: Low 0 V … 3 V, high 11 V … 24 V (permitted to 30 V), internal pull-up/
down switchable resistor 10 kΩ
- Pulse duration: ≥ 5 µs
External Laser Switching
The sensors of the scanCONTROL 30xx/BL-SI series offer this function.
Use a serial key switch inside the control circuit to switch off the laser.
You will find details for the wiring in the instruction manual, Chap. 5.2.6.
With standard sensors, connecting the supply voltage activates the laser light source
in the sensor.
Ethernet Connection, Standard Connection to PC
RJ45 connector 8-pin. screw connector (sensor side)
Pin no. Color stranded hook-up
wire SCR2600/2900-x
Pin no. 10BaseT,
100BaseTX
1000BaseT
1 white (orange) 5 Tx+ D1+
2 orange 6 Tx- D1-
3 white (green) 8 Rx+ D2+
4 blue 1 D3+
5 white (blue) 2 D3-
6 green 7 Rx- D2-
7 white (brown) 3 D4+
8 brown 4 D4-
1View on pin
side male cable
connector
2
3
4
5
6
7
8
1
View on solder pin side
(cable) screw connector
(A-coded)
- The sensor supports an automatically, sensor-adapted IP address in the
link-local-net (169.254.x.x). No collision detection is implemented.
This is also the default setting.
- The sensor supports DHCP. This setting is activated by default and has priority
over the retrieval in the link-local-net.
- The sensor scanCONTROL 30xx/BL supports Power over Ethernet.

If the sensor is connected to a network adapter/switch that
is capable of POE and if you also use the power supply of
the multifunction port, these two power supplies have to be
galvanically isolated.
> Damage of the sensor and/or the Ethernet card!
- A fixed IP address can be assigned.
Use the program “SensorFinder“ delivered on the CD, to make the above-de-
scribed sensor settings.
LED Displays
LED Laser LED Data LED Error
Yellow: Laser on Green: Measure-
ment is active
Red, flashes: Error
code, see oper-
ating instructions
Chap. 11.
Green, flashes:
Data transmission
is active
The Data LED flashes green, long during active transmis-
sion and short for controller accesses.
7. System Requirements
scanCONTROL Configuration Tools
The following minimum system specification is necessary:
- Windows 7 (32 bit and 64 bit), Windows 8 or 8.1 (32 bit and 64 bit), Windows 10
(32 bit and 64 bit)
- 1-GHz or faster (32 bit and 64 bit) processor / 1 GB RAM
- Screen resolution: 1024 x 768
scanCONTROL 3D-View
The following minimum system specification is necessary:
- Windows 7 (64 bit), Windows 8 or 8.1 (64 bit), Windows 10 (64 bit)
- 1-GHz or faster (64 bit) processor
- 1 GB RAM
- Screen resolution: 1024 x 768
- Graphic Card/GPU with OpenGL 3.1 or higher

8. Quick Start: Commissioning, Software
Install the software.
Please insert the scanCONTROL
Software CD in the CD-ROM device.
Follow the dialog through the installa-
tion process.
A. Reading of installation help
B. Installation of software
C. Further information in the online
documentation
Mount the sensor according to the installation instructions.
Connect the sensor to the PC via the Ethernet cable.
Connect the sensor to display or monitoring units.
Connect the sensor to the power supply.
The connectors for Ethernet and the multifunction port are fitted with an screw con-
nector.
Loosen the screws before you remove the connector from the socket.
Connect the shield of the power supply cable to the PE protective earth conduc-
tor of the main power supply. Close unused connection plugs with the provided
protective caps. Switch on the power supply (24 VDC).
iOnly connect the sensor to the peripheral equipment, if it is disconnected from the power supply, i.e. only when the operating voltage is switched off. The sen-
sor needs a warm-up time of typically 20 minutes for high precision measure-
ments.
Please wait until the scanCONTROL device is recognized by the PC.
This may take a few seconds.
Now you can operate the scanCONTROL measurement system with the scanCON-
TROL software packages.
iOperating a scanCONTROL sensor via Ethernet may require a modification of the IP settings of the PC/sensor or a modification of the firewall settings, see
Chap. 5.2.5 of instruction manual.

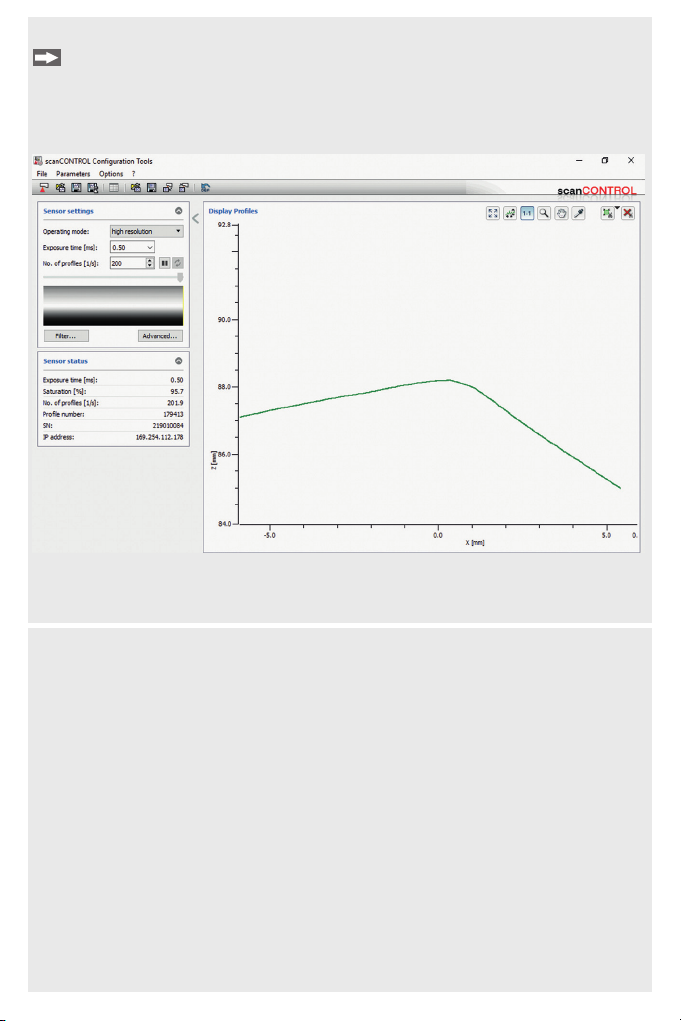

9. First Profile
Now start the scanCONTROL Configuration Tools software. Click on “Display
Profiles“ in the main window.
If the software shows the error message “No scanCONTROL found” in the status line,
please check the Ethernet connection between scanCONTROL and PC.
On the left side you can adjust the settings for your measurement task, the right side
shows the profile data and information about the measurement.
10. How to Access Profile Data
Profile data of scanCONTROL can be accessed via:
- GigEVision and GenICam for digital cameras via Ethernet interface
- SDK for fast application integration (C, C++, C# and others)
For details how to access profile data refer to the enclosed online manual.

11. Further Information
Please refer to
- the enclosed online manual
- the section “Status and Error Messages“ and “Notes“ in the scanCONTROL Con-
figuration Tools manual.
You will find details to the separate programs in the respective instruction manuals or
in the instruction manual of this sensor, Chap. 6.2. You will find the instruction manu-
als online or on the provided CD.
www.micro-epsilon.com
