W6-LI System Board Manual
2
Copyright Notices
Copyright 1996 Micronics Computers, Inc. The information con-
tained in the W6-LI PCI/ISA Dual Pentium Pro Processor system
board manual has been carefully checked and is believed to be
accurate. Micronics assumes no responsibility for any inaccuracies
that may be contained in this document. Micronics makes no commit-
ments to update or to keep the information in this manual at a current
level when changes are made to the product.
Micronics reserves the right to make improvements to this document
and/or product at any time and without notice. All Rights Reserved.
No part of this document may be photocopied, reproduced, trans-
lated, or reduced to any medium or machine form without prior,
written consent from Micronics.
Portions of the Manual
Portions of this manual were copied (with permission) from Phoenix
Technologies, Ltd., Adaptec, Inc. and Micro Computer Systems, Inc.
All rights reserved.
Trademarks
IBM is a registered trademark of International Business Machines.
Microsoft and Windows are registered trademarks of Microsoft Cor-
poration. Intel and PCI are registered trademarks of Intel Corpora-
tion. All other product names mentioned herein are used for identi-
fication purposes only and may be the trademarks of their respective
companies.

W6-LI System Board Manual 1
Table of Contents
Introduction 5
Features 6
Software Compatibility 7
Before You Begin 8
Chapter 1 - Quick Installation 9
Installing the W6-LI 9
Chapter 2 - Configuring the W6-LI 11
Static Electricity 11
Office Environment 11
W6-LI System Board 12
W6-LI Back Panel Connections 12
Jumper Settings 13
Chapter 3 - Installing the W6-LI 17
Introduction 17
System Memory Support 17
Installing the W6-LI 18
Tools Required 18
Equipment Required 18
System Memory 19
DIMMs Supported 19
Upgrading Rules 19
Mixing EDO and FPM Memory 20
Memory Configurations 21
Installing the DIMMs 25
Removing DIMMs 25
Installing a CPU 26
Installing a PCI Peripheral Card 27

W6-LI System Board Manual
Installing a ISA Peripheral Card 28
Installing a CD-ROM Drive 29
The W6-LI Sound Option 30
Connecting Sound Devices 30
Connecting the Telephony Option 31
Connecting the SCSI Option 32
Chapter 4 - The BIOS Setup Utility 33
Configuration 33
Initial Bootup 33
Setup 33
Running the Setup Procedure 35
Setting the Main Screen 35
Setting the Advanced Screen 40
Security Screen 43
Boot Screen 46
Exit Screen 47
Chapter 5 - Installing Device Drivers 49
About Device Drivers 49
Installing the Sound Drivers 49
Installing the SCSI Drivers 50
Appendix A - Technical Information 51
Specifications 51
Environmental Specifications 52
Temperature Range 52
Relative Humidity 52
Battery Disposal 53
Support and Information Services 54
Technical Support 54
2

W6-LI System Board Manual 3
Appendix B - Post Messages 57
Appendix C - Beep and POST Codes 59
Appendix D - Hard Disk Drive Types 63
Appendix E - Updating the System BIOS 65
Appendix F - Warranties and Notices 67
Limited Warranty 67
FCC Statement 69
Declaration of Conformity 70
Glossary 71
Index 75

W6-LI System Board Manual
4
List of Figures
Figure 1.1: Power-Up Screen 10
Figure 2.1: W6-LI System Board 12
Figure 2.2: W6-LI Back Panel Connections 12
Figure 3.1: Installing a 168-Pin DIMM 25
Figure 3.2: Installing a PCI Card 27
Figure 3.3: Installing an ISA Peripheral Card 28
Figure 3.4: Connecting External Sound Devices 30
Figure 4.1: Power-Up Screen 34
Figure 4.2: CMOS Main Screen 35
Figure 4.3: IDE Device Submenu 38
Figure 4.4: Advanced Screen 40
Figure 4.5: Security Setup Screen 43
Figure 4.6: Supervisor Password Submenu 44
Figure 4.7: Boot Screen 46
Figure 4.8: Exit Screen 47
List of Tables
Table 2.1: CPU Speed Selection 13
Table 2.2: CPU Voltage Selection 13
Table 2.3: ISA Bus Clock Selection 14
Table 2.4: System Power Supply Setting 14
Table 2.5: Clear CMOS Settings 14
Table 2.6: Onboard Sound Selection 14
Table 2.7: Pipelining Mode Settings 15
Table 2.8: Onboard SCSI Selection 15
Table 2.9: Case and Peripheral Connections 15
Table 3.1: Memory Configurations 21
Table A.1: Support and Information Services 54

W6-LI System Board Manual 5
Introduction
Thank you for choosing the W6-LI system board. The
W6-LI is the highest performing advanced dual processor
solution for the industry's most demanding workstation
and server applications.
Based on the Intel 440FX PCIset, the W6-LI supports the
most advanced processor architecture, the Pentium Pro
,
which provides the speed and performance necessary to
address the most intensive computational applications.
Integrated Ultra Wide SCSI (up to 40MBytes/sec trans-
fer rate), PCI and ISA slots, up to 512K of Level 2 cach
on each CPU and support of Universal Serial Bus (USB),
make this board powerful and feature rich.
The USB interface has a maximum bandwidth of 12Mbps
and can connect as many as 127 devices to a host system
USB supports both standard devices that operate at the
full 12Mbps rate and low-end devices that use only a
1.5Mbps subchannel.
Designed to fit into the most modern ATX form factor,
the flexible W6-LI also features support for Fast Page
Mode (FPM) and Extended Data Out (EDO) DRAM
advanced memory, and Error Checking and Correction
(ECC). The ATX form factor allows critical components
such as floppy drive connectors, chassis fan, CPU and
memory to be strategically located so that full length
cards can be used in all slots.
Micronics builds all products to exacting standards, using
the highest quality components available. We are proud
to provide this system board and believe you will be
pleased with your purchase.
Introduction

W6-LI System Board Manual
6
Features
The W6-LI includes the following features:
Dual ZIF socket 8's for Intel Pentium Pro Processor
Supports 150, 166, 180 and 200MHz processors
One integrated VRM and one VRM header to supply
CPU-specific voltages
Intel 440FX PCIset
Intel PIIX 3
SMC FDC37C93X Ultra I/O chip
Support for 60, 66MHz CPU Bus with configuration
options to support CPU operation from 150 to 200 MHz
16K Level 1 Write Back cache on the CPU chip
256K or 512K Level 2 Cache in CPU package
Four 32-bit PCI slots, one is a shared PCI/ISA slot
Two 16-bit ISA slots
Support for up to 512MB of onboard system memory,
Four 3.3V buffered 168-pin DIMM sockets
Supports FPM and EDO DRAM memory
ECC support via chipset when using parity DIMMs
Fast SCSI Bus Mastering controller, 50 pin SCSI
connector, 68 pin SCSI connector (Ultra Wide),
EZ-SCSI Drivers (optional)
Creative Labs VIBRA 16CL Sound (optional)
Primary and Secondary 40-pin IDE connectors
Mode 4 IDE
Floppy controller for two floppy drives (supports 2.88MB,
1.44MB, 1.2MB, 720K or 360K floppy drives)
auto detection of add-in floppy controllers
Two high speed NS16550 compatible serial ports
Introduction

W6-LI System Board Manual 7
Two Universal Serial Bus (USB) ports for desktop
peripheral expansion (optional)
PS/2 style keyboard and mouse connectors
Bi-directional parallel port (ECP and EPP compatible)
Field upgradeable Flash Phoenix BIOS
Software Compatibility
The W6-LI system board has been thoroughly tested for
compatibility with a variety of operating systems and envi-
ronments, including:
Windows 95 and Windows NT
OS/2 Warp
SCO UNIX and Open Desktop
Novell Netware
MS-DOS 5.0 and 6.2
PC-DOS
Introduction

W6-LI System Board Manual
8
Before You Begin
This manual will familiarize you with the features, installa-
tion and use of your W6-LI. There are several symbols and
conventions used throughout this manual to help draw your
attention to a feature or to focus on important information:
When you see the Magnifying Glass, it refers
to something you shouldtake a closer look at
before proceeding further.
When you see the Exclamation Mark, it gives
important information on avoiding damage.
Common Names
DIMM Dual Inline Memory Module
DRAM Dynamic Random Access Memory
ECC Error Checking and Correction
EDO Extended Data Out
FPM Fast Page Mode
IDE Integrated Drive Electronics
PCI Peripheral Component Interconnect
USB Universal Serial Bus
VRM Voltage Regulator Module
Introduction

W6-LI System Board Manual
Chapter 1: Quick Installation
9
STATIC!
Before
handlingthe
W6-LI,be
properly
groundedby
usinga
specialwrist
orankle
strap,or
toucha
safely
grounded
object.
1
Chapter Quick Installation
We know that many experienced people prefer to read as
little of the documentation as possible. If this sounds like
you, here’s the short form to get up and running quickly.
Installing the W6-LI
1. Make backup copies of your installation and configu-
ration diskettes.
2. Ground yourself to prevent damaging static dis-
charge, then remove the W6-LI from its packaging.
3. Configure and verify the system board’s jumper set-
tings (refer to Jumper Settings in Chapter 2).
4. Install the CPU and the system memory (refer to
Chapter 3).
5. Install the system board into the chassis and make all
necessary case connections.
6. Install any ISA and PCI add-on peripherals (refer to
Chapter 3).
7. Now you can connect any optional devices (refer to
Chapter 3).
8. Turn the computer on and press the <F2> key
when you see the screen in Figure 1.1.

W6-LI System Board Manual
10
9. Set the time and date. Adjust the BIOS settings to
match yourconfiguration. If installing an IDE drive,
select the IDE device you wishto configure. Press
ENTER with Autotype Fixed Disk selected and the
BIOS will automatically configure the drive for you
(refer to Chapter 4).
10. After you have configured the Main Setup menu,
make any desired setting configurations in the Ad-
vanced and Security menu. Whenfinished, go to the
exit screen, select “Save Changes and Exit” and you
are finished with the BIOS configuration (see Chap-
ter 4).
11. Install your IDE CD-ROM drive and its device
drivers (optional). Refer to Chapter 3.
12. Install the sound controller device drivers (optional).
Refer to Chapter 5.
13. Install the SCSI device drivers (optional). Refer to
Chapter 5.
Chapter 1: Quick Installation
Figure 1-1: Power-Up Screen

W6-LI System Board Manual
Configuring the W6-LI
Although the W6-LI system board is packaged in protec-
tive materials, it is important to use care while unpack-
ing and setting up.
Static Electricity
The W6-LI is shipped from the factory in an antistatic
bag. To reduce the possibility of damage, it is important
to neutralize any accumulated static charges on your
body before handling the board. The best way to do this
is to ground yourself using a special wrist or ankle strap.
If you do not have a strap, you should touch both of you
hands to a safely grounded object. After you have
grounded yourself, ground the W6-LI via the solder pads
surrounding one of its mounting holes.
Once the W6-LI is removed from its packaging, place it
on top of the antistatic bag. Carefully inspect the board
for damage which may have occurred during shipment.
Office Environment
Make sure the finished computer system is in an area
with good ventilation. The system should not be in direct
sunlight, near heaters, or exposed to moisture, dust or
dirt.
11
Chapter 2: Configuring the W6-LI
2
Chapter

W6-LI System Board Manual
W6-LI System Board
W6-LI Back Panel Connections
Chapter 2: Configuring the W6-LI
12

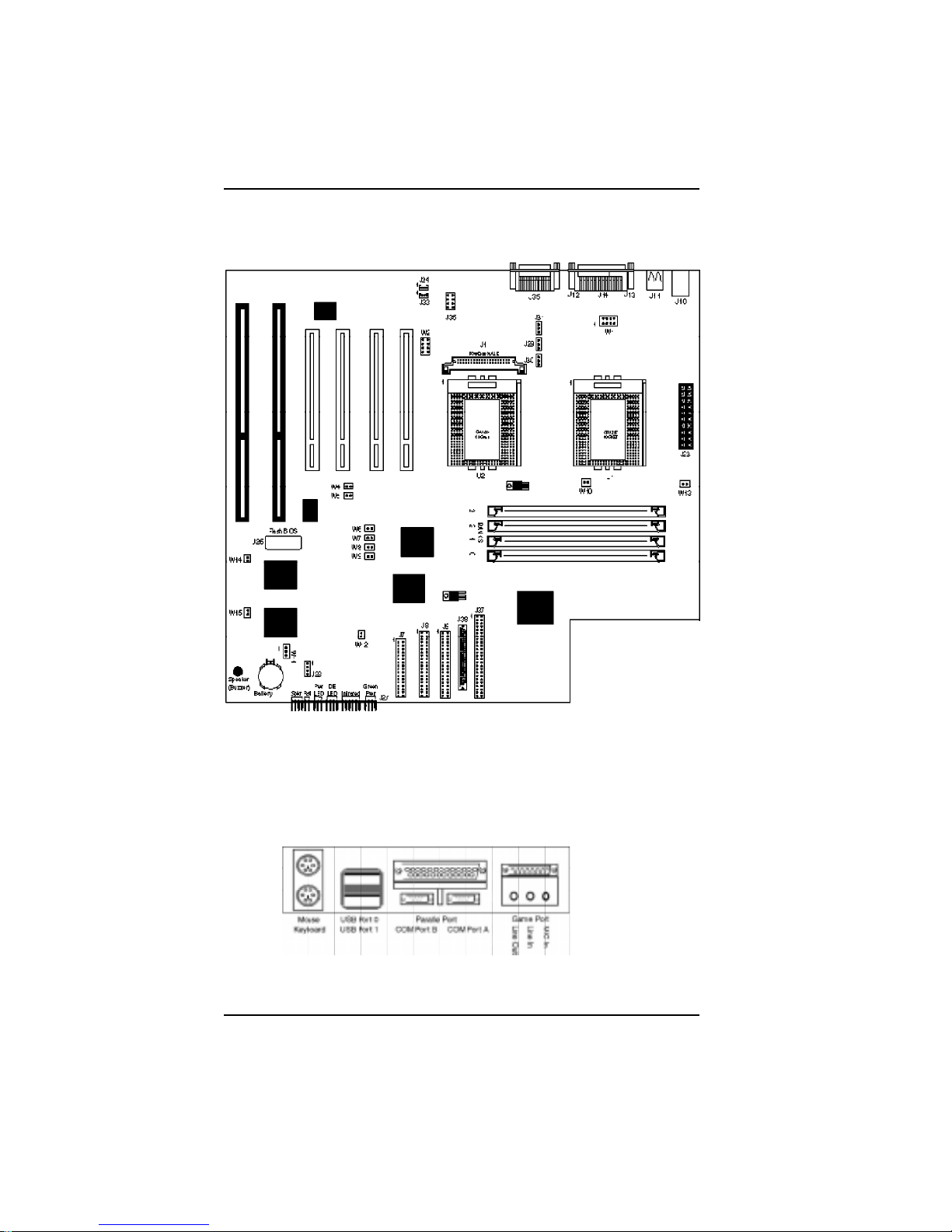

Figure2-2: W6-LIBack Panel
Figure2-1:W6-LI System Board

W6-LI System Board Manual 13
Chapter 2: Configuring the W6-LI
Jumper Settings
This chapter gives you the jumper settings used for the W6-LI syste
board.
Table 2-1: Jumper settings to select the CPU frequency. These setting
apply to both CPUs.NOTE: Before making your selection, verify that
jumper W12 is closed.
Table 2-2: Jumper settings for the CPU Voltage Identification (VID).
The power regulators on the system board (one for each CPU) are
capable of generating different voltages. VID is a hardware mechanism
used by each CPU to tell its power regulator what voltage to set.
NOTE: If the CPU supports VID, all jumpers on W1 and/or W2 must
removed ordamage may occur. W1 is for the Primary CPU and W2 is for
the secondary CPU.
CPU
Speed Bus Speed W4 W5 W6 W7 W8 W9
150 MHz 60 x 2.5 Close Open Close Close Close Open
166 MHz 66 x 2.5 Open Close Close Close Close Open
180 MHz 60 x 3.0 Close Open Close Close Open Close
200 MHz 66 x 3.0 Open Close Close Close Open Close
Table2-1: CPUSpeed Selections
CPU Voltage Jumpers
W1 and W2
1-2 3-4 5-6 7-8
VID-Enabled (default) Open Open Open Open
Non-VID 2.9V Close Open Open Close
Non-VID 3.1V Close Open Close Close
Non-VID 3.3V Close Close Open Close
Table2-2:CPUVoltageSelection

W6-LI System Board Manual
Chapter 2: Configuring the W6-LI
14
Table 2-3: Jumper settings for the ISA Bus clock frequency selection.
Table 2-4:Jumper settings to enable or disable the system power supply.
Table 2-5:Jumper settings to clear the CMOS settings. With your
computer's power off, close pins 2-3, wait ten seconds and place the
jumper back on pins 1-2. (The jumper must be placed back on pins
1-2 for the system to function properly.)
NOTE: This will reset all BIOS default settings. Any changes you have made
will be lost.
Table 2-6: Jumper settings to select the optional onboard sound.
Jumper Host Bus Speed ISA Bus Speed Setting
W12 60MHz (default)
66MHz (default) 7.50MHz 8.25MHz Close Close
Table2-3:ISA BUS ClockSettings
Jumper Function Settings
W13 Normal (default)
Reserved Open Close
Table2-4: SystemPowerSupplySetting
Table2-5: ClearCMOS Settings
Jumper Function Settings
W11 Normal (default)
Clear CMOS 1-2 2-3
Jumper Function Settings
W14 Enable Sound (default)
Disable Sound Close Open
Table2-6:OnboardSoundSelection

W6-LI System Board Manual 15
Chapter 2: Configuring the W6-LI
Table 2-7:Jumper settings for the Host Bus Agents pipelining mode.
Host Bus Agents are devices connected to the CPU local bus, which
include the CPUs and the 440FX chipset. Host Bus Agents can
generate, up to eight at a time, multiple overlapped (or pipelined) bus
transactions (or bus cycles).
Table 2-8: Jumper settings to select the optional onboard SCSI.
Table 2-9: Case and peripheral connections.
Jumper Function Settings
W10 Normal (default)
Reserved Open Close
Table2-7:PipeliningModeSettings
Jumper Function Settings
W15 Enable SCSI (default)
Disable SCSI Close Open
Table2-8:OnboardSCSISelection
Connector Function Notes
J1 Voltage Regulator Module For Secondary CPU
J3-J6 DRAM (168-pin DIMM
sockets) 3.3 Volt Only. Buffered DIMMs Supported
J7 Floppy Drive Connector Supports up to two floppy drives
J8 Primary IDE Port Connector Supports up to two IDE devices
J9 Secondary IDE Port Connector Supports up to two IDE devices
J10 PS/2 Keyboard Connector
PS/2 Mouse Connector Lower Level Upper Level
J11 USB Connector (optional) Lower Level: USB Port 1
Upper Level: USB Port 0
J12 Serial Port A Connector
J13 Serial Port B Connector
J14 Parallel Port Connector Upper Level
J15-J18 PCI Bus Expansion Slots
Table 2-9A: Case & Peripheral Connections

W6-LI System Board Manual
Chapter 2: Configuring the W6-LI
16
Connector Function Notes
J19-J20 ISA Bus Expansion Slots
J23 Power Supply Connector ATX Standard
J27 Front I/O Connector
"System Power On/Off 1 - Power; 2 - Ground
"Reset Switch 23 - Reset; 22 - Ground
" PC Speaker
Note: Jumper pins 26 and 27
to use the onboard speaker
27 - Speaker; 24 - +5V DC
" Power-On LED 20 - Positive; 18 - Ground
"IDE LED
Note: IDE and SCSI functions
share the same LED
13 or 16 - Positive; 15 - Negative
"Infrared 6 - +5V DC; 8 - Receive Data;
9 - Ground; 10 - Transmit Data
"Speaker (Buzzer)
Note: Jumper pins 26 and 27
to use the onboard speaker
Enabled (default)
J28 Infrared Port Connector (Note:
Do not connect IR devices to
J27 & J28 simultaneously)
1 - Receive Data; 2 - Ground;
3 - Transmit Data; 4 - +5V Power
J29, J30 CPU Fan
(J29 - Primary)
(J30 - Secondary)
1 - 12+V Power; 2 - Ground;
3 - Status (Running or Stopped)
J31 Chassis Fan 1 - 12+V Power; 2 - Ground;
3 - Status (Running or Stopped)
J33 CD-ROM Audio Input 1 - Ground; 2 - CD-In Left Channel;
3 - Ground; 4 - CD-In Right Channel
J34 Modem/Telephony 1 - No Connect; 2 - MIC Out;
3 - Ground; 4 - Speaker Input
J35 Game Port/MIDI
MIC In
Line In
Line Out
Upper Level
Lower Level
Lower Level
Lower Level
J36 Wavetable Upgrade 1 - Right Channel Input; 2 - Ground;
3 - Left Channel Input; 4 - Ground;
5 - No Connect; 6 - Ground;
7- Ground; 8 - Ground
J37 SCSI 50-pin Cable Connector Fast SCSI (optional)
J38 SCSI 68-pin Cable Connector Ultra Wide SCSI (optional)
U1 Primary P6 CPU Socket 8 (387-pin)
U2 Secondary P6 CPU Socket 8 (387-pin)
U25 System BIOS
Table 2-9B: Case & Peripheral Connections (cont.)

W6-LI System Board Manual
Chapter 3: Installing the W6-LI
17
3
Chapter Installing the W6-LI
Introduction
This chapter explains how to install the W6-LI system
board, memory, CPU and peripherals.
WARNING: Before installing or removing any peripherals
or components, make sure you have a clear work space and
that you adhere to all anti-static precautions described in
Chapter 1. Micronics recommends only trained technicians
install and configure the system board.
Damage which occurs to the board while adding or removing
peripherals or components may void the warranty. If prob-
lems arise while installing peripherals, contact the computer
dealer where you purchased the peripheral or Micronics’
Technical Support Department.
System Memory Support
The flexibility of the W6-LI is augmented by its support
for Error Checking and Correction (ECC), Extended
Data Out (EDO) and Fast Page Mode (FPM) DRAM
memory. The W6-LI supports Error Checking and Cor-
rection (with 72-bit DIMMs only)via the chipset.
EDO memory is designed to keep data available to the
processor for an extended period of time. The EDO
memory support extends the performance of conven-
tional DRAM memory. The result is an improvement in
memory-access performance on the W6-LI system board.

W6-LI System Board Manual
Chapter 3: Installing the W6-LI
18
Installing the W6-LI
Installation of the W6-LI system board depends on the
type of case you use. The W6-LI is designed for the
standard ATX form factor and must be installed in an
ATX chassis.
NOTE: If you are unfamiliar with installing a system board,
Micronics highly recommends that you read the computer
user’s manual or contact your dealer’s technical support
department.
Tools Required
Micronics recommends using the following tools to in-
stall the W6-LI:
Small Phillips screwdriver
Tweezers or a pair of needle-nose pliers
Tray (to hold loose screws)
Equipment Required
Micronics recommends using the following equipment
with the W6-LI for a typical configuration:
ATX chassis with standard hardware.
A high-quality ATX power supply capable of provid-
ing continuous power within a 3 volt range. A power
filter may be used with a noisy AC power source.
PS/2 mouse and compatible keyboard.
Eight ohm speaker.
Standard ribbon cables for internal connections.
Standard power cord (grounded).
Heat sink with cooling fan for each CPU (required).
