Micronics Helios Dual Pentium II User manual

Helios
Dual Pentium II
System Board Manual
DocumentNumber:06-00329-01,Rev.2A
April1998
45365NorthportLoopWest,Fremont,CA.94538-6417

Helios System Board Manual
2
Copyright Notices
Copyright 1998 Micronics Computers, Inc. The information con-
tained in the Helios PCI/ISA/AGP Dual Pentium II system board
manual has been carefully checked and is believed to be accurate.
Micronics assumes no responsibility for any inaccuracies that may be
contained in this document. Micronics makes no commitments to
update or to keep the information in this manual at a current level
when changes are made to the product.
Micronics reserves the right to make improvements to this document
and/or product at any time and without notice. All Rights Reserved.
No part of this document may be photocopied, reproduced, trans-
lated, or reduced to any medium or machine form without prior,
written consent from Micronics.
Portions of the Manual
Portions of this manual were copied (with permission) from Phoenix
Technologies, Ltd. All rights reserved.
Trademarks
IBM is a registered trademark of International Business Machines.
Microsoft and Windows are registered trademarks of Microsoft Cor-
poration. Intel, PCI and AGP are registered trademarks of Intel
Corporation. All other product names mentioned herein are used for
identification purposes only and may be the trademarks of their
respective companies.

Helios System Board Manual 1
Table of Contents
Introduction 5
Features 6
SoftwareCompatibility 7
BeforeYouBegin 8
Chapter 1 - Quick Installation 9
InstallingtheHelios 9
Chapter 2 - Configuring the Helios 11
Static Electricity 11
EnvironmentConsiderations 11
HeliosSystemBoard 12
HeliosBack PanelConnections 12
Jumper and Connector Settings 13
Chapter 3 - Installing the Helios 19
Introduction 19
SystemMemorySupport 19
InstallingtheHelios 20
ToolsRequired 20
Equipment Required 20
SystemMemory 21
AddingMemory 21
MemoryConfigurations 22
InstallingDIMMs 25
RemovingDIMMs 25
CPUInstallation 26
InstallingtheCPURetentionMechanism 26
InstallingaCPU 28
CPUInstallationOverview 30
CPUInstallation(Boxversion) 31

Helios System Board Manual
Installinga PCIPeripheral Card 32
InstallinganISA Peripheral Card 33
InstallinganAGPPeripheralCard 34
Installinga CD-ROM Drive 35
HeliosSoundOption 36
Chapter 4 - The BIOS Setup Utility 39
Configuration 39
InitialBootup 39
Setup 39
Running the Setup Procedure 40
Info Screen 41
Setting the CPU Speed 41
Setting the Main Screen 43
Setting the Advanced Screen 47
Setting the Chipset Screen 50
Setting the Features Screen 51
DMIEventLoggingSubmenu 53
PowerManagementSubmenu 54
SecuritySubmenu 56
Exit Screen 58
Chapter 5 - Installing Device Drivers 59
About Device Drivers 59
InstallingtheSoundDrivers 59
Chapter 6 - Special Features 61
Intel’s440BXAGPset 61
Accelerated Graphics Port (AGP) 61
SDRAM(SynchronousDRAM) 62
LM79(HardwareManagement) 62
UltraDMA/33 IDE 63
UniversalSerialBus(USB) 63
2

Helios System Board Manual
Appendix A - Technical Information 65
Specifications 65
EnvironmentalSpecifications 67
TemperatureRange 67
RelativeHumidity 67
BatteryDisposal 68
SupportandInformationServices 69
TechnicalSupport 69
Appendix B - Post Messages 71
Appendix C - Beep and POST Codes 73
Appendix D - Updating the System BIOS 77
Appendix E - Warranties and Notices 79
LimitedWarranty 79
Non-WarrantyService 80
FCC Statement 81
Glossary 82
Index 86
3

Helios System Board Manual
4
List of Figures
Figure 1.1: Power-Up Screen 10

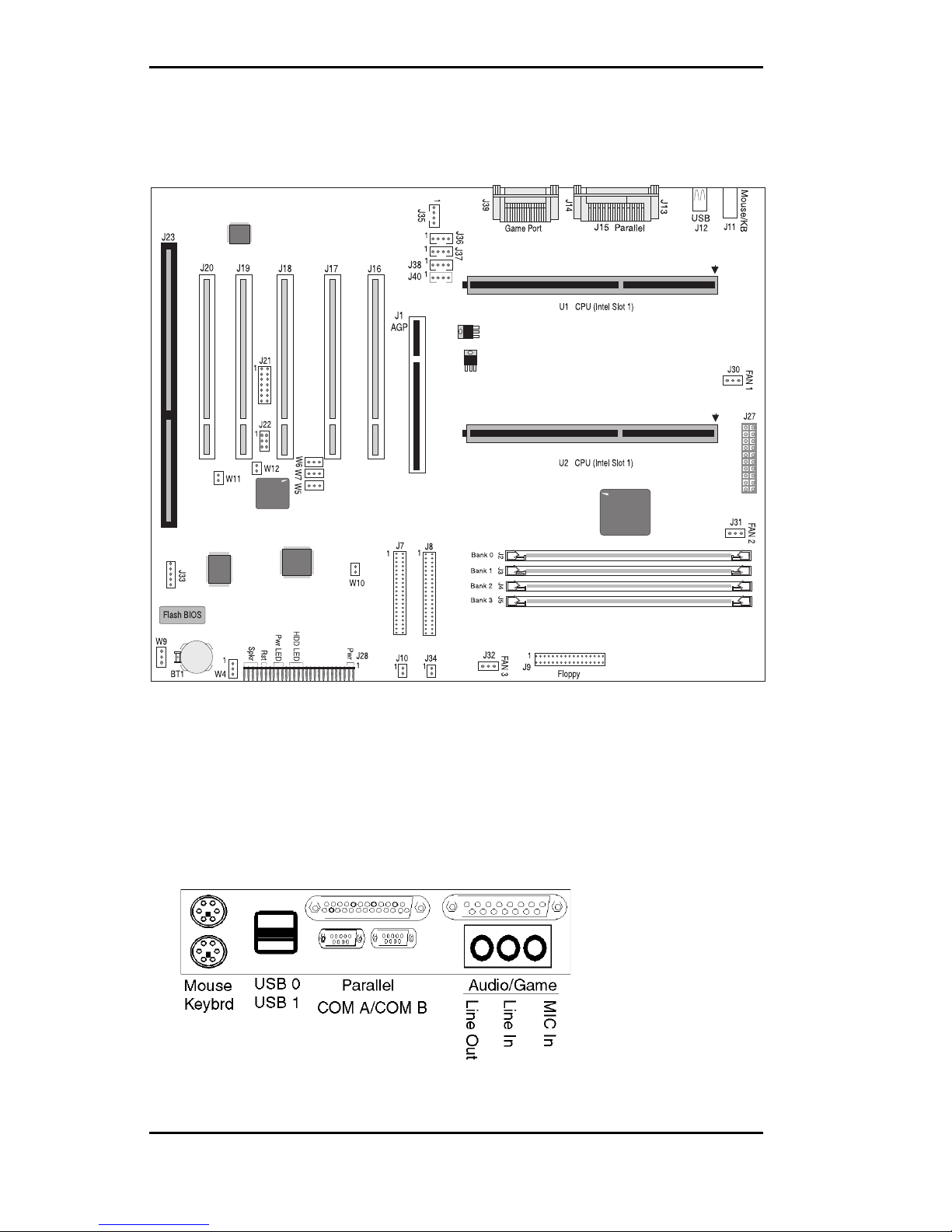

Figure 2.1: Helios System Board 12
Figure 2.2: Helios Back Panel Connections 12
Figure 3.1: Installing a 168-Pin DIMM 25
Figure 3.2: Installing a CPU 28
Figure 3.3: Installing a CPU (Boxed version) 31
Figure 3.4: Installing a PCI Card 32
Figure 3.5: Installing an ISA Peripheral Card 33
Figure 3.6: Installing an AGP Peripheral Card 34
Figure 3.7: Connecting External Sound Devices 36
Figure 4.1: Power-Up Screen 40
Figure 4.2: Info Screen 41
Figure 4.3: CMOS Main Screen 43
Figure 4.4: IDE Device Submenu 45
Figure 4.5: Advanced Screen 47
Figure 4.6: Chipset Screen 50
Figure 4.7: Features Screen 51
Figure 4.8: DMI Event Logging Submenu 53
Figure 4.9: Power Management Submenu 54
Figure 4.10: Security Submenu 56
Figure 4.11: Exit Screen 58
List of Tables
Table 2.1: BIOS Configuration Setting 13
Table 2.2: Clear CMOS Settings 13
Table 2.3: Soft Power On/Off Setting 14
Table 2.4: Onboard Sound Selection 14
Table 2.5: Secondary USB Port Selection 14
Table 2.6: Flash BIOS Setting 14
Table 2.7: Case and Peripheral Connections 15
Table 3.1: Memory Configurations 22
Table A.1: Support and Information Services 70

Helios System Board Manual
Introduction
Thank you for choosing the Helios system board. The
Helios is an advanced dual processor solution for high-
performanceworkstationandapplicationservers.
Heliosisspecifically designed tocreatepowerful,depend-
able servers and workstations. Based on the highly
acclaimed Intel 440BX AGPset, Helios supports the next
generationofthePentiumII,whichoffersflexibilityand
the highest level of performance. It features support for
100MHz Front Side Bus speeds and accepts PCI, ISA and
AGPexpansioncardstoembraceawidevarietyofnetwork
enhancements.
Rich with features, Helios provides Ultra DMA/33 IDE
hard drive protocol (up to 33MBytes/sec transfer rate),
PC100 SDRAM memory support, optional LM79 micro-
processor system hardware management support and
optionalESSMaestro-2™PCIaudio. Maestro-2 isahigh-
performance 500-MIPS equivalent PCI audio processor,
usingthehigh-bandwidth PCIbusand an AC’97codecto
deliver advanced PC audio features. Helios is the ideal
choice for excellent performance and sustained network
reliability.
Micronics builds all products to exacting standards, using
thehighestqualitycomponentsavailable.Weareproudto
provide this system board and believe you will be pleased
withyourpurchase.
5
Introduction

Helios System Board Manual
6
Features
The Helios includes the following features:
▲Dual Intel Slot 1for:
IntelPentiumIIprocessors-233/266/300/333MHz(66MHzFSB)
IntelPentium IIprocessors- 350/400MHz(100MHzFSB)
▲IntegratedVoltageRegulatorModules
▲JumperlessCPUconfigurationviaBIOS
▲Intel440BXAGPset
IntelPIIX4e
NationalPC87309EnhancedSuperI/Ochip
▲One16-bitISAslot
Five32-bitPCIslots
(One is a shared PCI/ISA slot)
OneAGP slot
▲Bus Speed - 66 and 100MHz
▲Four3.3Vunbuffered64/72-bit168-pinDIMMsockets
Maximummemory-1GBforSDRAM(PC100supported)
ECC support via chipset
▲ESSMaestro-2™PCIAudio(optional)
▲LM79MicroprocessorSystemHardwareManagement(optional)
LM75 CPU temperature sensors
▲UltraDMA/33IDEprotocolsupport
▲ATX form factor
Introduction

Helios System Board Manual 7
Software Compatibility
TheHeliossystemboardhasbeenthoroughlytestedforcompatibil-
itywithavarietyofoperatingsystemsandenvironments,including:
▲Microsoft -
DOS6.2x
Windows95
WindowsNT3.5x
WindowsNT4.0
▲IBM -
OS/2Warp3.0
OS/2Warp4.0
▲SCO -
UNIXWare2.1.1
OpenServer5.02
UNIX3.2.4.2
▲Novell-
NetWare3.12
NetWare4.11
Introduction

Helios System Board Manual
8
Before You Begin
Thismanualwillfamiliarizeyouwiththefeatures,installation
anduseofyourHelios.Thereareseveralsymbolsandconven-
tionsusedthroughoutthismanualtohelpdrawyourattention
to a feature or to focus on important information:
When you see the Magnifying Glass, it refers
to something you should take a closer look at
before proceeding further.
When you see the Exclamation Mark, it gives
important information on avoiding damage.
Common Names
AGP Accelerated Graphics Port
DIMM DualInlineMemoryModule
DMI Desktop Management Interface
DRAM Dynamic Random Access Memory
ECC Error Checking and Correction
FSB Front Side Bus
IDE Integrated Drive Electronics
PCI PeripheralComponentInterconnect
SDRAM SynchronousDRAM
USB Universal Serial Bus
VRM Voltage Regulator Module
Introduction

Helios System Board Manual
Chapter 1: Quick Installation
9
1
Chapter
Quick Installation
We know that many experienced people prefer to read as
little of the documentation as possible. If this sounds like
you, here’s the short form to get up and running quickly.
Installing the Helios
1. Make backup copies of your installation and configu-
ration diskettes.
2. Ground yourself to prevent damaging static dis-
charge by using an anti-static wrist or ankle strap, or
touch a safely grounded metal object.
3. Remove the Helios from its packaging.
4. Configurethesystemboard’sjumpersettings,ifneces-
sary (refer to Jumper Settings in Chapter 2).
5. Install the CPU and the system memory. Be sure to
attach the Retention Mechanism as described in
Chapter 3.
6. Install the system board in the chassis and make all
necessary case connections.
7. Install any ISA, PCI and/or AGP add-on peripherals
(refer to Chapter 2 for the location of the slots).
8. Connect any optional devices.
9. Configurethe CPU speed. The CPU speed is selected
through the BIOS. First you must close jumper W12
(refer to Jumper and Connector Settings in Chapter
2).
10. Turnon your system. When the system is powered up
itwillgo intoSetupautomatically.
11. The first selection on the Main screen will be CPU
Speed. Select the correct speed.
STATIC!
Before
handlingthe
Helios,be
properly
grounded
by using a
special wrist
or ankle
strap, or
touch a
safely
grounded
object.

Helios System Board Manual
10
Figure 1.1: Power-Up Screen
Chapter 1: Quick Installation
12. From the Main Menu screen, set the time and date.
AdjusttheBIOSsettingstomatchyourconfiguration.If
installinganIDEdrive,selecttheIDEdeviceyouwishto
configure. Press ENTER with Type selected and the
BIOS will automatically configure the drive for you
(refer to Chapter 4).
13. Make any desired setting configurations in the other
menus (refer to Chapter 4). When finished, press F10
(Save and Exit) to save your settings.
14. You will see a message indicating that the CPU speed
setting has been saved.
15. PowerdownyoursystemandremovethejumperoffW12
(savethejumperbyplacingitbackononepinonly).The
CPU speed selection will no longer appear in Setup.
16. Afteryou have installedyouroperating system,youcan
install the sound device drivers (optional). Refer to
Chapter 5.

Helios System Board Manual
Configuring the Helios
AlthoughtheHeliossystemboardispackagedinmaterials
that are designed to protect it from physical damage and
staticelectricity,it isimportanttousecarewhileunpack-
ing the board and setting it up.
Static Electricity
The Helios is shipped from the factory in an anti-static
bag. To reduce the possibility of damage from static
discharge, it is important to neutralize any static charges
your body may have accumulated before handling the
board.
The best way to do this is to ground yourself using a
special anti-static wrist or ankle strap. If you do not have
an anti-static strap available, touch both of your hands
to a safely grounded object, such as the power supply or
chassis of a computer that is connected to the power
socket. After you have grounded yourself, ground the
Helios board via one of the solder pads that surround its
mounting holes. When you remove the Helios from its
packaging, place it on top of the anti-static bag, and
carefully inspect the board for damage which might have
occurred during shipment.
Environment Considerations
Make sure the finished computer system is in an area
withgood ventilation. Thesystemshould notbein direct
sunlight, near heaters, or exposed to moisture, dust, or
dirt.
11
Chapter 2: Configuring the Helios
2
Chapter

Helios System Board Manual
Helios System Board
Back Panel Connections
Chapter 2: Configuring the Helios
12
Figure2-1:Helios System Board Diagram
Figure2-2:Helios BackPanel

Helios System Board Manual
Chapter 2: Configuring the Helios
13
Jumper Settings
ThissectionprovidesjumpersettingsfortheHeliossystemboardthatmay
or may not need to be changed. Other configurations can be changed
throughtheBIOSSetup,suchastheCPUspeed.NOTE:Fordetailsonhow
to configure the CPU speed, see “Setting the CPU Speed” in Chapter 4.
Table 2-1 lists the settings for the BIOS Configuration Setup. To select
the CPU speed in the BIOS, you must close jumper W12. (Refer to
Chapter 4 for details on setting the CPU speed).
Table 2-2 lists the settings to clear the CMOS. With your computer's
power off, close pins 2-3, wait ten seconds and place the jumper back on
pins 1-2. (The jumper must be placed back on pins 1-2 for the system to
function properly.) NOTE: This will reset all BIOS default settings. Any
changes you have made will be lost.
Table 2-2: Clear CMOS Settings
repmuJnoitcnuFsgnitteS
9W)tluafed(lamroN SOMCraelC 2-1 3-2
repmuJnoitcnuFsgnitteS
21W)tluafed(lamroN otputeSSOIBekovnI deepsUPCegnahC nepO esolC
Table 2-1:BIOS Configuration Setting

Helios System Board Manual
Chapter 2: Configuring the Helios
Table 2-3 lists the setting for the system power-on setting. When set for
Normaloperationthepowersupplyis turned On/Off usingamomentary
push-buttonswitchconnected to J28.
Table2-4liststhesettingstoenableordisabletheoptionalonboardsound.
Table 2-5 lists the settings to route the Secondary USB port to the AGP
connector(J1) or tothe USB connector(J12). NOTE: JumpersW5, W6
and W7 must be set to the same position.
Table2-6liststhesettingtoreprogramtheBIOS.To flash the BIOS, you
must place a jumper on W4 in position 1-2 as shown in the table. (Refer
to Appendix E for details on reprogramming the system BIOS).
14
repmuJnoitcnuFsgnitteS
01W)tluafed(lamroN devreseR nepO esolC
Table 2-3:Soft Power On/Off Setting
repmuJnoitcnuFsgnitteS
11WaivdnuoSelbasiD/elbanE )tluafed(SOIB erawdraHaivdnuoSelbasiD esolC
nepO
Table2-4:Onboard Sound Selection
repmuJnoitcnuFsgnitteS
7W-5W1Jotdetuor)1troP(BSUyradnoceS otdetuor)1troP(BSUyradnoceS )tluafed(21J 2-1 3-2
Table 2-5:Secondary USB Port Setting
repmuJnoitcnuFsgnitteS
4W)tluafed(SOIBhsalF devreseR 2-1 3-2
Table 2-6:Flash BIOS Setting

Helios System Board Manual
Chapter 2: Configuring the Helios
15
Table 2-7 lists the connectors and their functions.
Table 2-7:Connector Settings and Functions
rotcennoCnoitcnuFsetoN
1JtolSnoisnapxEsuBPGArotcennocnip-2x26
5J-2JMMIDnip-861(MARD )stekcoS MARDSdnaODEdereffubnu,tlov3.3 )s'UPCBSFzHM001rof001CP(sMMID
8J,7JEDIyradnoceSdnayramirP srotcennoCtroP secivedEDIowtotputroppushtoB
9JrotcennoCevirDyppolFsevirdyppolfowtotpustroppuS
01JrellortnoCevirDnI-ddA rotcennoCDELytivitcA tcennoCoN-2;tupnIDELytivitcA-1
11JrotcennoCdraobyeK2/SP rotcennoCesuoM2/SP leveLrewoL leveLreppU
21JrotcennoCBSUelbaliava(1troPBSU:leveLrewoL )3-2ottesera7W&6W,5Wnehw 0troPBSU:leveLreppU
41J,31JstroPlaireSBMOC&AMOC
51JrotcennoCtroPlellaraPleveLreppU
02J-61JstolSnoisnapxEsuBICP02JrofetoneeS*
12JslangiSdnabediSICP esutahtsdracrof(rotcennoC laireSICP,AMDICP/CP .)s'QRIASIro/dnasQRI tcennoctonoD:ETON 22Jdna12Jotselbac .ylsuoenatlumis ;tcennoCoN-2;tnarGAMDICP/CP-1 ;tseuqeRAMDICP/CP-4;dnG-3 ASI-7;s'QRIlaireSICP-6;dnG-5 ASI-01;7QRIASI-9;dnG-8;5QRI -31;01QRIASI-21;dnG-11;9QRI 11QRIASI-41;dnG
22JslangiSdnabediSICP sdracrof(letnI-rotcennoC ro/dnaAMDICP/CPesutaht oD:ETON.)s'QRIlairesICP 12Jotselbactcennocton .ylsuoenatlumis22Jdna oN-3;dnG-2;tnarGAMDICP/CP-1 ;tseuqeRAMDICP/CP-4;tcennoC s'QRIlaireSICP-6;dnG-5
32JstolSnoisnapxEsuBASI
72JylppuSrewoPXTA

Helios System Board Manual
*NOTE:Ifyoursystemboardcomeswithonboardaudio,PCIslotlocation
J20 becomes a non-bus-mastering slot, regardless of whether the onboard
audio is enabled or disabled. Bus-mastering PCI cards (i.e., most LAN
cards and SCSI host adapters) will not work when inserted into slot J20.
They can, however, be used in slots J16-J19. Non-bus-mastering devices,
like most graphics cards, can be plugged into slots J16-J20.
Ifyoursystemboardcomeswithoutonboardaudio,allPCIslots(including
J20)willsupportbus-masteringandnon-bus-masteringdevices.
rotcennoCnoitcnuFsetoN
82JrotcennoCO/IlenaPtnorF
"ffO/nOrewoPmetsySdnG-2;nOrewoP-1
"DELytivitcAevirD evirDnI-ddAdnaEDI:etoN emasehterahsrellortnoC DEL evitageN-51;evitisoP-61ro31
"DELnO-rewoPevitisoP-02;dnG-81
"hctiwSteseRmetsySteseR-32;dnG-22
"rekaepSCPlanretxE CPdraobnoehtesuoT:etoN dna62sniprepmuj,rekaepS 82Jno72 ;)nruterlangis(CDV5+-42 ;langiSrekaepSCPdraobnO-62 langiSrekaepSCPlanretxE-72
03JgnilooC)1U(UPCyramirP rotcennoCnaF ;rewoPV21+-2;dnuorG-1 rotinoMdeepSnaF-3
Table 2-7a:Connector Settings and Functions
Chapter 2: Configuring the Helios
16

Helios System Board Manual
Table 2-7b:Connector Settings and Functions
Chapter 2: Configuring the Helios
17
rotcennoCnoitcnuFsetoN
13J)2U(UPCyradnoceS rotcennoCnaFgnilooC ;rewoPV21+-2;dnuorG-1 rotinoMdeepSnaF-3
23JnaFgnilooCsissahC;rewoPV21+-2;dnuorG-1 rotinoMdeepSnaF-3
33JI
2
rotcennoCsuBCI-1
2
;dnuorG-2;ataDC
I-3
2
;rewoPV5+-4;kcolCC trelAerutarepmeT-5
43JrosneSnoisurtnIsissahC rotcennoC tupnIreggirT-2;rewoPyrettaB-1
53JoiduAMOR-DC )ecafretnIIPATA( ;dnuorG-2;lennahCtfeLnI-DC-1 lennahCthgiRnI-DC-4;dnuorG-3
63JtupnIoiduAoediV )ecafretnIIPATA( ;lennahCtfeLnIoiduAoediV-1 oiduAoediV-4;dnuorG-3;dnuorG-2 lennahCthgiRnI
73JtupnIyraillixuAoiduA )ecafretnIIPATA( ;lennahCtfeLnIyrallixuAoiduA-1 oiduA-4;dnuorG-3;dnuorG-2 lennahCthgiRnIyrallixuA
83JIPATA(ynohpeleT/medoM )ecafretnI ;dnuorG-2;tupnIrekaepS-1 tuptuOCIMdeifilpmA-4;dnuorG-3
93JIDIM/troPemaG tuOeniL,nIeniL,nICIM leveLreppU leveLrewoL
04J)IPATA(nIeniLoiduA tcennoctonoD:etoN 04J&93Jotselbac ylsuoenatlumis)nIeniL( ;dnuorG-2;lennahCtfeLnI-eniL-1 lennahCthgiRnI-eniL-4;dnuorG-3
1UUPCIImuitnePyramirP
2UUPCIImuitnePdracrotanimreT1-tolSroyradnoceS

Helios System Board Manual
Chapter 2: Configuring the Helios
18
