1 Front Material
1.1 Model Numbers Definition:
PD-96xxG/ACDC/M: 4 Pairs AC and DC Input family,
where:
oxx: Represents number of ports (6 or 12)
oAC: Midspan has AC input
oDC: Midspan has DC input, current sharing, and power backup
features between two Midspans
oM: Midspan includes PowerView Pro (refer to Section 7)
PD-RPS-AAAA: Redundant Power Supply,
where AAAA represents available power in Watts.
1.2 Electrical Compatibility Approvals
Microsemi 96xxG series complies with the following standards:
FCC Part 15; class UTP cabling
EN 55022 (CISPR 22); class B with UTP cabling
EN 55024 (CISPR 24)
Canadian ICES-003, class B
1.3 Safety Standard Approvals
Microsemi meets the following safety standards:
UL/cUL per CSA/UL 60950-1
GS mark per IEC60950-1
1.4 CE Marking
CE marking on this product indicates this product complies with
89/336/EEC (EMC Directive) and 73/23/EEC (Low Voltage Directive).

© Microsemi Corp. Microsemi Page 6
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
2 Safety Information
Read the following safety information before using your Power over
Ethernet Midspan unit.
2.1 General Guidelines
Read the following safety information before carrying out any installation,
removal, or maintenance procedure on the Power over Ethernet Midspan.
Warnings contain directions to be followed for the safety of personal and
product. Follow all directions carefully.
2.2 Warnings
Read installation instructions in Section 4 before
connecting Power over Ethernet Midspan to its power
source.
Read instructions in Section 4 before connecting
Midspan-to-Midspan power backup.
Midspan must use a grounded power cord, as defined in
Section 2.3.
This product relies on the building installation for short-
circuit (over-current) protection. Use only a fuse or circuit
breaker not higher than 15A for 120VAC (U.S.), or 10A
for 230VAC (international).
Do not work on the system, connect, or disconnect
cables during periods of lightning.
A voltage mismatch can cause equipment damage and
can pose a fire hazard. If voltage indicated on the label is
different from power outlet voltage, do not connect Power
over Ethernet Midspan to this outlet.
For shelf-mounted equipment, verify surface is stable and
strong enough to support equipment. Do not stack more
than four Power over Ethernet Midspan units.
When disposing this product, follow all local laws and
regulations.

© Microsemi Corp. Microsemi Page 7
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
"DATA" and "DATA & POWER" ports of the Power over
Ethernet Midspan are shielded RJ-45 data sockets. They
cannot be used as Plain Old Telephone Service (POTS)
sockets. Only connect RJ-45 data connectors to these
sockets.
Associated Ethernet wiring shall be limited to the inside
of the building.
2.3 Power Cord
In case power cord is replaced, replacement must meet local
requirements.
To ensure a reliable connection to an AC mains supply,
equipment provides an appliance IEC60320 inlet used for
connecting a detachable power supply cord.
Power socket outlet must be located near Midspan and
easily accessible. The only way of removing power from
unit is by disconnecting the power cord from the outlet
This unit operates under SELV (Safety Extra Low
Voltage) conditions, according to EN60950-1/IEC60950-
1. Conditions are maintained only if the equipment to
which unit is connected also operates under SELV
conditions.
2.4 Power Cord Specifications by Country
U.S.A. and
Canada
Cord must be UL-approved or CSA certified.
Minimum specification for flexible cord is:
oNo. 18 AWG
oType SV or SJ
oThree-conductor
Cord set must have a rated current capacity
of at least 13A for PD-9612G/ACDC/M, PD-
9606G/ACDC/M;
Attachment plug must be an earth-grounding
type with a NEMA 5-15P (15A, 125V) or
NEMA 6-15P (15A, 250V) configuration.

© Microsemi Corp. Microsemi Page 8
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
Denmark
Supply plug must comply with section 107-2-D1, standard
DK2-1a or DK2-5a.
Switzerland
Supply plug must comply with SEV/ASE 1011.
France and
Peru
IT supplies cannot power this unit. If your supplies are an
IT type, unit must be powered by 230V (2P+T) via an
isolation transformer with a 1:1 ratio, and with secondary
connection point labeled Neutral and connected directly to
ground.
U.K
Power over Ethernet Midspan is covered by General
Approval NS/G/12345/J/100003, for indirect connection to
a public telecommunications system.

© Microsemi Corp. Microsemi Page 9
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
3 About the Power over Ethernet
Midspan

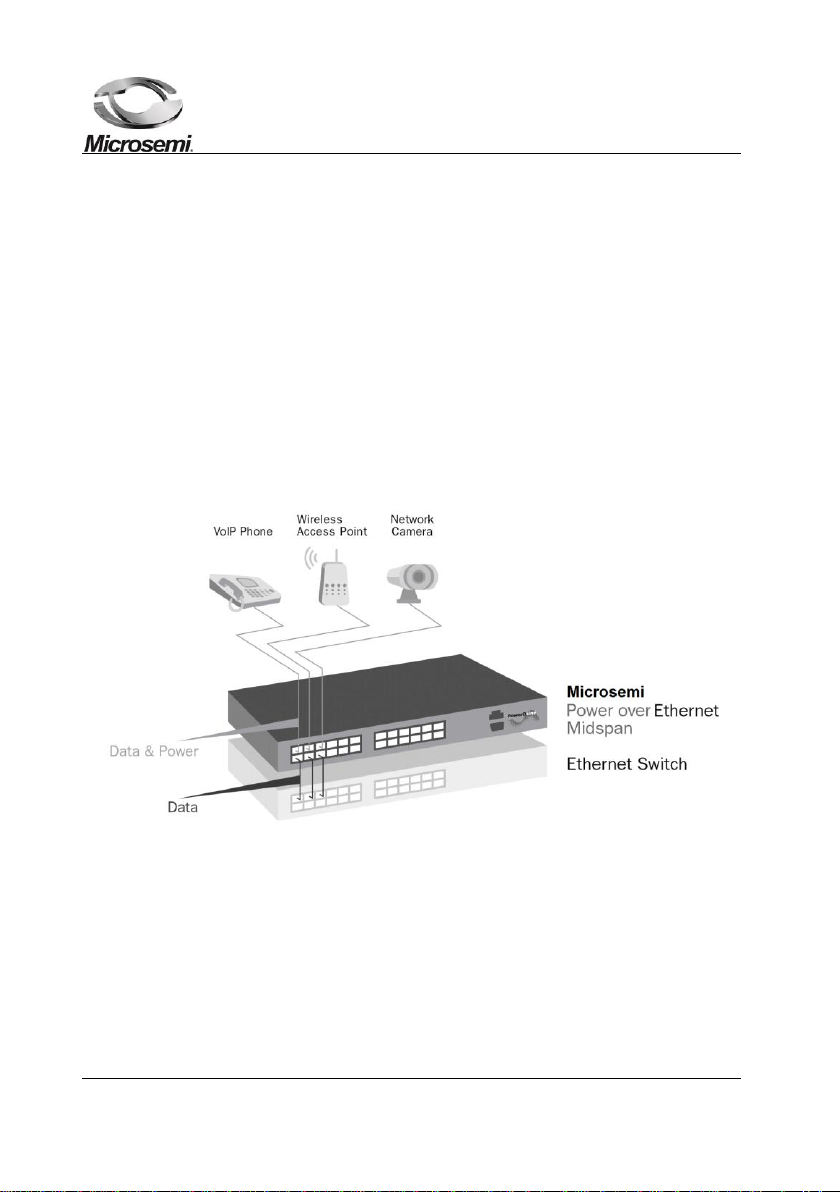

Microsemi’s family of Power over Ethernet Midspans 96xx inject power
over data-carrying Ethernet cabling. Employing these devices reduces the
need for AC outlets, local UPS and AC/DC adapters near PDs.
PD-9606G/9612G Midspans support 6 and 12 ports respectively, in a
10/100/1000BaseTx Ethernet network, over TIA/EIA-568 category 5/5e/6
cabling. 96xxG family can provide up to 95W according to the new PoH
(Part of HDBaseT) standard. 96xxG series implements a Twin High (TH)
PSE system, delivering 47.5W over 2 pairs (total 95W). DC power is fed
over both spare and data pairs of wires within a cable (1/2, 3/6, 4/5, and
7/8) to terminal units.
RPS family can provide backup or additional power to PD-96xxG
products.
Power over Ethernet Midspan normally powers devices that are Power
over Ethernet enabled or are equipped to receive power over Ethernet.
These devices are called Powered Devices (PDs).
Features of the Power over Ethernet Midspan include:
Safe and reliable power over an existing Ethernet
infrastructure
Remote management using Web control and/or SNMPv3
Highest level of network security
Safe solution that protects network infrastructure
Standards compliant: PoH and 802.3at
Provides safe Power + Data over a single RJ45 cable

© Microsemi Corp. Microsemi Page 10
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
3.1 10/100/1000BASE-TX Ports Definition
The following sections detail 96xxG ports and their functions.
3.1.1 Data Input Ports
Midspan has 6 or 12 10/100/1000Base-T Data In ports, located on PoE
front panel (Figure 3-1), configured in a non-crossover manner (straight-
wired).

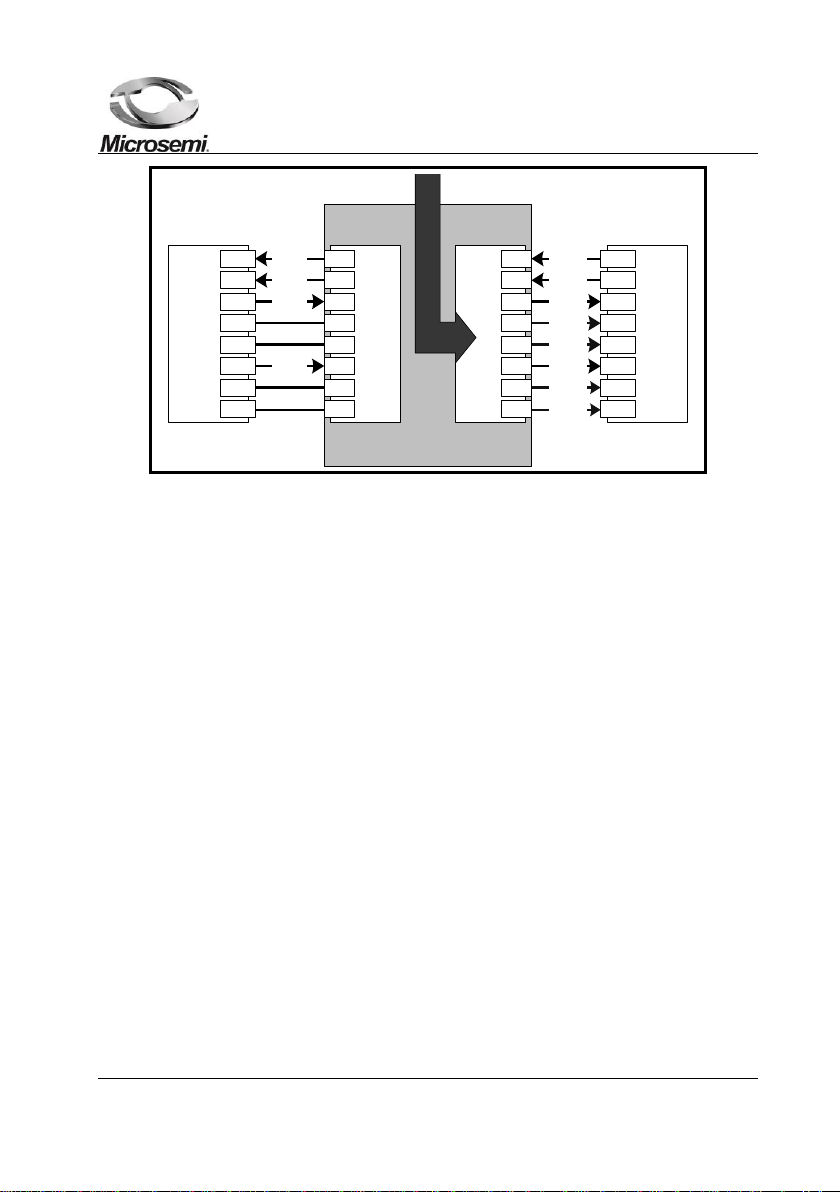

These ports are designed to carry Ethernet data only (Tx/Rx) over:
Standard 4-wire pairs (pins 1/2, 3/6, 4/5 and 7/8)
(1000Base-T)
2-wire pairs (pins 1/2 and 3/6) (10/100Base-T)
3.1.2 Data and Power Output Ports
Midspan has 6 or 12 10/100/1000Base-T Data & Power Out ports,

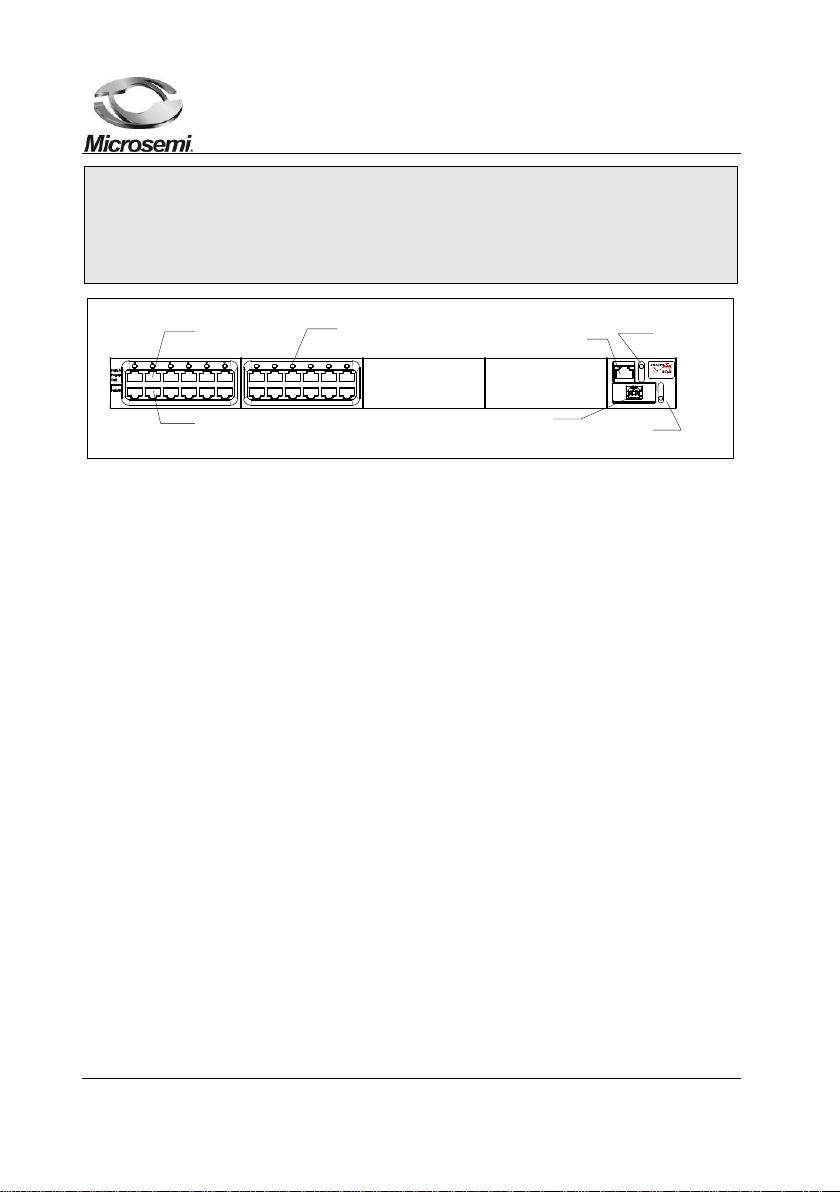

located on the front panel (see Figure 3-1). These ports are configured in
a non-crossover manner (straight-wired) and carry Ethernet data over:
Standard 4-wire pairs (pins 1/2, 3/6, 4/5, and 7/8)
(1000Base-T)
2-wire pairs (pins 1/2 and 3/6) (10/100Base-T)
PD-96xxG series carry DC power over 4-wire pairs (pins
4/5, 7/8 and pins 1/2, 3/6)

© Microsemi Corp. Microsemi Page 11
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
Power over Ethernet Midspan is not a repeater; therefore maximum
distance from Ethernet switch must not exceed 100 meters (328ft).
Power over Ethernet Midspan is guaranteed to work only within this
distance, as specified in IEEE 802.3 AT standard.
789 10 11 12
PowerDsine 9012G
DATA
DATA & POWER PORT INDICATORS MIDSPAN NMS
RJ45 CONNECTOR
NMS
LINK LED
USB CONNECTOR POWER
INDACTOR
Figure 3-1: Power over Ethernet Midspan, Front View
(PD-9612G)
3.2 Indicators
A set of indicators displays the status of the Power over Ethernet Midspan
and its ports. Refer to Table 3-1 and Table 3-1 for details about status
information during operation.
3.2.1 Power Indicator LED
Power Indicator LED on front panel displays power status of Power over
Ethernet Midspan. When this LED is illuminated in green, Midspan is
receiving AC power. For additional information refer to Table 3-1.
3.2.2 Port Indications
The following sections detail PD-96xxG port indicators.
3.2.2.1 PD-96xxG Midspan Series:
One bi-color (green and yellow) indicator per port displays port status:
Green indicates terminal unit (PD) has been identified as
"Power over Ethernet Enabled"; it is active and receiving
power over 4-wire pairs.
Yellow indicates terminal unit (PD) has been identified as
"Power over Ethernet Enabled"; it is active and receiving
power over 2-wire pairs.

© Microsemi Corp. Microsemi Page 12
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
Blinking green indicates port does not supply power and
is inactive.
Note PDs that are not PoE-enabled devices are not powered by
Midspan.
Table 3-1: Power Status Indications
Indicator
Color
Main Power
Status
Remarks
Power
Indicator
Off
Power supply
unit is
unplugged
Green
Power input is
active
Power supply voltage
is within limits
Green light
blinks once
every
second
(only if
power
backup is
connected)
Midspan power
supply failure
(disconnected
or out of
voltage range)
Unit receives backup
power and continues to
function normally.
Maintenance measures
should be taken
whenever possible.

© Microsemi Corp. Microsemi Page 13
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
Table 3-2: Port Status Indications PD-96xx Series
Port LED
Color
Port Load
Conditions
Port Voltage
Off
Inactive load or
unplugged port
Power to port is
disconnected. No DC voltage
present on port output lines.
Green
Active load is
plugged in and
complies with normal
load conditions.
Continuous nominal DC voltage
is present according to 4-Pairs
configuration.
Yellow
Active load is
plugged in and
complies with normal
load conditions.
Continuous nominal DC
voltage is present on 2-wire
pairs.
Green blinks
once every
second
Overload or short
circuit
Power to port is
disconnected.
No DC voltage is present on
port output lines.
Green blinks
once every
0.5 seconds
Valid load.
Total aggregated
power exceeds
predefined power
budget
Power is not connected to
port.
No DC voltage is present on port
output lines
3.3 Connectors
On Midspan’s front panel there’s a Console port. Using a standard USB
cable, users can connect a terminal to this port and load software.
Note: USB connection requires 'CP210x Driver.exe' installation.
Supplied CD provides the driver.
Console port is set to 38,400-baud for managed units and 19,200-baud
for unmanaged units, 8 data bits, no parity, and 1 stop bit. Figure 3-2
displays pin connections for this connector.

© Microsemi Corp. Microsemi Page 14
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
DC -
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
RJ-IN RJ-OUT
Ethernet
Switch PD
RJ-45 RJ-45
Data
Data
Data
Data
Midspan Channel
Power Bus
Data
Data
Data
DC +
Data
DC -
DC +
Figure 3-2: Connecting to Midspan
Each data port is configured, as shown in Figure 3-2, as data “Pass-
Through” ports for all data pins (pins 1, 2, 3, 6, 4, 5, 7, and 8). Make sure
you are using cabling of Category 5 or higher.

© Microsemi Corp. Microsemi Page 15
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
4 Power over Ethernet Midspan
Installation
The following sections describe how to install a Power over Ethernet
Midspan.
4.1 Background Information
As shown in Figure 4-1, Midspan is connected in series to an Ethernet
switch/hub. Switch’s data output terminals are connected to Midspan.
Midspan delivers power over 4-wire twisted pairs (pins 7/8, 4/5 and pins
1/2, 3/6) in PD-96xxG series of Category 5e cabling, regardless to data
quality. Most installations require Midspan to be rack-mounted.
Figure 4-1: Typical Installation
4.2 Verifying Kit Contents
Unpack kit and verify the following items are included:
Power over Ethernet Midspan
Mounting brackets (for 19-inch racks) and a plastic cover
Screws for assembling mounting brackets
Self-adhesive rubber feet

© Microsemi Corp. Microsemi Page 16
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
User guide
Power cord
Before proceeding, record unit’s serial number in the rectangle below for
future reference. Serial number is found on the information label at the
back of the Power over Ethernet Midspan.
Serial Number
4.3 Rack Mounting Brackets
Midspan comes with 19-inch mounting brackets and screws.
To install Midspan into a 19-inch rack:
1. Remove self-adhesive rubber feet from the bottom surface.
2. Install brackets using two screws per side.
Note: Rack-mounting screws are not provided.
Figure 4-2: Installing Mounting Brackets
4.4 Installation Factors
Elevated Operating Ambient Temperature: If installed
in a closed or multi-unit rack assembly, operating
ambient temperature in rack environment may be greater
than room ambient temperature. Therefore, install

© Microsemi Corp. Microsemi Page 17
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
equipment in an environment compatible with
manufacturer's maximum rated ambient temperature
(Tmra).
Reduced Air Flow: Install equipment in a rack in a
manner that does not compromise the amount of airflow
required for safe operation of equipment.
Mechanical Loading: When mounting equipment in
rack, ensure mechanical loading is even.
Circuit Overloading: Take into consideration the
connection of equipment to supply circuit and the effect
overloading of circuits might have on over-current
protection and supply wiring. Appropriate consideration of
equipment nameplate ratings must be given when
addressing this concern.
Reliable Grounding (Earthing): Maintain reliable
earthing of rack mounted equipment. Pay particular
attention to supply connections, other than direct
connections to branch circuit (for example, the use of
power strips).
4.5 Connecting Ethernet Cables
Ports on Midspan’s front panel are configured as "Pass Through" ports for
eight (1, 2, 3, 6, 4, 5, 7, 8) conductors of RJ-45 connectors. Use Category
5 cabling when making connections.
1. Connect cables from Ethernet Switch to DATA IN ports (lower row on
front panel).
2. Connect cables from PoH or IEEE 802.3at ready terminals (PDs) to
corresponding DATA & POWER OUT ports (upper row on front panel).
4.6 Connecting Power Cables
When using an AC source to power Midspan, plug in the provided power
cord to back AC connector.

© Microsemi Corp. Microsemi Page 18
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
4.7 Powering Up the Unit
Power over Ethernet Midspan has no on/off switch. To apply or remove
power from Midspan, insert or remove power cable to receptacle (AC) on
the back panel of the unit.
With power applied;
Midspan powers-up.
Internal fan operates.
Device runs its Power-On Self-Test (POST), which takes
less than 10 seconds. During POST, all ports are
disabled and indicators illuminate in the following
sequence:
oPort indicators and Power indicators illuminate in green.
oPower indicator remains lit in green; port indicators are off.
Ports are now ready (enabled) for normal operation.
If LEDs are not lit, refer to Troubleshooting on page 19.

© Microsemi Corp. Microsemi Page 19
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
5 Troubleshooting
The following sections describe troubleshooting procedures to be used if
you encounter any problems with your unit.
5.1 Preliminary Steps
If you have a problem, verify:
Power is applied to Midspan.
A crossover-type Ethernet cable has not been used.
Ethernet cable from network is connected to DATA port.
Ethernet cable to PD is connected to DATA & POWER
port.
Cable pairs are attached to their corresponding ports.

© Microsemi Corp. Microsemi Page 20
Rev.B01 CPG –Poe BU
One Enterprise Aliso Viejo, CA 92656 USA
5.2 Troubleshooting Steps
This section provides a symptom and resolution sequence to assist in
troubleshooting of minor operating problems. If steps given do not solve
your problem, do not hesitate to call your local dealer for further
assistance. Refer to Table 5-1.
Table 5-1: Troubleshooting Steps
Symptom
Corrective Steps
Midspan does not
power up
1. Make sure power cord is properly connected.
2. Verify voltage at power inlet is between 100 and
240VAC.
3. Remove and reapply power to device and check
indicators during power up sequence.
A port indicator is
not lit and
corresponding
PD does not
operate.
1. Verify port is enabled (Midspan did not detect a
PD).
2. Verify PD is designed for Power over Ethernet
operation.
3. Verify you are using a standard Category 5/5e/6,
straight-wired cable, with four pairs.
4. If an external power splitter is in use, replace it
with a viable splitter.
5. Verify PD is connected to DATA & POWER
OUTPUT port.
6. Try to reconnect the same PD to a different port
on the same Midspan or on another one. If it works,
there is probably a faulty output port or RJ-45
connection.
7. Verify port shutdown command was not issued
via Web management.
