microSYST miline FTL10 User manual

microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
miline FTL10
LED Multifunction Clock
Operating Manual

miline FTL10
LED Multifunction Clock
Page 2
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
Index
1SAFETY INSTRUCTIONS 3
2SCOPE OF DELIVERY 3
3MOUNTING 4
4BRIEF DESCRIPTION 5
5START-UP 6
6OPERATING MODE 7
7CONFIGURATION 8
7.1 Display Settings 9
7.2 Channel Setting Multifunction Sensor (optional) 10
7.3 DCF Setting (optional) 10
8DECLARATION OF CONFORMITY 11
9GUARANTEE 12
10 TECHNICAL DATA 13
11 DIMENSIONS 15

miline FTL10
LED Multifunction Clock
Page 3
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
1 Safety Instructions
Please read these instructions carefully and follow all instructions and safety infor-
mation. Non-observance could result in injury to persons and / or damage the unit.
Use only the included AC adapter. Check for tight fit in the socket. Wobbly
plugs or receptacle may cause a fire. If you want to disconnect power, do not
unplug the cord, but disconnect the AC adapter.
Connect the display to an easily accessible power outlet (230 V / 50 Hz), which is
located near the installation site.
Do not touch the plug contacts with metallic, sharp or wet objects.
Please do not open the housing of the display. Refer servicing to an expert, as this
usually leads to the loss of your warranty claims.
Protect the display from moisture, water, steam and aggressive fluids!
Do not install near strong magnetic fields. The reception may be impaired.
2 Scope of Delivery
Please check the product’s package for completeness:
Standard:
Multifunction clock including angle bracket
AC adapter
Remote control
Batteries for the remote control
Option:
Multifunction Sensor
Batteries for the multifunction sensor

miline FTL10
LED Multifunction Clock
Page 4
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
3 Mounting
LED Multifunction Clock “miline FTL10”
The adjustable bracket on the back allows wall or ceiling mounting.
Examples:
Multifunction Sensor “MFS10” (optional)
The integrated antenna must be in horizontal position for DCF77-reception. Please
regard for a correct position in case of wall mounting.
The sensor is always horizontal, if it’s mounted on the ceiling.
Example:
Antenna

miline FTL10
LED Multifunction Clock
Page 5
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de

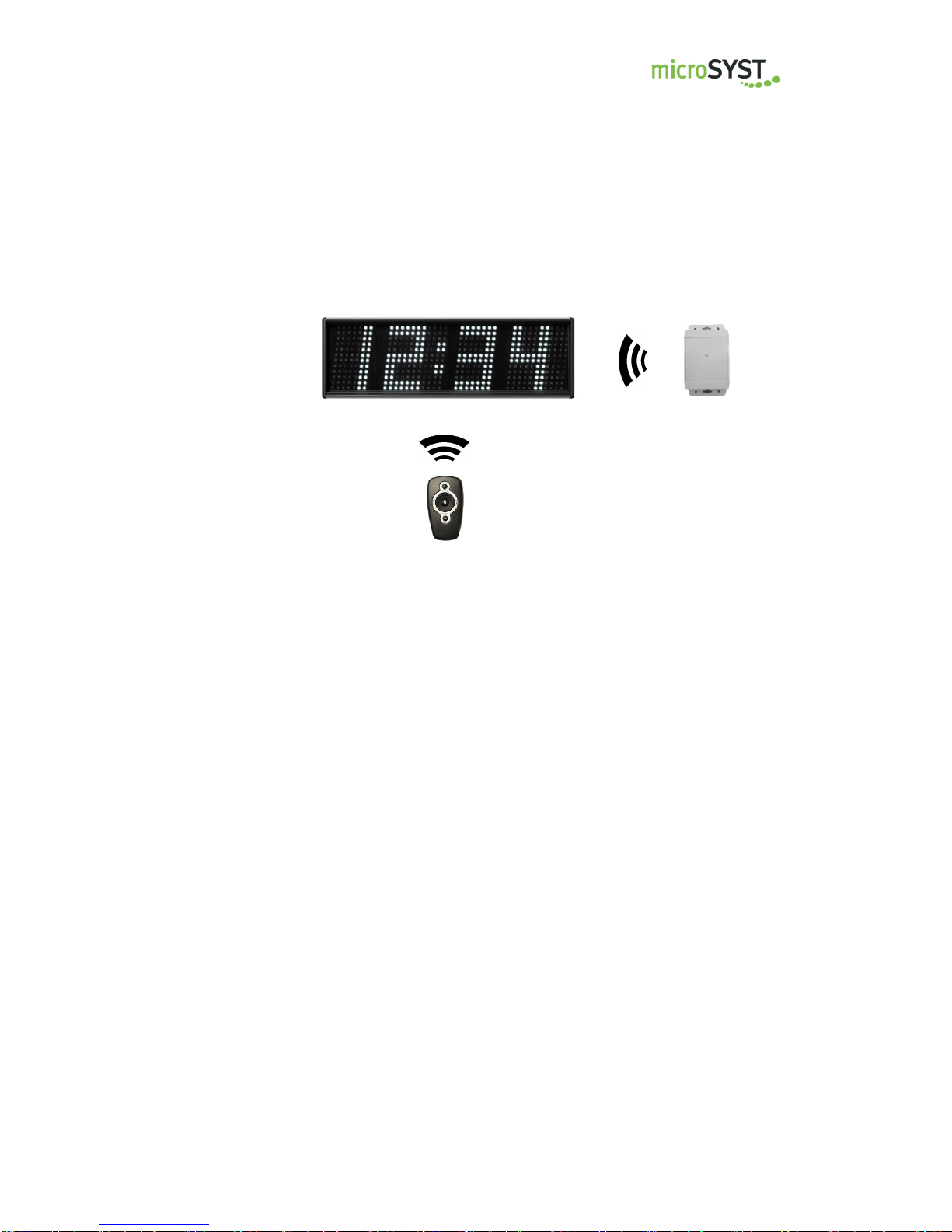

4 Brief Description
The "miline FTL10" display with 120 mm character height and white LEDs is de-
signed for use in indoor and semi-outdoor areas. The standard version of this
display alternately shows time and date (user adjustable, based on quartz) in an
adjustable change interval from 1 to 30 seconds.
Optionally, the standard model can be upgraded to a multi-function display. An
external wireless sensor “MFS10” provides DCF77 radio clock, temperature and
humidity sensor.
The implemented LED dot matrix technology and automatic brightness adjust-
ment to the ambient light serve for a readability up to an angle of ±60°.
A variable wall bracket on the back of the anodised aluminium profile housing al-
lows both wall and ceiling mount.
In case of power failure, the internal battery is able to save time and date up to
10 years. Settings on the display are done with the included remote control.
Remote Control
for Configuration
Multifunction Sensor
“MFS10“ (optional)
IR
433 Mhz
LED Multifunction Clock “miline FTL10“

miline FTL10
LED Multifunction Clock
Page 6
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
5 Start-Up
Display without Multifunction Sensor
Plug the AC adapter.
Open the remote control and insert the batteries.
Set time and date (see chapter “Configuration“).
Display with Multifunction Sensor
Plug the AC adapter.
Open the remote control and insert the batteries.
Open the multifunction sensor and insert the batteries. At this, the green function
LED will flash up for one second.
Regarding the synchronisation settings, see chapter "Configuration".

miline FTL10
LED Multifunction Clock
Page 7
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
6 Operating Mode

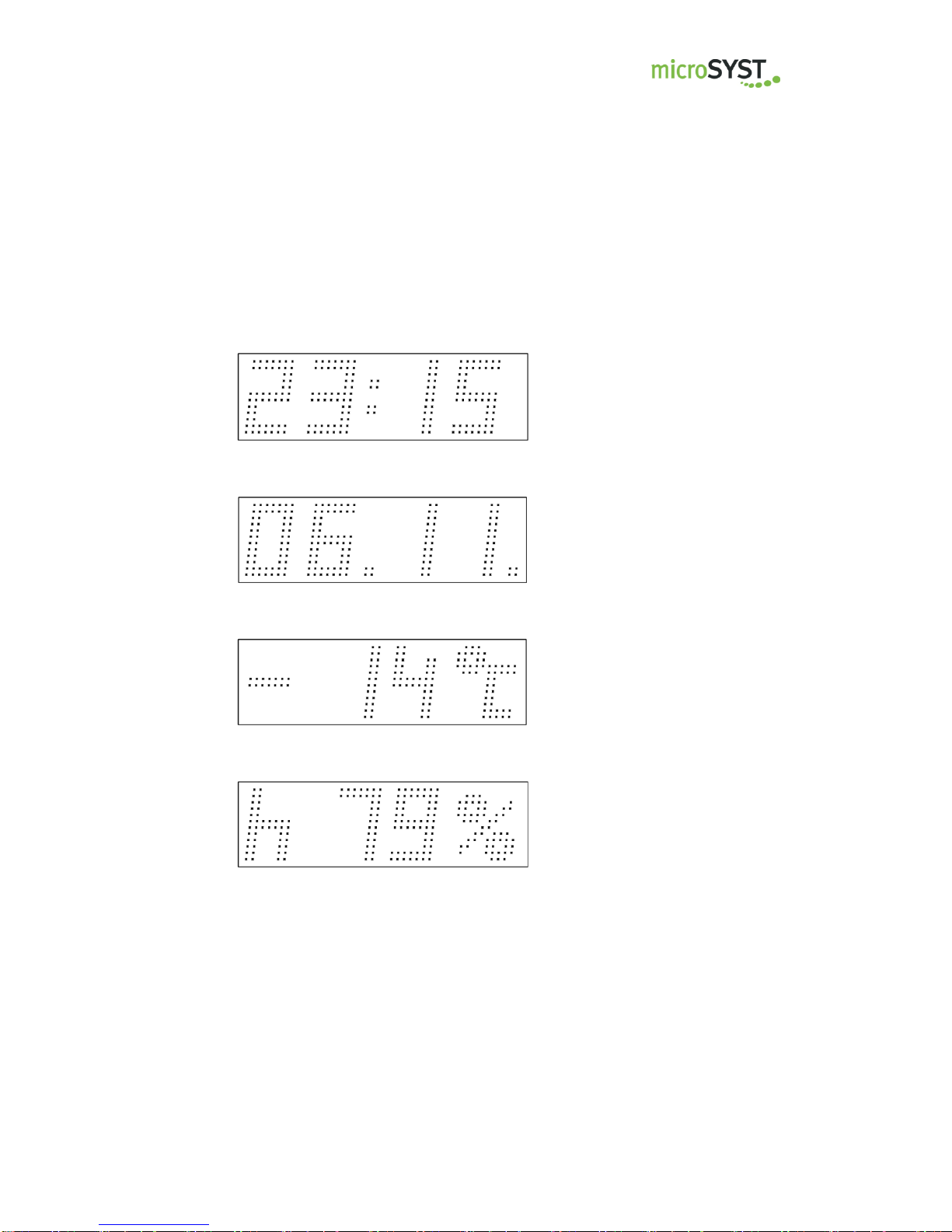

According to expansion stage, the display shows the following measures:
Time
Date
Temperature (optional, with “MFS10”)
Relative humidity (optional, with “MFS10”)
Low Battery:
If the batteries in the sensor "MFS10" are too low, the display shows a
battery icon instead of temperature and humidity level.

miline FTL10
LED Multifunction Clock
Page 8
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
7 Configuration

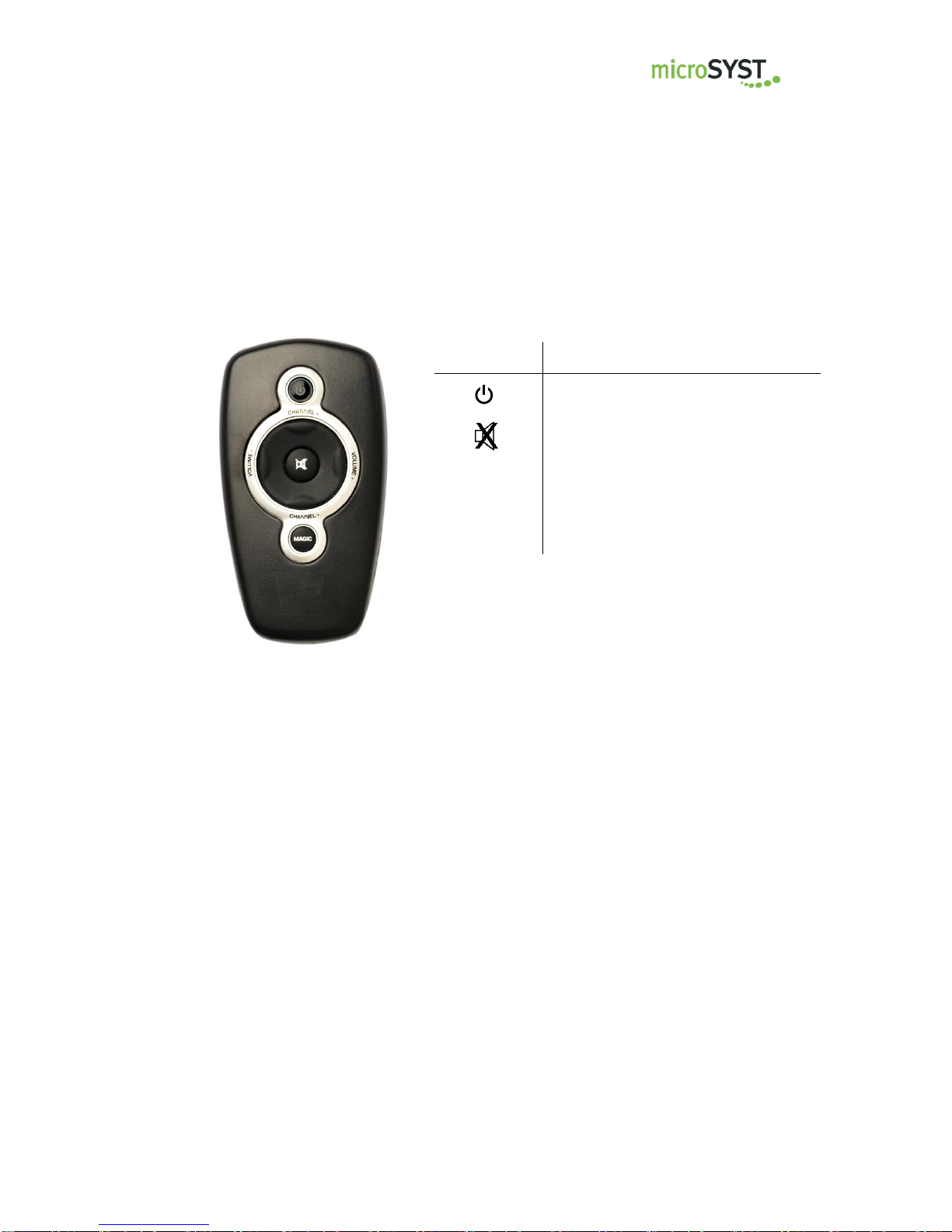

The display is configured with the included universal remote control.
Button
Function
On-off switch for the display
Setup mode
VOLUME +/-
Digit selection (date / time)
and menu navigation
CHANNEL +/-
Value adjustment

miline FTL10
LED Multifunction Clock
Page 9
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
7.1 Display Settings
Press button for 2 seconds until the display’s hour digit starts to flash, then use the
navigation keys to select the desired menu item. The values can be changed with the
corresponding buttons.
Menu Navigation (button “VOLUME +“):
Hours
Time setting
For systems with multi-function sensor,
DCF77 defaults always take precedence.
Minutes
Day
Date setting
For systems with multi-function sensor,
DCF77 defaults always take precedence.
Month
P1 - Display time
Appearance of the single measures:
00: deactivated
01: activated
Standard without „MFS10“: P1 + P2 = 01
P3 + P4 = 00
Standard with „MFS10“: P1...P4 = 01
P2 - Display date
P3 - Display temperature
(optional with “MFS10”)
P4 - Display humidity
(optional with “MFS10”)
P5 - Alternation interval
Time for displaying a measure.
Setting range: 01 to 30 seconds
Standard: 05
P6 - Maximum brightness
This menu item is shown with the current maxi-
mum brightness.
Setting range: 01 to 99
Standard: 99
P7 - Flashing colon (at the time)
Setting range: 00 / 01
00: deactivated
01: activated
Standard: 01
P8 - Radio channel
Selection of the radio channel
Setting range: 01 to 06
Standard: 01
P9 - Request DCF77 reception
DCF77 status
(description see next page)
The settings are saved with the button . After that, setup mode is left.

miline FTL10
LED Multifunction Clock
Page 10
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
7.2 Channel Setting Multifunction Sensor (optional)
6 radio channels are provided for communication between the sensor and display.
This allows the operation of up to 6 display systems in the same transmission range.
It may be necessary to synchronize the multifunction sensor with the display.
Please proceed as follows:
Select desired radio channel (01 to 06) with display’s menu item P8.
Open the multi-function light sensor and press the button on the board about 1
second until the green LED is lit.
After synchronisation, this LED goes off and the display will quit setup mode
automatically.
After 20 seconds at the earliest, current data are shown.
7.3 DCF Setting (optional)
You can force an attempt for DCF77 reception with menu item P9 to find the optimal
position for the multifunction sensor.
Please stay in this menu and observe the status message. If the reception is suffi-
cient, you get the following sequence (within max. 5 minutes):
Status message
Meaning
0
Attempt for reception started
1
DCF signal identified
2
Data reception
3
Time and date have been updated
The DCF signal is not sufficient, if the status message changes between “1” and “2”.
At status “0”, no reception is possible.

miline FTL10
LED Multifunction Clock
Page 11
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
8 Declaration of Conformity
EU-Konformitätserklärung
EU Declaration of Conformity
Produktbezeichnung: miline
Product name:
Typenreihe: miline FTL 10
Type code:
Hersteller: microSYST Systemelectronic GmbH
Manufacturer: Am Gewerbepark 11
92670 Windischeschenbach
Das bezeichnete Produkt stimmt mit
der folgenden Europäischen Richtlinie
überein:
We herewith confirm that the above men-
tioned product meets the requirements of
the following standard:
Die Übereinstimmung des bezeichneten Produk-
tes mit den Vorschriften der angewandten Richt-
linie(n) wird nachgewiesen durch die Einhaltung
folgender Normen / Vorschriften:
The conformity of the product described above with
the provisions of the applied Directive(s) is demon-
strated by compliance with the following standards /
regulations:
Richtlinien / Directives
Europäische Norm / Standard
EMV Richtlinie
EMC Directive
2014/30/EU
EN61000-6-2:2005
EN61000-6-3:2007 +A1:2011
RoHS Richtlinie
RoHS Directive
2011/65/EU
EN50581:2012
Windischeschenbach, 11.12.2017
Manuel Raß
Geschäftsführer / General Manager

miline FTL10
LED Multifunction Clock
Page 12
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
9 Guarantee
The display is guaranteed for the duration specified in the “General
Terms and Conditions” regarding manufactured products and services
rendered for the electrical industry against defects which existed at the
time the device was delivered to the buyer.
The device is subject to technical change without notice. Errors and
omissions are accepted. No claims can be honored for the shipment of
a new product. The buyer is required to make notification of defects
within 2 weeks after identification of such. Non-observance of notifica-
tion requirements is equated with acceptance of the defect.
Defects and their symptoms must be described as accurately as possi-
ble in order to allow for reproducibility and elimination. The buyer must
provide for access to all required and/or useful information regarding de-
fects at no charge, as well as to the affected devices, and must make all
of the required data and machine time available free of charge.
The guarantee does not cover defects, which result from non-
observance of the prescribed conditions of use, or from improper han-
dling.
If the device has been placed at the disposal of the buyer for test pur-
poses and has been purchased subsequent to such testing, both parties
agree that the product is to be considered “used” and that it has been
purchased “as is”. No guarantee claims may be made in such cases.
The “General Terms and Conditions” regarding manufactured products
and services rendered for the electrical industry apply as well.

miline FTL10
LED Multifunction Clock
Page 13
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
10 Technical Data
LED Multifunction Clock “miline FTL10”
Display type: LED dot matrix
Application range: indoor and semi-outdoor (without direct solar radiation)
Angle of radiation: ±60°
Character height: 120 mm
Reading distance: up to approx. 50 m
Display colour: white
Light intensity: > 2000 cd/sqm
Brightness control: automatically; maximum value manually adjustable
View: single-sided
Display: time: hours + minutes, date: day + month;
With optional multifunction sensor:
temperature: -40 to +60 °C; humidity: h 01 to 99 %
Clock preciseness: ±1 min. / year from 0 to +40 °C ambient temperature;
DCF-exact (“radio controlled clock“) via optional multifunction sensor
Interfaces: IR interface; 433 MHz radio interface (6 channels)
Operating voltage: 15 to 40 VDC; 230 VAC via external power supply plug
Power consumption: approx. 10 W
Housing: anodised aluminium
Housing dimensions: see next chapter
Housing colour: black
Mounting: wall or ceiling mounting; inclination adjustable
Protection: IP54
Operating temperature: -20 to +60 °C
Storage temperature: -25 to +70 °C
Equipment: multifunction sensor “MFS10“
Multifunction Sensor “MFS10”
Interface: 433 MHz radio interface (6 channels)
Sensors: temperature sensor; humidity sensor
Aerial: DCF77-reception (“radio controlled clock”)
Features: temperature measurement; humidity measurement;
2 x a day DCF77-reception;
communication to “miline FTL10“ via radio (433 MHz)
Number of displays
per multifunction sensor: 10 pieces with parallel operation
Range: max. 50 m, depending on ambient conditions
Operating voltage: 3 VDC (via 2 x batteries AA)
Housing: plastic
Housing dimensions: see next chapter
Housing colour: grey
Mounting: wall or ceiling mounting
Protection: IP65
Operating temperature: -40 to +60 °C
Storage temperature: -40 to +60 °C

miline FTL10
LED Multifunction Clock
Page 14
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de

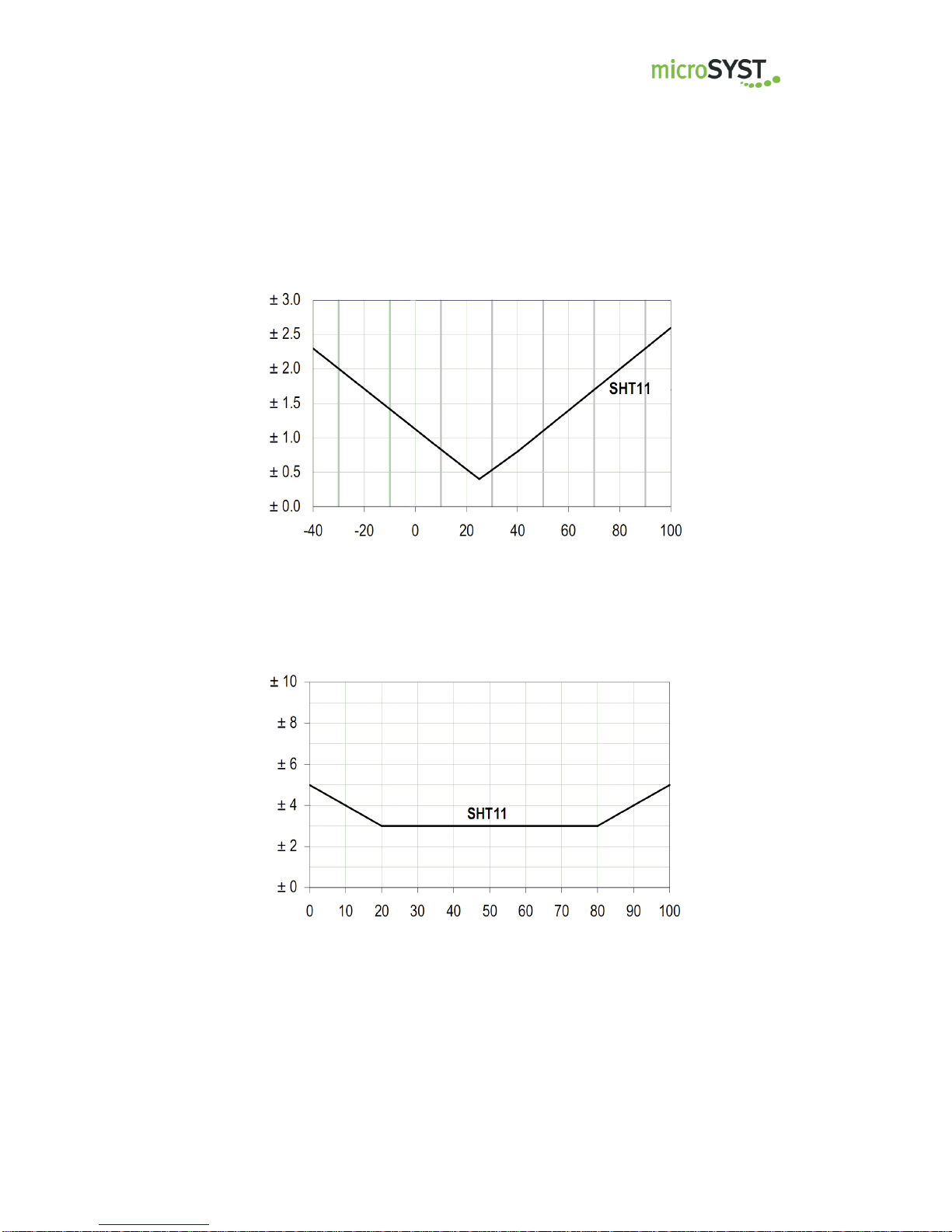

Maximum T-tolerance
Maximum RH-tolerance (at 25 °C)
ΔT (°C)
Temperature °C
ΔRH (%RH)
Relative Humidity (%RH)

miline FTL10
LED Multifunction Clock
Page 15
microSYST Systemelectronic GmbH, Am Gewerbepark 11, 92670 Windischeschenbach
[phone], [phone], [e-mail], www.microsyst.de
11 Dimensions
LED Multifunction Clock “miline FTL10”
Multifunction Sensor “MFS10”
