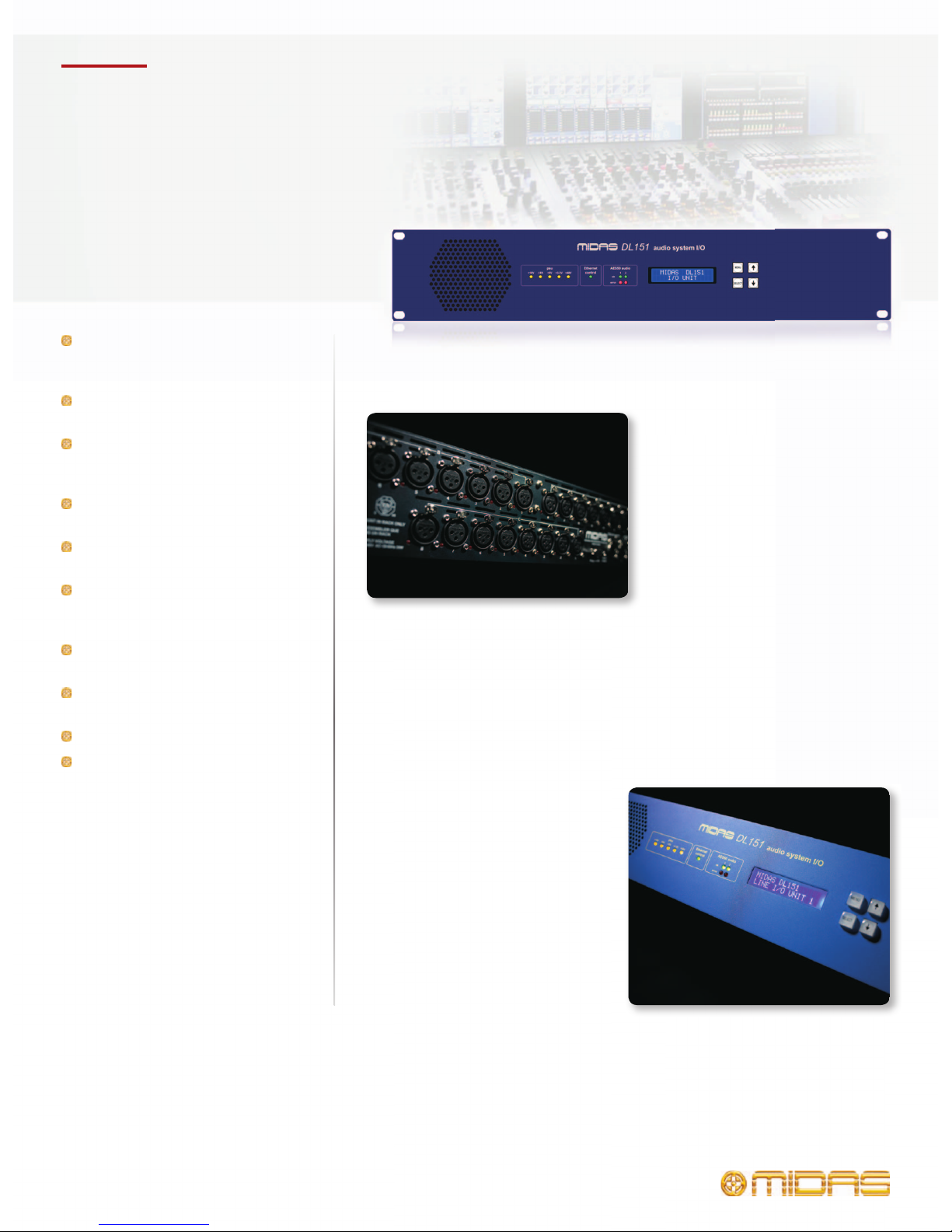

Midas DL151 User manual

24 award-winning MIDAS analogue
mic preamps with switchable +48 V
phantom power
Selectable 96 kHz or 48 kHz sample
rate operation
Dual AES50 Neutrik etherCON*
network ports with LED
status indicators
All settings programmable from
front panel controls or console
Remote operation up to 100 m via
CAT5 cable
PSU status indicator LEDs and
conguration LCD display on
front panel
Rugged 2U rackmount chassis for
durability in portable applications
Auto-ranging universal switch-mode
power supply
3-Year Warranty Program**
Designed and engineered in England
The DL151 delivers legendary MIDAS
sound quality in a cost eective, discrete
2U chassis that utilises time-tested and
proven MIDAS technologies. Equipped
with 24 channels of MIDAS premium
mic-pre ampliers with 2.5 dB gain steps
and dual redundant AES50 networking
ports, the DL151 is the ideal partner
to the PRO 1 / PRO 2 digital consoles–
signicantly increasing the network
capacity and number of mic. inputs.
User interface controls and feedback is via an intuitively laid out front panel. The controls
and LED indicators provide ease of use and instant feedback at a glance. All primary
connections use high quality balanced XLR connectors.
Housed in a road-ready, rugged 19" 2U rack-mountable chassis, the DL151 is ideally suited
for storage in standard ight cases (not included).
Integration Within The
MIDAS Product Range
Styled to match our existing console
aesthetic, MIDAS high performance I/O
has never been easier to use - or more
cost eective.
*All third-party trademarks, including, but not limited to Neutrik and
etherCON are trademarks or registered trademarks of their respective
owners.Their use neither constitutes a claim of the trademark nor aliation
of the trademark owners with MUSIC Group. Product names are mentioned
solely as a reference for DL151 compatibility, eects and/or components.
**Warranty details can be found at music-group.com
24-Input Stagebox with
MIDAS Mic Preamps and
Dual-Redundant AES50 Networking
I/O Interfaces

DL151

2 of 4

DL151
I/O Interfaces
24-Input Stagebox with
MIDAS Mic Preamps and
Dual-Redundant AES50 Networking

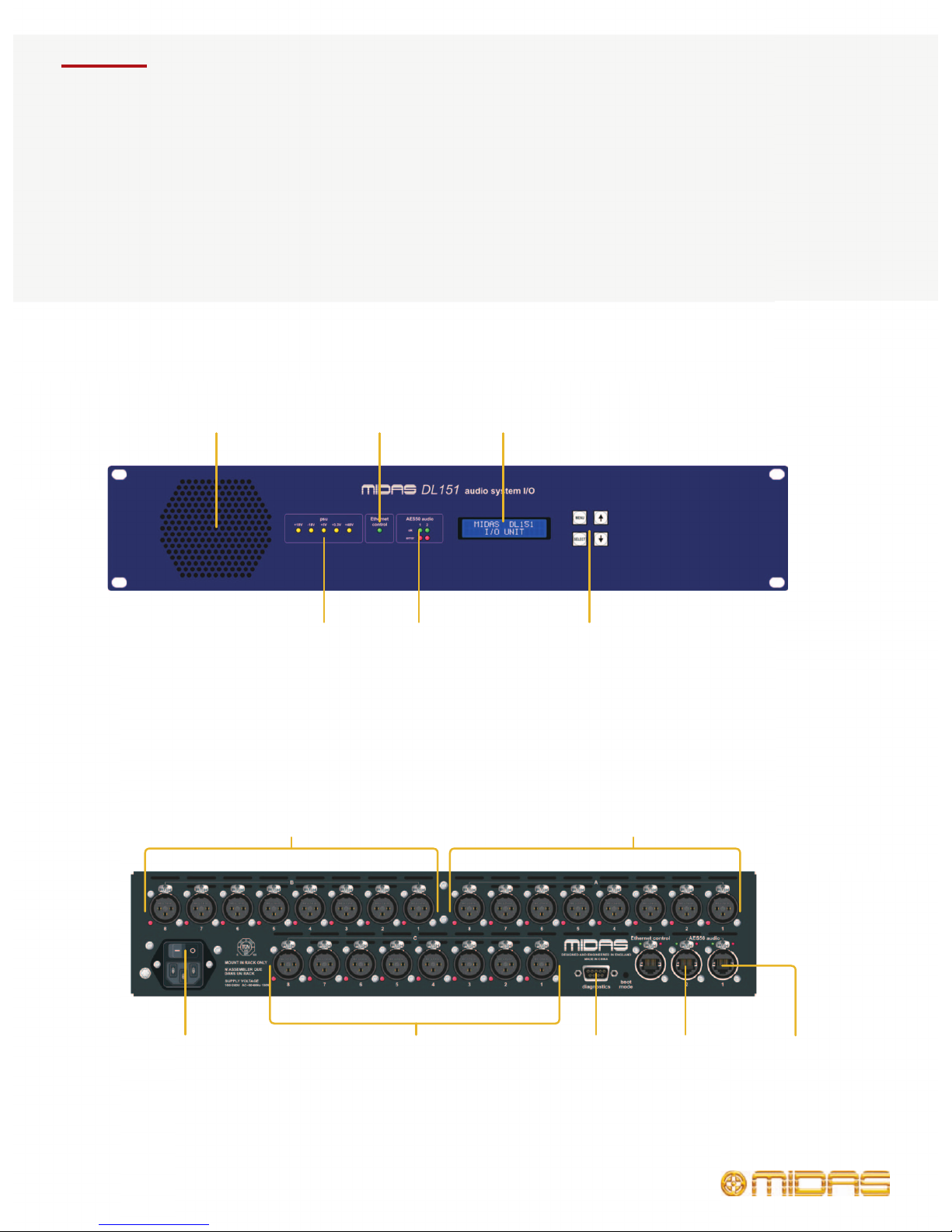

Front Panel Description
Rear Panel Description
Ventilation Grill
Ethernet Control
Status - Green status
LED for the Ethernet
control port
LCD - 2 x 16 character
blue backlit liquid
crystal display
PSU Status
Indication -
Power supply
status LEDs for each
power rail
AES50 Status
Indication - Green
‘OK’and red‘ERROR’
status LEDs for the
AES50 ports
Conguration Control-
‘Menu’,‘Select’,‘Up’
and‘Down’buttons
for conguring
menu items
I/O Card‘A’- 8-channel
analogue inputs I/O Card‘B’- 8-channel analogue inputs
Mains Power Inlet -
IEC inlet with integral
mains switch
AES50 Ports -
2 x rugged Neutrik
‘Ethercon’connectors
with integral
status LEDs
Diagnostics port -
9 W‘D’connector
for diagnostics use
Ethernet Control
Port - 1 x rugged
Neutrik‘Ethercon’
connector with
integral status LEDs
I/O Card‘C’- 8-channel
analogue inputs

3 of 4

DL151
I/O Interfaces
24-Input Stagebox with
MIDAS Mic Preamps and
Dual-Redundant AES50 Networking
Specications
External Connections
Primary Analogue Inputs Mic / Line inputs - balanced XLR
connectors - 10 kΩ load
AES50 Connections Neutrik etherCON with status
indication
DiagnosticConnection 9 W female‘D’-typeconnector
Power Connections IEC mains inlet - 100 - 240 V
AC~50 - 60 Hz ±10%
Audio Electronic Specications
Maximum Input Level
Mic/Line (at unity gain) +21 dBu
Mic/Line (at -2.5 dB gain) +24dBu
CMR at 1 KHz (typical)
Mic (at unity gain) > -70 dB
Mic (at 40 dB gain) > 90 dB
Noise
Mic EIN at 40 dB gain -126dBu
Output noise at unity gain -87dBu
Frequency Response
(20 Hz - 20kHz), ±0.5 dB
relative to 1 kHz
Distortion at 1 kHz
Input tooutput (0 dB) < 0.01%
Crosstalk at 1 kHz
Channel to channel < -90 dB
Dynamic Range at 1 kHz
22 Hz -22 kHz (at unity gain) > 108 dB unweighted (20 Hz-20 kHz)
Power Requirements
Voltage 100 V AC to 240 V AC ±10%
Frequency 50Hz to 60 Hz
Consumption <150 W
Physical
Height Approx88.1mm(2U)
Width Approx482.6mm(19.0")
Depth Approx380 mm(15.0")
NetWeight Approx5 kg(11lbs)
ShippingWeight Approx6 kg(13.2lbs)
Operating temperature range +5°C to 45°C
Storagetemperature range -20°C to +60°C
Neutrik and etherCON are registered trademarks of Neutrik AG


DL151
I/O Interfaces
24-Input Stagebox with
MIDAS Mic Preamps and
Dual-Redundant AES50 Networking
Architect’s & Engineer’s Specication
The MIDAS DL150 series of I/O units are a one piece solution housed in a rugged 19" 2U rack mount chassis with cosmetic trim suitable for use and
storage in a road ight case.
All user interface controls and feedback are located on the front panel. User interface controls are laid out for ease of operation with consideration
for the amount of user feedback required. All switches are high quality momentary type with integral blue LED illumination and printed
switch caps.
All primary connectors are on the rear of the unit. All inputs and outputs are on balanced XLR connectors. All analogue audio inputs and outputs
are tolerant of 48V connection and short circuit protected. The DL150 series only use Neutrik XLR connections.
The DL150 series I/O units are mixed technology products combining analogue and digital circuitry. These are combined on the input and output
cards using multi-layer horizontal PCBs, extreme care has been taken when planning and executing the PCB layout to maintain good grounding
and analogue / digital separation.
The DL150 series units use proven technology from the D251 I/O unit from the current MIDAS range.The analogue input and output cards are
identical, the AES3 digital card is similar to the one used in the PRO2 surface and the CPU card is a modied version of the one used in the DL251.
The DL150 units use an internal switch-mode power supply.
The user interface software is based on the same menu system currently used on the DL451 and has provision for all of the functions these units
can perform.
