Midea MTB1T-96CWN1 Operating manual

Midea R410A T3 50Hz Split Type
Top-discharge Series
Technical Service Manual
Applicable Model:
Indoor unit
Outdoor unit
MTB1T-96C(H)WN1
MOVTA-96C(H)N1-R
MHB1T-96C(H)WN1
MFA3T-96C(H)RN1
Midea reserves the right to discontinue, or change specification or designs at any time without notices and
without incurring obligations.

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
1
Content
Part. 1 General information.......................................2
Part. 2 Indoor Unit .....................................................6
Part. 3 Outdoor Unit ................................................40
Part. 4 Installation....................................................49
Part. 5 Controller .....................................................86

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
2
Part. 1 General information
1. Model Names of Indoor/Outdoor Units.......................3
2. External Appearance....................................................4
3. Nomenclature................................................................5

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
3
1. Model Names of Indoor/Outdoor Units
1.1 Model names of units with cooling only:
Indoor unit
Outdoor unit
Cooling capacity
Type
Model
Power
supply
Model
Power
supply
kW
MBtu/h
Med-static pressure
duct type
MTB1T-96CWN1
220-240V~,
1Ph, 50Hz
MOVTA-96CN1-R
380-415V~,
3Ph, 50Hz
28.1
96.0
Hi-static pressure
duct type
MHB1T-96CWN1
Floor-standing type
MFA3T-96CRN1
1.2 Model names of units with heat pump:
Indoor unit
Outdoor unit
Cooling capacity
Type
Model
Power
supply
Model
Power
supply
kW
MBtu/h
Med-static pressure
duct type
MTB1T-96HWN1
220-240V~,
1Ph, 50Hz
MOVTA-96HN1-R
380-415V~,
3Ph, 50Hz
28.1
96.0
Hi-static pressure
duct type
MHB1T-96HWN1
Floor-standing type
MFA3T-96HRN1

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
4
2. External Appearance
2.1 Indoor units
MTB1T-96C(H)WN1
MHB1T-96C(H)WN1
MFA3T-96C(H)RN1
2.2 Outdoor unit
MOVTA-96C(H)N1-R

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
5
3. Nomenclature
3.1 Indoor unit:
MFA3 T–96 CR N1
Refrigerant type
N1:R410A
Remote controller
Function code
C: Cooling only
H: Heat pump
Nominal cooling capacity (96×1,000Btu/h)
Ambient type
T or Omit: Tropical type
Series number
Indoor unit type
T: Medium static pressure duct type
H: High static pressure duct type
F: Floor-standing type
Midea
3.2 Outdoor unit:
M O VTA - 96 C N1 - R
Power supply
R: 380~415V, 3Ph, 50Hz
Refrigerant type
N1: R410A
Function code
C: Cooling only
H: Heat pump
Nominal cooling capacity (96×1,000Btu/h)
Series number
Ambient type
T or Omit: Tropical type
Top-discharge type
Outdoor unit
Midea

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
6
Part. 2 Indoor Unit
Duct Type ...........................................................................7
Floor-standing Type..........................................................25

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
7
Duct Type
1. Features ........................................................................8
2. Specifications ................................................................9
3. Dimensions (Unit: mm)................................................ 11
4. Service Space .............................................................12
5. Refrigerant circuit ........................................................13
6. Wiring Diagrams..........................................................14
7. Capacity Table.............................................................16
8. Static Pressure Curve..................................................19
9. Electric Characteristics................................................20
10.Sound Levels...............................................................21
11. Accessories.................................................................22

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
8
1. Features
High capacity of cooling/heating, efficient and energy-saving.
Nested in the ceiling, space-saving and noble.
Innovative air supply, which provides homogeneous conditioning of the room temperature.
The air outlet is laid out in the way you desire.
Available for remote control or wire control.
Low noise design.
It is suitable be used for office, hospital, commercial place and home, the air conditioner will
create the comfortable and elegance environment for you.
Use refrigerant to transmit cool/heat directly, which provides a high transmitting efficiency.

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
9
2. Specifications
Model
MTB1T-96HWN1
MTB1T-96CWN1
Power supply
\
220-240V~, 1Ph, 50Hz
220-240V~, 1Ph, 50Hz
T1 Cooling
Capacity
Btu/h
96,000
96,000/87,860
W
28,100
28,100/25,750
Input
W
9,600
9,600/15,000
EER
W/W
2.93
2.93/1.72
T3 Cooling
Capacity
Btu/h
87,860
96,000/87,860
W
25,750
28,100/25,750
Input
W
15,000
9,600/15,000
EER
W/W
1.72
2.93/1.72
Heating
Capacity
Btu/h
106,000
\
W
31,100
\
Input
W
10,300
\
COP
W/W
3.02
\
Rated input
W
1,400
1,400
Rated current
A
5.8
5.8
Fan motor
Fan type
\
Centrifugal
Centrifugal
Model
\
YDK300-4X
YDK300-4X
Quantity
\
2
2
Brand
\
Matchwell/Yongan
Matchwell/Yongan
Input (Hi/Med/Lo)
W
880/730/615
880/730/615
Capacitor
\
20μF/450V
20μF/450V
Speed (Hi/Med/Lo)
r/min
1,100/990/880
1,100/990/880
Coil
Number of rows
\
4
4
Tube pitch(a)×row pitch(b)
mm
25.4×22
25.4×22
Fin spacing
mm
1.5
1.5
Fin type
\
Hydrophilic aluminum fin
Hydrophilic aluminum fin
Tube size
mm
Ф9.52
Ф9.52
Tube type
\
Inner grooved copper pipe
Inner grooved copper pipe
Coil(W×H)
mm
1,202×406.4
1,202×406.4
Number of circuits
\
16
16
Indoor air flow
m3/h
5100
5100
External static pressure
Pa
100
100
Indoor noise pressure level
dB(A)
56
56
Refrigerant
Type
\
R410A
R410A
Control
\
Capillary
Capillary
Design pressure
MPa
4.4/2.6
4.4/2.6
Refrigerant pipe (Liquid side/ Gas side)
mm
Ф12.7/Ф25.4#
Ф12.7/Ф25.4#
Connection wire
Power wire
\
3×2.5mm2
3×2.5mm2
Signal wire
\
4×1.0mm2
2×1.0mm2

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
10
Continued:
Model
MTB1T-96HWN1
MTB1T-96CWN1
Drain pipe size (OD)
mm
Ф41
Ф41
Controller
\
KJR-29B1/BK-E
KJR-29B1/BK-E
Operation temperature
°C
17 - 30
17 - 30
Indoor unit
Dimension (W×H×D)
mm
1,452×462×716
1,452×462×716
Packing (W×H×D)
mm
1,555×500×875
1,555×500×875
Net/Gross weight
kg
97/109
97/109
Notes:
#. Connection piping diameter of indoor unit is the inlet and outlet pipe of the indoor unit. When the length
of the refrigerant pipe between indoor and outdoor is not more than 30m, please connect the straight
pipe as the accessory in indoor unit with inlet refrigerant pipe to change the diameter of liquid pipe to
Ф9.52. When the length of the refrigerant pipe is more than 30m and less than 50m, please connect
the straight pipe (prepared in site) with outlet refrigerant to change the diameter of gas pipe to Ф28.1.
1. T1 nominal cooling capacities are based on the following conditions,
Indoor temperature is 27°C DB/19°C WB; Outdoor temperature is 35°C DB; Equivalent refrigerant
piping: 7.5m (horizontal).
2. T3 nominal cooling capacities are based on the following conditions:
Indoor temperature is 27°C DB/19°C WB; Outdoor temperature is 46°C DB; Equivalent refrigerant
piping: 7.5m (horizontal).
3. The noise is measured in the semi noise suppression lab.

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
11
Model
MHB1T-96HWN1
MHB1T-96CWN1
Power supply
\
220-240V~, 1Ph, 50Hz
220-240V~, 1Ph, 50Hz
T1 Cooling
Capacity
Btu/h
96,000
96,000
W
28,100
28,100
Input
W
9,600
9,600
EER
W/W
2.93
2.93
T3 Cooling
Capacity
Btu/h
87,860
87,860
W
25,750
25,750
Input
W
15,000
15,000
EER
W/W
1.72
1.72
Heating
Capacity
Btu/h
106,000
\
W
31,100
\
Input
W
10,300
\
COP
W/W
3.02
\
Rated input
W
1,400
1,400
Rated current
A
5.8
5.8
Fan motor
Fan type
\
Centrifugal
Centrifugal
Model (×Quantity)
\
YDK550-4X
YDK550-4X
Motor quantity
\
2
2
Brand
\
Matchwell/Yongan
Matchwell/Yongan
Input (Hi/Med/Lo)
W
910/780/680
910/780/680
Capacitor
\
20μF/450V
20μF/450V
Speed (Hi/Med/Lo)
r/min
1,320/1,230/1,120
1,320/1,230/1,120
Indoor coil
Number of rows
\
4
4
Tube pitch(a)×row pitch(b)
mm
25.4×22
25.4×22
Fin spacing
mm
1.5
1.5
Fin type
\
Hydrophilic aluminum fin
Hydrophilic aluminum fin
Tube size
mm
Ф9.52
Ф9.52
Tube type
\
Inner grooved copper pipe
Inner grooved copper pipe
Coil(W×H)
mm
1,202×406.4
1,202×406.4
Number of circuits
\
16
16
Indoor air flow
m3/h
5100
5100
External static pressure
Pa
196
196
Indoor noise pressure level
dB(A)
56
56
Refrigerant
Type
\
R410A
R410A
Control
\
Capillary
Capillary
Design pressure
MPa
4.4/2.6
4.4/2.6
Refrigerant pipe (Liquid side/ Gas side)
mm
Ф12.7/Ф25.4#
Ф12.7/Ф25.4#
Connection wire
Power wire
\
3×2.5mm2
3×2.5mm2
Signal wire
\
4×1.0mm2
2×1.0mm2
Continued:

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
12
Model
MHB1T-96HWN1
MHB1T-96CWN1
Drain pipe size (OD)
mm
Ф41
Ф41
Controller
\
KJR-29B1/BK-E
KJR-29B1/BK-E
Operation temperature
°C
17 - 30
17 - 30
Indoor unit
Dimension (W×H×D)
mm
1,452×462×716
1,452×462×716
Packing (W×H×D)
mm
1,555×500×875
1,555×500×875
Net/Gross weight
kg
97/109
97/109
Notes:
#. Connection piping diameter of indoor unit is the inlet and outlet pipe of the indoor unit. When the length
of the refrigerant pipe between indoor and outdoor is not more than 30m, please connect the straight
pipe as the accessory in indoor unit with inlet refrigerant pipe to change the diameter of liquid pipe to
Ф9.52. When the length of the refrigerant pipe is more than 30m and less than 50m, please connect
the straight pipe (prepared in site) with outlet refrigerant to change the diameter of gas pipe to Ф28.1.
1. T1 nominal cooling capacities are based on the following conditions,
Indoor temperature is 27°C DB/19°C WB; Outdoor temperature is 35°C DB; Equivalent refrigerant
piping: 7.5m (horizontal).
2. T3 nominal cooling capacities are based on the following conditions:
Indoor temperature is 27°C DB/19°C WB; Outdoor temperature is 46°C DB; Equivalent refrigerant
piping: 7.5m (horizontal).
3. The noise is measured in the semi noise suppression lab.

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
13
2. Dimensions (Unit: mm)
MTB1T-96C(H)WN1,MHB1T-96C(H)WN1:

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
14

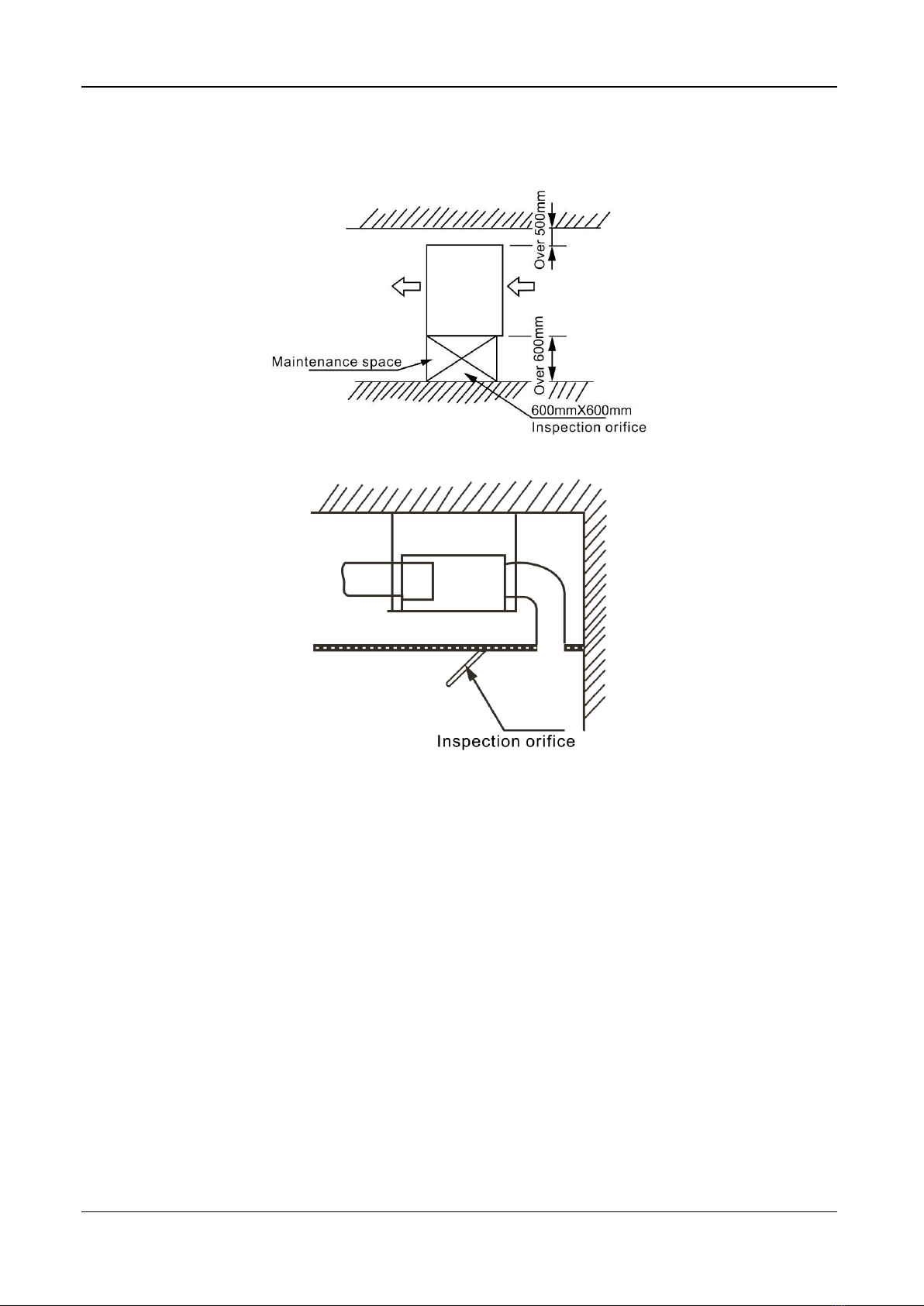

3. Service Space

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
15

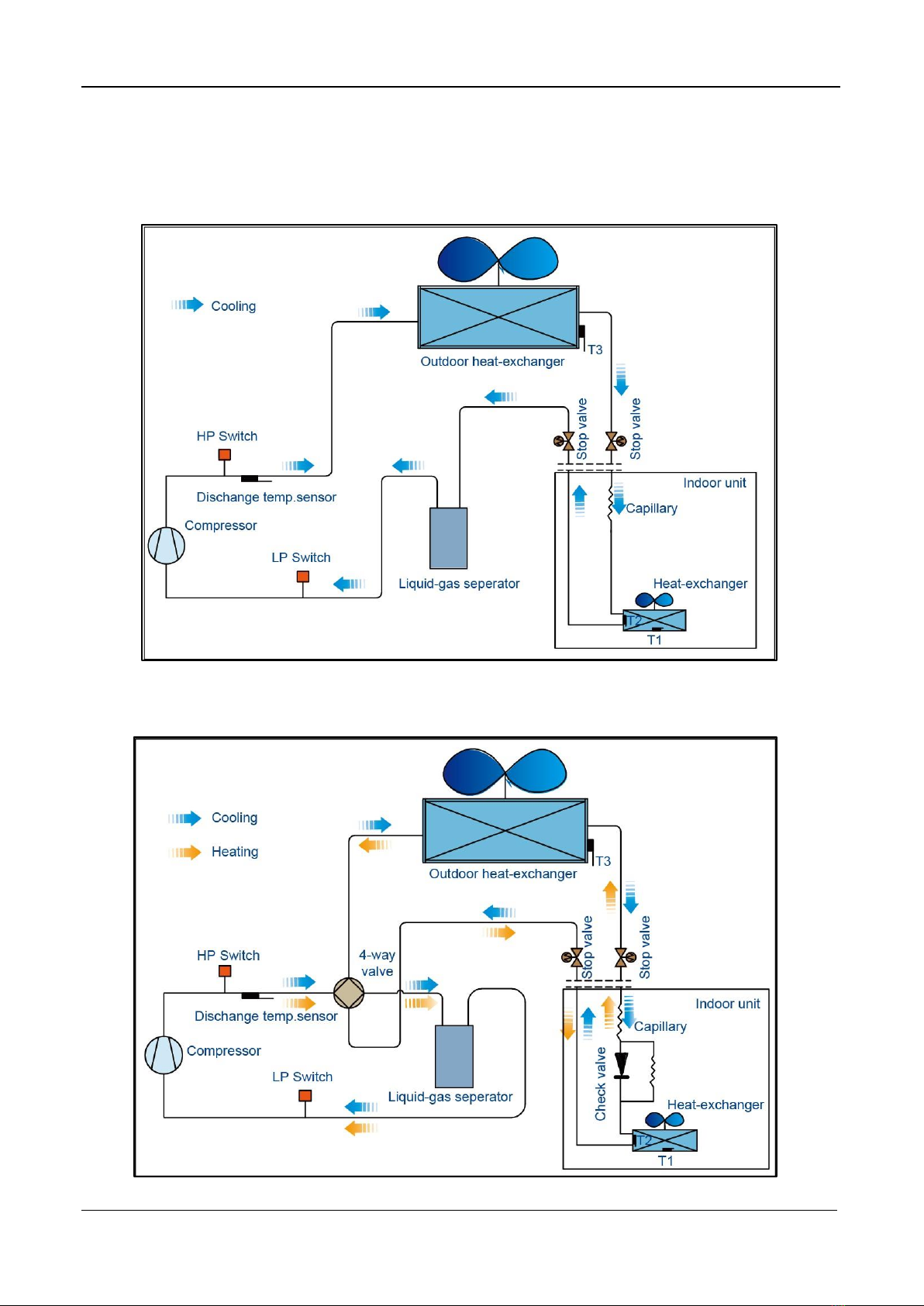

4. Refrigerant circuit
Cooling only: MTB1T-96CWN1, MHB1T-96CWN1
Heat pump: MTB1T-96HWN1, MHB1T-96HWN1

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
16

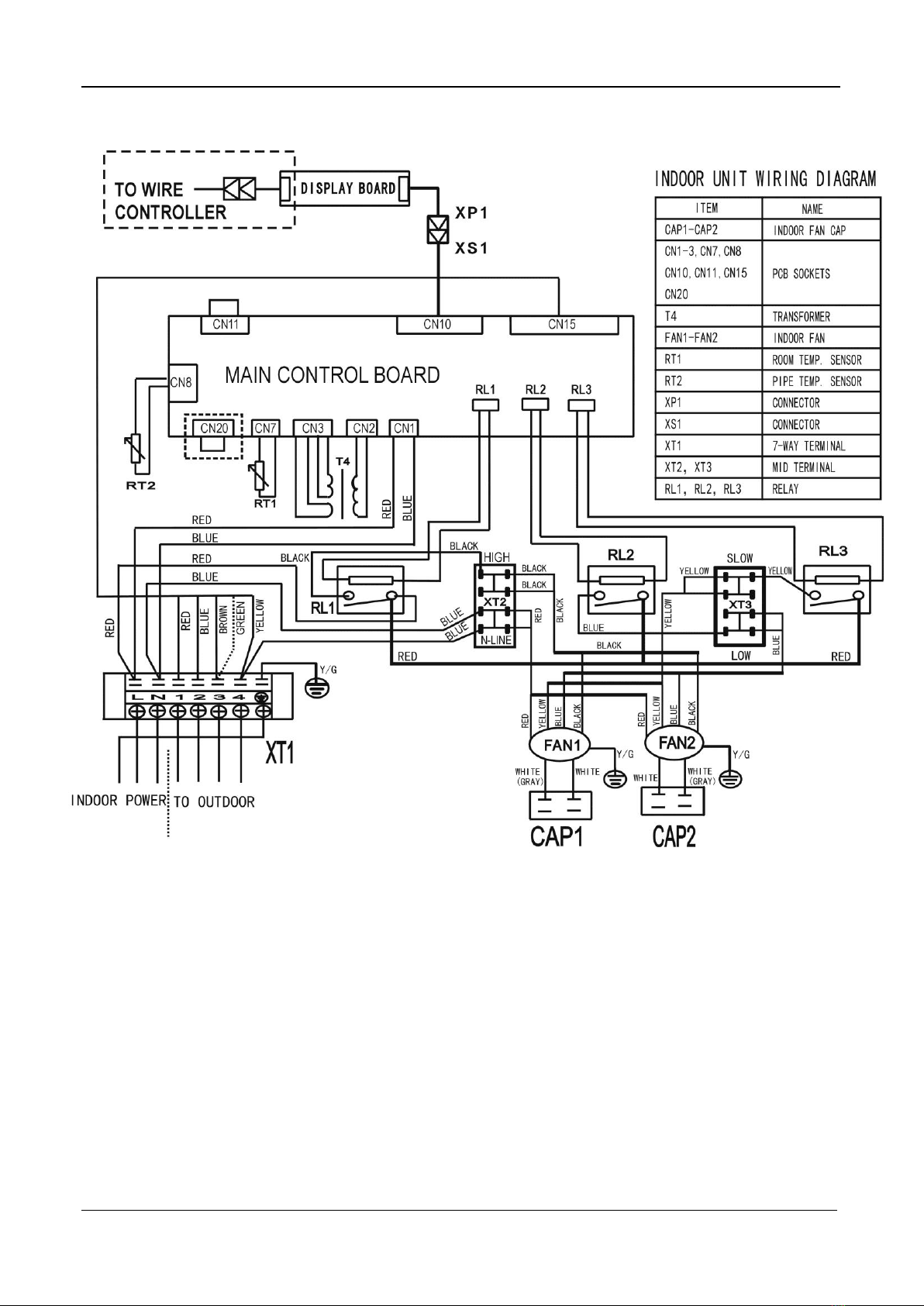

5. Wiring Diagrams
MTB1T-96CWN1, MHB1T-96CWN1

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
17
MTB1T-96HWN1, MHB1T-96HWN1

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series
18
6. Capacity Table
MTB1T-96C(H)WN1, MHB1T-96C(H)WN1
Gross Cooling Capacity (kW)
Outdoor DB(°C)
29.40
35.00
Indoor
WB(°C)
16.10
19.40
22.80
16.10
19.40
22.80
CFM
DB(°C)
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
2470
23.90
19.37
13.09
5.62
20.62
13.75
5.90
21.66
14.44
6.20
19.07
12.71
6.51
20.02
13.35
6.83
21.02
14.02
7.18
26.70
20.14
15.71
5.85
21.45
16.50
6.14
22.52
17.32
6.45
19.83
15.26
6.77
20.82
16.02
7.11
21.87
16.82
7.46
29.40
20.95
17.70
6.08
22.31
18.59
6.39
23.42
19.52
6.70
20.63
17.19
7.04
21.66
18.05
7.39
22.74
18.95
7.76
32.20
21.78
20.09
6.32
23.20
21.09
6.64
24.36
22.15
6.97
21.45
19.50
7.32
22.52
20.48
7.69
23.65
21.50
8.07
2700
23.90
22.66
15.32
6.58
24.13
16.09
6.91
25.33
16.89
7.25
22.31
14.87
7.61
23.42
15.62
7.99
24.60
16.40
8.39
26.70
23.56
18.38
6.84
25.09
19.30
7.18
26.35
20.27
7.54
23.20
17.85
7.92
24.36
18.74
8.31
25.58
19.68
8.73
29.40
24.50
20.71
7.11
26.10
21.75
7.47
27.40
22.83
7.84
24.13
20.11
8.24
25.34
21.11
8.65
26.60
22.17
9.08
32.20
25.49
23.50
7.40
27.14
24.67
7.77
28.50
25.91
8.16
25.10
22.81
8.56
26.35
23.95
8.99
27.67
25.15
9.44
3000
23.90
26.50
17.92
7.69
28.23
18.82
8.08
29.64
19.76
8.48
26.10
17.40
8.91
27.40
18.27
9.35
28.77
19.18
9.82
26.70
27.56
21.51
8.00
29.36
22.58
8.40
30.82
23.71
8.82
27.14
20.88
9.26
28.50
21.92
9.73
29.93
23.02
10.21
29.40
28.39
24.00
8.24
30.24
25.20
8.65
31.75
26.46
9.09
27.96
23.30
9.54
29.36
24.46
10.02
30.82
25.69
10.52
32.20
29.24
26.96
8.49
31.14
28.31
8.91
32.70
29.73
9.36
28.80
26.18
9.83
30.24
27.49
10.32
31.75
28.86
10.84
3300
23.90
30.12
20.37
8.74
32.08
21.38
9.18
33.68
22.45
9.64
29.66
19.77
10.12
31.14
20.76
10.63
32.70
21.80
11.16
26.70
31.02
24.20
9.01
33.04
25.41
9.46
34.69
26.69
9.93
30.55
23.50
10.43
32.08
24.67
10.95
33.68
25.91
11.50
29.40
31.96
27.01
9.28
34.03
28.36
9.74
35.73
29.78
10.23
31.47
26.22
10.74
33.04
27.53
11.28
34.69
28.91
11.84
32.20
32.91
30.35
9.56
35.05
31.86
10.03
36.80
33.46
10.53
32.41
29.46
11.06
34.03
30.94
11.61
35.73
32.48
12.20
Notes: 1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
2. TGC = Total Gross Cooling Capacity (Unit: kW)
3. SHC = Sensible Heat Capacity (Unit: kW)
4. PI = Power input (kW)

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707
19
Gross Cooling Capacity (kW)
Outdoor DB(°C)
40.60
46.10
Indoor
WB(°C)
16.10
19.40
22.80
16.10
19.40
22.80
CFM
DB(°C)
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
TGC
SHC
PI
2470
23.90
17.75
11.83
8.67
18.63
12.42
9.10
19.57
13.04
9.56
17.23
11.49
10.04
18.09
12.06
10.54
19.00
12.66
11.07
26.70
18.46
14.20
9.02
19.38
14.91
9.47
20.35
15.65
9.94
17.92
13.78
10.44
18.82
14.47
10.96
19.76
15.20
11.51
29.40
19.20
16.00
9.38
20.15
16.80
9.85
21.16
17.64
10.34
18.64
15.53
10.86
19.57
16.31
11.40
20.55
17.12
11.97
32.20
19.96
18.15
9.75
20.96
19.06
10.24
22.01
20.01
10.75
19.38
17.62
11.29
20.35
18.50
11.85
21.37
19.43
12.45
2700
23.90
20.76
13.84
10.14
21.80
14.53
10.65
22.89
15.26
11.18
20.16
13.44
11.74
21.16
14.11
12.33
22.22
14.82
12.95
26.70
21.59
16.61
10.55
22.67
17.44
11.08
23.81
18.31
11.63
20.96
16.13
12.21
22.01
16.93
12.82
23.11
17.78
13.46
29.40
22.46
18.71
10.97
23.58
19.65
11.52
24.76
20.63
12.10
21.80
18.17
12.70
22.89
19.08
13.33
24.04
20.03
14.00
32.20
23.35
21.23
11.41
24.52
22.29
11.98
25.75
23.41
12.58
22.67
20.61
13.21
23.81
21.64
13.87
25.00
22.73
14.56
3000
23.90
24.29
16.19
11.87
25.50
17.00
12.46
26.78
17.85
13.08
23.58
15.72
13.74
24.76
16.51
14.42
26.00
17.33
15.14
26.70
25.26
19.43
12.34
26.52
20.40
12.96
27.85
21.42
13.61
24.52
18.86
14.29
25.75
19.81
15.00
27.04
20.80
15.75
29.40
26.02
21.68
12.71
27.32
22.77
13.35
28.68
23.90
14.01
25.26
21.05
14.71
26.52
22.10
15.45
27.85
23.21
16.22
32.20
26.80
24.36
13.09
28.14
25.58
13.75
29.54
26.86
14.43
26.02
23.65
15.16
27.32
24.83
15.91
28.68
26.08
16.71
3300
23.90
27.60
18.40
13.48
28.98
19.32
14.16
30.43
20.29
14.87
26.80
17.87
15.61
28.14
18.76
16.39
29.54
19.70
17.21
26.70
28.43
21.87
13.89
29.85
22.96
14.58
31.34
24.11
15.31
27.60
21.23
16.08
28.98
22.29
16.88
30.43
23.41
17.73
29.40
29.28
24.40
14.31
30.75
25.62
15.02
32.28
26.90
15.77
28.43
23.69
16.56
29.85
24.88
17.39
31.34
26.12
18.26
32.20
30.16
27.42
14.74
31.67
28.79
15.47
33.25
30.23
16.25
29.28
26.62
17.06
30.75
27.95
17.91
32.28
29.35
18.81
Notes: 1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
2. TGC = Total Gross Cooling Capacity (Unit: kW)
3. SHC = Sensible Heat Capacity (Unit: kW)
4. PI = Power input (kW)
