Midea MDWMINIW User manual

QUICK USER GUIDE
Please read the main content in the instruction manual for detailed operating
method.
Connected to power supplies
or

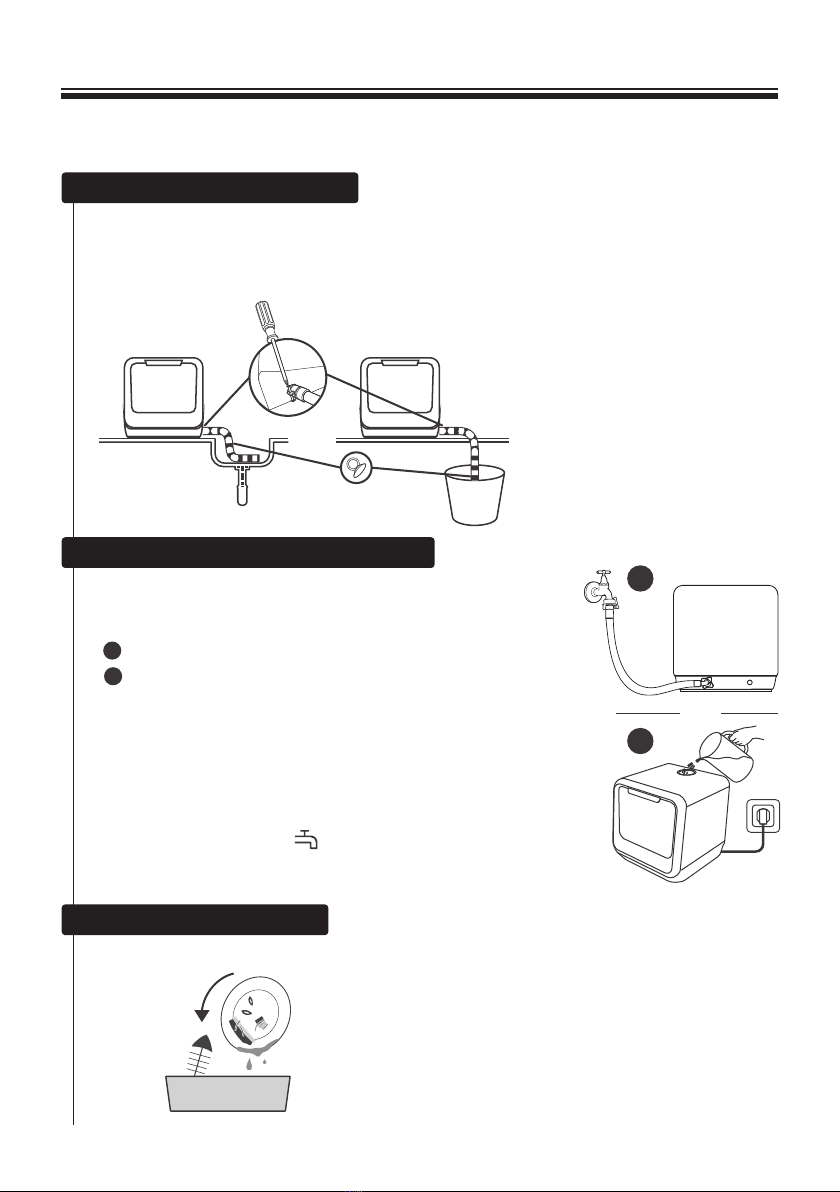

Connect the drain pipe with the back pipe of the machine.The
interface is fitted with clamps and tightened with a screwdriver.
Fix the drain pipe with
suction cups
The connection of the drain pipe: Put end of the drain hose into a sink or bucket.
Add water into the dishwasher’s tank
There are two ways of checking the tank is full of water
1. Before starting:
When the water tank is full, the machine will beep
for 3 seconds.
2. After starting:
If water is not enough, light is on;
When the water tank is full the machine will beep for 3 seconds.
Remove the larger residue
Scrape off excess food before placing the dishes in the dishwasher.
The power supply is 220-240VAC 50 Hz
the specification of the socket is 10 A 250 VAC
There are two ways to add water into the tank:
or
1
2
1
2
Connect inlet hose to the tap or,
Open the cap and add water into the dishwasher’s
tank manually
Note: Before adding water, you need to press power
button to turn on the diswasher

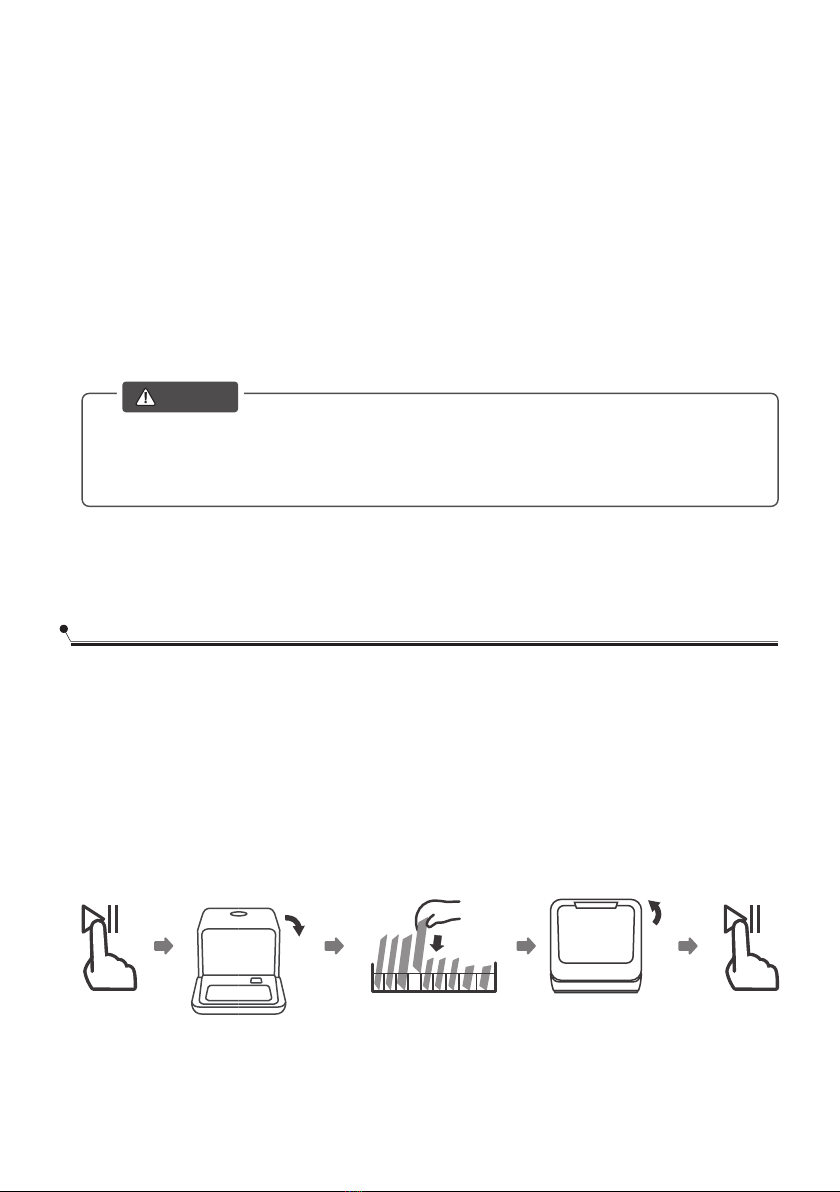

Close the door, select the program and start the dishwasher
Open the door, placing the dishes and adding detergent
Place large items on the sides and small items in the middle for optimal
cleaning performance. All cutlery should be placed in cutlery basket.
Left Right
Pull open

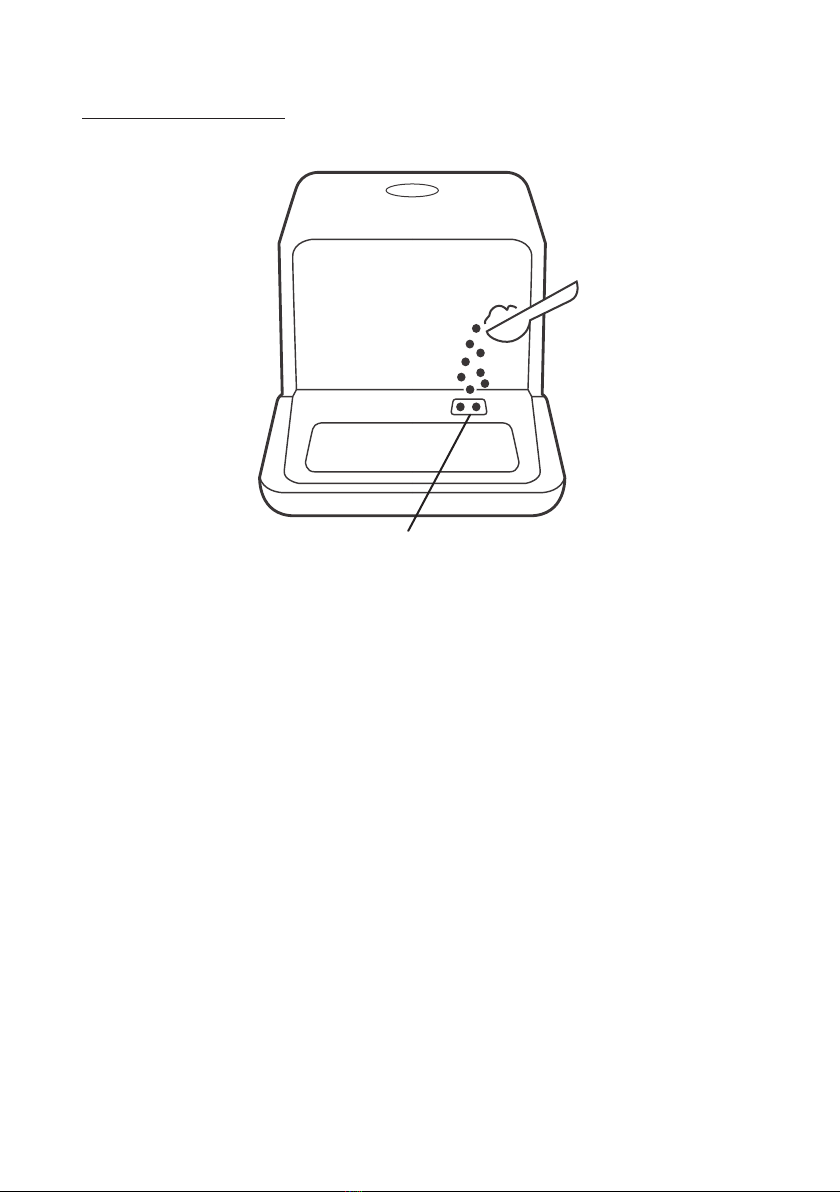

The place to add the detergent
NB: Do not add detergent when selecting Fruit Program!

CONTENTS
Please carefully read this manual before using the dishwasher, it will help you
use and maintain the dishwasher properly .
IMPORTANT SAFETY INSTRUCTIONS
5
INSTALLATION INSTRUCTION
25
Installation preparation
Power connection
Water connection
Connection of drain hoses
26
27
26
25
28
31
TROUBLESHOOTING TIPS
Before calling for service
Error codes
Technical information
32
GETTING TO KNOW YOUR APPLIANCE
Dishwasher features
Control panel
10
10
11
USING YOUR DISHWASHER
Loading the dishwasher baskets
Filling the dispenser
15
12
12
17
18
18
PROGRAMMING THE DISHWASHER
Wash cycle table
Turning on the appliance
Change the programme
Forget to add a dish?
At the end of the wash cycle
Forced drainage operation
20
19
MAINTENANCE AND CLEANING
Filter system
Caring for the dishwasher
How to keep your dishwasher in shape
21
21
22
17
28
20
24

IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using your dishwasher, follow the
precautions listed below:
This appliance is intended to be used in households
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
Caravans and RV Recreational vehicles and Motor
Homes.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.(For AS/NZS 2007.1)
This appliance is not intended for use by
persons (including children) with reduced physical,
sensory or mental capabilities, or lack of
5

Earthing instructions
experienceand knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
(For IEC60335-1)
This appliance is for indoor use only, household and
mobile home use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other
liquid.
Please unplug before cleaning and maintaining the
appliance.
Use a soft cloth moisten with mild soap, and then use
a dry cloth to wipe it again.
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will
an
equipment-
earthing conductor and a earthing plug.
The plug must be plugged into an appropriate
earth
with all local codes and ordinances.
reduce the
risk of electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with a cord having an
outlet that is installed and ed in accordance
6

General use
Do not modify the plug provided with the
appliance, if it does not fit the outlet. Have a proper
outlet installed by a qualified electrician.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly earthed.
Do not abuse, sit on, or stand on the door or dish rack
of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
running, there is a risk of water splashing out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Knives and other utensils with sharp
points must be loaded in the basket with their
points down or placed in a horizontal position.
Check that the detergent powder is empty after
completion of the wash cycle.
Warning:
7

Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
without mark, check the manufacturer's
recommendations.
Use only detergent additives designed for an
automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do
not play with the appliance.
The door should not be left open.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains
using new hose sets and that old hose-sets should
not be reused.
The maximum number of place settings to be
washed is 3.
The maximum permissible inlet water pressure is
1MPa.
The minimum permissible inlet water pressure is
0.04MPa.
8

Disposal
For disposal of package and the
appliance, please go to a recycling
centre. Therefore cut off the power
cord and close the door.
Cardboard packaging is manufactured from
recycled paper and should be disposed in the waste
paper collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of
this product, please contact your local city office
and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste
separately for special treatment is necessary.
9

GETTING TO KNOW YOUR APPLIANCE
IMPORTANT:
Before using this dishwasher for the first time and to get the best performance,
read these instructions.
Dishwasher features
Handle
Control panel
Kick board
Water jug
Cap of water tank
Upper spray arm
Filter
Basket
Tableware basket
The place to
add detergent
Lower spray arm
10

Control panel
Power
1
Function
3
To turn on and off.
Program Button: Press the button to select wash cycles
P1(ECO ) -P2 (1 hour ) -P3 (rapid ). ECO(Steam Adding)
Delay
2
12 3 4 5 6 7 8
9
Program
Storage
Get rid of the smell, damp and mildew proofing.
Extra dry
To select the extra dry function.
4To show the delay time 00~24h.
Fruit wash
5
Hot water: Suitable for washing fruit surfaces of a certain size,
such as apple, grape, jujube.
Cold water: Suitable for fruits with a weak surface, such
as strawberries.
Baby care
6Suitable for washing baby bottles. Steam wash function)(
Glass wash
7For lightly soiled loads, such as glasses, crystal and fine
china. (Steam wash function)
Start/Pause
8Press this button to start or pause the dishwasher, the process
pilot lamp will be blinking when starting.
Display
9Displays the time, functions,etc.
11
Steam Wash

USING YOUR DISHWASHER
12
Loading the dishwasher baskets
Recommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from detergent manufacturers.
For particular items, select a program with as low temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Not suitable for use:
Cutlery with wooden, horn, china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are
not temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Wooden items
Items made from synthetic fibres
(For the best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large food particles. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water. Place objects in the dishwasher
in the following way:
Items such as cups, glasses, pots/pans, etc. facing downwards.
Curved items, or those with recesses, should be loaded at an angle so that water
can run off.
All utensils are stacked securely and can not tip over.
Attention before or after loading the dishwasher baskets
Limited suitability:
Some glasses can become dull
after a large number of washes.
Silver and aluminium have a
tendency to discolour during
washing.
Glazed patterns may fade if
washed frequently.
Suitability of use in the dishwasher

All utensils are placed to allow the spray arms to rotated freely during washing.
Very small items should not be washed in the dishwasher as they could
easily fall out of the basket.
NOTE
Load cups, glasses, pans etc. with the opening facing downwards so that water
cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not be touched by spray arm.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable energy consumption.
13
Loading the basket
Position the dishes and cookware so that they will not come into contact with the
spray arm.
Dinner Plate
Soup Plate
Dessert Dish
Glass
Cup
Saucer
1
2
3
4
5
6
Item
Number
33
33
33
55
55
55
1
1
11
11
22
2222
44
44
44
66
66
66

Loading the cutlery basket
For personal safety and a top quality clean, make sure to place the cutlery
in the basket as follows:
They do not nest together.
Place silverware with handles-down.
But place knives and other potentially dangerous utensils handles-up.
14
Folding back the rack shelves
The spikes are used for holding plates and a platter. They can be lowered to
make more room for large items.
raise upwards fold backwards
Knife
Soup spoon
Fork
Dessert spoon
Teaspoon
1
2
3
4
5
Item
Number
11
11
11
22
22
22
33
33
33
44
44
44
55
55
55

Only use detergent
specifically for dishwashers.
Never use any other rinse aid and detergents.
This will damage the appliance.
The rinse aid is released during the final rinse to prevent water from forming
droplets on your dishes and utensils, which can leave spots and streaks.
Filling the dispenser
Dishwasher detergent is corrosive!
Keep dishwasher detergent out of
the reach of children.
WARNING
Based on their chemical composition, detergents can be split in two basic types:
Conventional, alkaline detergents with caustic components.
Low alkaline concentrated detergents with natural enzymes.
The use of Normal washing program in combination with concentrated detergent
reduces pollution and is good for your dishes.
Detergent tablets of different brands dissolve at different speeds. For this reason
some detergent tablets cannot dissolve and develop their full cleaning power
during short Programs. Therefore please use long programs when using detergent
tablets, to ensure the complete removal of detergent residuals.
Concentrated Detergent
Detergent Tablets
The d must be refilled before the start of each wash cycle following the
instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent
then conventional dishwasher. Generally, only one tablespoon of detergent is
needed for a normal wash load. More heavily soiled items need more detergent.
Always add the detergent just before starting the dishwasher, otherwise it could
get damp and will not dissolve properly.
etergent
Detergent
15

Adding detergent
16
Add the detergent here.
Do not add detergent for the fruit wash program!!!

PROGRAMMING THE DISHWASHER
Wash cycle table
The table below shows which programmes are best for the levels of food residue
on them and how much detergent is needed. It also show various information
about the programs.
A shorter wash for lightly
soiled loads and quick wash.
175
29
0.36
0.35
4,9
Wash (47 ℃)
Rinse
Rinse (64 ℃)
Drying
Wash (50 )
Rinse
Rinse (60 ℃)
℃
This is standard program,
it is suitable to clean normally
soiled tableware and it is the
most efficient program in terms
of its combined energy and
water consumption.
Wash(50 ℃)
Rinse
Rinse(65 ℃)
Drying
60 0.4
For lightly soiled loads that
do not need excellent drying
efficiency.
12 0.15 5
Wash (36 )
Rinse
℃ A little
soda powder
7 g
6 g
6 g
5
5
Fruit wash
(Hot)
Suitable for washing fruit
surfaces of a certain size,
such as apple, grape,
Not suitable for fruits with
a weak surface
6 0.01 5
Rinse
Fruit wash
(Cold)
suitable for fruits with a soft
surface, such as strawberries /
120 0.5 5
Suitable for washing
baby bottles
Wash(69 ℃)
Rinse
Rinse(70 ℃)
Drying
90 0.4 5
For lightly soiled loads, such as
glasses, crystal and fine china
Wash(50 ℃)
Rinse
Rinse(65 ℃)
Drying
(*AS/NZS 2007.1)
Program Description
Of Cycle
Detergent Time
(min)
Energy
(Kwh)
Water
(L)
Cycle Selection
Information
Rapid
1 Hour
Baby care
Glass
17
6 g
6 g

Turning on the appliance
NOTE
When you press the Start/Reset button to pause during washing,the
dishwasher will beep every minute unless you press the Start/Reset
button to start.
Starting a wash cycle...
1. Draw out the basket (see the section entitled Loading the Dishwasher ).
2. Pour in the detergent ( Fill the ).
3. Insert the plug into the socket. The power supply is 220-240VAC 50 HZ, the
specification of the socket is 10 A 250 VAC.
ake sure that the water supply is turned on
to full pressure
" "
see the section“ detergent”
4. Press the power button to turn on the appliance,
5. Connect the inlet hose to the tap, m
, or add water tank manually.
6. Select a suitable program according to the Wash cycle table,
Pause
7. When a program is selected, the response light will light. Then press the Start/
button, the dishwasher begins to start.
Premise: You can modify the washing program, If the dishwasher has been on for
a short time. Otherwise, the detergent may have already been released, and the
appliance may have already drained the wash water in this case, the
must be
cycle
restarted.
Change the program
NOTE
AS/NZS 2007.1
test in accordance with AS/NZS 2007.1, are as follows:
: This program is the test cycle. The information for comparability
The power consumption of off-mode is 0.57W,
left-on mode is 0.74W
18

Forget to add a dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1.
2.
3.
4.
5.
. S
Press the Start/Pause button
Open the door a little to stop the washing.
After the spray arm stops working, you can open the door completely.
Add forgotten dishes.
Close the door.
6Press the tart/Pause button, the dishwasher will run .
NOTE
If you open the door during washing, the machine will pause. When
you press the Start/Pause Button, the machine will keep on
working after 10 seconds.
If your model has power memory function, the machine will continue to finish the
selected program after power restoration.
Press S Button to pause the machine when the door is closed ,
Press Program Button more than three seconds the machine will be in stand by
state, then you can change the program to the desired cycle setting
(see the section entitled Starting a wash program").
tart/Pause
"
The Display window shows the stage of the dishwasher:
a) Display window shows "-:--" ----------------------------------> stand by;
b) Display window shows "H:MM" and not blinking -------------> pause;
c) Display window shows "H:MM" and blinking ------------------------> run;
d) Display window shows "END" ------------------------> end.
19

Switch Off the Dishwasher
1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!
Open the door carefully
Hot dishes are sensitive to knocks. The dishes should be allowed to cool down
around 15 minutes before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing
the dishes. In this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
It is dangerous to open the door when washing, because the hot water
may scald you.
WARNING
At the end of the Wash Cycle
When the program cycle has finished, the buzzer of dishwasher will sound 8 seconds,
then stop. Turn off the appliance using the ON/OFF button, shut off the water supply
and open the door of the dishwasher.
20
Forced drainage operation
In standby mode, you can press and hold “Baby care” button + “Glass wash” button
for 3 seconds simultaneously to drain the water tank.
