OWNER’S MANUAL
Fully AUTOMATIC WASHING MACHINE
MODEL:
MA200W80/G-MV
MA200W100D/S-MV
Washing Machine
Fully AUTOMATIC

1
Technical Information .............................................................................................
CONTENTS
SAFETY INSTRUCTIONS
Safety instructions ....................................................................................................
INSTALLATION
Product description ..............................................................................................
Installation area ...........................................................................................................
Unpacking the washing machine .........................................................
Levelling the washing machine .................................................................
Selection of tap ............................................................................................................
Connection of inlet hose , tap and washing machine....
Preparation before washing............................................................................
Washing ...............................................................................................................................
After washing...................................................................................................................
Washing matters needing attention ....................................................
The usage of detergent and washing powder........................
Control pane ....................................................................................................................l
Option......................................................................................................................................
Personalized setting of washing program....................................
Operations of washing process..................................................................
Washing program table .....................................................................................
MAINTENANCE
Cleaning and care ....................................................................................................
Cleaning the cabinet...............................................................................................
Cleaning drain pump filter ...............................................................................
Trouble shooting ......................................................................................................
OPERATIONS
Installation of drain hose ..................................................................................
Instructions for detergents and softeners.......................................
2
8
9
9
10
12
12
13
13
13
14
14
15
16
17
17
19
20
20
20
21
10
11
22

SAFETY INSTRUCTIONS
For your safety, the information in this manual mus t be followed
to minimize the risk of fir e or explosion, electric shock, or t o
prevent property damage, personal injury or los s of life.
SAFETY INSTRUCTIONS
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental capabilities
or lack of experience and knowledge unless they have
been given supervision or ins truction concerning use of
the appliance by a person responsible for their safety.
•
•
•
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar
applications such as:
− staff kitchen areas in shops, offic es and other working environments;
− farm houses;
− by clients in hotels, motels and other residential type environments;
− bed and breakfast type environments;
− areas for communal use in blocks of fla ts or in launderettes.
Children should be supervised t o ensure that they do not
play with the applianc e.
The new hose-sets supplied with the applianc e are to be
used and that old hose-sets should not be r eused.
If the supply cord is damaged, it mus t be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
2

SAFETY INSTRUCTIONS
3
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unles s it’s avoided.
Explanation of the s ymbols:
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage t o property and the
environment.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Model Washing Capacity Standard Water Pressure
0.03MPa~0.8MPa
8.0kg
MA200W80/G-MV
MA200W100D/S-MV
10.0kg 0.03MPa~0.8MPa

4
SAFETY INSTRUCTIONS
The electric shock!
Warning!
•
•
• Hands shall not be insert ed into running spin-dry tub .
• If the spin-dry tub does not s top within 15 seconds after
opening the cover , please stop using the machine and
have it repaired.
• Before any maintenance the device, unplug the applianc e
from the mains.
• Always unplug the machine and turn off the w ater supply
after use. The max. inlet w ater pressure, in pascals. T he
min. inlet w ater pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed thr ee-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
• Make sure that the water and electrical de vices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local saf ety regulations.
Do not put washing machine at humid place.
This appliance is for indoor use only.

• EN countries: the applianc e can be used by children aged
from 8 years and above and persons with r educed physical,
sensory or mental capabilities or lack of e xperience and
knowledge if they have been given supervision or
instruction concerning use of the applianc e in a safe way
and understand the hazards involved. Children shall not
play with the applianc e. Cleaning and user maint enance
shall not be made b y children without supervision.
• Animals and childr en may climb into the machine. Check
the machine before every operation.
• Young children should be supervised tha t they do not play
with the applianc e.
• Machine may be very hot during the oper ation. Keep kids
and pets far away from the machine during the oper ation
• Plug must be accessible after installation.
very wet rooms as well as in the rooms with explosive or
caustic gas.
•
• The washing machine with single inlet v alve only can be
connected to the cold water supply. The product
inlet valves should be correctly connected to the hot water
and cold water supply.
with double
Remove all packages before using the appliance. Otherwise,
serious damage ma y result.
Risk of explosion!
•
•
Do not wash or dry articles tha t have been cleaned in, washed
in, soaked in, or dabbed with c ombustible or explosive
substances( such as wax, oil, paint, gasoline , degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
5
SAFETY INSTRUCTIONS
Risk to children!

• This washing machine is for indoor use only.
• It isn't int ended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be ins talled in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage ma y result.
• The washing machine with single inlet v alve only can be
connected to the cold water supply. The product with
double inlet v alves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
6
SAFETY INSTRUCTIONS
Caution
Installing the product!
• Your product is only for home use and is only designed
for the textiles suitable f or machine washing.
• Do not climb up and sit on t op cover of the machine.
• Do not lean agains t machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be r einstalled to the machine by
a specializ ed person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine car efully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the c onveyance.
4.This appliance is heavy. Transport with car e.

Operating the applianc e!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole pr ocedures
without the clothes inside .
• Flammable and e xplosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as det ergents.
Please only select the det ergents suitable for machine
washing, especially f or drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, scr ew or stone etc. may
cause serious damages t o this machine.
• Please check whether the w ater inside the drum has
been drained before opening its door.Please do not open
the door if ther e is any water visible.
• Be careful of burning when the pr oduct drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indica tes that this product should not be disposed
with other household w astes throughout the EU.To prevent
possible harm to the environment or human health fr om
uncontrolled waste disposal,recycle it responsibly to promote
the sustainable reuse of material resources.To return your used
device,please use the collection systems or contact the retailer
where the product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/ Old appliance
7
SAFETY INSTRUCTIONS
• Please do not close the door with e xcessive forces.
• It is forbidden to wash carpets.

INSTALLATION

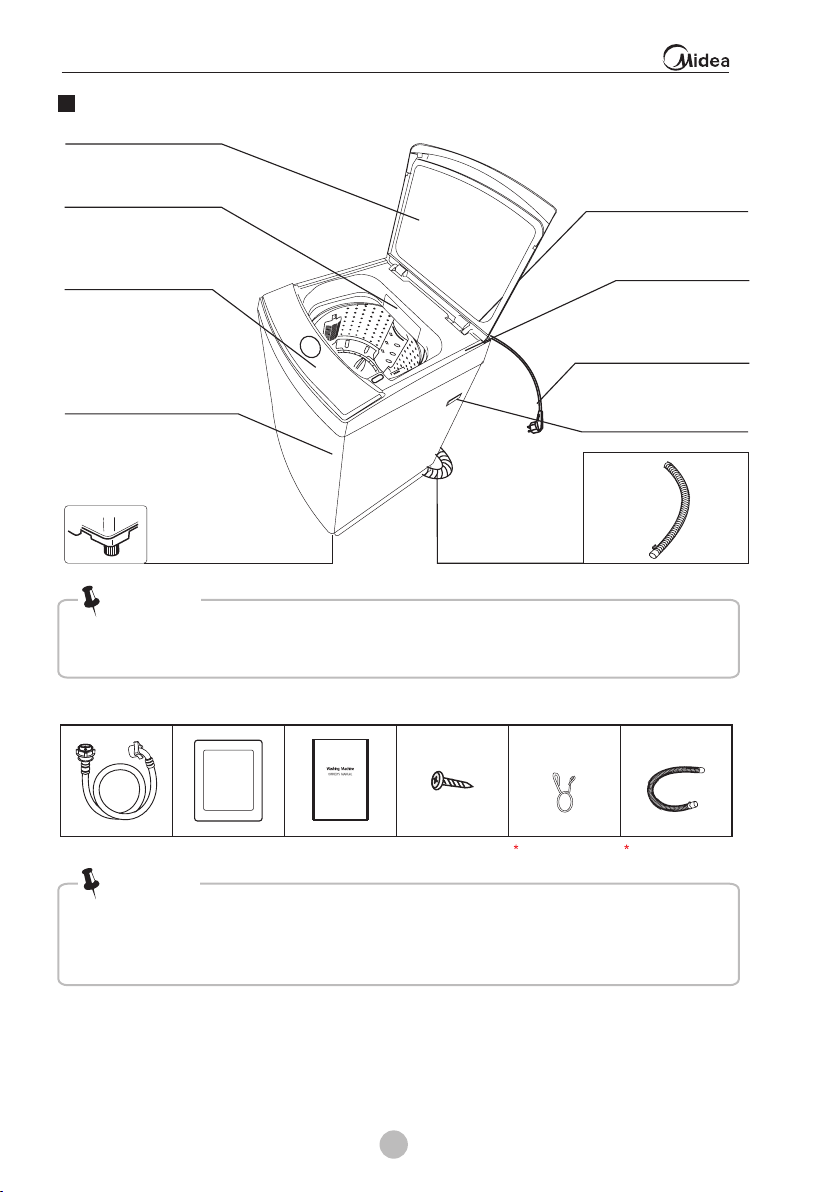

Product description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
8
Accessories
Inlet hose ass manual screw
cabinet baseboard
• Note: if the drain hose is already installed on the machine, then there is no
spring clamper and drain hose in the accessories.
• The accessories with” * “ are only applicable to some models.
Note!
Frame
Top lid
Drain hose
Control panel
Softener, inletDetergent
Cabinet
Adjustable foot knob
Handle
Water inlet valve
Power case and plug
spring clamperdrain loose ass

Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
as
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
9
INSTALLATION
w
w
W> 20mm
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
• dangerous for children.
• well away from children.
Packaging material (e.g. Films, Styrofoam) can be
There is a risk of suffocation ! Keep all packaging
Warning!

9
10
1.Check if the legs are closely attached
the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it closely contacts with
to
the floor.
4.After being locked properly, press four
corners again to make sure that they has
been adjusted properly.
• The lock nuts on all two feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
Lock nut foot
Raise Lower
lock
loosen
right
wrong
INSTALLATION
Installation of drain hose
1.Completely sleeve the drain hose over the sewer.
2.Fix and tight en it with a hoop.( As shown in the figure )
• Note: The drain hose of the machine with upper drain system has already been
assembled before leaving the factory. This picture is suitable for lower drain system.
Note!
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Warning!Warning!
water
trough
Under3m
Under 15cm

INSTALLATION
9
11
Instructions for detergents and softeners
Detergent inlet
washing powder inlet
Detergent inlet
Each delivery volume
does not exceed 20ml
Note!
Softener inlet

10
12
Wall
1:Connection between ordinary tap and inlet hose .
2:connection between screw tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
Warning!
Selection of tap
Please select
appropriate tap.
Connection of inlet hose, tap and washing machine
clamp nut
tap
1.Loosen clamp nut to
show 5mm thread
2.Loosen four bolts 3.Set connecting base
on tap and tighten
bolts evenly
4.Tighten clamp nut
inlet valve
inlet hose
slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6.connection finished 7.After connection and installation,
check if there is water leakage
tap with threads and inlet hose special tap for washing machine
Screw tap Special washing
machine tap
Ordinary faucet
INSTALLATION

Caution!
Before washing, please make sure it’s installed properly.
Before washing it at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
After washing
Washing
Power On Start up
1 2
• , If default is selected, step 2 3 can be skipped.
Note!
10
13
Buzzer will beep aft er washing finished and the power supply will be cut off automatically
Then unload the laundry.
.
34
Select Programme Select Level

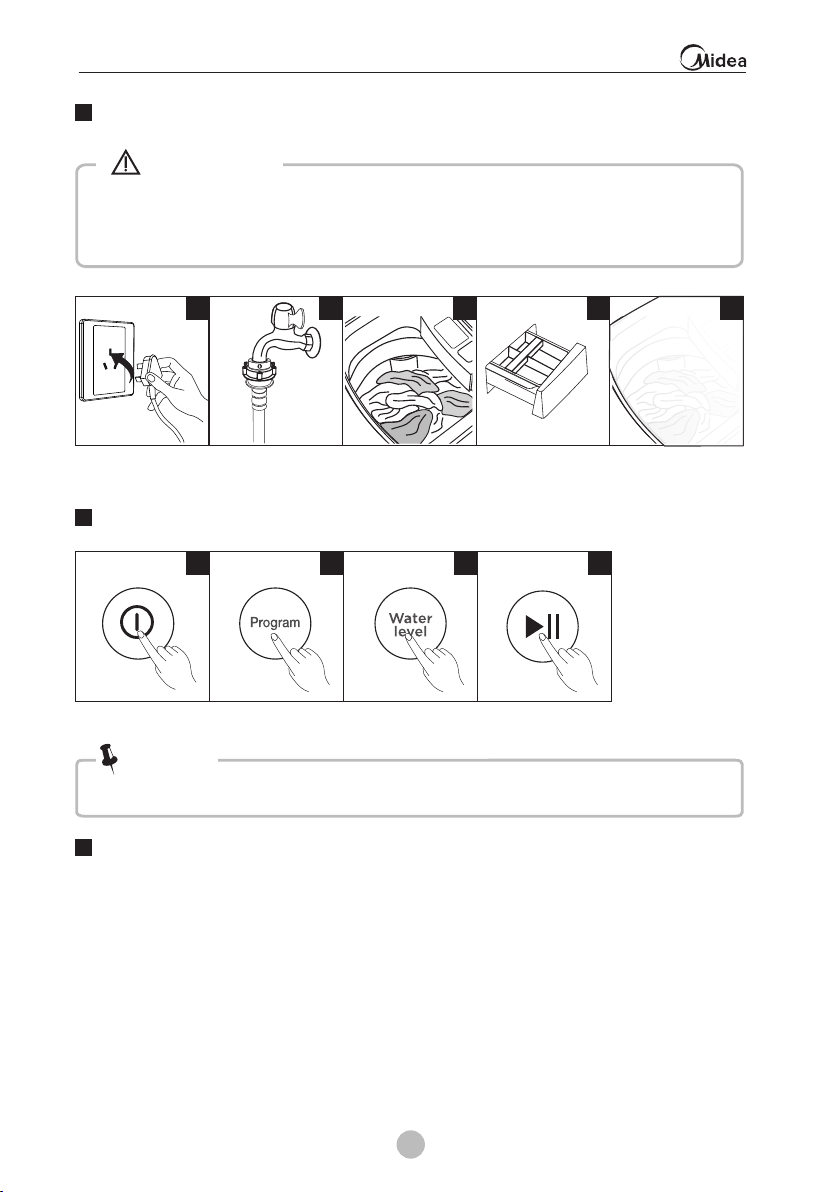

Preparation before washing
OPERATIONS
Open tap
Plug in
Add detergent
1 2 3 4
Load the
Put the clothes in
the washing machine
door and Close door
5

Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet
valve and draining system may be damaged. If the machine is placed under condition
of 0℃or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Washing matters needing attention
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
10
14
• As for the agglomerated or ropy detergent or additive, before they are
poured the detergent box, it is suggested to use some water for
dilution to prevent inlet of detergent box from being blocked and
overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
The usage of detergent and washing powder
OPERATIONS

Control panel
10
15
OPERATIONS
Product is switched on or off.
Start/Pause
Program Option
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
4
1
2
3
71
2
4
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
7
35 6
6
5
Select water level according to clothing
categories, degree of soiling and washing
habits of customers.
Function
Water level
Press the button to regulate the Hygiene
and Turbo.
Display
On/Off
Available according to the laundry type.
Press the button to start or pause the washing
cycle.
Use these key combinations to set
.
soak time,
washing time, rinsing times, spinning time and
other settings can be selectable.

16
Option
OPERATIONS
Child Lock
To avoid mis operation by children.
Start Press Child Lock
Power on
Select water level according to clothing categories, degree of soiling and washing
habits of customers.
Soak Washing time, rinsing times, spinning time and other settings
can be selectable.
time,
Delay
1. Select a program
2.Press the option , button to choose the time. button until Delay flash, Press the
3.Press [Start/Pause] to commence the delay operation
Choose the Pr ogram StartOn
Caution!
• If there is any break in the power supply while the machine is oper ating, a
special memory stores the selected program when the power is restarted.
Function
Only for washers having these function.
• Press the two button also to be released the function.
• The “ Child Lock” will lock all buttons except [ On/Off ].
3s
Caution!
Water level
Soak/Wash /Rinse /Spin
Set the delay function
Program
Option
Press the button to regulate the Hygiene and Turbo.
+
Soil Level .
Select clothes soil level. There are 4 levels to choose from, Extra Heavy, Heavy,
Medium and Light.
choose the time
Delay flash
• The display time is the end time of the Delay.

OPERATIONS
Water Level
Program
Personalized setting of washing program
Customers can select washing program according to actual demand, and set water
volume and appointment time

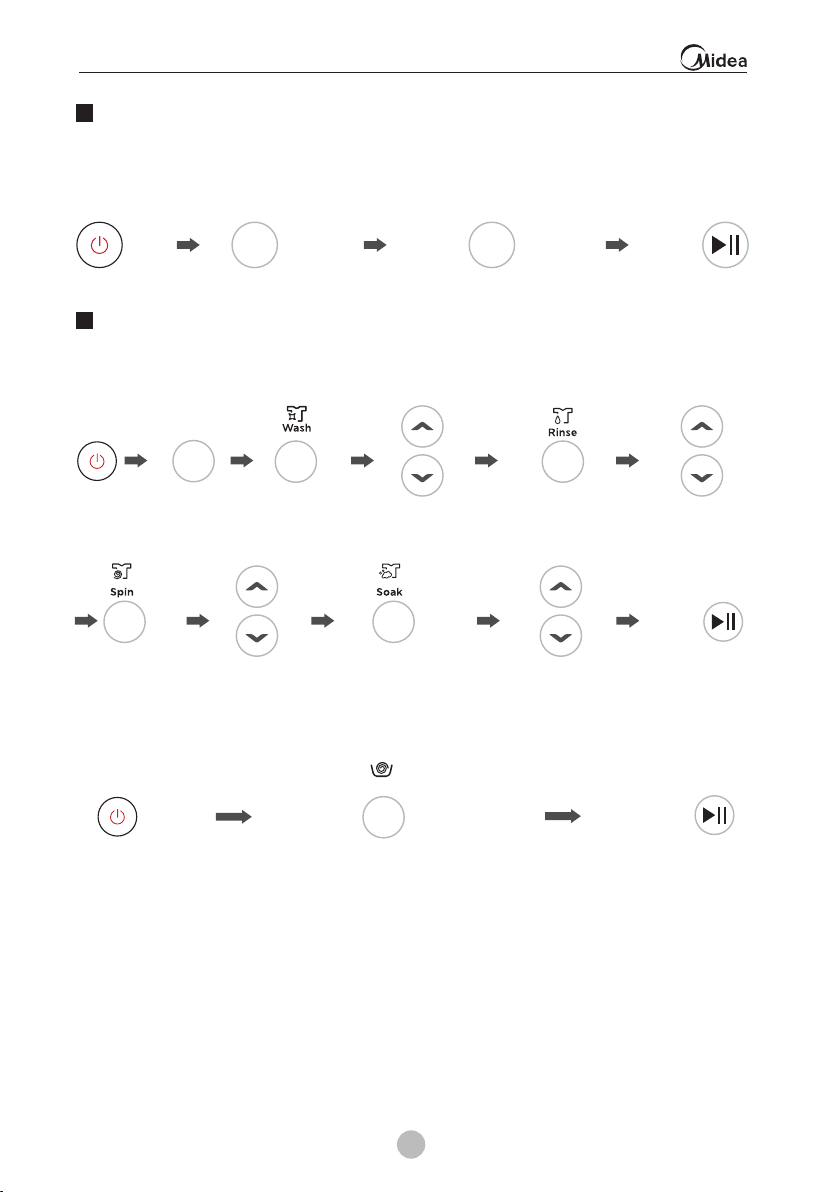

Operations of washing process
Start
On
17
Water
Level
Program

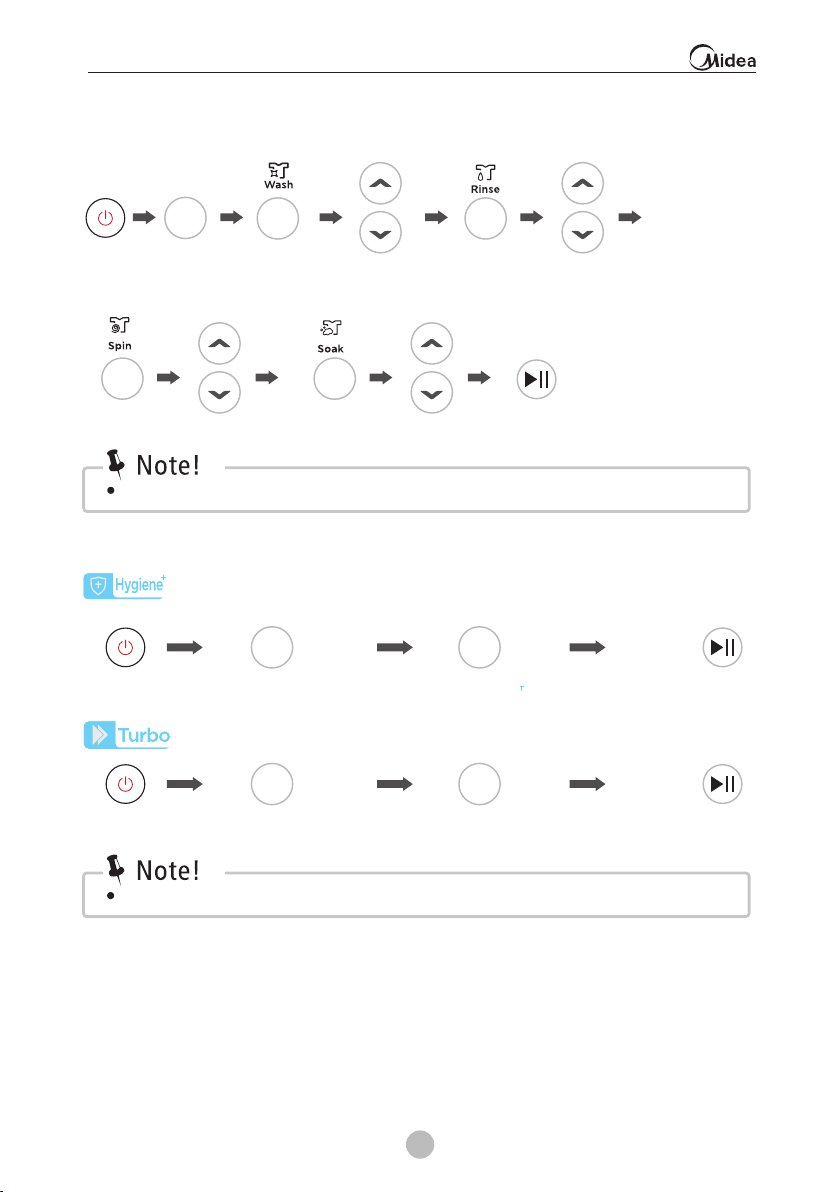

Spin only
On Start
Wash only
On
Choose the spin
only Pr ogram
Program
Start
Choose the
Program
Program
wash flash
Option
Set the time
flash
Rinse flash
Option
Set the tim
Delay” 0"
es
Spin flash
Option
Set the time
Delay” 0"
Soak flash
Option
Set the time
Delay” 0"

OPERATIONS
Note: other process combinations are just like above.
On Start
Choose the Pr ogram
Program
Only Hygiene light
Function
On Start
Choose the Pr ogram
Program
Only Turbo light
Function
Soak+Wash Spin+Rinse+
On
Start
Choose the
Program
Program
wash flash
Option
Set the time
Rinse flash
Option
Set the times
Spin flash
Option
Set the time
Soak flash
Option
Set the time
Note: There is no soaking function for quick washing and Spin programs .
9
18

Washing program table
10
19
OPERATIONS
Program
Normal Standard fabric washing program, suitable to wash ramie cotton fabric.
Wash for once, rinsing for twice, the spin time is a little long.
Quick Suitable to wash light stained clothes and clothes in summer .
Soft the tempo is soft, slow washing and spinning speed, to make the lightest
wear and deformation.
Program are available according to the laundry type.
Only for washers having these function
Spin only Select this program .to Spin and drain only
Strong
Heavy
Baby Care
Jeans Suitable to wash jeans stained/wearable clothes.
Suitable to wash heavy stained/wearable clothes.
The wash time is longer, the stream is stronger, so the washing
effect is better.
Suitable to wash the children's clothes.
Health guard, use this program to increase washing time, rinsing
times, dehydration time, etc. Make clothes cleaner and health
After choosing a program, the user can press button (the
light up) to start the function, making the program shorter and
good washing performance.
Function
Turbo
Use the strong water flow generated during dehydration to flush the
inner and outer tubs of the washing machine to reduce the residue of dirt.
Normal, Strong, Heavy, Jeans, Baby Care programs have a no-clean function
by default (the no-clean light flashes ).
This manual suits for next models
1
Table of contents
Other Midea Washer manuals

Midea
Midea MFWS712 User manual

Midea
Midea MLH52N5AWW Manual

Midea
Midea G06 User manual

Midea
Midea MLV45N1B Series Manual

Midea
Midea MLV41N1AWW User manual

Midea
Midea MAH180-A2801PS/01FM-US User manual

Midea
Midea MFW-850M2 User manual

Midea
Midea MA500W150 Series User manual

Midea
Midea MFL80-ES1200 User manual

Midea
Midea MFW-1655CV User manual

Midea
Midea VCWX6 User manual

Midea
Midea MFES06W50/W-ES User manual

Midea
Midea MF200W70B/E User manual

Midea
Midea MSW-1508P User manual

Midea
Midea MAC160-S2802TPS/FM User manual

Midea
Midea MFW-EC850 User manual

Midea
Midea C01 User manual

Midea
Midea MLV47A3AWW Instruction sheet

Midea
Midea 360215 User manual

Midea
Midea 360471 User manual
