Miele CVA 2662 CVA 2662 User manual

Operating and Installation
Instructions
Coffee System
CVA 2662
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 07 357 080
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

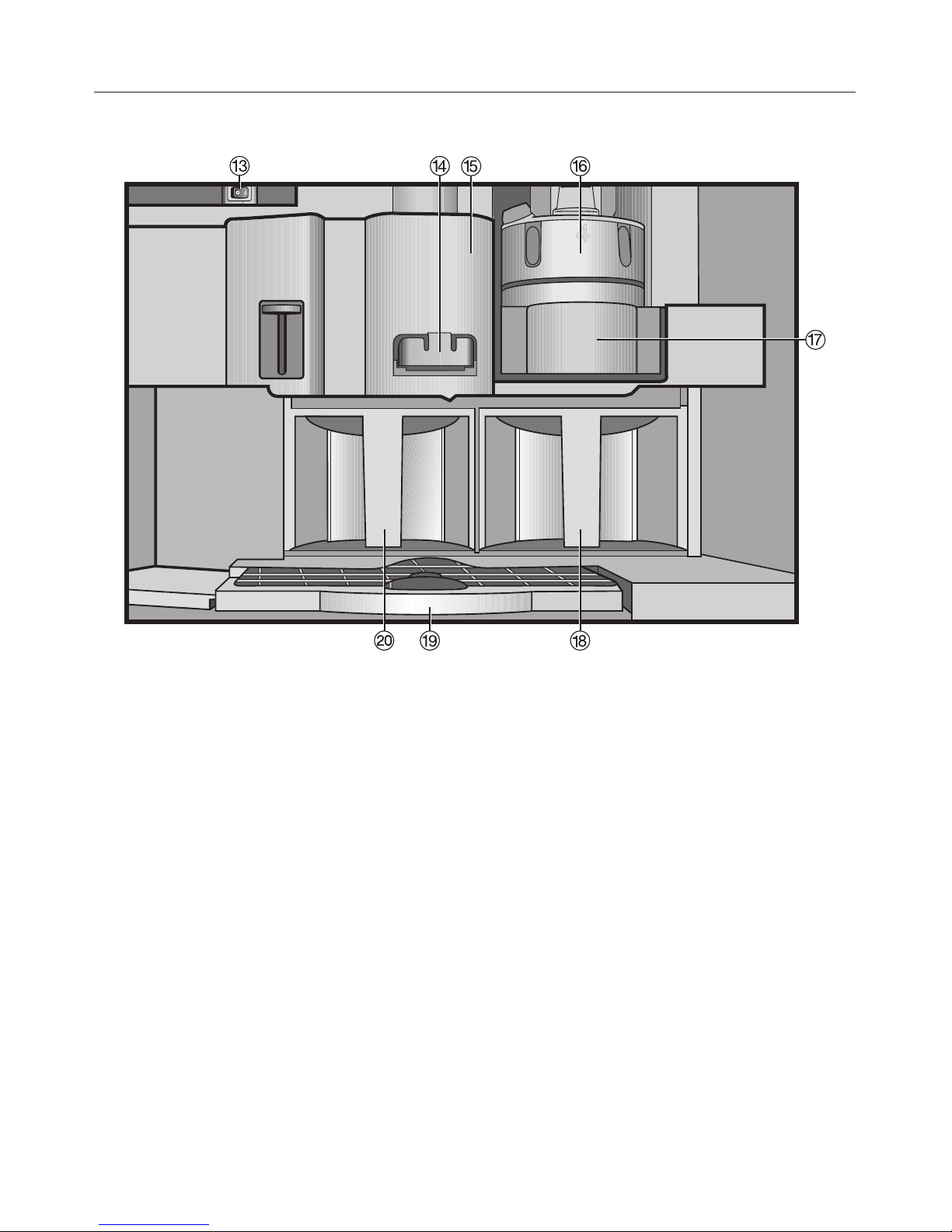

Guide to the coffee system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
First steps to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filling water and coffee capsules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Allocating various coffee types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Making coffee / espresso . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Coffee and Espresso ...............................................18
Preparing hot milk, frothed milk, and Cappuccino ........................19
After use.........................................................22
Setting serving sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
User profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selecting a user profile .............................................25
Setting a user profile ...............................................25
Making coffee / espresso with user profiles .............................27
Setting serving sizes for user profiles ..................................27
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Selecting a language...............................................28
Time of day ......................................................28
Setting the timer...................................................29
Steam system ....................................................31
Lighting: Adjusting the brightness.....................................31
Lighting: Setting the switch-off time....................................32
Display ..........................................................32
Volume ..........................................................33
Info (displaying No. of drinks) ........................................33
System lock ......................................................34
Water hardness ...................................................34
Restore factory default settings .......................................35
Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Overview ........................................................37
Descaling the coffee system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Removing a jammed capsule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Coffee glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
The Espresso range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
The "Pure Origin" Espresso range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
The Lungo range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Contents

When using electrical appliances basic safety precautions should always be
followed, including the following:
Read all instructions before installation or use of the coffee system.
Please read these instructions
carefully to prevent accidents and
machine damage.
This appliance complies with current
safety requirements. Improper use
of the appliance can cause personal
injury and material damage.
Read this safety information carefully
before operating the appliance.
They contain important information
on the safe installation, operation,
and care of your coffee system. To
avoid the risk of personal injury or
damage to the coffee system, it is
important that you carefully read the
instructions.
Keep them in a safe place and pass
them on to any future user.
Proper use
~This coffee system is for household
use only, for the preparation of coffee
beverages (espresso, cappuccino and
coffee).
Do not use this machine other than for
its intended use. Any other use could
be hazardous.
~Persons which lack physical,
sensory or mental abilities or
experience with the machine should not
use it without supervision or instruction
by a responsible person.
Children
~Close supervision is necessary
when any appliance is used by or near
children. They could easily be scalded
or burned.
~Never let children play with the
coffee system.
IMPORTANT SAFETY INSTRUCTIONS
4

Technical safety
~Before installing the appliance
check for externally visible damage.
Do not operate a damaged appliance.
~Before connecting the appliance to
the electrical supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. If in doubt,
consult a qualified technician.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~The appliance must be properly
installed before operation to ensure that
no electrical components are
accessible. Ensure that power is not
supplied to the appliance while
installation work, repairs or
maintenance is performed.
~Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance
(danger of overheating).
~This appliance must not be installed
or operated outdoors.
~Before service or maintenance
disconnect the power supply by either
removing the fuse, “tripping” the circuit
breaker or unplugging the unit.
~This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
~Installation work and repairs must
only be performed by a trained
technician in accordance with national
and local safety regulations. Repairs
and other work by unauthorized
persons could be dangerous and may
void the warranty.
~While the appliance is under
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
~To protect against fire, electric
shock and injury to persons do not
submerge the cord or plugs in water or
other liquids.
IMPORTANT SAFETY INSTRUCTIONS
5

~Do not let the cord hang over the
edge of a table or counter, or touch hot
surfaces.
~Do not operate any appliance with a
damaged cord or plug, or after the
appliance malfunctions or has been
damaged in any manner. Contact
Miele.
~Always attach the cord to the
appliance first, then plug it into the wall
outlet. To disconnect, turn the machine
off, then remove the plug from the wall
outlet.
~Never open the outer casing of the
appliance. Tampering with electrical
connections or components and
mechanical parts is dangerous and
may cause machine damage.
~If the machine is installed in
combination with other appliances, a
protective base should be installed
between the appliance and the unit
(except for combinations with a plate
warmer).
~Install or locate this appliance only
in accordance with the provided
installation instructions.
Use
~Use only Nespresso-coffee
capsules with this machine. The use of
other products will damage the
appliance.
Caution! Risk of burns when
dispensing hot beverages, they are
extremely hot.
Caution! Do not look directly or, with
an optical instrument into the
lighting - laser radiation.
~Do not reach into the brew unit
unless the appliance is disconnected
from the power supply. Danger of
injury.
~The water lines must be rinsed and
the machine cleaned thoroughly before
the first coffee is prepared. The
cappuccinatore should also be
cleaned.
~Only fill the water tank with cold,
fresh tap water. Warm or hot water, or
any other liquids may damage the
machine. The water should be changed
daily to prevent bacteria or mold
growth.
~Do not use deionized or mineral
water. Mineral water leads to heavy
calcium buildup in the machine that
can damage the unit.
~Only use cold plain milk in the
cappuccinatore. Flavored milk products
contain substances that can clog the
machine.
IMPORTANT SAFETY INSTRUCTIONS
6

~Do not place anything other than
Nespresso capsules un the capsule
carousel.
~Do not use damaged, broken or
dented capsules! They may jam in the
machine and damage it.
~Never place a cup with an
alcohol-coffee mixture underneath the
coffee dispenser. Plastic parts of the
unit could catch fire!
~The hot water and steam dispensed
could cause scalding. These functions
must be used carefully. Never hold any
parts of the body under the steam
nozzle or the hot water dispenser. The
machine must never be used to clean
objects.
~Never use a steam cleaner to clean
the appliance. Pressurized steam could
damage electrical components and
cause a short circuit.
~Clean the coffee system daily to
prevent bacterial growth. All parts of
the coffee system are dishwasher-safe
except for the capsule plate and the
plastic drip tray. Failure to properly
maintain machine may cause health
issues.
~Do not clean inside the capsule
plate opening. Danger on injury.
~Do not reach into the perforator.
Injuries may occur.
~Do not touch hot surfaces. Use
buttons or steam lever.
~To avoid injuries allow the coffee
system to cool before cleaning or
before putting on or taking off parts.
Turn the machine off at the main switch
when not in use and before cleaning.
~The water in the drip tray can be
very hot. Use caution when emptying it.
Danger of burns.
~The coffee system must be
descaled regularly with the supplied
descaling tablets. In areas with very
hard water the machine needs to be
descaled more often.
~The capsule plate will soil more or
less depending on the coffee capsule
used. Clean the capsule plate every 1
to 2 months with a cleaning tablet,
available from Miele.
~Only use the descaling tablets
provided by Miele and be sure to use
the correct mixture of water and
descaler. Otherwise appliance damage
may occur.
~Do not hang, lean, sit or place heavy
items on the door. The machine may be
damaged.
~The use of accessories not
recommended by the appliance
manufacturer may result in fire, electric
shock or injury to persons.
~The appliance is designed for use
in room temperatures between 59°F
and 140°F (15°C and 60°C). Do not use
the appliance outside of this range of
temperatures.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
7

Front view
aOn/Off stouch control
bDisplay
cLeft arrow <, to scroll through program options
dOK touch control, to confirm selected program options and save settings
eRight arrow >, to scroll through program options
frDrink selection touch control to select the beverage type (coffee or
espresso)
gDoor grip
hPlastic drip tray
iMetal drip tray
jCoffee dispenser
kInset for Cappuccinatore
lValve / Lever for steam and hot water
Guide to the coffee system
8

Interior view
mMain Switch
nCapsule plate (replace with descaling funnel when descaling is performed)
oBrew unit
pCapsule carousel
qCarousel tray
rWater tank
sDrip tray with grid
(with no-spill grid for transport)
tWaste container
Guide to the coffee system
9

Touch controls
Select a touch control with your
fingertip to use the machine.
Display
COSI oEspresso
K1K2K3K4K5Lon GkC
The main menu in the display shows
the following symbols:
KUp to 5 different coffee types
LSteam
oHot water
nUser profile for up to 9 different
users
GMaintenance program - rinse
kMaintenance program - descale
CSettings - customize appliance
^Use < or > to select a program item
in the display. When the desired
program item is highlighted, select
OK.
Display
10

Before the first use
The appliance must be correctly
installed and connected before the
first use. See the "Installation
Instructions".
Clean the appliance and remove
protective foils before the first use.
See "Cleaning and Care".
Switching on
^Select On/Off sto turn the coffee
system on.
The first few times the machine is
turned on with the main switch a
welcome screen will briefly appear in
the display, followed by other
messages. The welcome screen will be
displayed until 5 beverages have been
prepared.
Míele Welcome
During the very first use, you will be
prompted to select a language.
^Tap < or > until the desired language
appears in the display.
^Confirm by selecting OK.
The desired language is now set.
Setting the clock
^Tap < or > until the desired clock
format (12 or 24-hour clock) is
highlighted. Confirm with OK.
^Enter the time of day: Use the arrow
buttons to first set the hour. Confirm
with OK.
^Use the same process to set the
minutes.
^Select when you would like the time
to be displayed:
–"On": The time of day will be
displayed even if the appliance is off.
–"On for 60 seconds": When the
appliance is turned off, the time of
day will remain displayed for 60
seconds.
–"Not displayed": When the
appliance is switched off, the time
display immediately goes out.
^Select OK to confirm.
Once the settings have been entered
correctly, the display will show Set-up
successful.
^Confirm the message with OK.
First steps to use
11

Filling lines with water
The appliance is drained completely
before leaving the factory. Before the
first drink is prepared, you will need to
pump water into the lines.
^Place a cup under the coffee
dispenser.
Hot water
K1K2K3K4K5LonGkC
^Select Hot water ousing < or >.
^Confirm with OK.
^Allow some hot water to run into a
cup.
^Turn off the water by selecting OK
again.
The lines are now filled with water, and
the appliance is ready to use.
Switching off
^Select On/Off sto turn the coffee
system off.
When a coffee beverage is
prepared, the unit rinses once
before it switches itself off.
First steps to use
12

The appliance should be cleaned
before filling it with water and coffee
capsules (see "Cleaning and care").
Be sure to set the water hardness
(see "Settings - Water hardness").
Filling the water tank
The water tank should be washed and
filled with fresh cold tap water before
each day of use.
,Never put hot water or any other
liquid except cold water into the
water tank. Do not use mineral water
in the appliance. It causes heavy
lime build-up and will damage the
appliance.
^Open the appliance door.
^Lift the water tank aand pull it out
b.
^Fill the container with fresh, cold tap
water to the "Max." mark.
A valve at the tank front prevents leaks.
^Push the water tank back into the
machine.
Filling water and coffee capsules
13

Filling the coffee capsule
carousel
Only insert Nespresso coffee
capsules in the carousel.
Damaged, broken or dented
capsules should not be used they
may jam in the machine.
There are five chambers, each can hold
four capsules. The coffee types have to
be allocated to their respective
chambers to get the desired coffee
type. You can also fill each chamber
with the same coffee type.
The chambers are factory set for a
coffee type. Fill the chambers
respectively or program other coffee
types according to your preference.
See "Allocating various coffee types".
^Pull the carousel tray, a, all the way
out.
^Insert the capsules into the
chambers, cof the capsule carousel
b, with the flat, foil side facing down.
The capsule carousel can also be
lifted up and out of the tray for easier
loading.
Take care that the capsules sit
loosely in the chambers so they do
not jam.
^Insert the carousel into the carousel
tray.
^Push the carousel all the way into the
machine.
^Close the door.
The machine aligns the carousel
automatically. A sound will be heard.
Removing the coffee capsules
^Pull out the carousel tray and lift out
the carousel.
^Push the carousel ring up and take
out the capsules.
Filling water and coffee capsules
14

Twelve different Nespresso coffee
types are available for this coffee
system (as well as occasional "Limited
Edition" blends). They differentiate in
terms of acidity, fruitness, bitterness
and roast. Therefore the preparing
times will vary.
See "The Espresso / Lungo range" for
more information on the coffee types.
Allocating the coffee types
Five different coffee types can be filled
in the five chambers of the capsule
carousel. The chambers can be either
allocated to the desired coffee types or
filled with the same coffee type in all
chambers.
Settings F
K1K1K3K4K5LLnGkC
^Select "Settings F" from the main
menu. Confirm with OK.
^Tap an arrow button until "Allocate
type" is highlighted. Confirm with OK.
^Use the arrow buttons to select
"Chamber 1" (for example). Confirm
with OK.
Several options are now available:
Select type
Allows you to select from the coffee
types which have already been
allocated.
^Use < or > to select the coffee type
you wish to allocate to the selected
chamber. Confirm with OK.
Rename type
Allows you to enter a new type of
coffee.
^Tap < or > until "Rename type" is
highlighted. Confirm with OK.
In the display you will see letters and
numbers. Use the arrow buttons to
select the desired character.
A new word will always be capitalized,
and the appliance will then switch to
lowercase letters.
^Use < or > to select the desired
characters.
^Confirm with OK.
You will see the selected text in the
upper line of the display.
If you misspell a word, use the
arrow buttons to select the trash can
symbol. Confirm with OK. The last
entered character will be deleted.
Allocating various coffee types
15

Saving an entry
^When the entry is complete, use < or
> to select OK. Confirm by pressing
OK again.
The menu for the chamber you are
"loading" will appear in the display.
^To exit the menu, use < or > to select
"back A". Confirm with OK.
Not saving an entry
^If you do not wish to save an entry,
use < or > to select "back A".
Confirm with OK.
The following options will only
appear once a new coffee type has
been added:
Change type
This option can be used to change the
type of coffee allocated to a chamber.
^Tap < or > until "Change type" is
highlighted. Confirm with OK.
Now continue as you would in "Rename
type".
Delete type
This option can be used to completely
delete a coffee type.
^Select "Delete type" and confirm with
OK.
^Use < or > to select the coffee type
to be deleted.
^Confirm with OK.
A check appears after the coffee type
and it will be erased.
You can allocate up to 10 types of
coffee. If you try to allocate more
than 10 coffee types "Memory full"
will appear in the display. You will
need to first erase a coffee type to
create space.
Once you allocate a coffee type, it
will be available for use in any
chamber, even if you entered it
under a specific program item, for
example under chamber 1.
Chamber symbols in the display
Once you have assigned a type of
coffee to a chamber, a coffee bean
symbol Kwill appear in front of the
chamber number in the main menu.
When you select a chamber the type of
coffee allocated to that chamber will
appear in the top line of the display.
If the chamber is empty,an
exclamation point will appear after the
bean symbol.
If the chamber has not been allocated
with a type of coffee a question mark
will appear after the coffee bean
symbol, regardless of whether the
chamber if full or empty. When the
chamber is selected "Empty" will
appear in the top line of the display and
coffee cannot be dispensed from that
chamber.
Allocating various coffee types
16

Clean the coffee system daily to
prevent bacterial growth. All parts of
the coffee system are dishwasher-
safe except for the capsule plate
and the plastic drip tray. Failure to
properly maintain machine may
cause health issues.
Rinse the water lines before
preparing the first drink of the day. If
the machine is still cold this will take
place automatically. The heating
system will heat and the water lines
will be rinsed.
^Select On/Off sto turn the machine
on.
The following message appears:
Heating-up phase
When the unit is heated, a message
appears:
Rinsing
Water will now run out of the coffee
dispenser and a noise will be heard as
the carousel aligns.
The main menu then appears in the
display:
COSI oEspresso
K1K2K3K4K5Lon GkC
Pre-warming the cups
Pre-warming the cups allows the coffee
to fully develop the flavor and aroma.
Use caution. Steam and hot water
are very hot.
^Place a cup under the steam / hot
water valve.
To pre-warm with hot water
^Select hot water "o" using < or >.
^Confirm with OK.
^Allow some hot water run into a cup.
^Turn off the water by selecting OK
again.
^Leave the cup for a few seconds to
warm, then pour the water away.
To pre-warm with steam
^Select heating with steam "L" using
<or>.
^Press the steam lever down.
The steam supply is temporary. If
the steam stops prematurely push
the steam lever up then down again.
^Push the lever up to stop the steam
from dispensing.
^Pour away any excess water.
Making coffee / espresso
17

Coffee and Espresso
^Place a cup under the coffee
dispenser.
COSI oEspresso
K1K2K3K4K5Lon GkC
^Use < or > to select the desired
coffee type.
^Use the "Drink selection" touch
control to select Espresso or Coffee.
The beverage type you have
selected will appear in the upper
right hand corner of the display.
^Select OK.
The desired beverage will now be
dispensed.
If you prefer to have a portion size that
is larger or smaller than the pre-set
sizes for coffee and espresso, see
"Programming quantities - serving
sizes").
Double portion
If you would like a double portion of
coffee or espresso, or to prepare two
portions at the same time,
^select OK a second time while the
display still reads "Double portion?".
The two portions are prepared one after
the other.
Interrupting preparation
^Select OK when "Stop" appears in the
display.
The drink preparation will stop.
Making coffee / espresso
18

Preparing hot milk, frothed
milk, and Cappuccino
This appliance includes a
Cappuccinatore, which can be used to
easily prepare warm milk, frothed milk,
and cappuccino.
Before using the cappuccinatore for
the first time, wash it either in the
dishwasher or with hot water and
liquid dish soap.
See "Cleaning and care".
Above the handle on the
cappuccinatore there is a valve a, and
a milk spout bon the side.
Cold milk is best for creating froth.
The steam is regulated by turning the
valve.
Left: hot milk is prepared
Right: froth is prepared
Be sure not to set the valve between
these two settings - this may cause
the milk to splatter.
Pushed in: Milk is frothed into the cup
Pulled out: Milk is frothed into the
cappuccinatore
When milk is frothed in the
cappuccinatore the froth is hotter
and has more volume.
When frothing milk into a cup while
dispensing a coffee, the steam
system must be turned on. See
"Settings - Steam system".
The steam supply is temporary. If
the steam stops and there is not
enough froth prepared, push the
steam lever up then down again.
Making coffee / espresso
19

Frothing milk into a cup
^Pre-warm the cup before filling with
froth.
^Push the cappuccinatore spout all
the way into the lid.
^Turn the valve all the way to the right.
^Fill the cappuccinatore ano higher
than the upper mark with cold milk
and cover with the lid on.
^Place the cappuccinatore in the inset
on the drip tray, and the cup b
under the spout.
^Slowly press the steam lever down.
The steam lever must click into the
down position - otherwise the valve is
not properly connected to the
cappuccinatore.
^Push the steam lever up when
enough froth is prepared.
Preparing a cappuccino
^Prepare frothed milk in a cup.
^Place the cup of frothed milk under
the coffee dispenser.
^Use the drink selection "r" touch
control to select Espresso.
^Select OK.
Espresso now flows through the coffee
dispenser and the cappuccino is ready.
Making coffee / espresso
20
