Miele CVA 620 User manual

Operating instructions
Built-in automatic coffee machine
CVA 620
To avoid the risk of accidents
or damage to the machine
it is essential to read these
Operating instructions before
it is installed or used for the first time.
GWOZi
M.-Nr. 06 492 200

Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Brief description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programming the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Choosing a language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Selecting the temperature for drinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Switching the pre-brewing function on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Switching the pre-grinding function on or off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Switching the programmed quantity of hot water on or off . . . . . . . . . . . . . . . . . . 23
Displaying the number of cups of coffee already dispensed (Total coffee) . . . . . 24
Setting a standby time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
System lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Filling the water and coffee bean containers . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Filling the water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Filling the coffee bean container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting the portion sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Coffee and espresso cups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Tea cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Making coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warming the system and the cups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Small/espresso, medium coffee, large coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
To prepare two cups simultaneously . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cappuccino . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Hot water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
After use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Programming the coffee grinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Grinding the coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setting the quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Rinse button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Machine front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
E-Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Stainless steel fronted machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Stainless steel surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Stainless steel coloured controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Aluminium fronts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Drip tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Waste unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Brew unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cleaning the steel filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Lubricating the brew unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Rinsing cycle: Degreasing the brew unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Milk frother . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Descaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Display messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Electrical connection U.K., ZA, IRL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Electrical connection AUS, NZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Building-in options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Adjusting the hinges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Contents

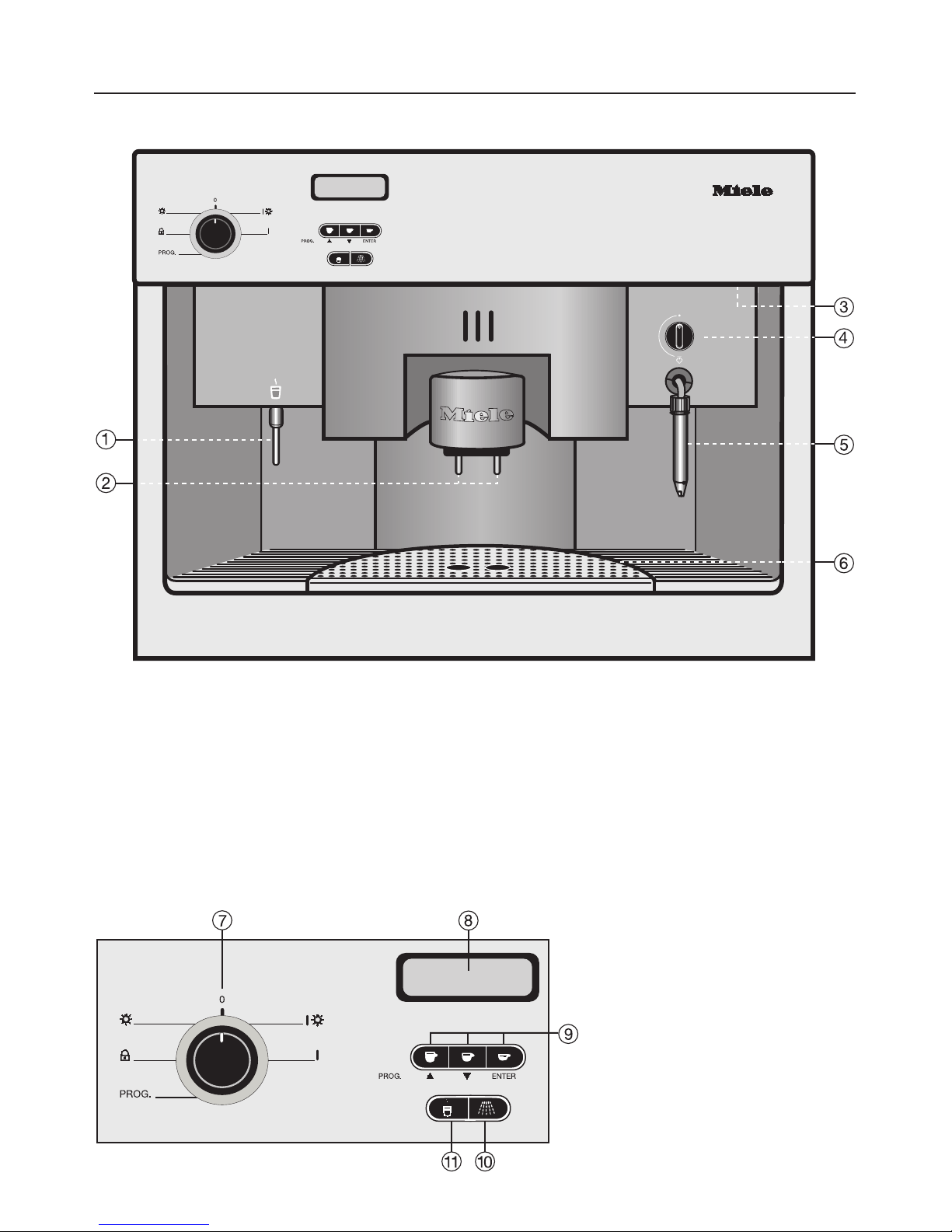

External view
aHot water spout
bCoffee spouts, height-adjustable
cHandle to open machine front
dControl dial for steam
eSteam spout with milk frother
fDrip tray with grilles
gSelector switch
hDisplay
iCoffee portion buttons
jRinse and pre-warming
button
kHot water button
Description of the machine
4

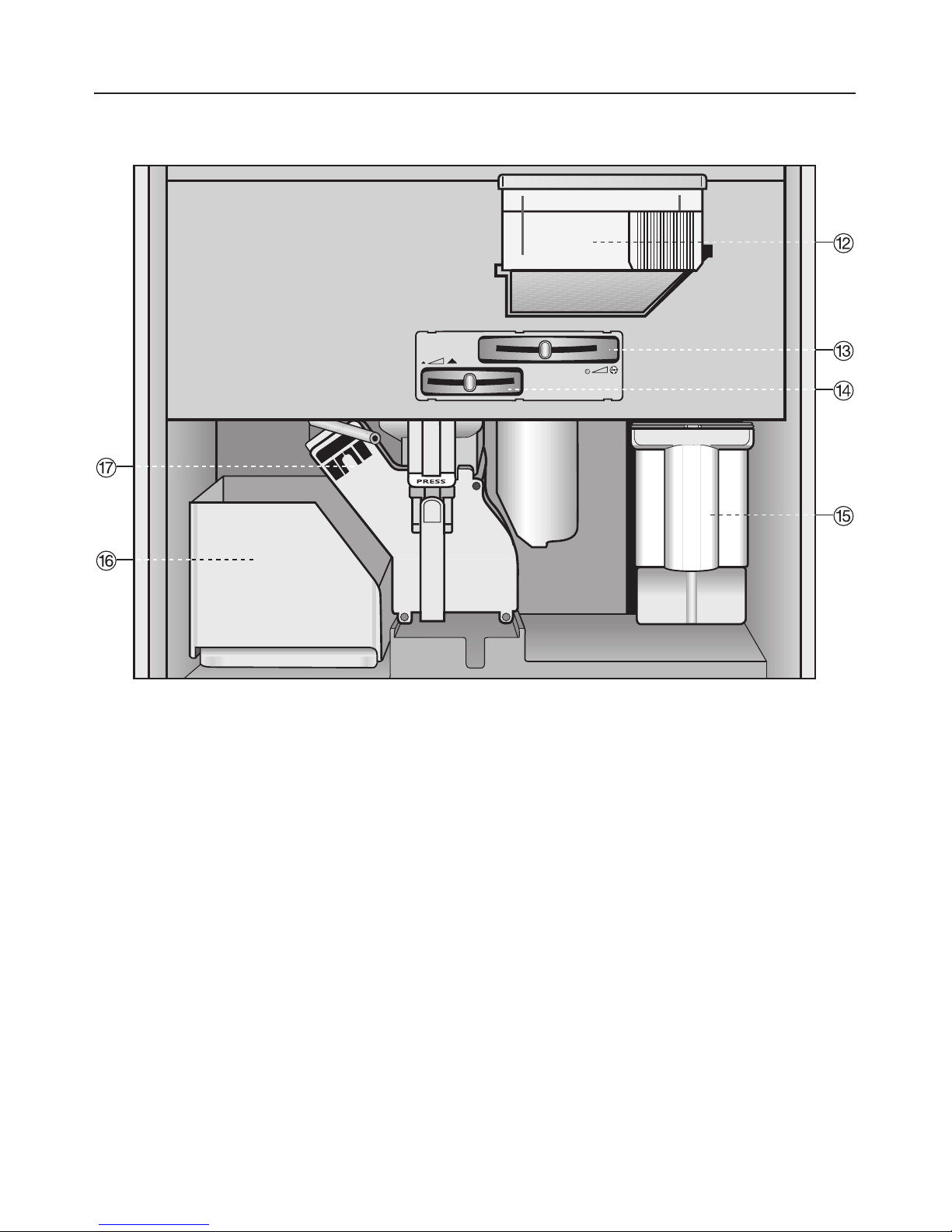

Interior view
lCoffee bean container
mSlide control to select fineness of ground coffee
nSlide control to select quantity of ground coffee
oWater container
pWaste unit
qBrew unit
Coffee glossary
To help you understand the language of coffee, please read the glossary of coffee
terms at the end of this instruction book.
Description of the machine
5

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.
Caring for the environment
6

This machine complies with all
relevant legal safety requirements.
Improper use of the machine can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the machine, please read
these instructions carefully before
installation and before using for the
first time. They contain important
notes on the installation, safety,
operation and care of the machine.
Keep these operating instructions in
a safe place and pass them on to
any future owner.
Correct usage
The machine is intended for
domestic use only for the
preparation of espresso, cappuccino,
coffee and hot water for tea and similar
drinks. Any other usage is not
supported by the manufacturer and
could be dangerous. The manufacturer
cannot be held liable for damage
resulting from improper use or
operation.
Technical safety
Before connecting the machine to
the mains supply, make sure the
rating on the data plate corresponds to
the voltage and frequency of the
household supply. Consult a qualified
electrician if in any doubt.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
tested regularly and where there is any
doubt, the household wiring system
should be inspected by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
The machine must be built in
before operation to ensure that no
electrical components are accessible.
Ensure power is not supplied to the
machine until after installation, repair
work or maintenance work has been
carried out.
Do not connect the machine to the
mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the machine (e.g.
danger of overheating).
When installed in the mobile unit
(optional extra) the machine is not
suitable for use in the open air.
Warning and Safety instructions
7

This equipment may only be
installed in mobile installations
such as ships, caravans, aircraft etc. if
a risk assessment of the installation has
been carried out by a suitably qualified
engineer.
Before the machine is connected,
the steam control dial must be in
the off position. This is to prevent an
uncontrolled escape of steam or hot
water from the steam spout. Danger of
scalding or burning.
Installation work and repairs may
only be carried out by suitably
qualified and competent persons in
accordance with local and national
safety regulations. Repairs and other
work by unqualified persons could be
dangerous and the manufacturer will
not be held liable.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
The machine is only completely
isolated from the electricity supply
when:
–the mains fuse is withdrawn,
–or the screw-out fuse is removed (in
countries where this is applicable),
–it has been switched off at the wall
socket and the plug has been
withdrawn.
Never open the housing of the
machine.. Tampering with electrical
connections or components and
mechanical parts is highly dangerous
to the user and can cause operational
faults or electric shock.
If the coffee machine is to be built
in above another appliance, there
must be a full-width, closed shelf
between them (except when it is
combined with a Miele built-in plate
warming drawer).
Use
Warning. Danger of scalding or
burning. The spouts and the liquids
dispensed are very hot.
This machine is not a toy! Do not
let children play with it or use it
unsupervised. Their skin is very
sensitive and reacts to hot
temperatures. Danger of scalding and
burning.
Remember that espresso is not a
children's drink.
The water piping must be rinsed
through and the machine cleaned
thoroughly before the first drink is
prepared.
Only cold, fresh drinking water
should be used to fill the water
container. Warm or hot water or other
liquids could damage the machine.
Change the water every day to prevent
a build up of bacteria.
Never put anything other than
roasted espresso/coffee beans in
the coffee bean container. It must never
be filled with ground coffee as this
could damage the grinder.
Warning and Safety instructions
8

Sugar can damage the coffee
machine. Only use pure coffee
beans. Do not use coffee beans which
have been treated with anything
containing caramel, any kind of sugar
or any other substances. Do not put
drinks containing sugar, or instant
coffee in the machine.
Never place a drink with ignited
alcohol under the steam spouts.
The flames could ignite plastic
components and cause fire damage.
The hot water and steam could
cause scalding. Be very careful
when using these functions. Never
direct the steam spout towards the
body.
The coffee machine must never be
used for cleaning objects.
Always ensure that the steam
control dial is turned to the off
position when not needed. Otherwise
there is a danger of an uncontrolled
escape of steam. Danger of scalding.
Do not use steam cleaning
apparatus to clean the machine.
Pressurised steam could reach the
electrical components and cause a
short circuit.
Clean the machine every day to
prevent a build-up of bacteria.
The brew unit and the water container
must be washed by hand. The drip tray,
grilles and waste unit are all dishwasher
proof.
The steam and hot water spouts
become very hot during use.
Always grip the steam spout by the
insulated screw connector at the top.
The machine should be descaled
regularly, depending on the
hardness of the water, with the
descaling tablets supplied. The harder
the water, the more often the machine
must be descaled. The manufacturer
cannot be held liable for damage
arising from insufficient descaling.
Only use the descaling tablets
supplied by Miele and follow the
instructions on the packet carefully. Use
the exact proportions recommended to
avoid damage to the machine.
Depending on the fat content of the
coffee used, the brew unit could
become blocked. Clean it every 2 to 4
months with a cleaning tablet.
To ensure the brew unit functions
correctly, lubricate the joints of the
brew unit using the silicone lubricant
supplied every time you clean the
coffee machine with a cleaning tablet.
Used coffee grounds should be put
with the organic rubbish or on the
compost heap, but not emptied down
the sink, as they could block it.
Never hang anything on the front
when it is open as this could
damage the machine.
Warning and Safety instructions
9

In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches and other vermin will not
be covered by the guarantee.
Disposal of your old machine
Before throwing an old machine
away, switch it off and disconnect it
from the power supply. Cut off the cable
directly behind the machine, then cut
off the plug and render it useless to
prevent misuse.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

Unlike standard coffee machines, this
machine has a container for coffee
beans so that they can be freshly
ground for every cup, to benefit fully
from the flavour.
First the ground coffee is moistened
with hot water (pre-brewing), to
develop the aroma. Next, hot water is
forced at high pressure through the
ground coffee. The pre-brewing
process is optional.
To prevent water from remaining in the
pipes, any water left is expelled,
resulting in a little trickle after the coffee
has been dispensed. The coffee is then
ready.
The used coffee grounds are
automatically emptied into the waste
unit. There is no need to remove the
grounds manually after each cup.
The size of cup (max. 250 ml) can be
programmed in so that the correct
amount of coffee is dispensed. If the
cup being used has a smaller capacity
than the programmed cup size,
preparation can be halted at any time
by pressing one of the coffee portion
buttons.
If two cups of coffee or espresso are
required at the same time, the
appropriate coffee portion button must
be pressed twice. The machine will fill
the cups in two stages with a slight
pause in between.
The machine can be programmed to
grind from 6 to 9 grammes of coffee,
depending on the type. The
programmed-in quantity will be the
same for all sizes of cup
(small/espresso, medium coffee, large
coffee). Only the amount of water will
change.
The fineness to which the coffee is
ground can also be programmed in.
The hot water from the hot water spout
is at an ideal temperature for making
tea.
The light can be switched on
independently of operation.
In the interests of safety, the electricity
supply is switched off as soon as the
front of the machine is opened. There is
also a system lock to prevent children
from operating the machine.
The easy to use programming facility
allows, amongst other things, the
language in the display to be altered,
and the water hardness to be
programmed in.
Brief description
11

To ensure that the flavour can develop
fully and be maintained for longer the
machine has an additional function to
automatically rinse and pre-warm the
system. The same function is used to
clean the system and the coffee spouts
after use.
Hot water from the hot water spout can
be used to pre-warm the cups.
The machine can be programmed to
switch to standby mode so it is always
ready for operation but does not
consume unnecessary electricity. This
can be programmed to happen
between 15 minutes and 3 hours after
coffee was last dispensed.
To save time when preparing coffee for
a number of people, the pre-grind
function can be selected, so there is
always a portion of coffee ready.
Brief description
12

The machine can be programmed in easy stages for
setting to your exact requirements. The following
programming options are available:
Language German, Dutch, Portuguese, Spanish,
English, Italian, French
Rinsing on, off
Water hardness
hardness 1, hardness 2, hardness 3, hardness 4
Temperature large coffee
minimum, low, medium, high, maximum
Temperature medium coffee
minimum, low, medium, high, maximum
Temperature small/espresso coffee
minimum, low, medium, high, maximum
Pre-brewing on, off, long
Pre-grinding off, on
Programme hot water off, on
Total coffee number of coffee portions
Descaling automatic descaling programme
Standby timer to switch off time, selectable in
15 minute stages
A more detailed explanation of the programme
options is given in the individual sections.
Programming the machine
13

To programme the machine,
^Turn the selector to the programming position. The
machine is now in programming mode and will
respond according to the symbols shown under
the buttons.
^By pressing the -or ebutton
–the required programming option in the display
can be highlighted with an asterisk. Press ENTER
to select the option.
– the settings of the various programming options
can be altered.
– a time can be entered for the Standby option.
^By pressing ENTER
– a programming option highlighted with an asterisk
can be selected.
–an alteration to the programmed settings can be
saved.
If a setting is altered by mistake, do not
press ENTER. Turn the selector to
position "0". The altered setting will not
be saved and the original setting will be retained.
Programming the machine
14

Choosing a language
The language for the commands in the display can
be selected before the machine is used for the first
time.

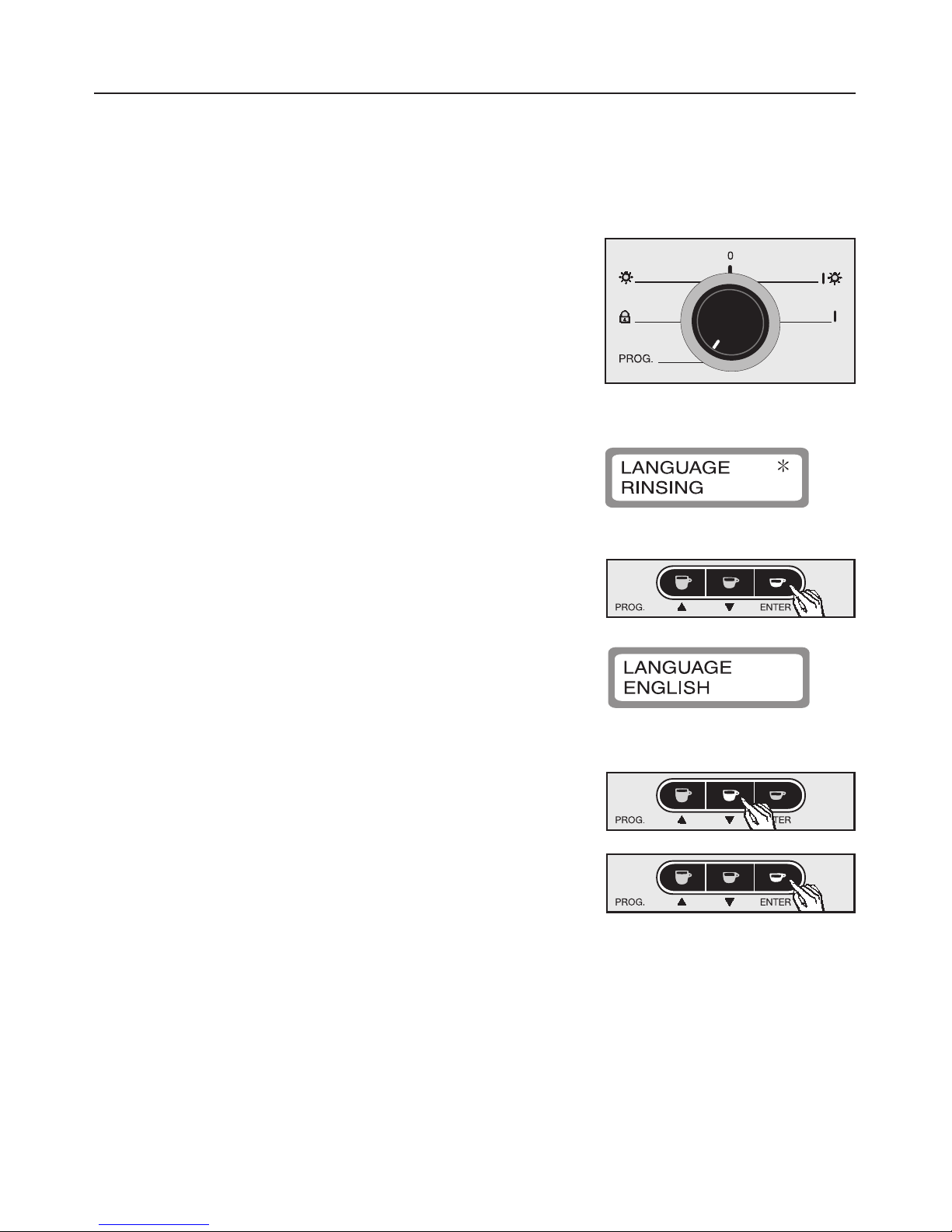

^Turn the selector anti-clockwise to the
programming position.
The machine is now in programming mode and
will respond according to the symbols shown
under the buttons.
The following will appear in the display:
Programming option "Language" will be
highlighted with an asterisk.
^Press ENTER to confirm this option.
The sub-menu will appear in the display as
follows:
^Press the ebutton until the required language
appears (deutsch, nederlands, portugues,
espanol, english, italiano or francais).
^Press ENTER to save this setting, or
turn the selector to "0" to undo the alterations if a
mistake has been made.
This will bring you back from the sub-menu.
All commands in the display will now appear in the
selected language.
Programming the machine
15

Rinsing
To remove any coffee grounds from the system the
water piping and brew unit must be rinsed through
every day before the first drink is prepared. If
programme "Rinsing" is set to "On" rinsing will start
automatically when the machine is cold and the
selector switch is set to the "On" position, with or
without lighting. This will warm the brew unit up at
the same time because hot water is used for the
rinse process. An appropriate message will appear
in the display.
If a drink has just been prepared the machine will
still run an automatic rinse programme shortly
before it goes into standby mode.
To prevent water from running into the
drip tray always place an empty cup
under the coffee spouts before making
the first cup of coffee.

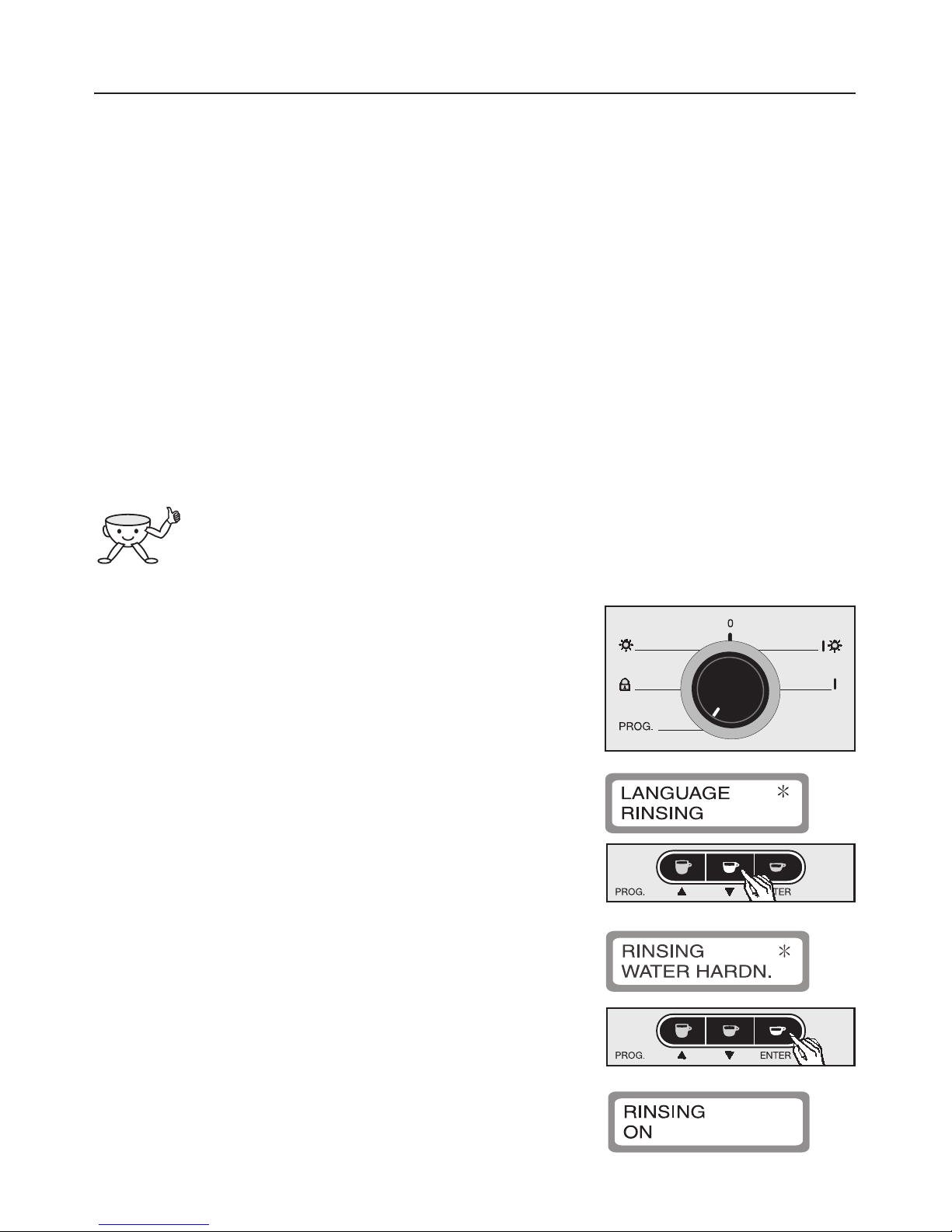

^Turn the selector anti-clockwise to the
programming position. The machine is now in
programming mode and will respond according to
the symbols shown under the buttons.
The following message will appear in the display:
^Press the ebutton to highlight programming
option "Rinsing" with an asterisk.
^Press ENTER to confirm this option.
The sub-menu will appear in the display as
follows:
Programming the machine
16

^Press the ebutton to switch rinsing on or off.
It is a good idea to set this option to "On"
so that the rinse process cannot be
forgotten.
^Press ENTER to save this setting, or
turn the selector to "0" to undo the alterations if a
mistake has been made.
This will bring you back from the sub-menu.
Setting the water hardness
For trouble-free operation of the coffee machine,
and to ensure that the descaling reminder appears
in the display at the appropriate time, it is important
to programme in the water hardness. The water
hardness indicates how much calcium is dissolved
in the water. The higher the calcium content, the
harder the water is.
The machine monitors the volume of water passing
through it in conjunction with the hardness of the
water. Less hard water can be allowed to pass
through before descaling than soft water.
The local water authority will be able to tell you the
hardness of water in your area. Alternatively, you
can measure the hardness yourself using the
enclosed test strip:
Programming the machine
17

^Dip the strip in your drinking water for
approximately a second, then shake off any
excess water.
The results will be evident after about 1 minute.
If the water is harder than 7.0 mmol/l or 700 mg/l
(40 °d), limescale will build up more rapidy than
with soft water. Descaling will need to be carried
out more regularly than stated to prevent
limescale damage to the machine.
Use programming option "Water hardness" to
programme in the water hardness.
There are four programmable levels:
Level
(machine) Hardness (local water) °d (German
scale)
mmol/l Water
through-
flow in litres
Hardness 1 1 (soft) 0 - 3 0 - 1.3 approx. 320
Hardness 2 1 (soft) 4 - 7 1.3 - 2.5 approx. 160
Hardness 3 2 (medium) 7 - 14 2.5 - 3.8 approx. 80
Hardness 4 3 (hard)
4 (very hard)
14 - 21
above 21
above
3.8
approx. 40
^Turn the selector anti-clockwise to the
programming position.
The machine is now in programming mode and
will respond according to the symbols shown
under the buttons.
The following will appear in the display:
Press the ebutton to highlight programming
option "Water hardness" with an asterisk.
Programming the machine
18

^Press ENTER to confirm this option.
The sub-menu will appear in the display as
follows:

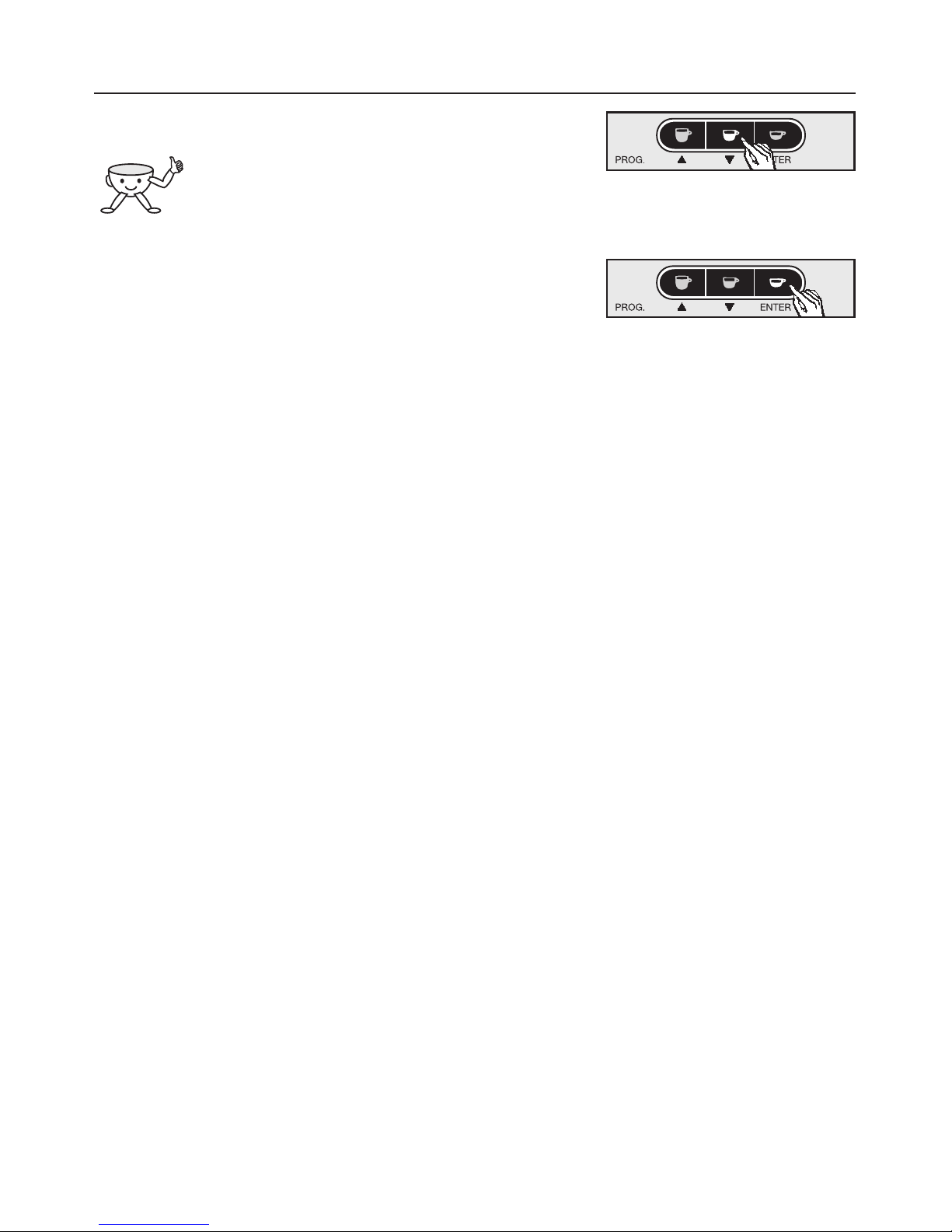

^Press the ebutton to set the water hardness level
(hardness 1 - hardness 4)
^Press ENTER to save this setting, or
turn the selector to "0" to undo the alterations if a
mistake has been made.
This will bring you back from the sub-menu.
Selecting the temperature for drinks
The machine can be set at different temperatures to
suit varying coffee drinking habits.
Five temperature levels are available for each drink
option. Maximum is the highest temperature,
minimum the lowest.
Not all types of coffee can withstand a
high temperature. Certain types are too
delicate and the froth on top would not
be so good.
^Turn the selector anti-clockwise to the
programming position.
The machine is now in programming mode and
will respond according to the symbols shown
under the buttons.
The following will appear in the display:
Programming the machine
19

^Press the ebutton to highlight programming
option "Temp. L coffee" for large coffee, "Temp.
coffee" for medium coffee or "Temp. S coffee" for
small/espresso coffee with an asterisk.
A different temperature can be programmed for
each drink option.
^Press ENTER to confirm this option.
Depending on the programming option selected,
the sub-menu will appear in the display as follows:

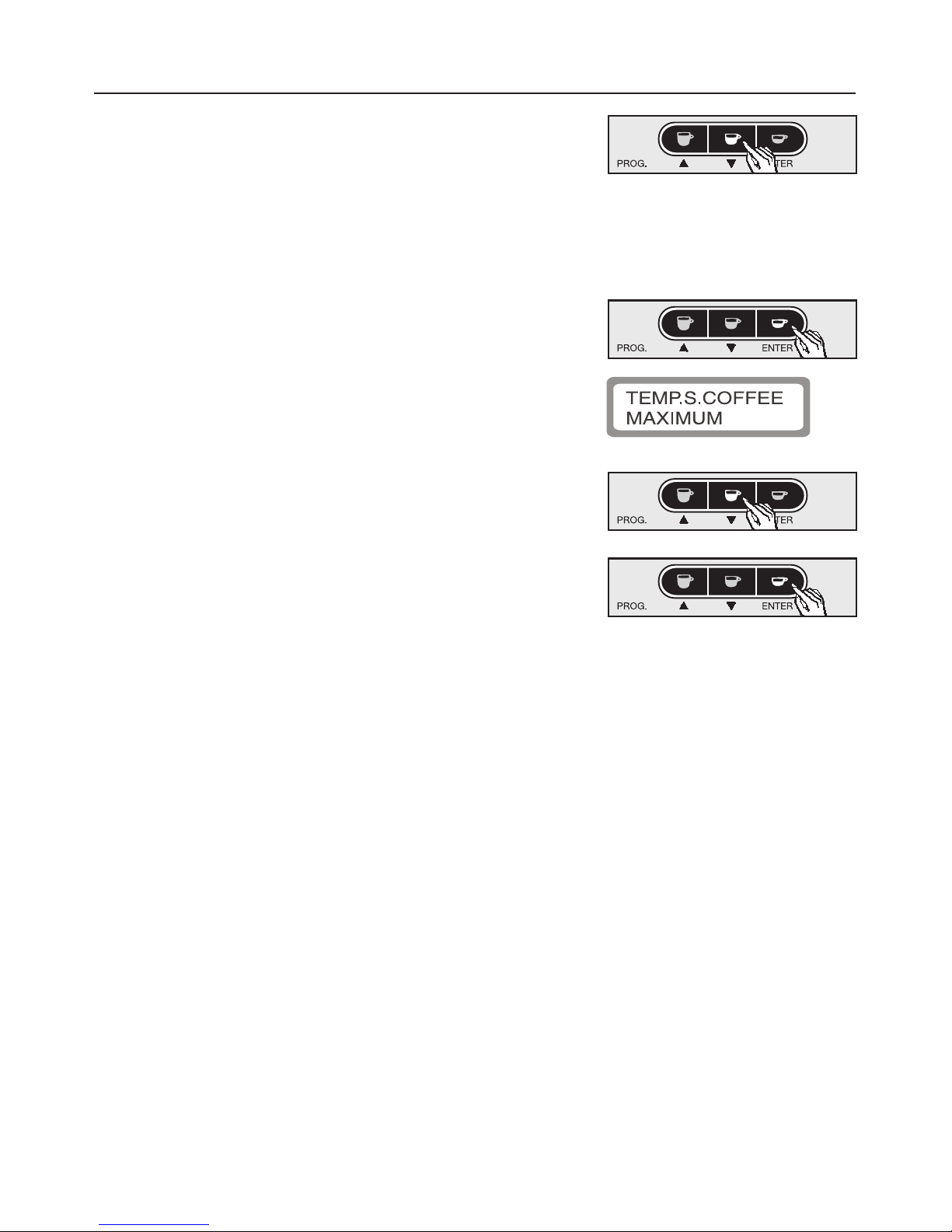

^Press the ebutton to set the temperature to
minimum, low, medium, high or maximum.
^Press ENTER to save this setting, or
turn the selector to "0" to undo the alterations if a
mistake has been made.
This will bring you back from the sub-menu.
Programming the machine
20
