Miele G 600 Series User manual

Installation instructions
Integrated dishwasher
To prevent accidents
and machine damage,
read these instructions
before
installation or use, M-Nr, 05 620 662

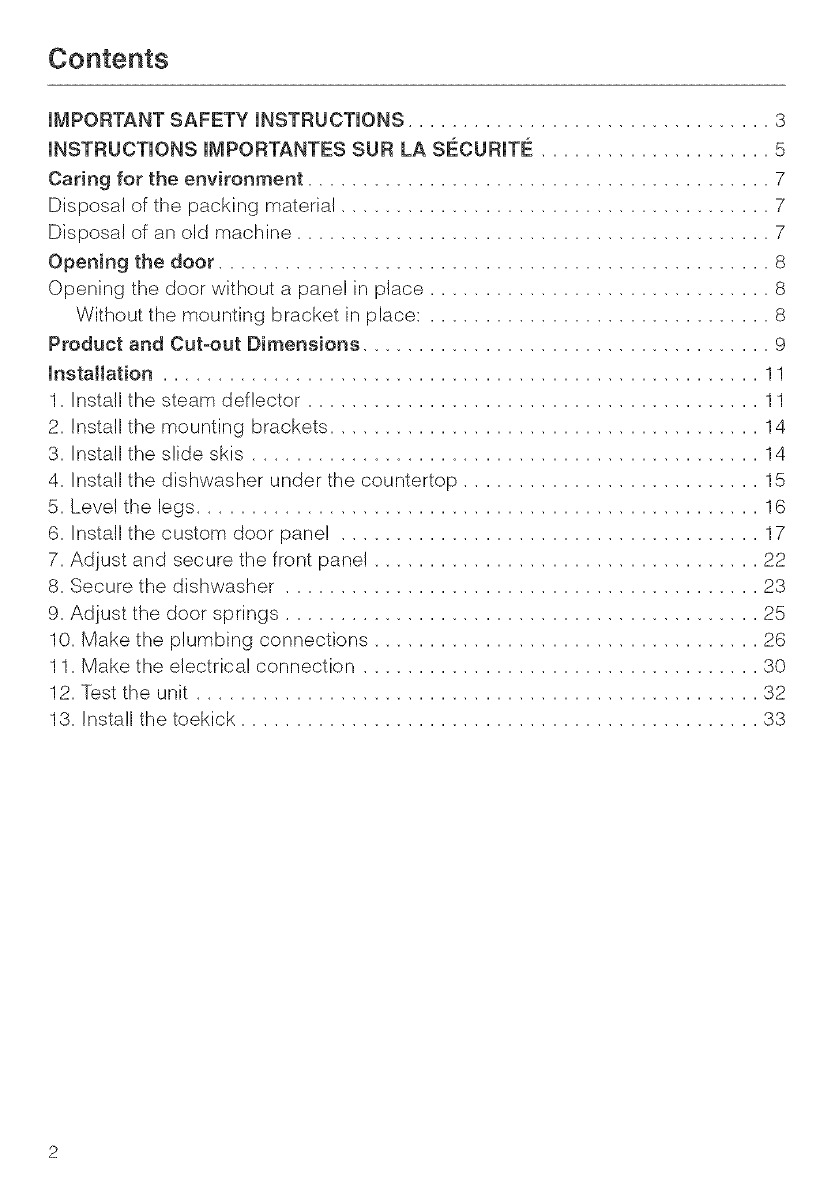

Contents
iMPORTANT SAFETY INSTRUCTmONS ................................. 3
mNSTRUCTmONSmMPORTANTES SUR LA SECURmTE ..................... 5
Caring for the environment .......................................... 7
Disposal of the packing material ....................................... 7
Disposal of an old machine ........................................... 7
Opening the door .................................................. 8
Opening the door without a panel in place ............................... 8
Without the mounting bracket in place: ............................... 8
Product and Cut-out Dimensions ..................................... 9
Installation ...................................................... 11
1, install the steam deflector ......................................... 11
2, install the mounting brackets ....................................... 14
3, Install the slide skis .............................................. 14
4, install the dishwasher under the countertop ........................... 15
5. Level the legs ................................................... 16
6, install the custom door panel ...................................... 17
7. Adjust and secure the front panel ................................... 22
8, Secure the dishwasher ........................................... 23
9, Adjust the door springs ........................................... 25
10, Make the plumbing connections ................................... 26
11, Make the electrical connection .................................... 30
12, Test the unit ................................................... 32
13, Install the toekick ............................................... 33

iMPORTANT SAFETY iNSTRUCTiONS
mnstallation
Insta!lation, maintenance and
repairworkshou,dbebyaM,e,e
authorized service technician. Work by
unqualified persons could be a hazard
and may void the warranty.
Th,sequipmentisnotdesignedfor
maritime use or for use in mobile
installations such as caravans or
aircrafL However, under certain
conditions it may be possible for an
installation in these applications. Please
contact the nearest Miele dealer or the
Miele Technical Service Department
with specific requirements.
Inspect the dishwasher for
i} transportdamage.Donot,nsta,,or
use a damaged uniL Contact the place
of purchase.
This dishwasher must be installed
deracont_nuouscountertop
secured to adiacent cabinetry.
Donot,nsta,,thisdishwasher
beneath a cooking surface or oven.
Donot,underanye,rcumstances,
cut the intake hose or submerge in
liquid. This hose contains electrical
components that could cause iniury or
property damage if cut or submerged.
If there is any doubt concerning
installation contact the Technical
Service Department.
USA 1-800-999- !360
[email protected]
CDN 1-800-565-6435
[email protected]

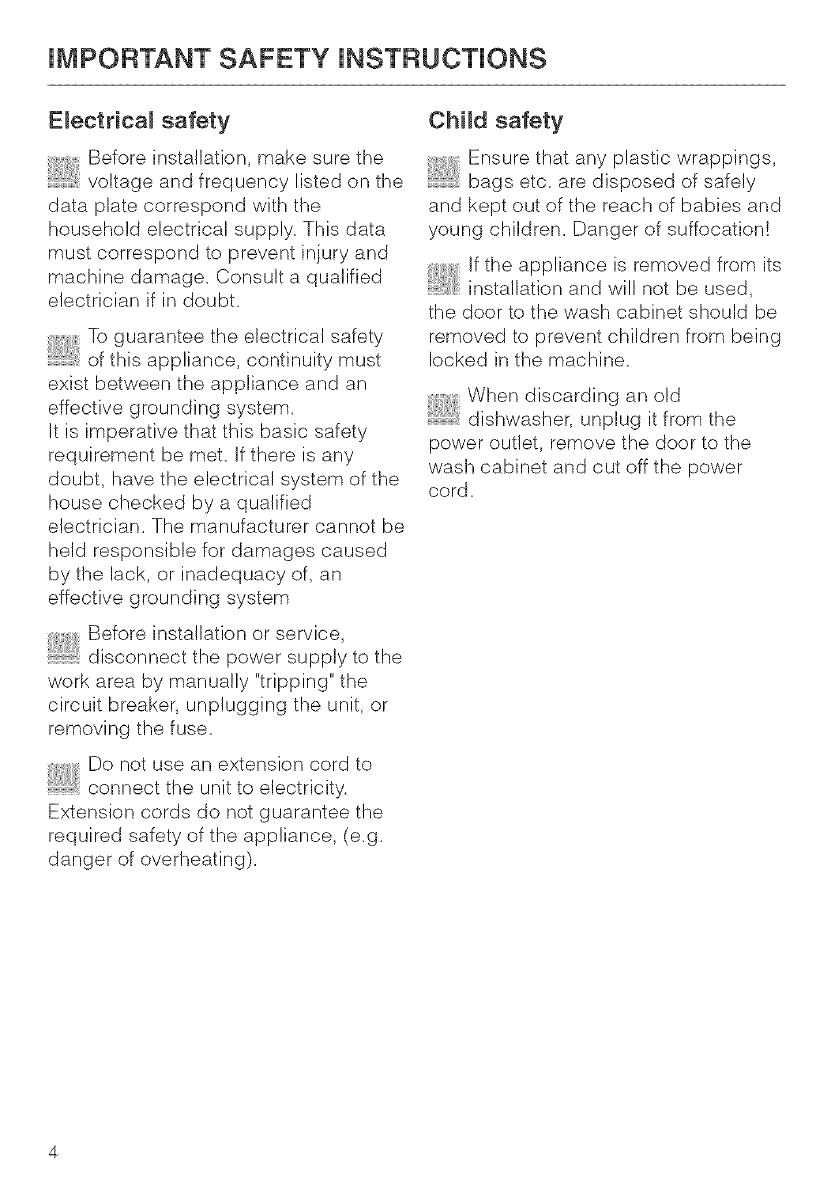

iMPORTANT SAFETY iNSTRUCTiONS
E_ectrica_ safety
Before installation, make sure the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubL
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system.
It is imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy of, an
effective grounding system
Before installation or service,
idisconnectthepowersupplytothe
work area by manually "tripping" the
circuit breaker, unplugging the unit, or
removing the fuse.
Do not use an extension cord to
connect the unit to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
ChHd safety
Ensurethatanyplasticwrappings,
bags etc. are disposed of safely
and kept out of the reach of babies and
young children. Danger of suffocation!
,ftheapp,ianceisremovedfromits
installation and will not be used,
the door to the wash cabinet should be
removed to prevent children from being
locked in the machine.
When discarding an old
' dishwasher, unplug it from the
power outlet, remove the door to the
wash cabinet and cut off the power
cord.

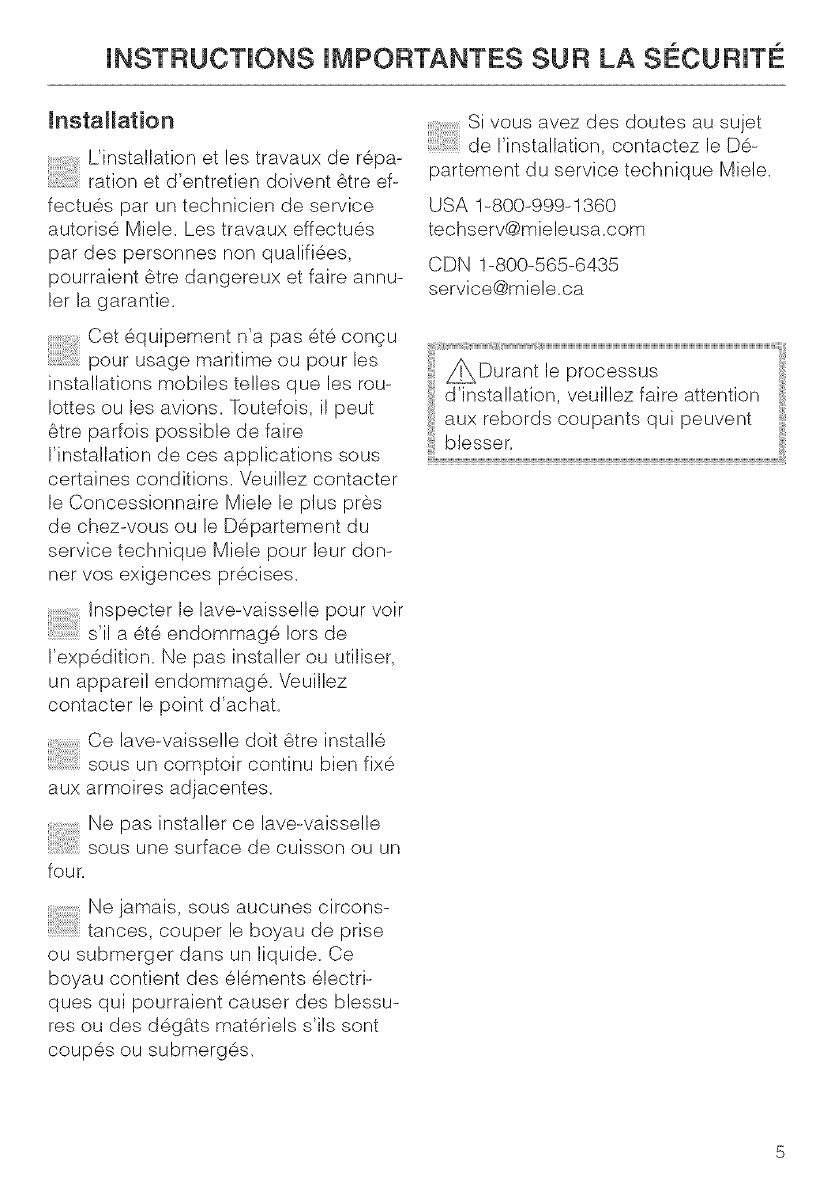

iNSTRUCTiONS JMPORTANTES SUR LA SECURJTE
Installation Si vous avez des doutes au sujet
de I'installation, contactez le D6-
L'insta,ationetlestravauxder6pa-
rationetd'entretiendoiventUreef- partement du service technique Miele,
fectu6s par un technicien de service USA !-800-999-1360
autoris6 Miele, Les travaux effectues techserv@mieleusa,com
par des personnes non qualifi6es,
pourraient _tre dangereux et faire annu-
ler la garantie,
Cet equipernent n'a pas 6t6 con_u
pour usage maritime ou pour les
installations mobiles te!les que les rou-
Iottes ou les avions, Toutefois, il peut
6tre parfois possible de faire
I'installation de ces applications sous
certaines conditions, Veuillez contacter
le Concessionnaire Miele le plus pres
de chez-vous ou le D6partement du
service technique Miele pour leur don-
ner vos exigences precises,
Inspecter le lave-vaisselle pour voir
s'_aet6endommag6_orsde
I'exp6dition, Ne pas installer ou utiliser,
un appareil endommag6, Veuillez
contacter le point d'achat,
Ce lave-vaisse!le dolt 6tre installe
sous un comptoir continu bien fix6
aux armoires adjacentes,
Ne pas installer ce lave-vaisselle
sous une surface de cuisson ou un
four,
CDN !-800-565-6435
service@miele,ca
_]HHHHHHHH _;Jii]ii
i Ourantleprocessus ii
d installation, veuillez faire attention
ii aux rebords coupants qui peuvent
Ne jamais, sous aucunes circons-
tances,couper_eboyaudepr_se
ou submerger dans un liquide, Ce
boyau contient des el#merits #lectri-
ques qui pourraient causer des blessu-
res ou des d6g&ts mat@iels s'ils sont
coup6s ou submerg#s,

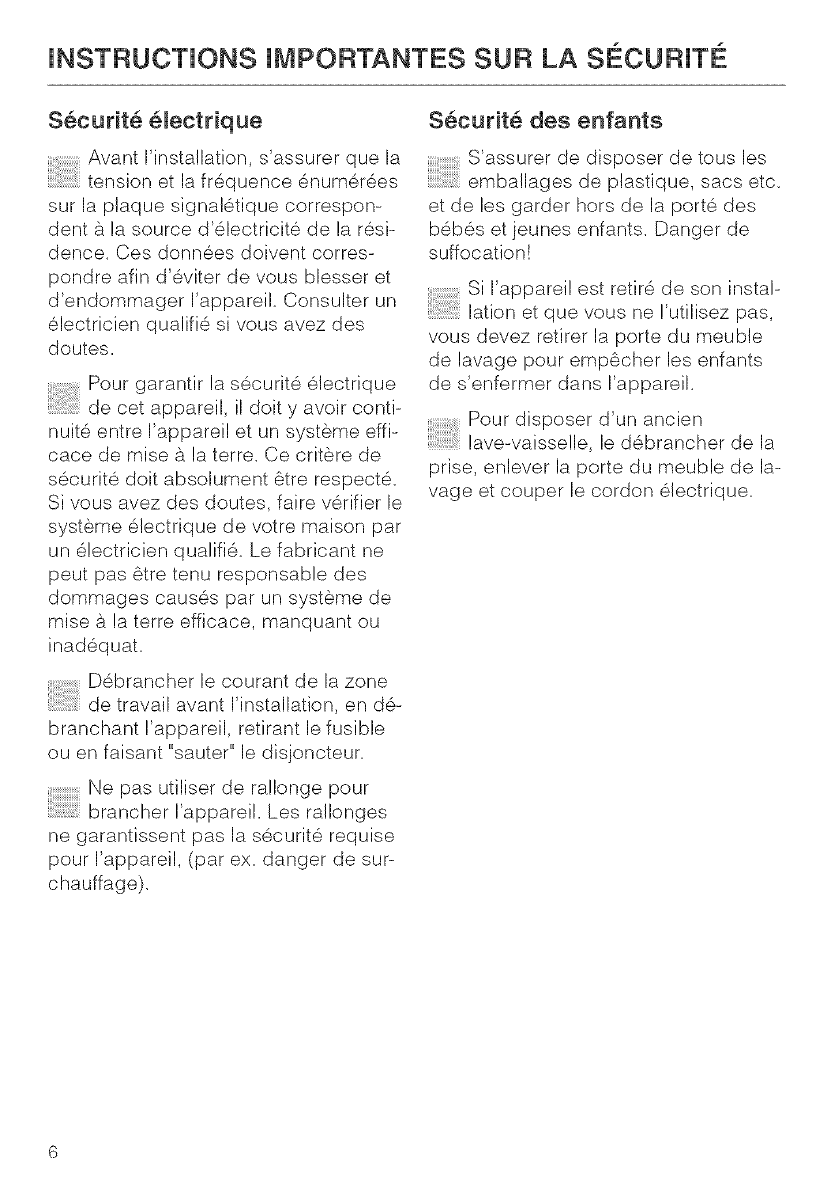

iNSTRUCTiONS JMPORTANTES SUR LA SECUFHTE
S6curite 61ectrique
Avant I'installation, s'assurer que la
tensionet fr6quence6num6r6es
sur la plaque signal6tique correspon-
dent b,la source d'61ectricit6 de la resi-
dence. Ces donnees doivent corres-
pondre afin d'6viter de vous blesser et
d'endommager I'appareik Consulter un
electricien qualifi6 si vous avez des
doutes.
Pour garantir la s6curit6 electrique
de cet appareil, il dolt y avoir conti-
nuit6 entre I'appareil et un syst6me effi-
cace de mise _.la terre. Ce critere de
s6curite dolt absolument 6tre respect6.
Si vous avez des doutes, loire v@ifier le
systeme 61ectrique de votre maison par
un 61ectricien qualifi6. Le fabricant ne
peut pas 6tre tenu responsable des
dommages caus6s par un systeme de
raise b,la terre efficace, manquant ou
inad6quaL
D6branc her le courant de lazone
...... de travail avant I'installation, en d6-
branchant I'appareil, retirant le fusible
ou en faisant "sauter" le disjoncteuk
Ne pas utiliser de rallonge pour
brancher I'appareik Les ra!longes
ne garantissent pas la s6curit6 requise
pour I'appareil, (par ex. danger de sur-
chauffage).
Securite des enfants
S'assurer de disposer de bus les
emba,agesdep ast que,sacsetc
et de les garder hors de la port6 des
b6bes et jeunes enfants. Danger de
suffocatio!!
Si I'appareil est retir6 de son instal-
lation et que vous ne !'utilisez pas,
vous devez retirer la porte du meuble
de lavage pour empScher les enfants
de s'enfermer dons I'appareik
Pour disposer d'un ancien
lave-vaisselle, le d6brancher de la
prise, enlever la porte du meuble de la-
vage et couper le cordon @lectrique.

Caring for the environment
Disposa_ of the packing
materia_
The cardboard box and packaging
protect the appliance during shipping.
These materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocatio!!
Disposa_ of an o_d machine
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibilty of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet and
cut off its power cord and remove any
doors to prevent hazards.

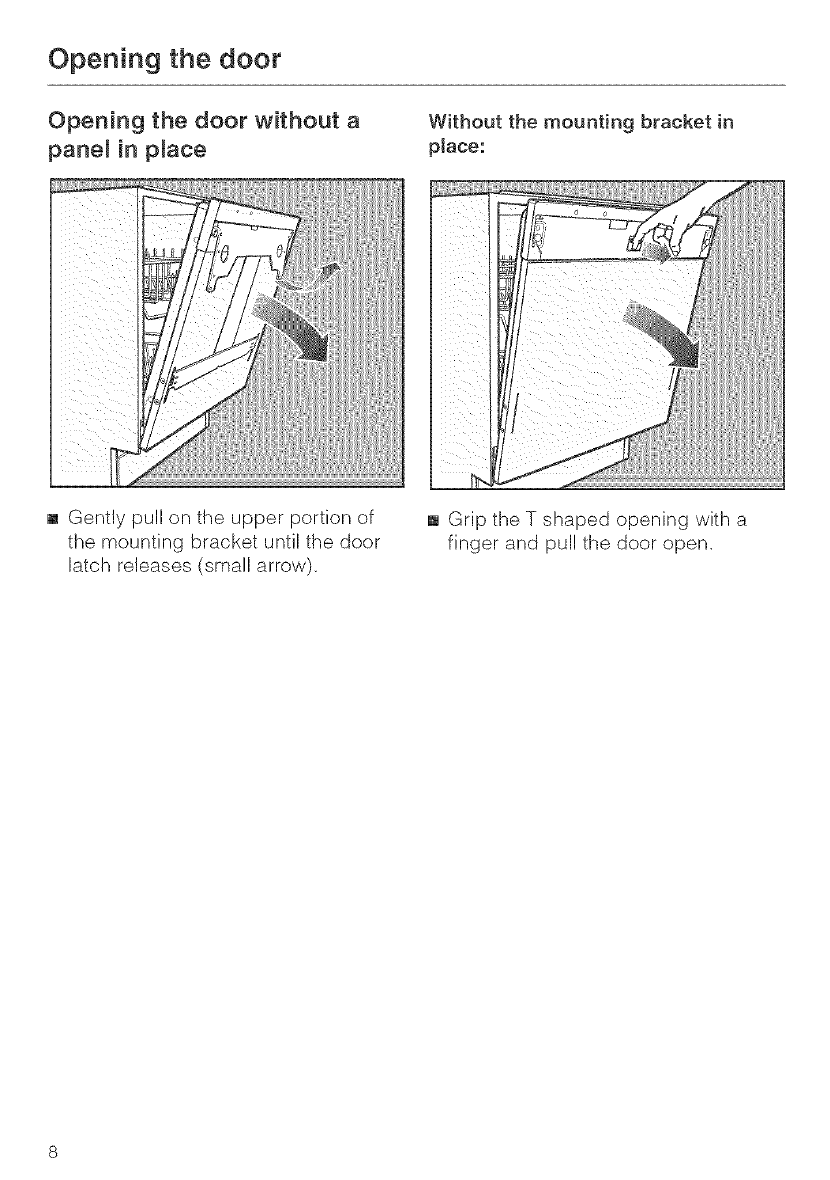

Opening the door
Opening the door without a
pane[ in place Without the mounting bracket in
place:
[] Gently pull on the upper portion of
the mounting bracket until the door
latch releases (small arrow),
[] Grip the T shaped opening with a
finger and pull the door open,

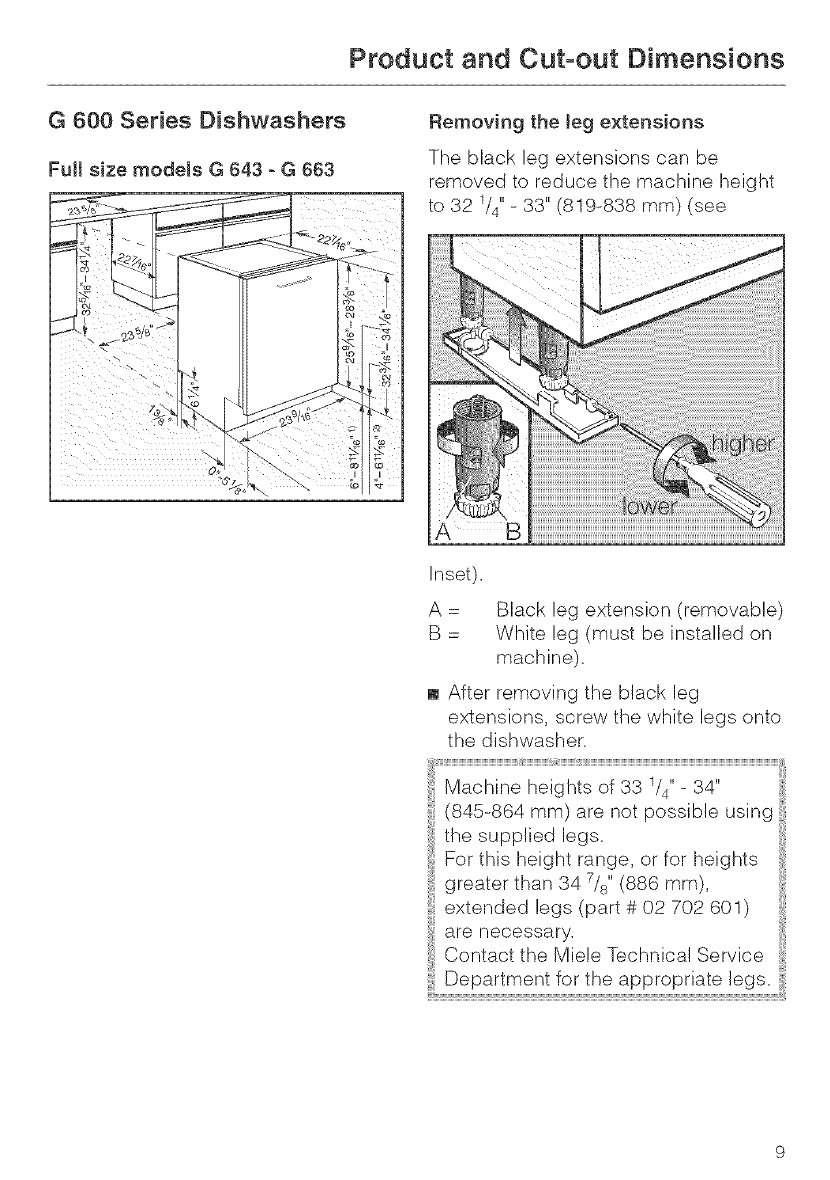

Product and Cut-out Dimensions
G600 Series Dishwashers
Full size models G 643 - G 663
Removing the Jeg extensions
The black leg extensions can be
removed to reduce the machine height
to 32 1/4"- 33" (819-838 ram) (see
Inset).
A = Black leg extension (removable)
B = White leg (must be installed on
machine).
[] After removing the black leg
extensions, screw the white legs onto
the dishwasher.
i re necessary.
Contact the Miele Technical Service
Department for the appropriate legs. .........

Product and Cut-out Dimensions
G 800 Series Dishwashers
Full size models G 843 - G 863
greater than 35" (889 ram), extended ill
legs (part# 02 702 601) are
necessary.
Contact the Miele Technical Service
lO

Installation
1. mnstall the steam deflector
A stainless steel steam deflector is
supplied to protect the countertop from
steam and condesation when the
dishwasher is opened, If the countertop
is made of Corian®, granite, marble or
other solid, waterproof material, the
steam deflector is not required,
The steam deflector has an indicator
reflector to show when the dishwasher
is running,
i_1IiIIiIIIIIIIIIIIIIIIIIIIIIIIIIIII_j_Hiji_f_IIIIII__[_i_i_i_i_i!!! i
If the counter is made of different
materials, the steam deflector i_i
should be positioned so it covers the _:
edge where the materials are ioined, !
Countertops with wood or laminate
ii edging should be tacked through ......
[] Remove the protective film from the
deflector,
[] Squeeze the supplied silicone
sealant along the groove of the
deflector,
11

installation

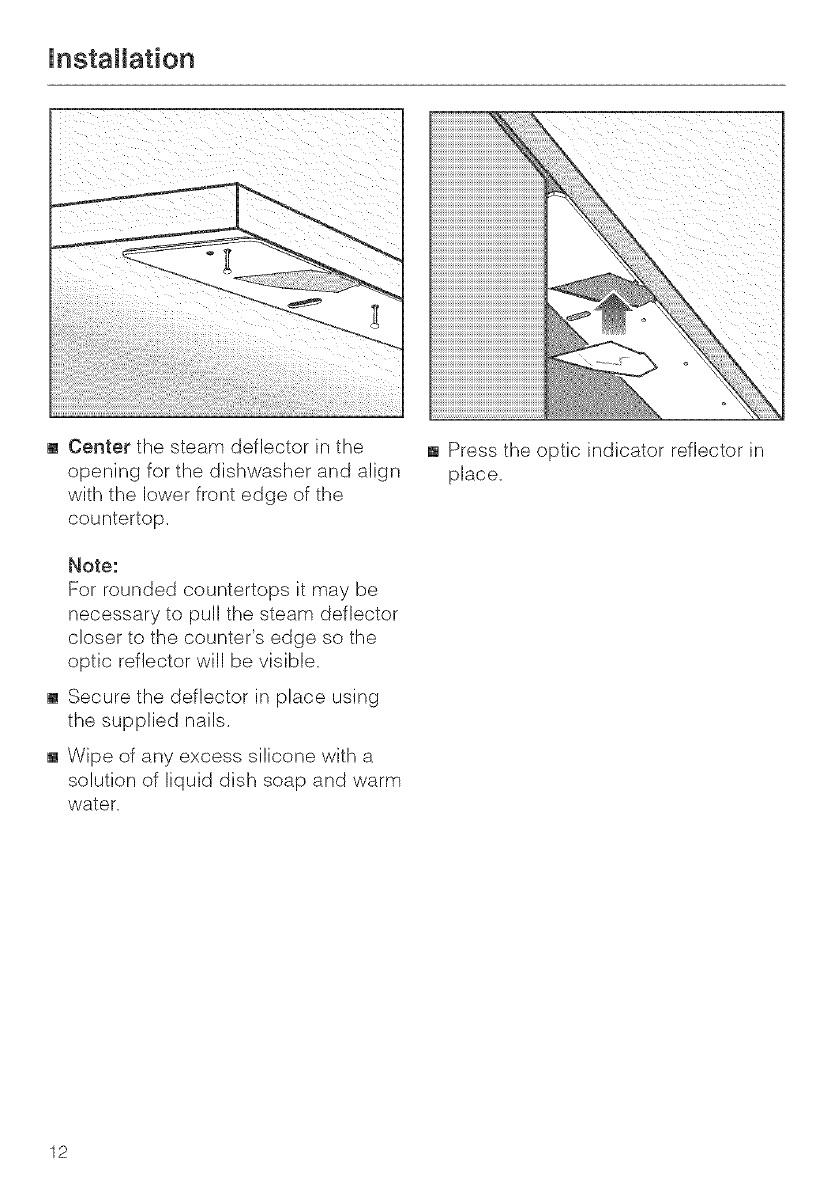

[] Center the steam deflector in the
opening for the dishwasher and align
with the lower front edge of the
cou ntertop,
[] Press the optic indicator reflector in
place,
Note:
For rounded countertops it may be
necessary to pull the steam deflector
closer to the counter's edge so the
optic reflector will be visible,
[] Secure the deflector in place using
the supplied nails,
[] Wipe of any excess silicone with a
solution of liquid dish soap and warm
water,
12

installation

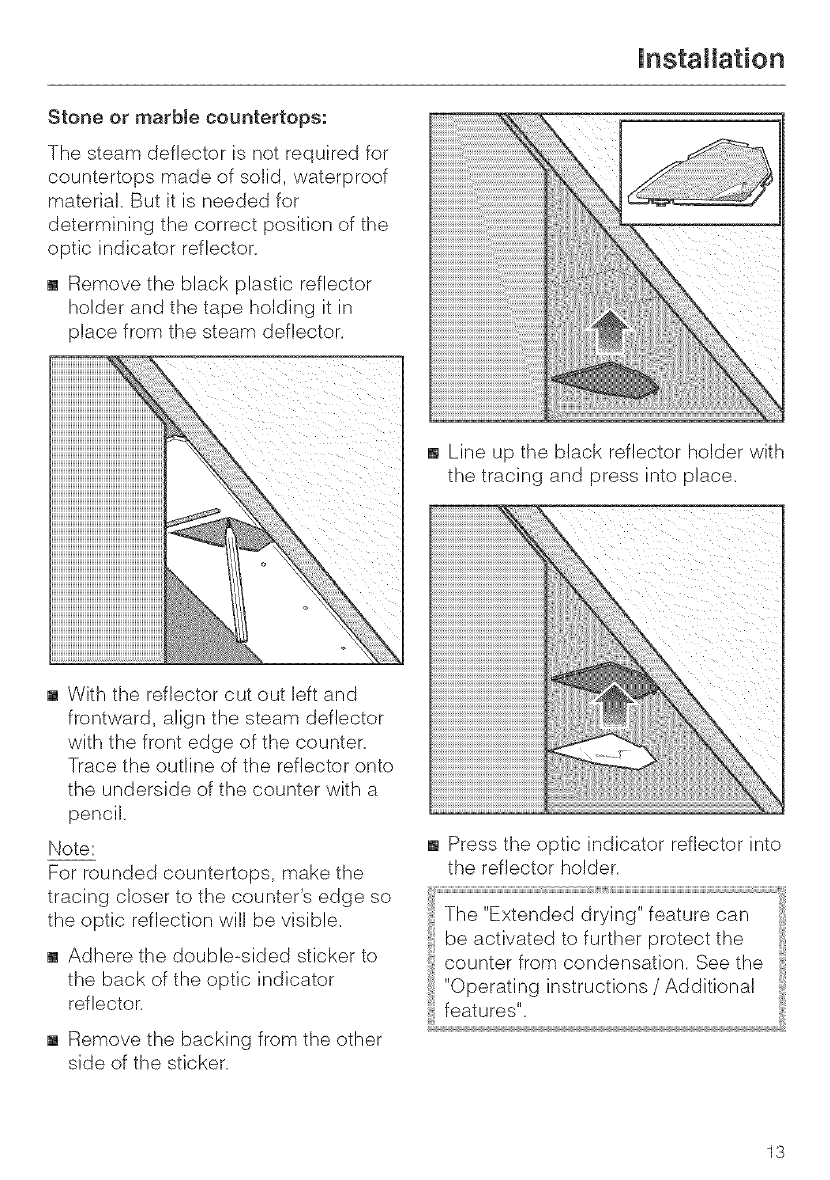

Stone or marble countertops:
The steam deflector is not required for
countertops made of solid, waterproof
material. But it is needed for
determining the correct position of the
optic indicator reflector.
[] Remove the black plastic reflector
holder and the tape holding it in
place from the steam deflector.
[] Line up the D_acK reflector no_oer w_m
the tracing ana Dress nrc olace
[] With the reflector cut out left and
ffontward, align the steam deflector
with the front edge of the counter.
Trace the outline of the reflector onto
the underside of the counter with a
pencil.
Note:
For rounded countertops, make the
tracing closer to the counter's edge so
the optic reflection will be visible.
[] Adhere the double-sided sticker to
the back of the optic indicator
reflector,
[] Remove the backing from the other
side of the sticker.
[] Press the optic indicator reflector into
the reflector holder.
i counter from condensation. See the
"Operati,ng instructions /Additional
13

installation
2. Install the mounting
brackets
To ensure stability this dishwasher
should be securely attached to the
countertop with the two mounting
brackets included,
[] Insert the tab of each bracket into the
guide holes on top,
Stone or marble counterops:
Do not install these mounting brackets
if the counter is made of an extremely
hard material, The securing screws for
the mounting brackets are not suitable
for such materials,
3. mnstaJJthe shale skis
Two slide skis are included and should
be installed on the feet of the
dishwasher before the machine is
pushed under the countertop, This will
allow the machine to slide easier,
protect the floor, and allow adiustment
of the rear leveling legs from the front of
the unit,
[] First, adjust the height of the legs so
rna_ _ne _oD_f me alsnwasner is
ougnly l/s /3 mm _elow the
coun[er_c o
Tipping _nemacnlne s gnuy to the rear,
if possible _A make aajushng the front
legs easier Make sure the machine is
leve wnen aa:usfmenfs are complete.
[] Place the skis, with the ratchet at the
rear, under the dishwasher legs,
14

installation
4, Install the dishwasher under
the countertop
The dishwasher must be installed so
that the water and electricity supplies
can be accessed through an adiacent
cabinet. The supplies must not be
located behind the machine.
z_WARNING - Fire hazard
Do not cover or crush the plug of an
electric appliance. Ensure that the
cabinet opening for the dishwasher
provides ample space for the plug.
Installing the dishwasher in a tight
space may crimp the power cord or
put pressure on the plug which may
cause overheating.
The floor of the cut out where the
dishwasher will be installed should be
even in height with the surrounding
kitchen floor. Plywood can be secured
to the floor to make the two areas even.
[] Make a 2"x 4" (5 x 10 cm) cut out in
the side or bottom of the cabinet
adioining the dishwasher. This cut out
is necessary for connections to pass
through.
[] Make certain that there are no rough
edges that could damage the power
cord or hoses. If metal cabinets are
used, place the supplied rubber
grommet around the edge of the
opening before passing the cable
through.
[] Slide the machine into the opening,
making sure the electrical cable and
hoses can reach their connection
points without kinking.
_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiWiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiii_iii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii__
The left side of the optic indicator
reflector and the optic indicator must
align.
The drain hose connection at the rear of
the dishwasher can be turned to allow
the hose to be angled to the right or
left.
[] Exercise care when sliding the
dishwasher in or out, to prevent
damaging the power cord or hoses.
15

installation
5. Leve_ the _egs
[] The rear leveling legs can be
adiusted with a T20 Torx screwdriver
by turning the screws at the front of
the slide skis,
To raise the machine turn clockwise,
To lower the machine turn counter
clockwise,
Several turns may be needed to set the
correct heighL Do not use a power
screwdriver.
[] Adiust the front leveling legs by
pushing on the feet with a slotted
screwdriver,
[] Tipping the machine slightly
backwards, if posssible will make
adjusting the front legs easier, Make
sure the machine is level when
adjustments are complete,
_i The dishwasher should be raised
until it just touches the underside of
16

installation
6. mnstaH the custom door
pane_
A custom door panel must be installed
on the dishwasher before it can be
safely operated. A single large panel or
a two piece panel separated at the
drawer line can be used.
Panel size is determined in the
following manner:
_ele
Integrated
Dshwasher
Panel Height = HTC - TKH
HTC = Height to the underside of
countertop
TKH = Toe Kick Height
PaneJ Dimensions:
1/,, (60 ore)
Width: ............... 23 ,2
Range of panel heiqht:
G 800 series .......... 27 1/2"- 30 1/4"
................... (699 -768 ram)
G 600 series .......... 25 1/2"- 28 1/4"
................... (648- 718 ram)
Thickness:
At least s/4" (!8 ram) where the
mounting bracket is to be screwed in
position.
Maximum panel weiqht:
G 800 series .......... 21 Ibs (9.5 kg)
G 600 series ........ 16.5 Ibs (7.5 kg)
17

installation

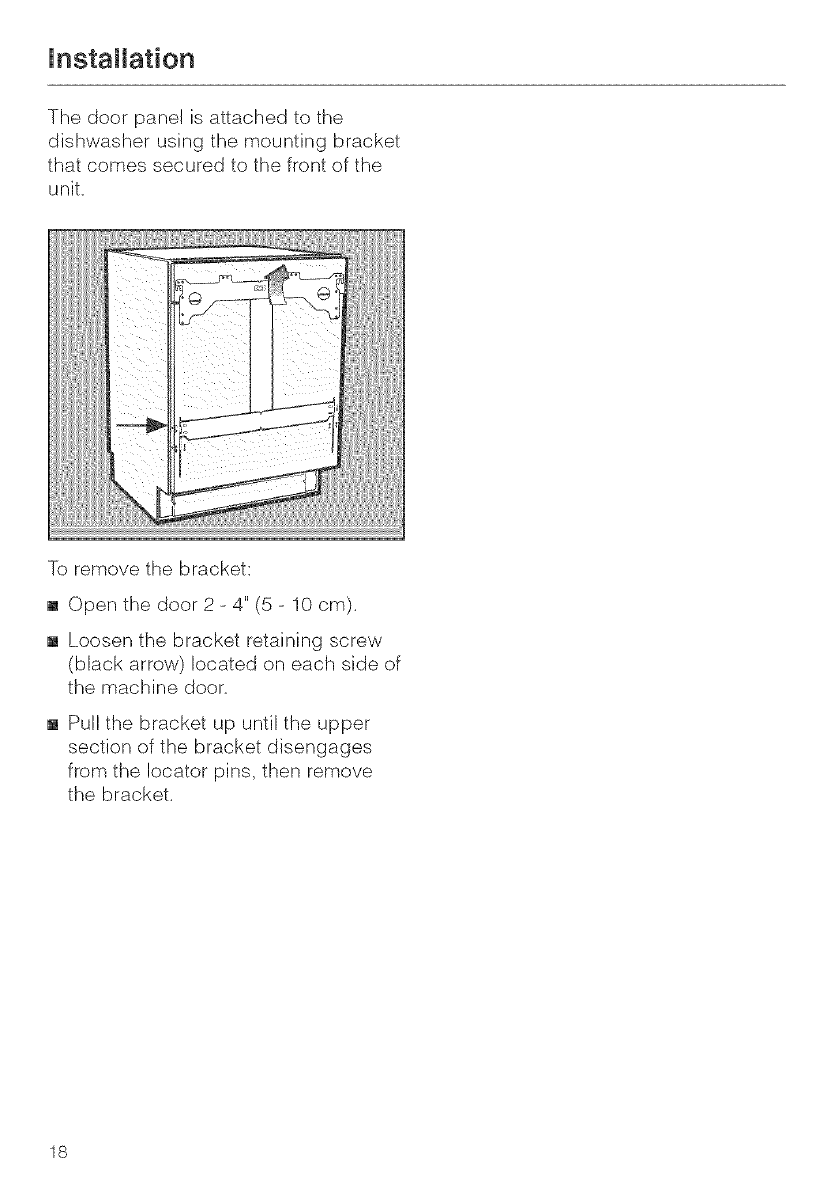

The door panel is attached to the
dishwasher using the mounting bracket
that comes secured to the front of the
unit,
To remove the bracket:
[] Open the door 2- 4" (5 - 10 cm),
[] Loosen the bracket retaining screw
(black arrow) located on each side of
the machine door,
[] Pull the bracket up until the upper
section of the bracket disengages
from the Iocator pins, then remove
the bracket,
18

Installation

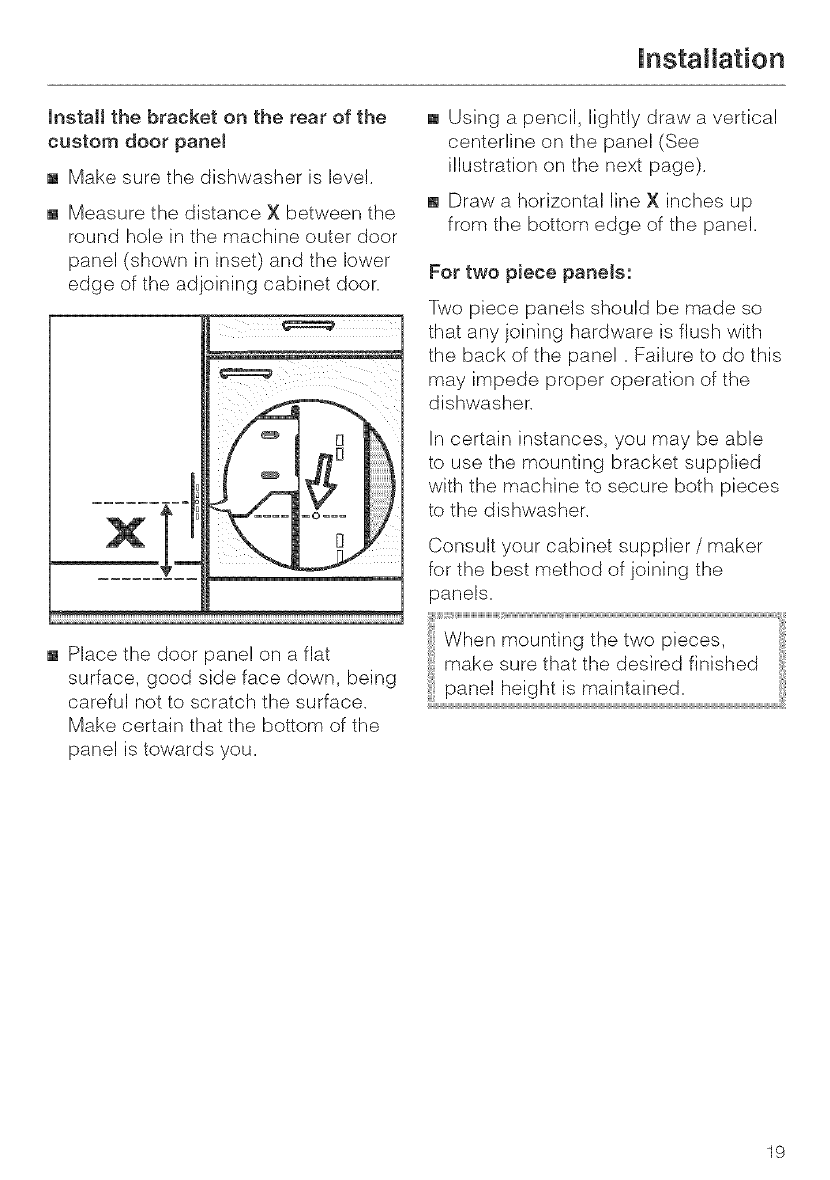

Install the bracket on the rea_ of the
custom doo_ panel
[] Make sure the dishwasher is leve!,
[] Measure the distance X between the
round hole in the machine outer door
panel (shown in inset) and the lower
edge of the adioining cabinet door.
f
[] Place the door panel on a flat
surface, good side face down, being
careful not to scratch the surface,
Make certain that the bottom of the
panel is towards you,
[] Using a pencil, lightly draw a vertical
centerline on the panel (See
illustration on the next page),
[] Draw a horizontal line X inches up
from the bottom edge of the panel,
For two piece panels:
Two piece panels should be made so
that any ioining hardware is flush with
the back of the panel, Failure to do this
may impede proper operation of the
dishwasher,
In certain instances, you may be able
to use the mounting bracket supplied
with the machine to secure both pieces
to the dishwasher,
Consult your cabinet supplier /maker
for the best method of ioining the
panels,
_iWhen mounting the two pieces,
make sure that the desired finished
...............................................................................
19

Installation
[] Place the bracket on the door panel
so the notches, _, cross the
previously drawn centerline, and the
bottom of the bracket lines up with
the horizontal X line.
[] Mark and drill pilot holes for the
3 Ii
screws using a/32 (2,5 ram) drill bit.
[] Attach the bracket to the back of the
panel, using the 14 screws provided.
The top four pair of holes, only need
to be secured once per pair.
[] Double check the location of the
bracket before mounting the panel to
the dishwasher.
The door handle must be installed on
the panel before it is attached to the
machine. It should be located in the
center of the panel at a height that will
match the surrounding drawer handles.
Any screws used to attach the door
_i handle must be countersunk so that
i the rear of the front panel remains
2O
