Miele Optima G 1470 User manual

Operating instructions
Optima Series
G 1470
G 2470
To prevent accidents
and machine damage
read these instructions
before
installation or use.
UV
M.-Nr. 06 696 060

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Checking the water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filling the salt container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adjusting the dosage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Items not recommended for dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cutlery tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lower basket inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Basket accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Turning on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Selecting and starting a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Time display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Glasscare indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Contents
2

Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Detergent settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Delay start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Default setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Problems water intake/drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
General problems with the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Sounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Poor cleaning results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
User Maintenance Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Triple filter system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Help to protect the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Contents
3

WARNING –
When using your dishwasher, follow
basic precautions, including the
following:
Read all instructions before
installation or use of the dishwasher
to prevent injury and machine
damage.
The manufacturer cannot be held
responsible for damage or injury
caused by improper use of this
appliance.
Use the dishwasher only for its
intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Electrical Safety
Before installation, make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
Do not use an extension cord to
connect this appliance to
electricity. Extension cords do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Be certain your appliance is
properly installed and grounded by
a qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
IMPORTANT SAFETY INSTRUCTIONS
4

Installation
The dishwasher must be installed
and connected in compliance with
the installation instructions.
Installation and repair work should
be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
Do not install or use a damaged
dishwasher. A damaged appliance
is dangerous. Unplug the machine and
call your Miele dealer or the Miele
Technical Service Department.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely
and kept out of the reach of children.
Danger of suffocation!
This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the nearest Miele dealer
or the Miele Technical Service
Department with specific requirements.
It is recommended that the
dishwasher only be connected to
the mains with the plug (no
hard-wiring). The outlet must be
accessible at all times after installation
to disconnect the dishwasher.
,WARNING - Fire hazard
Do not cover or crush the plug of
the appliance. Ensure that the cabinet
opening for the dishwasher provides
ample space for the plug. Installing the
dishwasher in a tight space may crimp
the power cord or put pressure on the
plug which could cause overheating.
This dishwasher should only be
installed under a continuous
counter top secured to adjacent
cabinetry.
Do not install this dishwasher
beneath a cooking surface, oven or
any appliance that radiates heat.
High temperatures from these units may
damage the dishwasher.
When installing the dishwasher
under a counter top and removing
the toekick, a build-under toekick must
be installed. Use the respective
installation kit. Danger of injuries.
Do not cut the intake hose or
submerge it in liquid. This hose
contains electrical components that
could cause injury or property damage
if cut or submerged.
Only connect the dishwasher to the
mains when all installation and
plumbing work is complete.
IMPORTANT SAFETY INSTRUCTIONS
5

Use
To reduce the risk of injury, do not
allow children to play in, on or near
the dishwasher.
Only use the dishwasher if all
panels are properly in place.
Do not tamper
with the controls.
Do not damage, sit or stand on the
door or baskets of the dishwasher.
Close the door when not in use.
Under certain conditions, hydrogen
gas may be produced in a hot
water system that has not been used
for two weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot water
system has not been used for such a
period, turn on all hot water faucets and
let water flow from each for several
minutes before using the dishwasher.
This will release any accumulated
hydrogen gas. Do not smoke or use an
open flame during this time.
Be sure that all items placed in the
dishwasher are "dishwasher safe".
For items not labeled, check the
manufacturer’s recommendations.
When loading tableware, place
sharp items away from the door to
prevent damage to the seal. Load
sharp items pointing downwards to
prevent injuries.
Only use detergents and rinse aids
recommended for residential
dishwashers. Keep all detergents and
rinse aids out of the reach of children.
Do not inhale or swallow
detergents. Dishwasher detergents
contain irritant and corrosive
ingredients. They can cause burning in
the mouth and throat if swallowed, or
inhibit breathing. Consult a doctor
immediately if detergent has been
swallowed or inhaled.
Do not drink water from the
dishwasher! Harmful residues
could be present.
Do not fill the rinse aid reservoir or
salt container with detergent. It will
destroy the rinse aid compartment and
water softener.
If the power cord is damaged it
must only be replaced by a Miele
Service technician with a genuine Miele
power cord.
Disposal of an appliance
If the appliance is removed from its
installation site and will not be
used, remove the doorlock to the wash
cabinet to prevent children from locking
themselves in the machine.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6

aUpper spray arm (not visible)
bCutlery tray (depending on model)
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gFilter combination
hData plate
iOptical interface
jRinse aid reservoir
kDual compartment detergent
dispenser
lSalt container
Guide to the dishwasher
7

Control panel
aTime display
bDelay Start button dwith indicator
cDetergent button
dCheck / Refill indicators
eGlasscare indicator
fProgram selection
gProgram button
hOn button g/ Indicator
iOff button o
jOptical Interface
Guide to the dishwasher
8

Energy saving washing
This dishwasher is exceptionally
economical in the use of water and
electricity. For best results follow these
tips:
^For lowest energy consumption and
the gentlest washing of china and
crystal, connect the dishwasher to a
cold water source.
^For fastest possible wash times, yet
higher energy consumption, connect
the dishwasher to a hot water source.
^Make full use of the baskets without
overloading for the most economical
washing.
^Use the correct amount of detergent
and rinse aid.
^When using powder or gel detergent,
reduce the amount to 2/3of the
normal amount when washing a small
load.
^Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^For small loads select "Short".
Caring for the environment
9

To open the door
^Pull the handle to open the door.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will
continue.
To close the door
^Push the baskets in.
^Lift the door and push until it clicks
into position.
Before using for the first time
10

Water softener
Every dishwasher is tested before
leaving the factory. Any water
remaining in the machine is from the
final factory test and does not
indicate that the machine has been
used.
To achieve good cleaning results, the
dishwasher needs soft water. Hard
water results in calcium deposits on
dishware and in the dishwasher.
If your tap water hardness is above 4°d
(4 gr/gal [US]), the water should be
softened. This takes place
automatically in the unit’s integrated
water softener.
The water softener is set automatically
to the local water hardness.
The water softener is designed for a
water hardness of up to 70 °d.
If the hardness of your local supply
is constantly lower than 4 °d , you do
not need to add water softener
salt. The salt indicator turns off
automatically.
Checking the water hardness
Once the dishwasher has been
installed and connected, run the
"Rinse + Hold" program. After the
program has finished, the water
hardness measured by the sensor can
be displayed.
This value is displayed in °d and may
vary depending on the water quality.
^Turn the dishwasher off with "o".
^Press and hold the program and "g"
button simultaneously. Hold the
program button until the lower right
program indicator lights.
If it does not come on, start over.
^Press the "Detergent" button twice.
The "Gel" indicator flashes twice in
intervals. The measured water hardness
is shown in the time display in the
numbers following "p".
^Turn the dishwasher off with "o".
Before using for the first time
11

Filling the salt container
,Inadvertently filling the salt
container with dishwashing
detergent will damage the water
softener.
,Only use water softener salt
specially formulated for
dishwashers. Other salts may
contain insoluble additives which
can impair the water softener.
^Remove the lower basket and
unscrew the salt container lid.
When opening the salt container,
water will run out. Open the
container only to refill salt.
Important: The salt container must
be filled with 2 quarts (2 l) of water
before adding salt for the first
time. Water does not have to be
added with subsequent refills.
^Place the provided funnel over the
salt container. Carefully fill with salt.
The salt container holds approx.
4.5 lbs (2 kg) of salt. As it is filled,
water will run out.
^Clean any excess salt from the
threads of the container opening.
Screw the lid on firmly.
^If the dishwasher will not be used
immediately, run the "Short" program.
This will remove any traces of salt
from inside the wash cabinet.
Before using for the first time
12

Salt indicator
^When the "Salt" indicator comes on,
refill the salt after the program is
finished.
After the container has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is started. The "Salt"
indicator will be lit during this process.
Before using for the first time
13

Rinse aid
Rinse aid helps to prevent spotting on
dishes and glassware. The rinse aid is
filled in the reservoir and the set
amount will be automatically dosed.
,Filling the rinse aid reservoir with
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
When using "2 in 1" detergents, no
rinse aid is needed.
Adding rinse aid
^Press the button in the direction of
the arrow until the flap springs open.
^Pour liquid rinse aid into the reservoir
until it its visible on the surface of the
screen.
The rinse aid reservoir holds approx.
3.7 oz (110 ml).
^Press on the flap until you hear it
click shut. Failure to close it all the
way allows water to enter the
reservoir during the wash program.
^Clean any spilled rinse aid. The flap
will remain closed during normal
operation.
Before using for the first time
14

Rinse aid indicator
When the rinse aid indicator first comes
on, there will be enough rinse aid left
for 2 - 3 washes.
^The rinse aid indicator on the control
panel will light when the rinse aid
reservoir needs refilling.
If the "2 in 1" function is selected, the
rinse aid indicator will not light, see
"Additional functions - Detergent
settings".
Adjusting the dosage
The dosage selector is preset to 3. This
dispenses approximately 3 ml of rinse
aid per program. It can be adjusted
from 1 to 6.
–Use a higher setting if spots appear
on dry glassware.
–Use a lower setting if streaking
appears on dishes or glasses.
^Turn the dishwasher off "o".
^Press and hold the program button
and at the same time turn the
dishwasher on with "g". Hold the
program button until the lower right
program indicator lights.
If it does not come on, start over.
^Press the "Detergent" button 3 times.
The "Gel" indicator flashes 3 times.
The time display shows "p 3" flashing.
A rinse aid amount of 3 ml is selected
(factory setting).
The set value is shown in the time
display after "p".
^Select the desired setting with the
program button. Every touch of the
button adjusts the level.
The dosage is saved.
^Turn the dishwasher off "o".
Before using for the first time
15

,Do not wash items soiled with
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration and
damage to the dishwasher.
^Scrape food from dishes before
placing them in the dishwasher,
rinsing is not necessary.
^Some foods contain natural dyes,
e.g. carrots or tomatoes. Plastic items
may discolor permanently if they
come in contact with food dyes.
^All items can be placed anywhere in
the baskets.
^Load dishes so that water can reach
all surfaces. Do not place dishes or
cutlery inside other pieces.
^Make sure that all items are securely
positioned.
^Hollow items such as cups and
glasses should be placed upside
down in the baskets.
^To ensure good water coverage,
tall, narrow and hollow items,
i.e. vases or champagne glasses,
should be placed in the center of the
basket rather than in the corners.
^Concave based items such as mugs
or bowls, should be placed at an
angle so that water does not pool.
^The spray arms must not be blocked
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
^Place very small items in the cutlery
tray or basket so they do not fall to
the bottom of the wash cabinet.
^Food residue and spilled liquids
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
Loading the dishwasher
16

Items not recommended for
dishwashing
–Cutlery with wooden handles
–Wooden cutting boards
–Glued items such as old knives with
handles glued together around the
shank of the blade
–Handmade craft items, antique,
metal trimmed or decorative
glassware
–Plastic items that are not heat
resistant
– Copper, brass, tin or aluminum
– Dishes with color painted over the
glaze. These dishes may fade over
time
– Fine glassware and crystal items
should only be washed using the
"China & Crystal" program*.
Otherwise clouding or etching may
occur after frequent washing.
–Cast iron pots and pans
* depending on model
Glassware:
–There are no standard guidelines for
washing glassware, when in doubt
wash by hand.
–When purchasing new dishes,
glasses and cutlery, make sure they
are dishwasher safe. Only wash
items marked "dishwasher safe" in
the dishwasher.
–If fine glassware is washed in the
dishwasher select the "China &
Crystal" program*. This will reduce
the risk of clouding.
Silver and aluminum:
– Silver or aluminum items may tarnish.
– Silverware previously cleaned with a
silver polish may be damp or spotted
at the end of a program where water
has adhered to the polish. This can
be rubbed off with a soft, dry cloth.
Silver that has been cleaned in an
immersion dip is usually dry at the
end of a program, but may tarnish.
–If left to dry, foods containing sulfur
can discolor silver. These include
egg yolk, onions, mayonnaise,
mustard, fish and marinades.
–Silverware may tarnish or pit if
washed next to stainless steel.
Leave space between these metals.
–Clean aluminum items, e.g. grease
filters, with domestic dishwasher
detergent only.
Loading the dishwasher
17

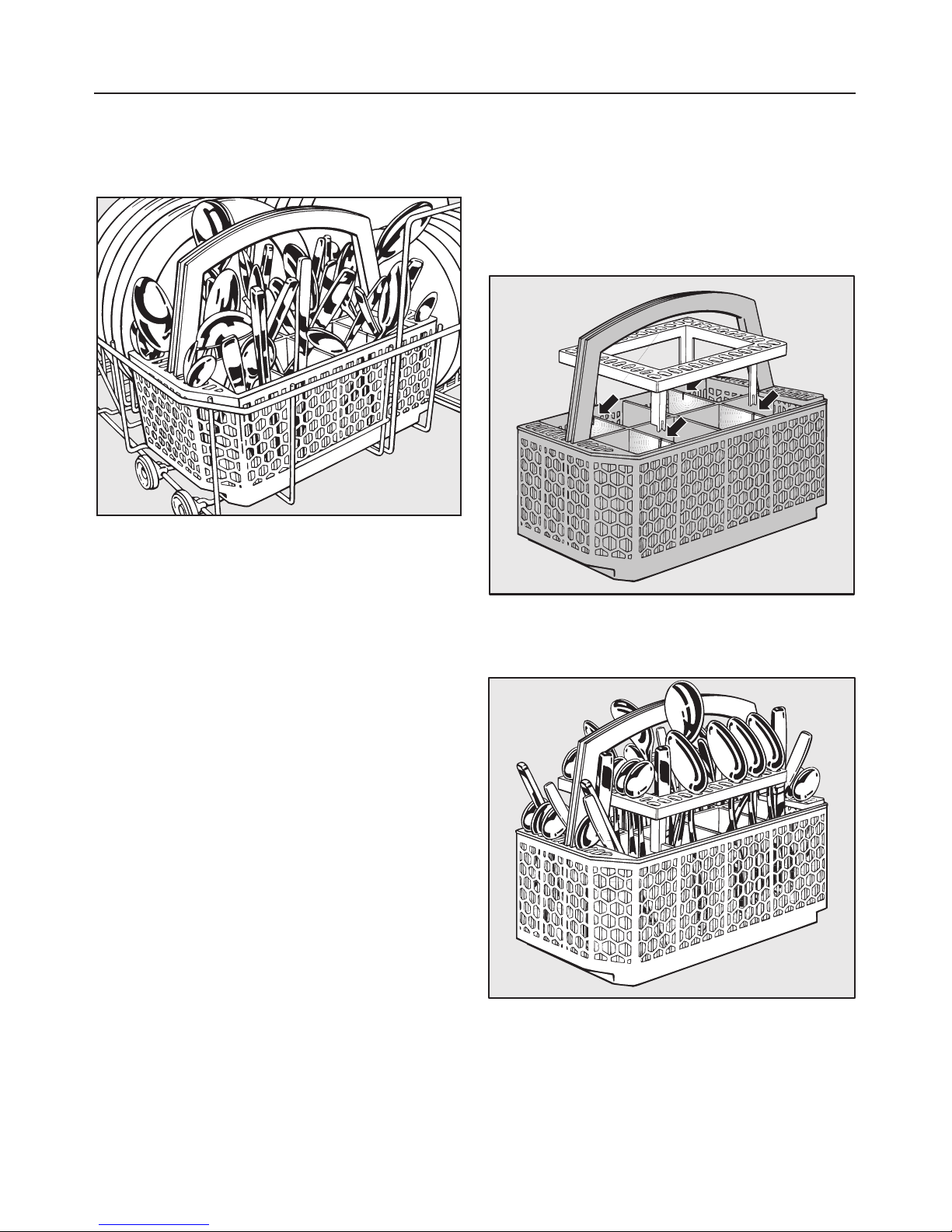

Cutlery tray
(depending on model)
^Arrange the cutlery as shown in the
cutlery tray.
For easier unloading cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.
Place knives with the cutting edge
down and forks with the prongs
between the holders. Spoons should be
placed in the opposite direction with
the handles between the holders.
The upper spray arm must not be
blocked by tall cutlery items.
The cutlery tray insert is removable.
Spoons with thick handles may have to
be placed as knives and forks with their
heads in the holders
Loading the dishwasher
18

Cutlery basket
(depending on model)
^For best cleaning results, cutlery
should be placed in the basket with
the handles down. Knives and forks
should be loaded with the pointed
end down to prevent injuries.
^Place small spoons in the individual
slots to either side of the cutlery
basket.
Spoon inserts for the cutlery basket
The supplied insert is designed to wash
heavily soiled spoons. The individual
slots allow the water to better reach the
surface of each spoon.
^Attach the insert when needed to the
cutlery basket.
^Insert the cutlery with the handles
down into the insert. Arrange the
cutlery evenly.
Loading the dishwasher
19

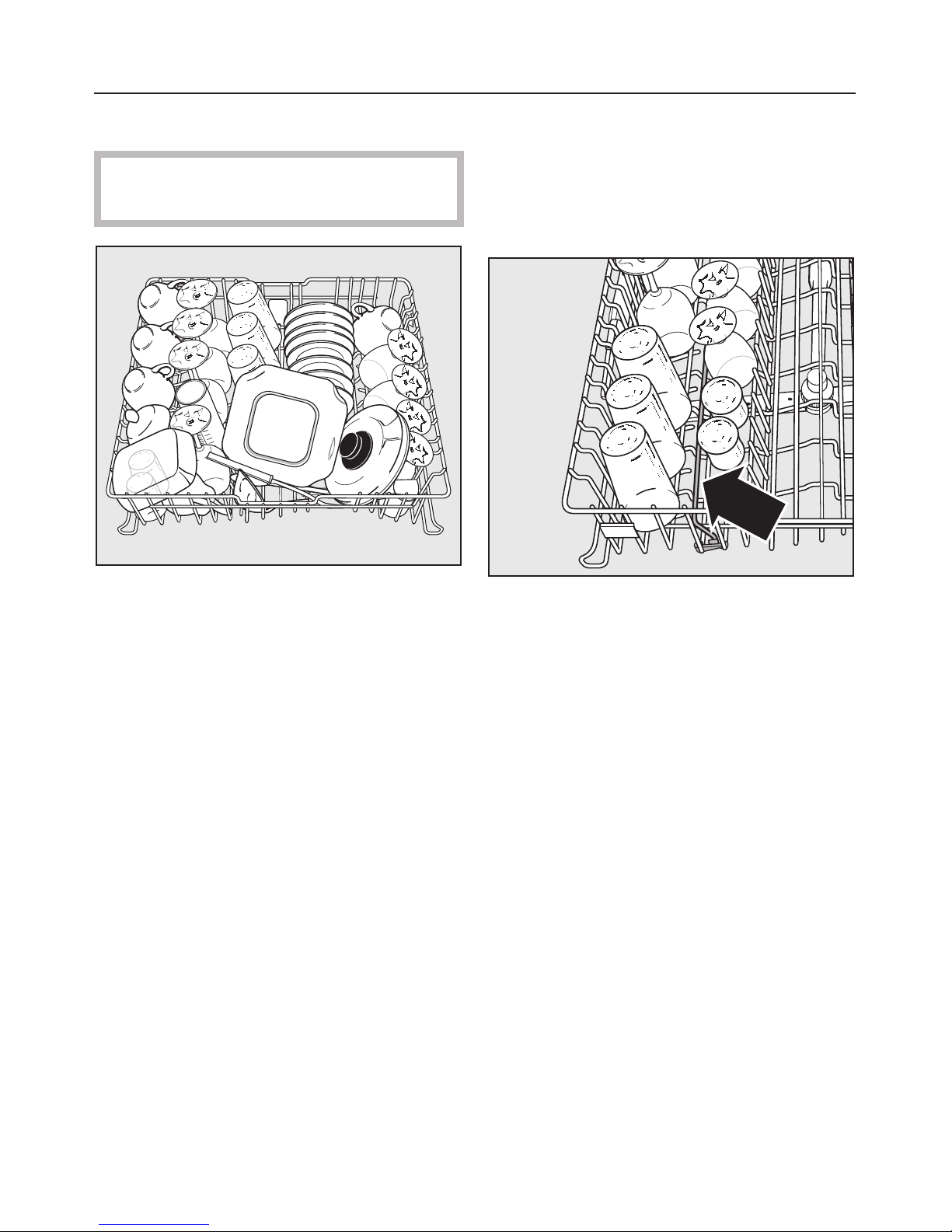

Upper basket
,Always use the dishwasher with
the upper and lower basket inserted.
^Load the upper basket with small,
lightweight, or delicate items such as
cups, saucers, glasses, dessert
bowls and flat pans.
^Long items such as soup ladles,
mixing spoons and long knives
should be placed lying down across
the front of the upper basket.
Coffee bar
(depending on model)
Glasses can be leaned against the
coffee bar to allow a firm stand.
^The bar can also be used to separate
two rows of glasses.
^To stack wide items, flip the bar to the
right.
Cup racks
^Raise the rack to make room for tall
glasses. Lower it to double stack
smaller pieces.
Loading the dishwasher
20
