Miele Classic G 4281 SCVi User manual

Operating Instructions
Dishwasher
G 4281
G 4286
To prevent accidents
and appliance damage
read these instructions
before
installation or use. M.-Nr. 09 510 200
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS.................................4
Guide to the dishwasher ............................................7
Control panel ......................................................8
Caring for the environment..........................................9
Energy saving washing ..............................................9
Before using for the first time.......................................10
To open the door ..................................................10
To close the door ..................................................10
Rinse aid ........................................................11
Adding rinse aid ..................................................11
Rinse aid indicator .................................................11
Deactivating refill indicators .......................................12
Setting the rinse aid dosage .........................................13
Loading the dishwasher ...........................................14
Items not recommended for dishwashing ...............................15
Typical load for 10 place settings with cutlery tray ........................16
Typical load for 16 place settings with cutlery tray ........................17
Upper basket .....................................................18
Lower basket .....................................................20
Optional accessories..............................................23
Use ............................................................24
Detergent ........................................................24
Adding detergent..................................................25
Turning the dishwasher on ..........................................26
Selecting a program ...............................................26
Starting a program.................................................26
Time display......................................................28
Standby .........................................................28
At the end of a program.............................................29
Preparing your appliance for an extended vacation .......................29
Interrupting a program..............................................30
Changing a program ...............................................30
Contents
2

Additional options ................................................31
Turbo ...........................................................31
Delay start .......................................................31
Buzzer ..........................................................33
Memory .........................................................34
Optimize Standby .................................................35
Factory defaults ...................................................36
Frequently Asked Questions .......................................37
Technical faults ...................................................37
Faults in the water intake or water drain ................................38
General problems with the dishwasher .................................39
Noises ..........................................................40
Poor cleaning results ...............................................41
After sales service ................................................44
User Maintenance Instructions......................................45
Cleaning and Care ................................................46
Triple filter system .................................................47
Cleaning the drain pump and non-return valve...........................50
Installation instructions ...........................................51
Electrical connection..............................................52
Plumbing........................................................54
Connection to the water supply .......................................54
Drainage ........................................................55
Contents
3

WARNING –
When using your dishwasher, follow
basic precautions, including the
following:
Read the operating instructions and
installation diagram carefully before
installation or use of the dishwasher
to prevent injury and machine
damage.
Use the dishwasher only for its
intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Correct usage
~The dishwasher is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as, shops, offices and showrooms
or guest houses.
~The dishwasher is not intended for
outdoor use.
~It must only be used as a domestic
appliance as specified in these
operating instructions, for cleaning
domestic cookware and cutlery. Any
other usage is not supported by the
manufacturer and could be dangerous.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use the
dishwasher without supervision or
instruction by a responsible person.
Electrical Safety
~Before installation, make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
~Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~If the supplied power cord is
damaged it must only be replaced by a
Miele Service technician with a genuine
Miele power cord.
~The outlet must be accessible at all
times after installation to disconnect the
dishwasher.
IMPORTANT SAFETY INSTRUCTIONS
4

Installation
~The dishwasher must be installed
and connected in accordance with the
installation instructions.
~Installation and repair work should
be performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and may
void the warranty.
~Do not install or use a damaged
dishwasher. A damaged appliance is
dangerous. Unplug the machine and
contact Miele Technical Service
Department.
~Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
~This appliance must not be used in
a non-stationary location (e.g. on a
boat).
~,WARNING - Fire hazard!
Do not cover or crush the plug of the
appliance. Ensure that the cabinet
opening for the dishwasher provides
ample space for the plug and cord.
Installing the dishwasher in a tight
space may crimp the power cord or put
pressure on the plug which could
cause overheating.
~This dishwasher should only be
installed under a continuous counter
top secured to adjacent cabinetry.
~Do not install this dishwasher
beneath a cooking surface, oven or any
appliance that radiates heat.
High temperatures from these units
may damage the dishwasher.
~A toe-kick must be used with the
dishwasher. If the supplied toe-kick is
not used, a cabinet matching toe-kick
must be installed.
~Do not install the dishwasher in an
area where it will be exposed to
temperatures below freezing.
~Do not cut the intake hose or
submerge it in liquid. This hose
contains electrical components that
could cause injury or property damage
if cut or submerged.
~Only power up the dishwasher when
all installation and plumbing work is
complete.
~Do not place hose or power cord
next to a heat source e.g. hot water
pipes.
Do not expose hose or power cord to
corrosive substances.
Damage of hose or power cord could
cause electrical shock or water
damage!
IMPORTANT SAFETY INSTRUCTIONS
5

Use
~To reduce the risk of injury, do not
allow children to play in, on or near the
dishwasher. It is possible for small
fingers may be pinched in the door.
~Only use the dishwasher if all panels
are properly in place.
~Do not tamper with the controls.
~Do not sit or stand on the door or
baskets of the dishwasher. Close the
door when not in use.
~Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for two
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has
not been used for such a period, turn
on all hot water faucets and let water
flow from each for several minutes
before using the dishwasher. This will
release any accumulated hydrogen
gas. Do not smoke or use an open
flame during this time.
~Be sure that all items placed in the
dishwasher are "dishwasher safe". For
items not labeled, check the
manufacturer’s recommendations.
~When loading tableware, place
sharp items away from the door to
prevent damage to the seal. Load
sharp items pointing downwards to
prevent injuries.
~Only use detergents and rinse aids
recommended for residential
dishwashers. Keep all detergents and
rinse aids out of the reach of children.
~Do not inhale or swallow detergents.
Dishwasher detergents contain irritant
and corrosive ingredients. They can
cause burning in the mouth and throat if
swallowed, or inhibit breathing. Consult
a doctor immediately if detergent has
been swallowed or inhaled.
~Do not drink water from the
dishwasher! Harmful residues could be
present.
~Do not fill the rinse aid reservoir or
salt container with detergent. It will
destroy the rinse aid compartment and
water softener.
~Dishes can be very hot at the end of
a program. Allow the dishes to cool
until they are cool enough to handle
before unloading them.
~The water supply must be turned off
when the appliance is not used for a
longer period of time (e.g. during
vacations).
Disposal of an appliance
~If the appliance is removed from its
installation site and will not be used,
remove the doorlock to the wash
cabinet to prevent children from locking
themselves in the machine.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6

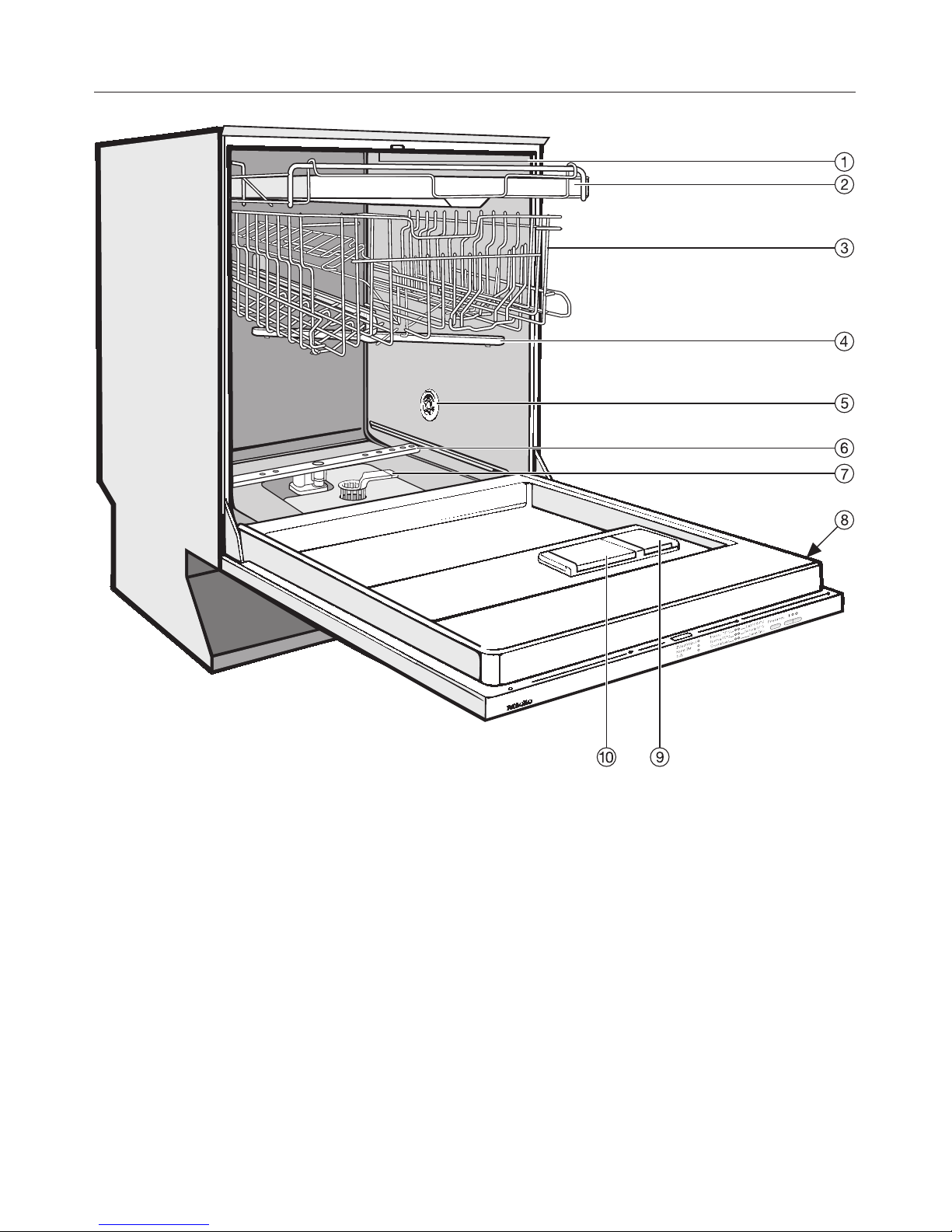

aUpper spray arm (not visible)
bCutlery tray
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gTriple filter system
hData plate
iRinse aid reservoir
jDual compartment detergent
dispenser
Guide to the dishwasher
7

Control panel

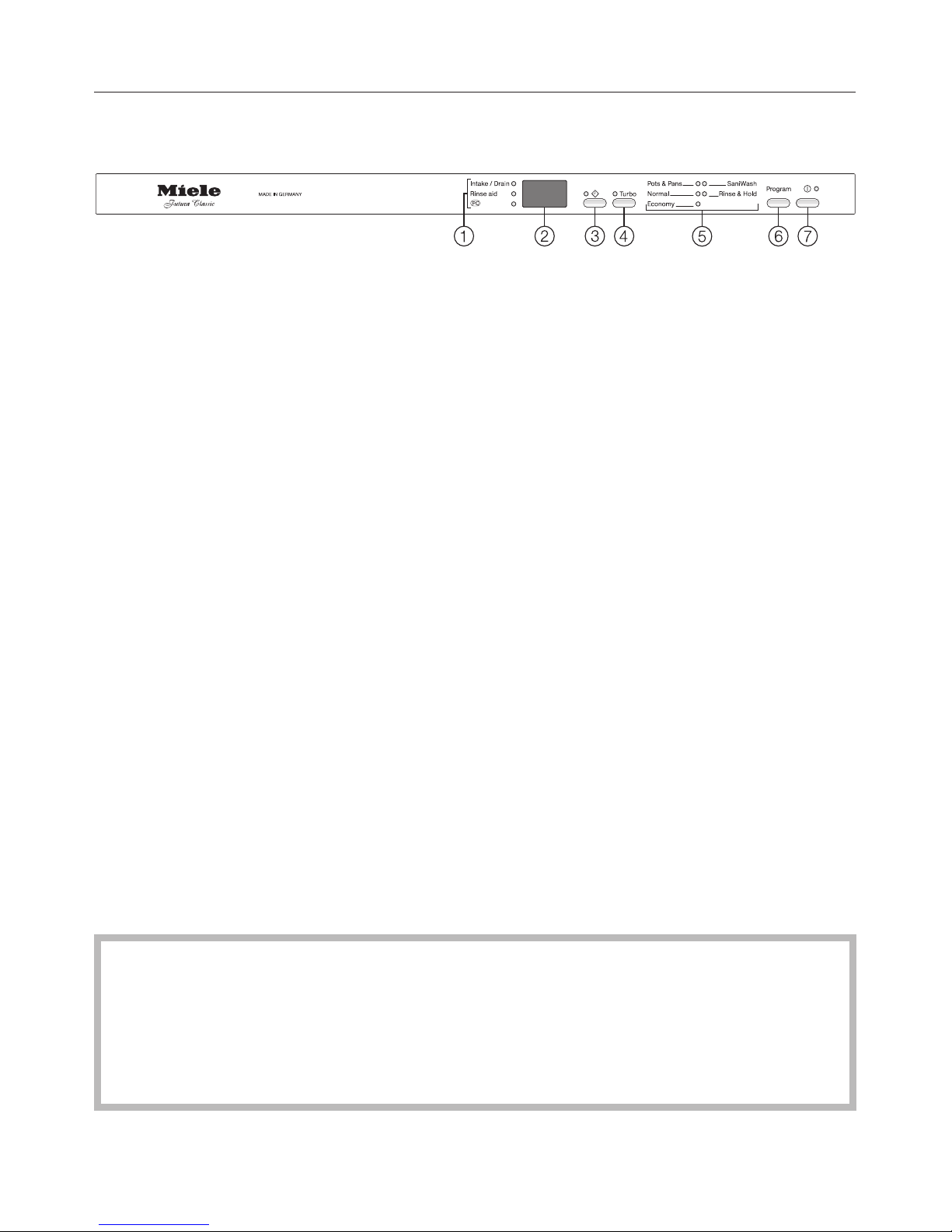

aCheck / Refill indicators
bTime display
c,button with indicator light
(Delay start)
dTurbo button with indicator light
eProgram selection
fProgram button
gKbutton (On/Off) with indicator light
This operating instruction manual describes several dishwasher models with
different indicated settings.
The different dishwasher models are named :
Standard = Dishwasher with 31 11/16" (80.5 cm) height (built-in)
or 33 1/4" (84.5 cm) height (stand-alone)
XXL = Dishwasher with 33 1/4" (84.5 cm) height.
Guide to the dishwasher
8

Energy saving washing
This dishwasher is economical in the
use of water and electricity. For best
results follow these tips:
^For lowest energy consumption you
may connect the dishwasher to a
cold water source.
^Make full use of the baskets' capacity
without overloading the dishwasher.
This ensures the most economical
washing.
^Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^Use the Economy program for energy
saving dishwashing.
From the aspect of combined energy
and water consumption, this program
is the most efficient for washing
normally soiled dishes.
^Observe the detergent
manufacturer's recommendations for
detergent dosage.
^When using powder or liquid
detergent, reduce the amount to 2/3
of the normal amount when washing
a small load.
Disposal of the packing
material
The cardboard box and packaging
protect the appliance during shipping.
These materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old machine
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet, cut
off its power cord and remove any
doors to prevent hazards.
Caring for the environment
9

To open the door
^Pull the handle to open the door.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will
continue.
To close the door
^Push the baskets in.
^Lift the door and push until it clicks
into position.
Before using for the first time
10

Rinse aid
Rinse aid is needed to prevent spotting
on dishes and glassware.
The rinse aid is filled in the reservoir
and the set amount will be
automatically dosed.
,Filling the rinse aid reservoir with
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
When using "Tab" detergents rinse
aid is not needed.
Adding rinse aid
^Press the button on top of the rinse
aid reservoir in the direction of the
arrow. The flap will pop open.
^Pour liquid rinse aid into the reservoir
until it its visible on the surface of the
screen.
The rinse aid reservoir holds approx.
3.7 oz (110 ml).
^Press on the flap until you hear it
click shut. Failure to close it all the
way allows water to enter the
reservoir during the wash program.
^Clean any spilled rinse aid. The flap
will remain closed during normal
operation.
Rinse aid indicator
When the Rinse aid indicator comes on,
the reservoir only contains enough rinse
aidfor2-3wash programs.
^Add rinse aid soon.
Before using for the first time
11

Deactivating refill indicators
If you consistently use Tab detergents,
you can deactivate the refill indicator if
you wish.
^Press the Kbutton to turn the
dishwasher off.
^Hold down the Program button and
simultaneously turn the dishwasher
on using the Kbutton.
Keep the Program button pressed for
at least four seconds until the lower
right program indicator lights up.
If it does not come on, start over.
^Press the Turbo button nine times.
The Turbo indicator light flashes 9 times
at short intervals.
The flashing in the time display
indicates whether the refill indicators
are activated or not.
–"p1": refill indicators are activated
–"p0": refill indicators are deactivated
^Press the Program button if you wish
to change the setting.
The setting is immediately saved.
^Press the Kbutton to turn the
dishwasher off.
If you switch to a single-function
detergent, it is important to
remember to add rinse aid and to
activate the indicator.
Before using for the first time
12

Setting the rinse aid dosage
You can adjust the rinse aid dosage to
optimize the results.
The rinse aid dosage can be set at
levels between 0 and 6 ml. The factory
setting is 3 ml of rinse aid. This is just a
recommendation.
If the dishes are spotty:
^Use a higher setting.
If the dishes are cloudy or streaky:
^Use a lower setting.
^Press the Kbutton to turn the
dishwasher off.
^Hold down the Program button and
simultaneously turn the dishwasher
on using the Kbutton.
Keep the Program button pressed for
at least four seconds until the lower
right program indicator lights up.
If it does not come on, start over.
^Press the Turbo button three times.
The Turbo indicator light flashes 3 times
at short intervals.
The time display shows the flashing
sequence p3.
The set value is shown in the time
display after the P.
^Select the desired dosage with the
Program button.
Every touch of the button increases
the level.
The setting is saved immediately.
^Press the Kbutton to turn the
dishwasher off.
Before using for the first time
13

,Do not wash items soiled with
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration and
damage to the dishwasher.
^Scrape food from dishes before
placing them in the dishwasher,
rinsing is not necessary.
^Some foods contain natural dyes,
e.g. carrots or tomatoes. Plastic items
may discolor permanently if they
come in contact with food dyes.
^All items can be placed anywhere in
the baskets.
^Load dishes so that water can reach
all surfaces. Do not place dishes or
cutlery inside other pieces.
^Make sure that all items are securely
positioned.
^Hollow items such as cups and
glasses should be placed upside
down in the baskets.
^To ensure good water coverage, tall,
narrow and hollow items, i.e. vases
or champagne glasses, should be
placed in the center of the basket
rather than in the corners.
^Concave based items such as mugs
or bowls, should be placed at an
angle so that water does not pool.
^The spray arms must not be blocked
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
^Place very small items in the cutlery
tray or basket so they do not fall to
the bottom of the wash cabinet.
^Food residue and spilled liquids
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
Loading the dishwasher
14

Items not recommended for
dishwashing
–Cutlery with wooden handles
–Wooden cutting boards
–Glued items such as old knives with
handles glued together around the
shank of the blade
–Handmade craft items, antique,
metal trimmed or decorative
glassware
–Plastic items that are not heat
resistant
– Copper, brass, tin or aluminum
– Dishes with color painted over the
glaze. These dishes may fade over
time
– Fine glassware and crystal items
should only be washed using the
"China & Crystal" program*.
Otherwise clouding or etching may
occur after frequent washing.
–Cast iron pots and pans
* depending on model
If unsure whether your china and
crystal are dishwasher safe, please
check with the manufacturer. The
China & Crystal program*, although
extremely gentle and thorough can
cause the china and crystal to "wear"
if they are not dishwasher safe.
Glassware:
–There are no standard guidelines for
washing glassware, when in doubt
wash by hand.
–When purchasing new dishes,
glasses and cutlery, make sure they
are dishwasher safe. Only wash
items marked "dishwasher safe" in
the dishwasher.
–If fine glassware is washed in the
dishwasher select the "China &
Crystal" program*. This will reduce
the risk of clouding.
Silver and aluminum:
– Silver or aluminum items may tarnish.
– Silverware previously cleaned with a
silver polish may be damp or spotted
at the end of a program where water
has adhered to the polish. This can
be rubbed off with a soft, dry cloth.
Silver that has been cleaned in an
immersion dip is usually dry at the
end of a program, but may tarnish.
–If left to dry, foods containing sulfur
can discolor silver. These include
egg yolk, onions, mayonnaise,
mustard, fish and marinades.
–Silverware may tarnish or pit if
washed next to stainless steel.
Leave space between these metals.
–Clean aluminum items, e.g. grease
filters, with domestic dishwasher
detergent only.
Loading the dishwasher
15

Typical load for 10 place settings with cutlery tray
Upper basket Lower basket
Cutlery tray
Loading the dishwasher
16

Typical load for 16 place settings with cutlery tray
Upper basket Lower basket
Cutlery tray
Loading the dishwasher
17

Upper basket
,Always use the dishwasher with
the upper and lower basket in place.
^Load the upper basket with small,
lightweight, or delicate items such as
cups, saucers, glasses, dessert
bowls and flat pans.
Long items such as soup ladles, mixing
spoons and long knives should be
placed lying down across the front of
the upper basket.
Adjustable cup rack
(depending on model)
^Raise the rack to make room for tall
glasses.
Glasses can also be leaned against the
cup rack so they are more stable.
^Lower it to double stack smaller
pieces.
Loading the dishwasher
18

Adjusting the upper basket
In order to gain more space for taller
items the upper basket can be adjusted
on three levels with 2 cm between each
level.
The upper basket can also be set at an
angle with one side high and the other
side low. Make sure, however, that the
basket can slide smoothly in and out of
the cabinet.
^Slide out the upper basket.
To adjust the upper basket upwards:
^Lift the basket up until it clicks into
place.
To adjust the upper basket downwards:
^Pull up on the levers at the sides of
the upper basket.
^Adjust the basket to the desired
height and then release the levers to
lock the basket in place.
Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.
Depending on the setting of the upper
basket, a variety of plate dimensions
can be accommodated.
Loading the dishwasher
19

Lower basket
^Place larger and heavier items such
as plates, serving platters,
saucepans, bowls, etc. in the lower
basket.
It can also be used for glasses, cups,
small plates and saucers.
Dishwasher with cutlery tray
Dishwasher with cutlery basket
Heavily soiled items
^Place very large plates in the centre
of the lower basket.
When tilted, plates up to 35 cm in
diameter can be accommodated.
Loading the dishwasher
20
